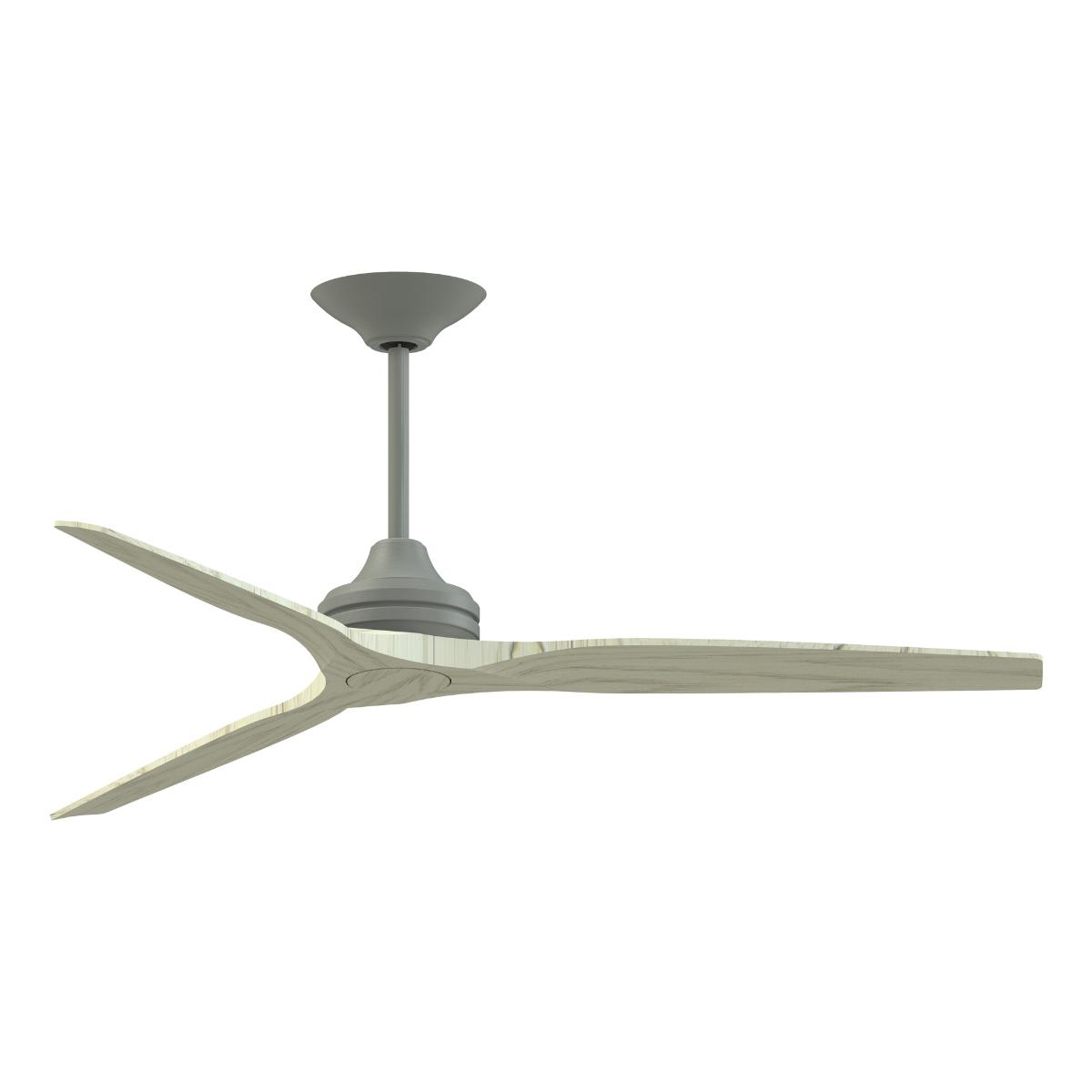

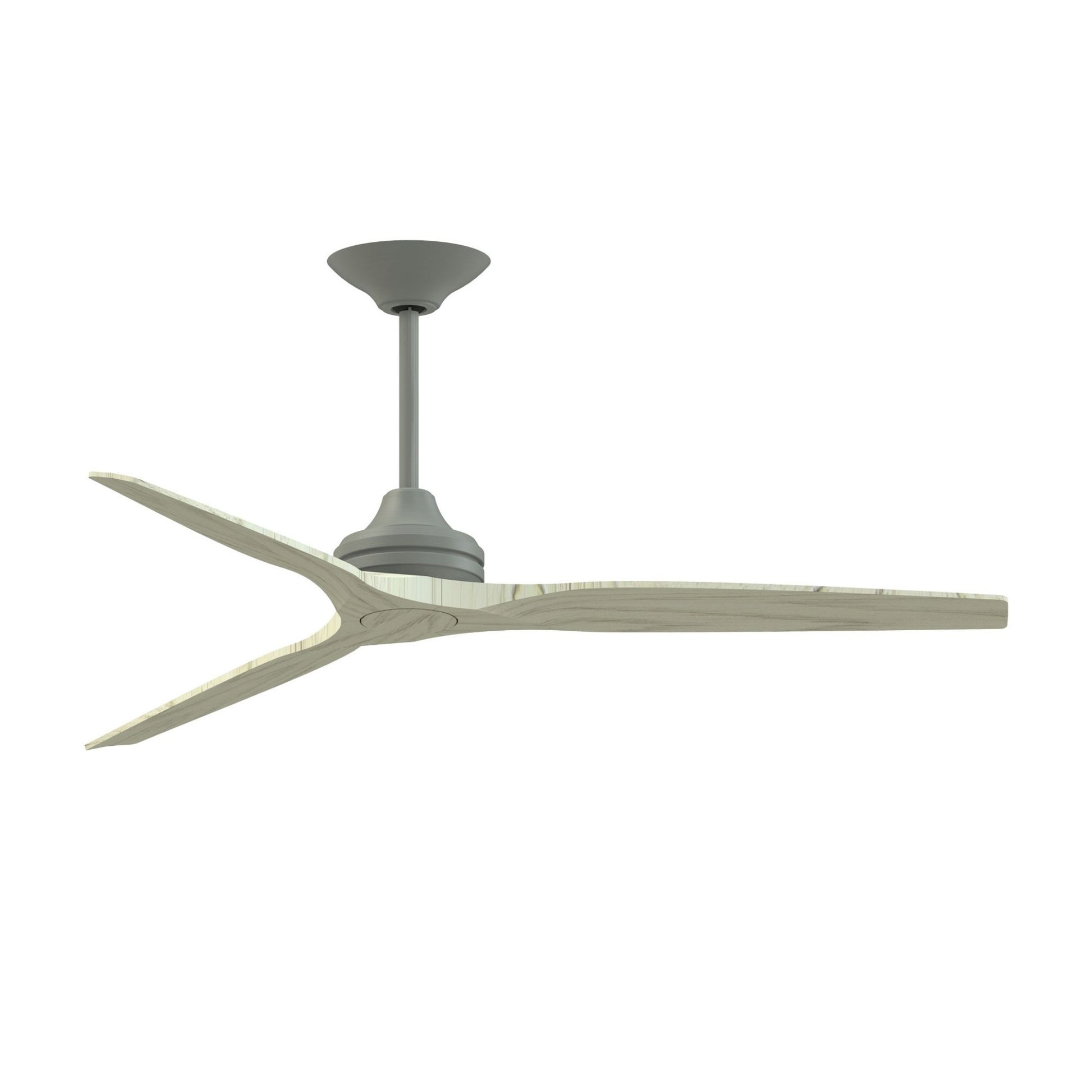

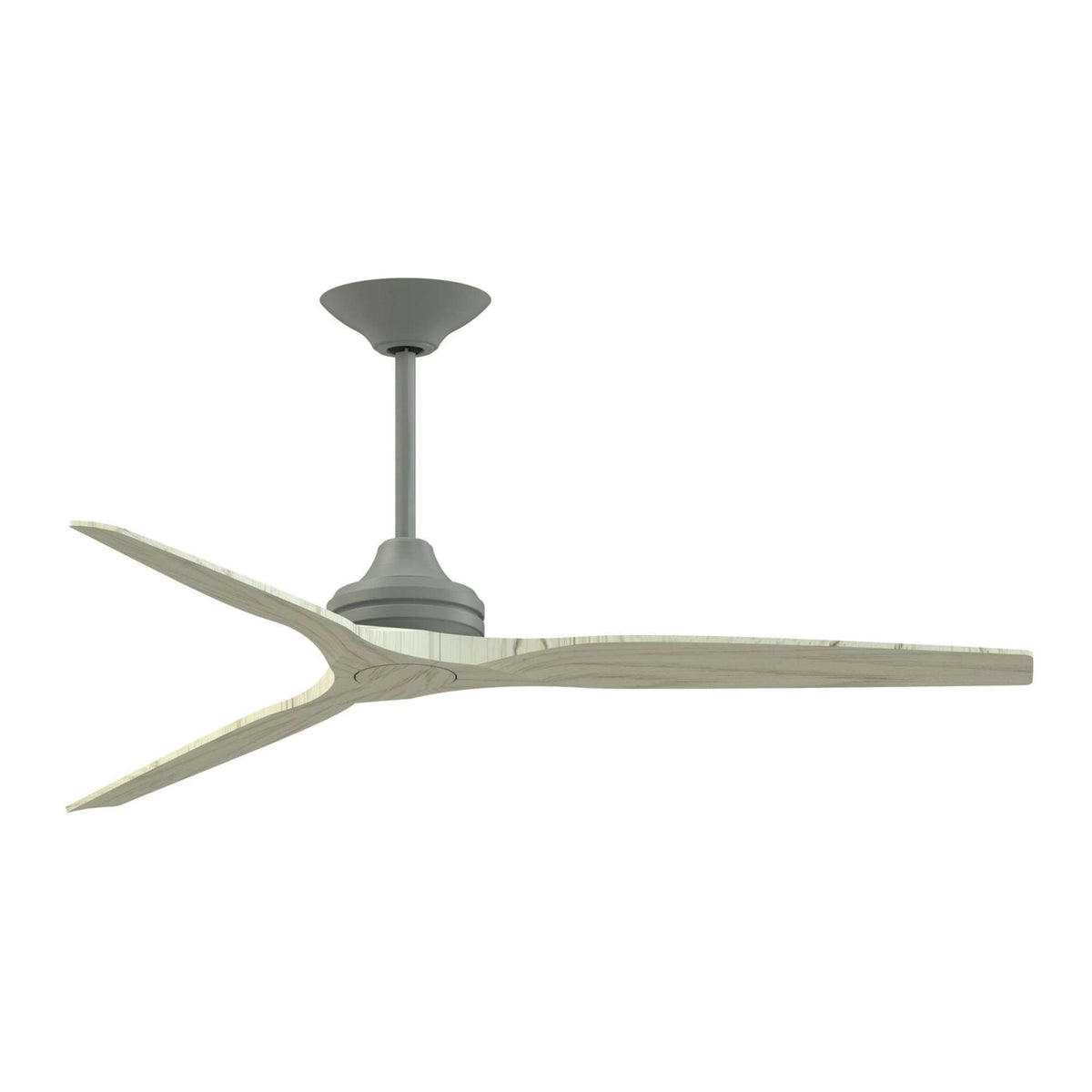

Fanimation Spitfire 64 in DC Ceiling Fan Motor — Antique Graphite

The Fanimation Spitfire (model MAD6721AGP) is a 64 in damp-rated DC ceiling fan motor built around Fanimation’s customizable Spitfire platform — letting you pair your motor with the blade finish and light kit of your choice for a fully personalized ceiling fan. The DC153×22mm sensorless DC motor delivers 8,284 CFM at high speed at just 29W — an efficiency of 285 CFM/W — sized for rooms over 400 sq ft. The Antique Graphite finish brings a dark, warm-toned metallic character with subtle depth — pairing naturally with walnut, espresso, or driftwood blade sets for a refined, design-forward aesthetic. A WiFi receiver and TR360 hand-held remote are included, with access to the free fanSync WiFi app for smart home control. Damp location rated — suitable for covered outdoor spaces, bathrooms, and humid environments.

⚠️ Blades sold separately. This listing is for the Spitfire motor unit only. Compatible 3-blade paulownia blade sets (B6720-64) are available separately at Bees Lighting. Optional matching light kit — LK6721BDC-AGP (18W 5CCT dimmable LED, 545–579 lumens, 3,000/4,000/5,000K, CRI 90 — includes Fresnel & frosted shades) — is also available separately at Bees Lighting.

Key Specifications

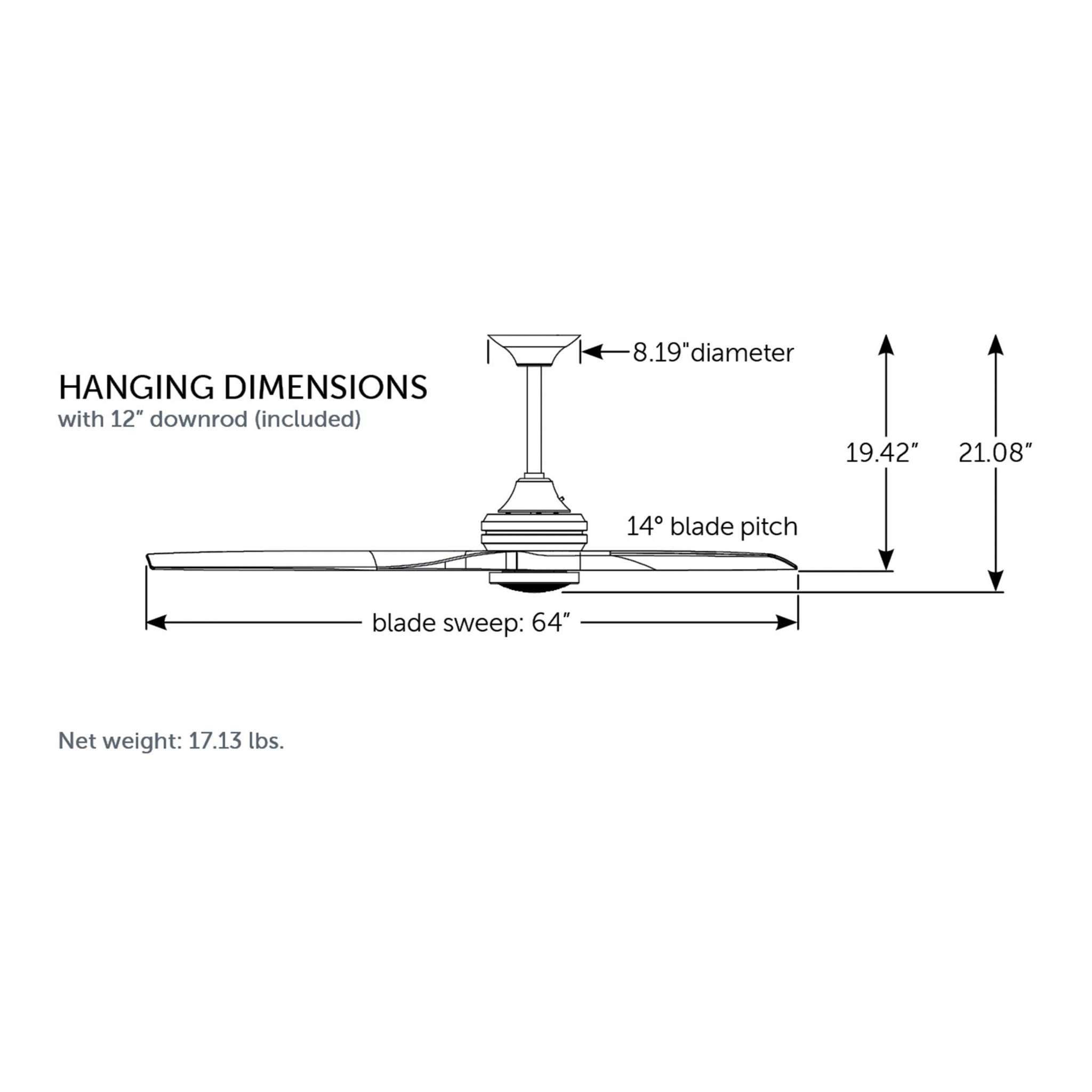

• Blade Span: 64 in | 14° pitch (blades sold separately — B6720-64 compatible)
• Motor: DC — 153×22mm sensorless | 6 speeds | Reversible
• Airflow: 1,971 CFM (low/1st) / 5,040 CFM (med/4th) / 8,284 CFM (high/6th)
• Efficiency: 285 CFM/W (high) | 420 CFM/W (med) | 657 CFM/W (low)
• Watts: 3W (low) / 12W (med) / 29W (high)
• RPM: 50 (low) / 123 (med) / 169 (high)
• Room Size: Over 400 sq ft
• Location Rating: Dry & Damp

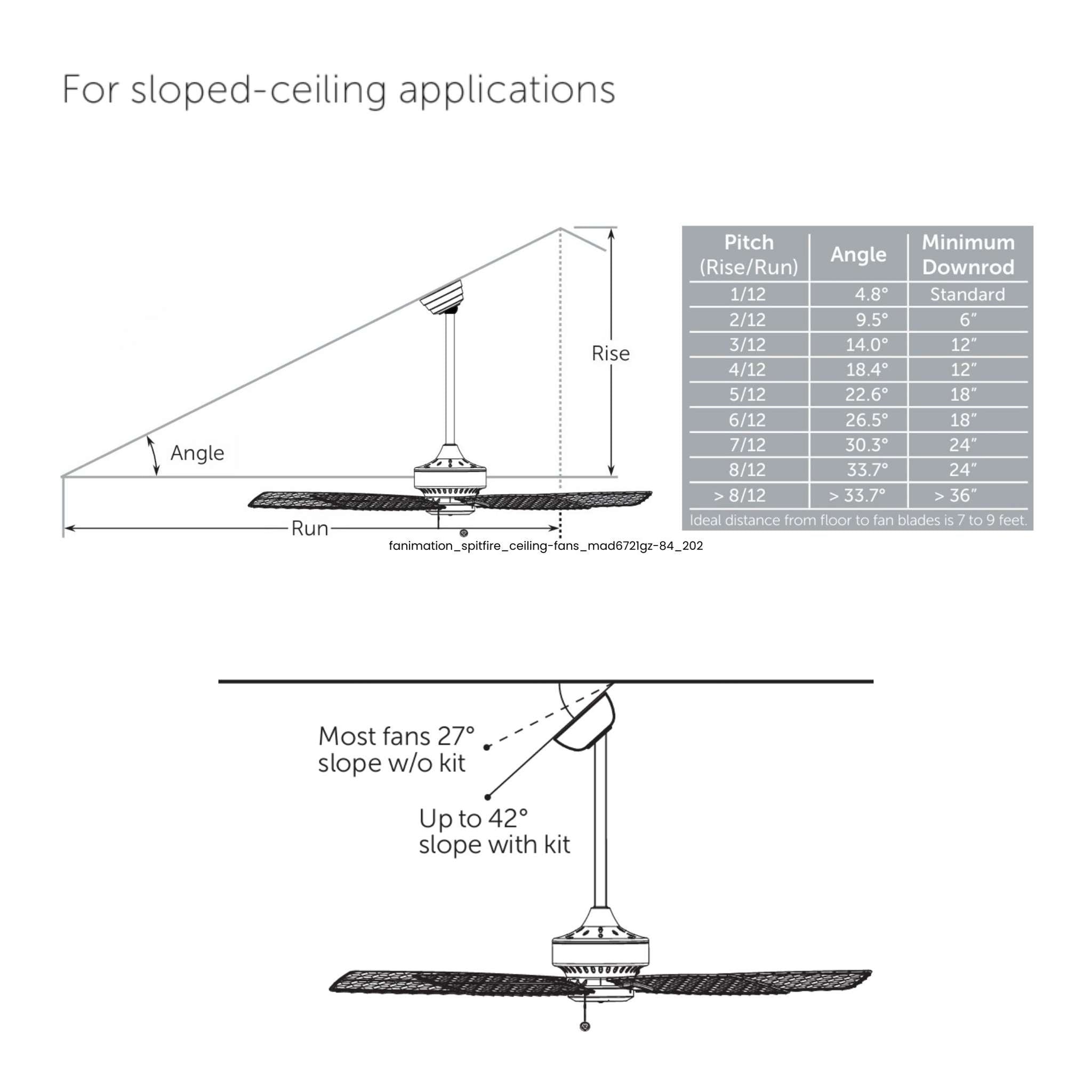

• Sloped Ceiling Compatible: Yes (up to 27° standard | 18 in downrod recommended | SCB1-52 kit for 27°–42°)
• Downrod: 1 in dia. × 6 in + 1 in dia. × 12 in both included | Optional: 18, 24, 36, 48, 60, 72 in

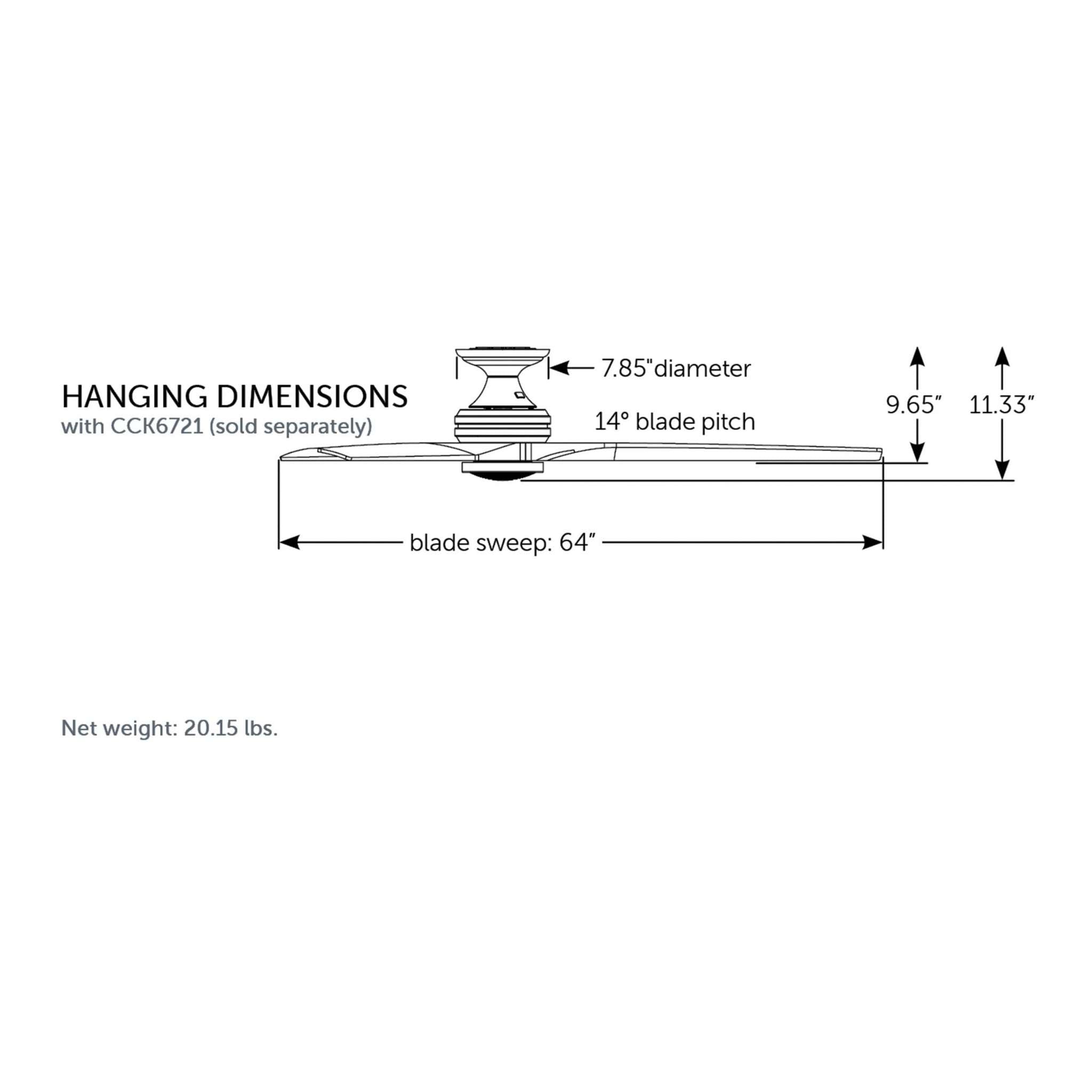

• Canopy: 8.76 in dia. (motor only) | 7.85 in dia. (with CCK6721)
• Min. Ceiling Height: 7 ft | Net hanging weight: 17.76 lbs
• Light Kit: LK6721BDC-AGP — 18W | 5CCT | 545–579 lumens | CRI 90 | sold separately at Bees Lighting
• Decorative Cap: CAP6721 — sold separately at Bees Lighting
• Controls: WiFi receiver + TR360 remote included | fanSync WiFi app (free) | Optional TW406 wall control (sold separately)

Compatible Accessories (sold separately at Bees Lighting)

• Blade Set: B6720-64 — 3-blade paulownia sets in multiple finishes
• Light Kit: LK6721BDC-AGP — matching Antique Graphite finish | 18W 5CCT dimmable LED | 545–579 lumens | 3,000/4,000/5,000K | CRI 90 | includes Fresnel & frosted shades | Damp rated
• Flush Mount Kit: CCK6721 — for low-ceiling installations
• Decorative Cap: CAP6721
• Sloped Ceiling Kit: SCB1-52 — for slopes 27°–42°
• Wall Control: TW406 (sold separately)

Control Features

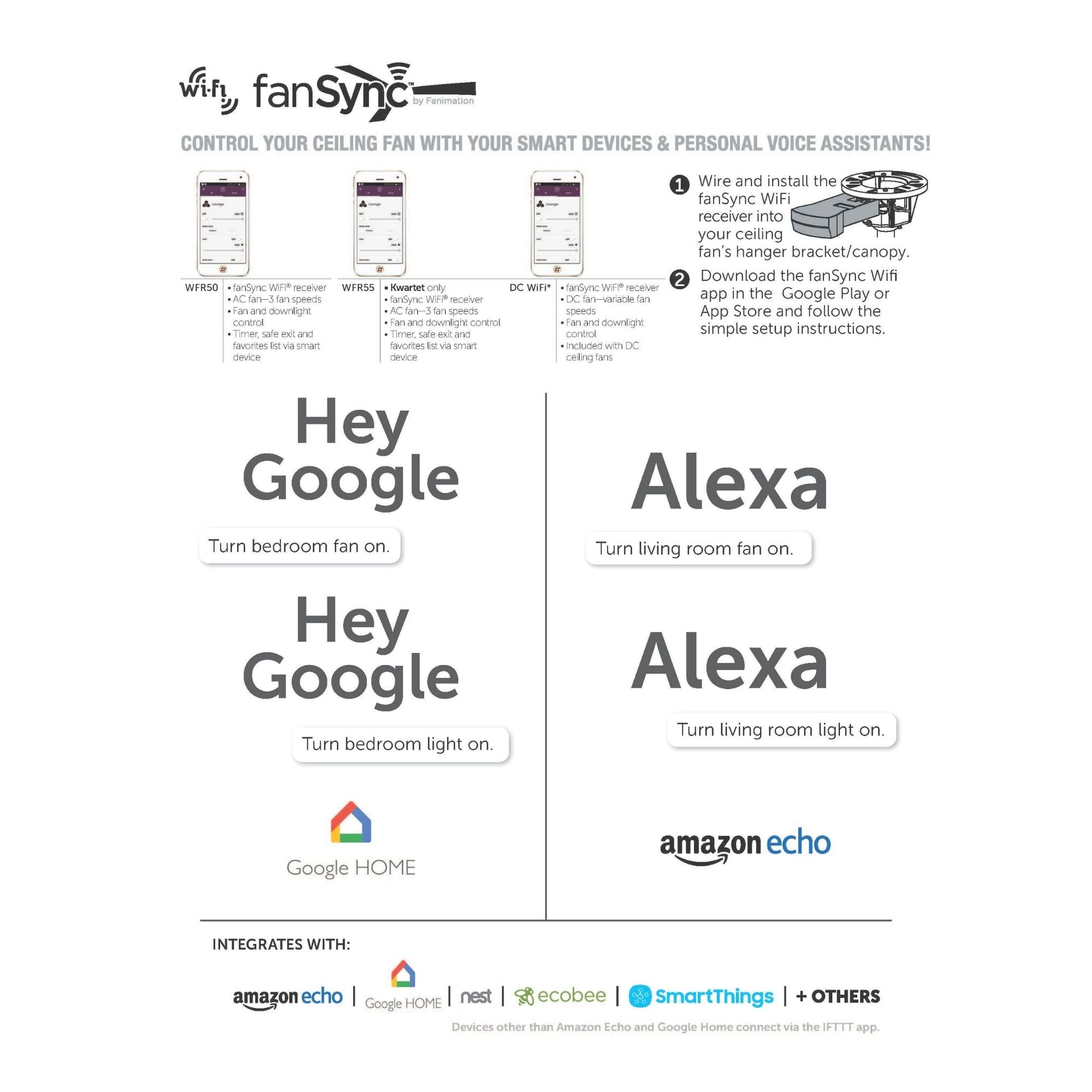

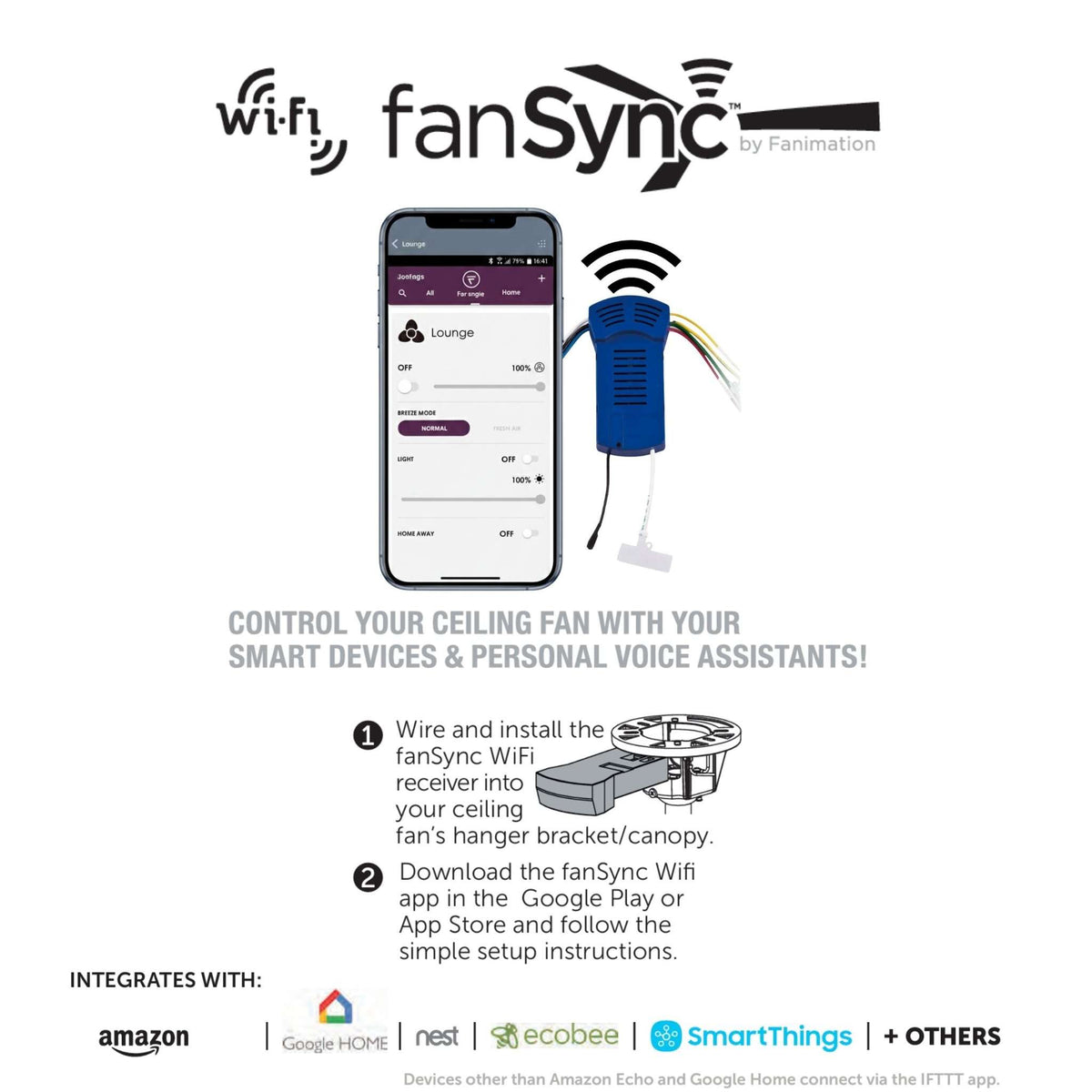

The Spitfire MAD6721AGP includes a WiFi receiver and TR360 hand-held remote with 6-speed fan control, fresh air mode, reverse, ON/OFF, and dimmer light levels with 5CCT select. Download the free fanSync WiFi app (Apple App Store or Google Play) and create your Fanimation fanSync account for smart home integration. The optional TW406 wall control is available separately at Bees Lighting.

Construction & Design

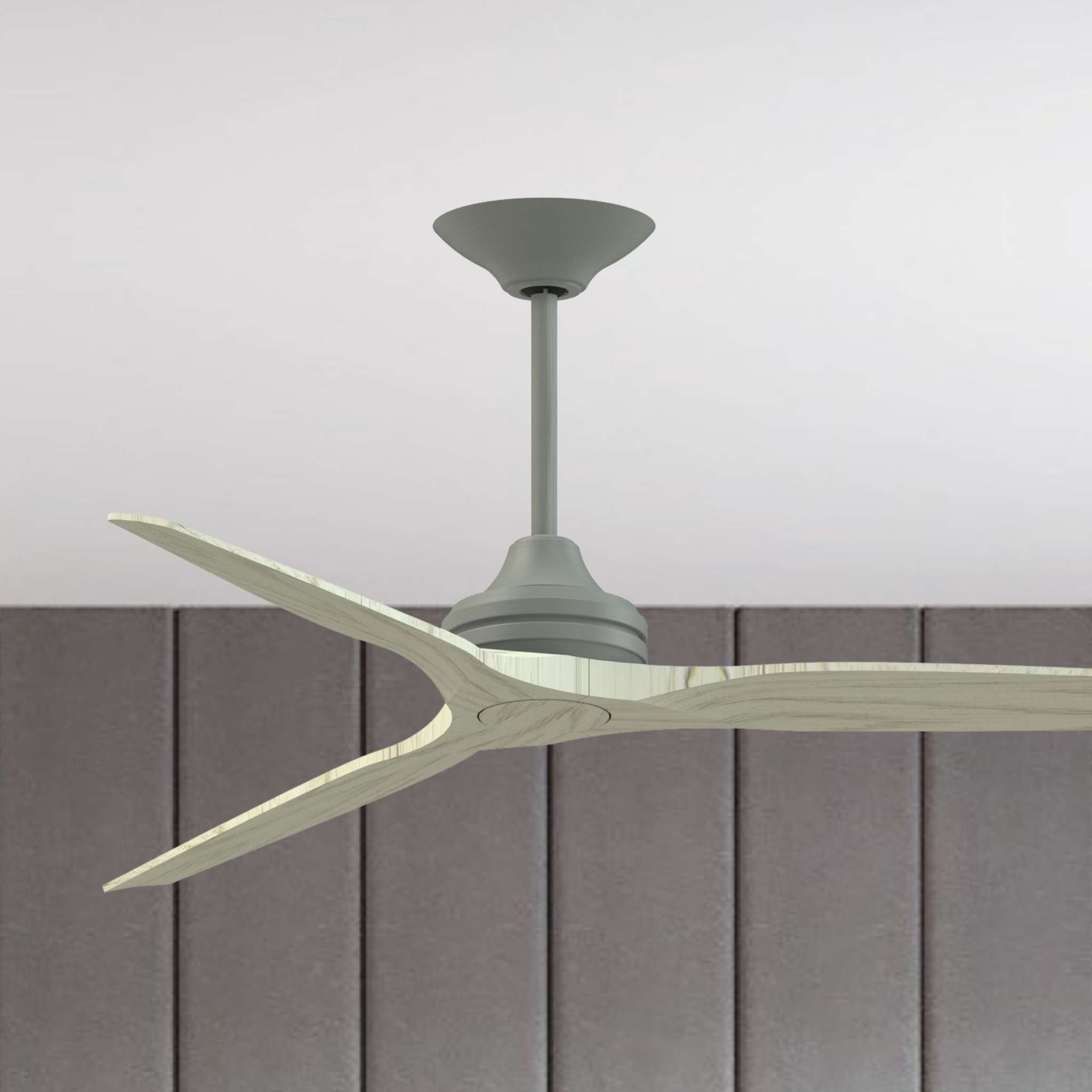

The Spitfire’s clean, swept-blade silhouette is defined by its 3-blade customizable format — a minimalist profile that keeps the focus on the blade finish you choose. At 64 in with a sensorless DC motor, this model delivers significantly higher efficiency and quieter operation than the AC versions. The Antique Graphite motor housing brings a dark, warm-toned metallic finish with subtle depth — pairing naturally with walnut, driftwood, or dark-stained blade sets for a refined, design-forward look in contemporary and transitional large-room installations. Damp rated — suitable for covered porches, bathrooms, and humid interior environments.

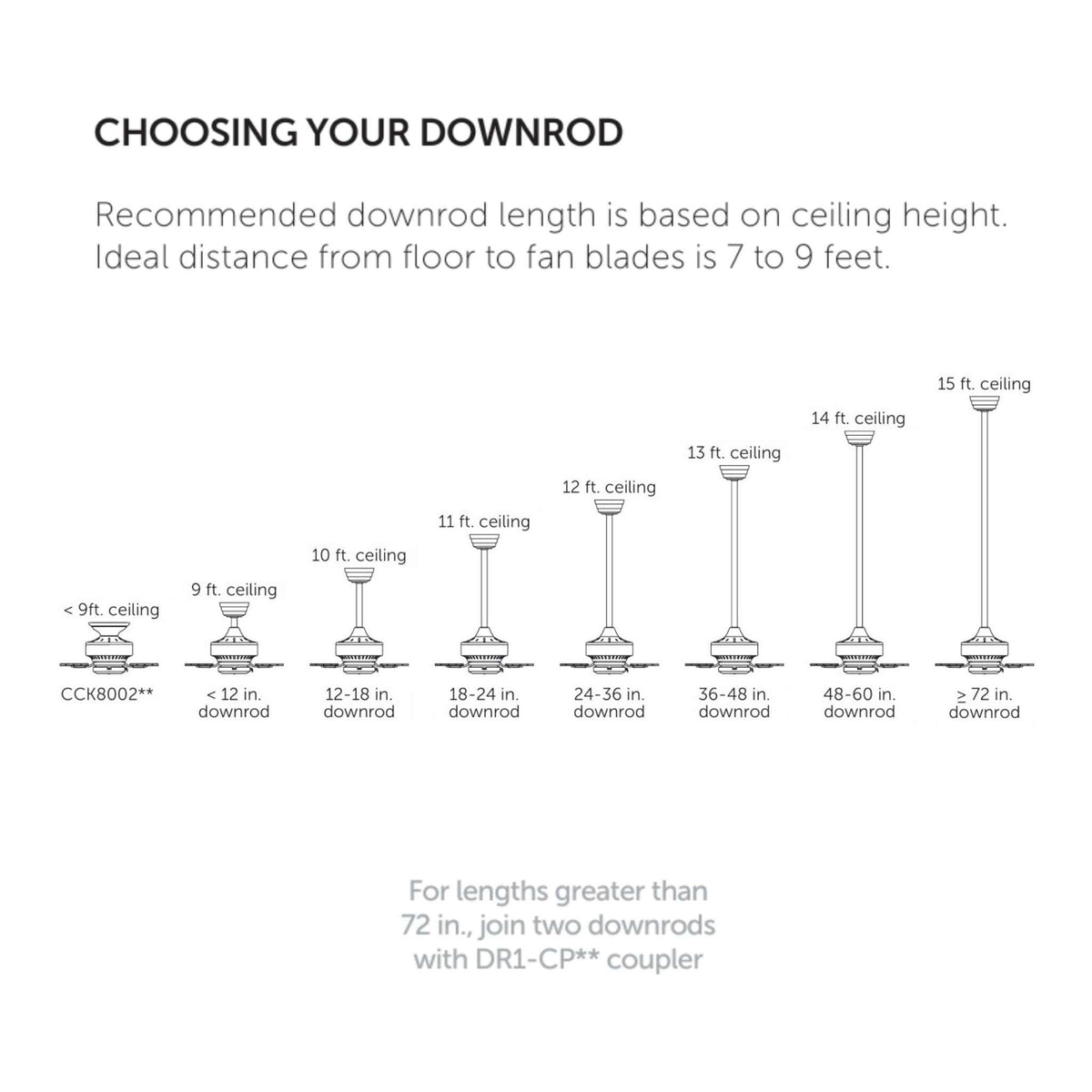

Suggested Downrod by Ceiling Height

Ideal distance from floor to fan blades is 7 to 9 feet. Two downrods (6 in and 12 in) are included.

• Below 9 ft ceiling → Flush mount kit CCK6721 (no downrod)
• 9 ft ceiling → 6 in downrod (included)
• 10 ft ceiling → 12 in downrod (included)
• 11 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 13 ft ceiling → 36 in downrod
• 14 ft ceiling → 48 in downrod
• 15 ft ceiling → 60 in downrod
• 16 ft ceiling → 72 in downrod

What’s Included

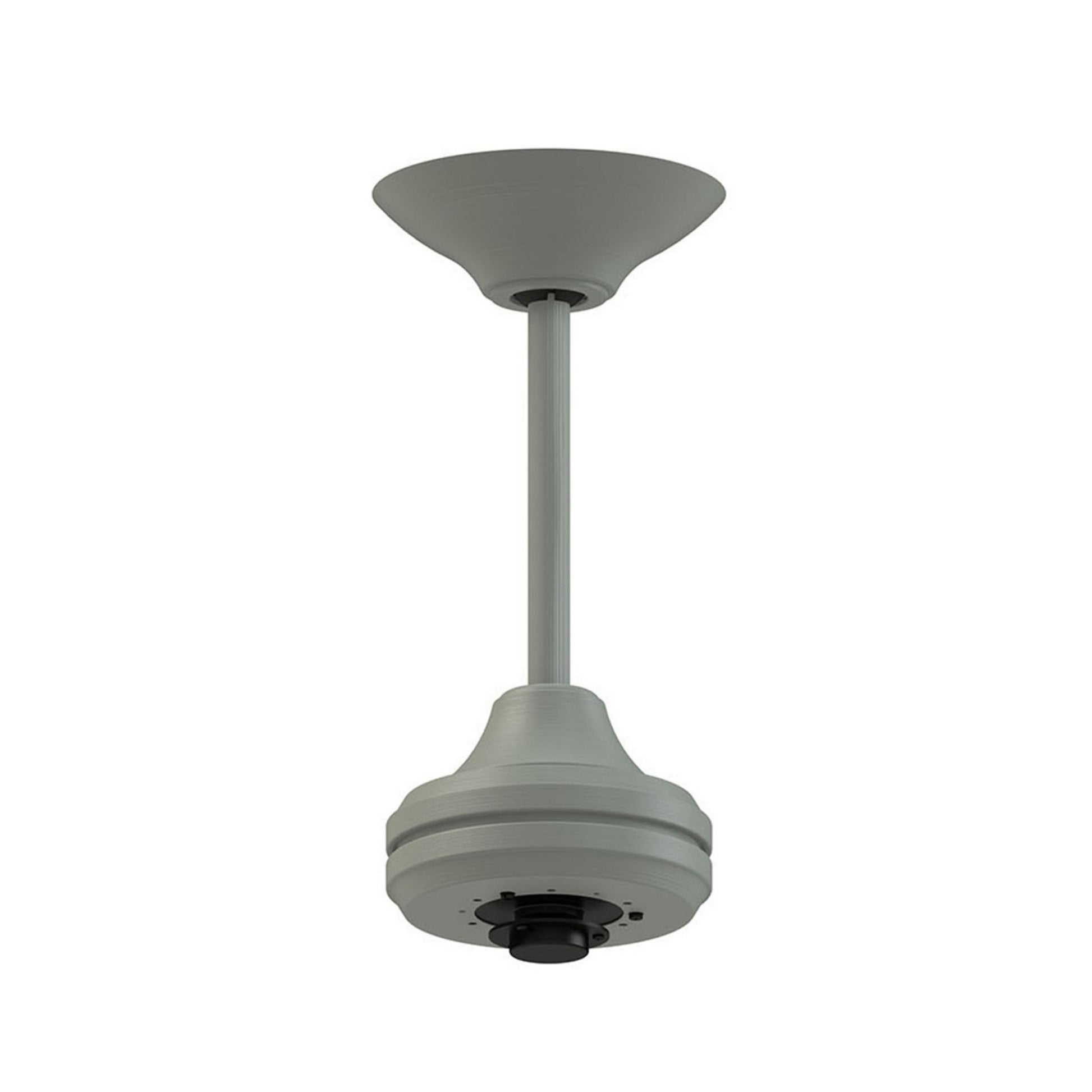

• Fanimation Spitfire MAD6721AGP 64 in DC ceiling fan motor unit
• WiFi receiver + TR360 hand-held remote control
• 1 in × 6 in downrod + 1 in × 12 in downrod
• Mounting hardware
• Blades and light kit not included — sold separately at Bees Lighting
