Fanimation Spitfire MAD6721 64 in DC Ceiling Fan Motor

Build a custom propeller-style fan around the Spitfire 64 in DC motor platform, then choose the blade finish to suit your room. A TR360 remote and WiFi receiver are included for convenient control. This listing is for the motor unit only. Required B6720-64 blades and the optional matching LED light kit are sold separately. Damp rated for indoor and covered outdoor locations protected from direct rain.

Key Features

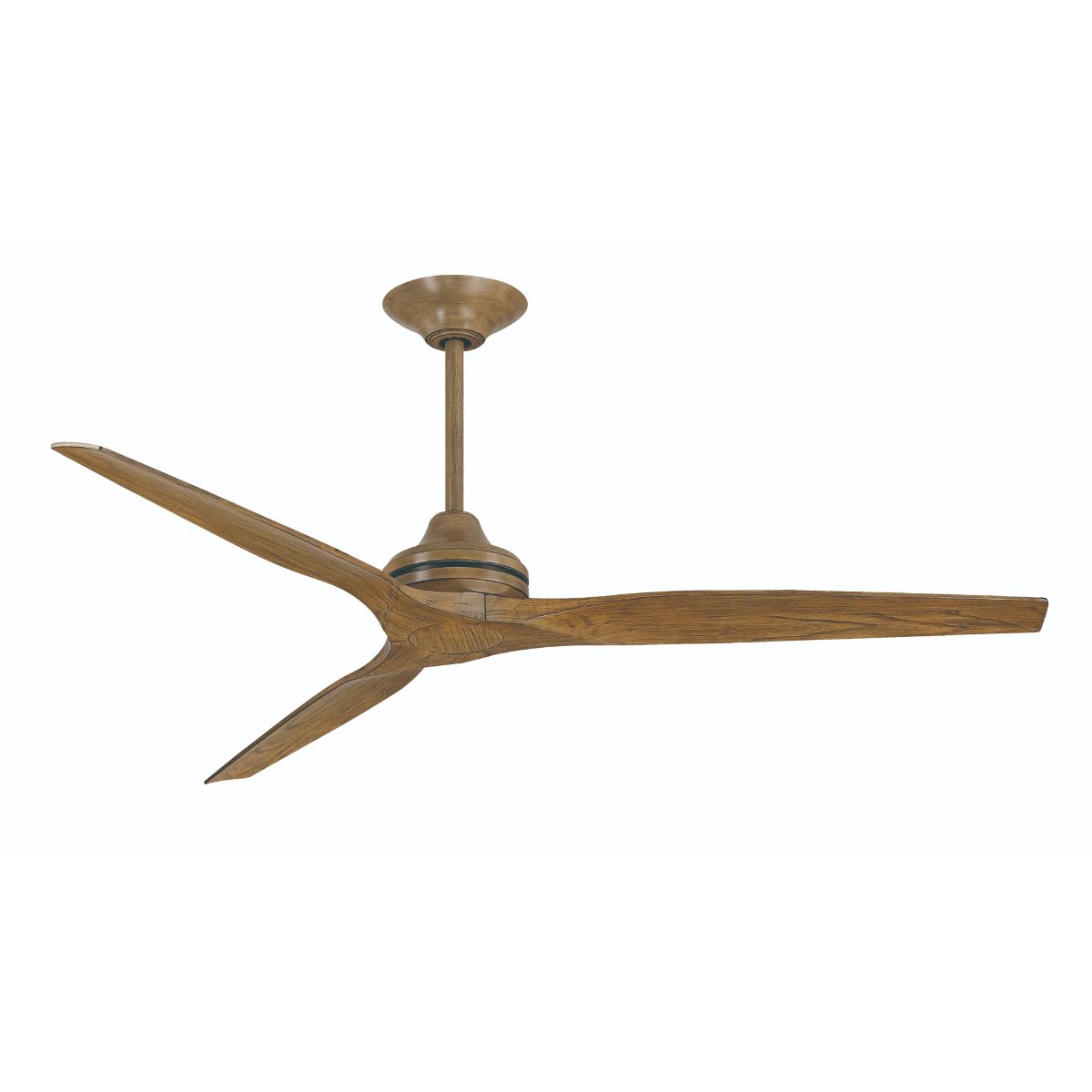

• Completed sweep: 64 in with the separately purchased B6720-64 three-blade set.
• Motor: Sensorless DC platform for the 64 in configuration.
• Smart control: WiFi receiver and TR360 remote included.
• App access: fanSync WiFi smartphone control.
• Location: Damp rated for sheltered outdoor and indoor use.
• Lighting: Optional finish-matched LK6721BDC LED kit.
• Downrods: Both 6 in and 12 in lengths included, each 1 in diameter.
• Optional installation accessories: CCK6721 close-to-ceiling kit and SCB1-52 slope ceiling kit.

Smart & Control Features

The included TR360 remote and WiFi receiver provide fan control without purchasing an additional WiFi accessory. Use the free fanSync WiFi app for smartphone operation. The optional TW406 wall control is sold separately. Light operation requires the compatible optional LED kit; no light is included with the motor.

Construction & Design

The 64 in measurement is the completed blade sweep, not the motor housing diameter. Choose a separately purchased B6720-64 three-blade paulownia set to create the propeller profile. Motor finish, model and optional matching light kit pairings are:

• Black: MAD6721BL motor; LK6721BDC-BL light kit.
• Brushed Brass option: Brushed Satin Brass MAD6721BS motor; LK6721BDC-BS light kit.

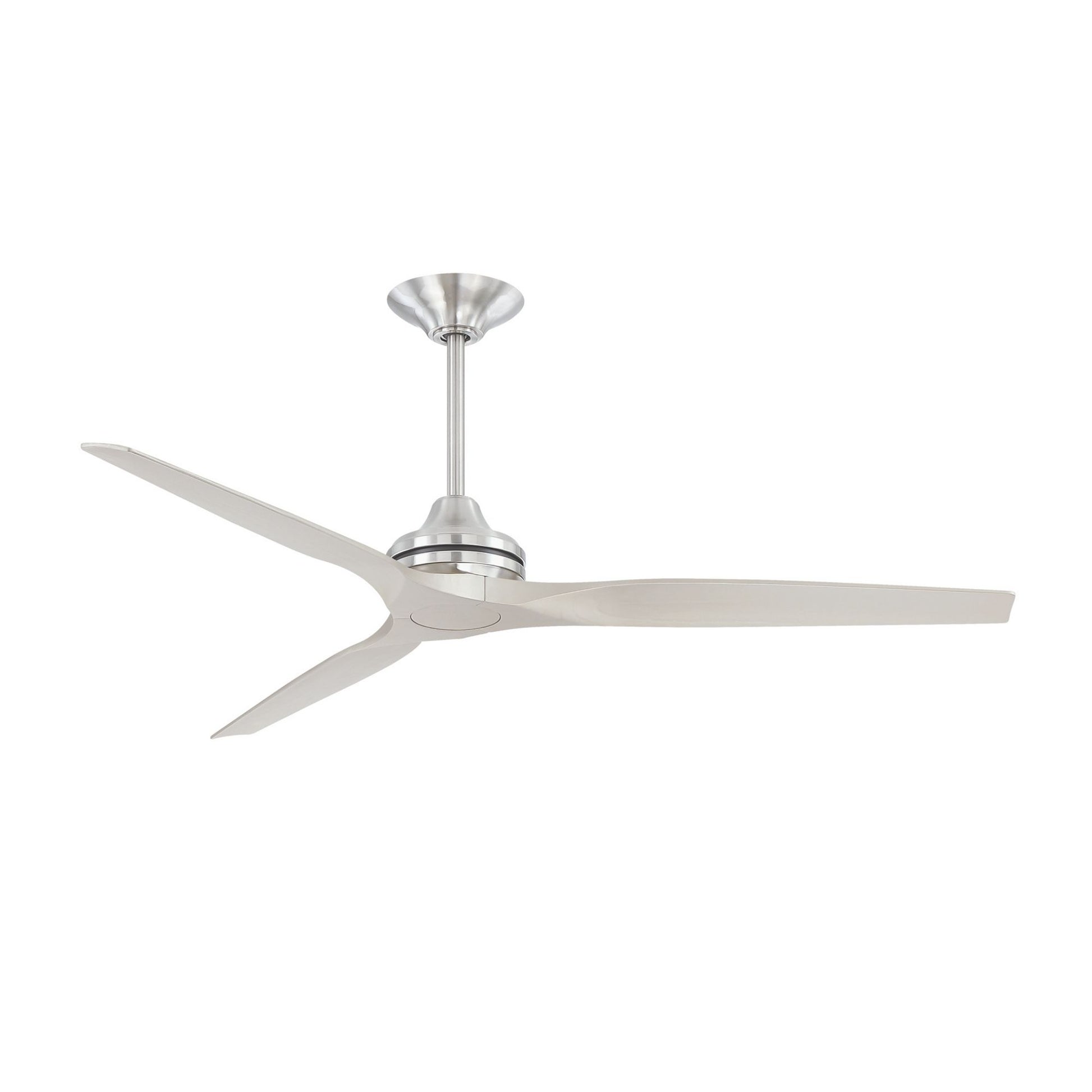

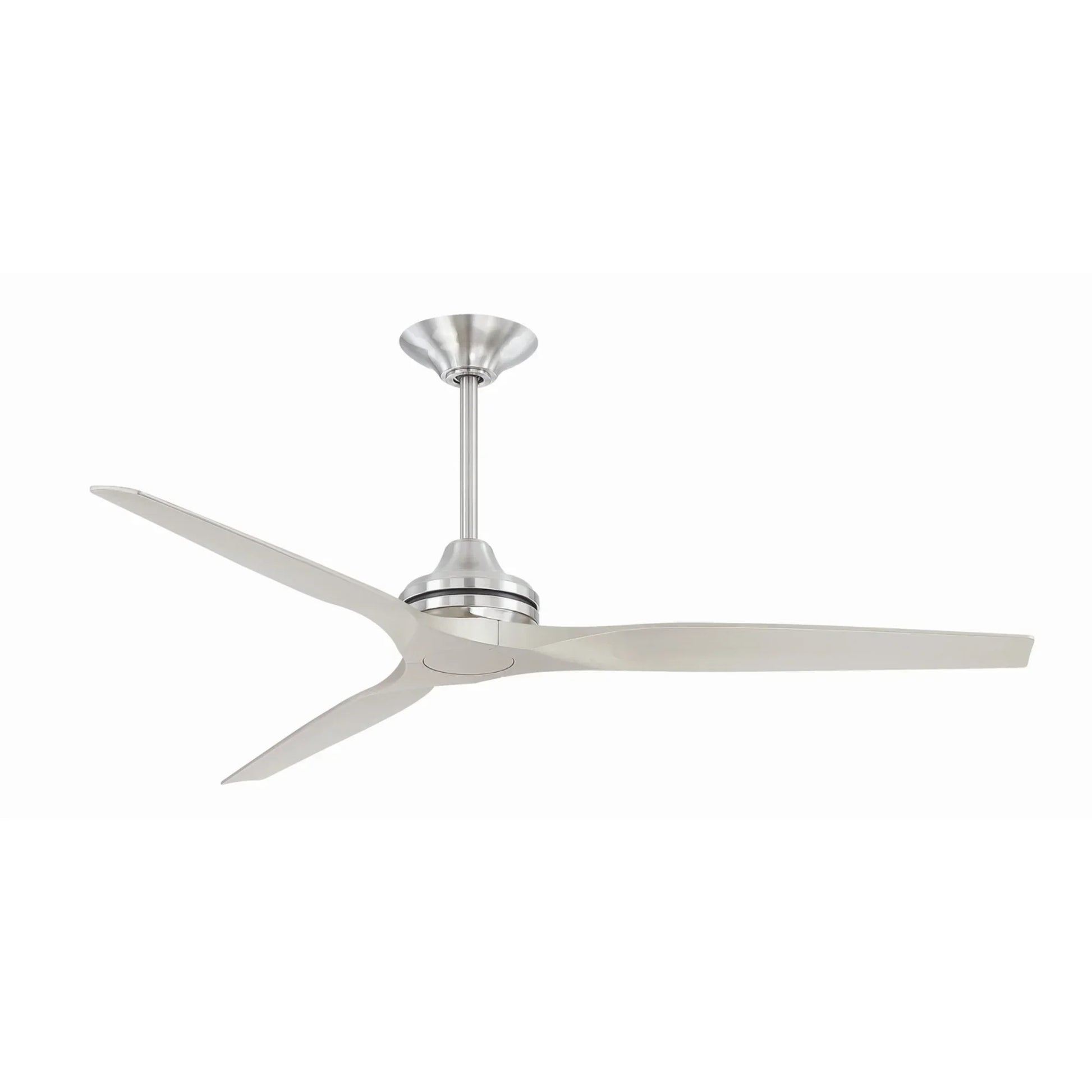

• Brushed Nickel: MAD6721BN motor; LK6721BDC-BN light kit.

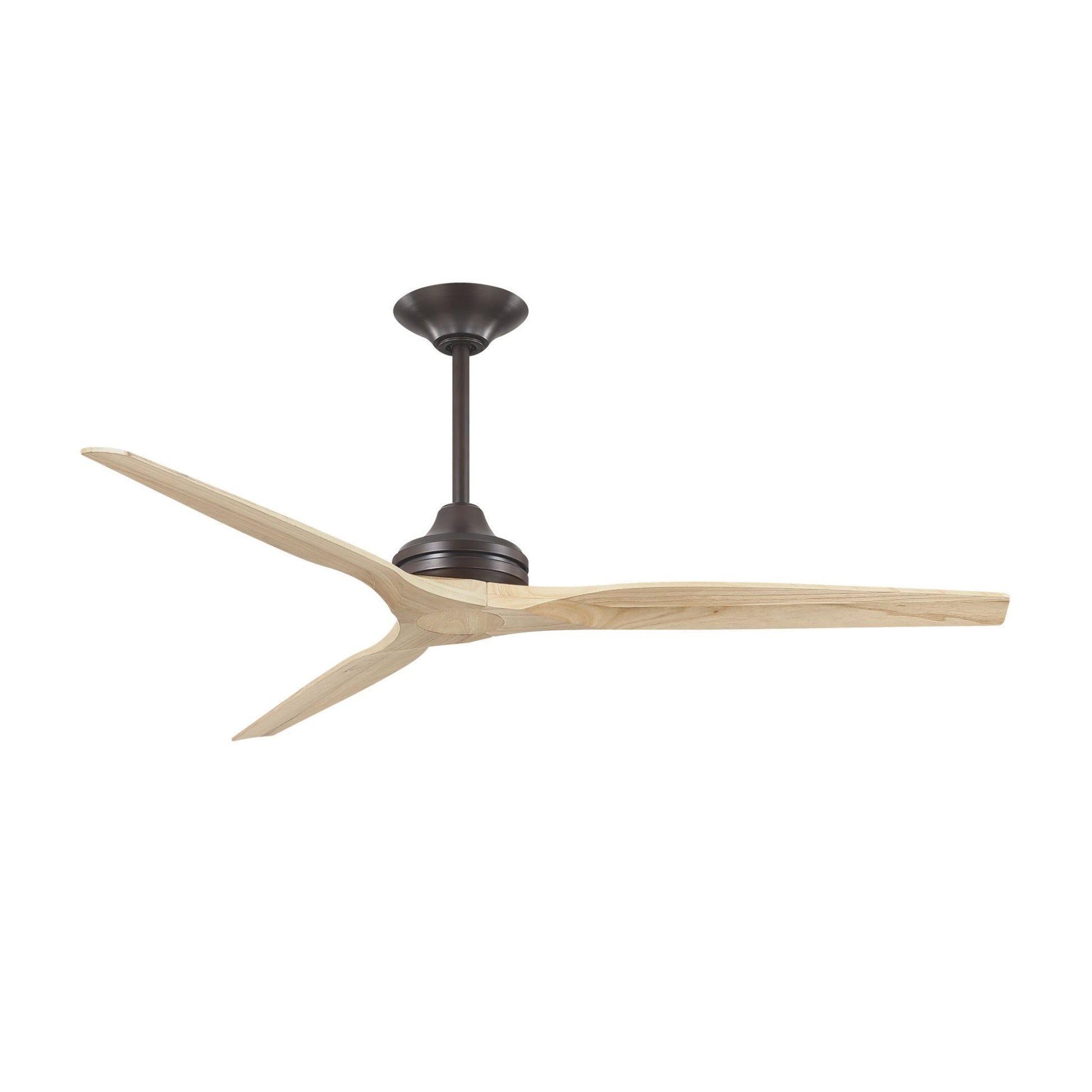

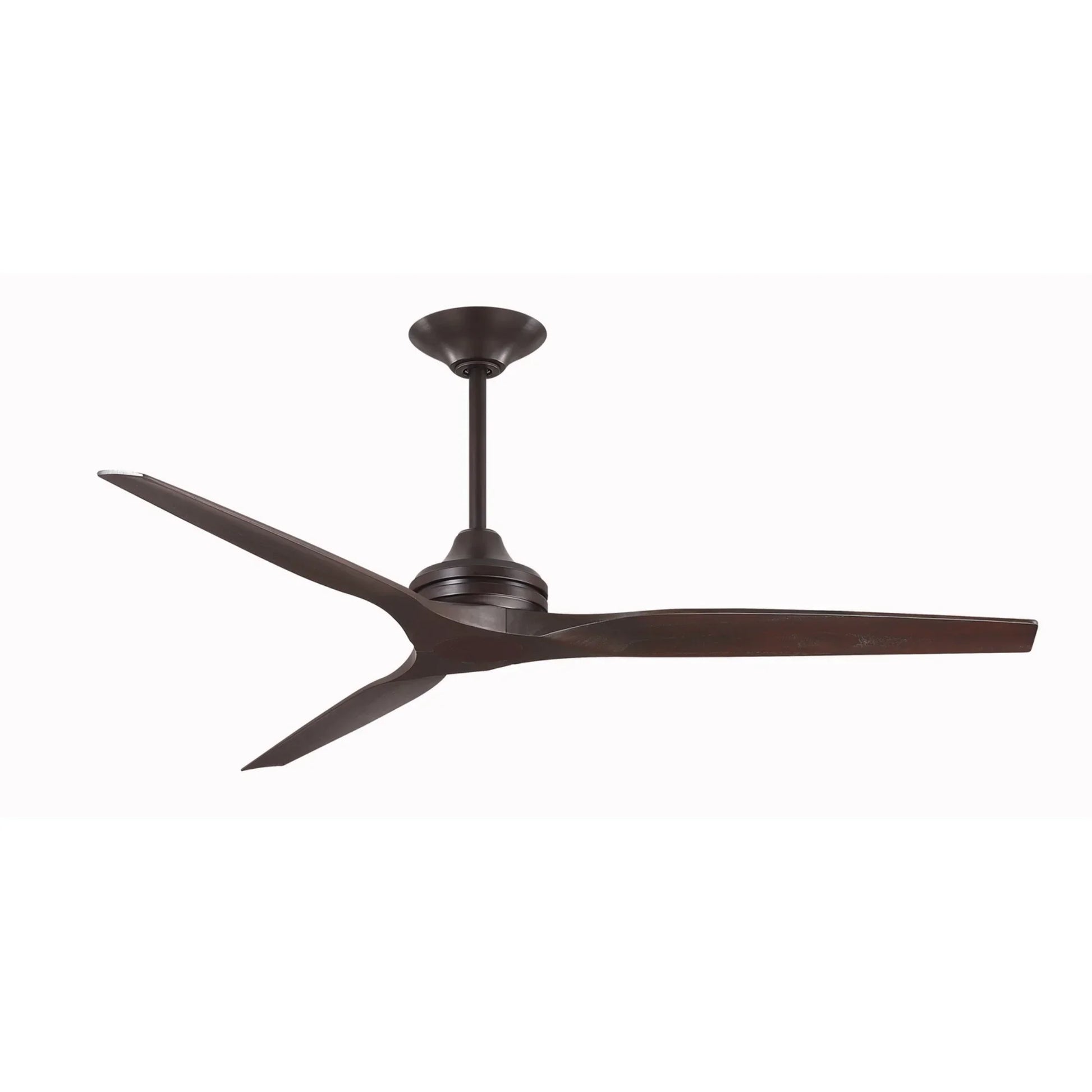

• Dark Bronze: MAD6721DZ motor; LK6721BDC-DZ light kit.
• Galvanized: MAD6721GZ motor; LK6721BDC-GZ light kit.

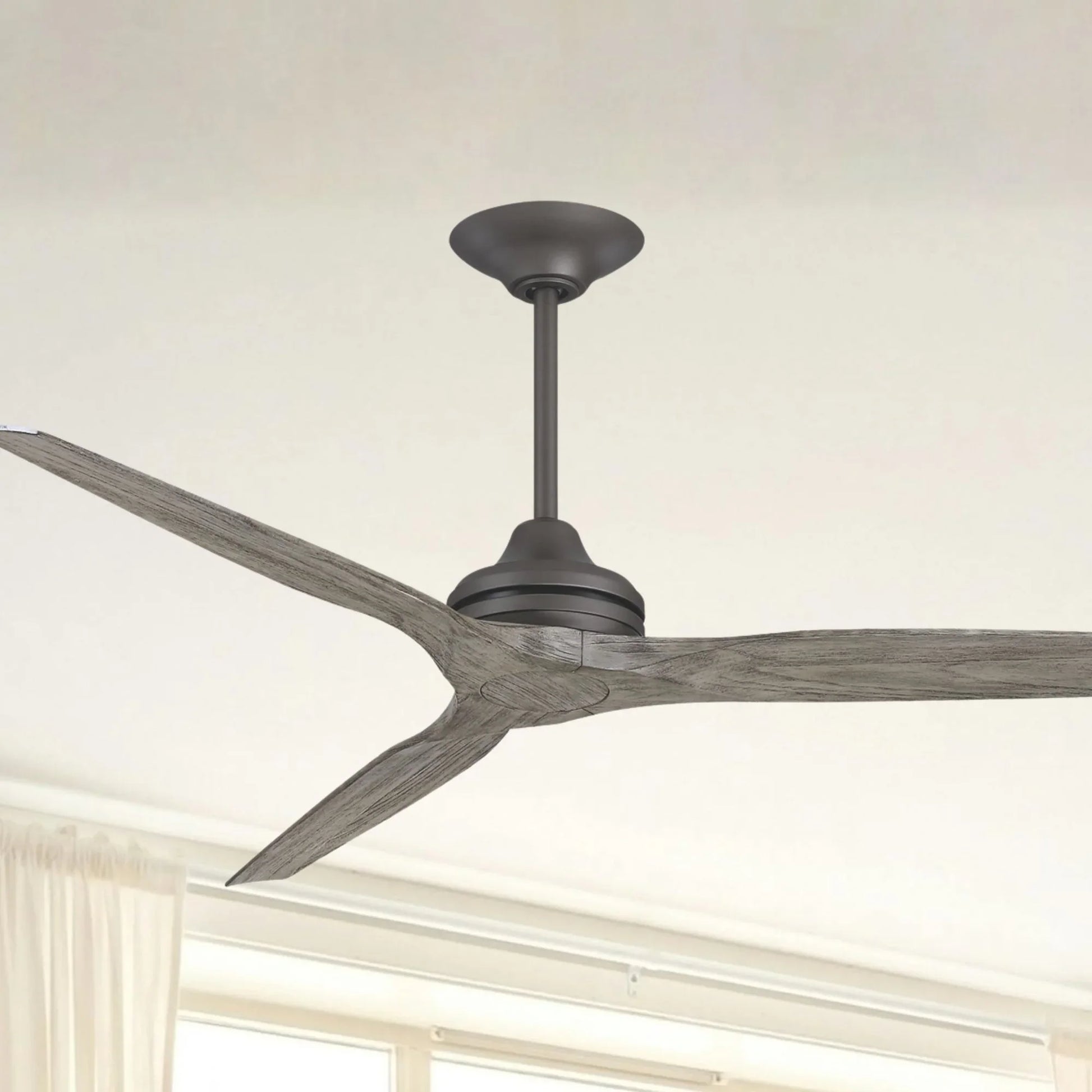

• Matte Greige: MAD6721GR motor; LK6721BDC-GR light kit.
• Matte White: MAD6721MW motor; LK6721BDC-MW light kit.

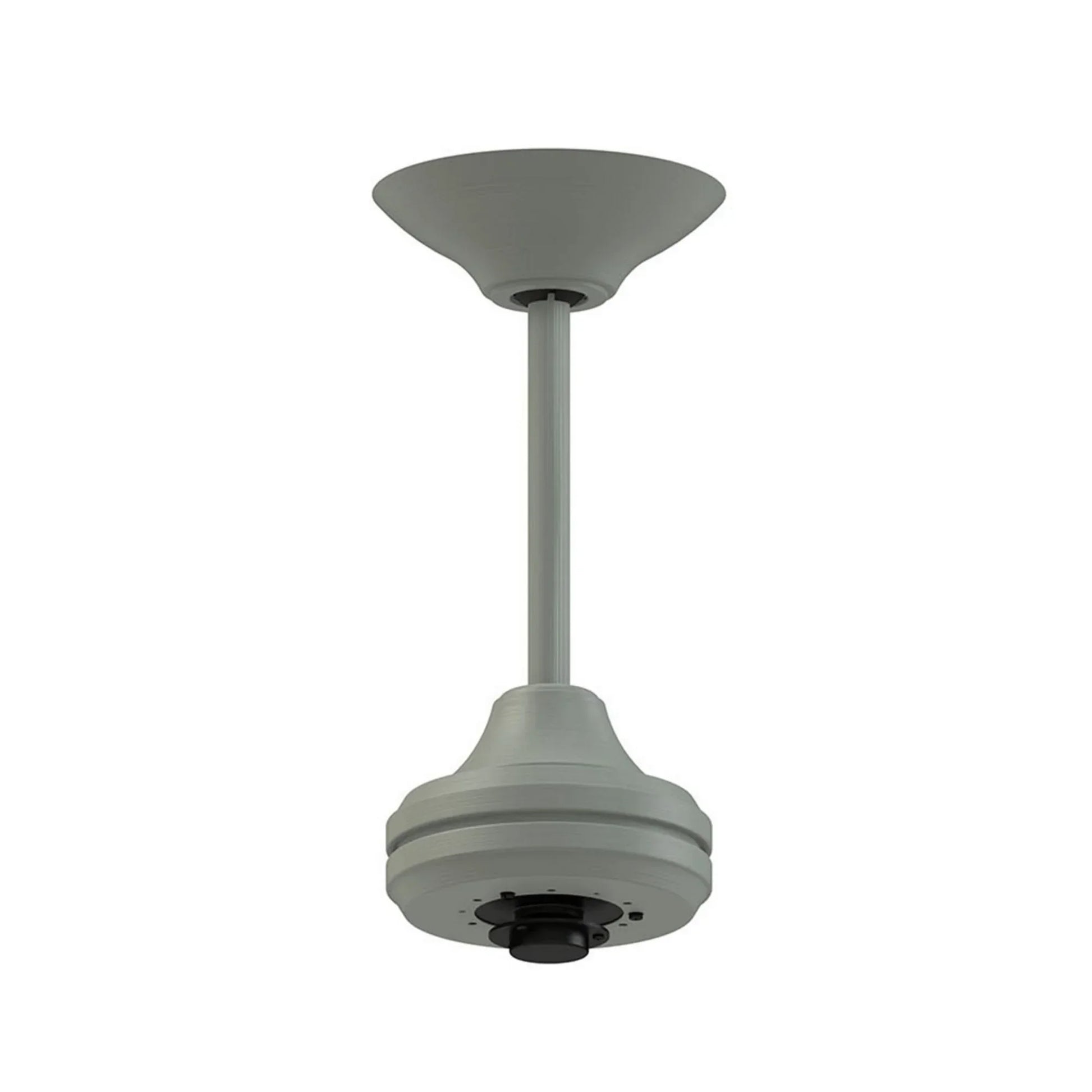

• Graphite option: Antique Graphite MAD6721AGP motor; LK6721BDC-AGP light kit.

Light Output & Performance

No light kit is included. The optional matching LK6721BDC family kits listed above use an 18W LED source with 545–579 lumens, 90 CRI and selectable 3000K, 4000K or 5000K. Kits include Fresnel and frosted shades. The motor must be paired with the required B6720-64 blades to complete the fan.

Electrical & Installation

Designed for 120V operation. Both 6 in and 12 in downrods are included, each with 1 in diameter. For a sloped ceiling up to 27°, use an optional 18 in downrod. For slopes beyond 27° up to 42°, add the optional SCB1-52 slope ceiling kit. Optional CCK6721 close-to-ceiling and CAP6721 decorative cap accessories are sold separately. Maintain at least 7 ft from floor to blades and protect damp-rated installations from direct rain.

Suggested Downrod by Ceiling Height

Both 6 in and 12 in downrods are included. Longer downrods and mounting accessories are sold separately. Adjust for ceiling slope and completed fan dimensions while preserving at least 7 ft floor-to-blade clearance.

• Below 9 ft ceiling → CCK6721 close-to-ceiling kit, only where required clearances can be maintained
• 9 ft ceiling → 6 in downrod included
• 10 ft ceiling → 12 in downrod included
• 11 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 13 ft ceiling → 36 in downrod
• 14 ft ceiling → 48 in downrod
• 15 ft ceiling → 60 in downrod
• 16 ft ceiling → 72 in downrod

What's Included

• Spitfire MAD6721 DC motor unit for the 64 in configuration in the selected finish
• TR360 hand-held remote and WiFi receiver
• 6 in downrod with 1 in diameter
• 12 in downrod with 1 in diameter
• Mounting hardware

B6720-64 blades and optional matching LK6721BDC light kit are not included and must be purchased separately.
