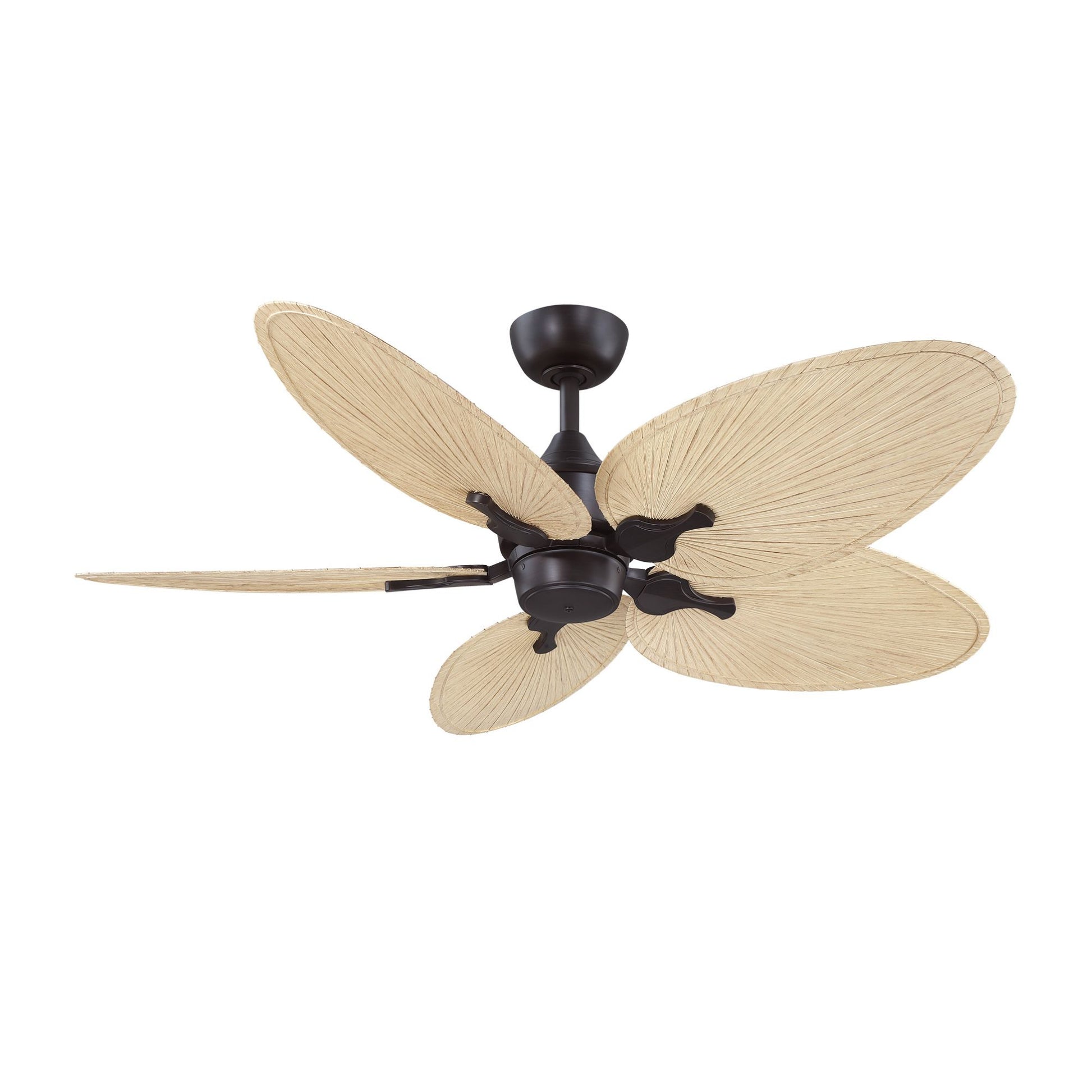

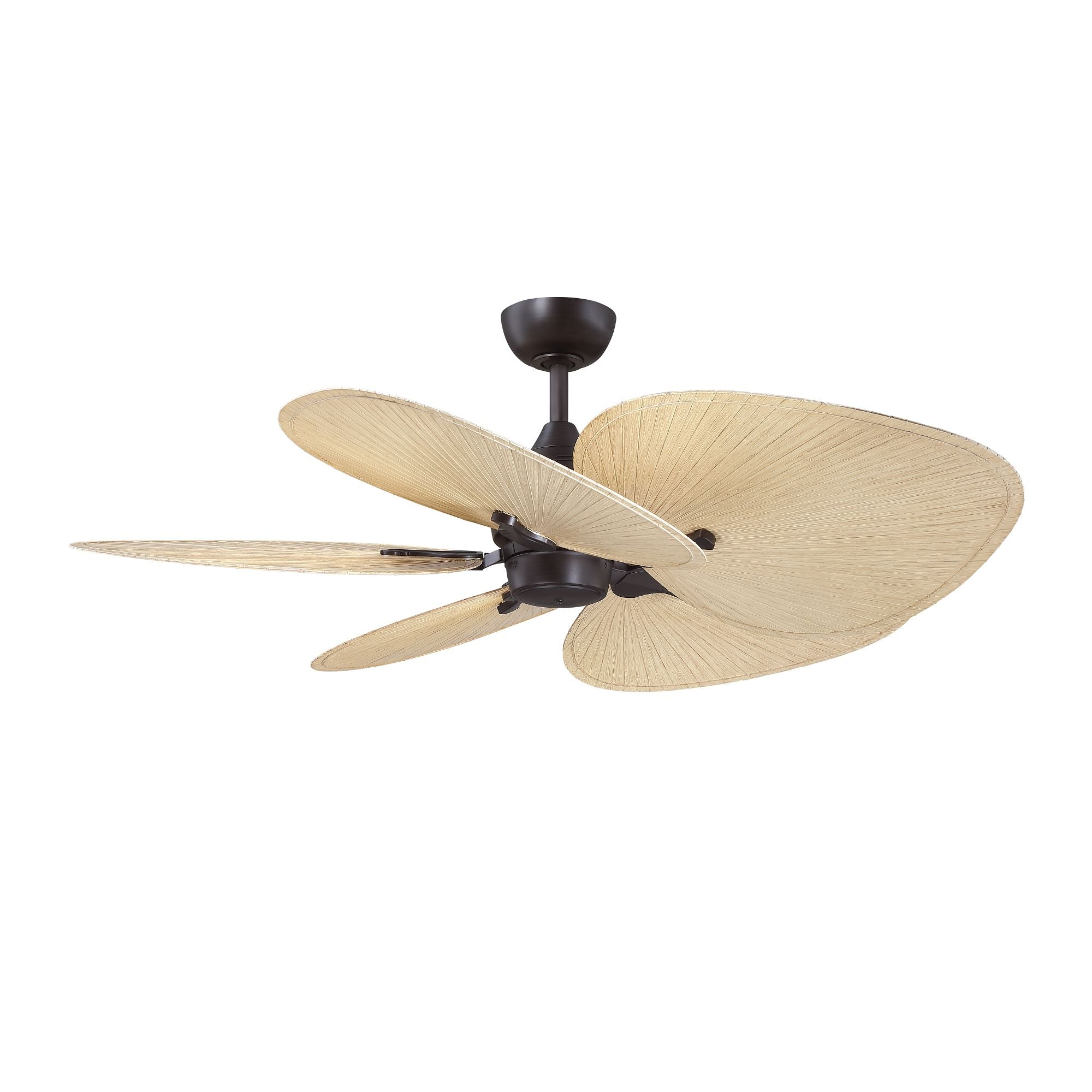

The Fanimation Islander DC MAD3250DZ is a 52 in DC ceiling fan motor in Dark Bronze finish featuring KwikWire easy connection, integrated native WiFi via fanSync, and the included TR360 hand-held remote. Blades are sold separately — choose from two palm blade series in three finishes. UL Listed for Damp Locations — indoor and covered outdoor use — backed by a limited lifetime warranty.

Performance figures below are tested with BPP4N blades in 52 in sweep. Actual airflow varies by blade set selected.

• Motor: DC 125NS — 6 speeds, reversible rotation (reverse switch on remote)
• Blade Span: 52 in — 5 blades (sold separately)
• Blade Pitch: 20°
• Airflow: 5,141 CFM high / 2,205 CFM low — 154 CFM/W high
• Wattage: 33W high / 3W low
• Location Rating: UL Listed for Damp Locations — Indoor and covered outdoor use.
• Control: TR360 hand-held remote + fanSync WiFi included

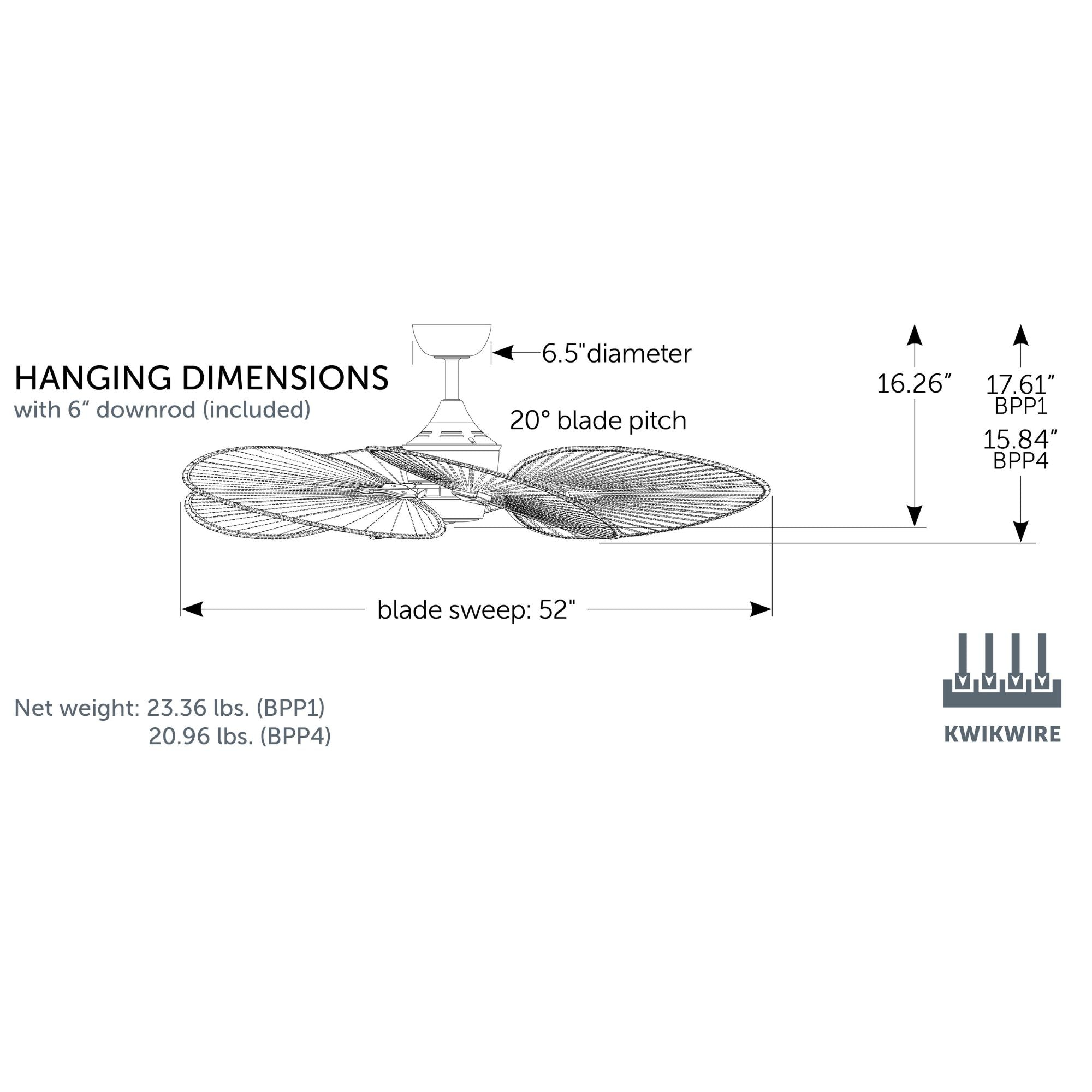

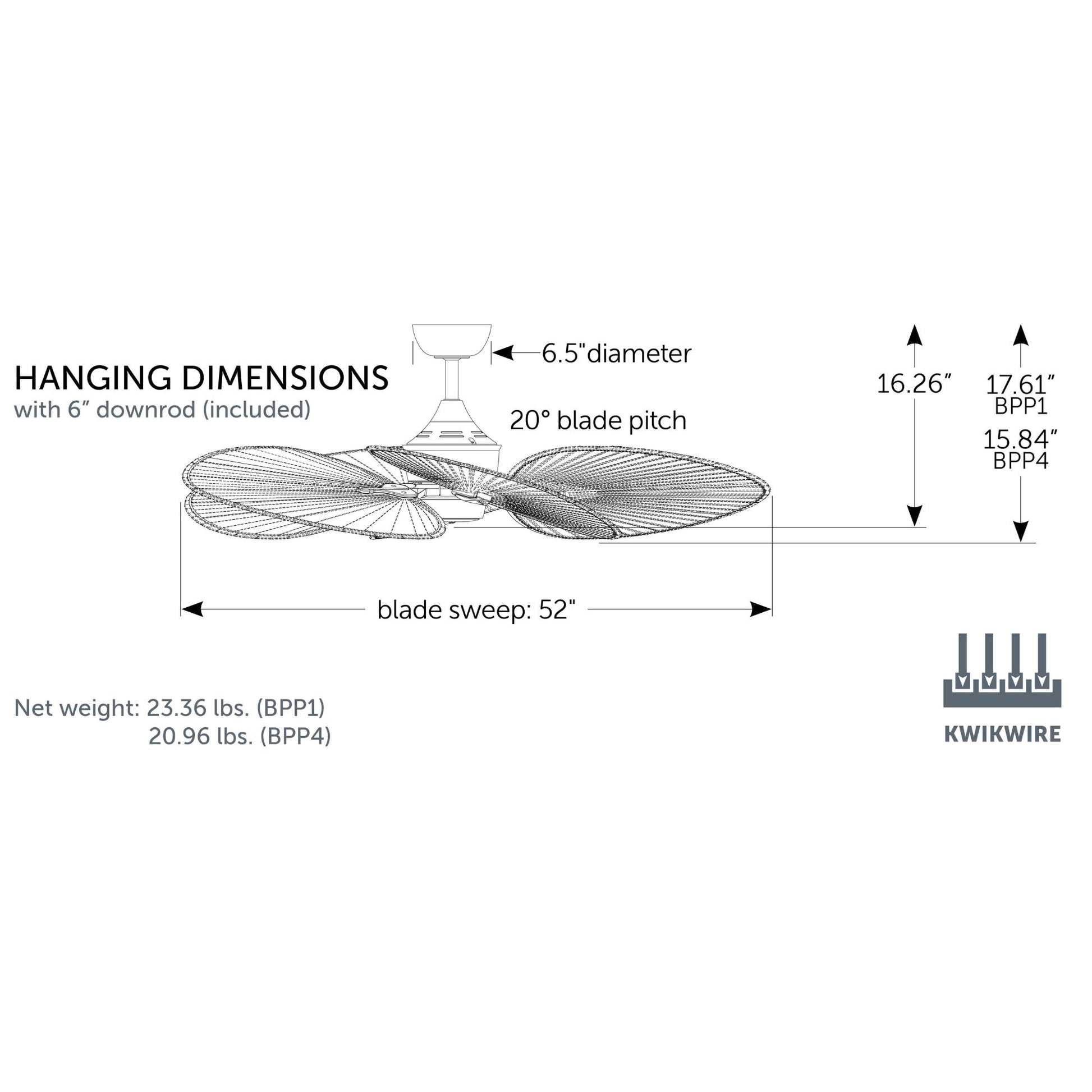

• Mount: Downrod — 1 in × 6 in downrod included, slope compatible up to 27° standard / up to 42° with SCB1-52 (sold separately)
• Weight: 15.18 lbs (motor assembly only)

Choose your blade style and finish to complete your Islander DC:

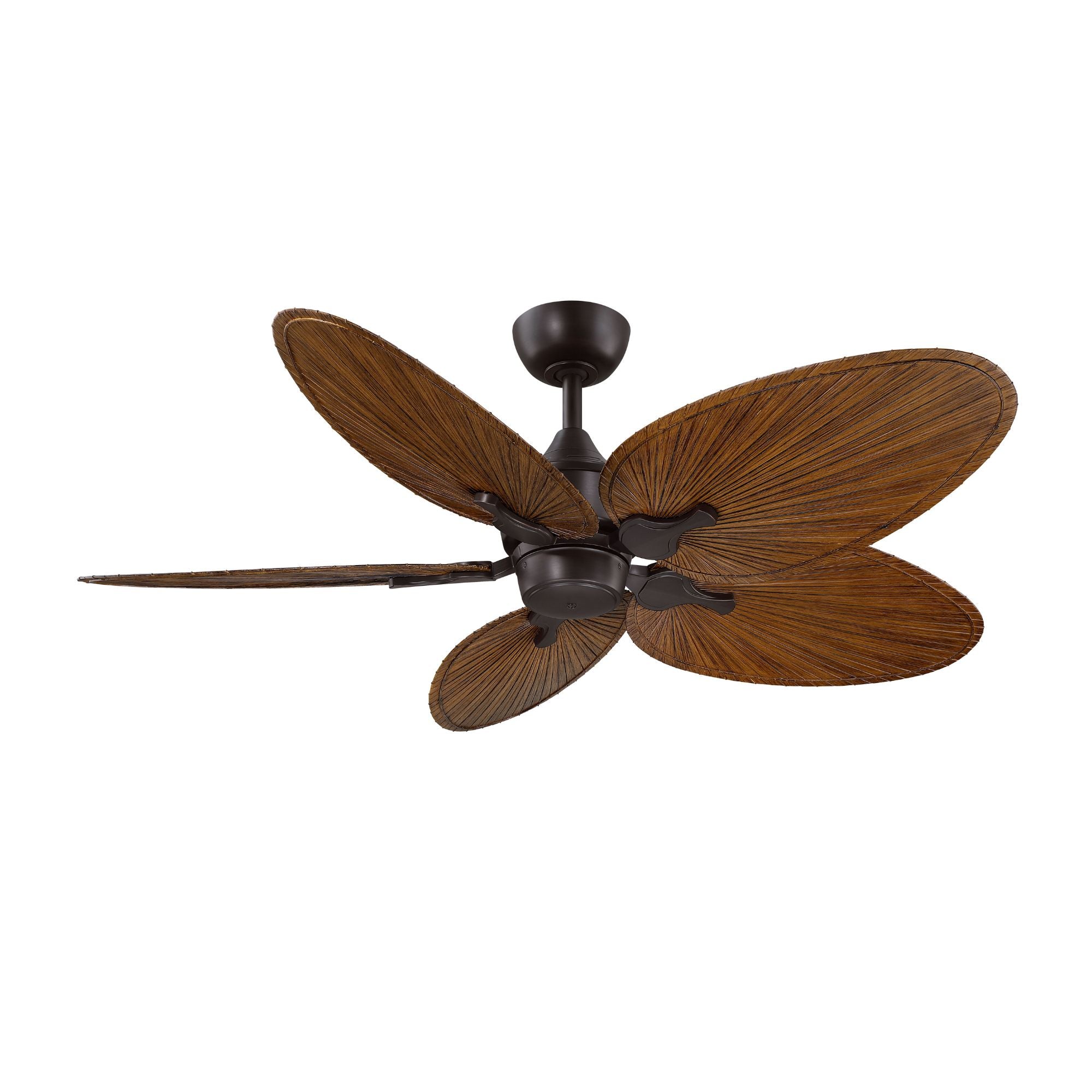

• BPP1K — 22 in Wide Oval Composite Palm Blades, Koa
• BPP1MW — 22 in Wide Oval Composite Palm Blades, Matte White
• BPP1N — 22 in Wide Oval Composite Palm Blades, Natural
• BPP4K — 22 in Narrow Oval Composite Palm Blades, Koa
• BPP4MW — 22 in Narrow Oval Composite Palm Blades, Matte White
• BPP4N — 22 in Narrow Oval Composite Palm Blades, Natural

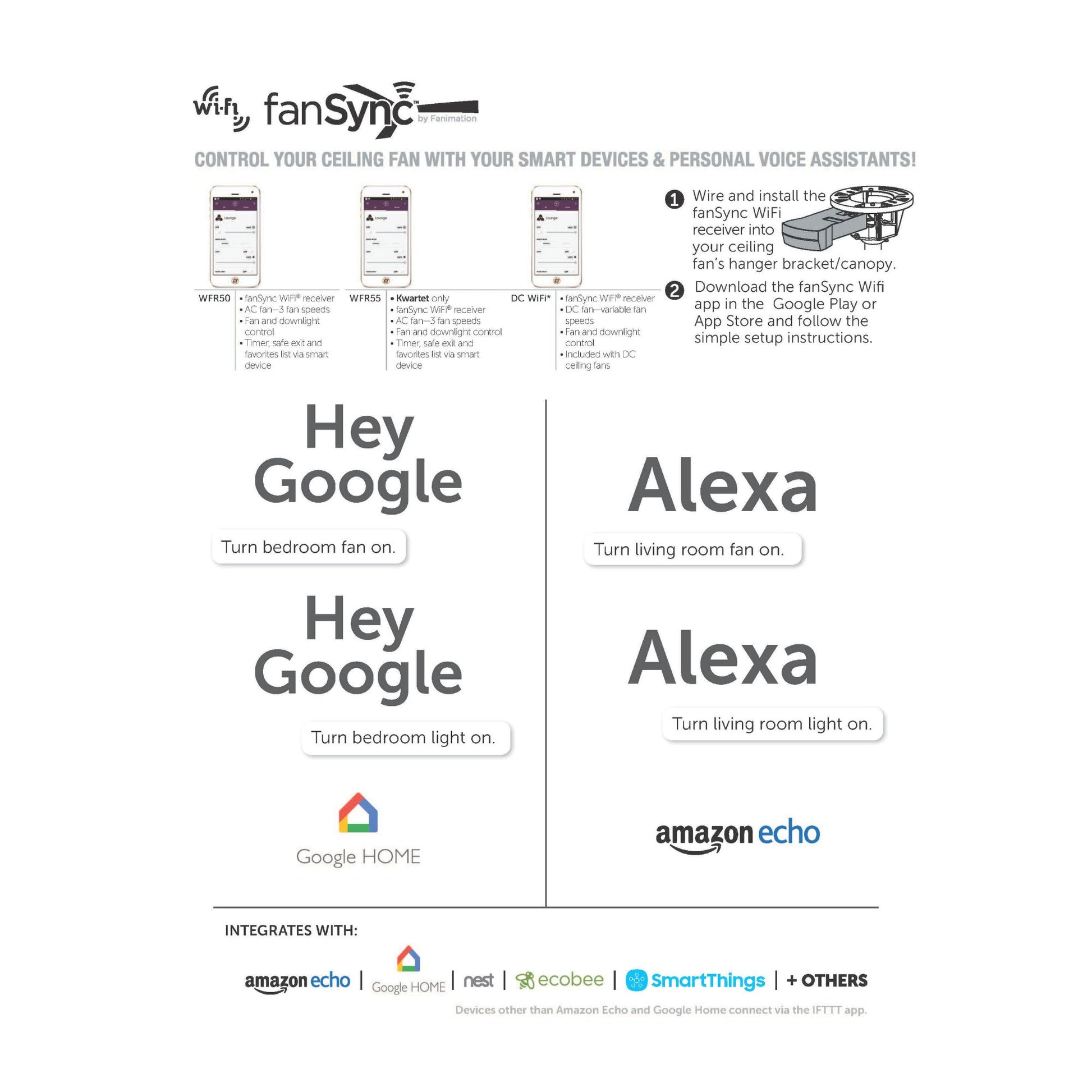

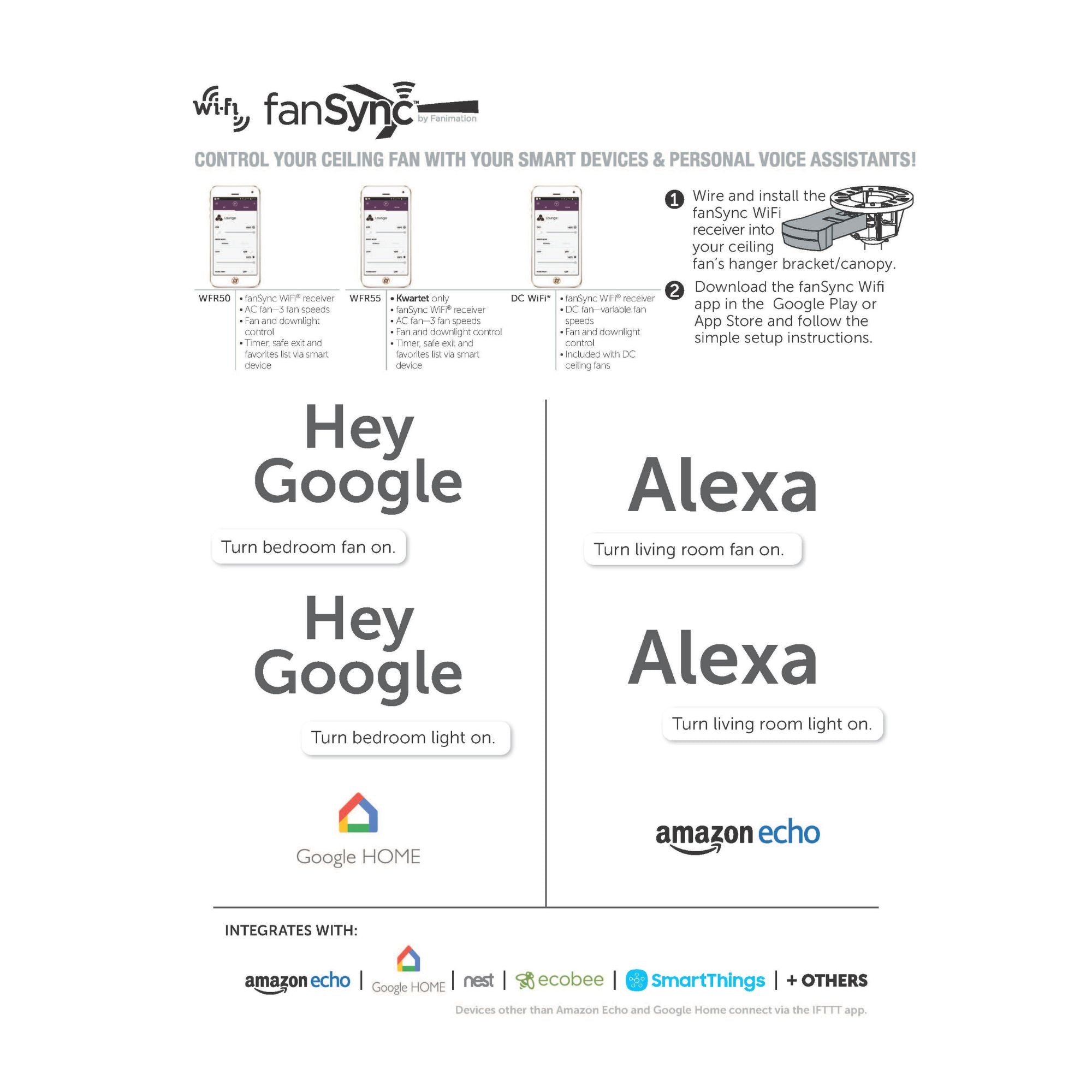

The Islander DC MAD3250DZ includes the TR360 hand-held remote — 6 fan speeds, fresh air mode, reverse, CCT Select (correlated color temperature selection), fan/light timer, home away, safe exit, and off button. Native WiFi via fanSync — download the free fanSync WiFi app (iOS/Android) and create your Fanimation fanSync account for smart control. Confirmed voice integrations: Amazon Alexa and Google Home. Optional TW406 2-wire fan-only wall control available separately.

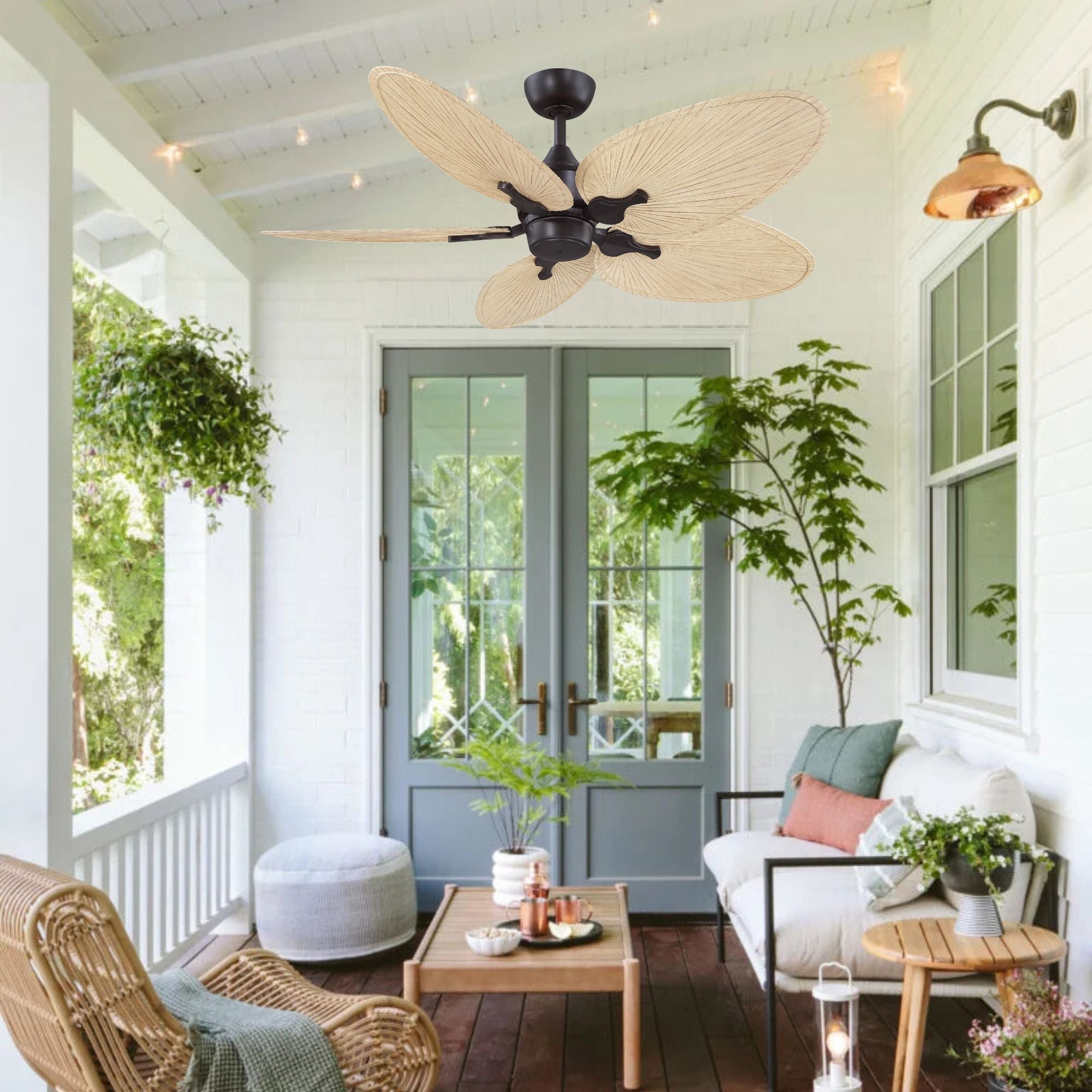

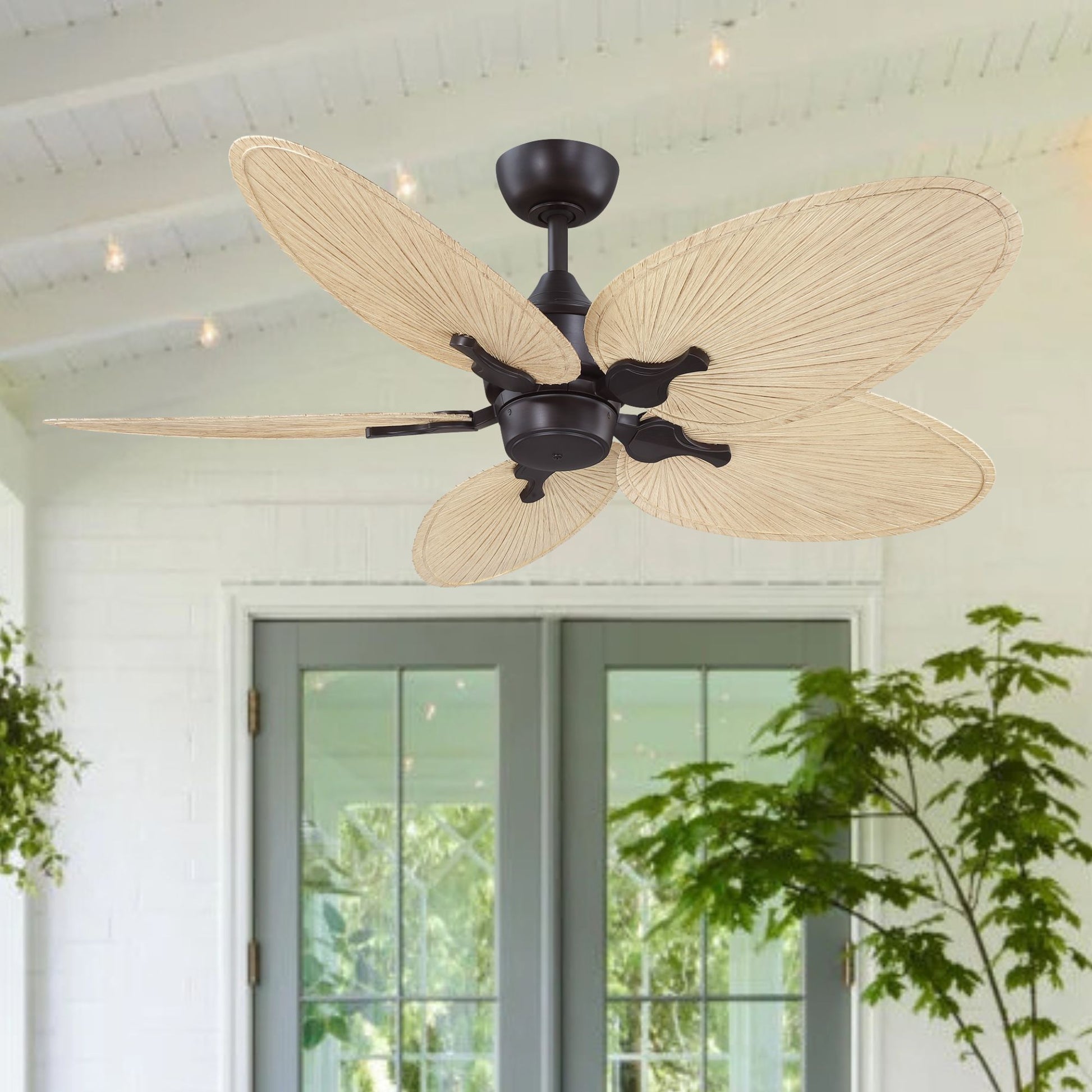

Dark Bronze motor housing with KwikWire easy connection system. Net weight: 15.18 lbs (motor assembly only). The Islander DC’s five-blade tropical palm silhouette in rich Dark Bronze delivers warm, organic sophistication — a natural complement to natural wood blades and earthy interiors, covered patios, and screened porches. Backed by a limited lifetime warranty.

The MAD3250DZ delivers 5,141 CFM at high speed (154 CFM/W, 33W) and 2,205 CFM at low speed (3W) when tested with BPP4N blades in 52 in sweep. Energy Guide rated 3,764 CFM at 22W — 173 CFM/W. Suitable for rooms up to 400 sq ft.

120V AC, 60Hz, 15A circuit. Ships with 1 in × 6 in downrod. Compatible with sloped ceilings up to 27° standard; for steeper pitches up to 42°, the Fanimation Sloped Ceiling Ball SCB1-52 is available separately. Fan must be attached to a securely anchored electrical junction box rated for at least 35 lbs. UL Listed for Damp Locations.

A 6 in downrod is included. Additional downrods available in 12, 18, 24, 36, 48, 60, and 72 in lengths. Ideal distance from floor to fan blades is 7 to 9 feet.

• 9 ft ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

For lengths greater than 72 in, join two downrods with a coupler.

• MAD3250DZ ceiling fan motor (Dark Bronze)
• TR360 hand-held remote
• fanSync WiFi receiver (integrated)
• 1 in × 6 in downrod
• Mounting hardware

Blades not included — sold separately.
