Fanimation Islander DC MAD3250 52 in Ceiling Fan Motor

Create a tropical fan with the Islander DC motor, native fanSync WiFi and included TR360 remote. Blades are sold separately. The six-speed DC 125NS motor delivers 5,141 CFM at high speed when tested with BPP4N blades in a 52 in sweep. Actual airflow varies with the blade set selected. UL listed for damp indoor and covered outdoor locations.

Key Features

• Motor: DC 125NS with six fan speeds and KwikWire easy connection.
• Tested configuration: Five BPP4N blades, 52 in sweep and 20° pitch; blades not included.
• High-speed performance: 5,141 CFM at 33W and 154 CFM/W with BPP4N blades.
• Low-speed performance: 2,205 CFM at 3W with BPP4N blades.
• Energy Guide average: 3,764 CFM at 22W and 173 CFM/W.
• Location: UL listed for damp locations protected from direct rain.
• Lighting: No integrated light included.

Smart & Control Features

The included TR360 hand-held remote provides six fan speeds, fresh air mode, fan timer and off control. Native fanSync WiFi supports app control on iOS and Android, plus Amazon Alexa and Google Home voice integrations. Optional TW406 two-wire fan-only wall control is sold separately. Light-related remote functions do not provide lighting without a light kit.

Construction & Design

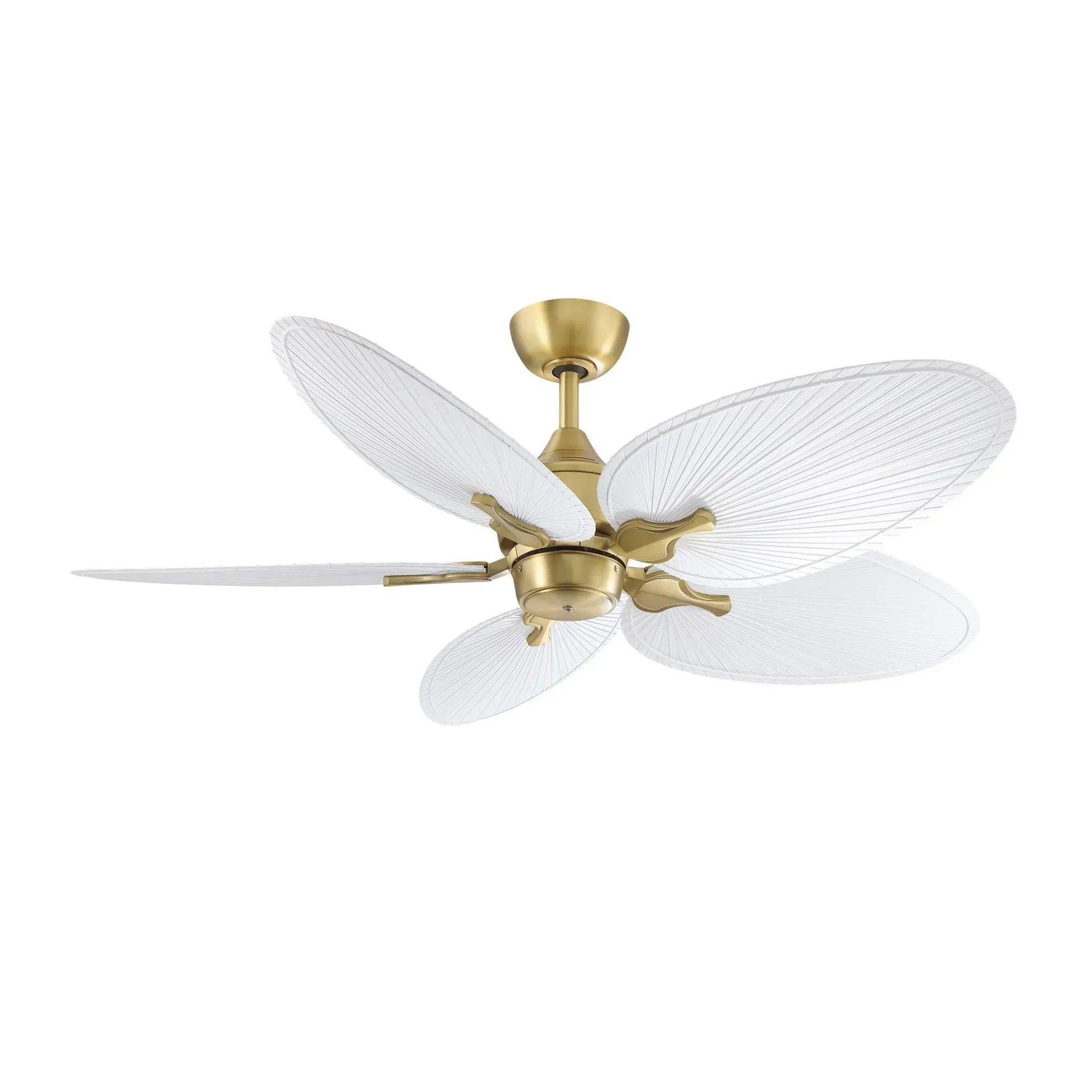

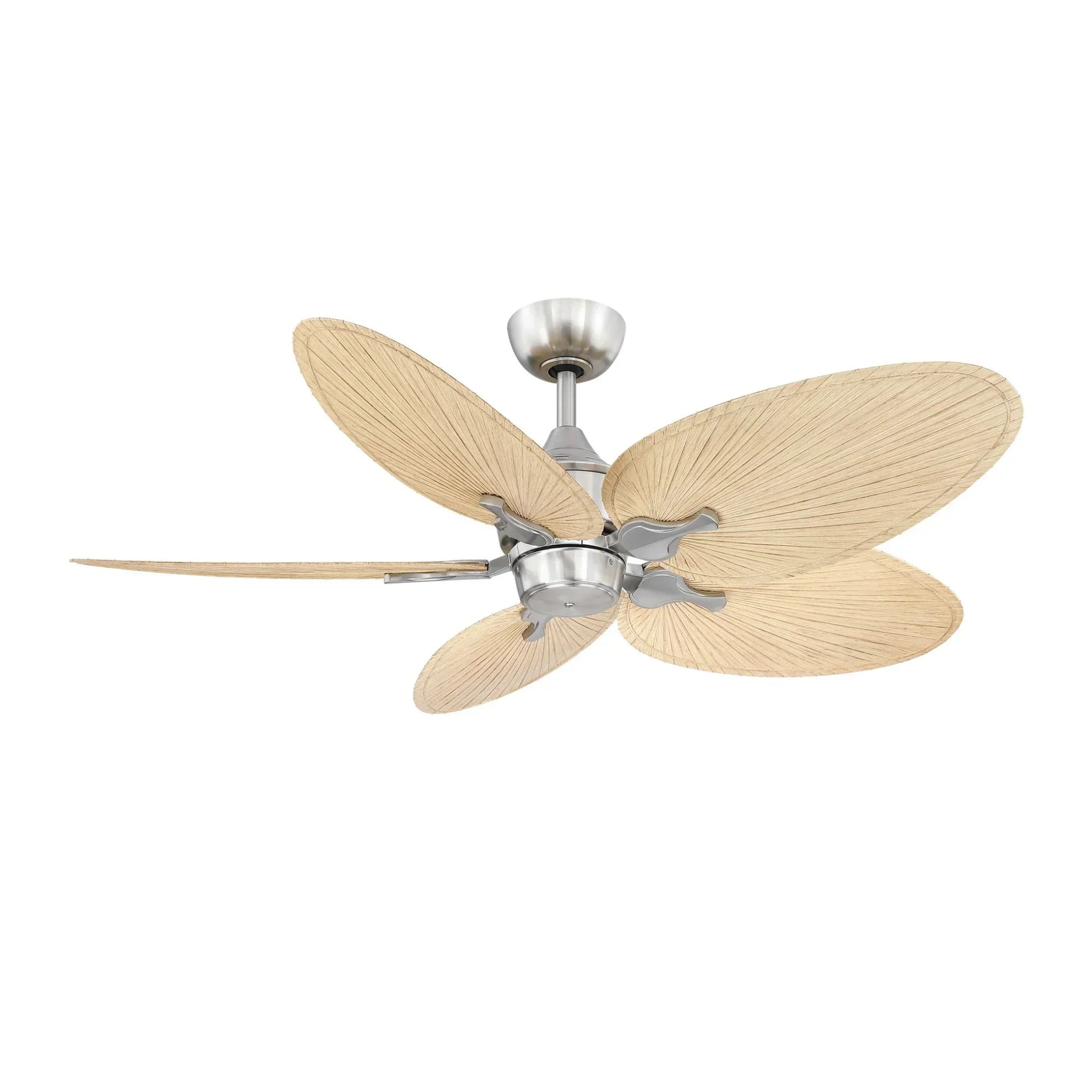

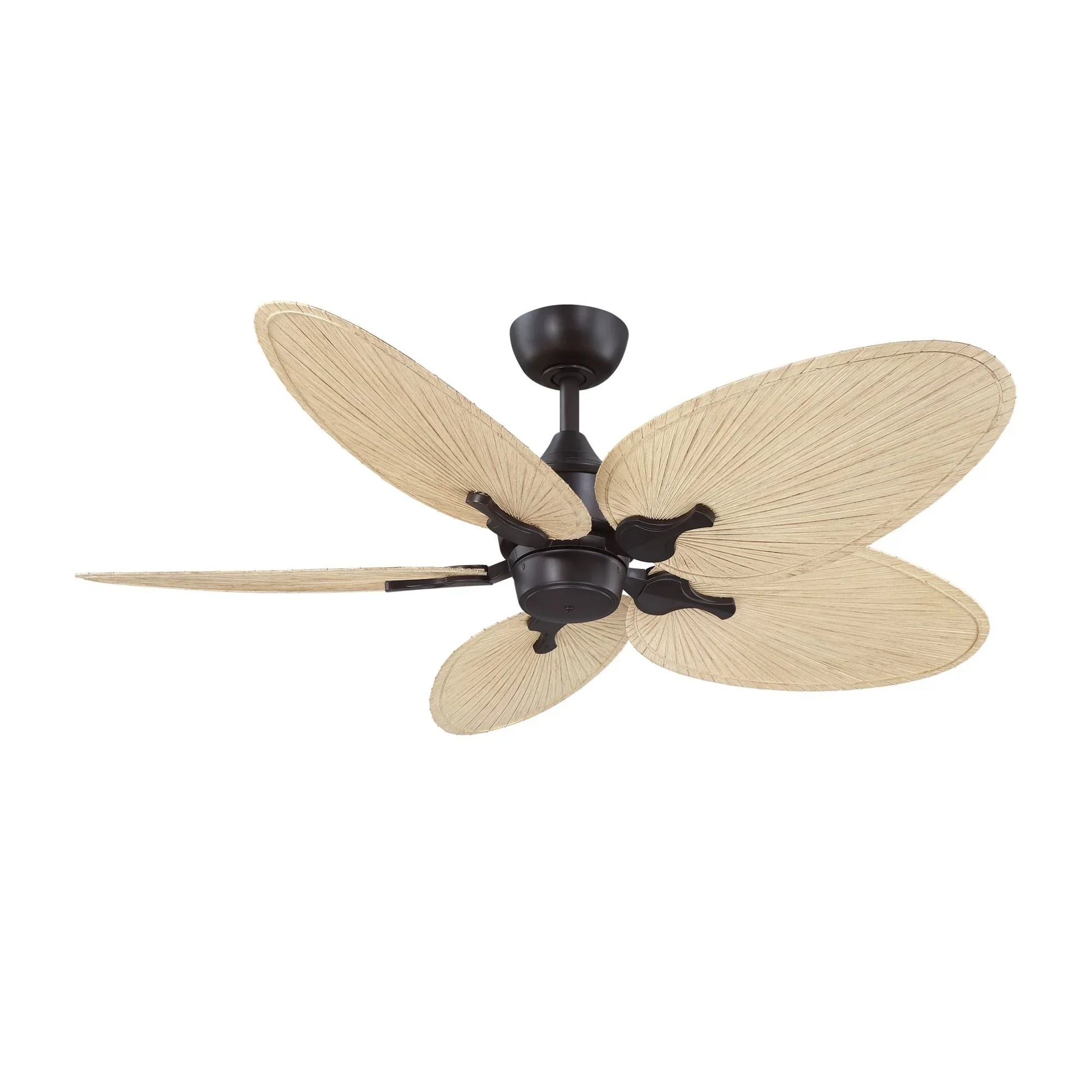

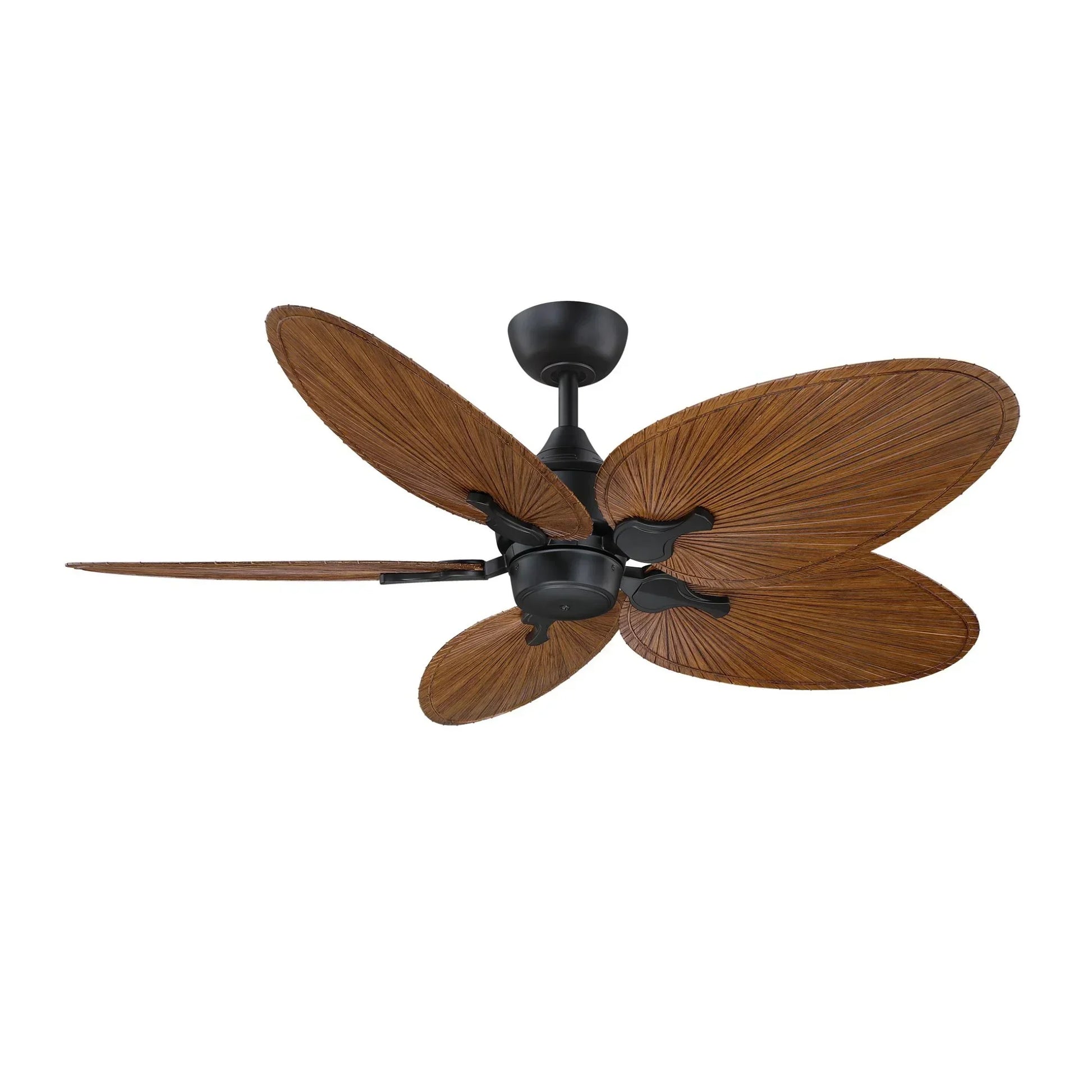

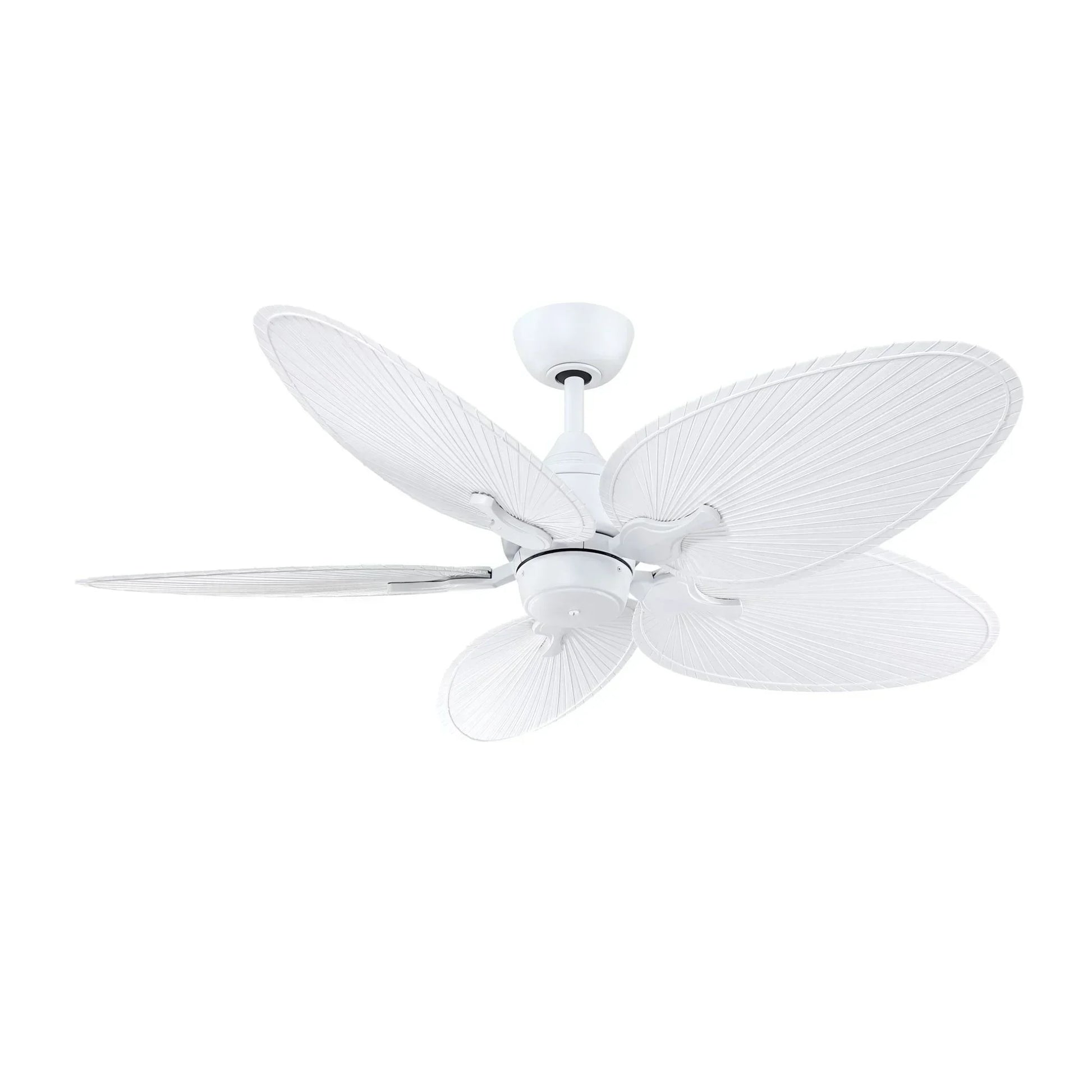

Choose Black MAD3250BL, Brushed Nickel MAD3250BN, Brushed Satin Brass MAD3250BS, Dark Bronze MAD3250DZ or Matte White MAD3250MW. Motor assembly weight is 15.18 lb; the canopy measures 6.5 in diameter × 2.58 in high. Complete the tropical silhouette with separately purchased 22 in composite palm blade sets:

• BPP1 Wide Oval: BPP1K Koa, BPP1MW Matte White or BPP1N Natural.
• BPP4 Narrow Oval: BPP4K Koa, BPP4MW Matte White or BPP4N Natural.

Light Output & Performance

This motor listing includes no integrated LED light and no blades. With BPP4N blades in a 52 in sweep, airflow reaches 5,141 CFM high and 2,205 CFM low. The separate Energy Guide average is 3,764 CFM. The tested configuration suits rooms up to approximately 400 sq ft; performance depends on the blade set selected.

Electrical & Installation

Operates on 120V AC, 60Hz. Includes a 6 in downrod with 1 in diameter. Sloped ceilings up to 27° require a 12 in or longer downrod; optional SCB1-52 accommodates slopes up to 42°. Install on a securely anchored fan-rated junction box capable of supporting at least 35 lb. Suitable for indoor rooms and covered patios or screened porches protected from direct rain.

Suggested Downrod by Ceiling Height

A 6 in downrod is included. Select the final length to maintain 7–9 ft from floor to blades; sloped installations require at least a 12 in downrod. Additional downrods and couplers are sold separately.

• 9 ft flat ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

What's Included

• Islander DC motor assembly in the selected finish
• TR360 hand-held remote and integrated fanSync WiFi receiver
• 1 in diameter × 6 in downrod
• Mounting hardware

Blades are not included and must be purchased separately. No integrated light kit is included.
