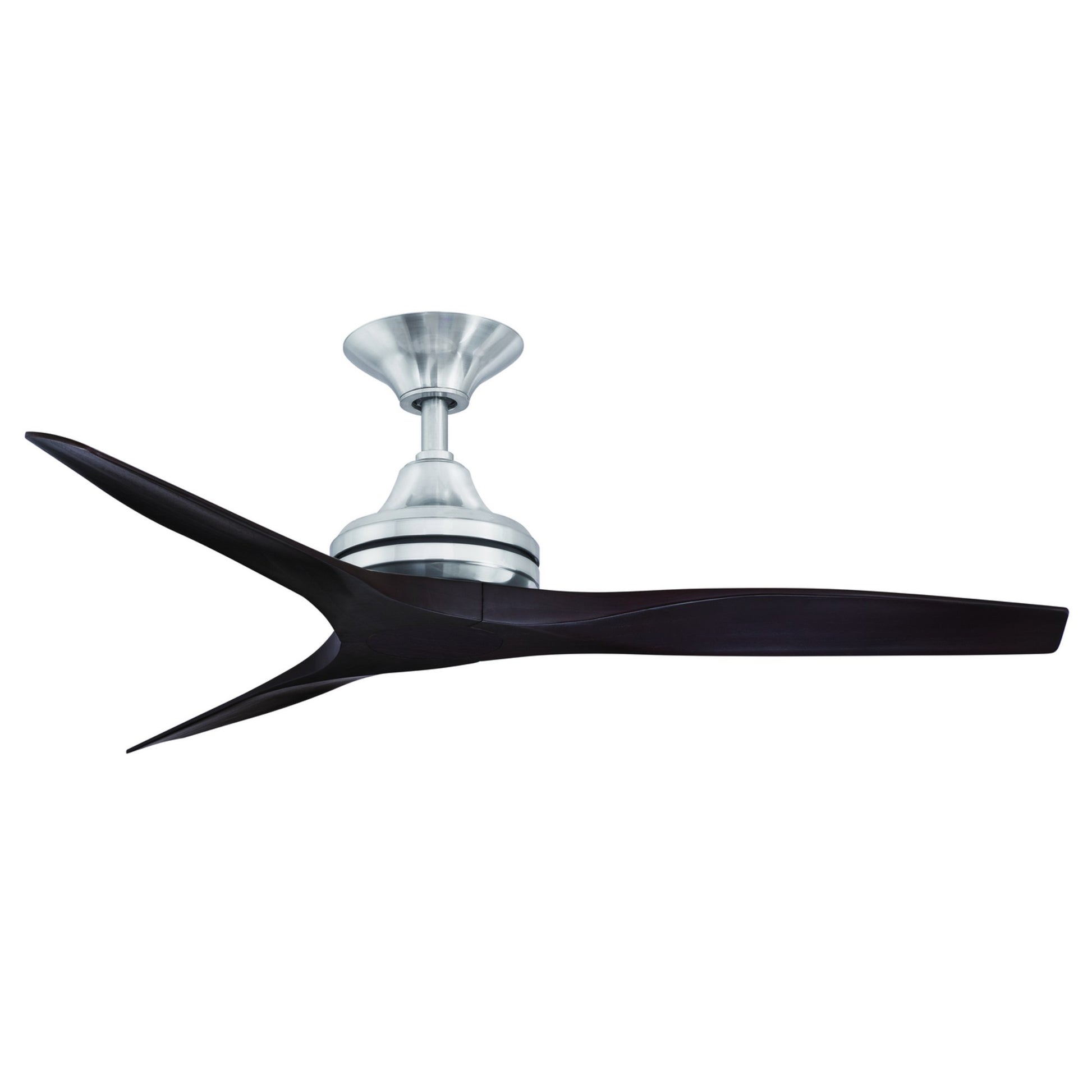

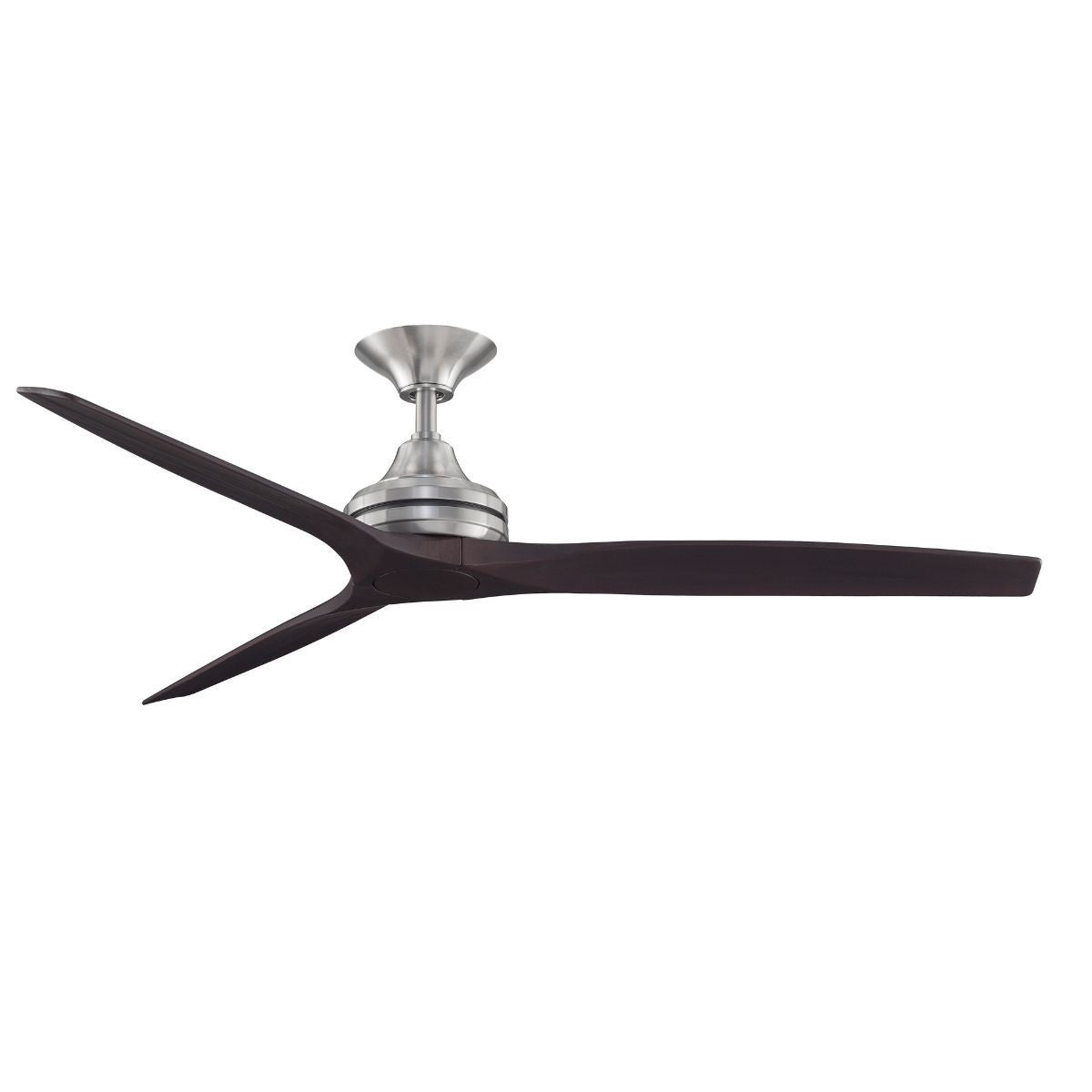

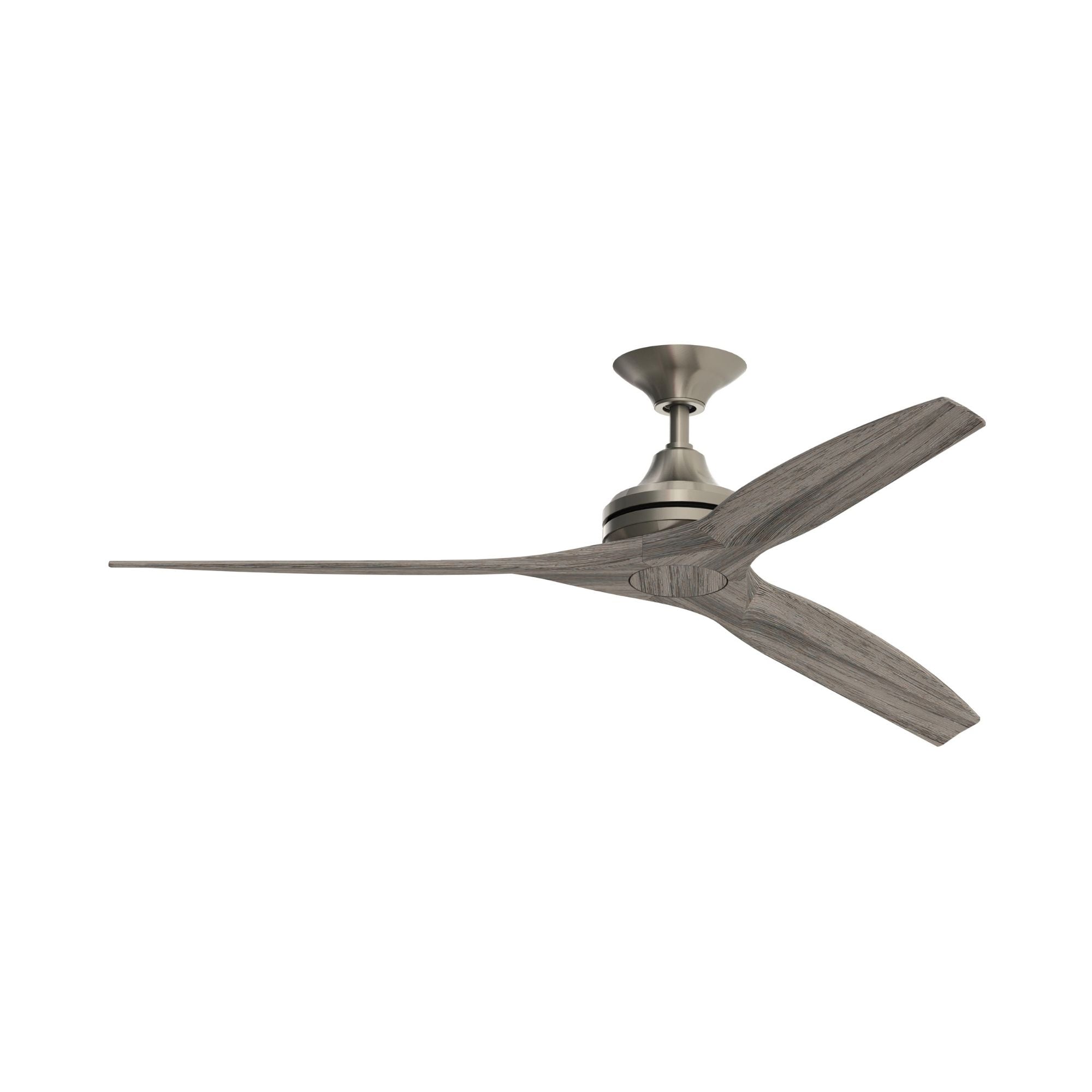

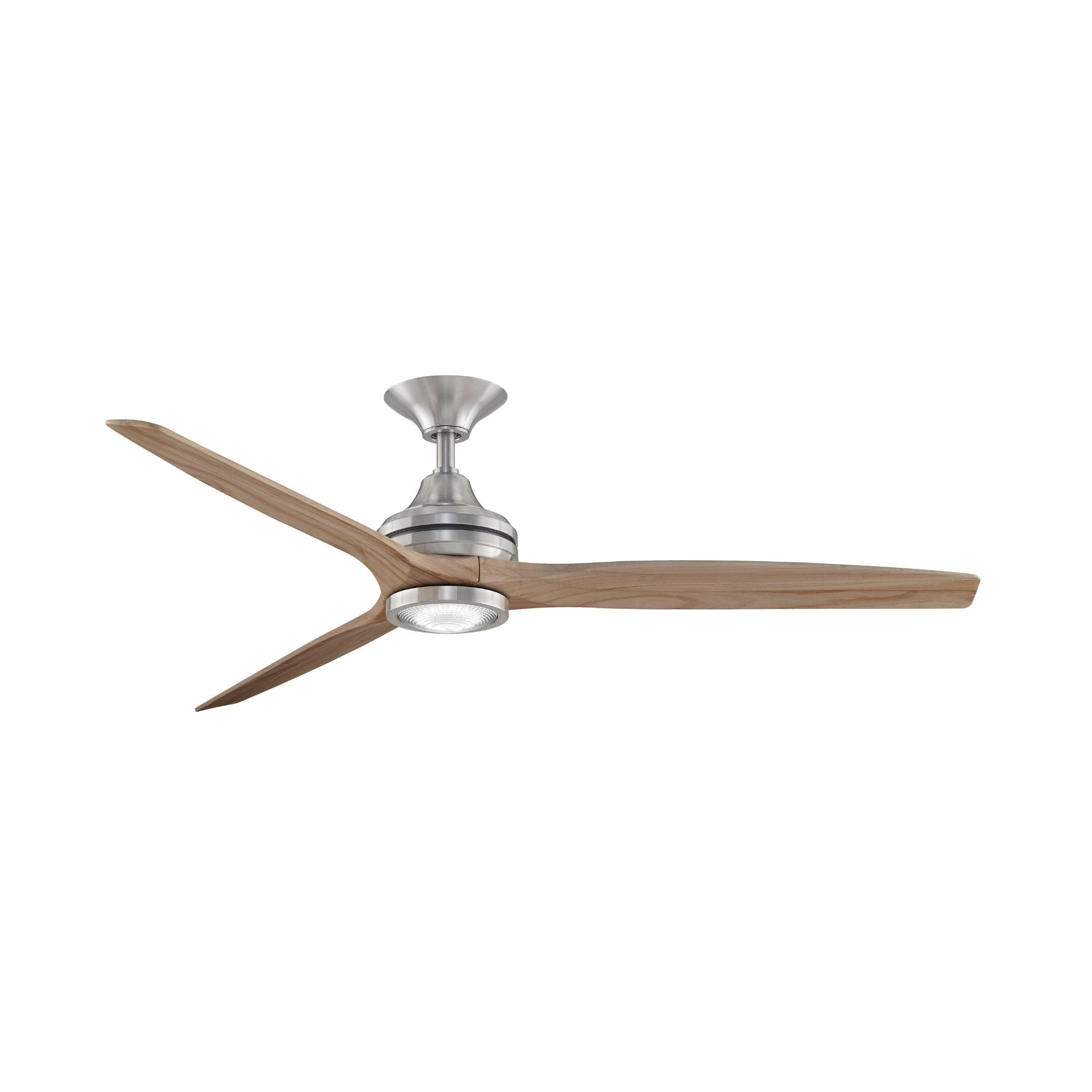

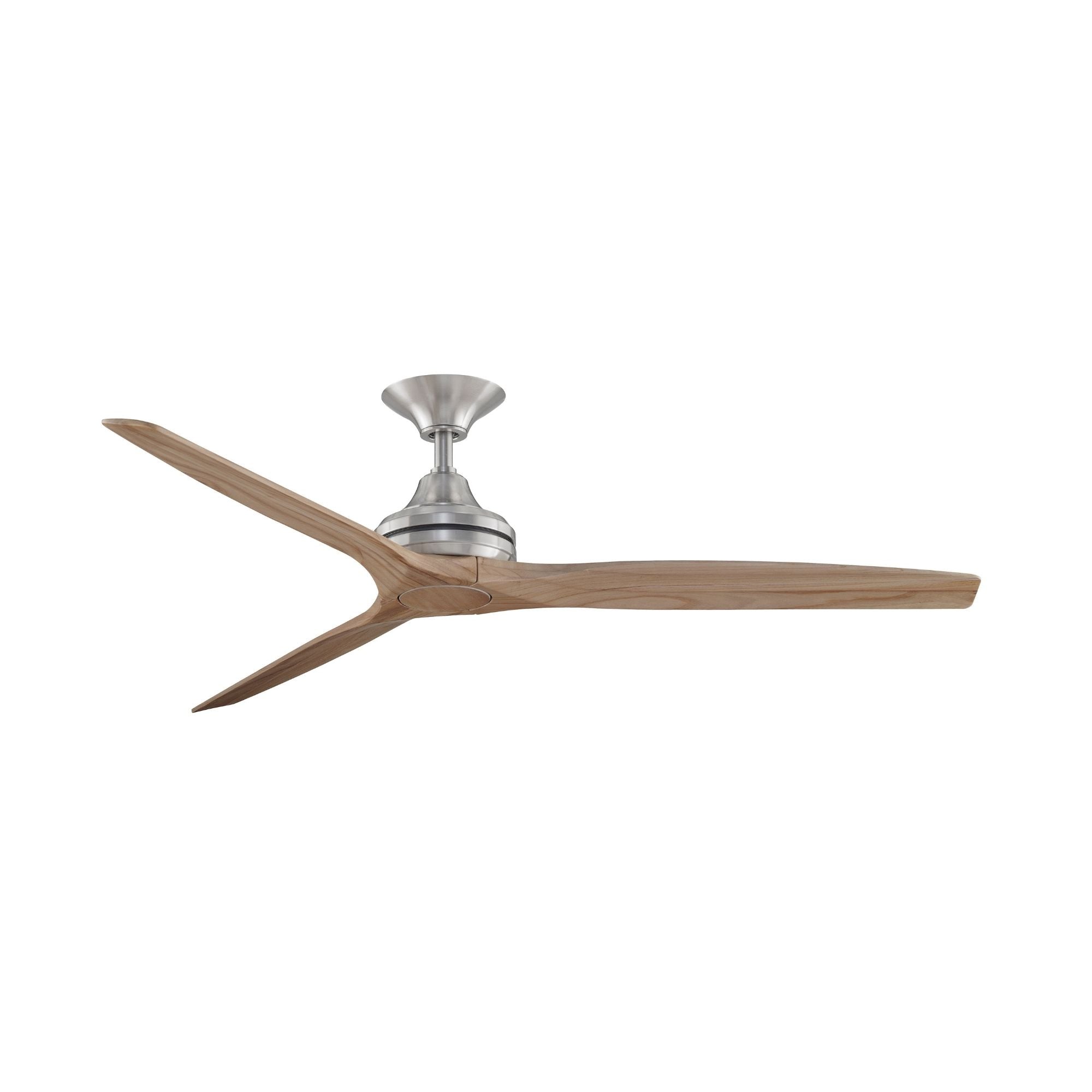

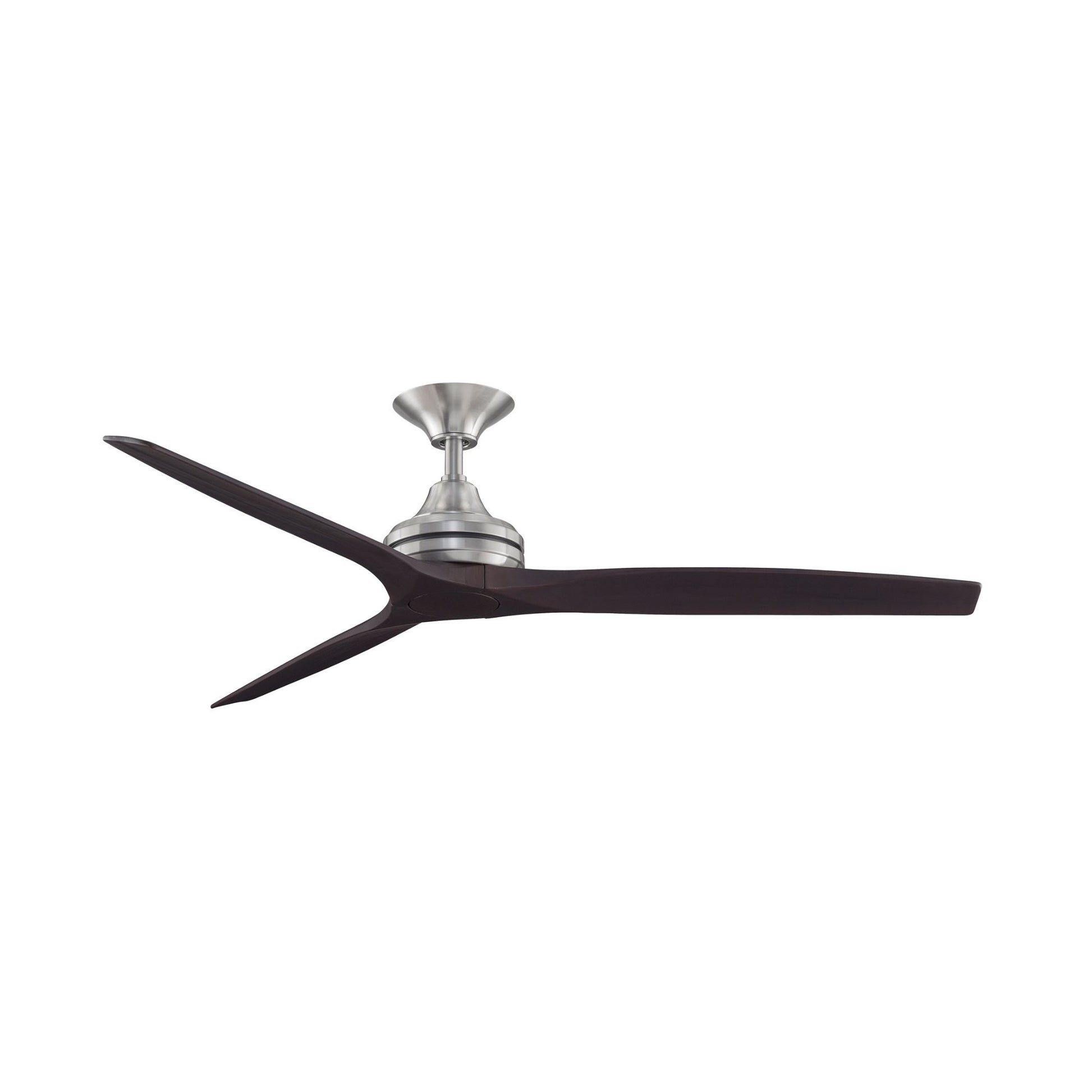

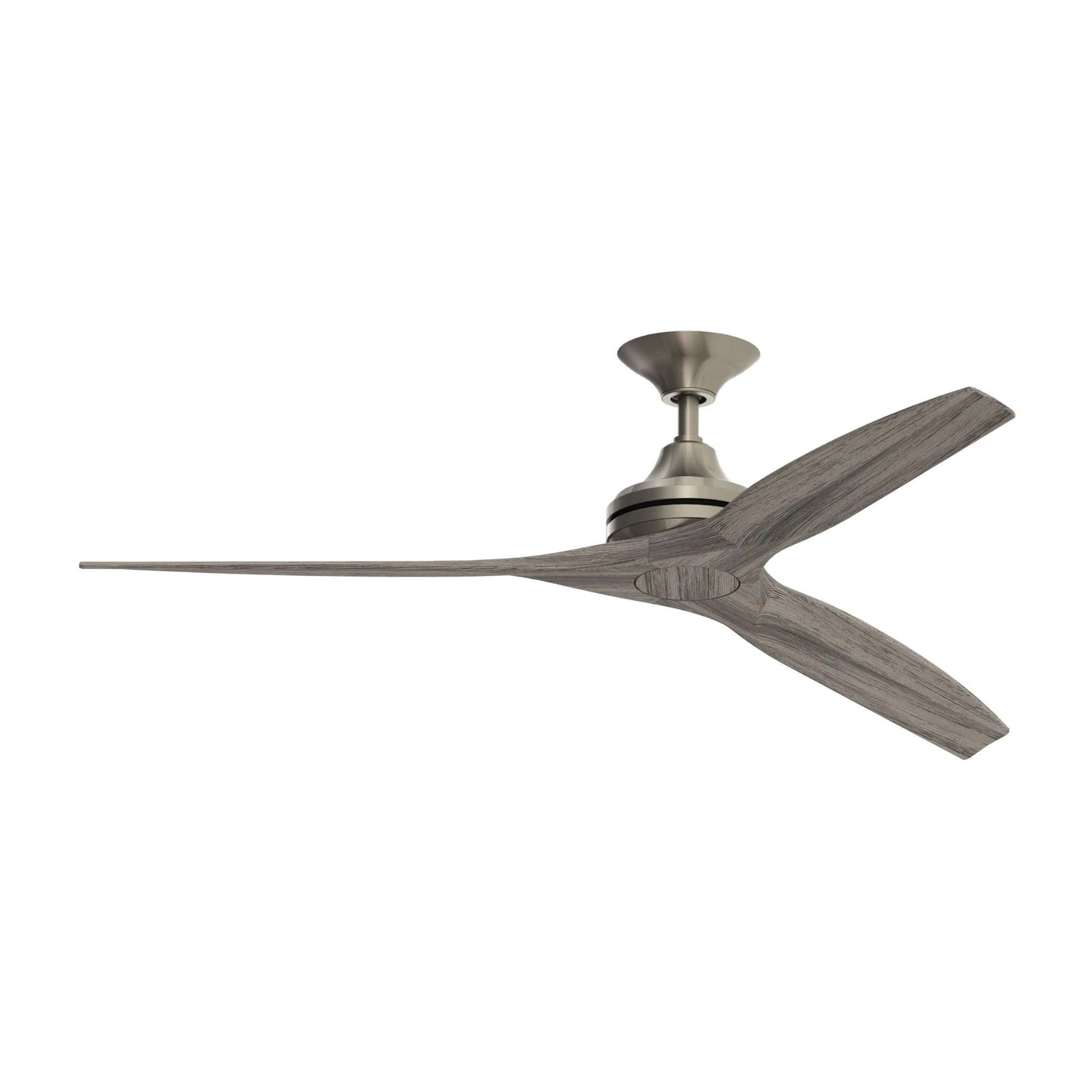

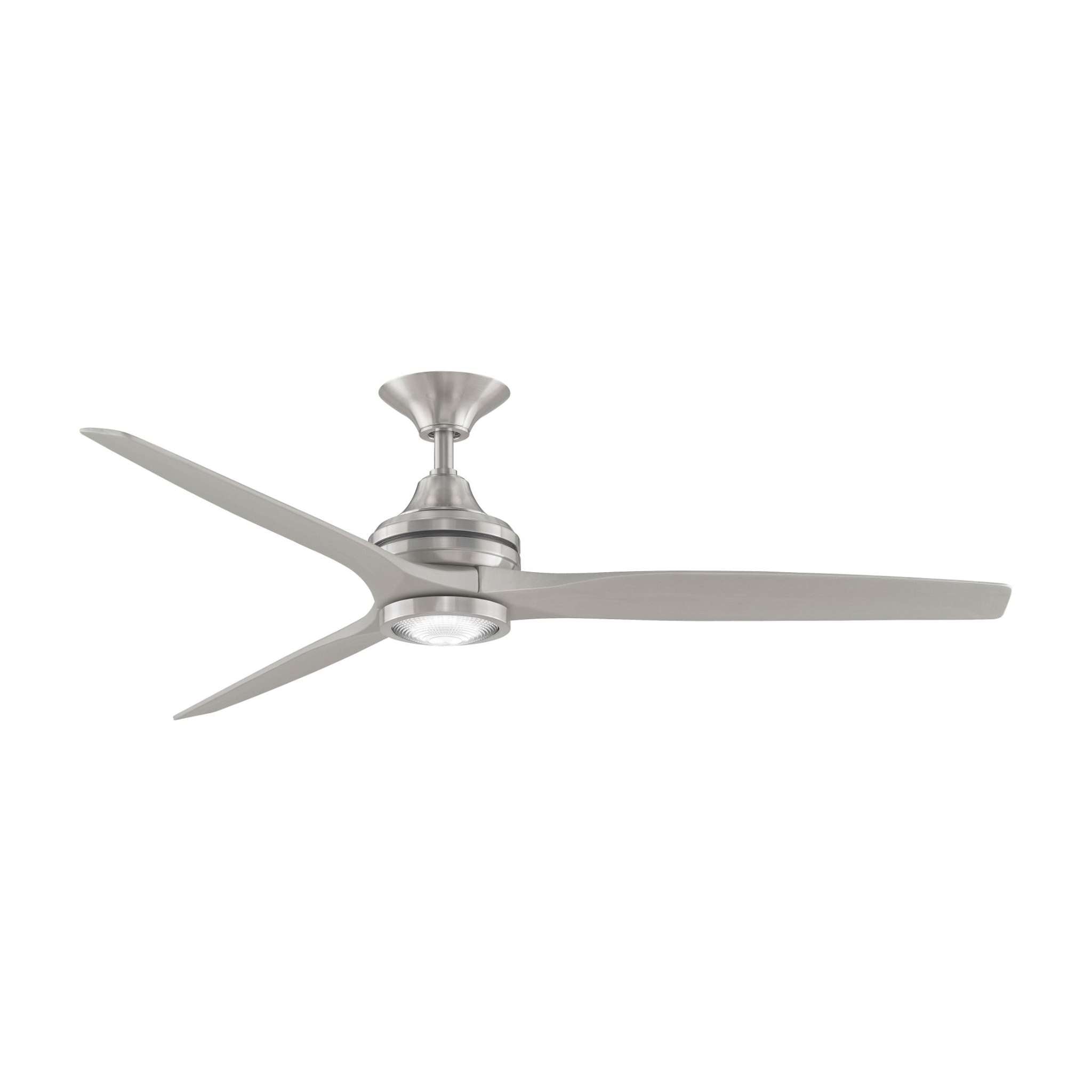

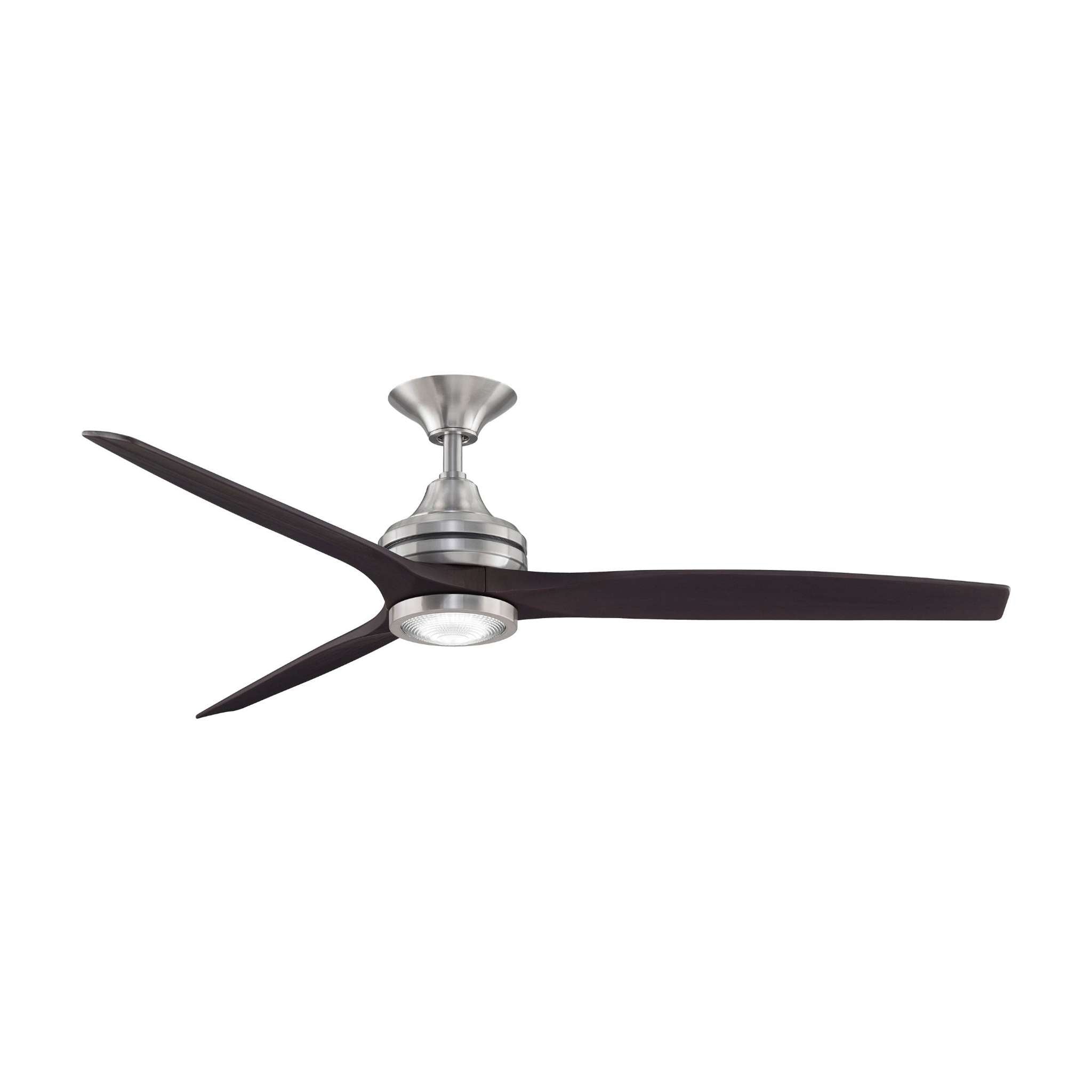

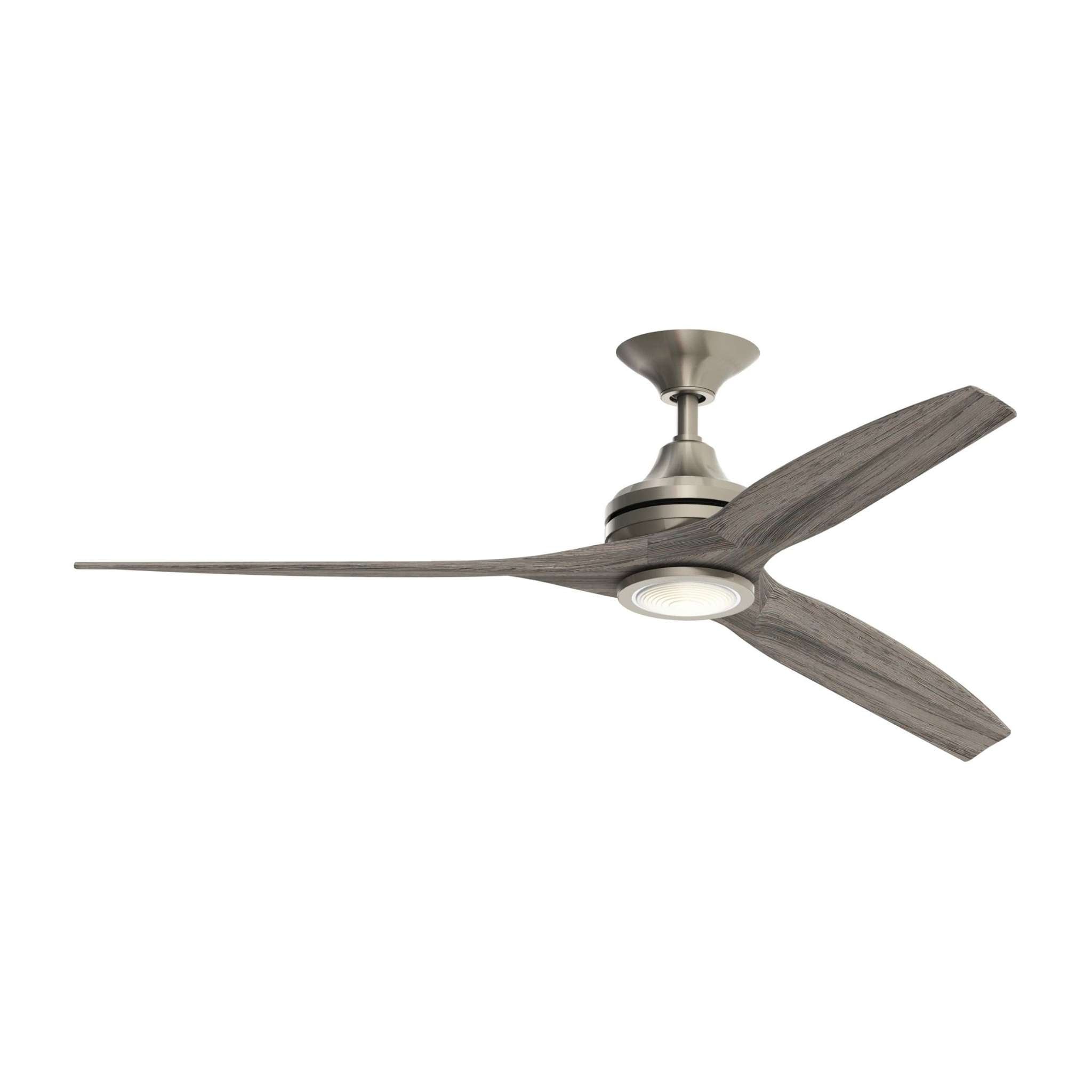

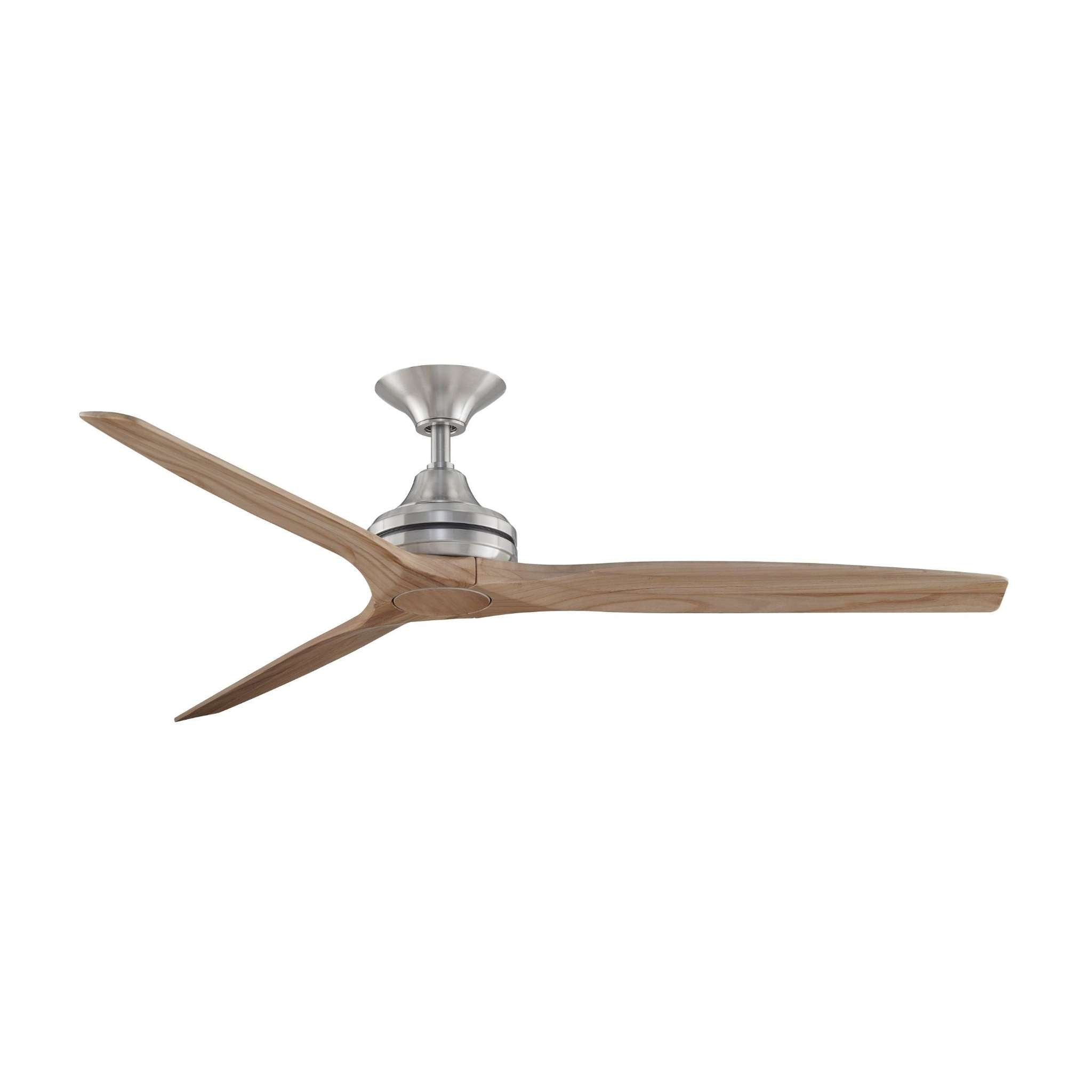

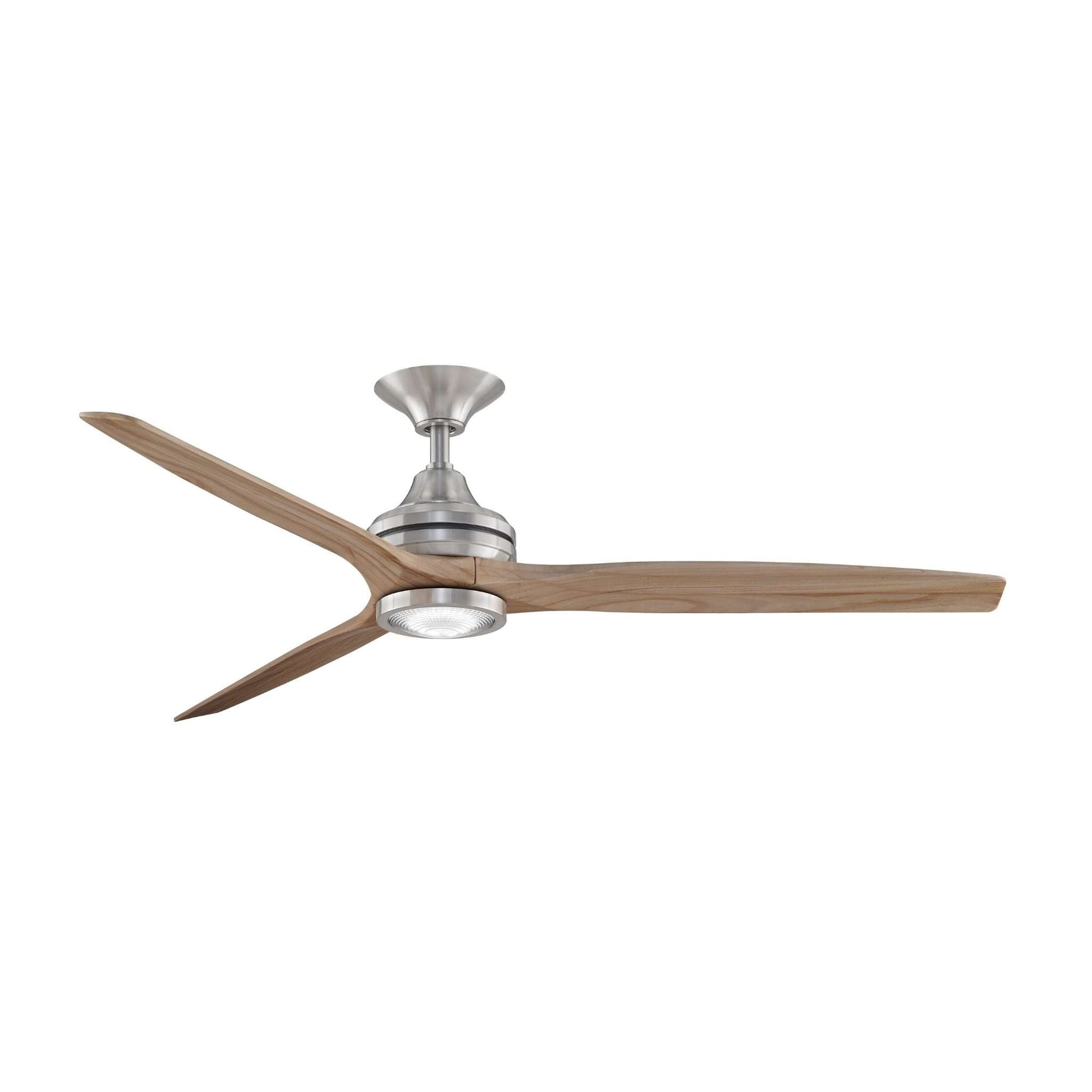

Fanimation Spitfire 60 in AC Ceiling Fan Motor — Brushed Nickel

The Fanimation Spitfire (model MA6721BBN) is a 60 in damp-rated ceiling fan motor built around Fanimation’s customizable Spitfire platform — letting you pair your motor with the blade finish and light kit of your choice for a fully personalized ceiling fan. The 188×25mm AC motor delivers 4,908 CFM at high speed, sized for rooms over 400 sq ft. The Brushed Nickel finish is a clean, timeless metallic that pairs beautifully with light maple, white, or natural wood blade sets — a go-to for transitional, coastal, and contemporary interiors. A TR500 hand-held remote with variable fan speeds, infinite light levels, and off button is included. Damp location rated — suitable for covered outdoor spaces, bathrooms, and humid environments.

⚠️ Blades sold separately. This listing is for the Spitfire motor unit only. Compatible 3-blade wood blade sets (B6720) are available separately at Bees Lighting. Optional matching accessories — light kit LK6721BBN (18W dimmable LED, 924 lumens, 3,000K, CRI 90 — includes Fresnel & frosted shades) and flush mount kit CCK6721BN — are also available separately at Bees Lighting.

Key Specifications

• Blade Span: 60 in (blades sold separately — B6720 compatible)
• Motor: AC — 188×25mm | 3 speeds
• Airflow: 1,693 CFM (low) / 3,273 CFM (med) / 4,908 CFM (high)
• Efficiency: 69 CFM/W (high) | 101 CFM/W (med) | 148 CFM/W (low)
• Watts: 11W (low) / 32W (med) / 71W (high)
• RPM: 43 (low) / 80 (med) / 120 (high)
• Room Size: Over 400 sq ft
• Location Rating: Dry & Damp
• Sloped Ceiling Compatible: Yes (up to 19° | 12 in downrod recommended for most sloped installations)

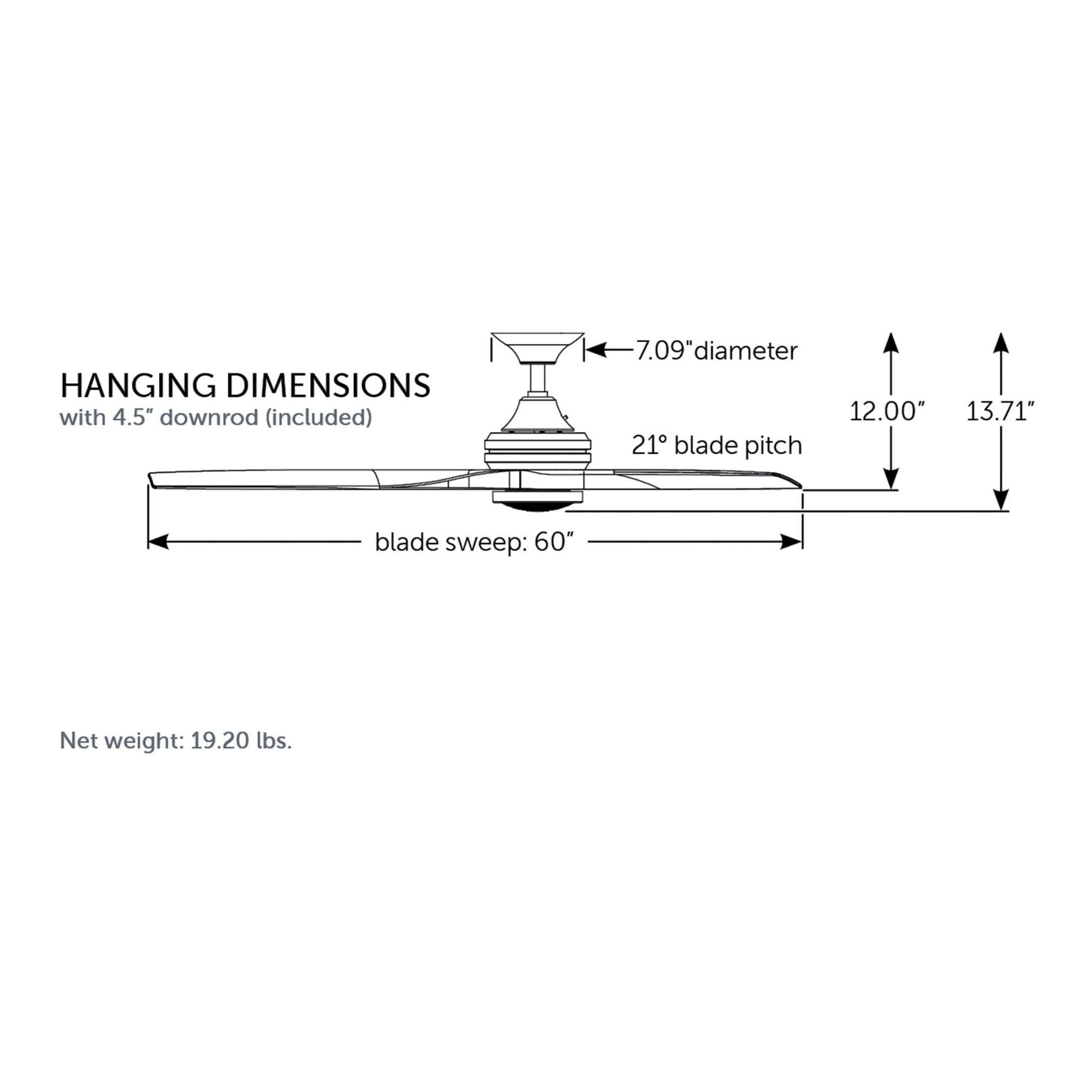

• Downrod: 1 in dia. × 4.5 in included | Optional: 12, 18, 24, 36, 48, 60, 72 in

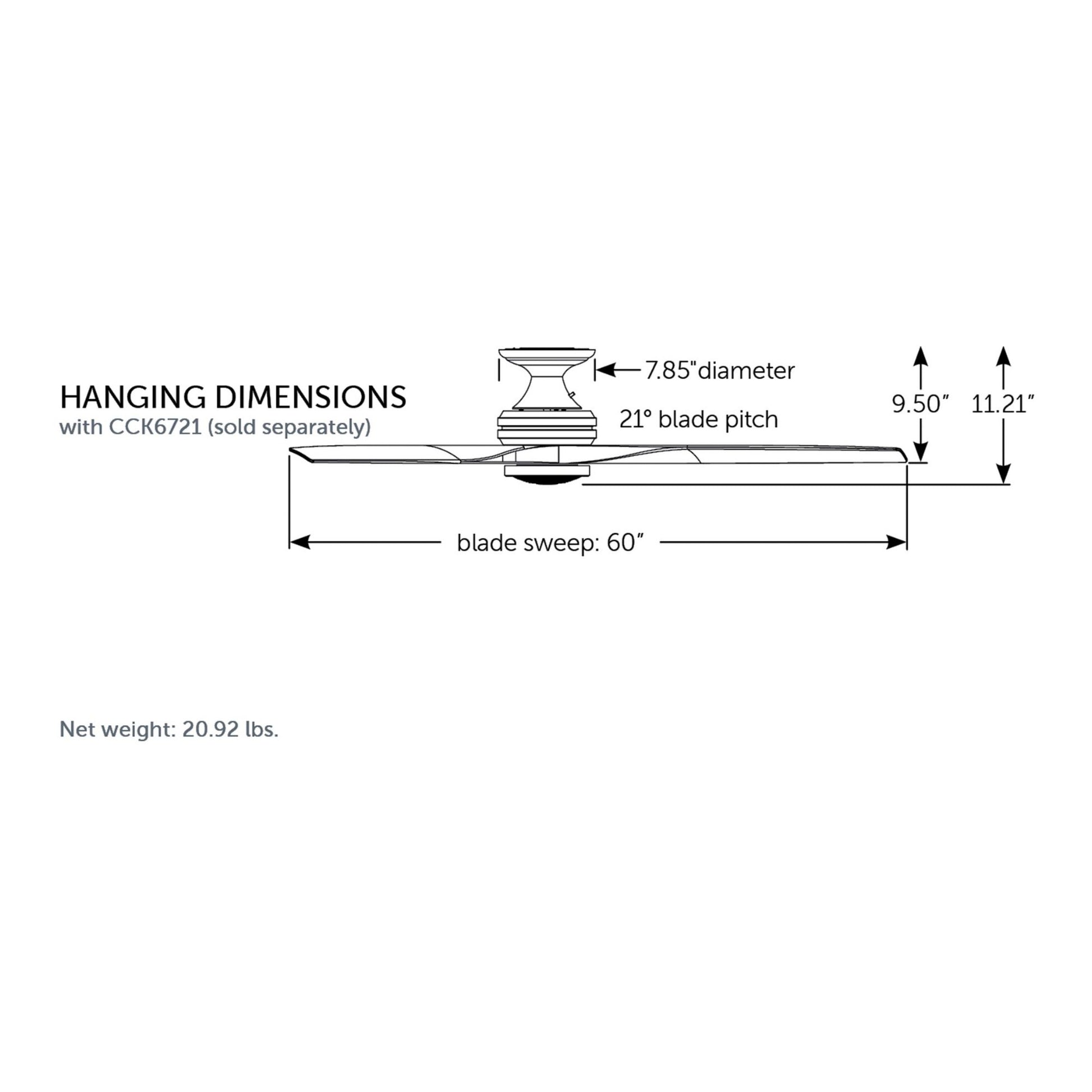

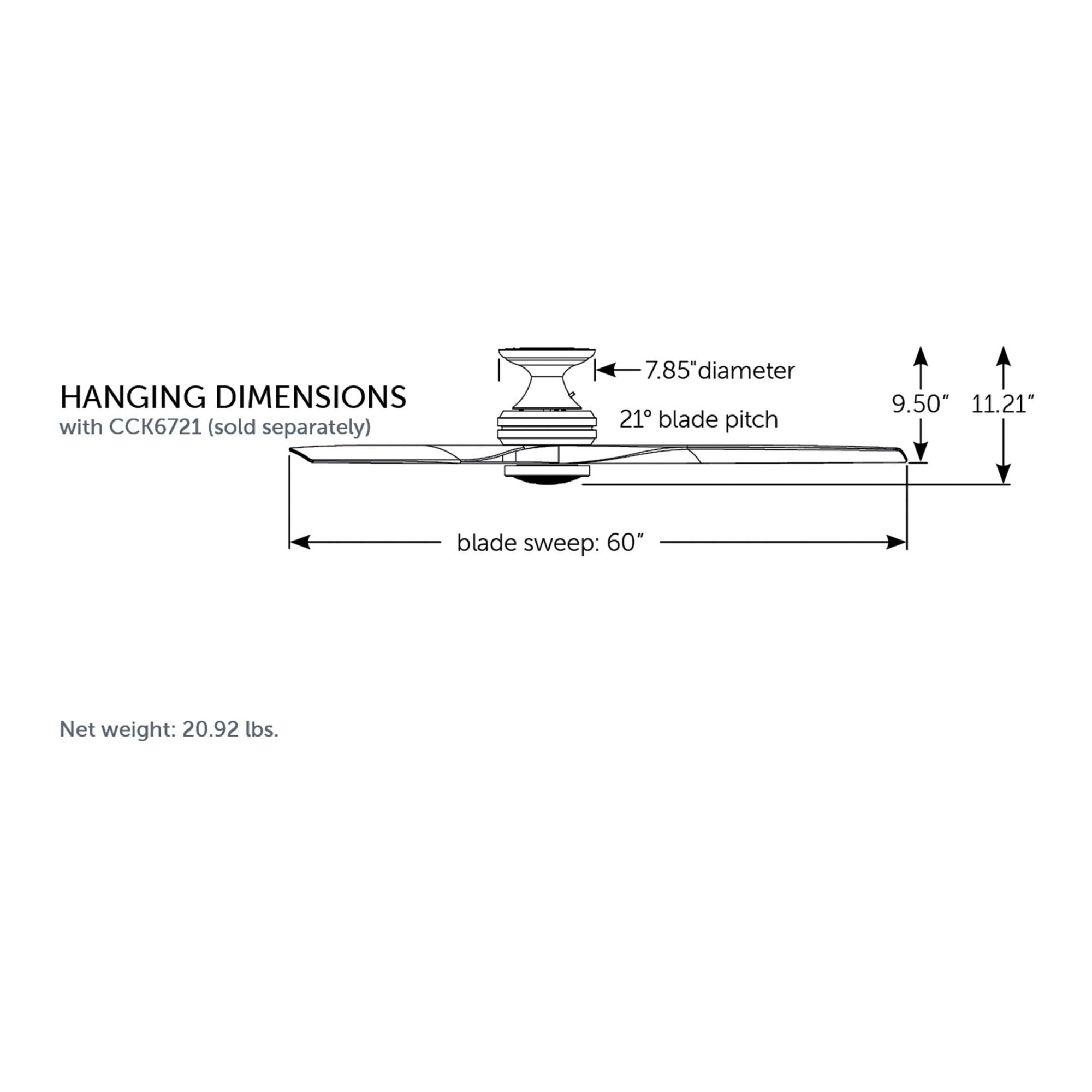

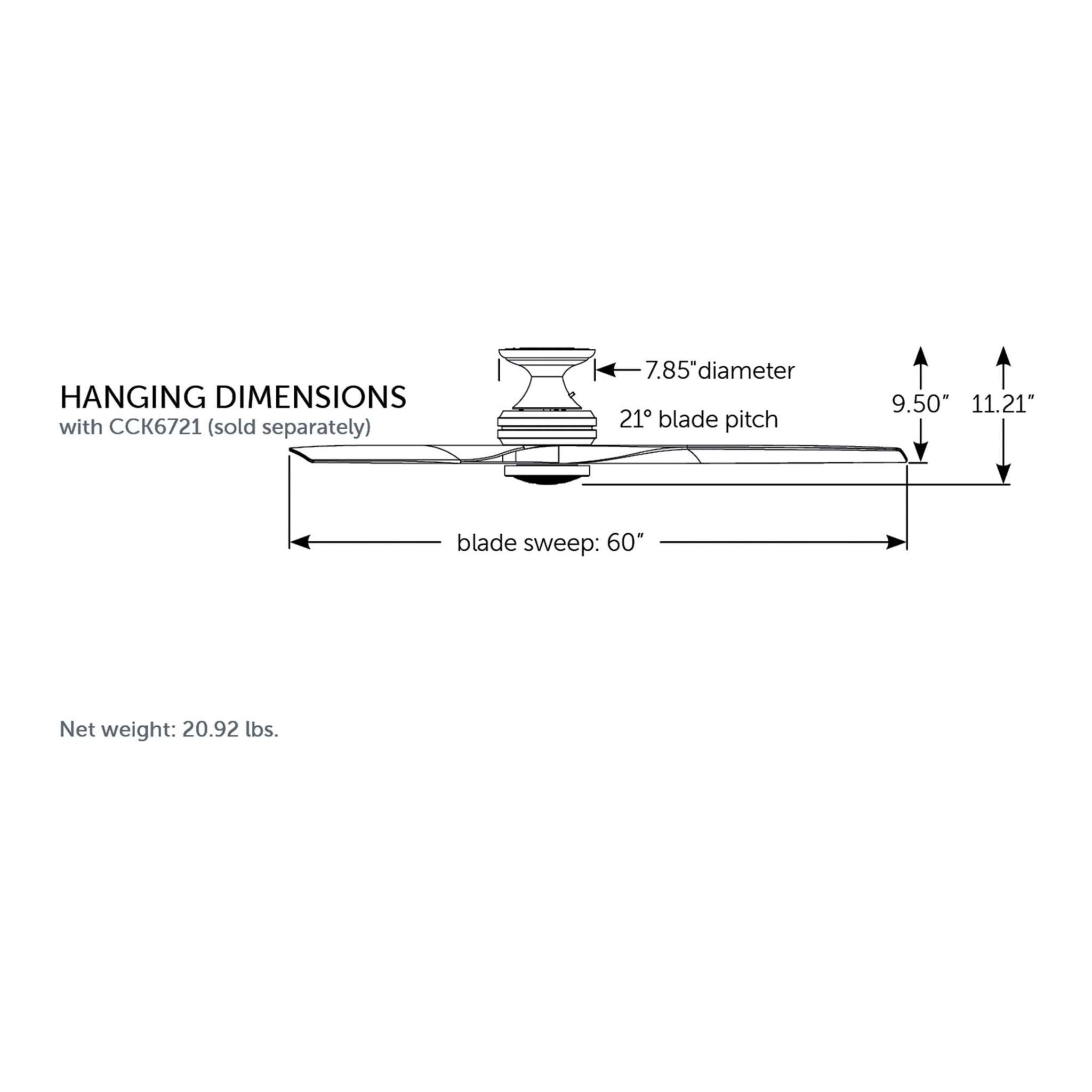

• Canopy: 7.09 in dia. (motor only) | 7.85 in dia. (with B6720 blades)
• Min. Ceiling Height: 7 ft | Net hanging weight: 20.28 lbs

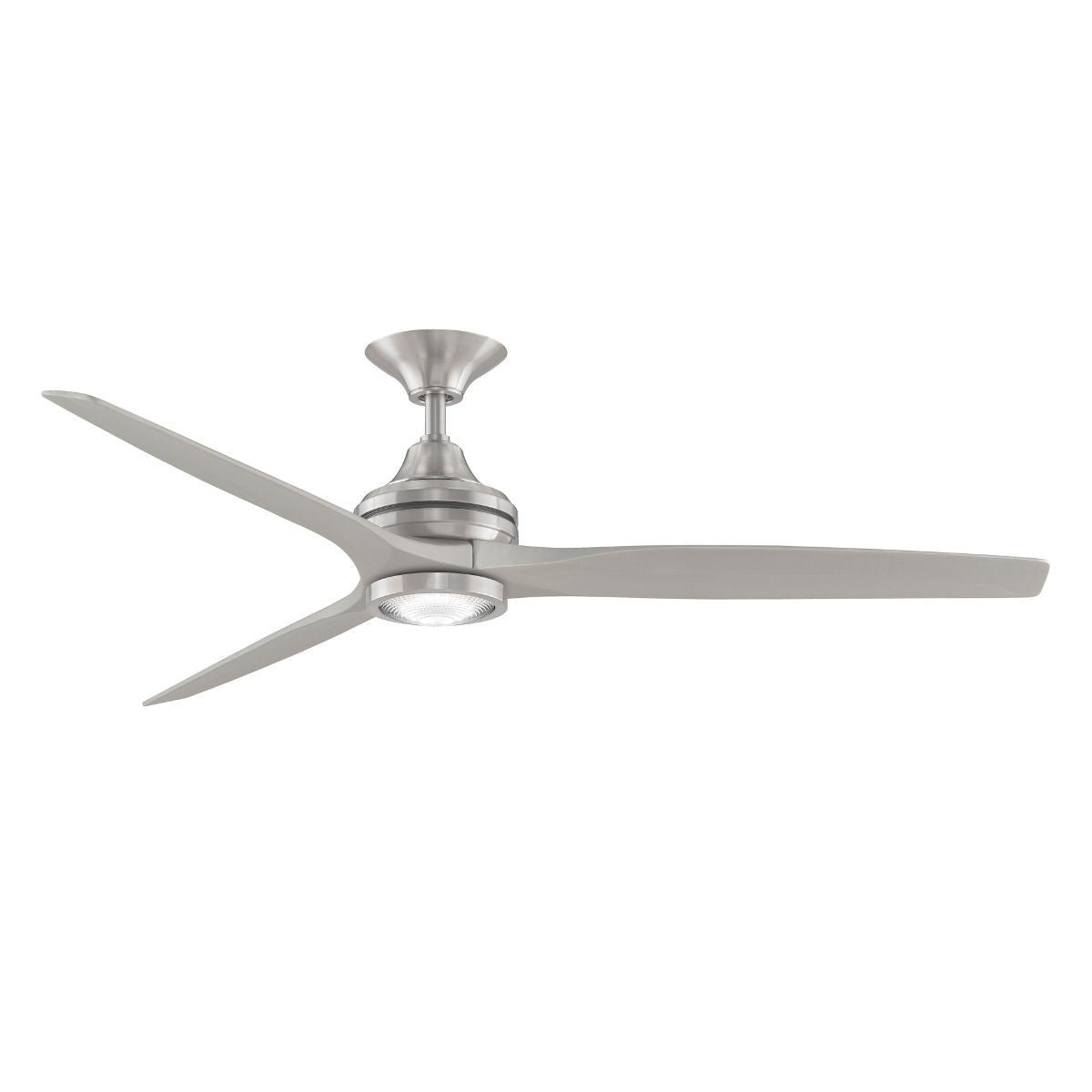

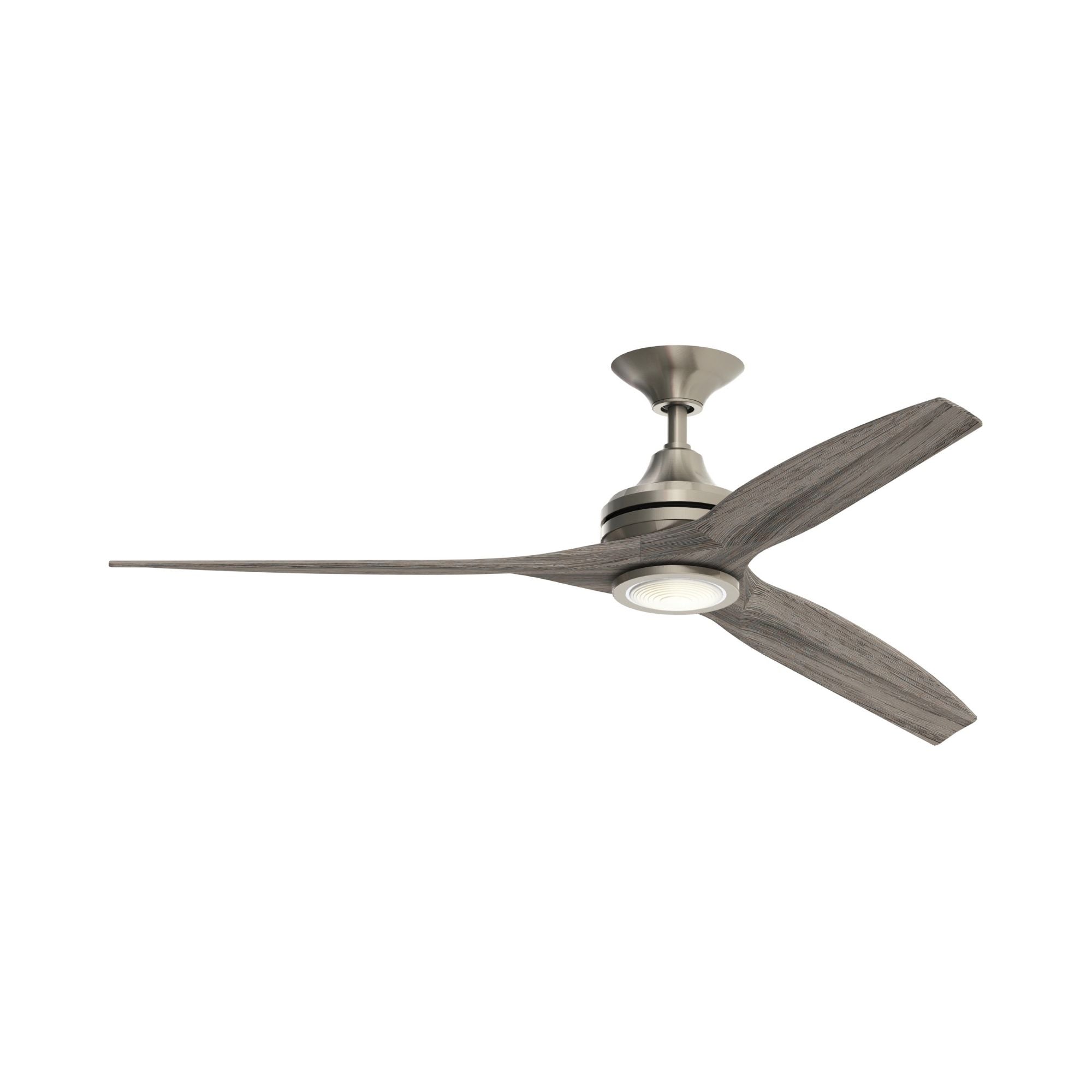

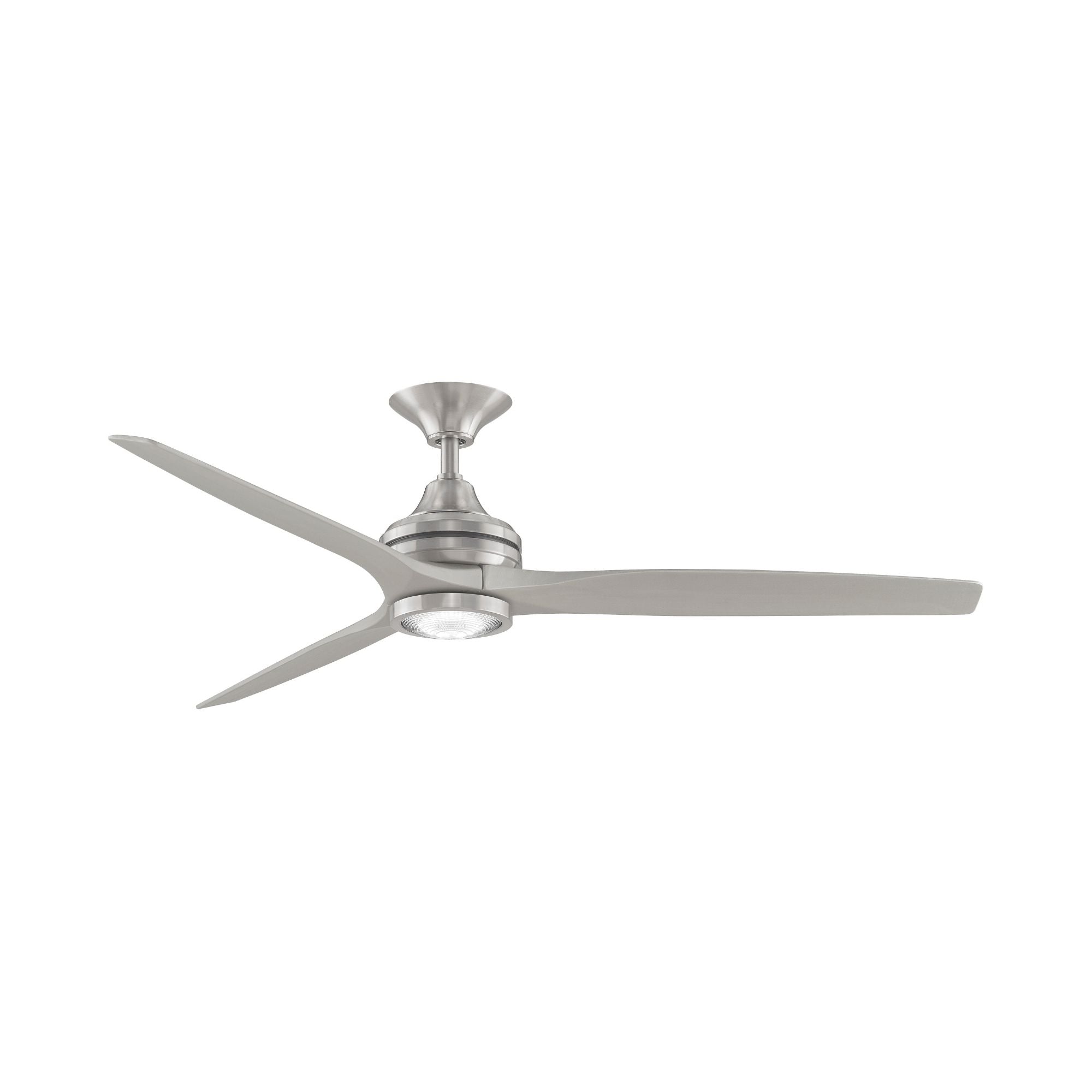

• Light Kit: LK6721BBN — 18W | 924 lumens | 3,000K | CRI 90 | sold separately at Bees Lighting
• Flush Mount Kit: CCK6721BN — sold separately at Bees Lighting
• Remote: TR500 included | Compatible wall controls: CW7, WC1WH, WC2WH, WR500WH, WR501WH, CWRL4 | WiFi: WFR50 (sold separately)

Compatible Accessories (sold separately at Bees Lighting)

• Blade Set: B6720 — 3-blade wood sets in multiple finishes
• Light Kit: LK6721BBN — matching Brushed Nickel finish | 18W dimmable LED | 924 lumens | 3,000K | CRI 90 | includes Fresnel & frosted shades
• Flush Mount Kit: CCK6721BN — matching Brushed Nickel finish, for low-ceiling installations
• Sloped Ceiling Kit: SCK1-52 — for slopes up to 42°
• Downrod Coupler: DR1-CP** — to join two downrods for lengths greater than 72 in

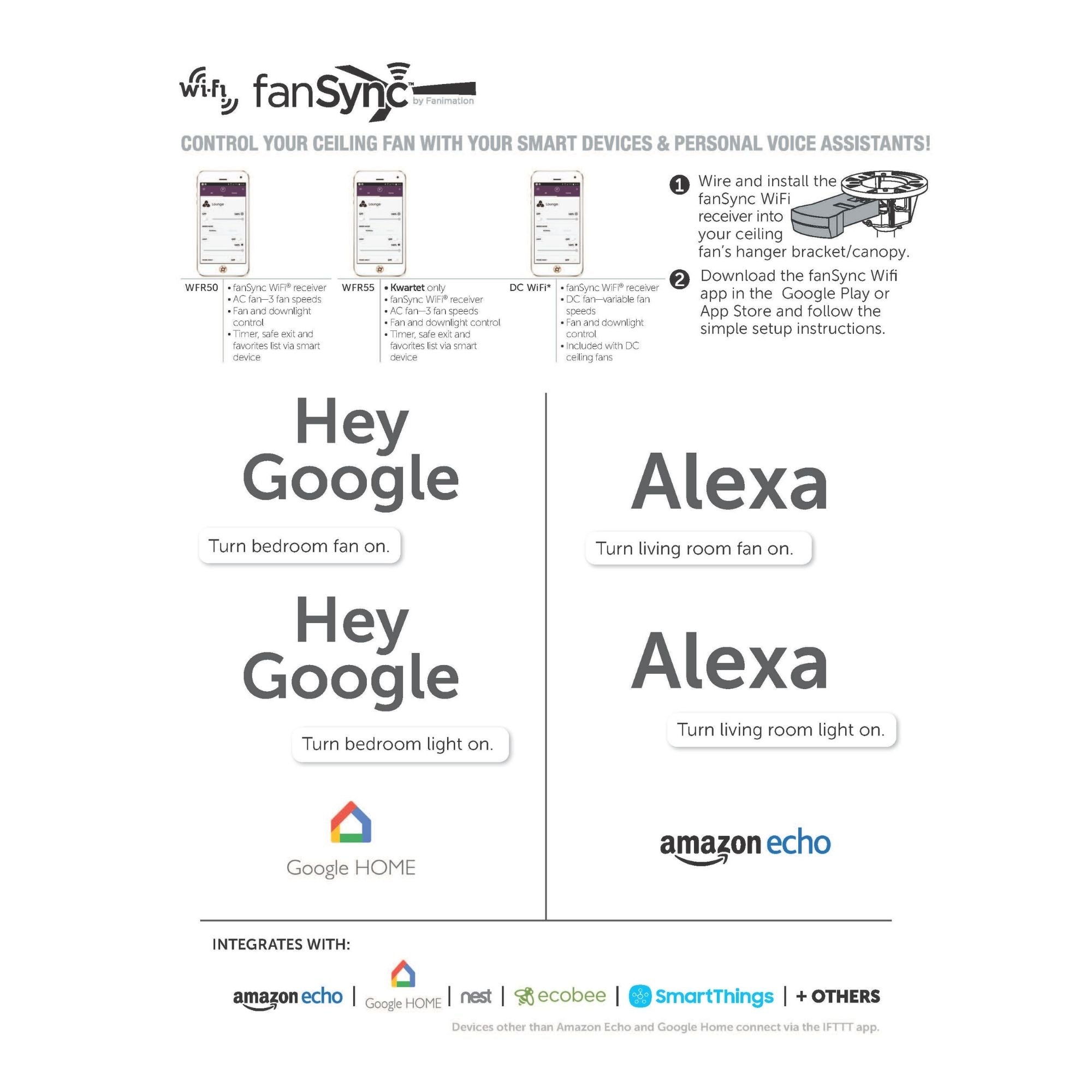

• WiFi Receiver: WFR50

Control Features

The Spitfire MA6721BBN includes a TR500 hand-held remote control with variable fan speeds, infinite light level adjustment, and off button. Optional wall controls (CW7, WC1WH, WC2WH, WR500WH, WR501WH, CWRL4WH) and the WFR50 WiFi receiver are available separately at Bees Lighting for smart home integration.

Construction & Design

The Spitfire’s clean, swept-blade silhouette is defined by its 3-blade customizable format — a minimalist profile that keeps the focus on the blade finish you choose. At 60 in, this motor is sized for larger living rooms, open-plan spaces, and master bedrooms over 400 sq ft. The Brushed Nickel motor housing brings a polished yet understated metallic finish that works across a wide range of interior styles — particularly well-suited to transitional living rooms, coastal bedrooms, and contemporary open-plan spaces. Damp rated — suitable for covered porches, bathrooms, and humid interior environments.

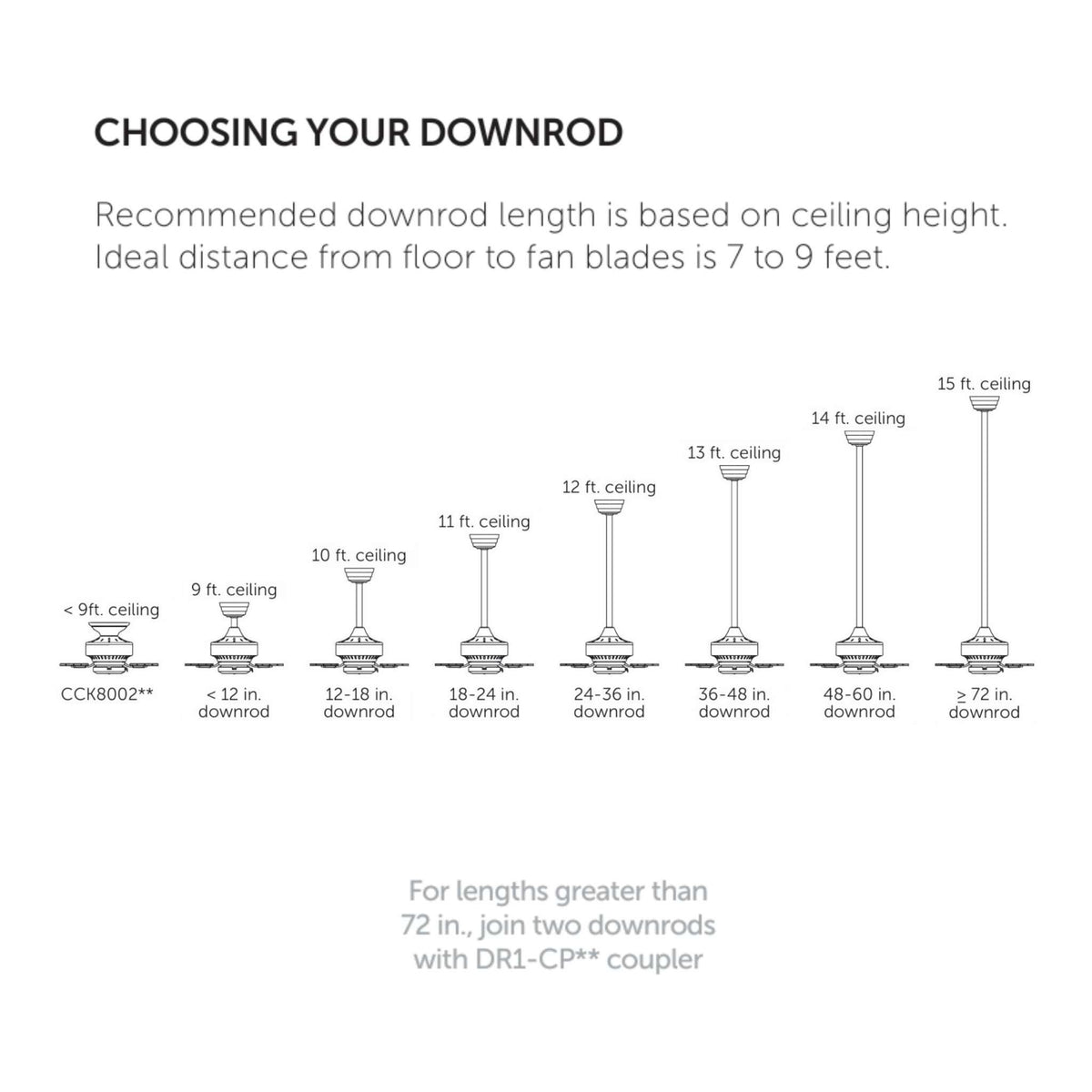

Suggested Downrod by Ceiling Height

Ideal distance from floor to fan blades is 7 to 9 feet.

• Below 9 ft ceiling → Flush mount kit CCK6721BN (no downrod)
• 9 ft ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod
• Above 72 in → join two downrods with DR1-CP** coupler

What’s Included

• Fanimation Spitfire MA6721BBN 60 in AC ceiling fan motor unit
• TR500 hand-held remote control
• 1 in × 4.5 in downrod
• Mounting hardware
• Blades and light kit not included — sold separately at Bees Lighting
