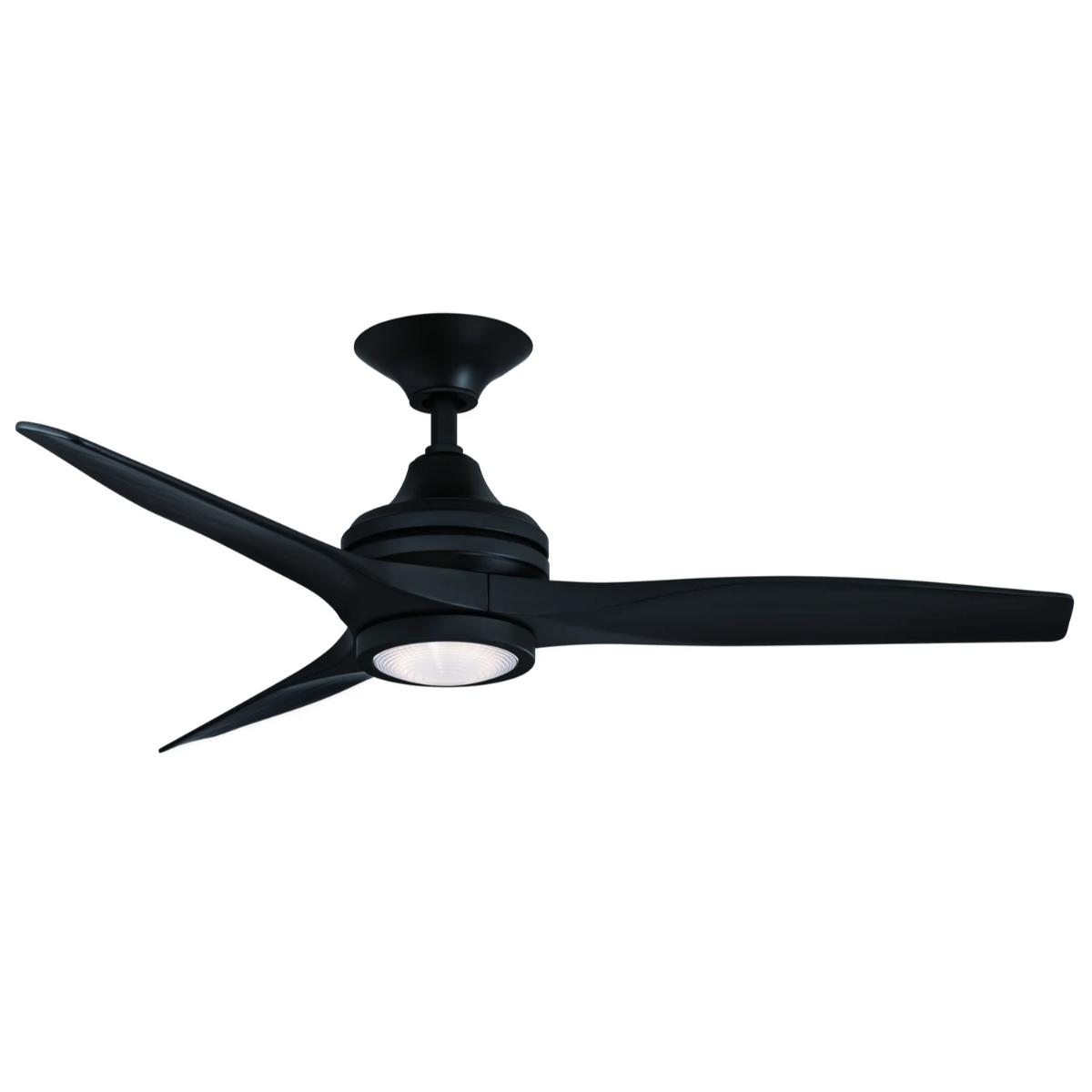

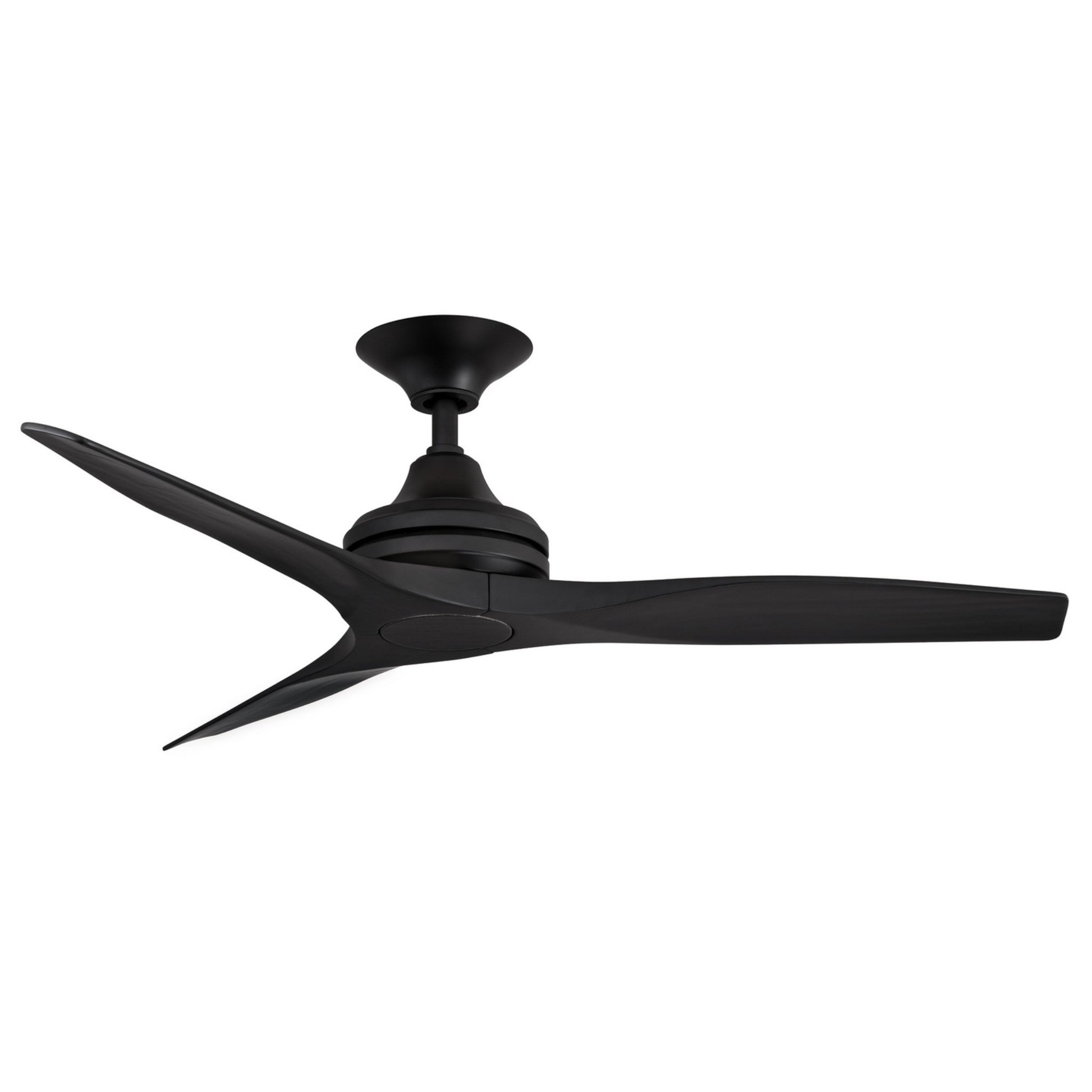

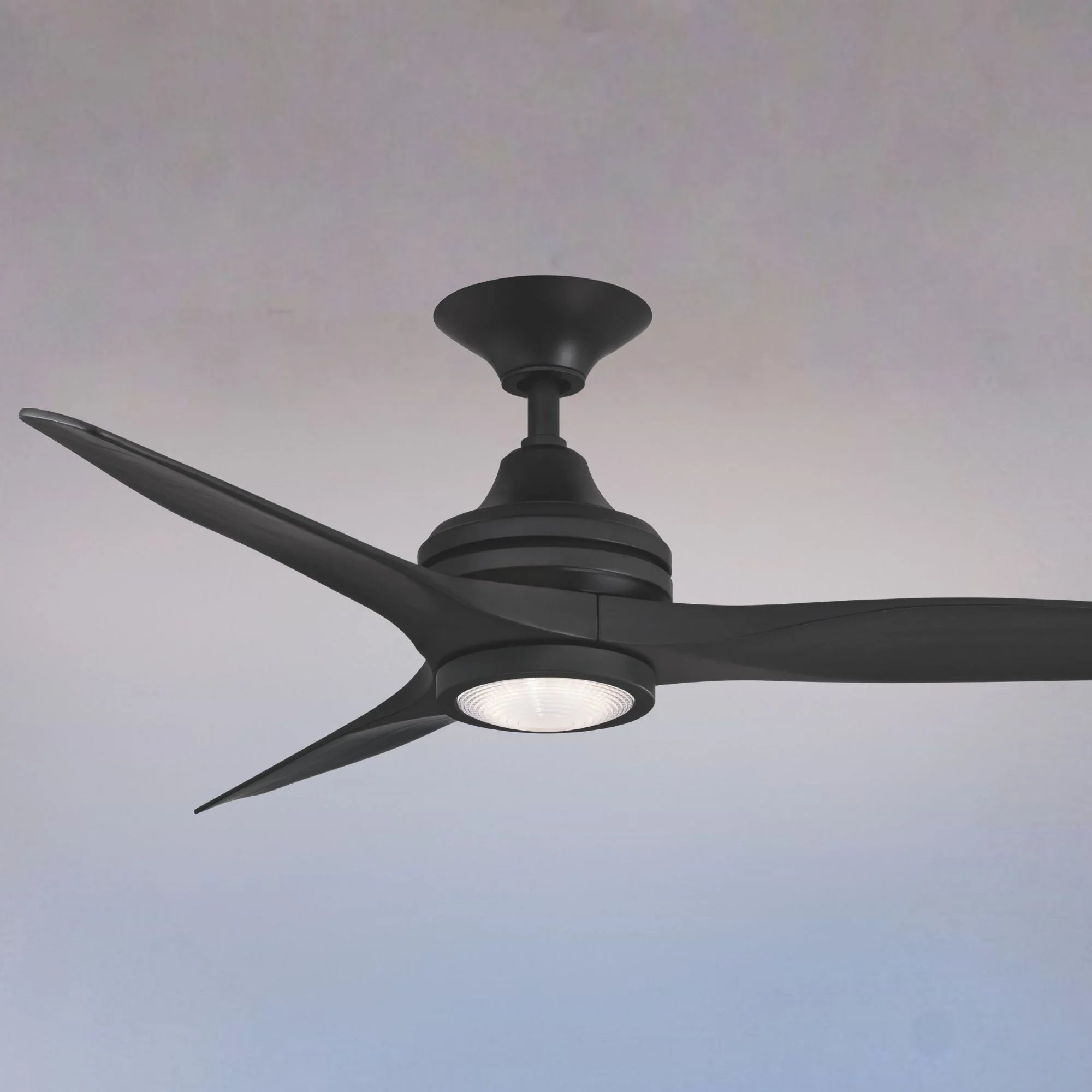

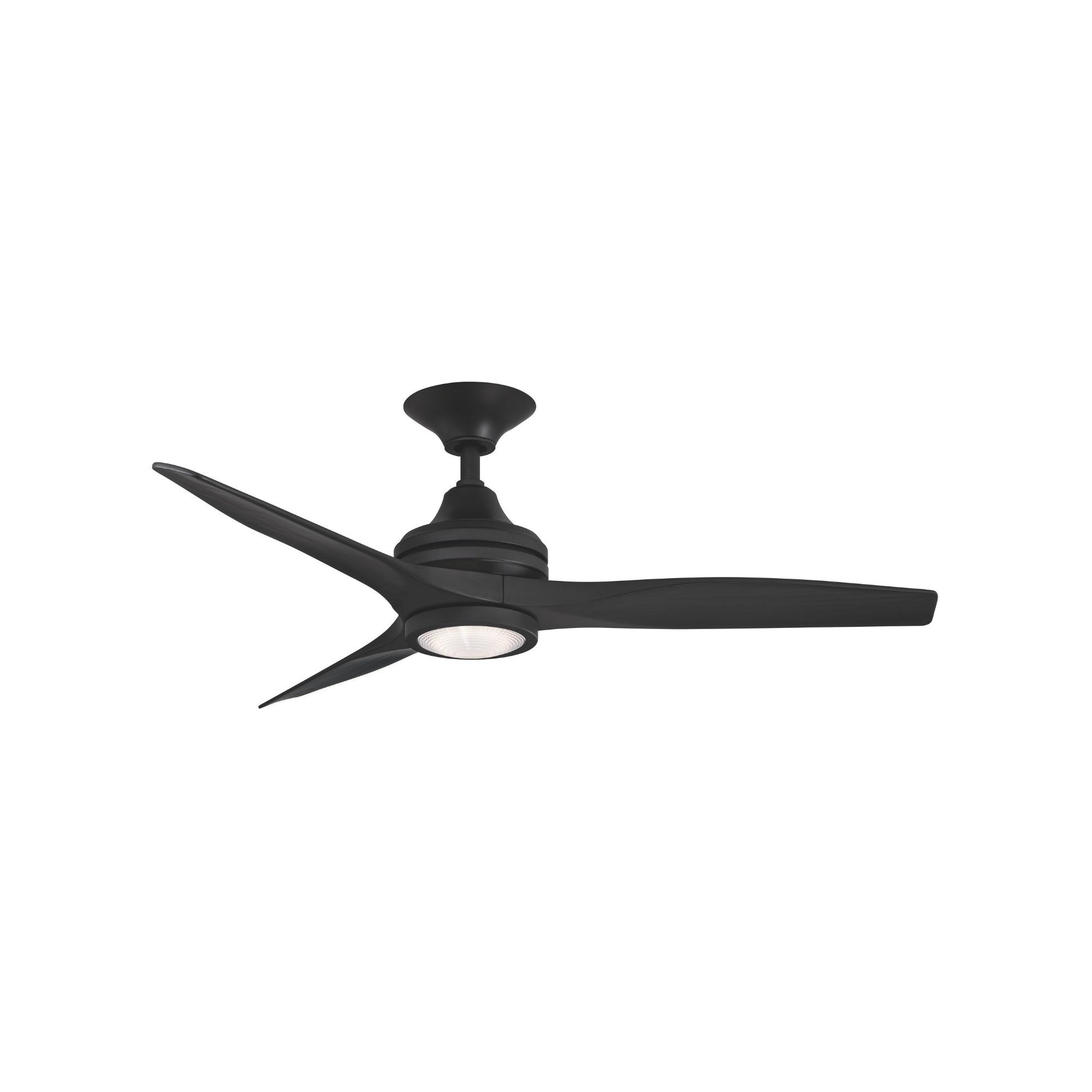

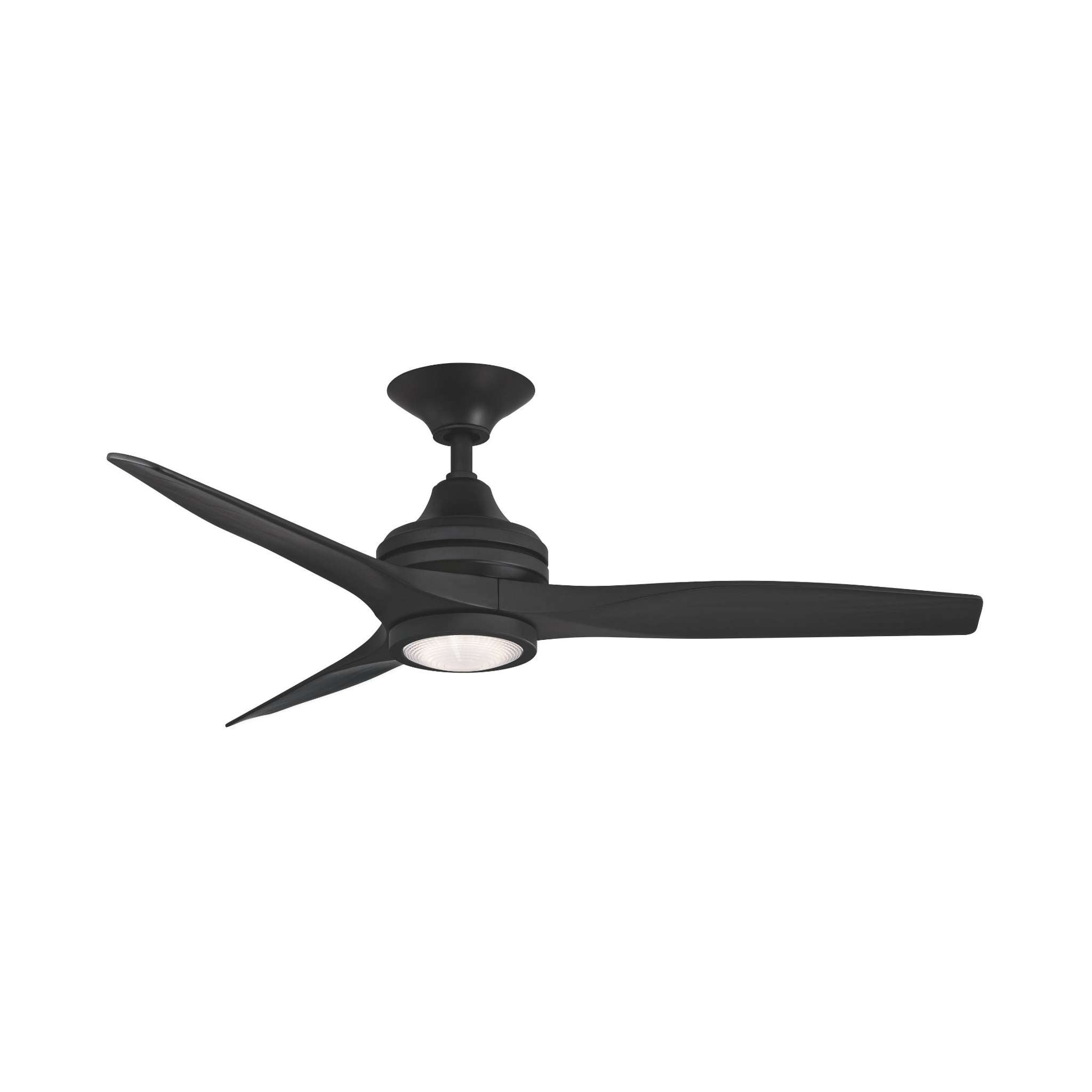

Fanimation Spitfire 48 in AC Ceiling Fan Motor — Black

The Fanimation Spitfire (model MA6721BBL-48) is a 48 in damp-rated ceiling fan motor built around Fanimation’s customizable Spitfire platform — letting you pair your motor with the blade finish and light kit of your choice for a fully personalized ceiling fan. The 188×25mm AC motor delivers 5,164 CFM at high speed, sized for rooms up to 225 sq ft. The Black finish is the most versatile option in the Spitfire lineup — a clean, bold motor housing that pairs seamlessly with virtually any blade finish, from light maple and white to dark walnut and driftwood. A TR500 hand-held remote with variable fan speeds, infinite light levels, and off button is included. Damp location rated — suitable for covered outdoor spaces, bathrooms, and humid environments.

⚠️ Blades sold separately. This listing is for the Spitfire motor unit only. Compatible 3-blade wood blade sets (B6720-48) are available separately at Bees Lighting. Optional matching accessories — light kit LK6721BBL and flush mount kit CCK6721BL — are also available separately at Bees Lighting.

Key Specifications

• Blade Span: 48 in (blades sold separately — B6720-48 compatible)
• Motor: AC — 188×25mm | 3 speeds

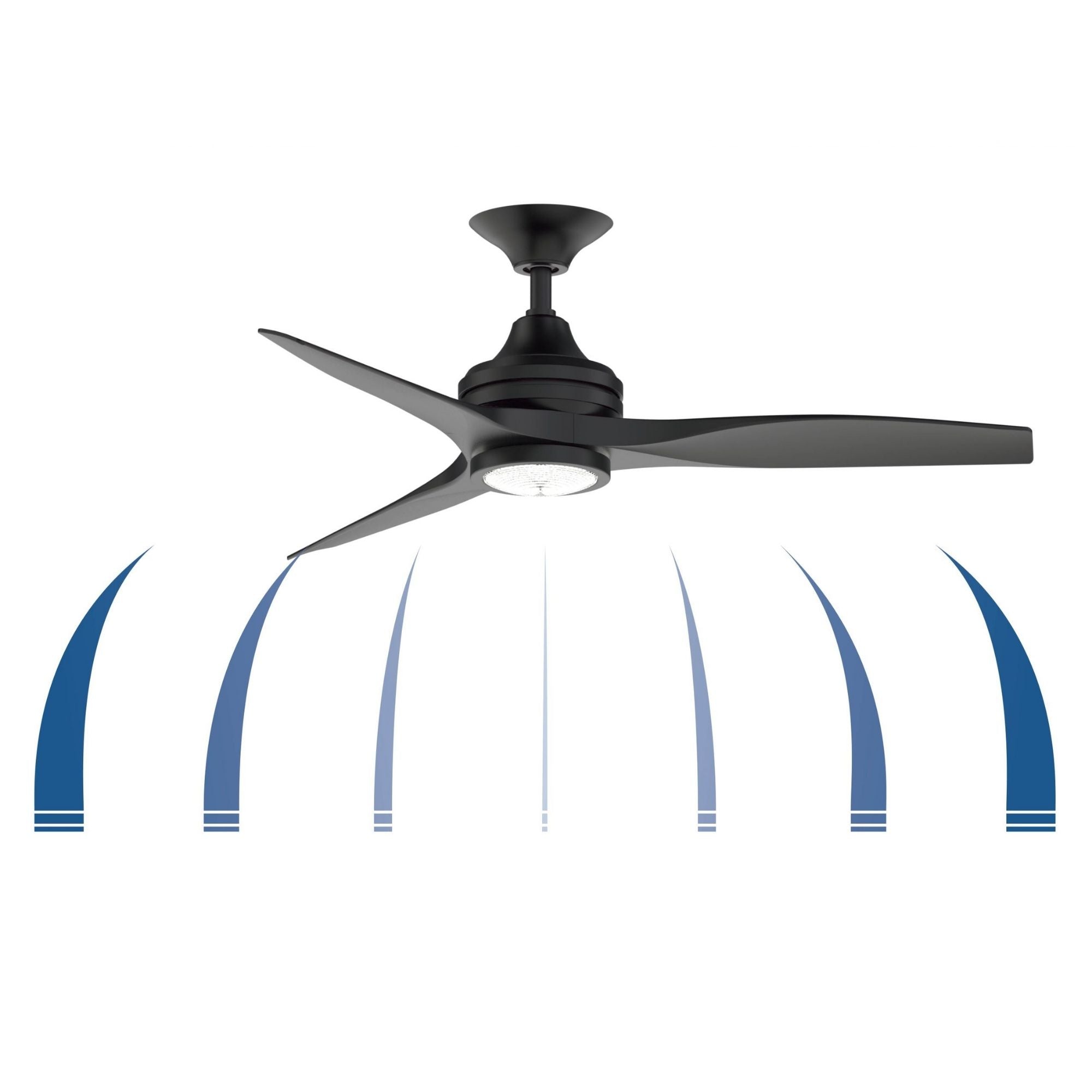

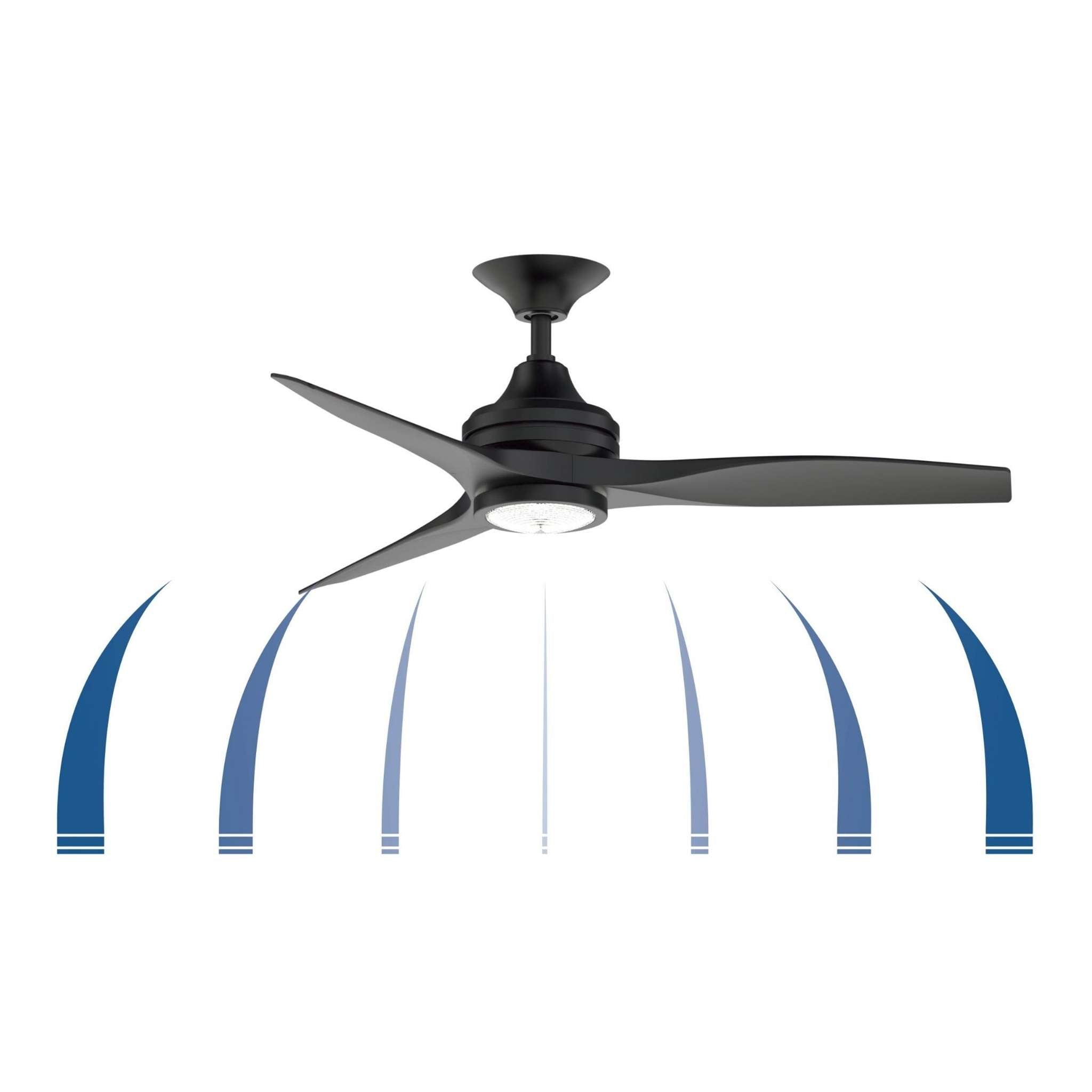

• Airflow: 1,526 CFM (low) / 3,280 CFM (med) / 5,164 CFM (high)
• Efficiency: 72 CFM/W (high) | 101 CFM/W (med) | 132 CFM/W (low)
• Watts: 12W (low) / 32W (med) / 72W (high)
• RPM: 66 (low) / 124 (med) / 198 (high)
• Room Size: Up to 225 sq ft
• Location Rating: Dry & Damp
• Sloped Ceiling Compatible: Yes (up to 19° | 12 in downrod recommended for most sloped installations)

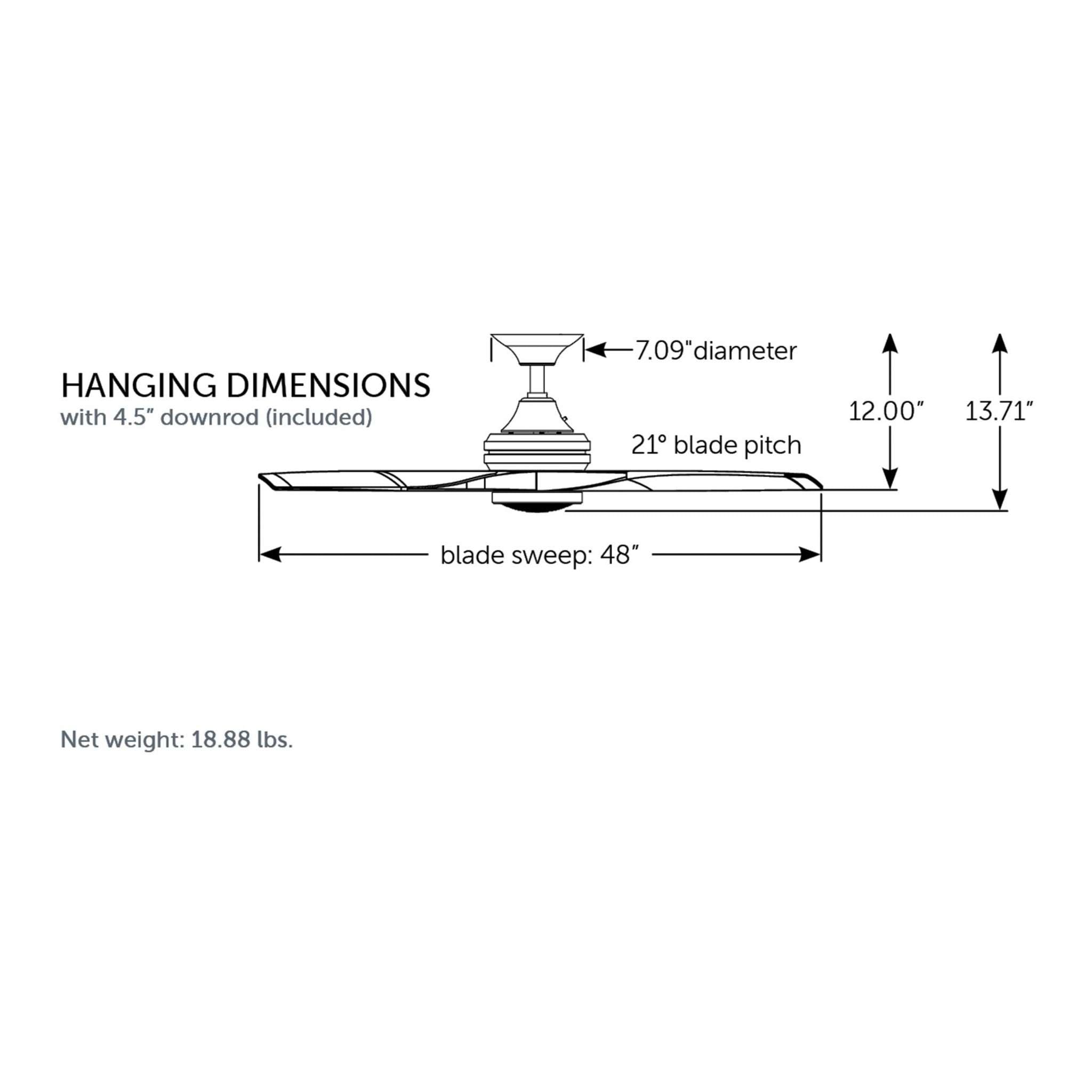

• Downrod: 1 in dia. × 4.5 in included | Optional: 12, 18, 24, 36, 48, 60, 72 in

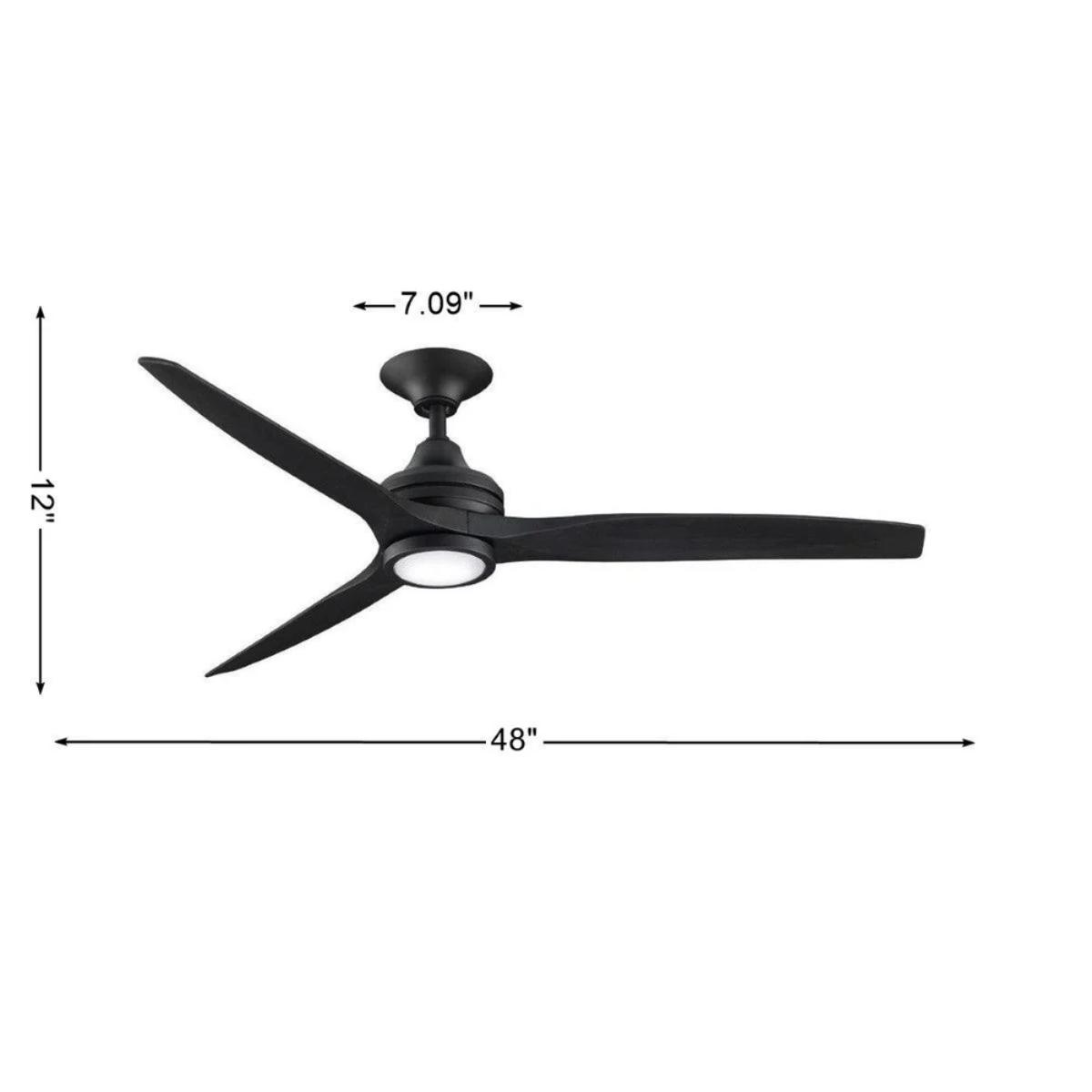

• Canopy: 7.09 in dia. (motor only) | 7.85 in dia. (with B6720-48 blades)
• Min. Ceiling Height: 7 ft | Net hanging weight: 19.96 lbs

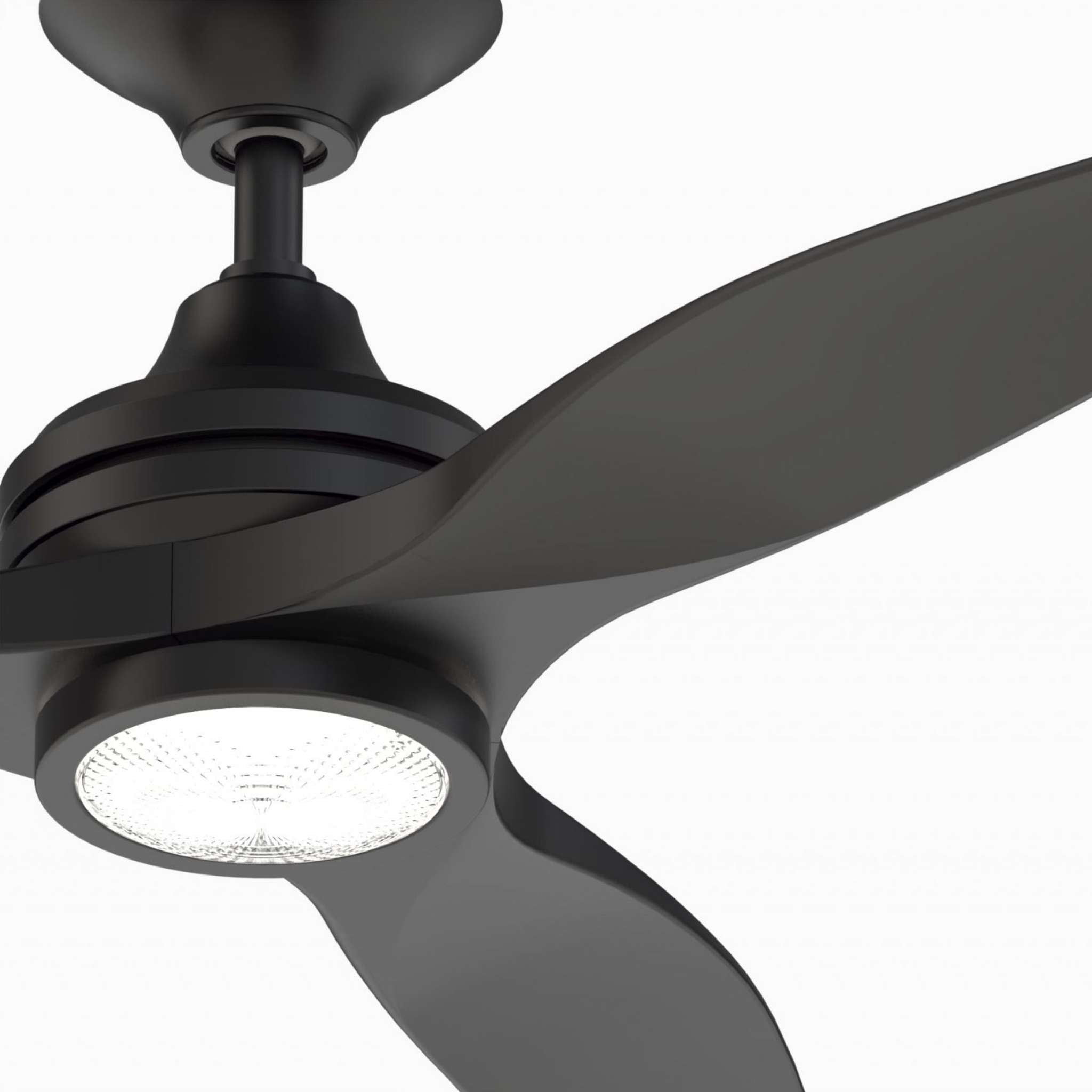

• Light Kit: LK6721BBL — sold separately at Bees Lighting

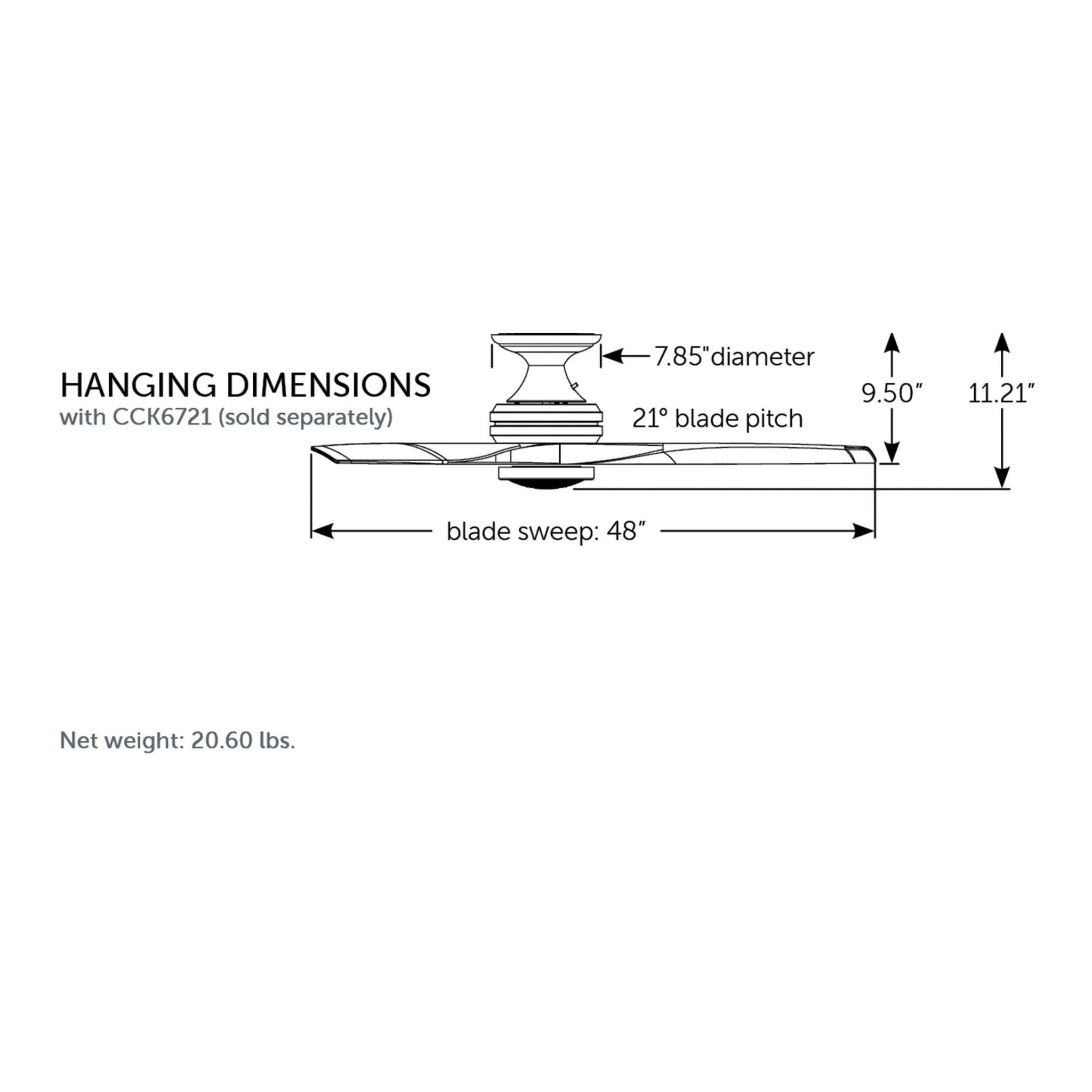

• Flush Mount Kit: CCK6721BL — sold separately at Bees Lighting
• Remote: TR500 included | Compatible wall controls: CW7, WC1WH, WC2WH, WR500WH, WR501WH, CWRL4 | WiFi: WFR50 (sold separately)

Compatible Accessories (sold separately at Bees Lighting)

• Blade Set: B6720-48 — 3-blade wood sets in multiple finishes
• Light Kit: LK6721BBL — matching Black finish

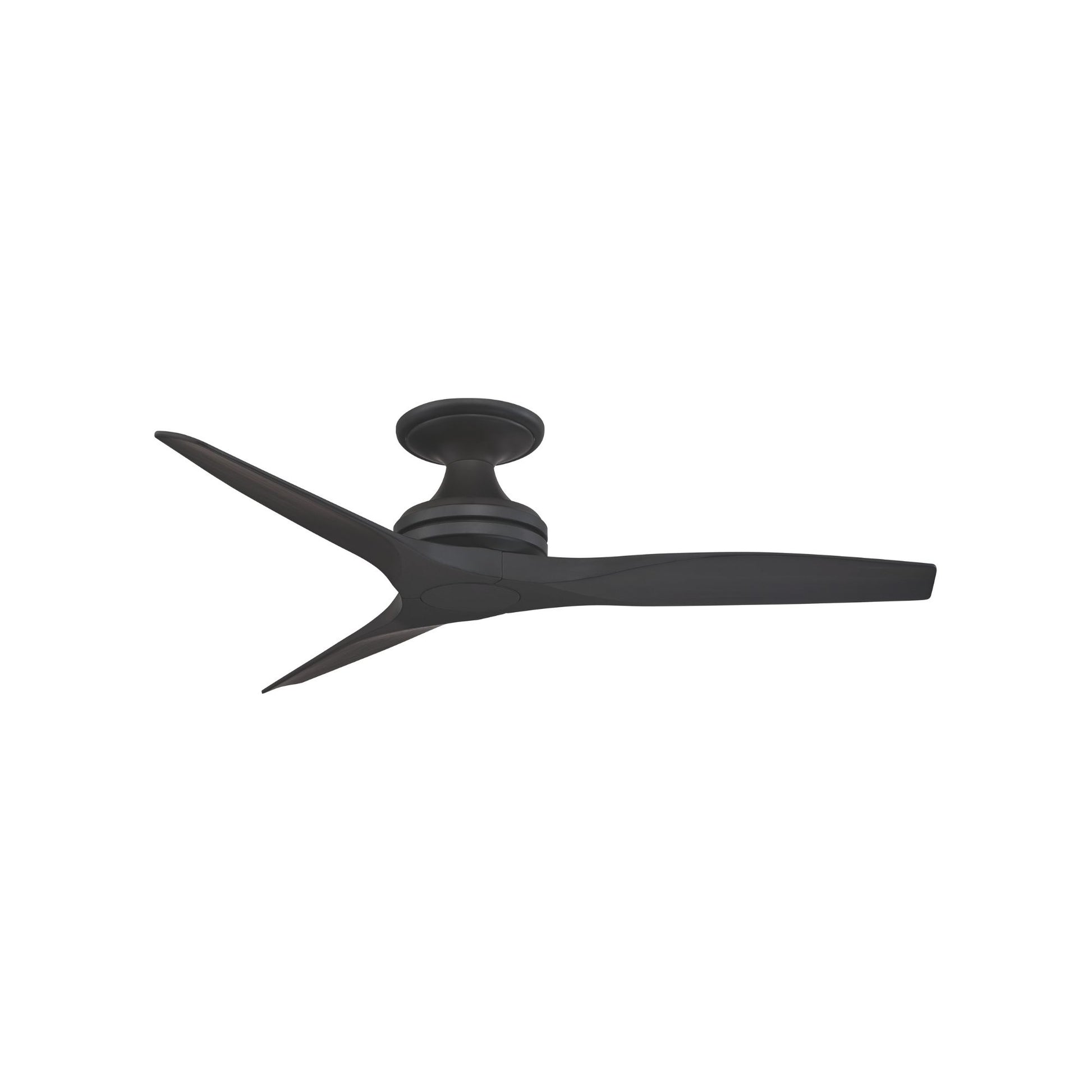

• Flush Mount Kit: CCK6721BL — matching Black finish, for low-ceiling installations
• Sloped Ceiling Kit: SCK1-52 — for slopes up to 42°
• Downrod Coupler: DR1-CP** — to join two downrods for lengths greater than 72 in
• WiFi Receiver: WFR50

Control Features

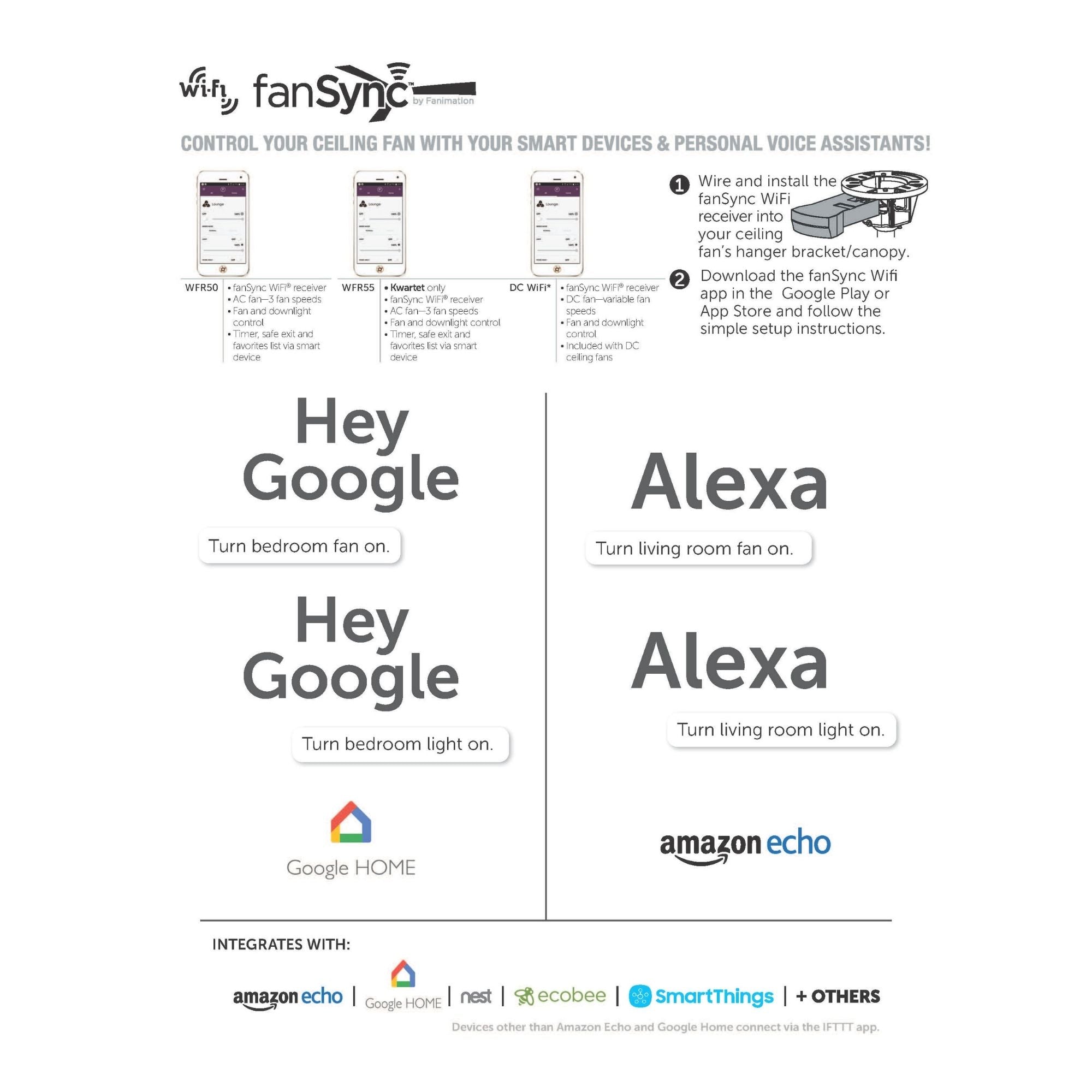

The Spitfire MA6721BBL-48 includes a TR500 hand-held remote control with variable fan speeds, infinite light level adjustment, and off button. Optional wall controls (CW7, WC1WH, WC2WH, WR500WH, WR501WH, CWRL4WH) and the WFR50 WiFi receiver are available separately at Bees Lighting for smart home integration.

Construction & Design

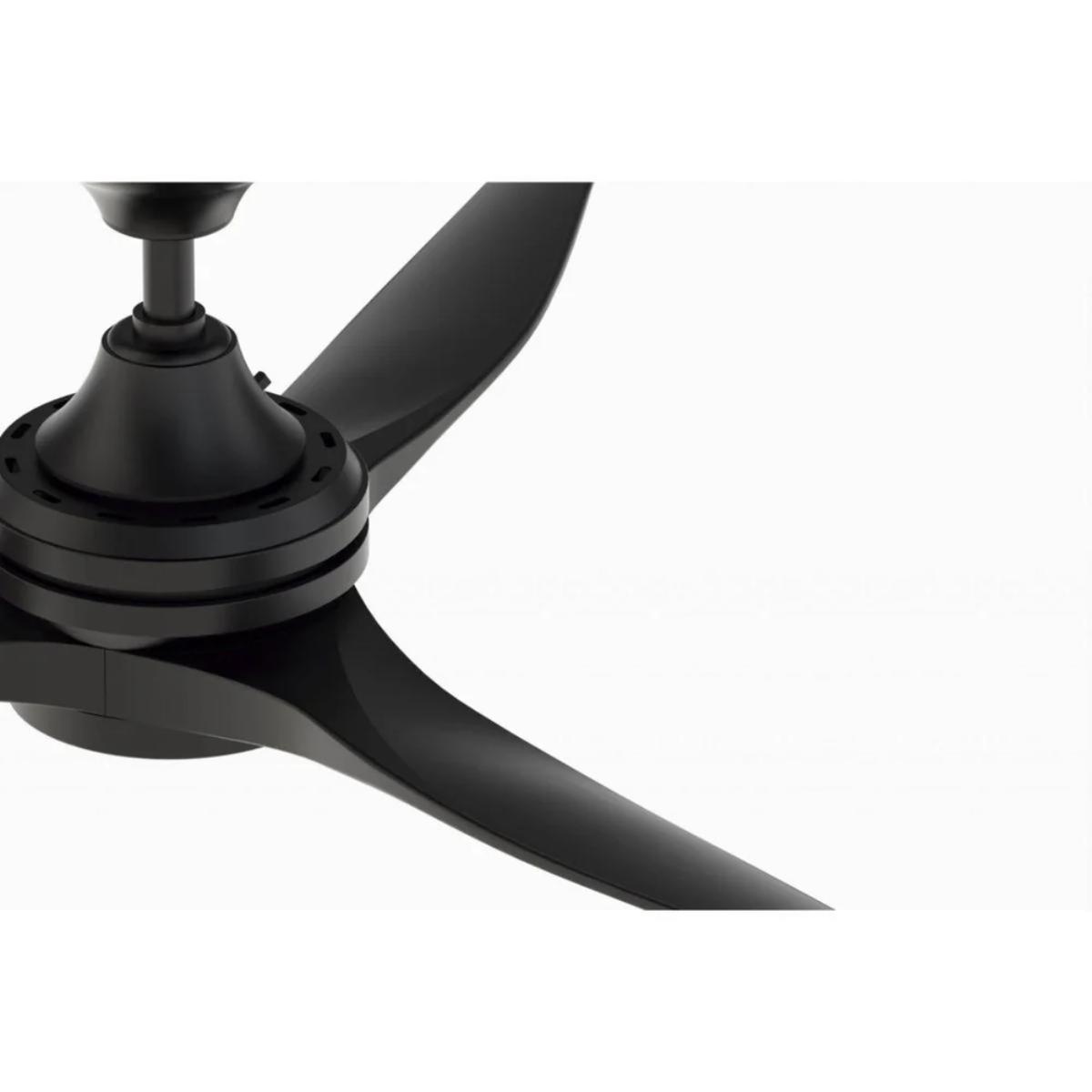

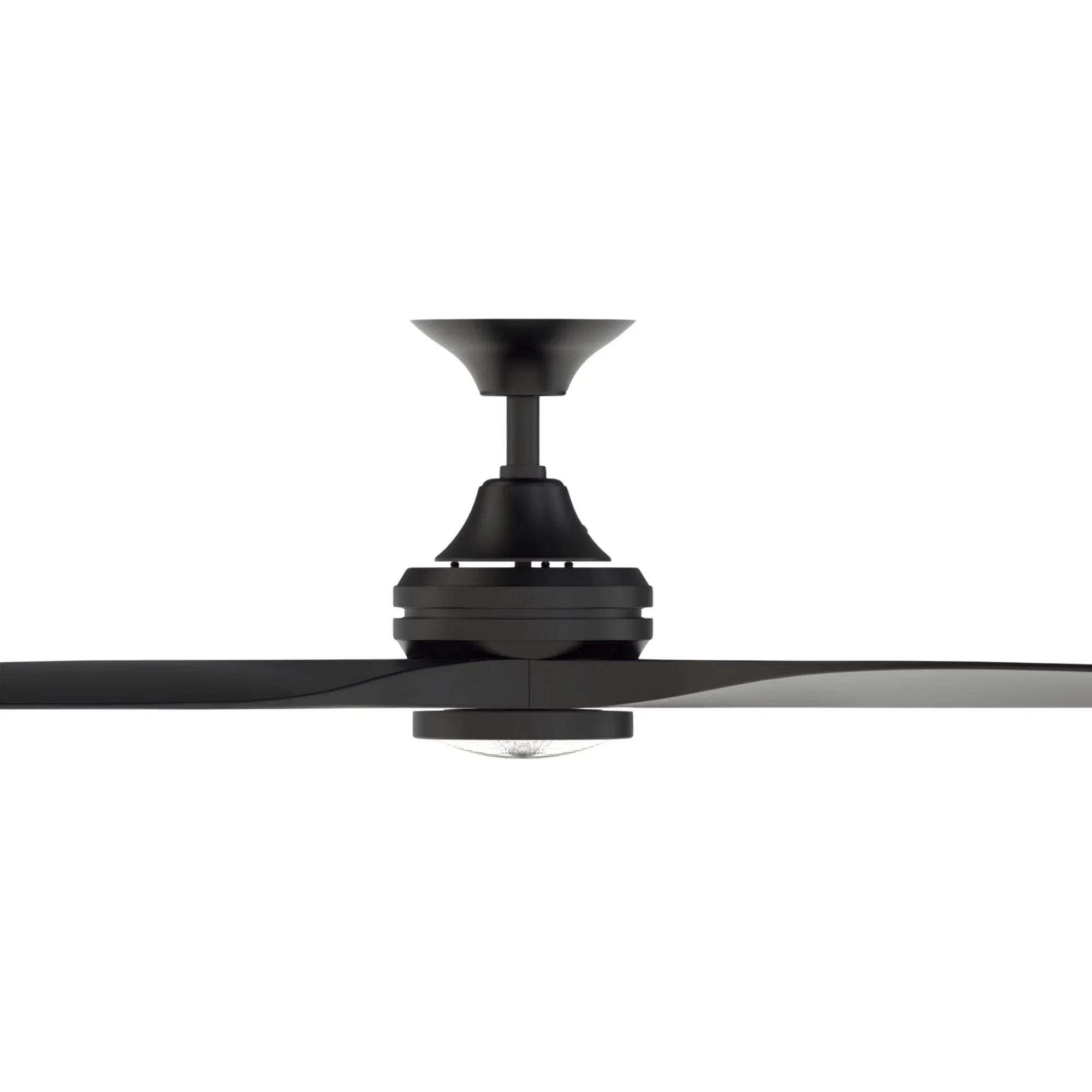

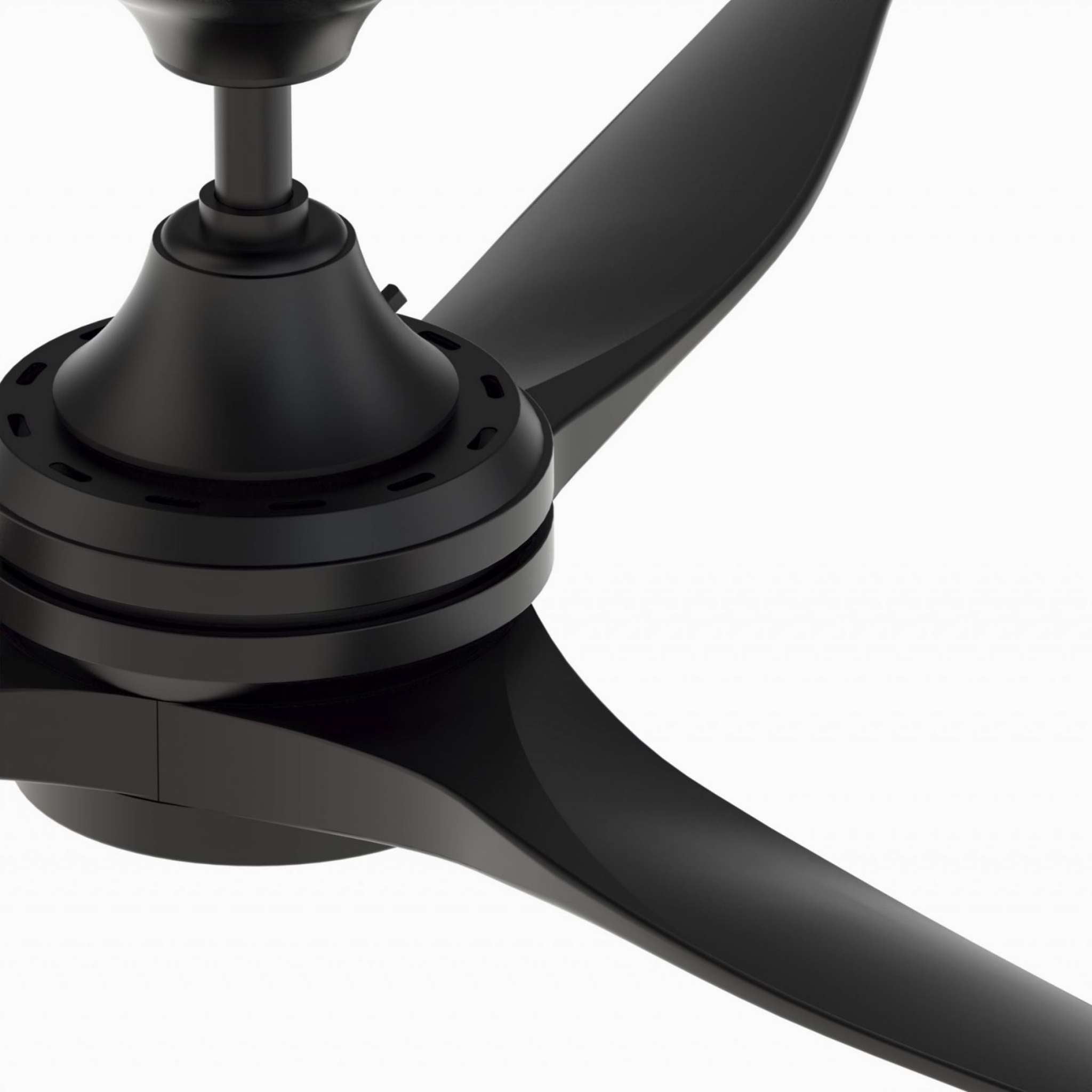

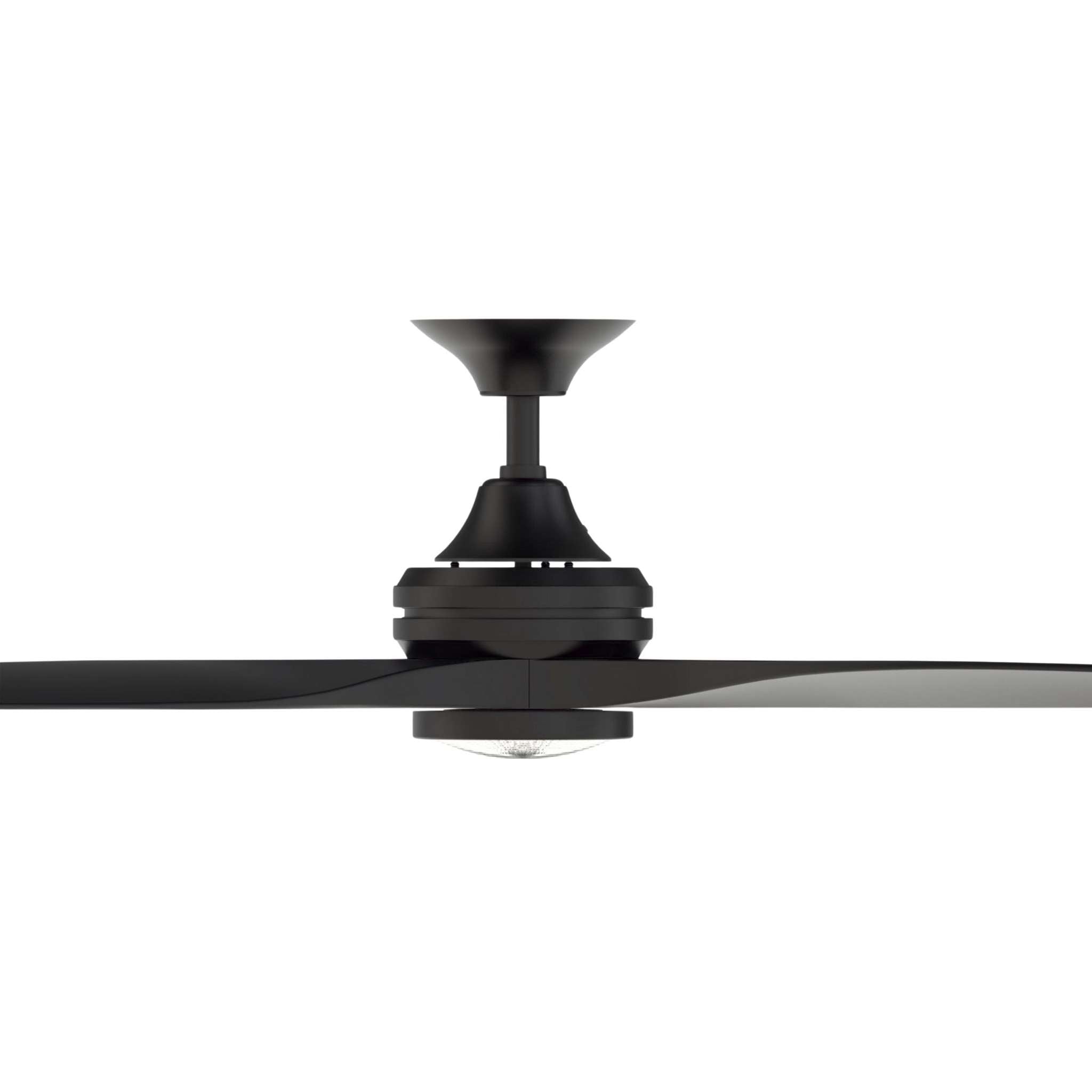

The Spitfire’s clean, swept-blade silhouette is defined by its 3-blade customizable format — a minimalist profile that keeps the focus on the blade finish you choose. The Black motor housing is the most universally compatible finish in the Spitfire lineup — equally at home with light natural wood blades for an airy modern look or dark walnut blades for a bold, monochromatic statement. Damp rated — suitable for covered porches, bathrooms, and humid interior environments.

Suggested Downrod by Ceiling Height

Ideal distance from floor to fan blades is 7 to 9 feet.

• Below 9 ft ceiling → Flush mount kit CCK6721BL (no downrod)
• 9 ft ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod
• Above 72 in → join two downrods with DR1-CP** coupler

What’s Included

• Fanimation Spitfire MA6721BBL-48 motor unit
• TR500 hand-held remote control
• 1 in × 4.5 in downrod
• Mounting hardware
• Blades and light kit not included — sold separately at Bees Lighting
