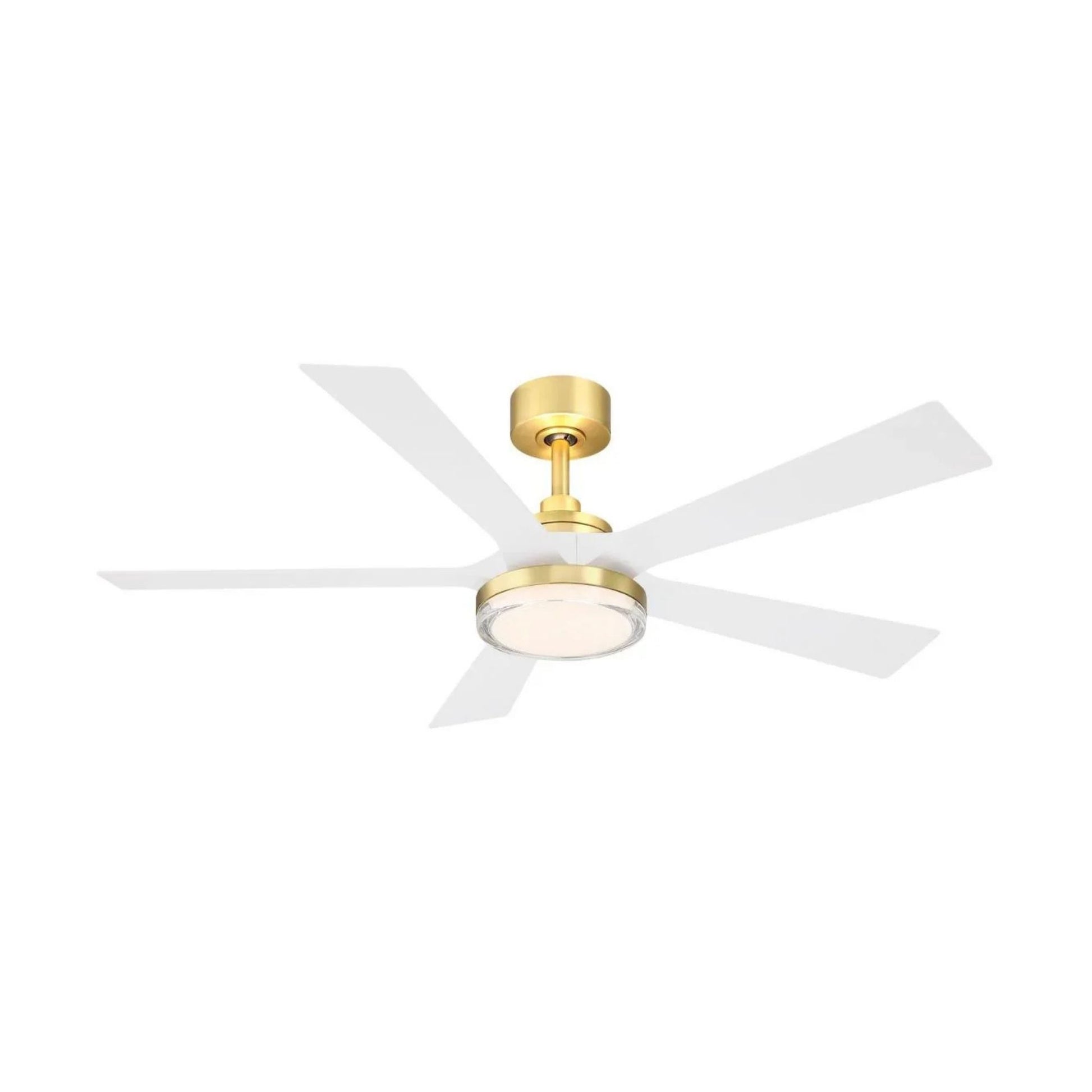

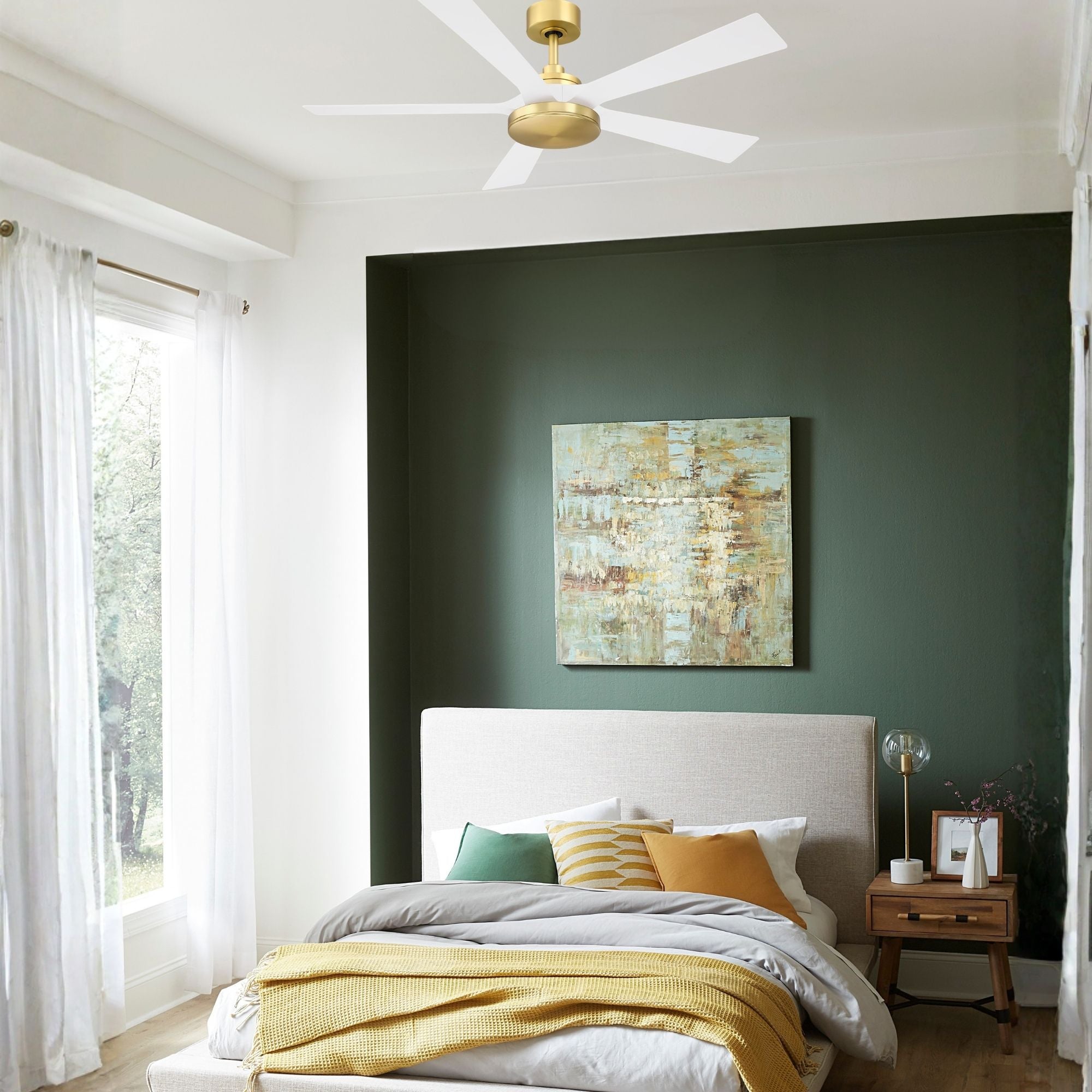

The Fanimation TorchAire FPD8570BS is a five-blade 52 in downrod ceiling fan in Brushed Satin Brass with Matte White composite blades and a dual LED light system. Powered by a whisper-quiet DC 126×10 sensorless motor with 6 speeds via the included WiFi remote, it delivers 5,630 CFM at high speed. Damp rated for indoor and covered outdoor use. Includes a 6 in downrod.

• Blade Span: 52 in / 5 composite blades / 14° pitch / Matte White
• Motor: DC 126×10 sensorless / 6 speeds / KwikWire connection / reverse on remote
• Airflow: 5,630 CFM at high / 1,557 CFM at low
• Efficiency: 181 CFM/W at high speed
• Wattage: 31W at high / 3W at low
• Light Kit: Dual LED — 12W uplight (1,000 lm) + 30W downlight (2,700 lm) / 5 CCT / CRI 90 / dimmable
• Location Rating: Damp rated — indoor and covered outdoor use
• Mount Type: Downrod — 6 in downrod included / up to 27° slope standard
• Weight: 19.45 lbs
• Certifications: UL listed

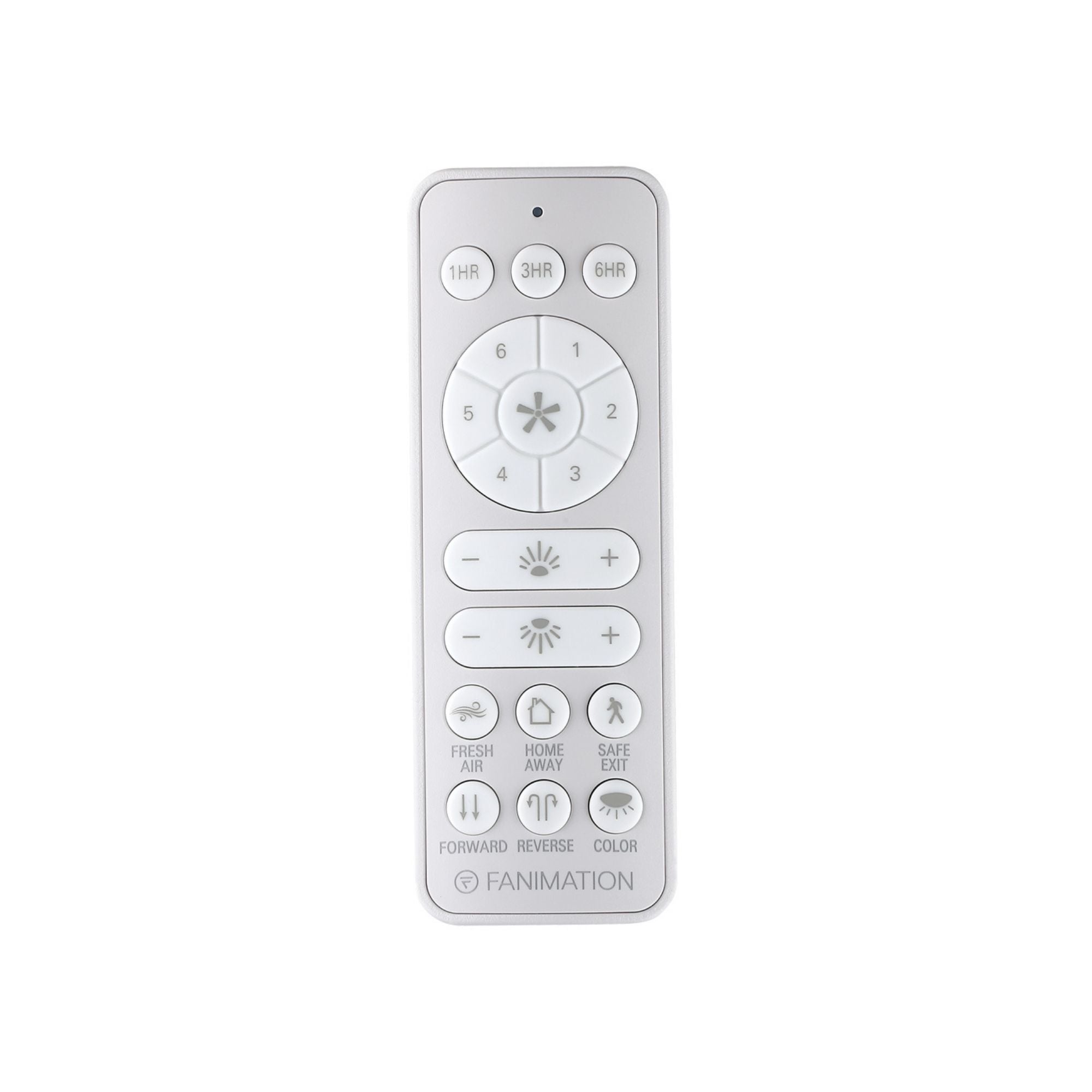

The FPD8570BS includes the TR361 hand-held remote and a built-in fanSync WiFi receiver — no additional hub required. The TR361 provides 6-speed fan control, fresh air mode, reverse, full-range uplight and downlight dimming, 5 CCT color temperature selection (2700K / 3000K / 3500K / 4000K / 5000K), fan/light timer, home away, safe exit, and off. Download the free fanSync app (iOS & Android) for smartphone control. Voice control compatible with Amazon Alexa and Google Home. Optional TW407 2-wire fan + light wall remote available separately.

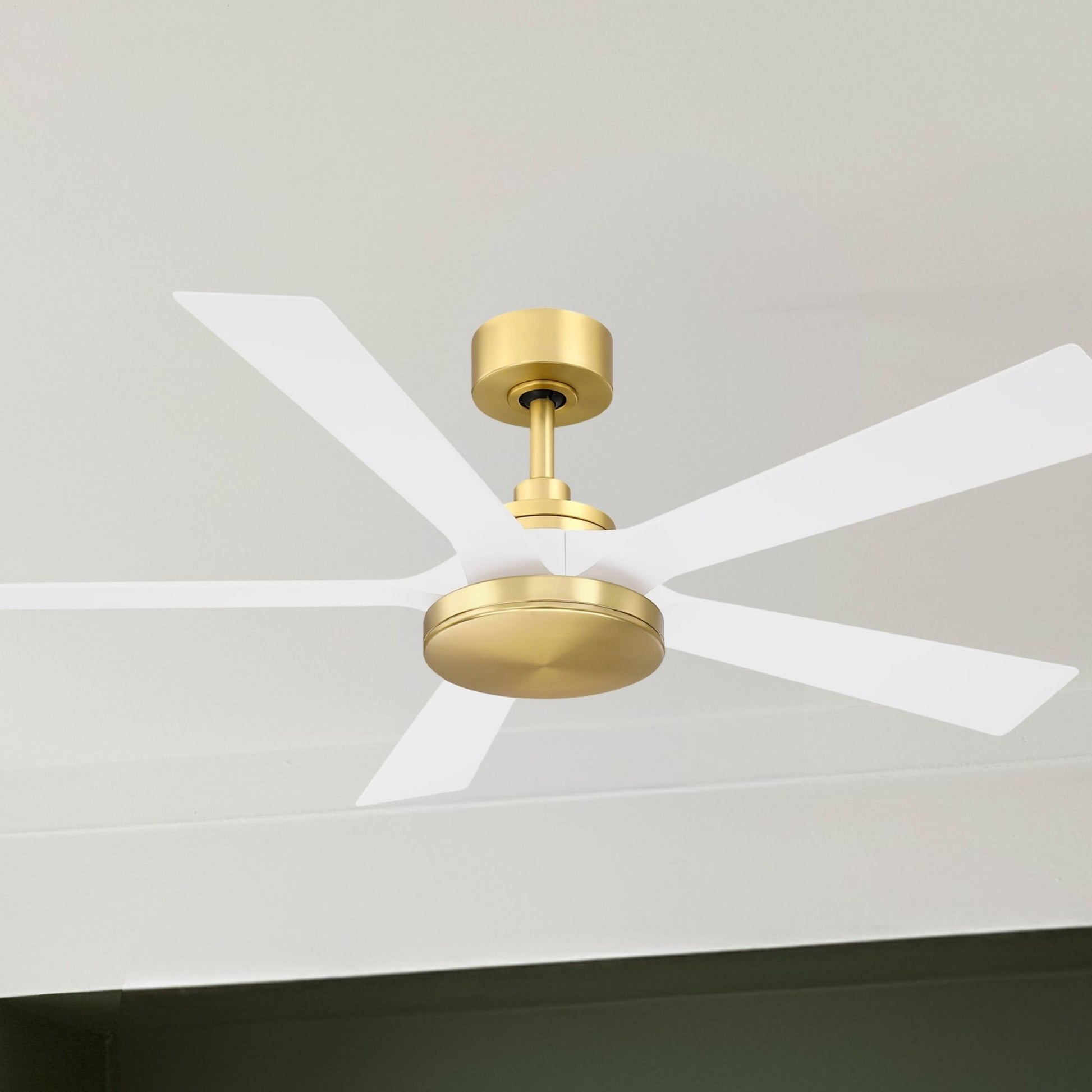

Motor housing in Brushed Satin Brass with five Matte White composite blades at 14° pitch. Net weight: 19.45 lbs. The TorchAire’s torch-inspired uplight and five-blade profile pair warm Brushed Satin Brass with crisp Matte White blades — a refined, on-trend combination for modern and transitional interiors and covered outdoor spaces.

Dual LED light system — Uplight: 12W / 1,000 lm initial / Opal Frosted shade. Downlight: 30W / 2,700 lm initial / Double-walled Clear & Opal Frosted shade. Both lights feature 5 CCT (2700K / 3000K / 3500K / 4000K / 5000K) / CRI 90 / fully dimmable via remote. Cap included for use without light. The FPD8570BS delivers 5,630 CFM at high speed (181 CFM/W, 31W) — ideal for rooms and covered outdoor spaces up to approximately 400 sq ft.

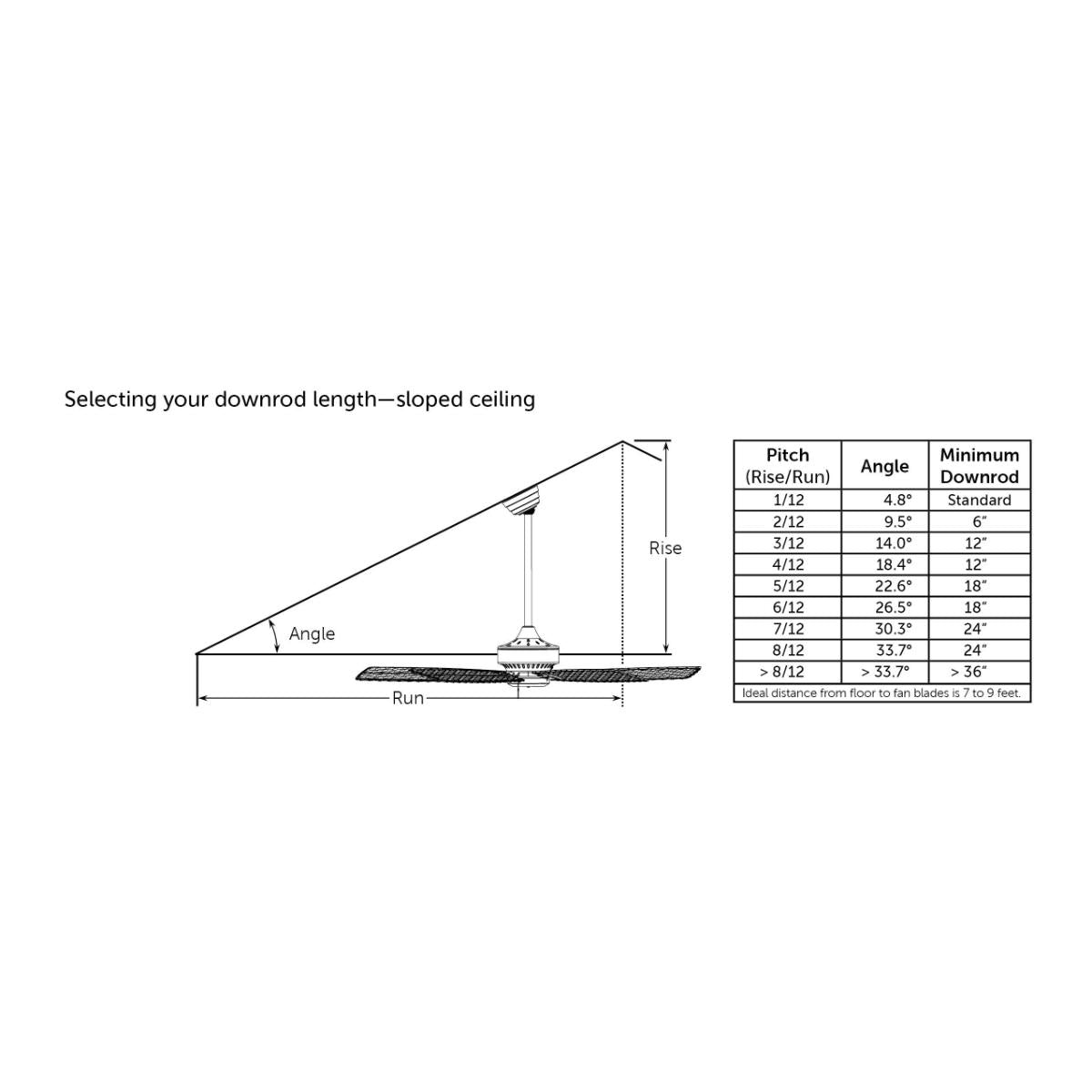

120V AC, 60Hz, 15A circuit. Fan draw: 31W at high / 3W at low. KwikWire easy connection. Ships with a 6 in downrod. Standard slope tolerance: 27°. For slopes 27°–42°, the optional sloped ceiling ball kit SCB1-52 is available separately. Close-to-ceiling flush mount sold separately. Fan must be attached to a securely anchored electrical junction box rated for at least 35 lbs.

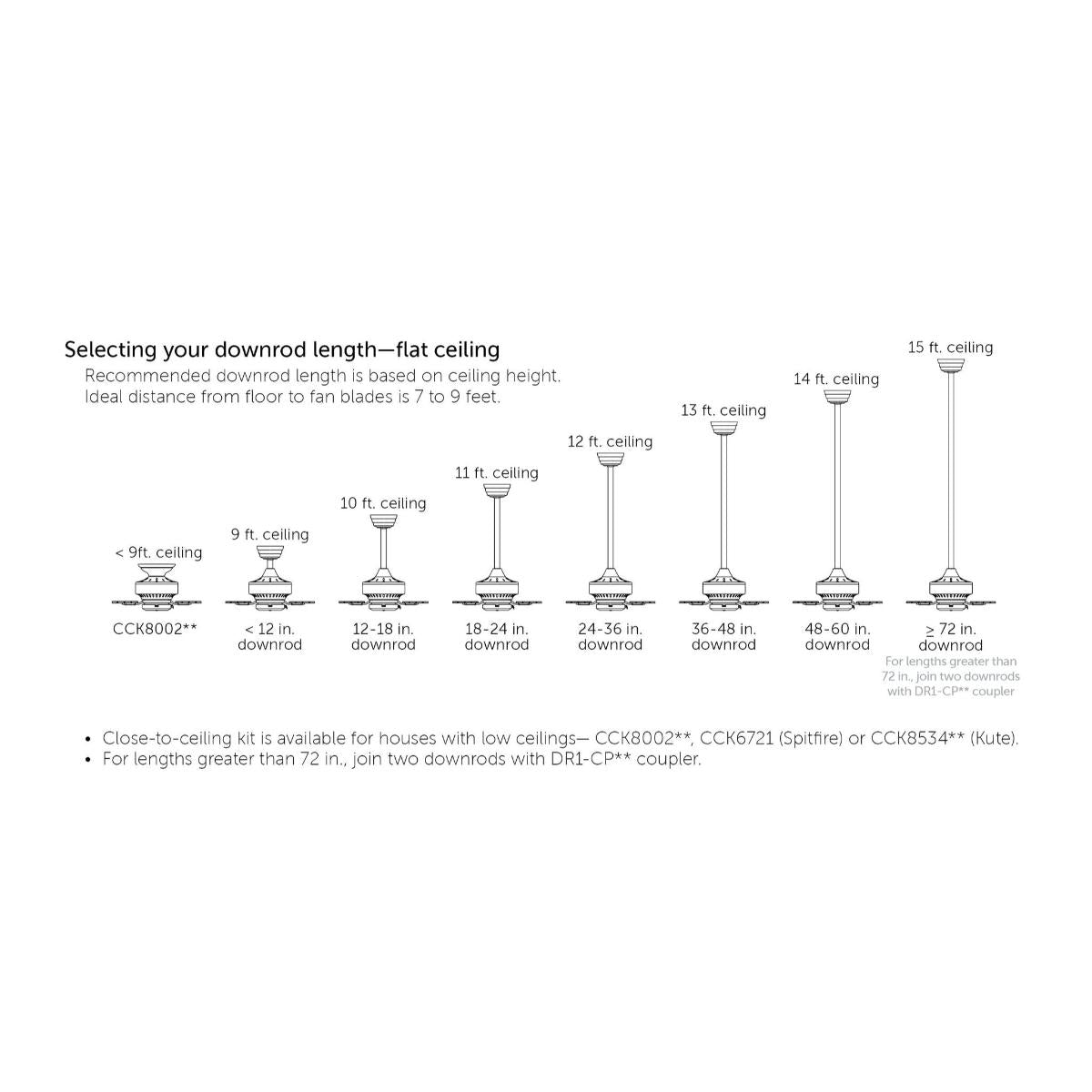

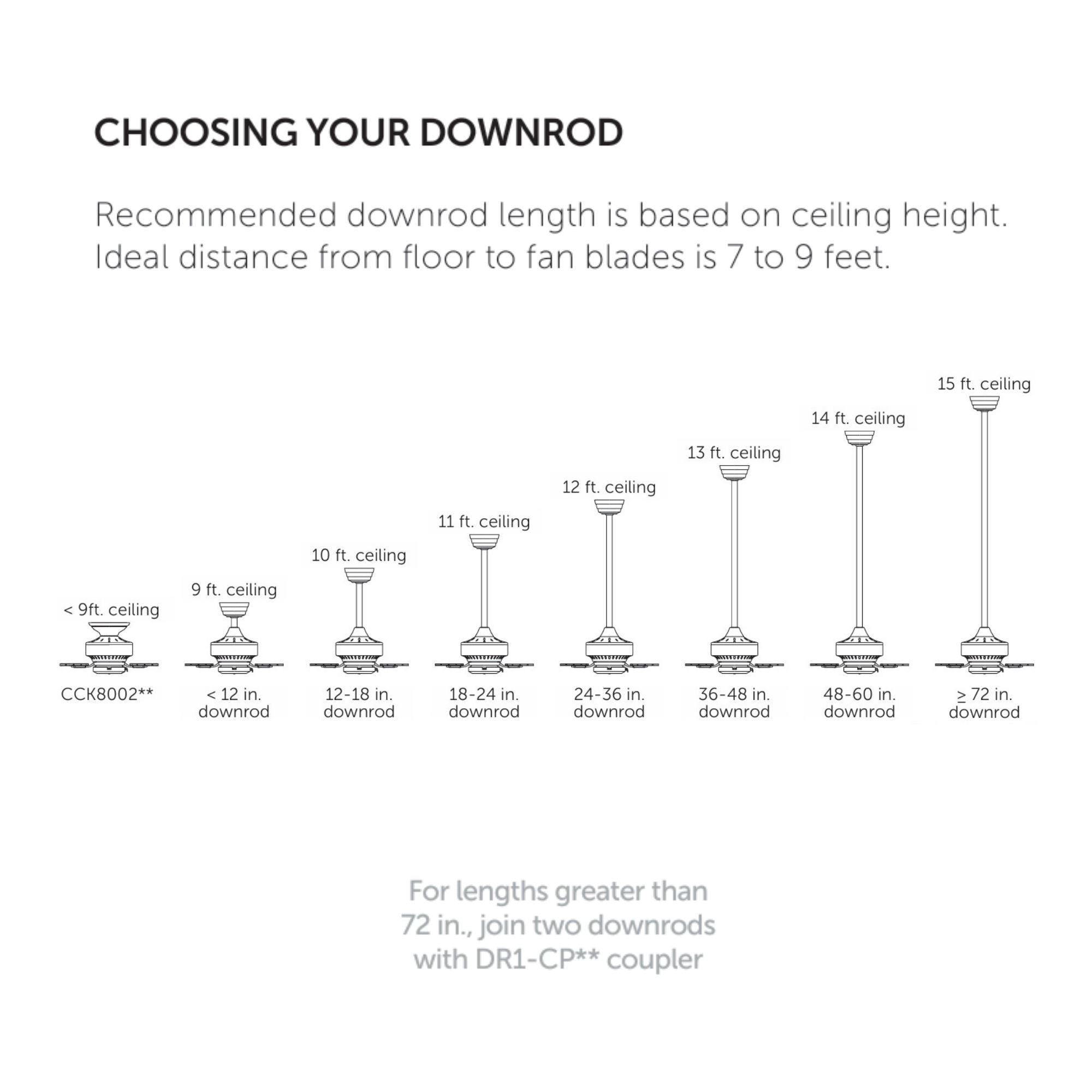

A 6 in downrod is included. Additional downrods available in 12, 18, 24, 36, 48, 60, and 72 in lengths. Ideal distance from floor to fan blades is 7 to 9 feet.

• 9 ft ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

• FPD8570BS ceiling fan with dual LED light (Brushed Satin Brass body + 5 Matte White composite blades)
• Uplight: Opal Frosted shade / Downlight: Double-walled Clear & Opal Frosted shade
• TR361 hand-held remote + fanSync WiFi receiver
• 6 in downrod

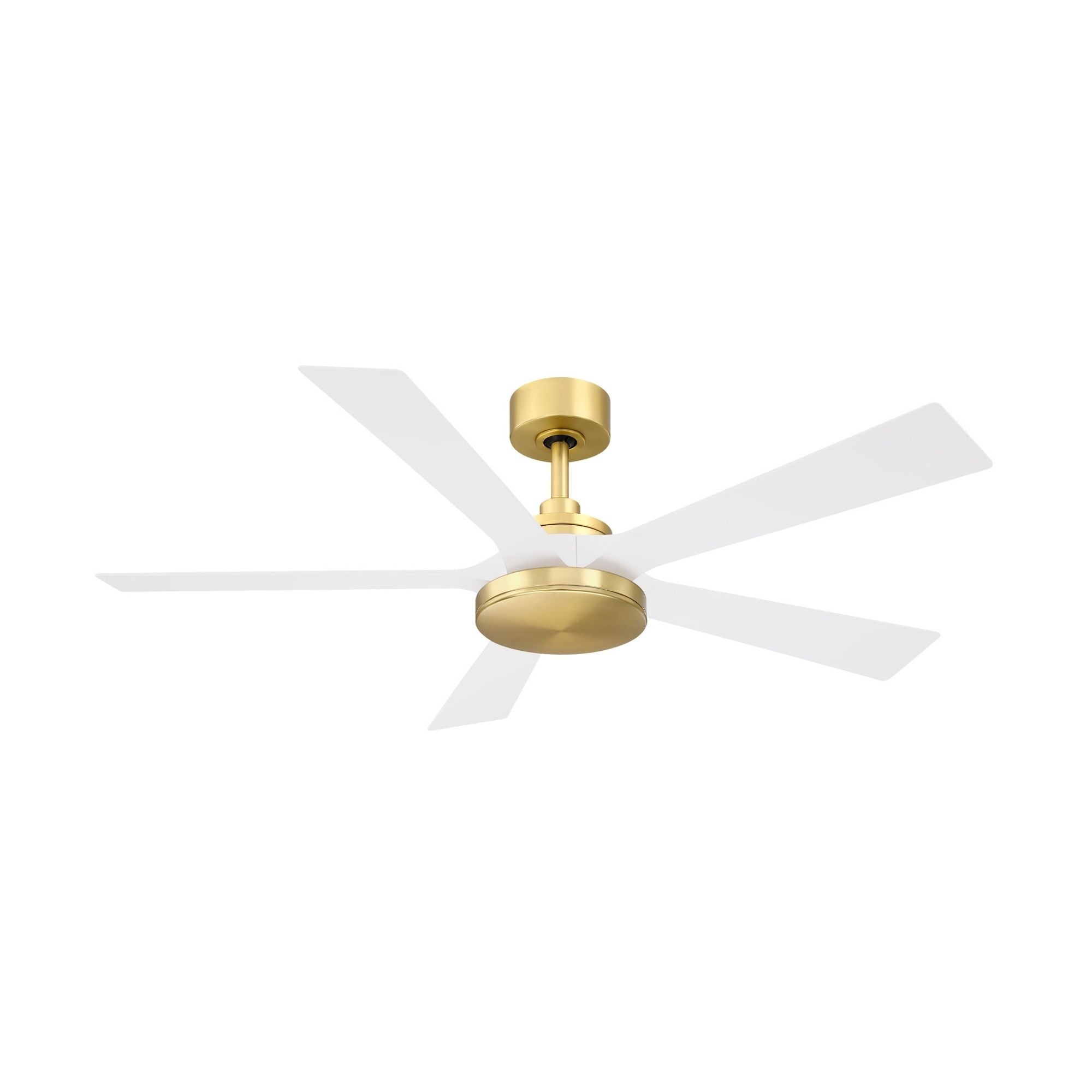

• Cap for use without light
• Mounting hardware
