Fanimation TorchAire 64 in Smart DC Ceiling Fan with LED Light Dark Bronze
Available in stock (336)
About this item
About this item
- Ultra-Efficient DC Motor: 126×12 sensorless DC motor delivers 7,134 CFM at high (210 CFM/W, 34W) and 2,774 CFM at low — whisper-quiet operation for large spaces up to 400 sq ft.
- Damp Rated for Outdoor Use: UL listed for damp locations — suitable for covered patios, porches, and indoor spaces. Dark Bronze with KOA blades for a rich, organic aesthetic.
- WiFi Remote Included: TR361 remote with fanSync WiFi — 6 speeds, reverse, uplight/downlight dimming, 5 CCT select, timer, and app control via iOS & Android. Optional TW407 wall control sold separately.
- Dual LED Light System: 12W uplight (1,000 lm) + 30W downlight (2,700 lm) / 5 CCT / CRI 90 / fully dimmable. Cap included for use without light.
- 5 CCT Color Tuning: Switch between 2700K, 3000K, 3500K, 4000K, and 5000K on both uplight and downlight — adaptable to any room mood or task.
We process payments securely and do not store credit card information.
Description
Description

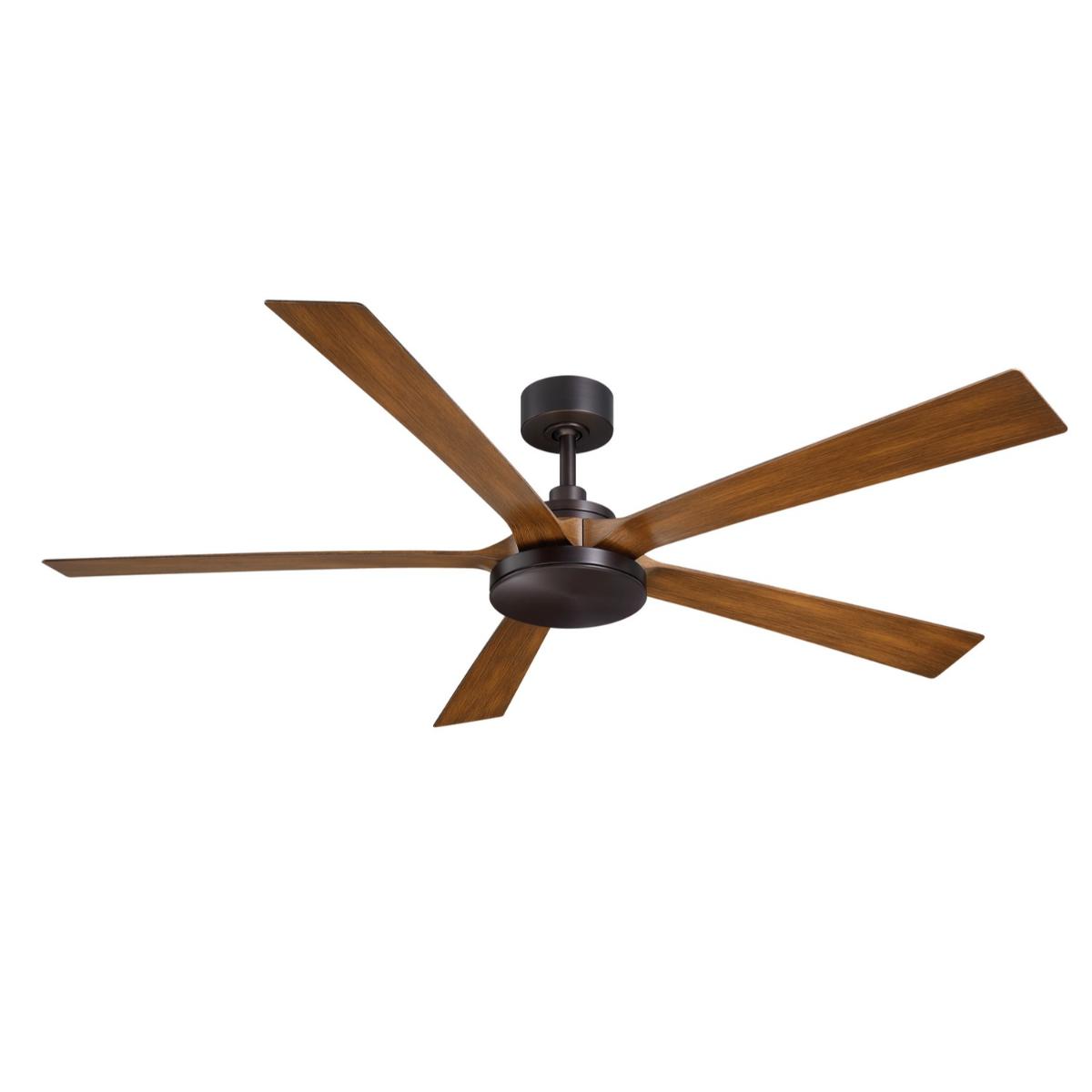

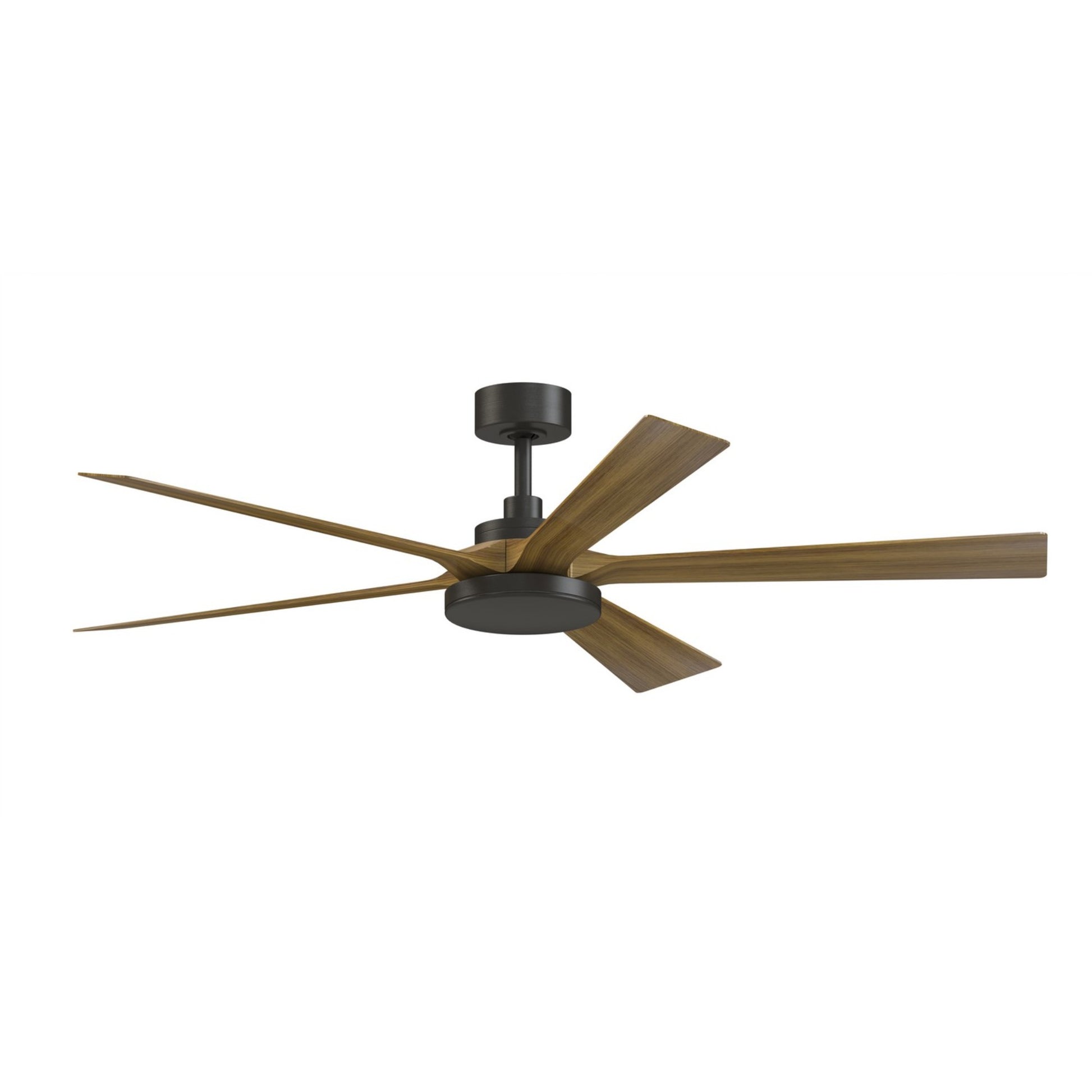

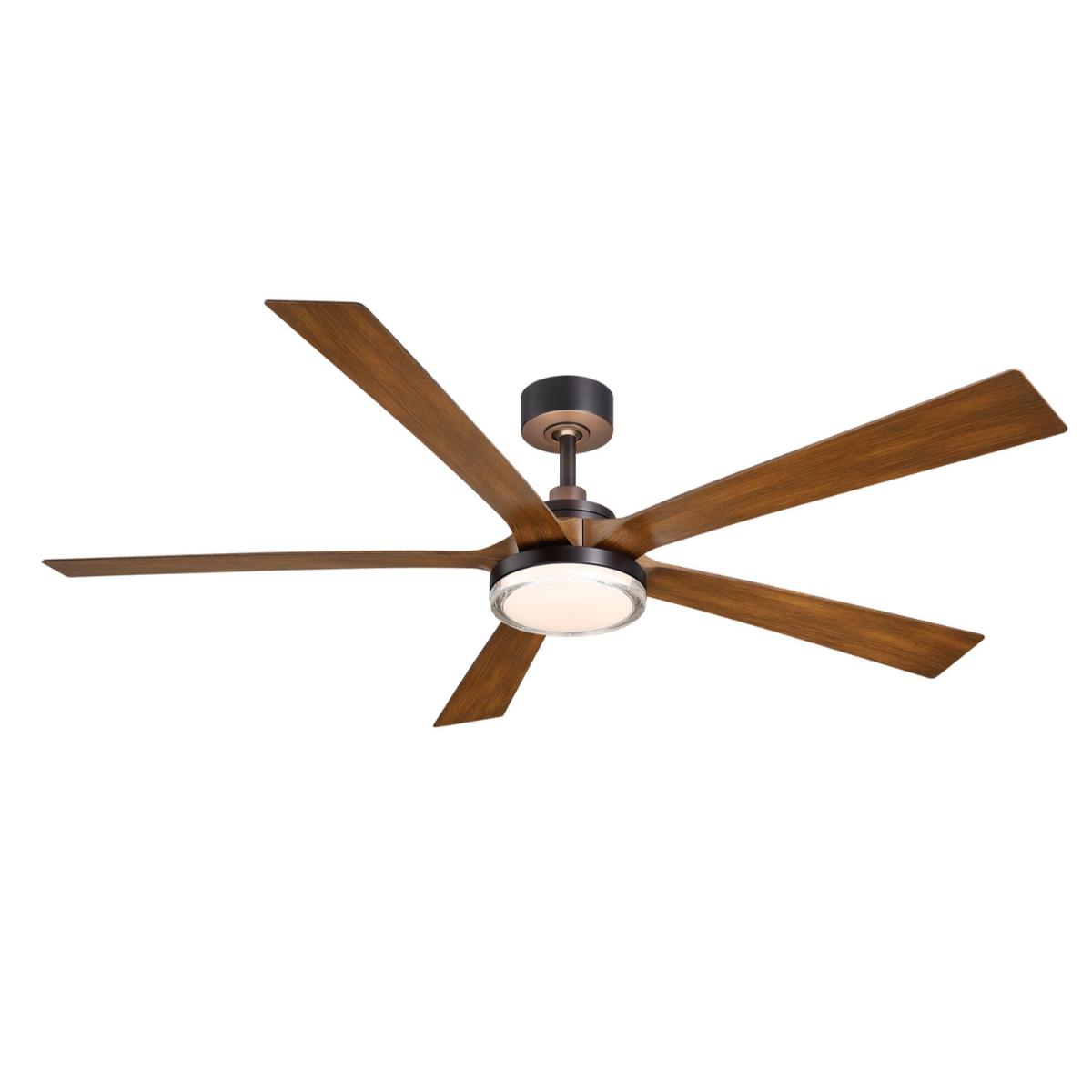

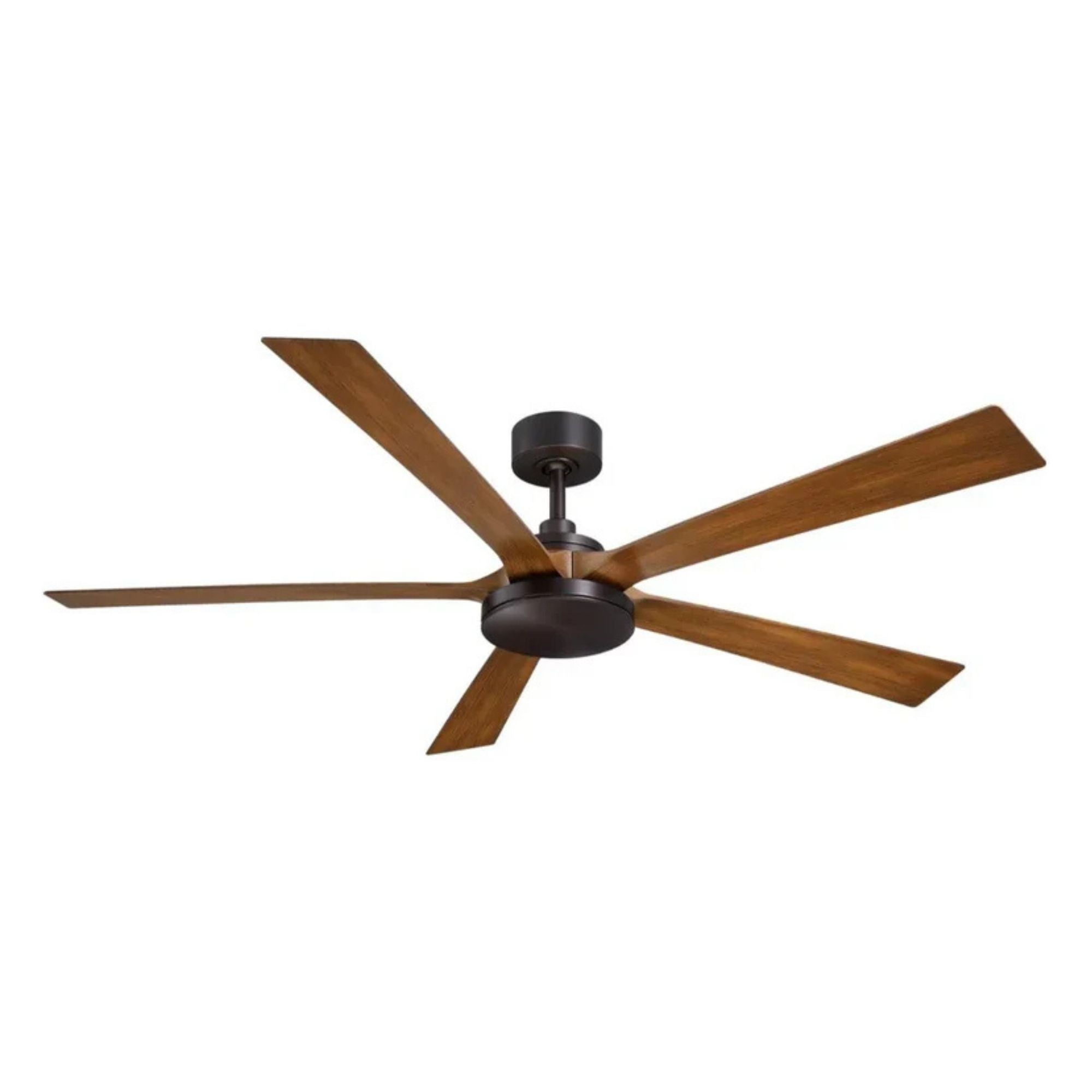

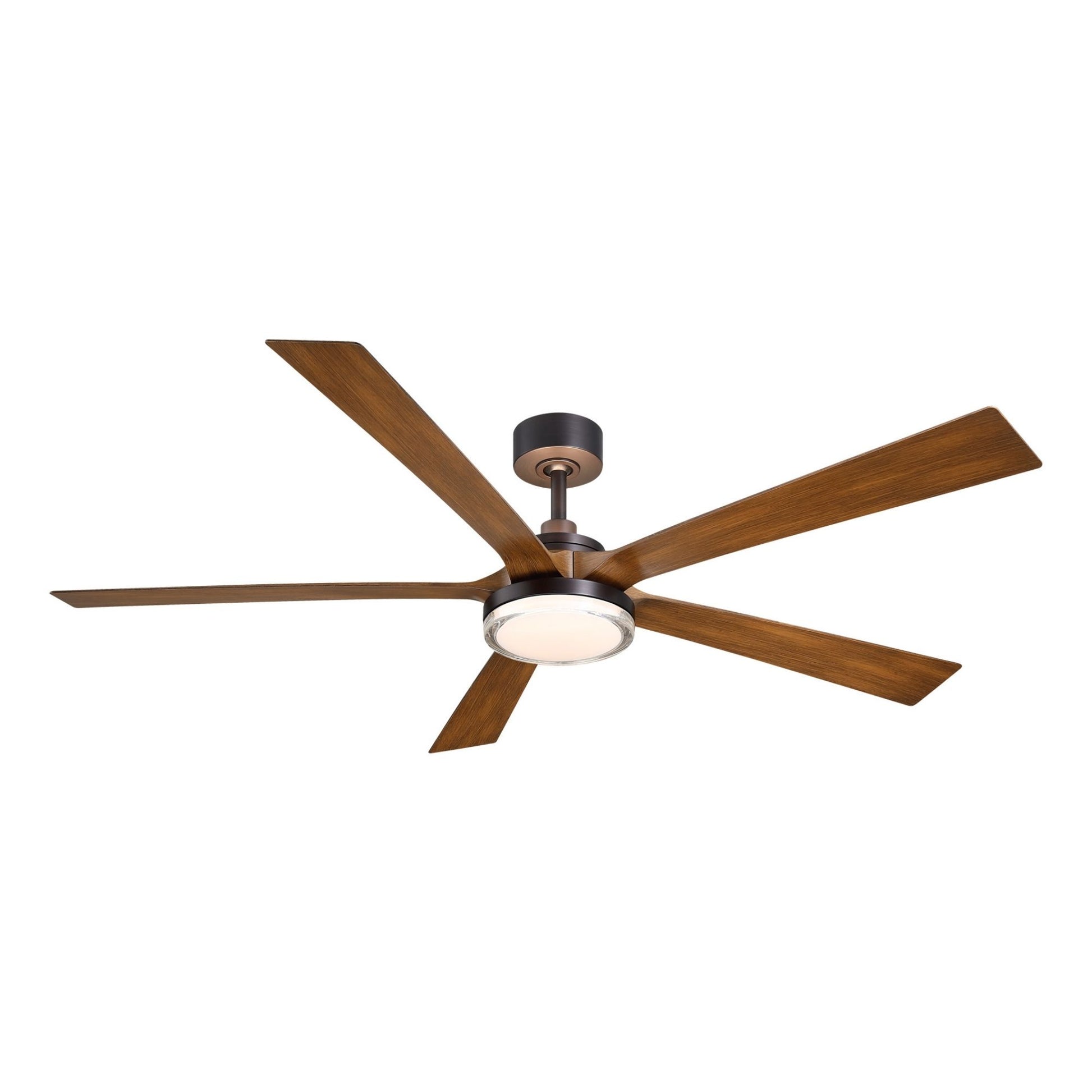

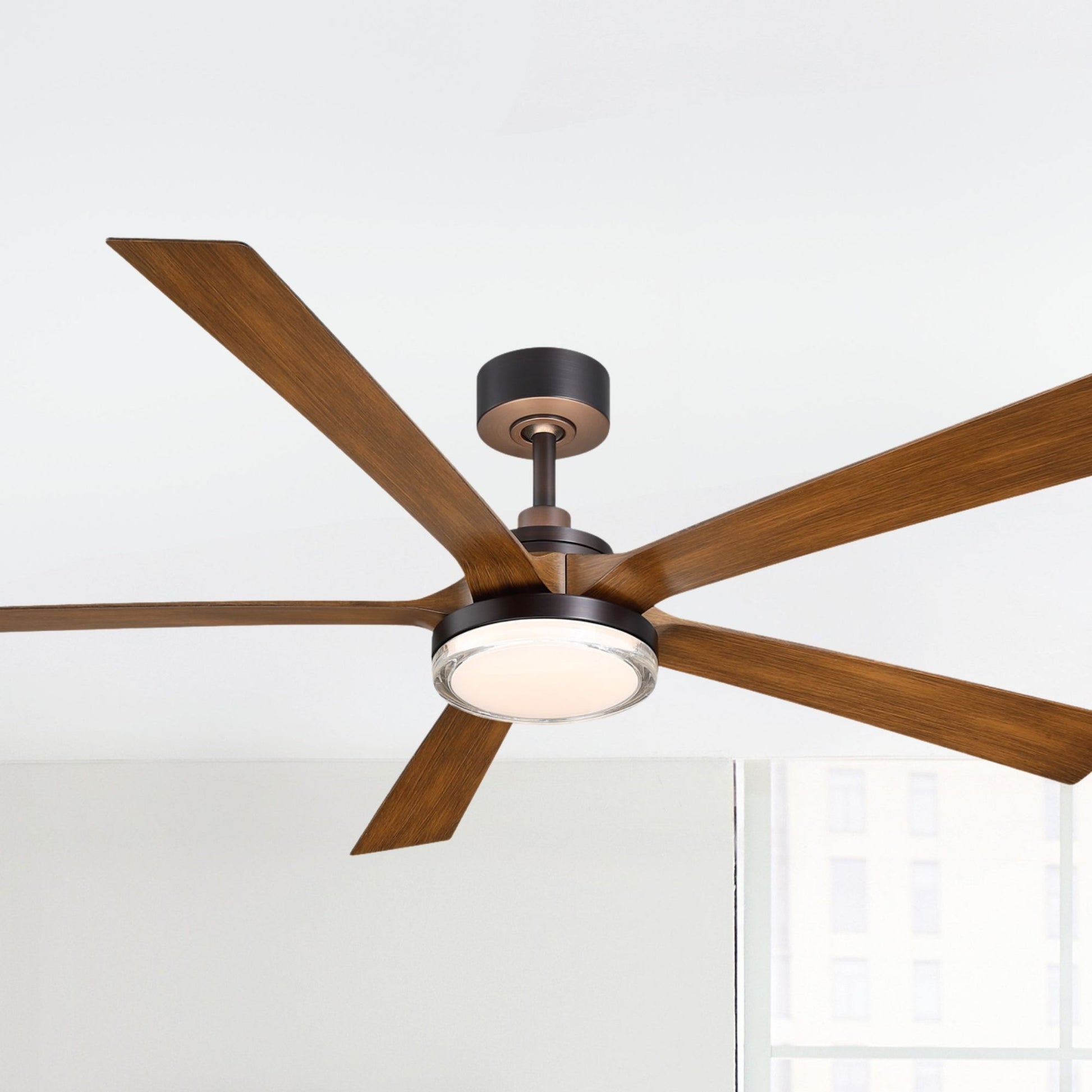

The Fanimation TorchAire FPD8564DZ is a five-blade 64 in downrod ceiling fan in Dark Bronze with KOA composite blades and a dual LED light system. Powered by a whisper-quiet DC 126×12 sensorless motor with 6 speeds via the included WiFi remote, it delivers 7,134 CFM at high speed. Damp rated for indoor and covered outdoor use. Includes a 6 in downrod.
Key Features- Blade Span: 64 in / 5 composite blades / 14° pitch / KOA
- Motor: DC 126×12 sensorless / 6 speeds / KwikWire connection / reverse on remote
- Airflow: 7,134 CFM at high / 2,774 CFM at low
- Efficiency: 210 CFM/W at high speed
- Wattage: 34W at high / 4W at low
- Light Kit: Dual LED — 12W uplight (1,000 lm) + 30W downlight (2,700 lm) / 5 CCT / CRI 90 / dimmable
- Location Rating: Damp rated — indoor and covered outdoor use
- Mount Type: Downrod — 6 in downrod included / up to 27° slope standard
- Weight: 20.95 lbs
- Certifications: UL listed

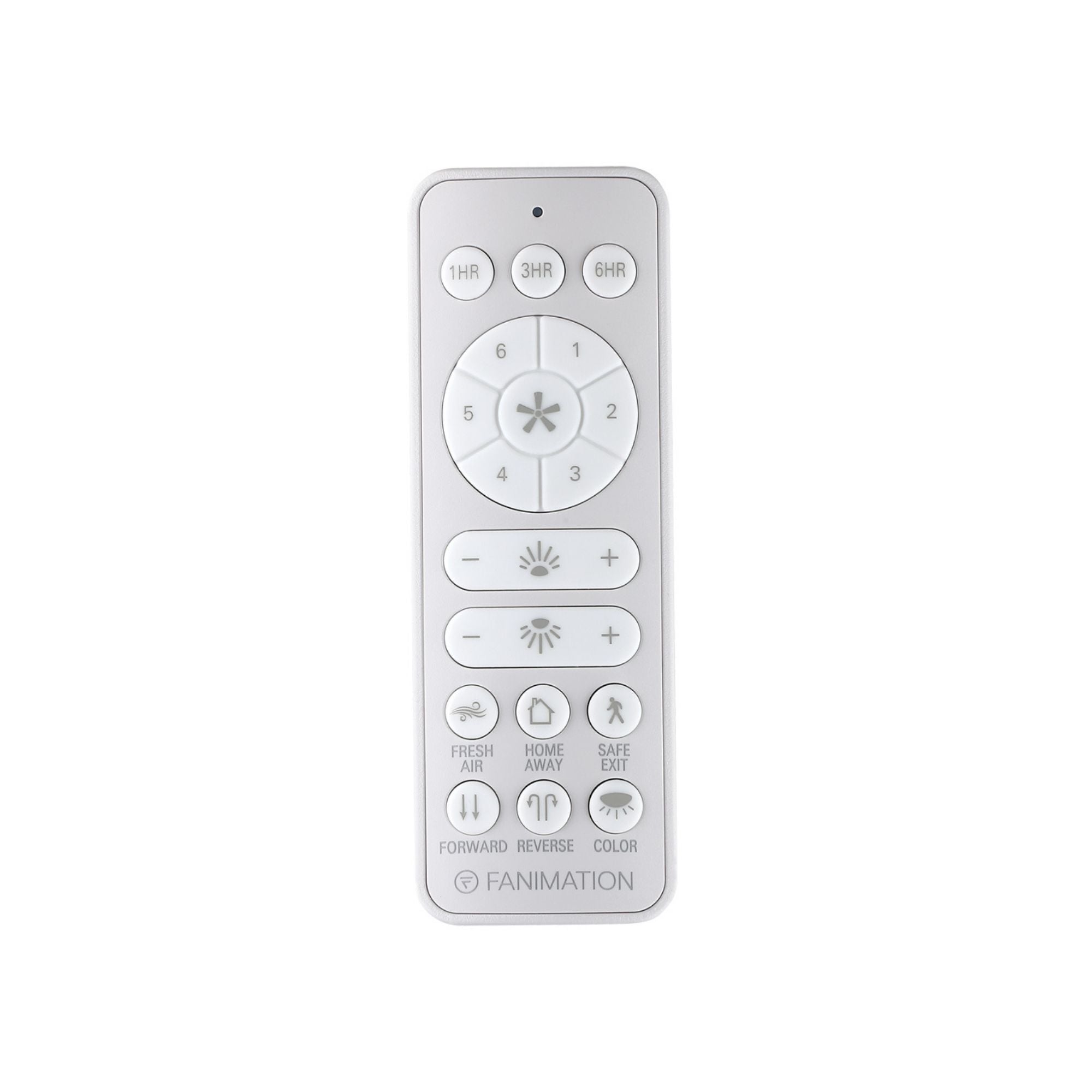

The FPD8564DZ includes the TR361 hand-held remote and a built-in fanSync WiFi receiver — no additional hub required. The TR361 provides 6-speed fan control, fresh air mode, reverse, full-range uplight and downlight dimming, 5 CCT color temperature selection (2700K / 3000K / 3500K / 4000K / 5000K), fan/light timer, home away, safe exit, and off. Download the free fanSync app (iOS & Android) for smartphone control. Voice control compatible with Amazon Alexa and Google Home. Optional TW407 2-wire fan + light wall remote available separately.

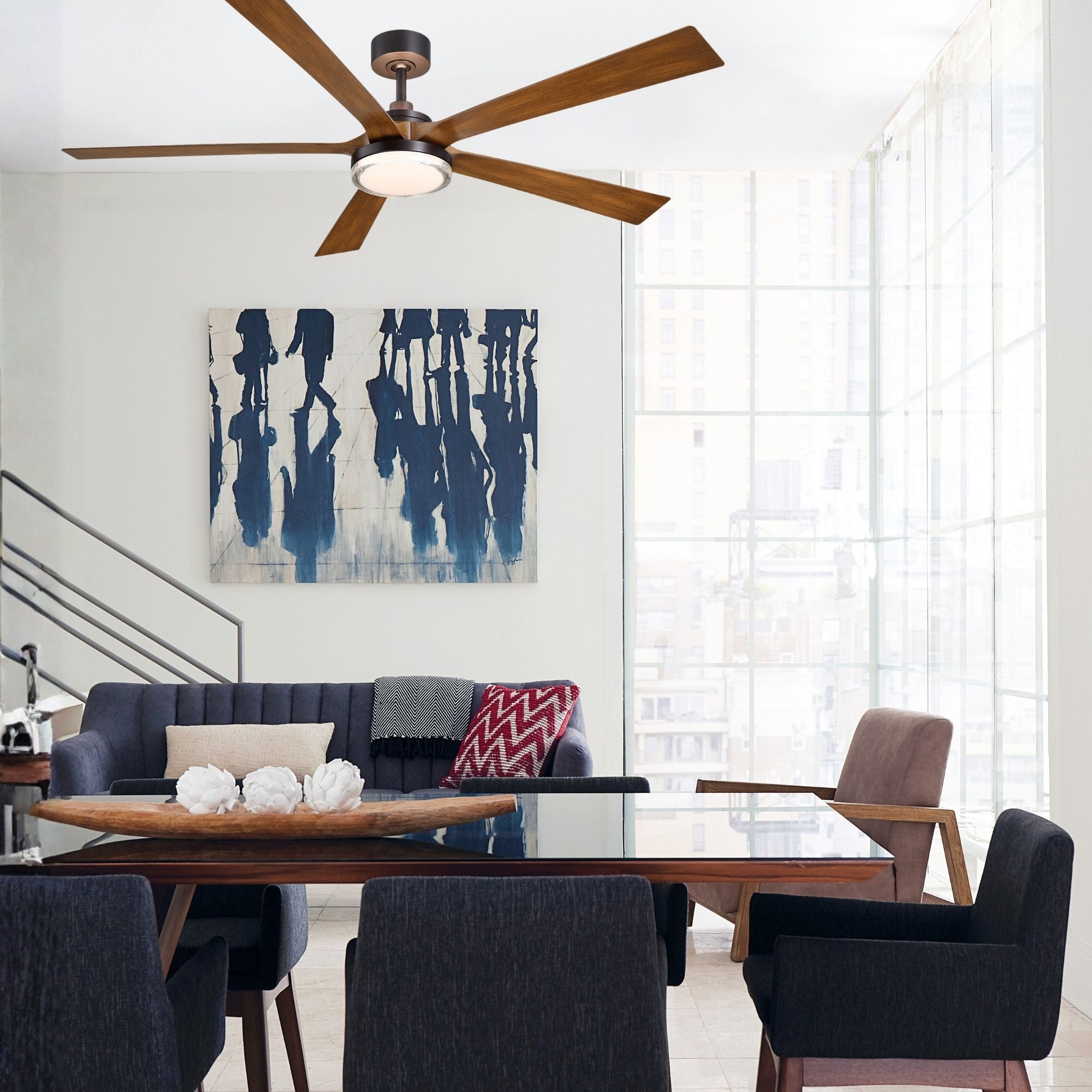

Construction & DesignMotor housing in Dark Bronze with five KOA composite blades at 14° pitch. Net weight: 20.95 lbs. The TorchAire’s torch-inspired uplight and expansive 64 in profile in Dark Bronze with warm KOA blades bring a rich, organic character to large indoor and covered outdoor spaces.
Light Output & PerformanceDual LED light system — Uplight: 12W / 1,000 lm initial / Opal Frosted shade. Downlight: 30W / 2,700 lm initial / Double-walled Clear & Opal Frosted shade. Both lights feature 5 CCT (2700K / 3000K / 3500K / 4000K / 5000K) / CRI 90 / fully dimmable via remote. Cap included for use without light. The FPD8564DZ delivers 7,134 CFM at high speed (210 CFM/W, 34W) — ideal for large rooms and covered outdoor spaces up to approximately 400 sq ft.

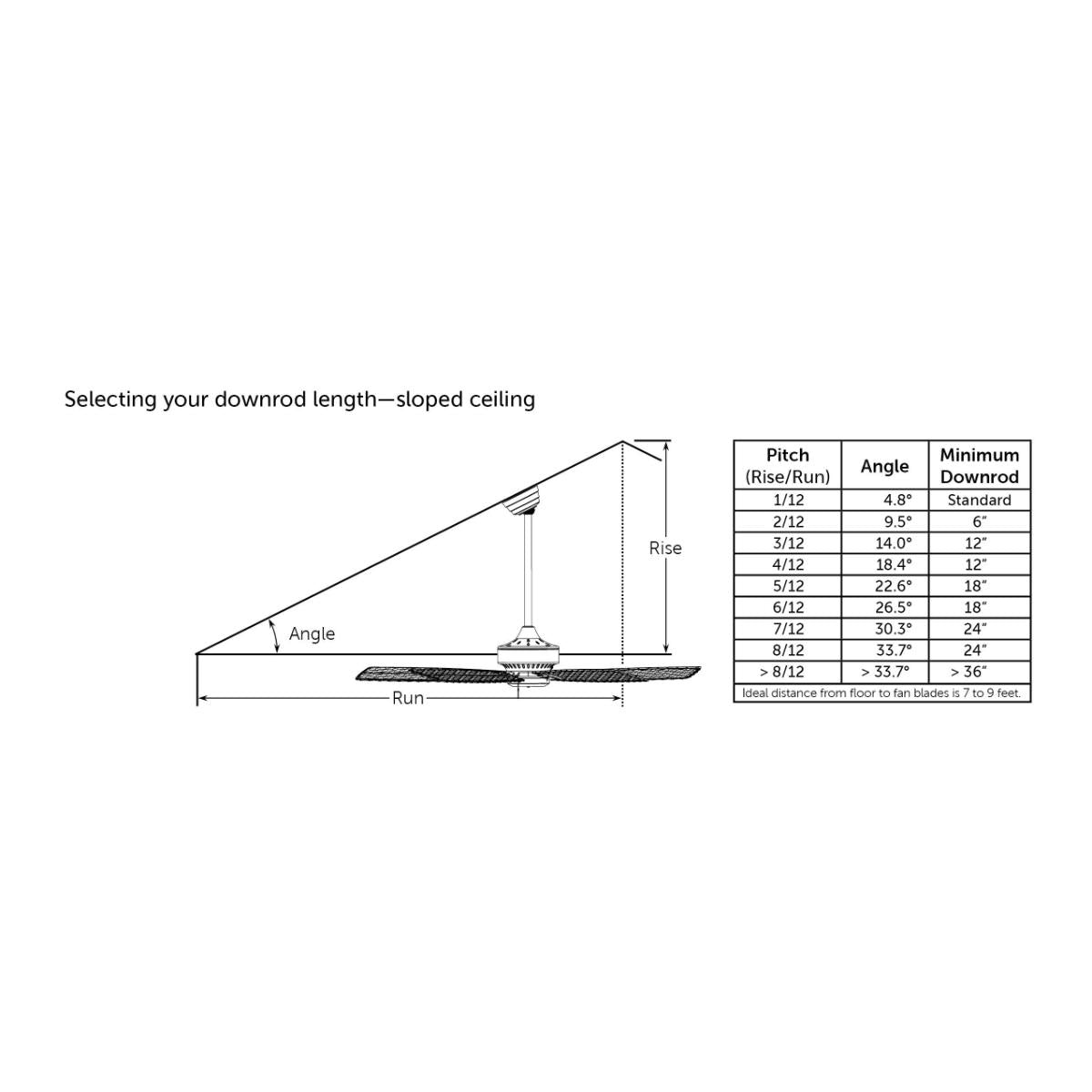

Electrical & Installation120V AC, 60Hz, 15A circuit. Fan draw: 34W at high / 4W at low. KwikWire easy connection. Ships with a 6 in downrod. Standard slope tolerance: 27°. For slopes 27°–42°, the optional sloped ceiling ball kit SCB1-52 is available separately. Close-to-ceiling flush mount sold separately. Fan must be attached to a securely anchored electrical junction box rated for at least 35 lbs.

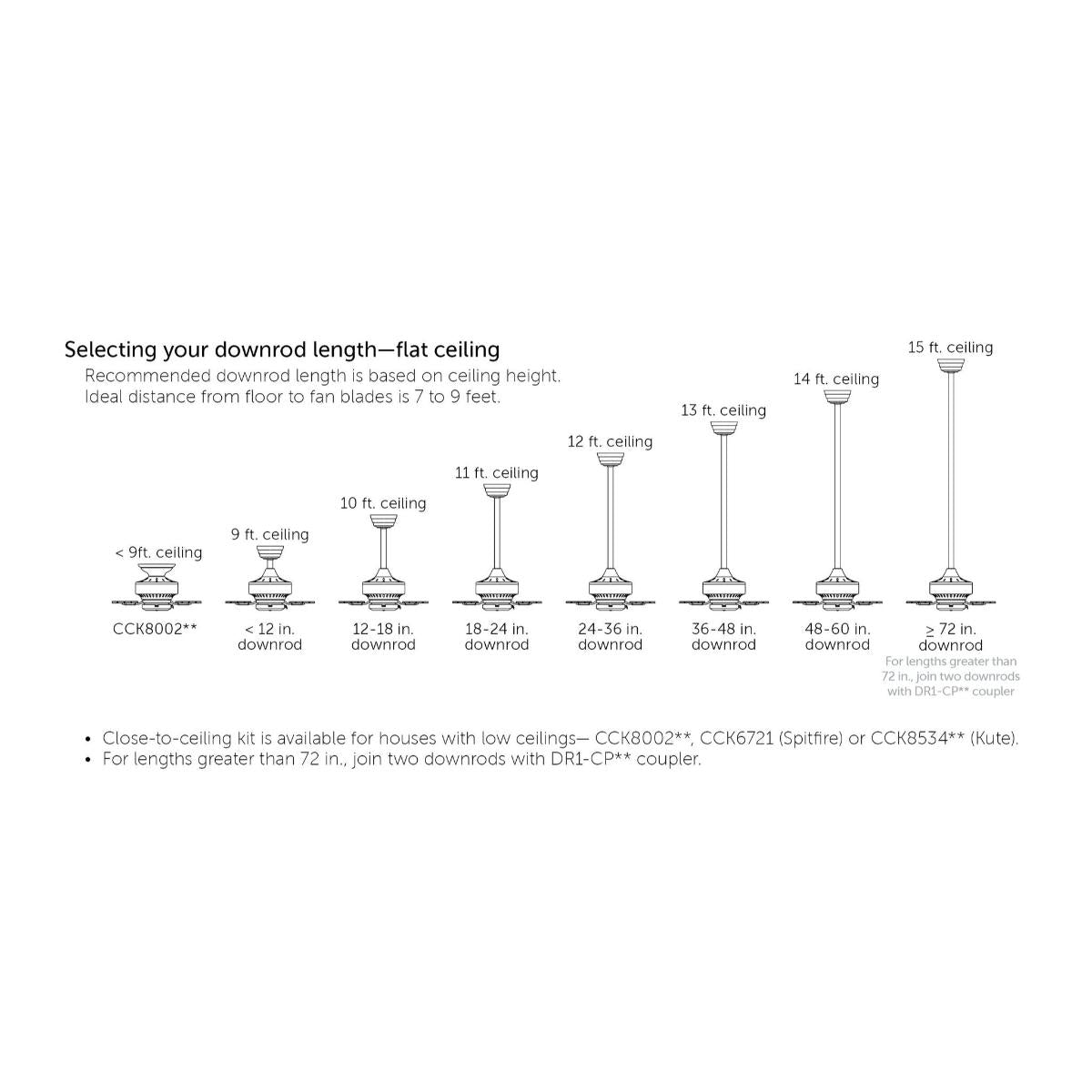

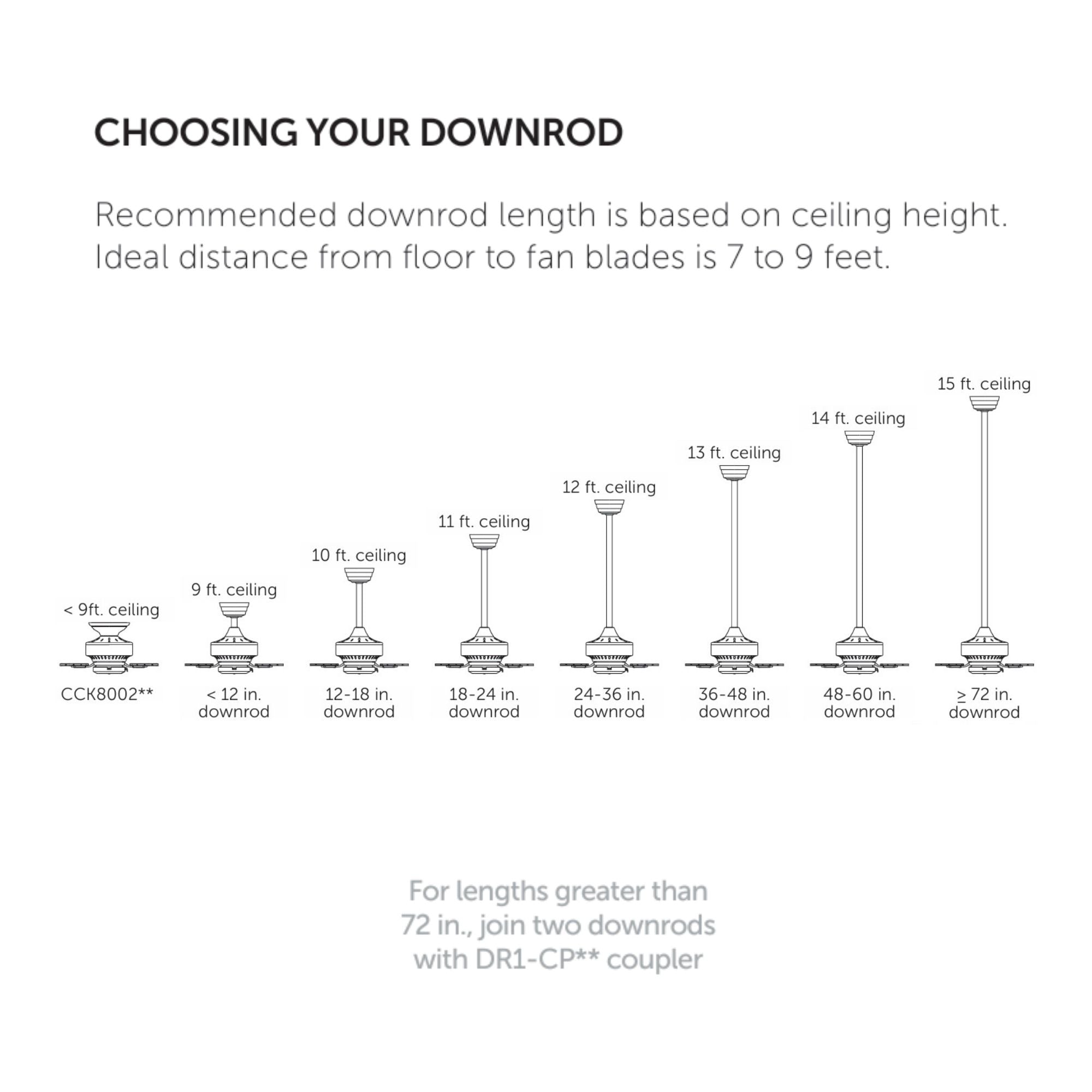

Suggested Downrod by Ceiling HeightA 6 in downrod is included. Additional downrods available in 12, 18, 24, 36, 48, 60, and 72 in lengths. Ideal distance from floor to fan blades is 7 to 9 feet.
- 9 ft ceiling → less than 12 in downrod
- 10 ft ceiling → 12–18 in downrod
- 11 ft ceiling → 18–24 in downrod
- 12 ft ceiling → 24–36 in downrod
- 13 ft ceiling → 36–48 in downrod
- 14 ft ceiling → 48–60 in downrod
- 15 ft ceiling → 72 in or longer downrod
- FPD8564DZ ceiling fan with dual LED light (Dark Bronze body + 5 KOA composite blades)
- Uplight: Opal Frosted shade / Downlight: Double-walled Clear & Opal Frosted shade
- TR361 hand-held remote + fanSync WiFi receiver
- 6 in downrod
- Cap for use without light
- Mounting hardware
