Fanimation Kute FPD8560 60 in Smart DC Ceiling Fan

Scaled for larger living areas and open-plan rooms, Kute pairs a 60 in three-blade sweep with a six-speed DC motor and 7,045 CFM high-speed airflow. Includes a WiFi receiver and TR360 remote. Damp rated for indoor rooms and covered outdoor spaces, with no light kit included.

Key Features

• Blade sweep: 60 in with three composite blades at 16° pitch.
• Motor: 100 × 30 sensorless DC motor with six speeds.
• High-speed output: 7,045 CFM at 34W and 206 CFM/W.
• Medium-speed output: 5,317 CFM at 14W.
• Low-speed output: 2,613 CFM at 4W.
• Energy Guide average: 4,968 CFM at 23W and 214 CFM/W.
• Location: cUL damp-location listed for indoor and covered outdoor applications.
• Connection: KwikWire easy connection system.

Smart & Control Features

Includes a WiFi receiver and TR360 hand-held remote with six-speed fan control, fresh air mode, fan timer and on/off. Use the fanSync WiFi app on iOS and Android for wireless control. Optional TW406 wall control is sold separately. Lighting functions require a compatible separately purchased LED kit.

Construction & Design

The housing measures 5.75 in diameter, and net hanging weight is 13.01 lb. Three composite blades create a streamlined silhouette for great rooms and larger living spaces. Finish and model pairings are:

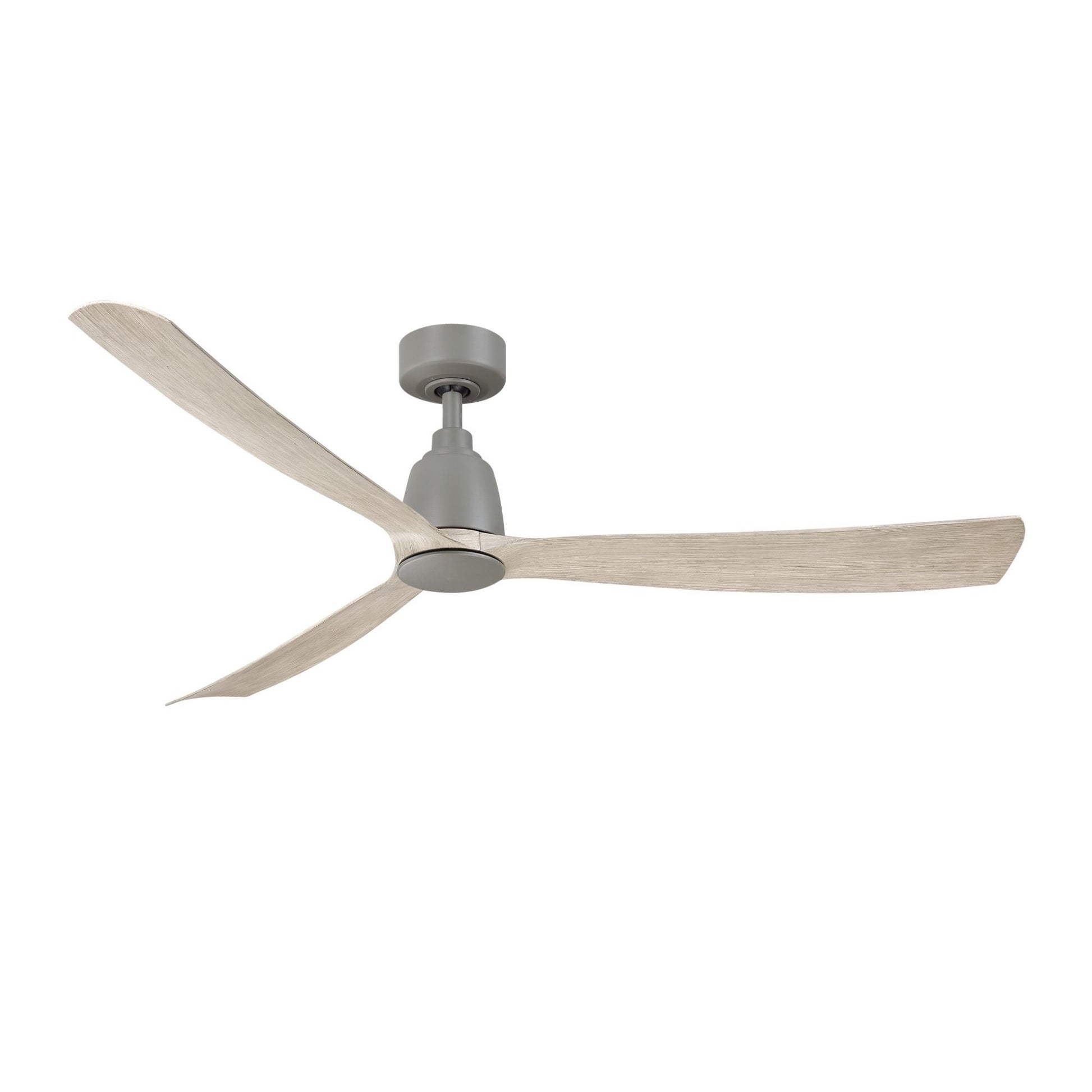

• Graphite Steel option, FPD8560AGP: Antique Graphite housing with Light Oak blades.

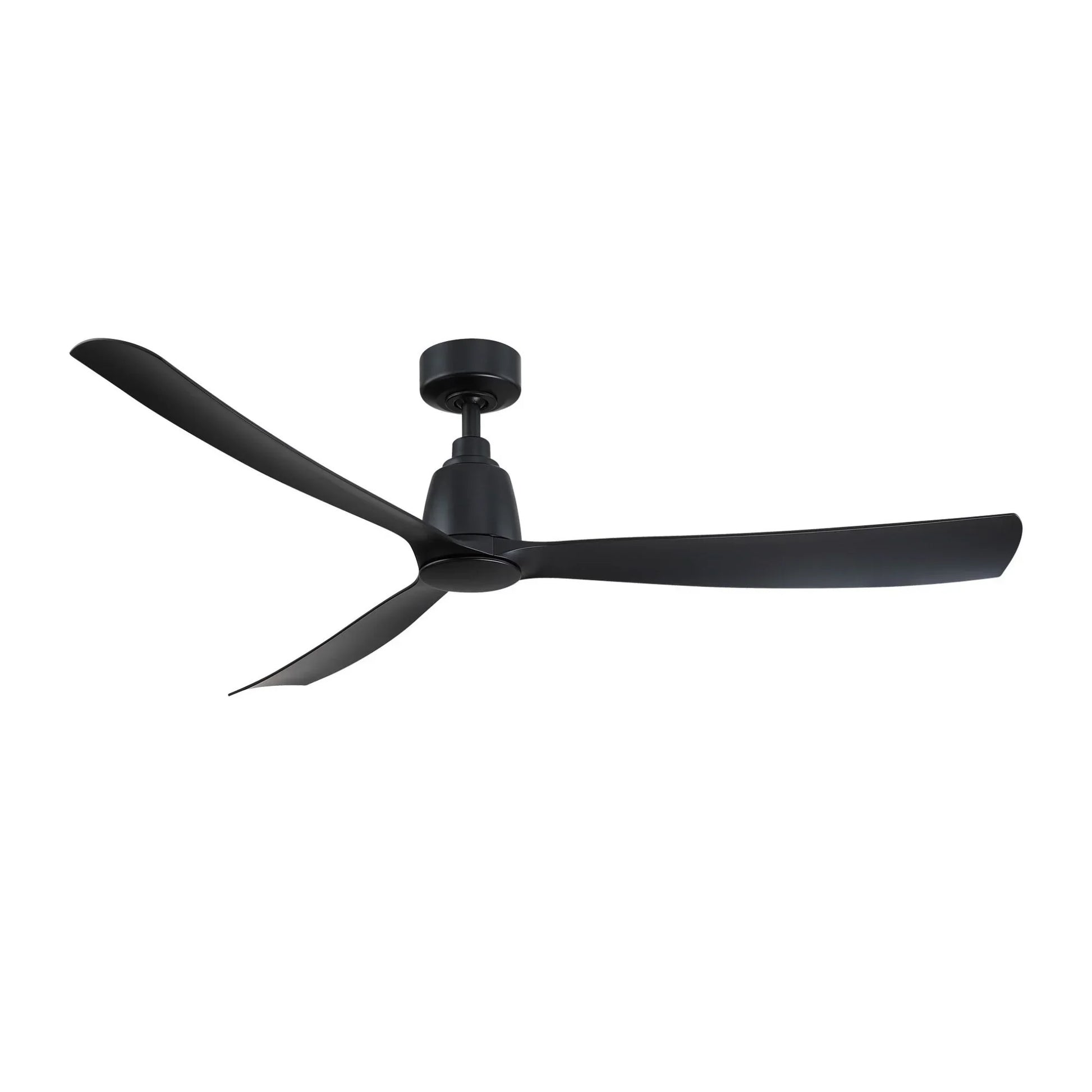

• Black, FPD8560BL: Black housing and blades.

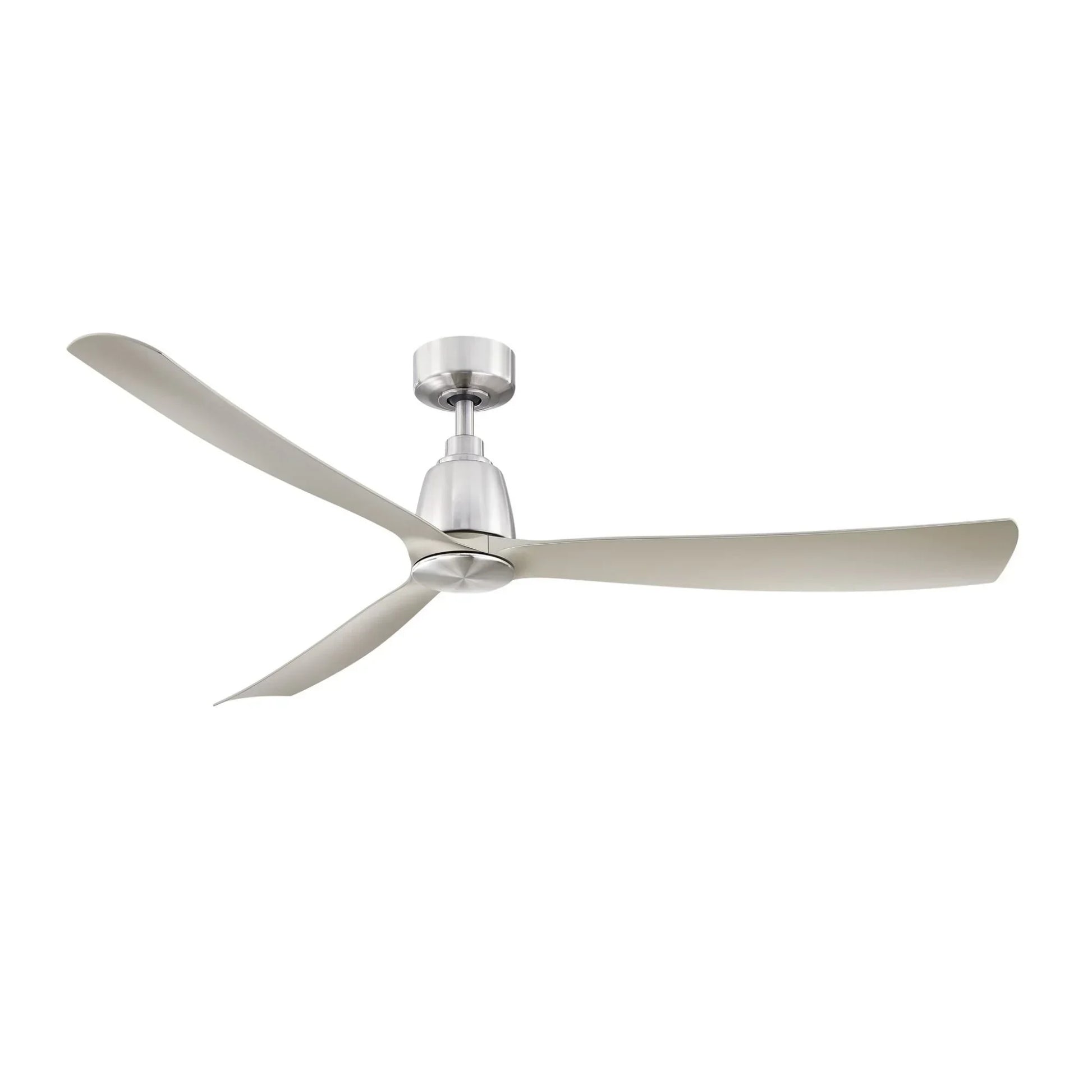

• Brushed Nickel, FPD8560BN: Brushed Nickel housing and blades.

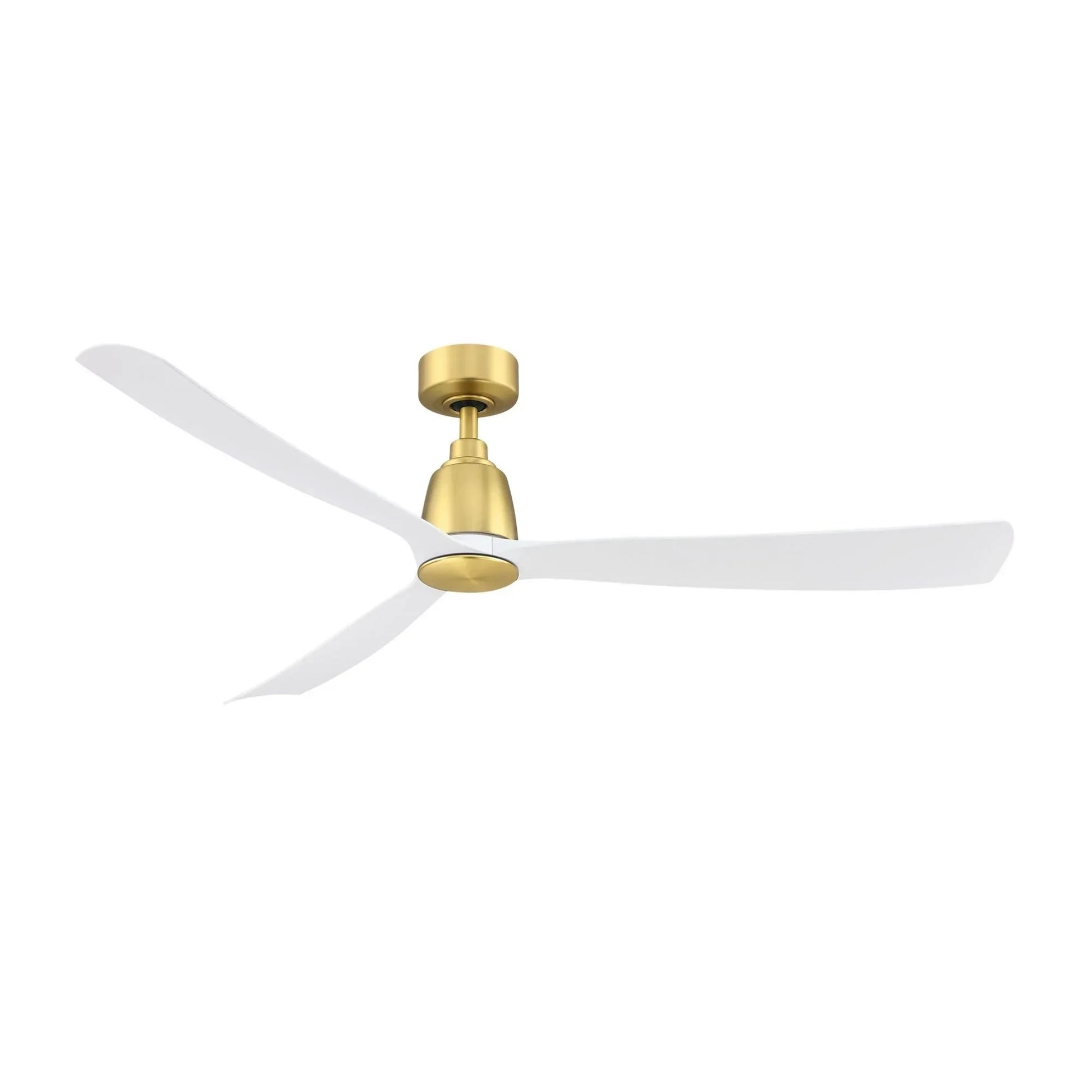

• White & Brass, FPD8560BS: Brushed Satin Brass housing with Matte White blades.

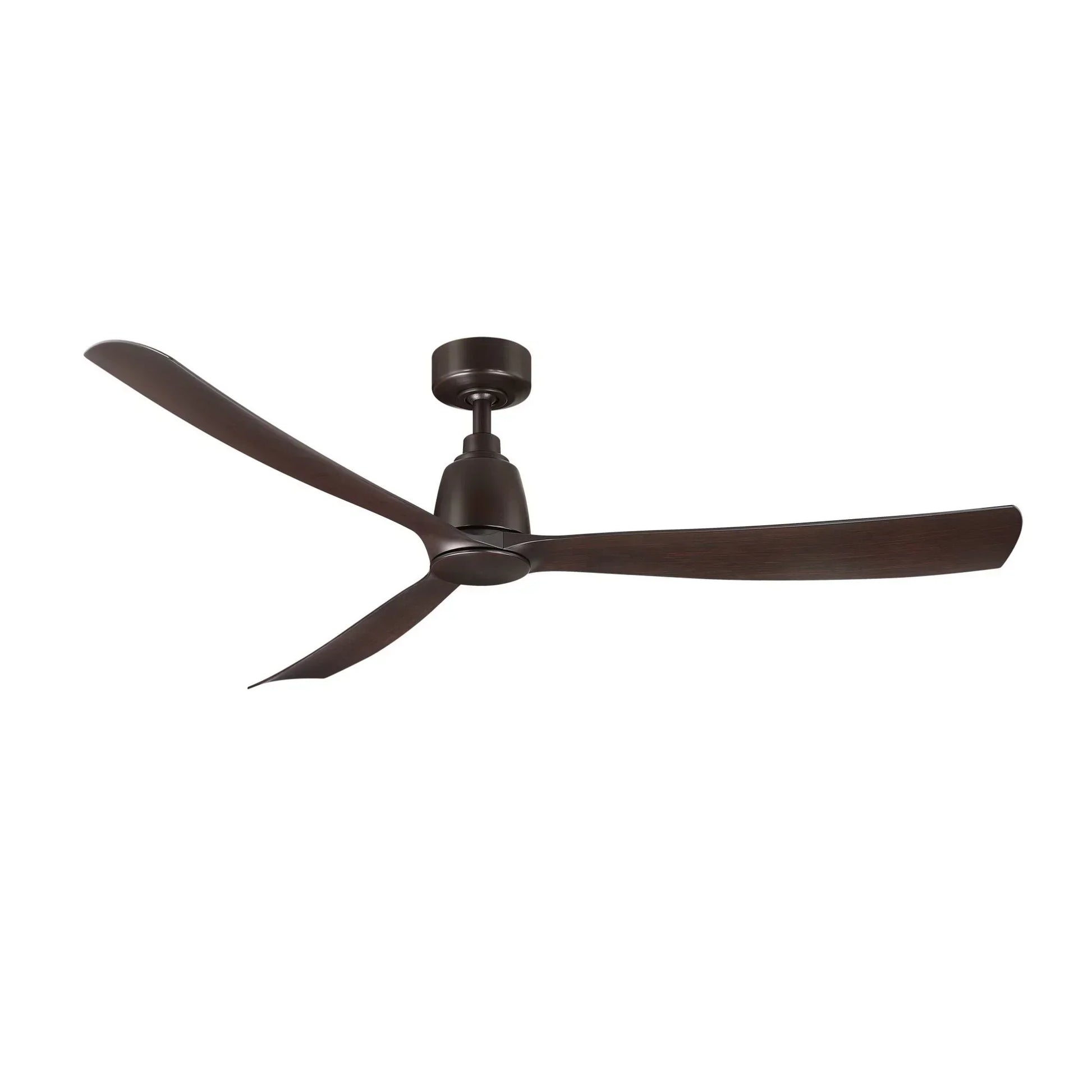

• Dark Bronze, FPD8560DZ: Dark Bronze housing with Dark Walnut blades.

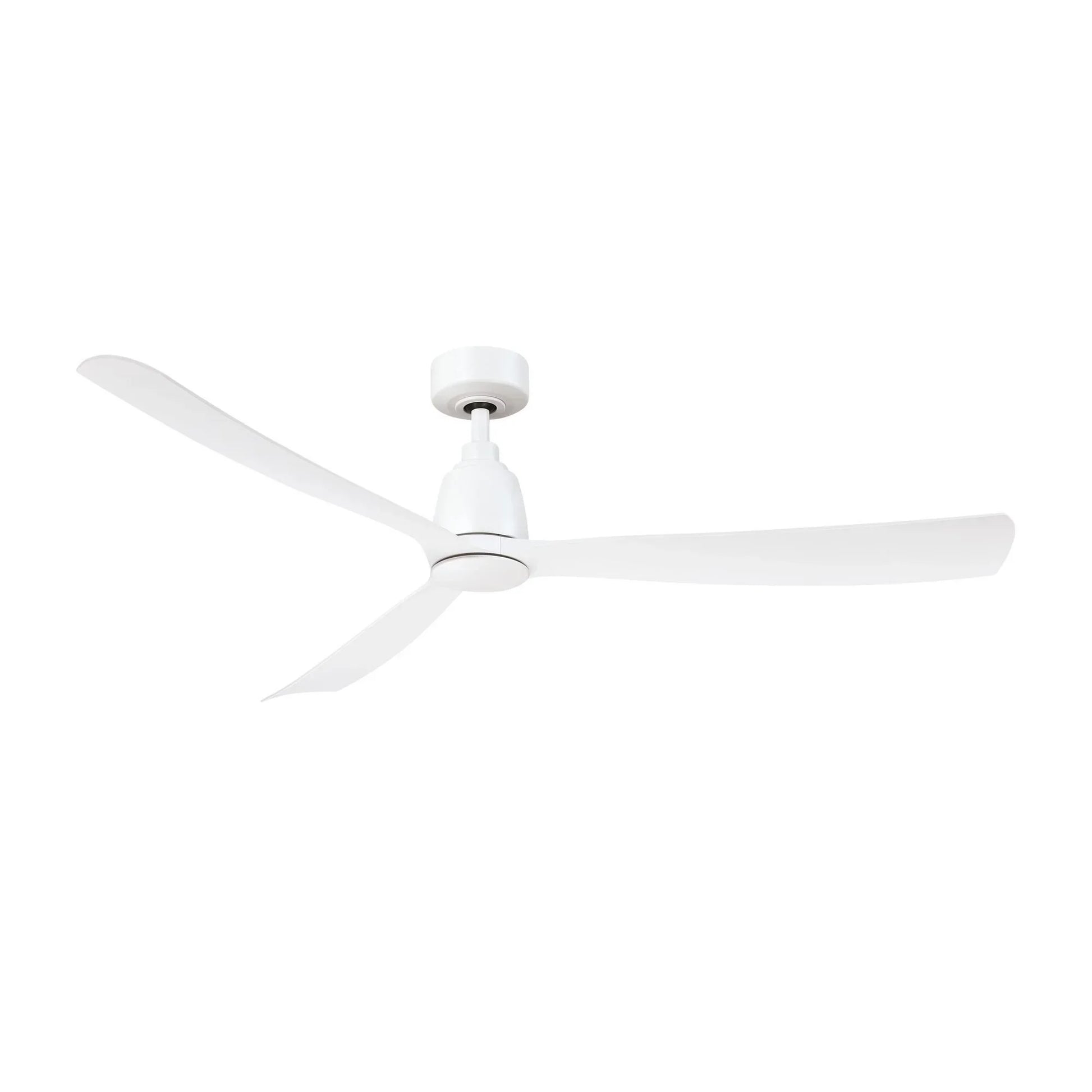

• Matte White, FPD8560MW: Matte White housing and blades.

Light Output & Performance

No light kit is included. Optional LK8560 double-walled LED kit and finish-matched knurled opal frosted kits each provide 1,600 lumens at 16W, with selectable 2700K, 3000K, 3500K, 4000K or 5000K and CRI 90.

• Antique Graphite: LK8561AGP.
• Black: LK8561BL.
• Brushed Nickel: LK8561BN.
• Brushed Satin Brass: LK8561BS.
• Dark Bronze: LK8561DZ.
• Matte White: LK8561MW.

Light kits are sold separately. High-speed airflow is 7,045 CFM, distinct from the 4,968 CFM Energy Guide average. The 60 in span is suited to larger rooms over 400 sq ft.

Electrical & Installation

Operates on 120V AC, 60Hz. Includes a 4.5 in downrod with 1 in diameter. Standard mounting supports slopes up to 27°; optional SCB1-52 sloped ceiling ball supports slopes up to 42°. Optional CCK8534 close-to-ceiling kit is available separately. Keep outdoor installations covered and protected from direct rain.

Suggested Downrod by Ceiling Height

A 4.5 in downrod is included. Additional downrods are sold separately. Maintain at least 7 ft from floor to blades and select the final length for the installation.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

What's Included

• Kute 60 in ceiling fan with three composite blades in the selected finish pairing
• TR360 hand-held remote and WiFi receiver
• 4.5 in downrod with 1 in diameter
• Mounting hardware

No light kit is included.
