Fanimation Kute FPD8534 52 in Smart DC Ceiling Fan

Kute combines a sculpted 52 in three-blade sweep with a sensorless DC motor, included WiFi receiver and TR305 remote. Its 6,683 CFM high-speed airflow suits rooms up to approximately 400 sq ft. Damp rated for indoor rooms and covered outdoor spaces, this fan comes without a light kit, keeping its silhouette clean until you choose optional lighting.

Key Features

• Blade sweep: 52 in with three composite blades at 16° pitch.
• Motor: 100 × 30 sensorless DC motor with variable-speed control.
• High-speed airflow: 6,683 CFM at 36W and 186 CFM/W.
• Medium-speed airflow: 4,112 CFM at 9W.
• Low-speed airflow: 917 CFM at 2W.
• Certification: Energy Star certified; cUL damp-location listed.
• Connection: KwikWire easy connection system.
• Lighting: No light kit included; compatible LED kits sold separately.

Smart & Control Features

Includes a WiFi receiver and TR305 hand-held remote for variable fan speed, fresh air mode, fan timer and on/off. Use the fanSync WiFi app on iOS and Android for wireless control. Optional TW306 wall control is sold separately. Light-related functions require a compatible light kit.

Construction & Design

The motor housing measures 5.75 in diameter, and net hanging weight is 12.30 lb. Finish and model pairings are:

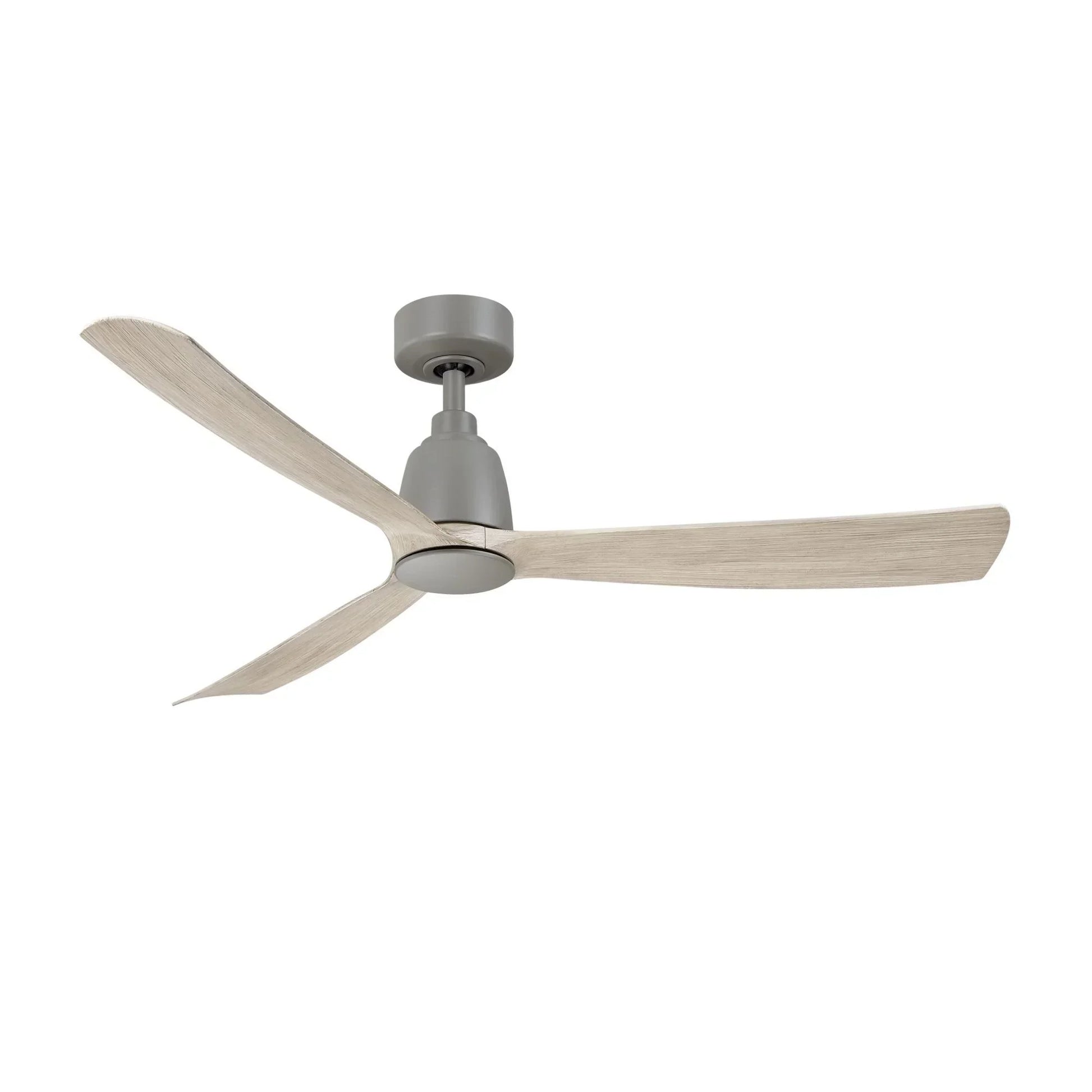

• Graphite Steel option, FPD8534AGP: Antique Graphite housing with Light Oak blades.

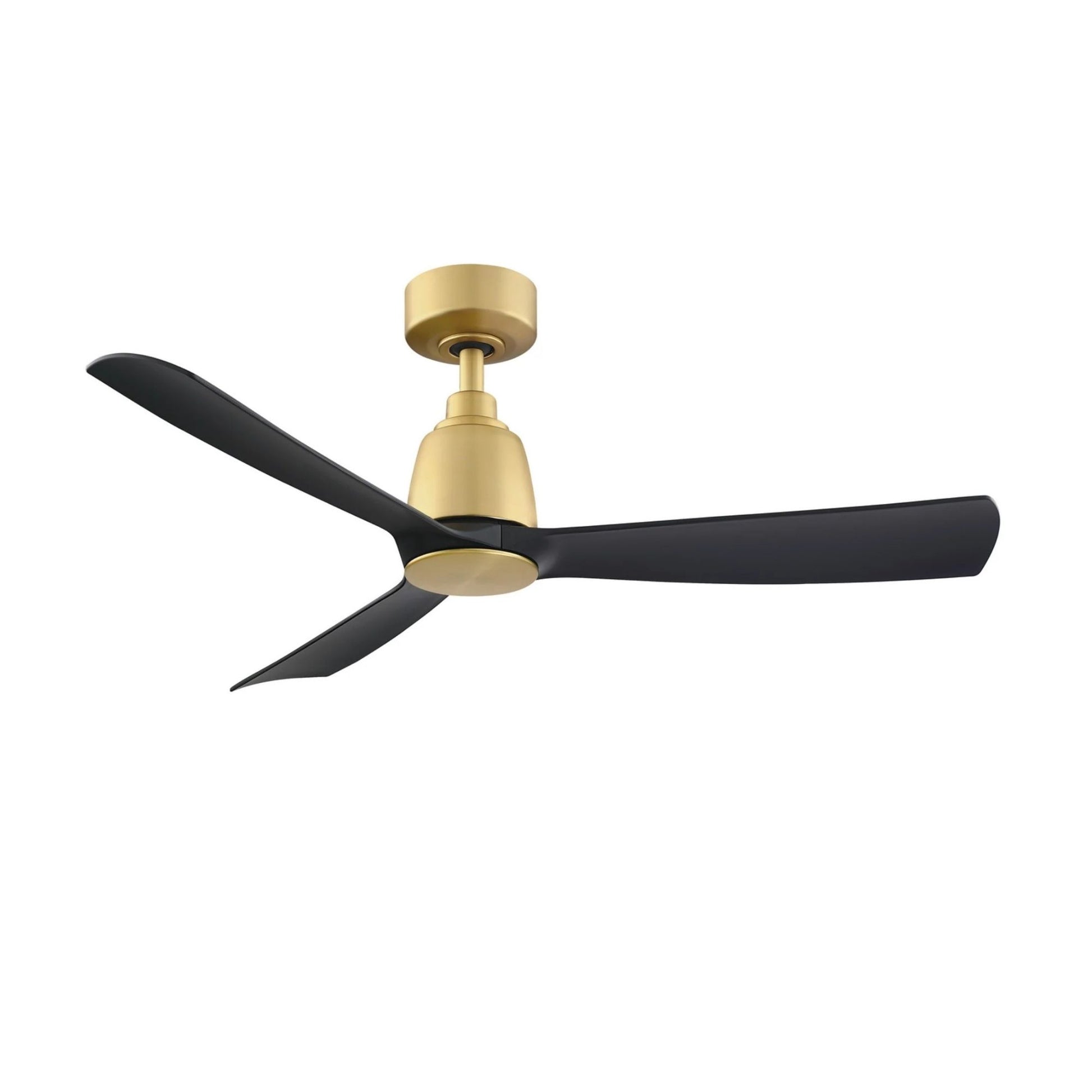

• Black & Brass, FPD8534BSBL: Brushed Satin Brass housing with Black blades.

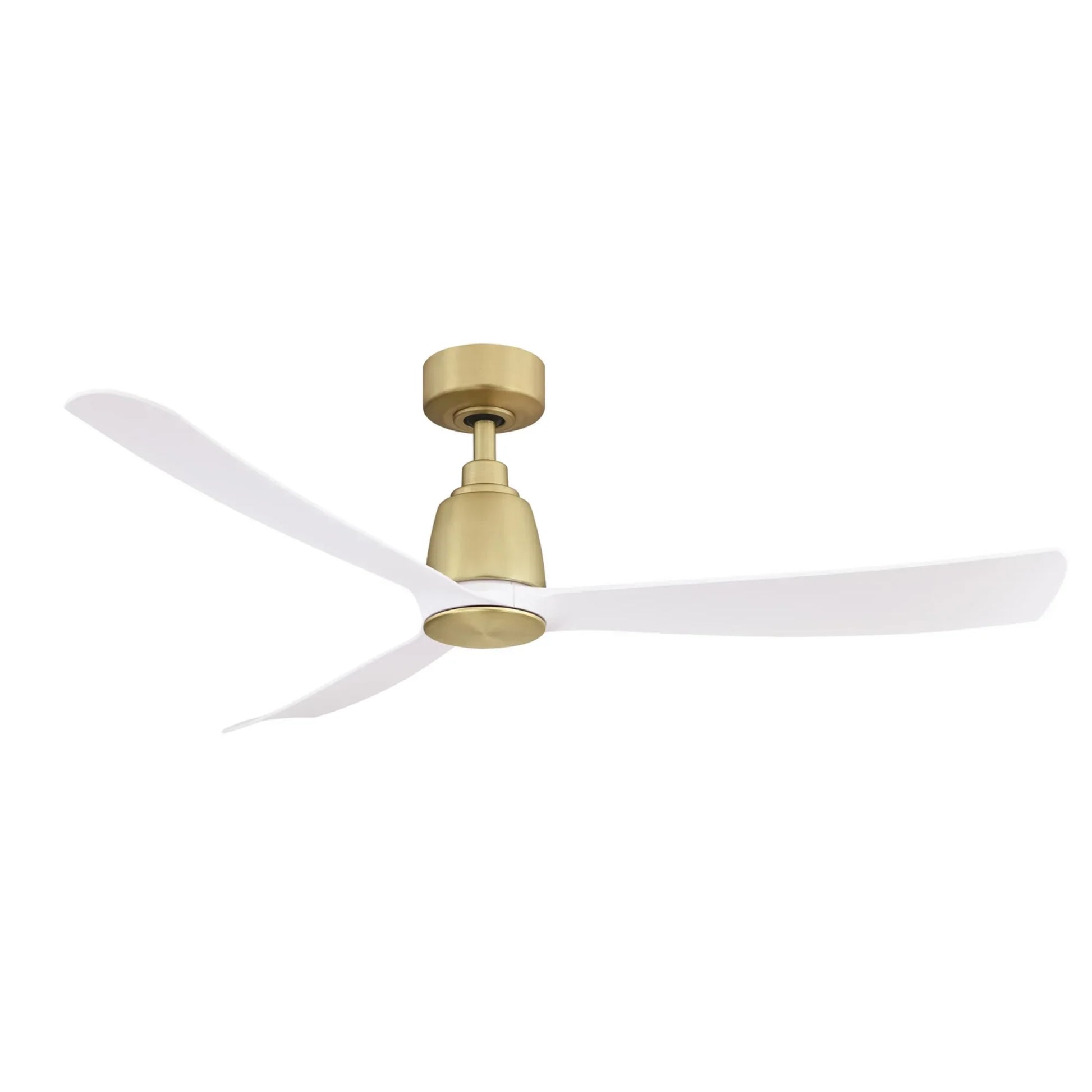

• White & Brass, FPD8534BS: Brushed Satin Brass housing with Matte White blades.
• Greige option, FPD8534GR: Matte Greige housing with Weathered Wood blades.
• Matte White, FPD8534MW: Matte White housing and blades.

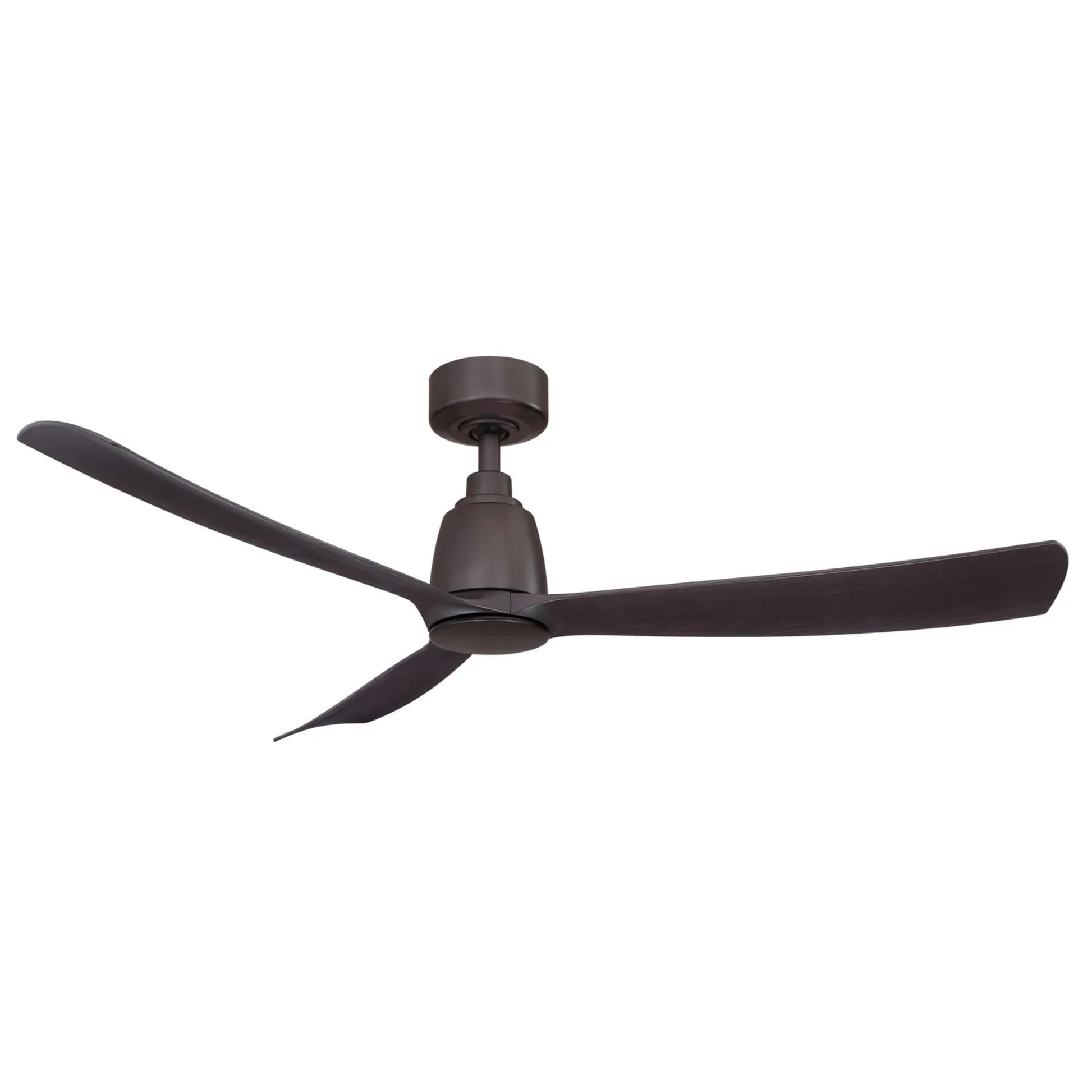

• Dark Bronze, FPD8534DZ: Dark Bronze housing with Dark Walnut blades.

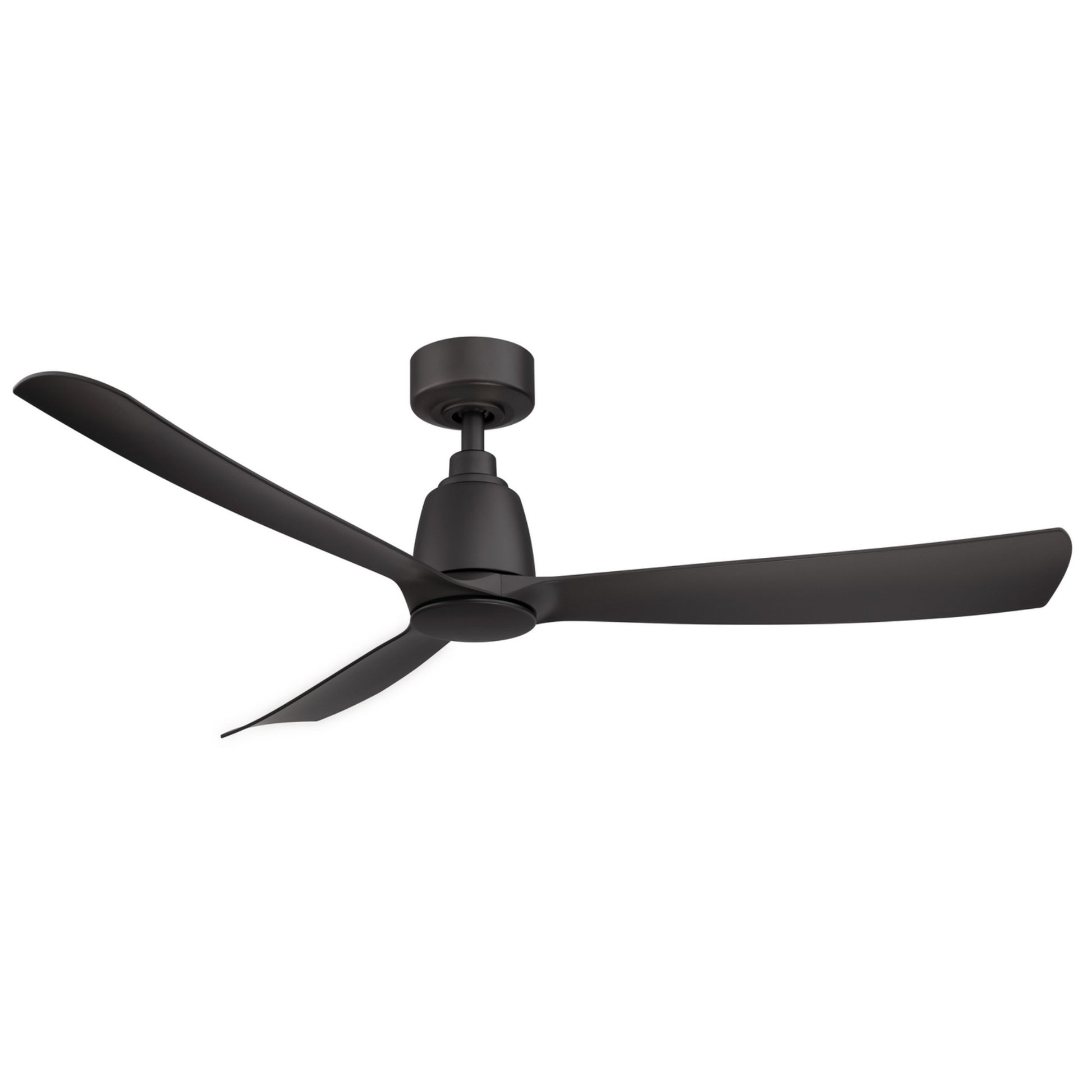

• Black, FPD8534BL: Black housing and blades.
• Brushed Nickel, FPD8534BN: Brushed Nickel housing and blades.

Light Output & Performance

No light kit is included. Optional LK8560 double-walled LED kit provides 1,600 lumens at 16W with selectable 3000K, 4000K or 5000K and CRI 90. Finish-specific opal frosted kits provide 1,500 lumens; knurled kits provide 1,600 lumens, each at 16W with the same CCT choices and CRI 90:

• Antique Graphite: LK8534AGP or LK8561AGP.
• Black: LK8534BL or LK8561BL.
• Brushed Nickel: LK8534BN or LK8561BN.
• Brushed Satin Brass housing: LK8534BS or LK8561BS for FPD8534BS and FPD8534BSBL.
• Dark Bronze: LK8534DZ or LK8561DZ.
• Matte Greige: LK8534GR or LK8561GR.
• Matte White: LK8534MW or LK8561MW.

All light kits are sold separately. Fan output reaches 6,683 CFM at high speed, 4,112 CFM at medium and 917 CFM at low.

Electrical & Installation

Operates on 120V AC, 60Hz. Includes a 4.5 in downrod with 1 in diameter. Standard mounting supports slopes up to 27°; optional SCB1-52 supports slopes up to 42°. Optional CCK8534 close-to-ceiling kit is available; the Black FPD8534BL listing specifies CCK8534BL. Keep outdoor installations covered and protected from direct rain.

Suggested Downrod by Ceiling Height

A 4.5 in downrod is included. Additional downrods are sold separately. Maintain at least 7 ft between floor and blades and choose the final length for the installation.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

What's Included

• Kute 52 in ceiling fan with three composite blades in the selected finish pairing
• TR305 hand-held remote and WiFi receiver
• 4.5 in downrod with 1 in diameter
• Mounting hardware

No light kit is included.
