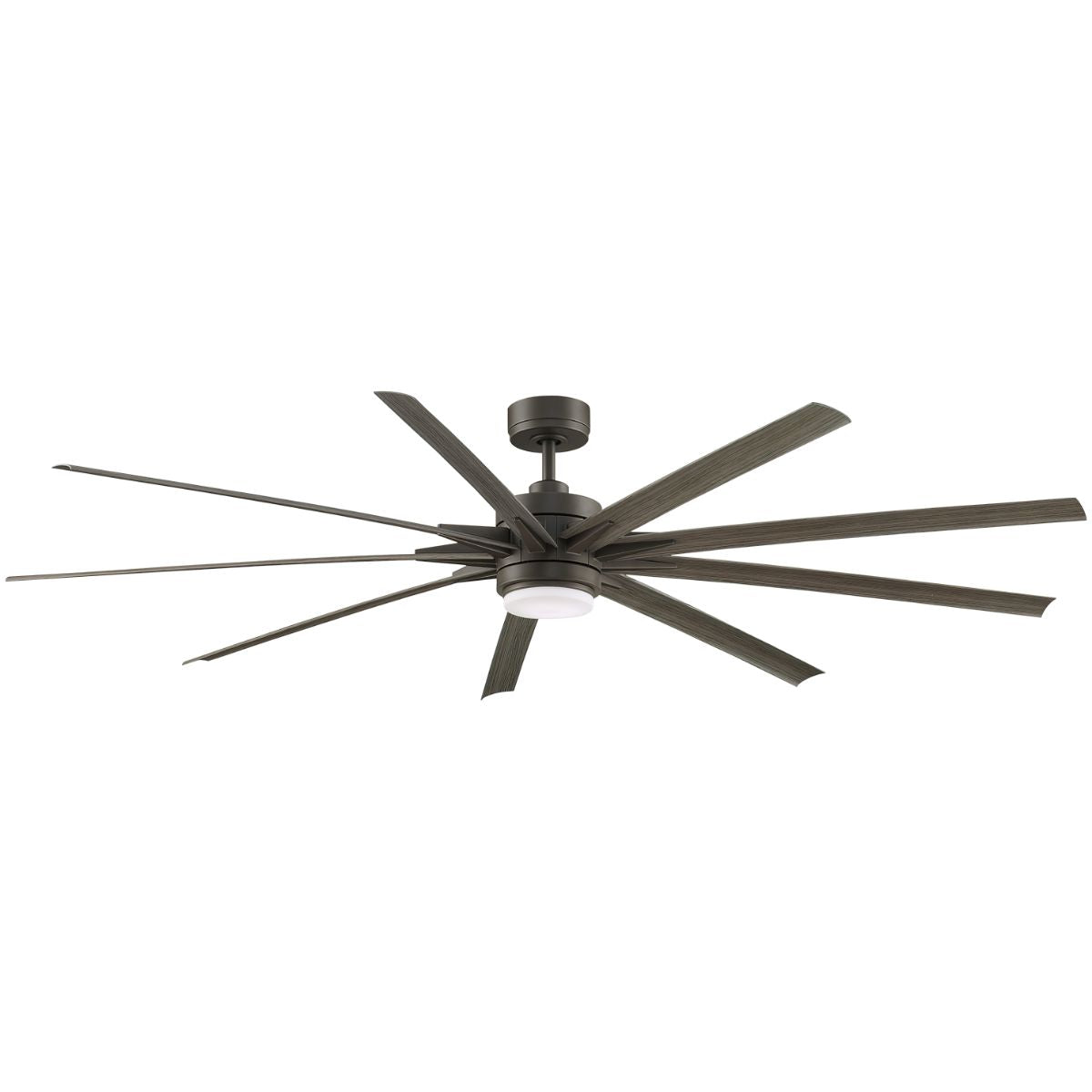

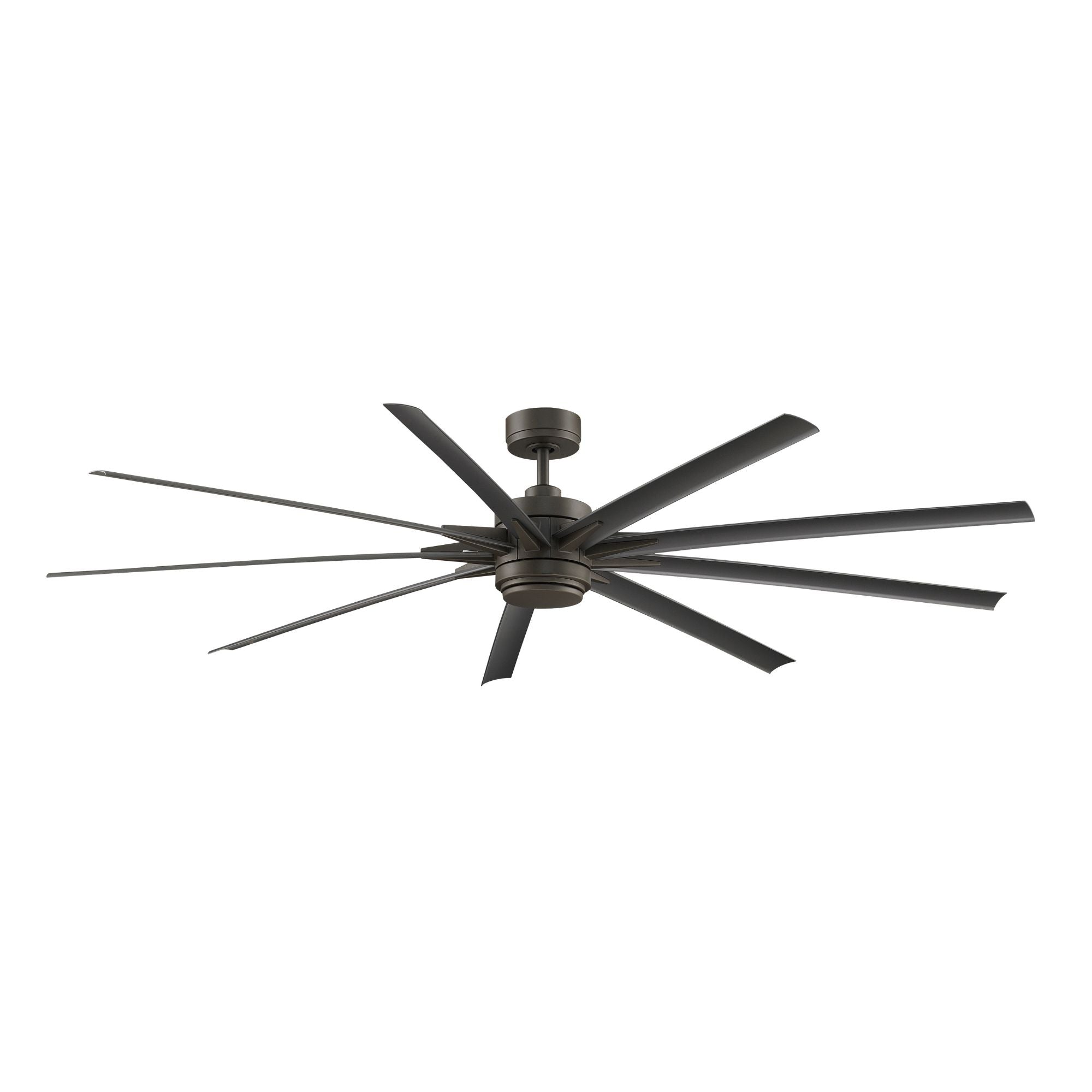

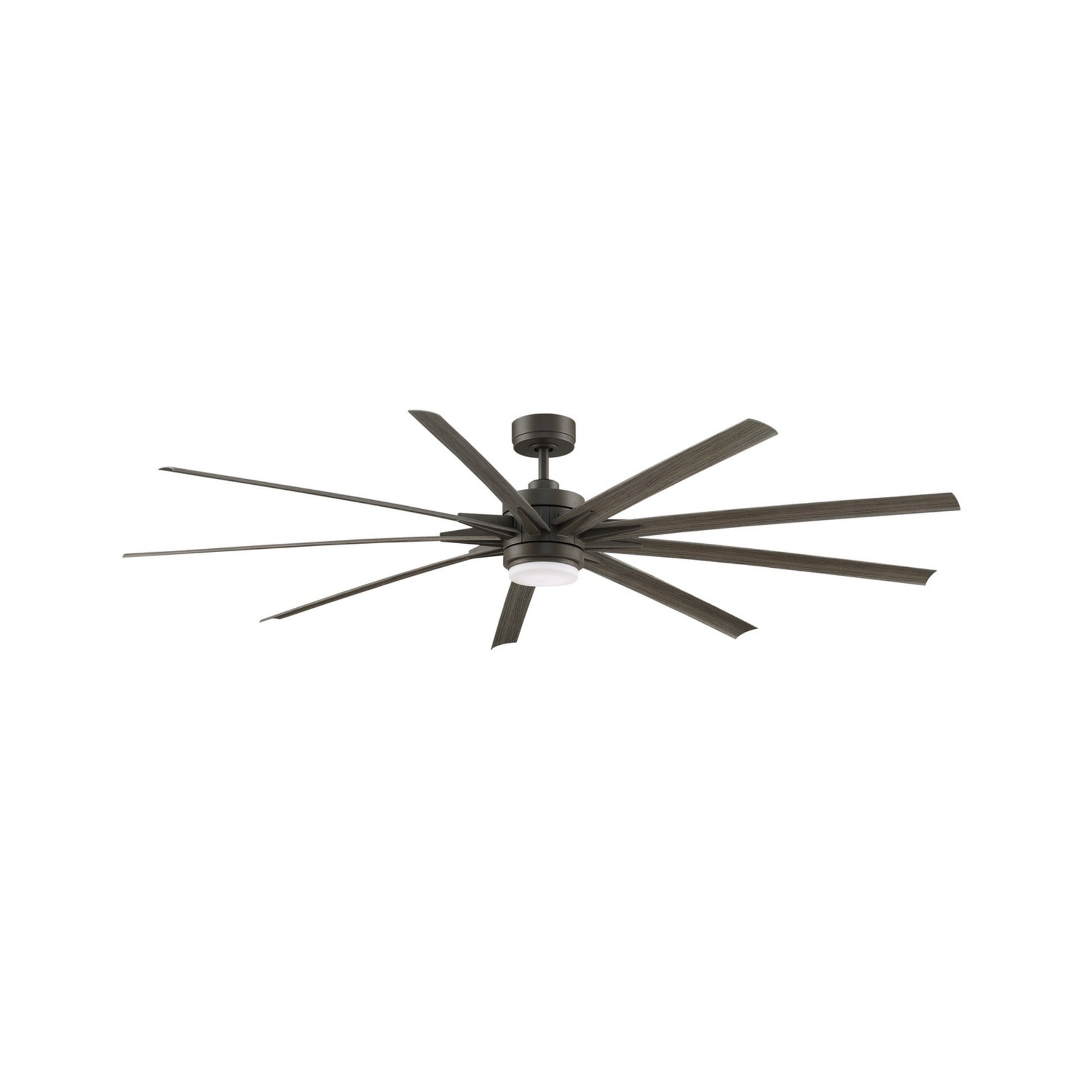

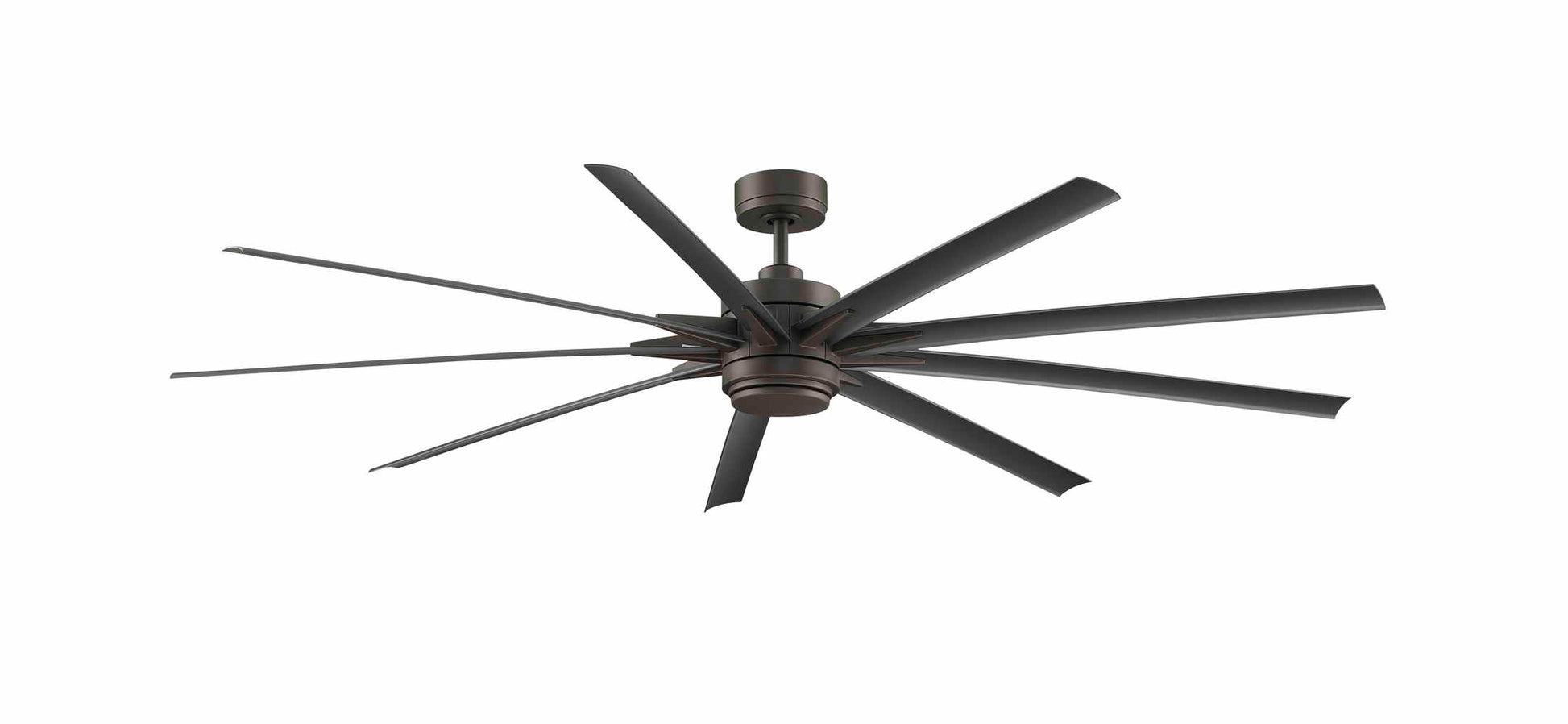

The Fanimation Odyn FPD8159GRW is an 84 in wet-rated DC ceiling fan for large spaces over 400 sq ft. Nine 38 in weathered wood all-weather composite blades at 12° pitch deliver 11,363 CFM at high speed and 328 CFM/W efficiency. The Matte Greige finish with weathered wood blades creates an organic, resort-inspired aesthetic for great rooms, open-plan spaces, and covered outdoor areas.

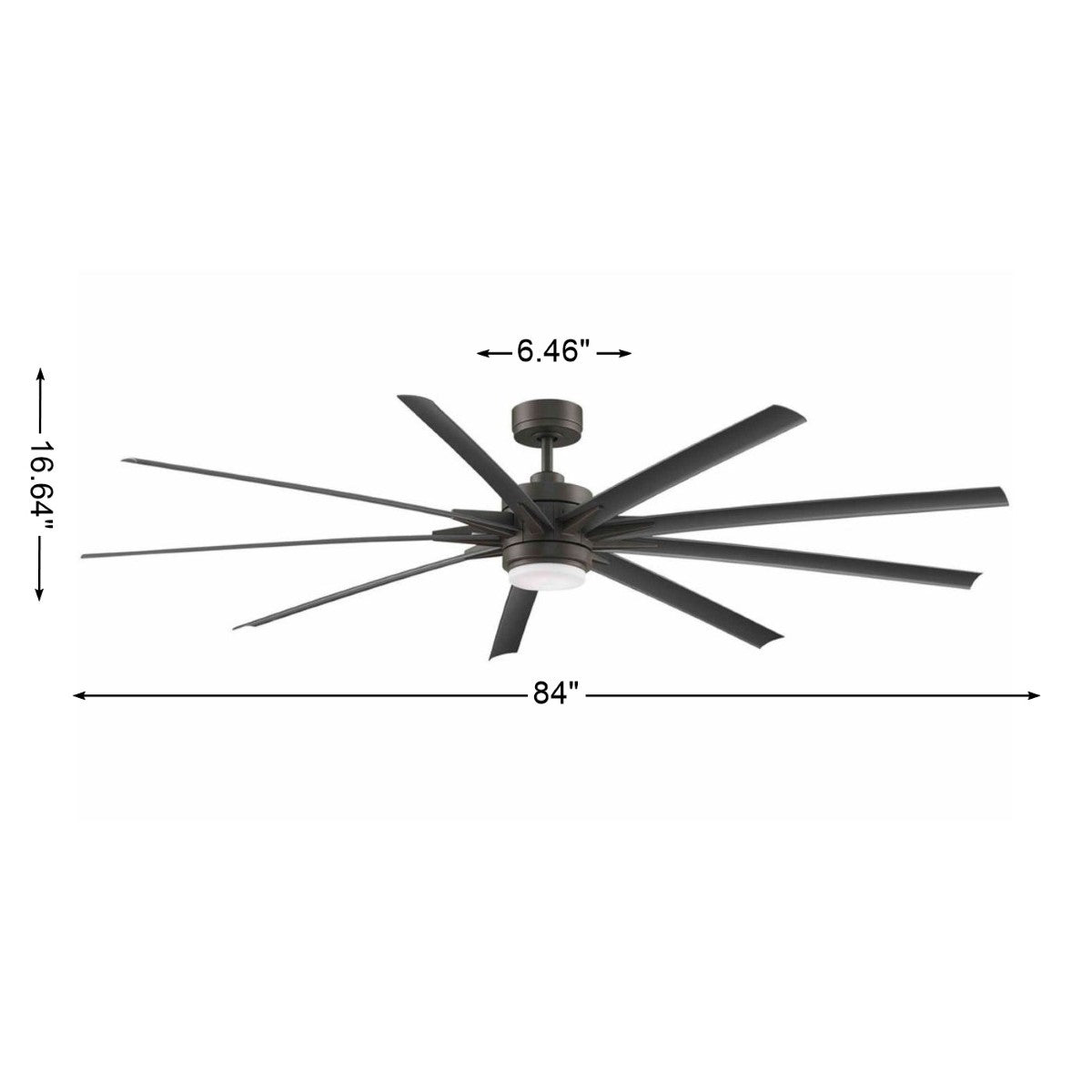

• Blade Span: 84 in — for rooms over 400 sq ft
• Blades: 9 weathered wood all-weather composite, 38 in, 12° pitch, included
• Motor: DC135L sensorless DC, 16-speed, reversible

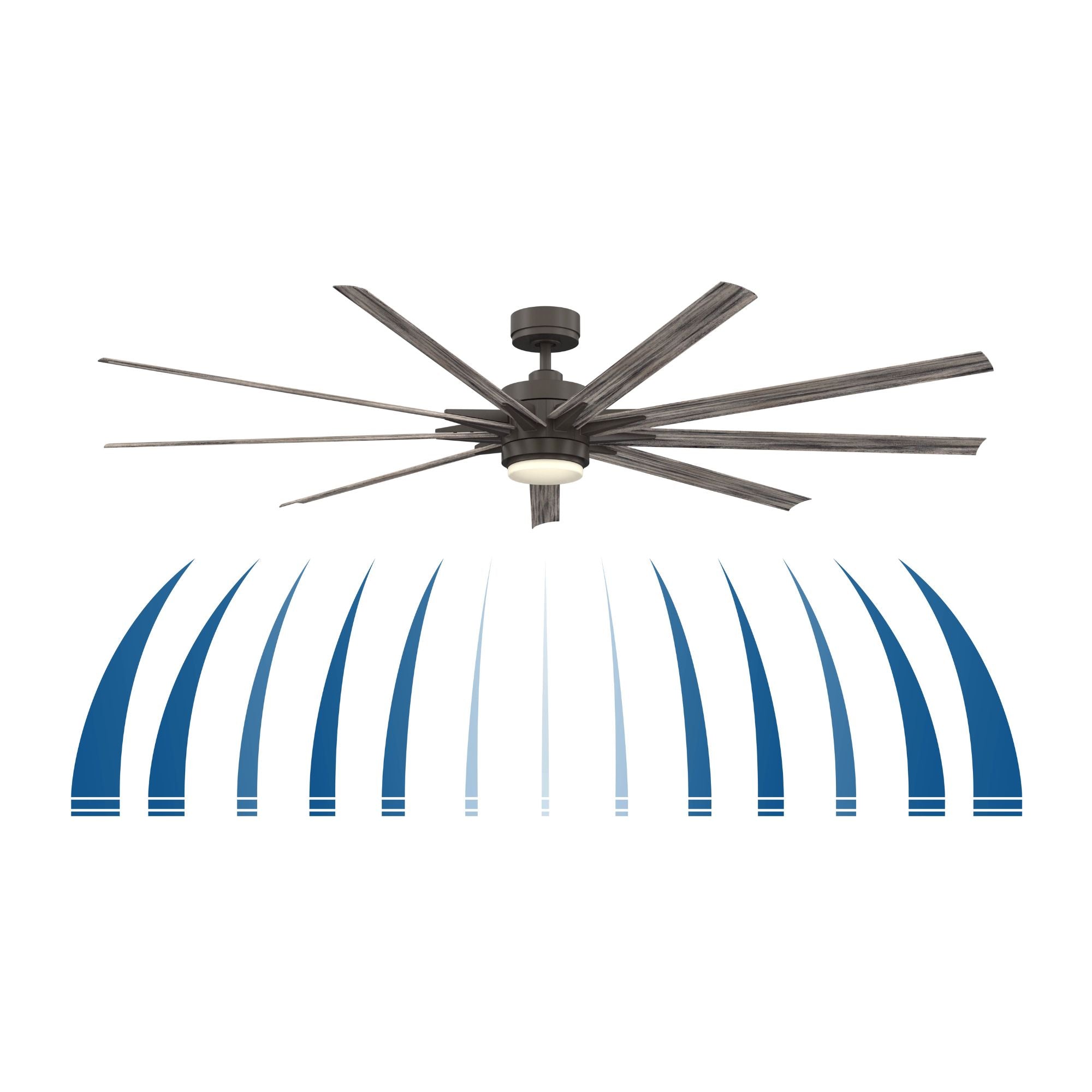

• Airflow: 11,363 CFM high / 8,272 CFM med / 4,694 CFM low
• Efficiency: 328 CFM/W high / 648 CFM/W med / 1,179 CFM/W low
• Wattage: 35W high / 13W med / 4W low
• RPM: 70 high / 51 med / 30 low
• Light: 18W CCT LED — 3000K/4000K/5000K, 1,600 lm, CRI 90, dimmable
• Location: Wet rated — indoor, covered, and open outdoor use
• Sloped Ceiling: Up to 27° standard; up to 42° with optional SCB1-52 kit
• Downrod Included: 12 in, 1 in OD (wet-location rated)
• Weight: 33.74 lbs

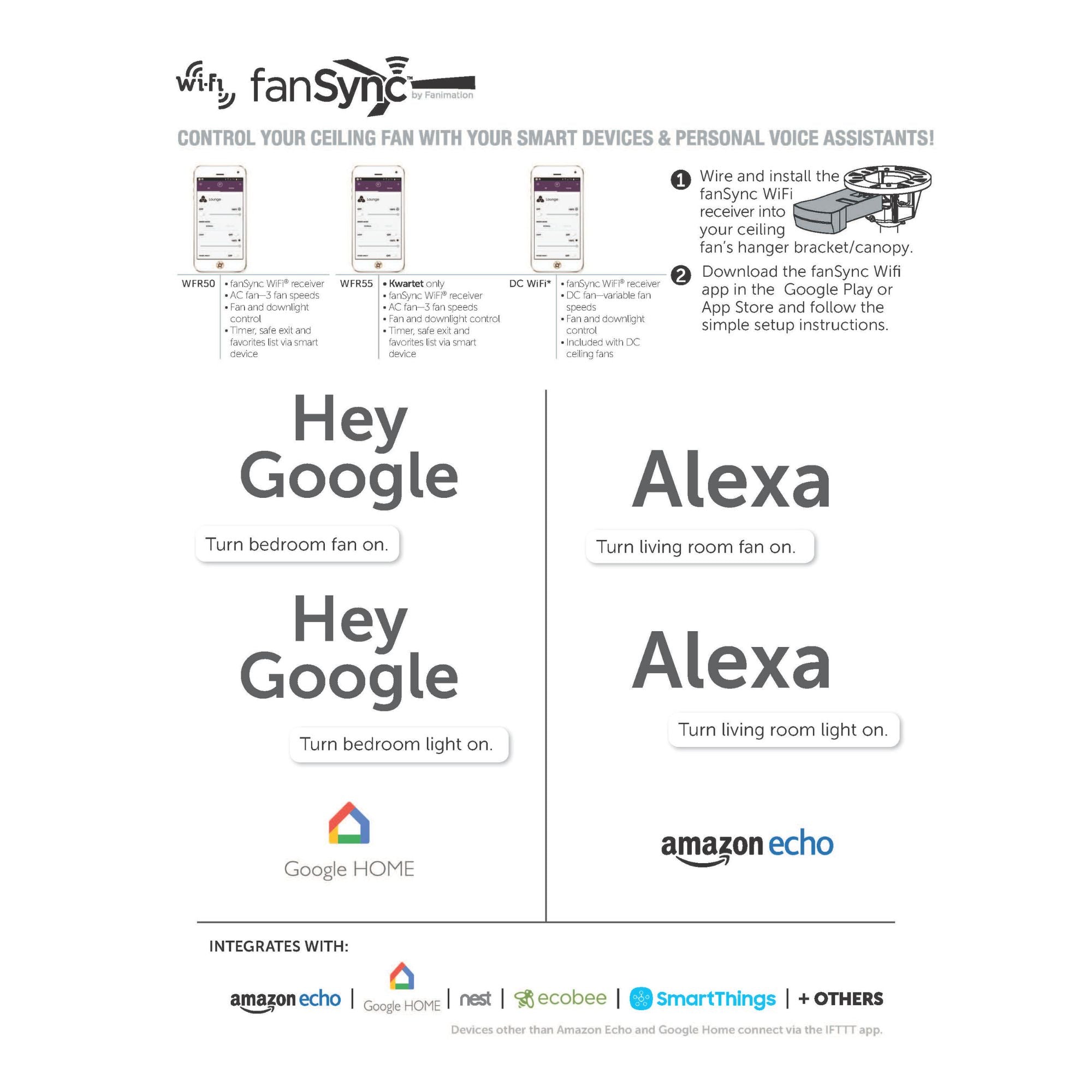

The FPD8159GRW includes the TR305 hand-held remote with 16-speed fan control, reverse, ON/OFF, full-range dimmer, CCT select (3000K/4000K/5000K), fan/light timer, home away, and safe exit. A native WiFi receiver is built in — no hub required. Control via the free fanSync app (iOS and Android) for full fan and light management from your smartphone. Compatible with the optional TW306 wall control (sold separately). Voice control supported via Amazon Alexa and Google Home through the fanSync platform.

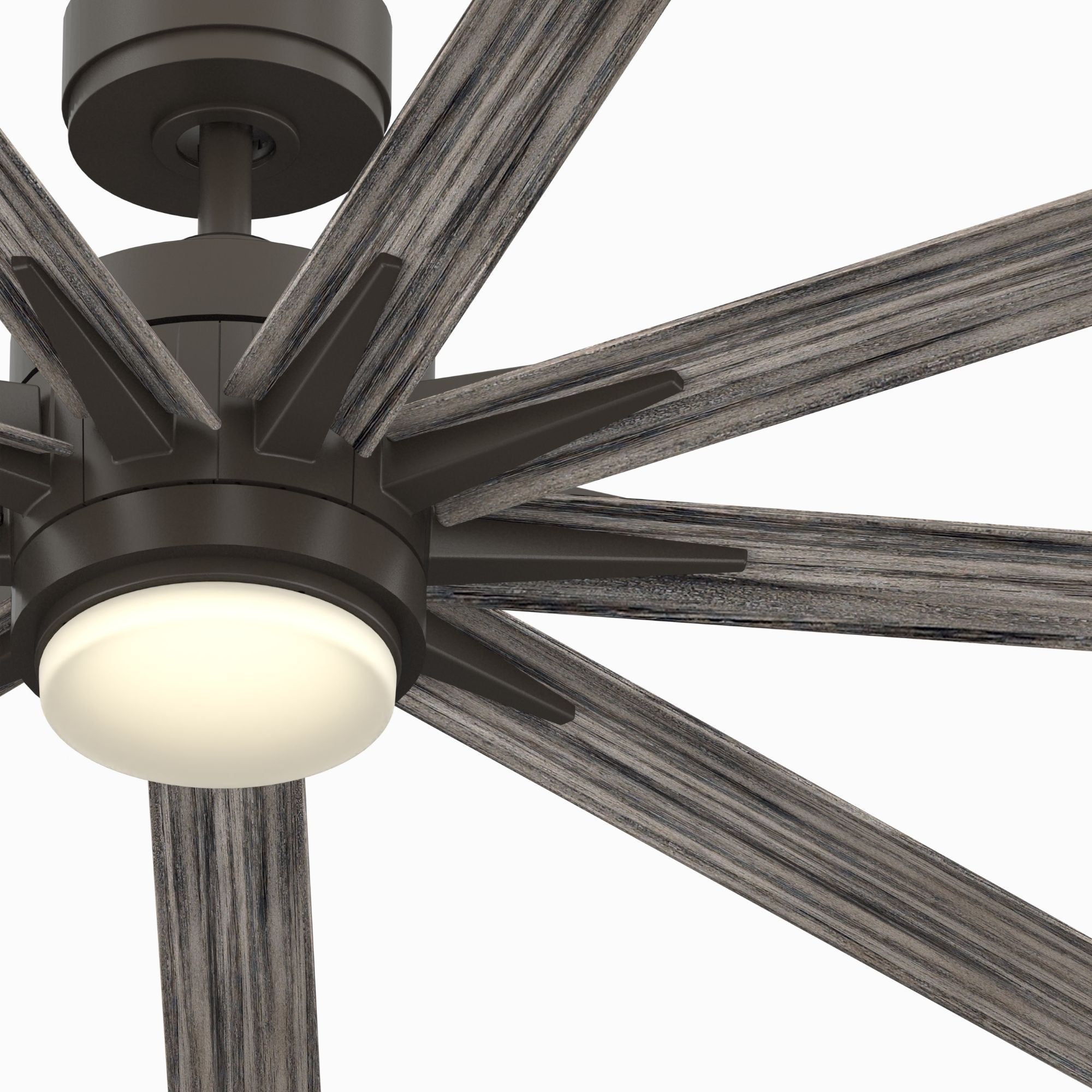

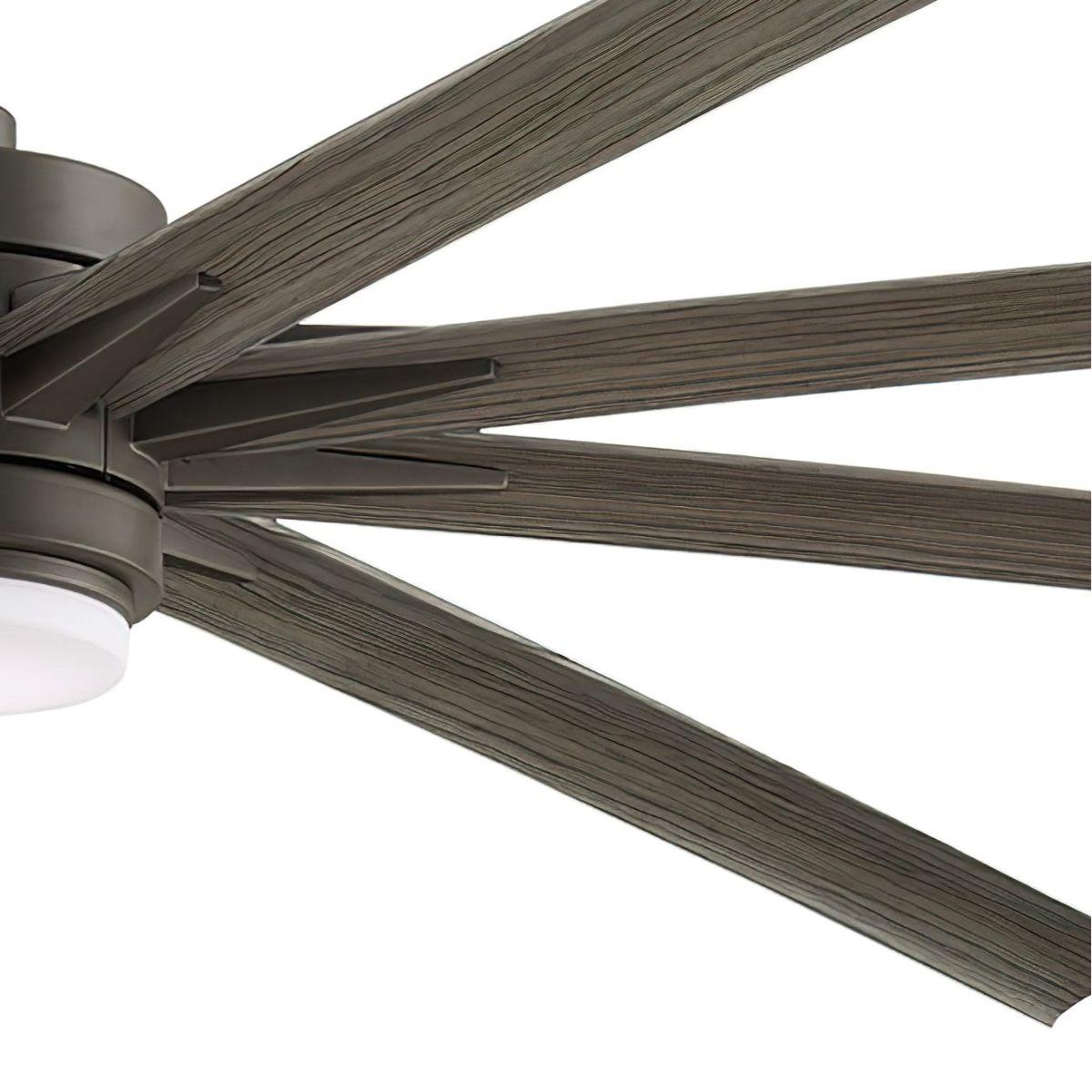

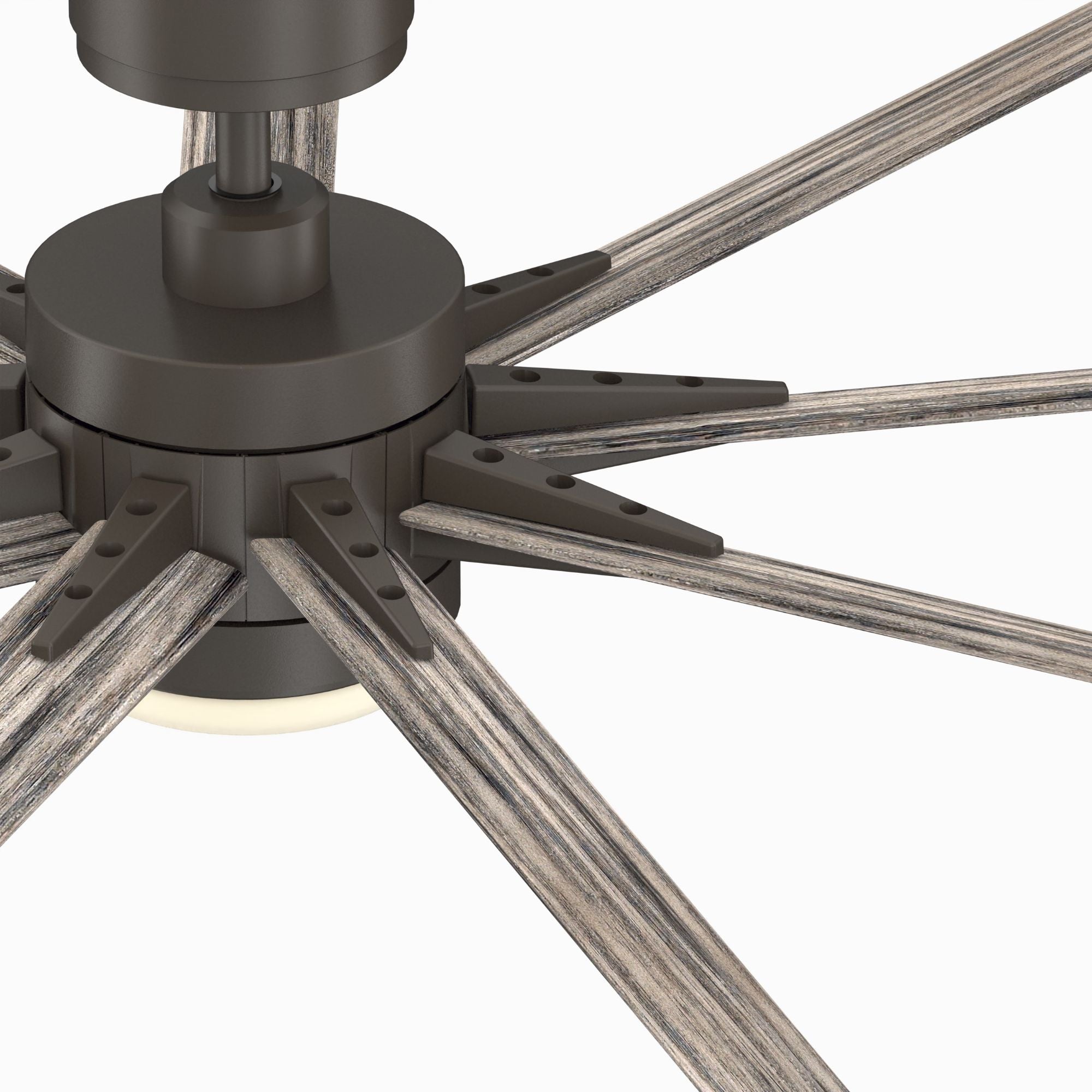

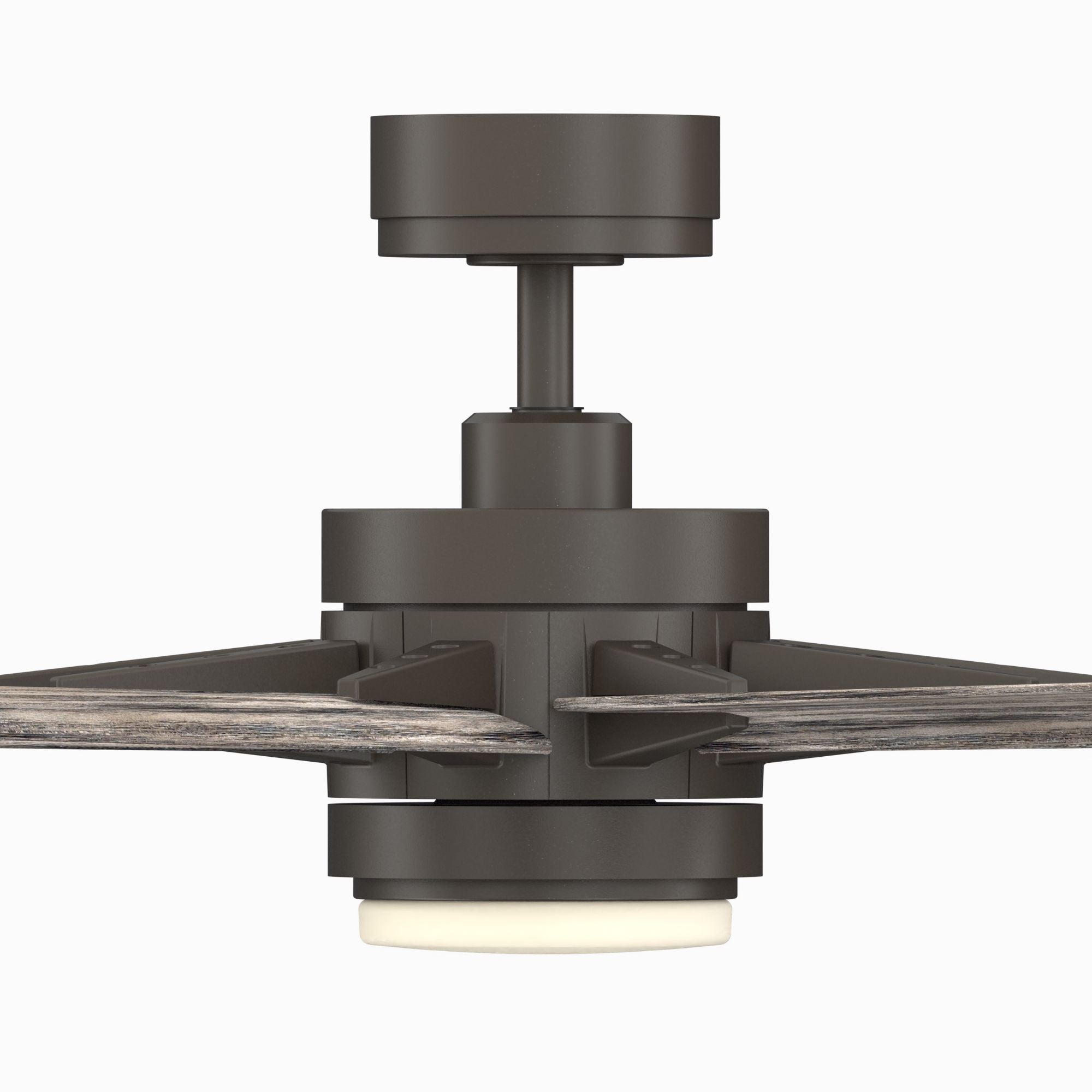

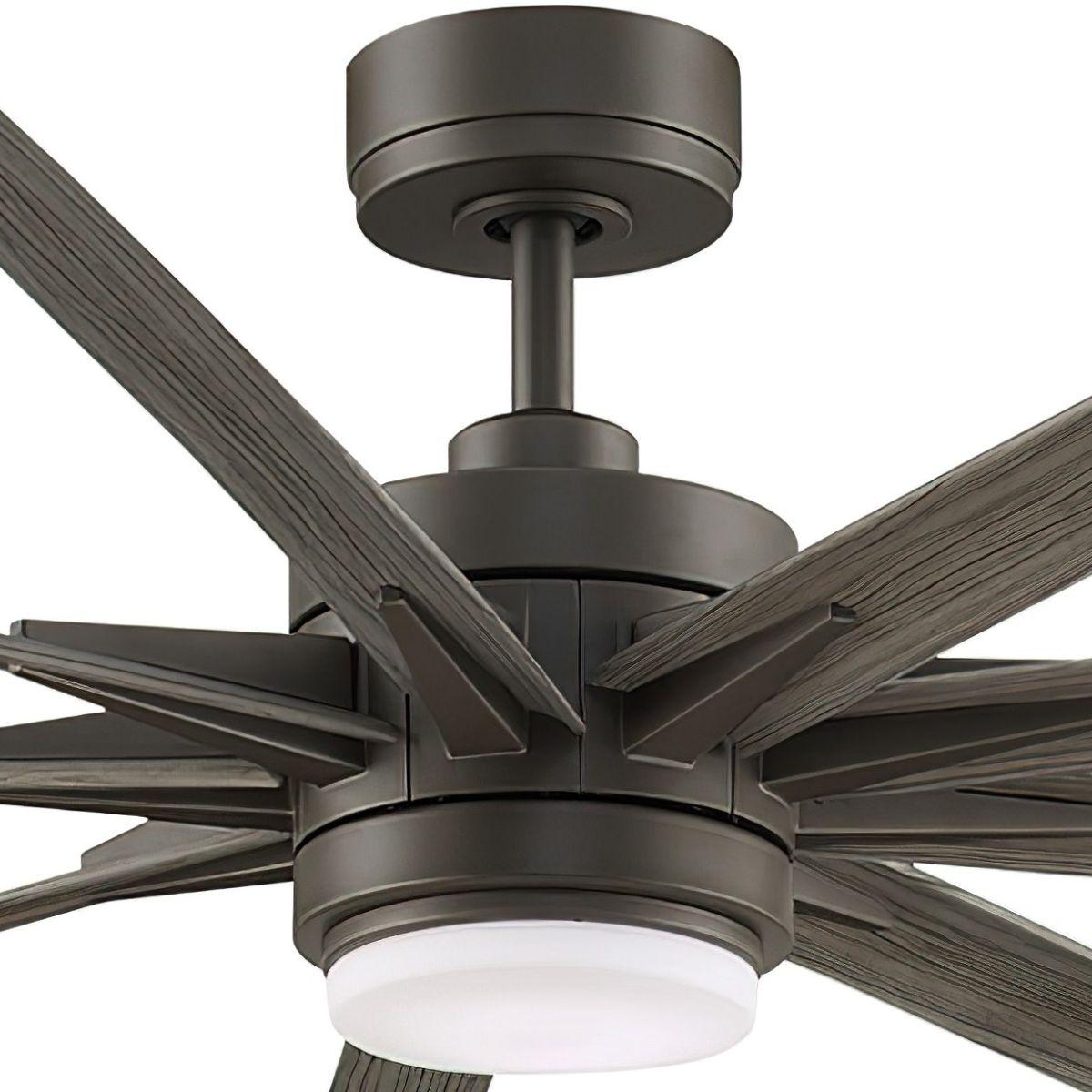

Finish: Matte Greige. Blades: 9 weathered wood all-weather composite, 12° pitch. Motor: DC135L sensorless DC. The Odyn’s nine-blade silhouette at 84 in makes a dramatic statement — Matte Greige and weathered wood bring organic warmth to large residential and commercial interiors.

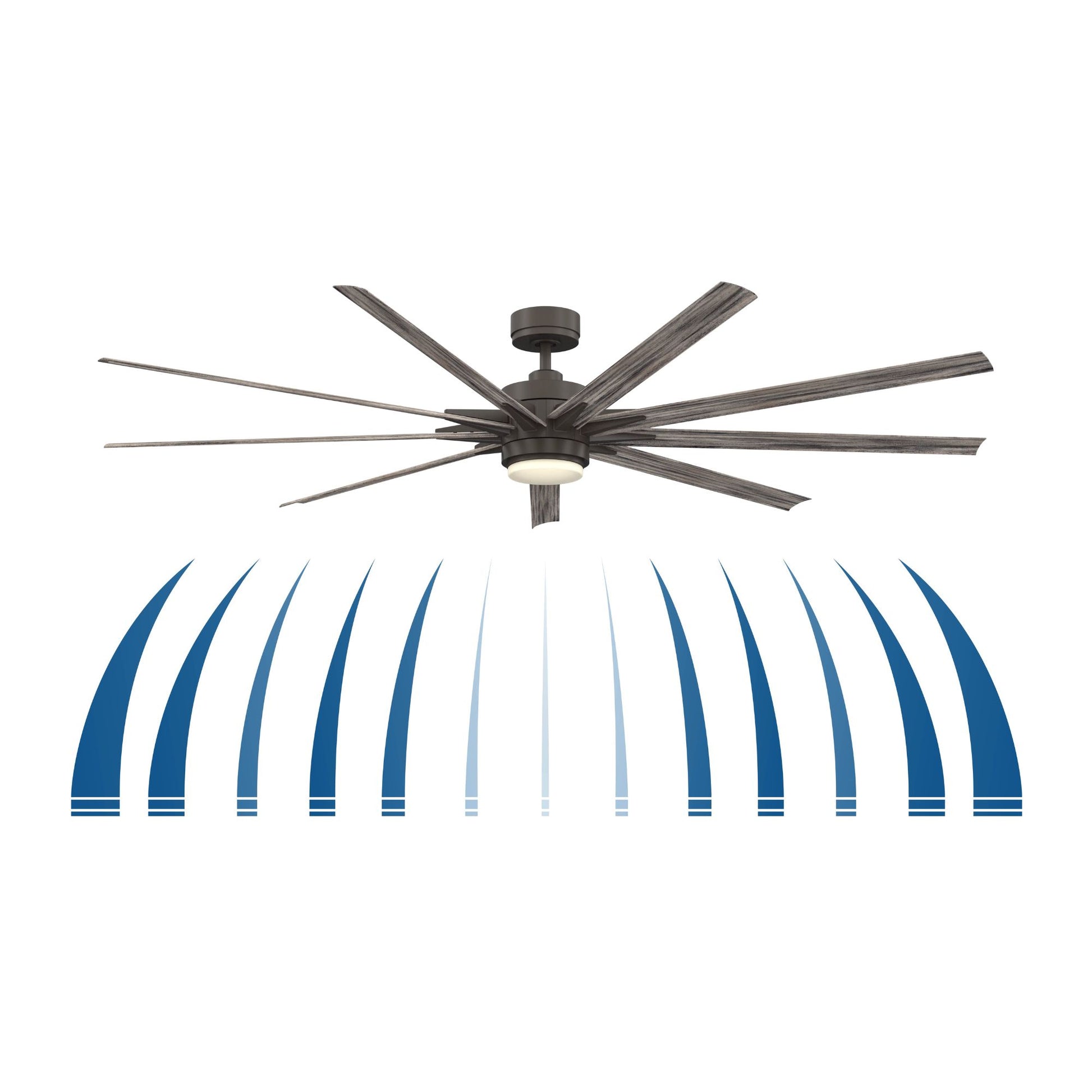

The FPD8159GRW includes an integrated 18W CCT LED producing 1,600 lumens at CRI 90. Color temperature selectable between 3000K, 4000K, and 5000K via remote or fanSync app. Fully dimmable. Opal frosted glass/steel cap diffuses light evenly across large spaces. Fan delivers 11,363 CFM at high speed (328 CFM/W); FTC weighted average: 7,949 CFM / 339 CFM/W. Sized for rooms over 400 sq ft.

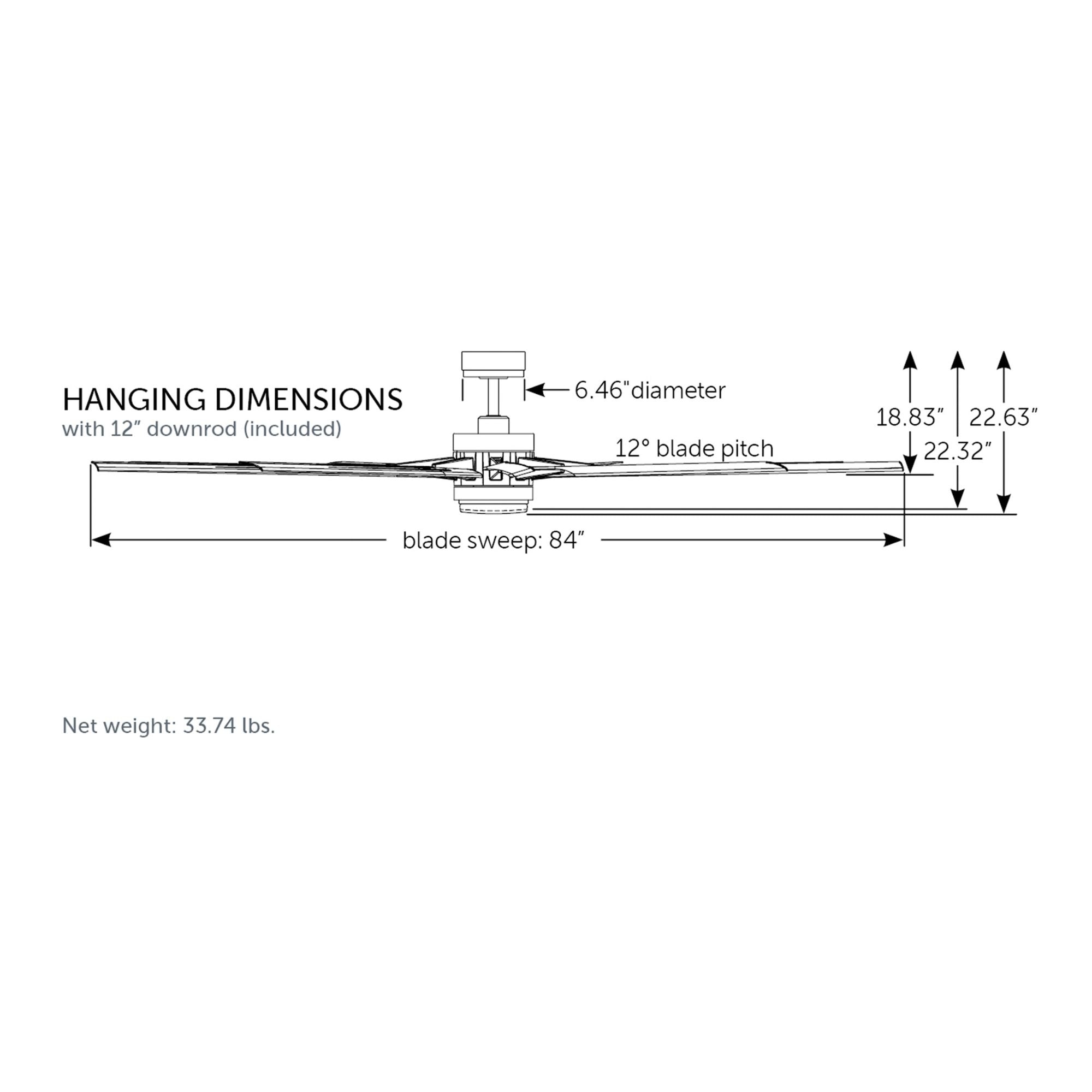

120V AC, 60Hz, 15A circuit. Fan: 35W high / 13W med / 4W low. Light: 18W. Junction box: min 35 lbs. Downrod: 12 in included (1 in OD, wet-rated). Blade pitch: 12°. Weight: 33.74 lbs. Sloped ceiling: up to 27° standard; 24 in+ downrod + SCB1-52 kit for 27°–42° (sold separately).

Ships with 12 in wet-location downrod. Maintain at least 7 ft clearance between floor and blades. Optional downrods: 18", 24", 36", 48", 60", 72". Coupler available for 72"+.

• 9 ft ceiling → 12 in downrod (included)
• 10 ft ceiling → 18 in downrod
• 11 ft ceiling → 24 in downrod
• 12 ft ceiling → 36 in downrod
• 14 ft ceiling → 48 in downrod
• 16 ft ceiling → 60 in downrod
• 18 ft ceiling → 72 in downrod

• Fanimation Odyn 84 in ceiling fan (motor + 9 blades)
• 18W CCT LED light kit with opal frosted glass/steel cap
• WiFi receiver + TR305 hand-held remote
• 12 in wet-location downrod (1 in OD)
• Canopy and mounting hardware
