Fanimation Odyn 84 in Indoor Outdoor Smart LED Ceiling Fan DC
Available in stock (68)
-
Estimated delivery: Nov 04 - Nov 08
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Fanimation Odyn FPD8159 84 in Smart LED Ceiling Fan
Odyn brings a sweeping nine-blade silhouette to great rooms, open-plan interiors and outdoor living spaces over 400 sq ft. Its 84 in span and sensorless DC135L motor deliver 11,363 CFM high-speed airflow. An included selectable-CCT LED, TR305 remote and WiFi receiver combine broad air movement with convenient lighting and control.
Key Features
- Blade sweep: 84 in with nine all-weather composite blades at 12° pitch.
- Motor: DC135L sensorless DC motor with 16 speeds.
- High-speed output: 11,363 CFM at 35W and 328 CFM/W.
- Medium-speed output: 8,272 CFM at 13W.
- Low-speed output: 4,694 CFM at 4W.
- FTC weighted average: 7,949 CFM at 339 CFM/W.
- Lighting: Included 18W LED with 1,600 lumens, CRI 90 and selectable 3000K, 4000K or 5000K.
- Location: Wet rated for indoor, covered outdoor and open outdoor installations.
Smart & Control Features
Includes the TR305 hand-held remote and WiFi receiver. Control 16 fan speeds, on/off, lighting, CCT selection, fan and light timers, home away and safe exit. Use the fanSync app on iOS and Android for smartphone control without a separate hub. Optional TW306 wall control is sold separately.
Construction & Design
Nine 38 in all-weather composite blades form the broad 84 in sweep at 12° pitch. Net weight is 33.74 lb; the canopy measures 6.46 in diameter × 2.58 in high. Finish pairings are:

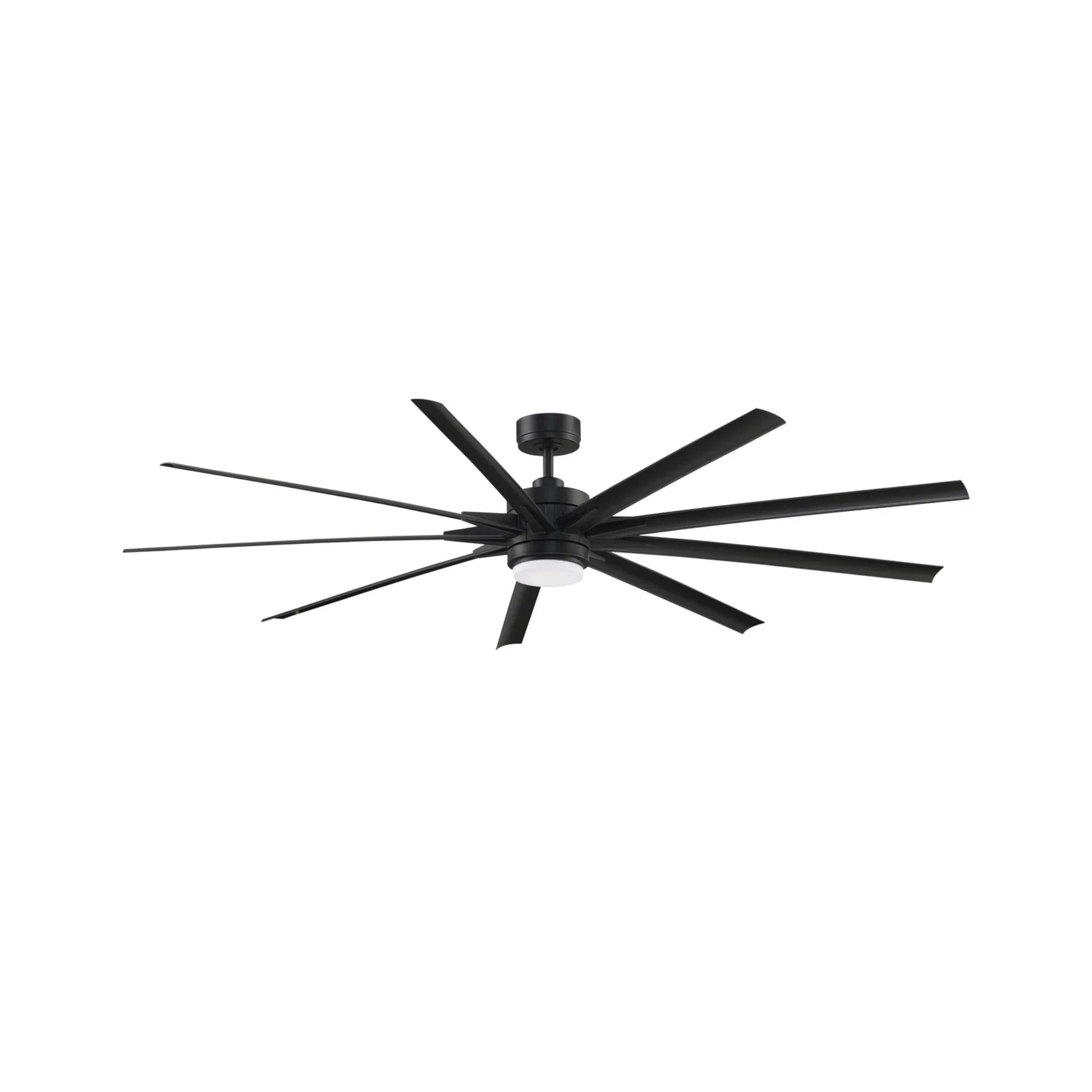

- Black, FPD8159BLW: Black housing and Black blades.

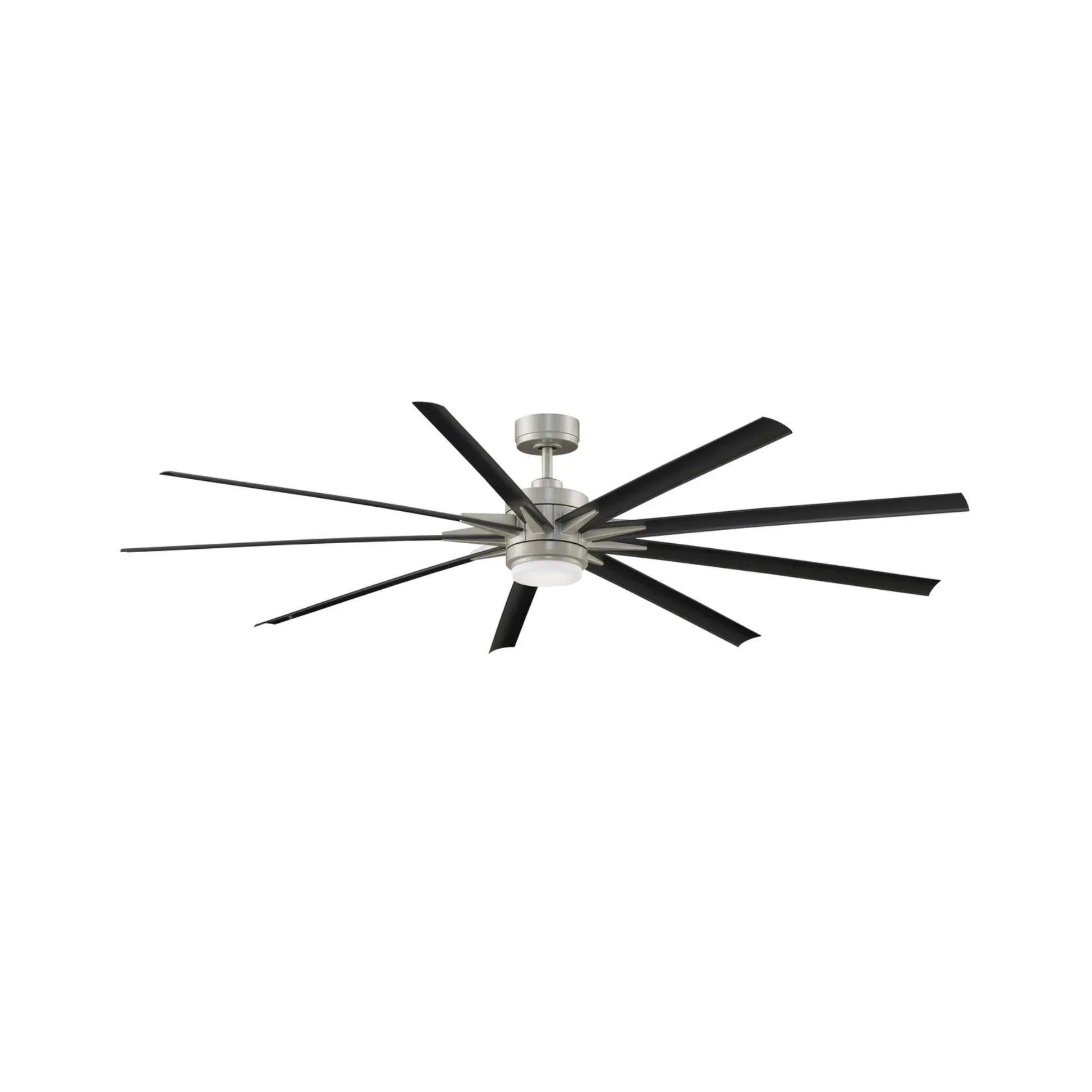

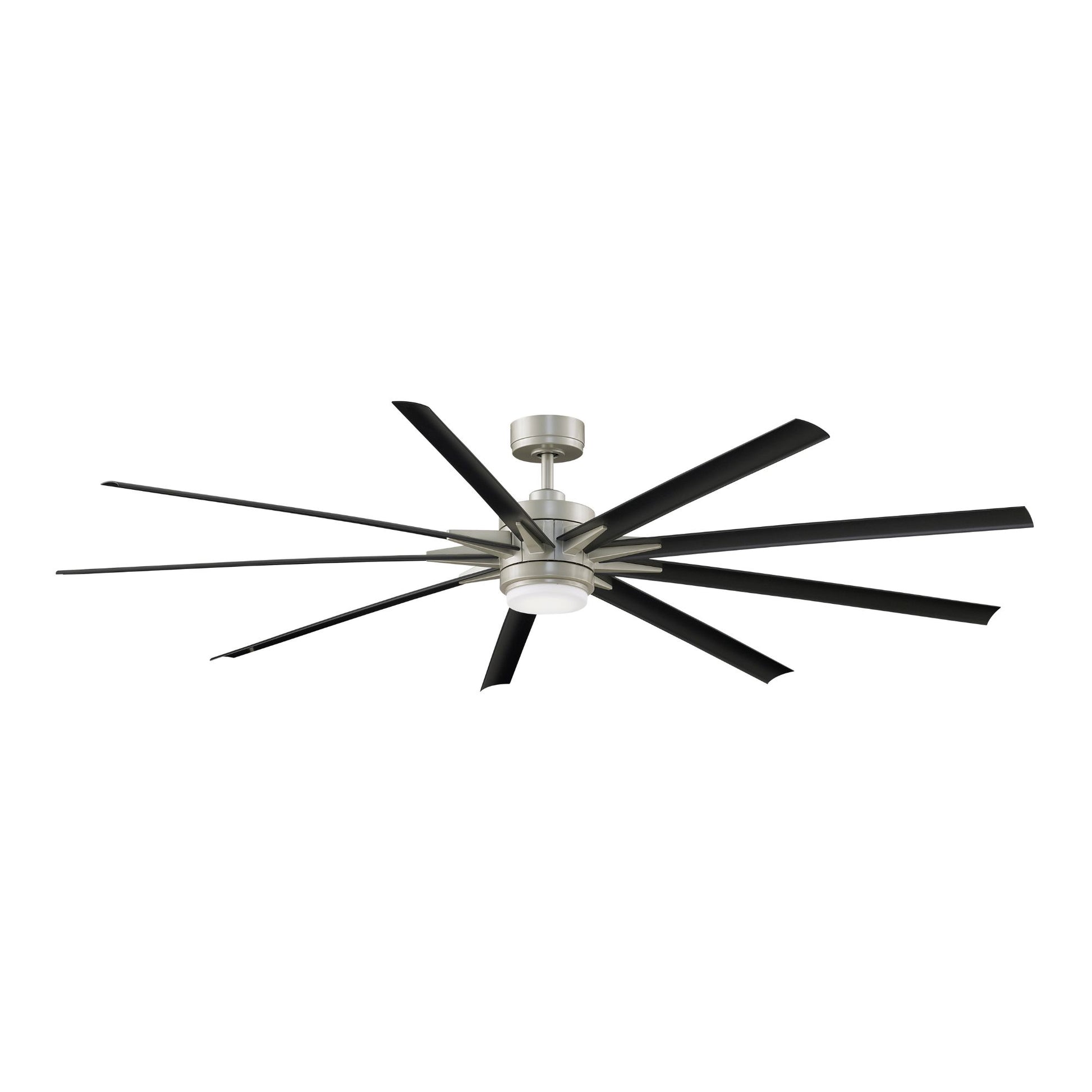

- Brushed Nickel, FPD8159BNWBL: Brushed Nickel housing with Black blades.

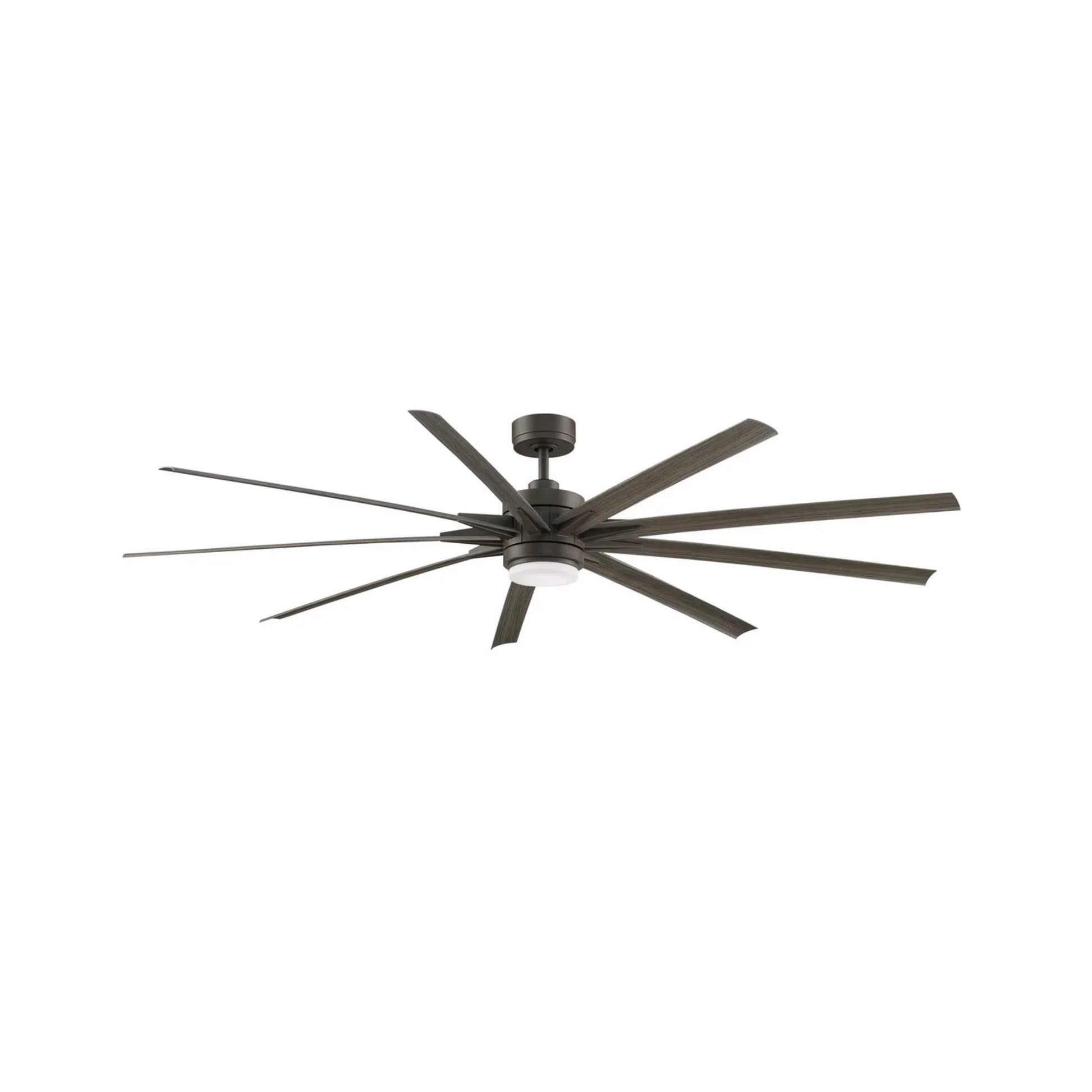

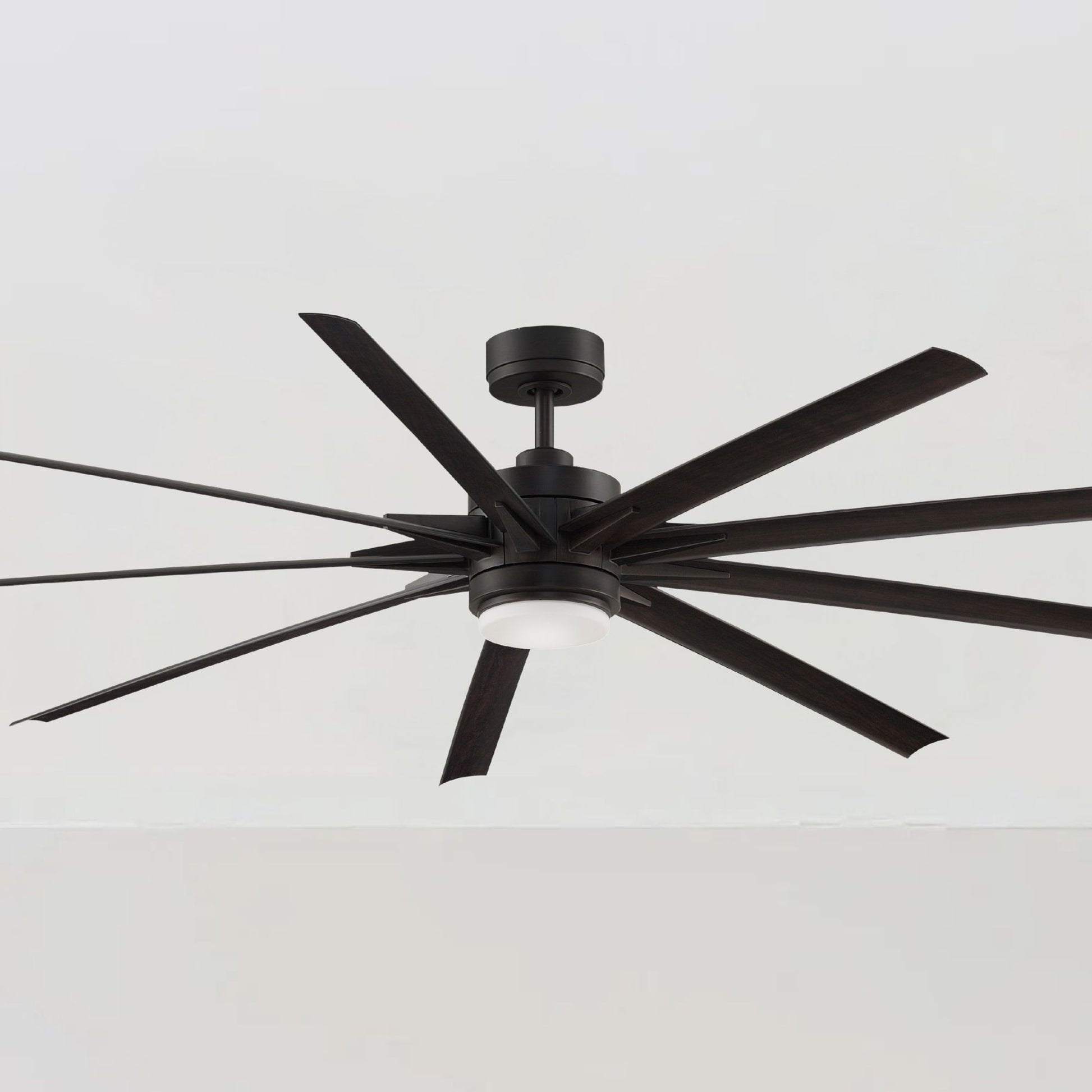

- Dark Bronze, FPD8159DZW: Dark Bronze housing with Dark Walnut blades.
- Greige option, FPD8159GRW: Matte Greige housing with Weathered Wood blades.
Light Output & Performance
The integrated 18W LED provides 1,600 lumens with CRI 90. Select 3000K warm white, 4000K natural white or 5000K cool white through the remote or fanSync app. Opal Frosted Glass and a steel cap complete the lighting assembly. High-speed airflow of 11,363 CFM is distinct from the 7,949 CFM FTC weighted average. The broad sweep is designed for rooms over 400 sq ft.
Electrical & Installation
Operates on 120V AC, 60Hz. Includes a 12 in wet-location downrod with 1 in outside diameter. Standard mounting supports slopes up to 27°; for slopes above 27° and up to 42°, use a 24 in or longer downrod with the optional SCB1-52 slope ceiling ball kit. Use a securely anchored fan-rated junction box rated for at least 35 lb. Select mounting accessories rated for the installation environment.
Suggested Downrod by Ceiling Height
A 12 in wet-location downrod is included. Additional downrods are sold separately. Select the final length for blade and ceiling clearance, maintaining at least 7 ft from floor to blades.
- 9 ft ceiling → 12 in downrod, included
- 10 ft ceiling → 18 in downrod
- 11 ft ceiling → 24 in downrod
- 12 ft ceiling → 36 in downrod
- 14 ft ceiling → 48 in downrod
- 16 ft ceiling → 60 in downrod
- 18 ft ceiling → 72 in downrod
What's Included
- Odyn 84 in ceiling fan with nine all-weather composite blades in the selected finish pairing
- 18W selectable-CCT LED light kit with Opal Frosted Glass and steel cap
- WiFi receiver and TR305 hand-held remote
- 12 in wet-location downrod with 1 in outside diameter
- Canopy and mounting hardware
