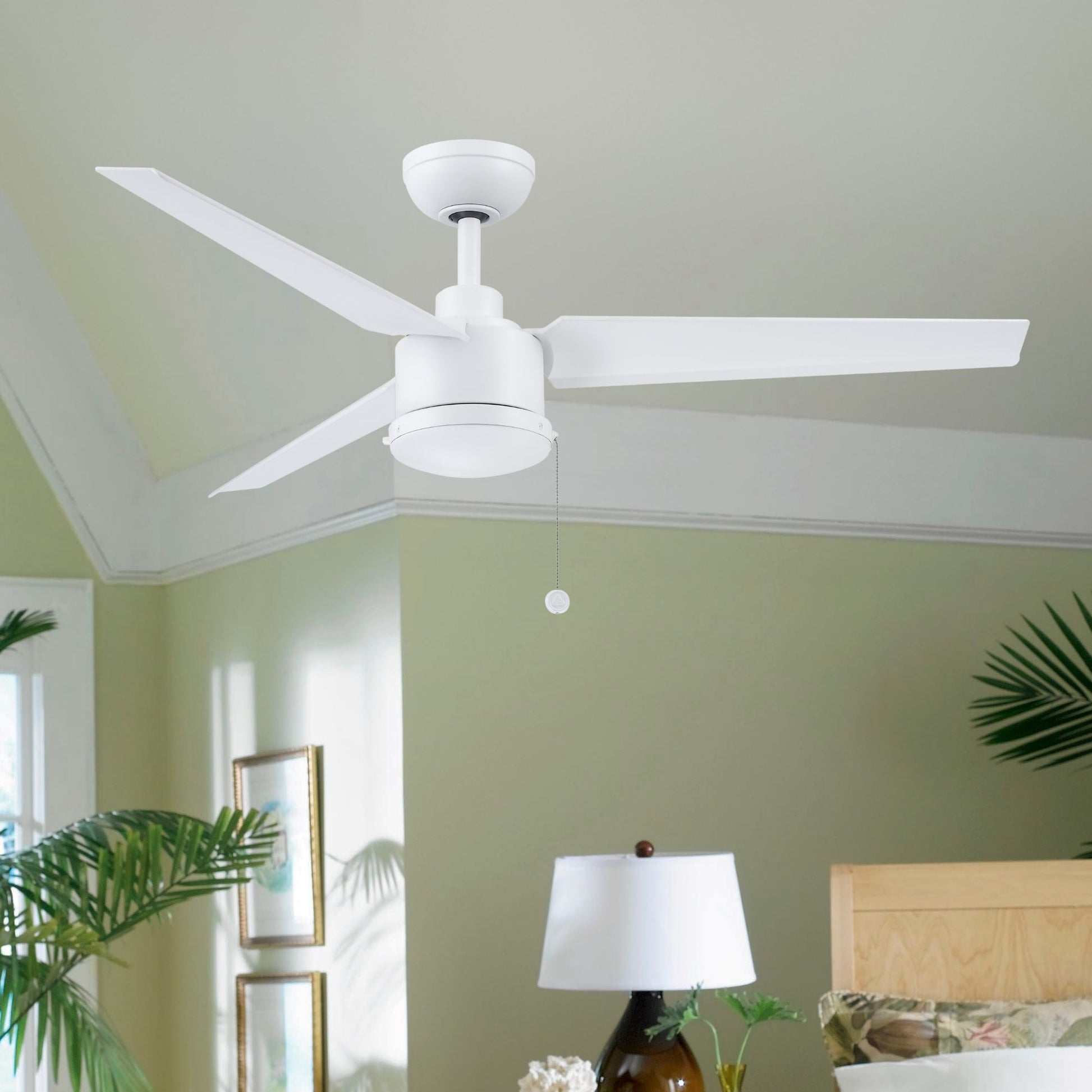

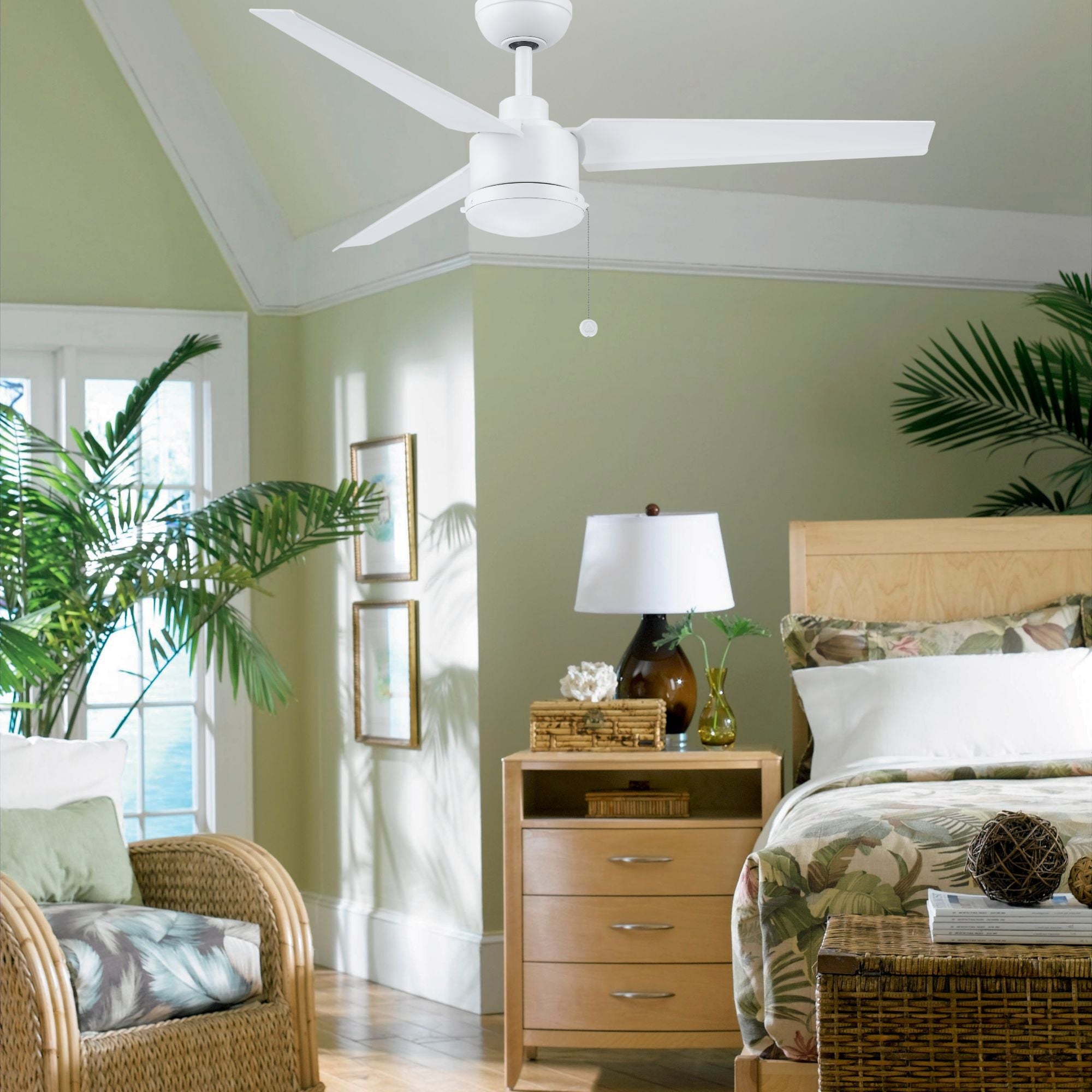

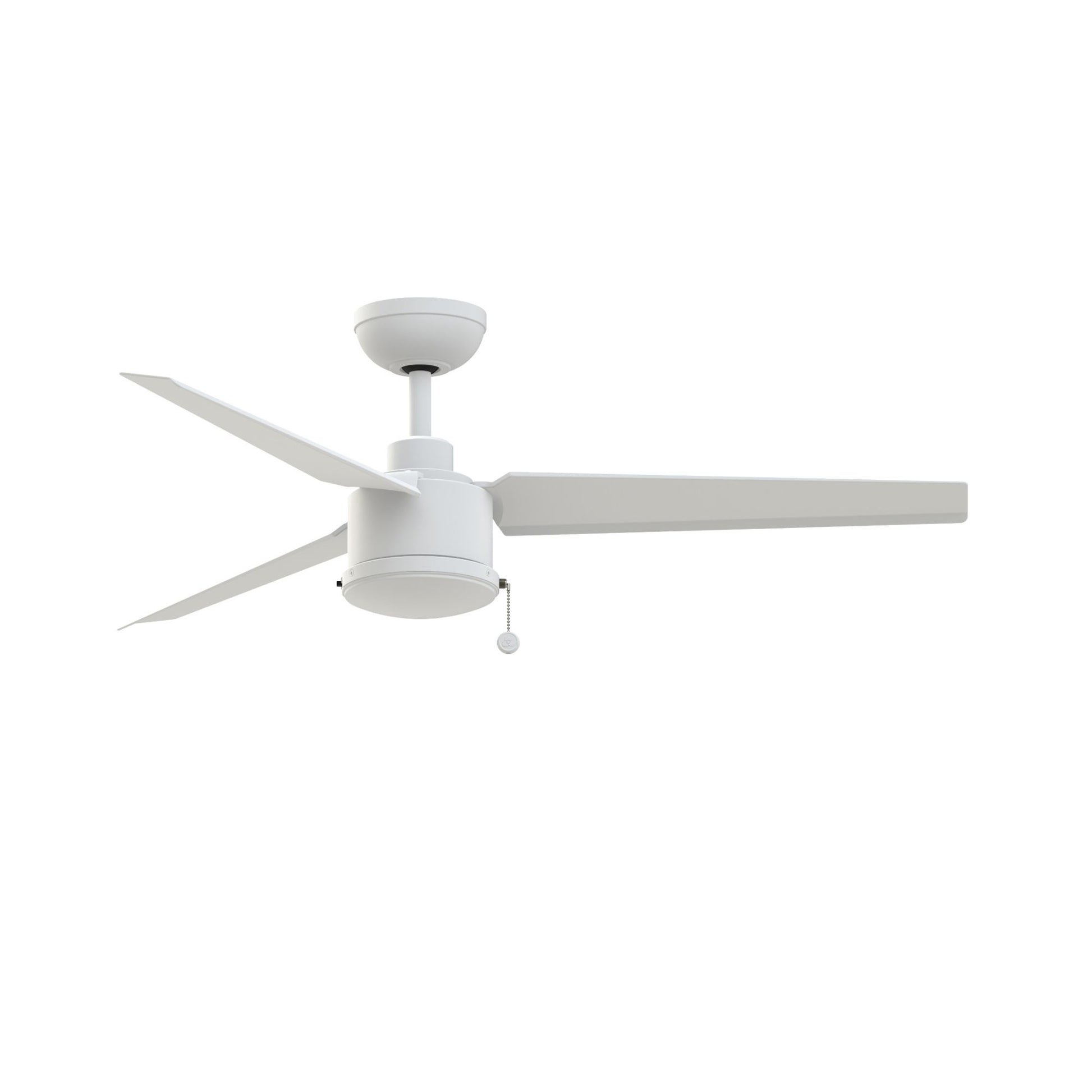

The Fanimation PC/DC NL FPD7617MWW is Fanimation’s first pull-chain fan with a DC motor — blending smooth, modern structure with maximum efficiency. This Matte White 52 in outdoor-rated ceiling fan delivers 5,664 CFM at high speed (201 CFM/W, 28W), all controlled by a simple, reliable pull chain. No light kit included. UL Listed for Wet Locations — limited lifetime warranty.

• Blade Span: 52 in — 3 wet-rated composite blades — 13° pitch — Matte White finish
• Motor: 100×30 DC motor — 3 speeds — reverse switch on switch housing
• Airflow: 5,664 CFM high (201 CFM/W, 28W) / 1,641 CFM low (2W)
• Location Rating: UL Listed for Wet Locations — indoor, covered and open outdoor use
• Room Size: Up to 400 sq ft
• Mounting: Downrod — up to 27° standard; up to 42° with SCB1-52 (sold separately)
• Included Downrod: 1 in dia. × 6 in wet-location (DR1SS-6)
• Canopy: 6.3 in dia. — 7 ft min floor-to-blade clearance
• Net Weight: 13.23 lbs

The FPD7617MWW is controlled by pull chain — 3 fan speeds plus off. The reverse switch is located on the switch housing on the fan body. No remote or wall control is included or required.

The PC/DC NL delivers the same sleek, minimal aerodynamic profile and DC motor efficiency as the PC/DC L — without a light kit, for spaces where dedicated lighting is already in place. Matte White finish with matching Matte White blades creates a clean, airy look perfect for coastal, contemporary, and transitional covered patios, open outdoor spaces, and indoor great rooms. Backed by a limited lifetime warranty.

120V AC, 60Hz, 15A circuit. Fan: 28W high. Reverse switch on fan body. Junction box must be rated for at least 35 lbs. Sloped up to 27° standard; up to 42° with SCB1-52 (sold separately). Optional close-to-ceiling kit CCK8002 available separately. UL Listed for Wet Locations.

The FPD7617MWW delivers 5,664 CFM at high speed with an efficiency of 201 CFM/W at 28W. Low speed produces 1,641 CFM at just 2W. Energy Guide rated 3,813 CFM at 19W — 202 CFM/W. Ideal for rooms and covered outdoor spaces up to 400 sq ft.

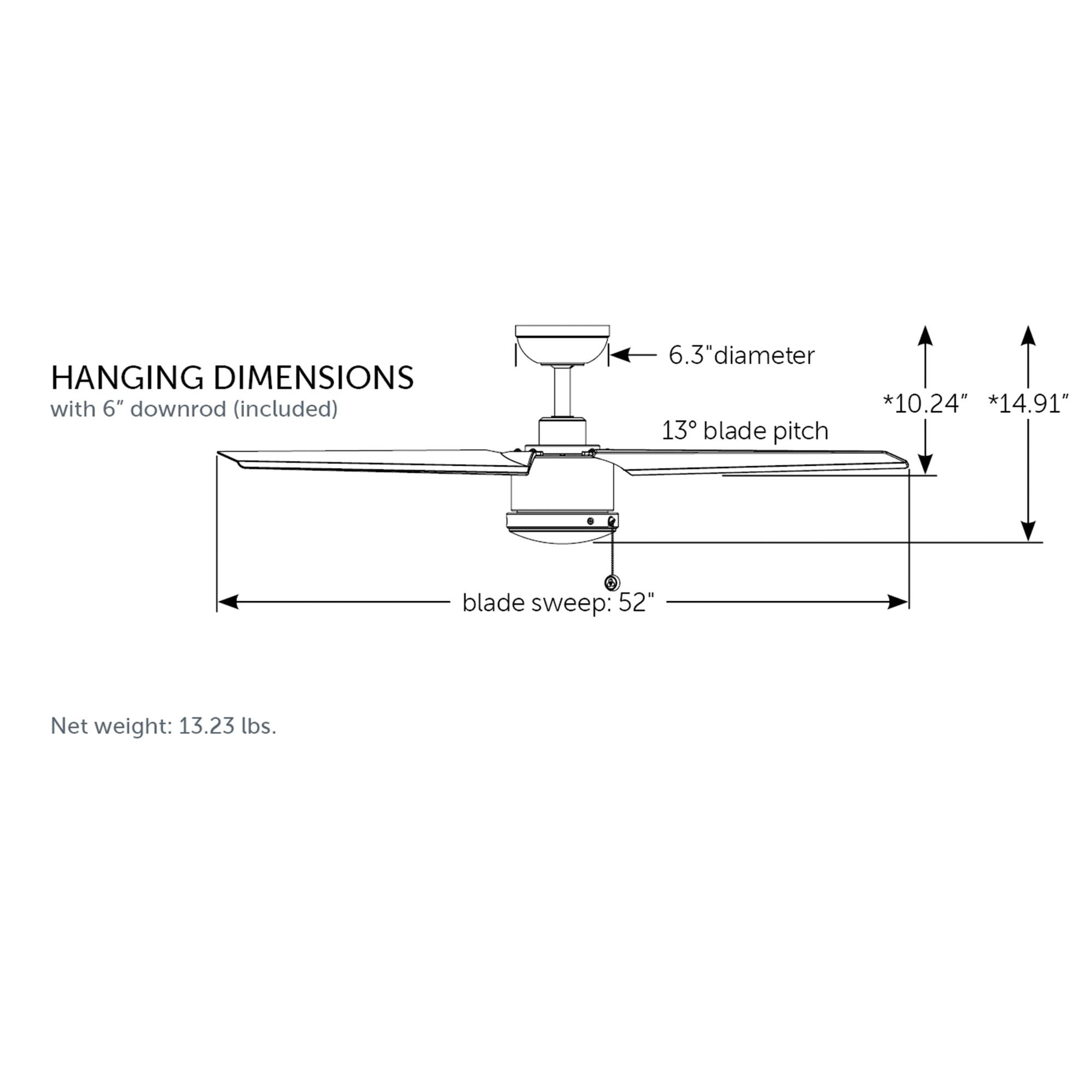

Includes 1 in dia. × 6 in wet-location downrod (DR1SS-6). Optional wet-location downrods available in 12, 18, 24, 36, 48, 60, and 72 in lengths. Coupler DR1-CP** available for runs over 72 in. Ideal floor-to-blade: 7–9 ft.

• 9 ft → <12 in
• 10 ft → 12–18 in
• 11 ft → 18–24 in
• 12 ft → 24–36 in
• 13 ft → 36–48 in
• 14 ft → 48–60 in
• 15 ft → 72 in+

• FPD7617MWW ceiling fan — Matte White finish
• 3 Matte White wet-rated composite blades
• Pull chain control
• 6 in wet-location downrod
• Mounting hardware
