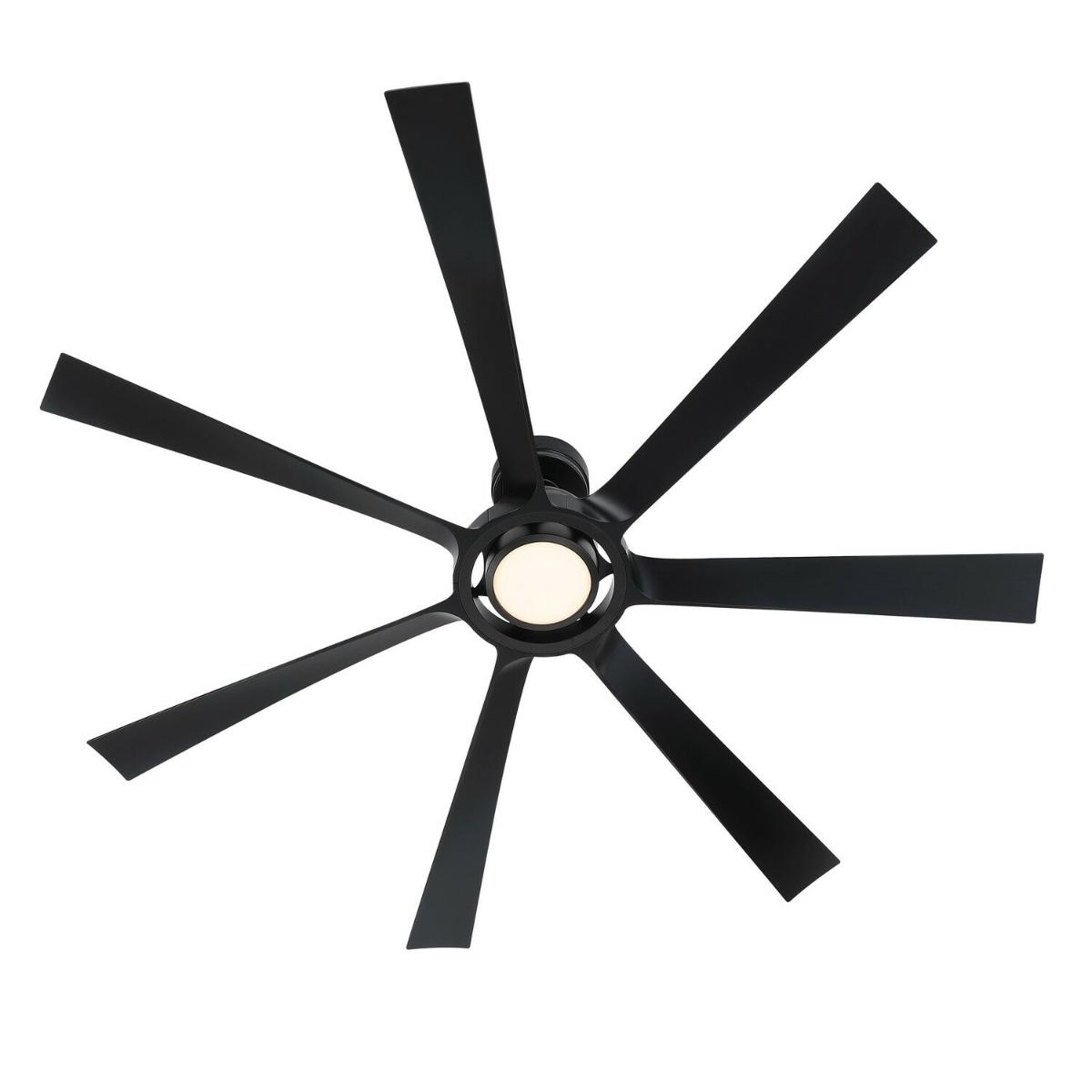

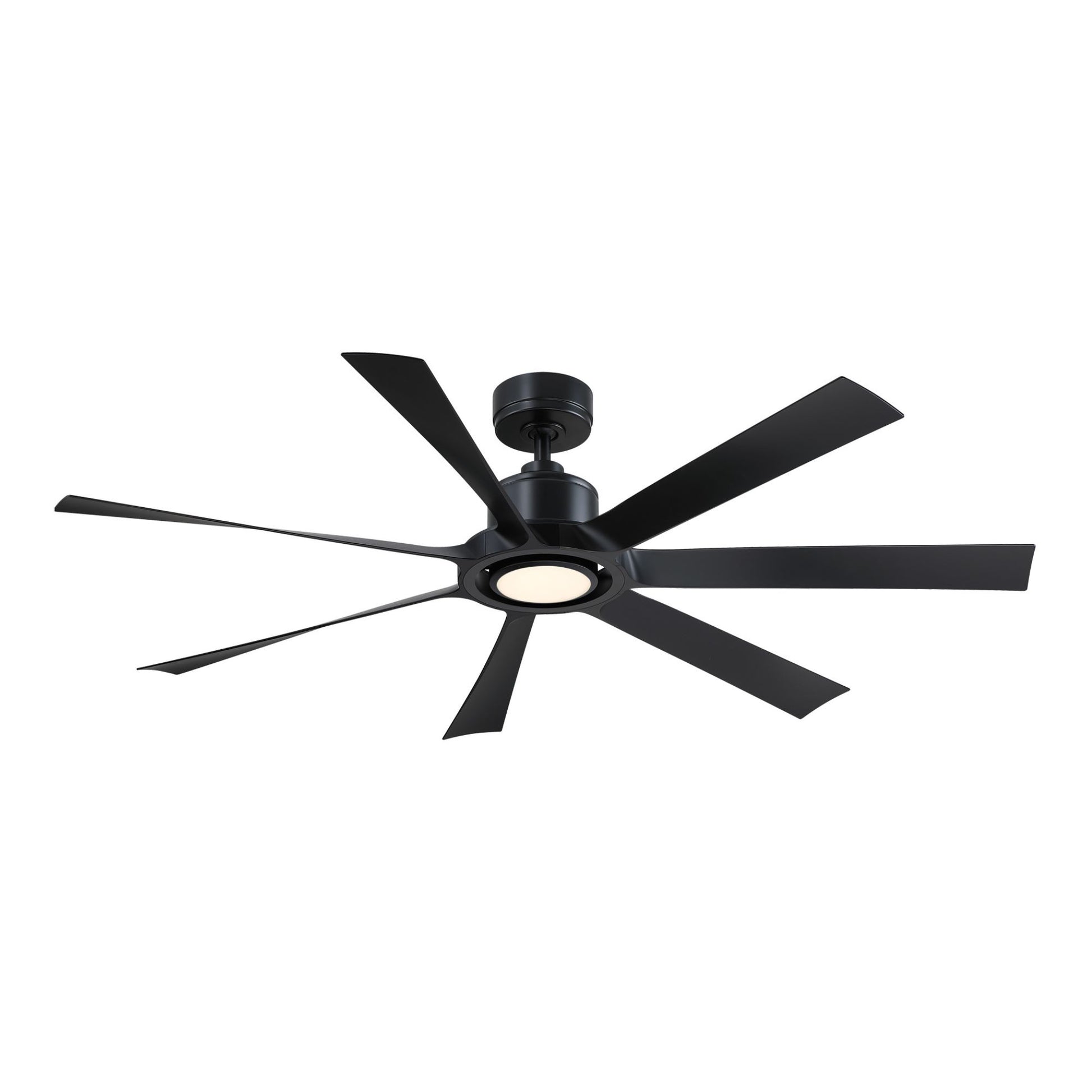

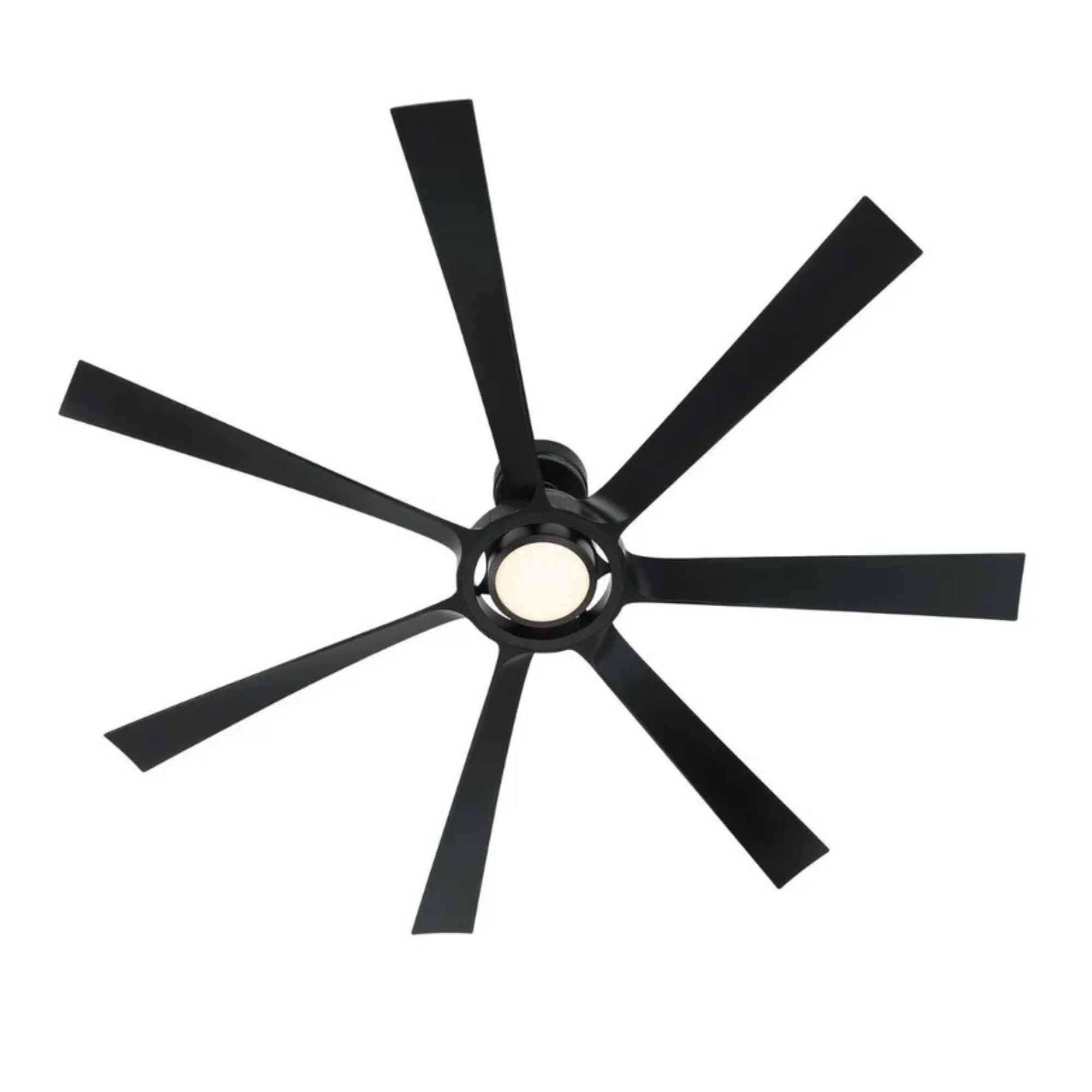

The Fanimation Lenzi FPD7060BL combines sweeping seven-blade drama with whisper-quiet DC performance and integrated smart control. Seven Black composite blades, 24W CCT LED, and the TR305 remote with built-in fanSync WiFi. Damp Rated — backed by a limited lifetime warranty.

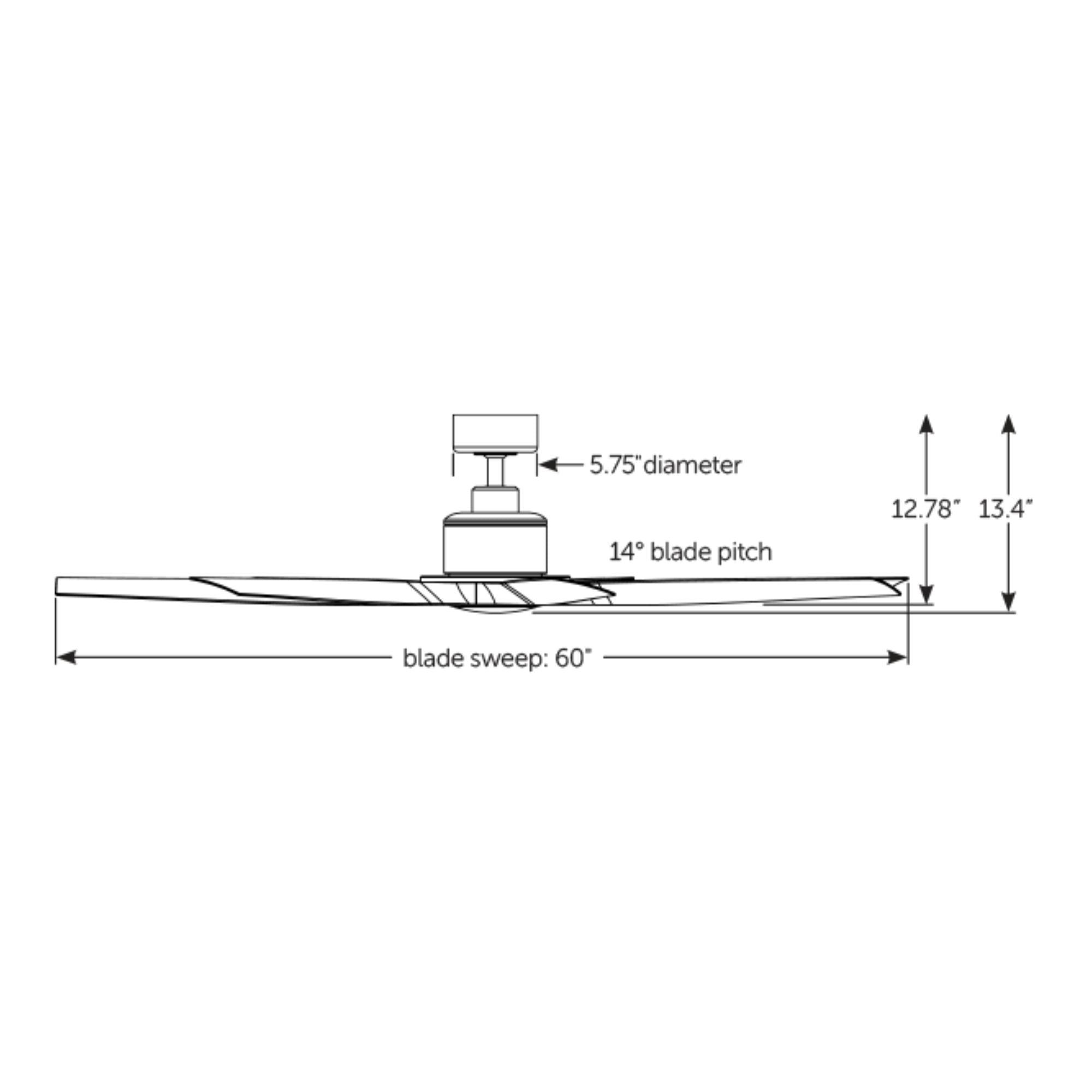

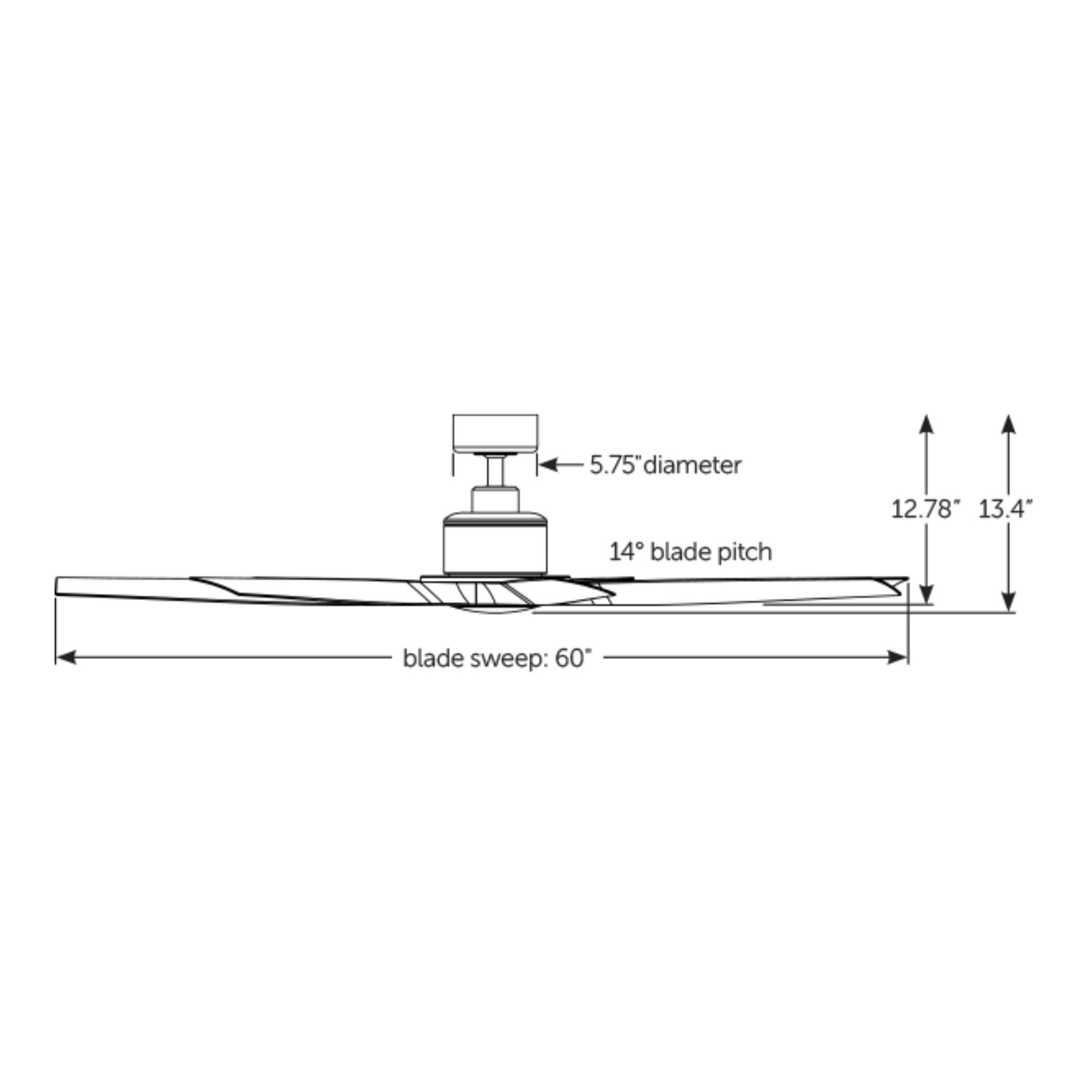

• Blade Span: 60 in, 7 composite blades (26 in), 14° pitch, Black
• Motor: DC135 sensorless DC motor, 6 variable speeds, reversible (reverse on remote)
• Airflow: 7,909 CFM high / 3,306 CFM low — 245 CFM/W high
• Wattage: 32W high / 4W low
• Light Kit: 24W CCT LED — 2,000 lm initial, CCT 3000/4000/5000K, CRI 90, opal frosted glass with steel cap
• Location Rating: UL Listed for Damp Locations — indoor and covered outdoor use
• Control: TR305 remote + built-in fanSync WiFi included
• Mount: Downrod — 4.5 in included; slope up to 27° standard
• Weight: 20.07 lbs

The TR305 remote offers 6 speeds, fresh air, reverse, dimmer, CCT Select (3000/4000/5000K), fan/light timer, home away, safe exit, and off. Built-in fanSync WiFi — no hub required. Fanimation fanSync app (iOS & Android). Voice control: Amazon Alexa and Google Home. Optional TW306 2-wire wall control available separately.

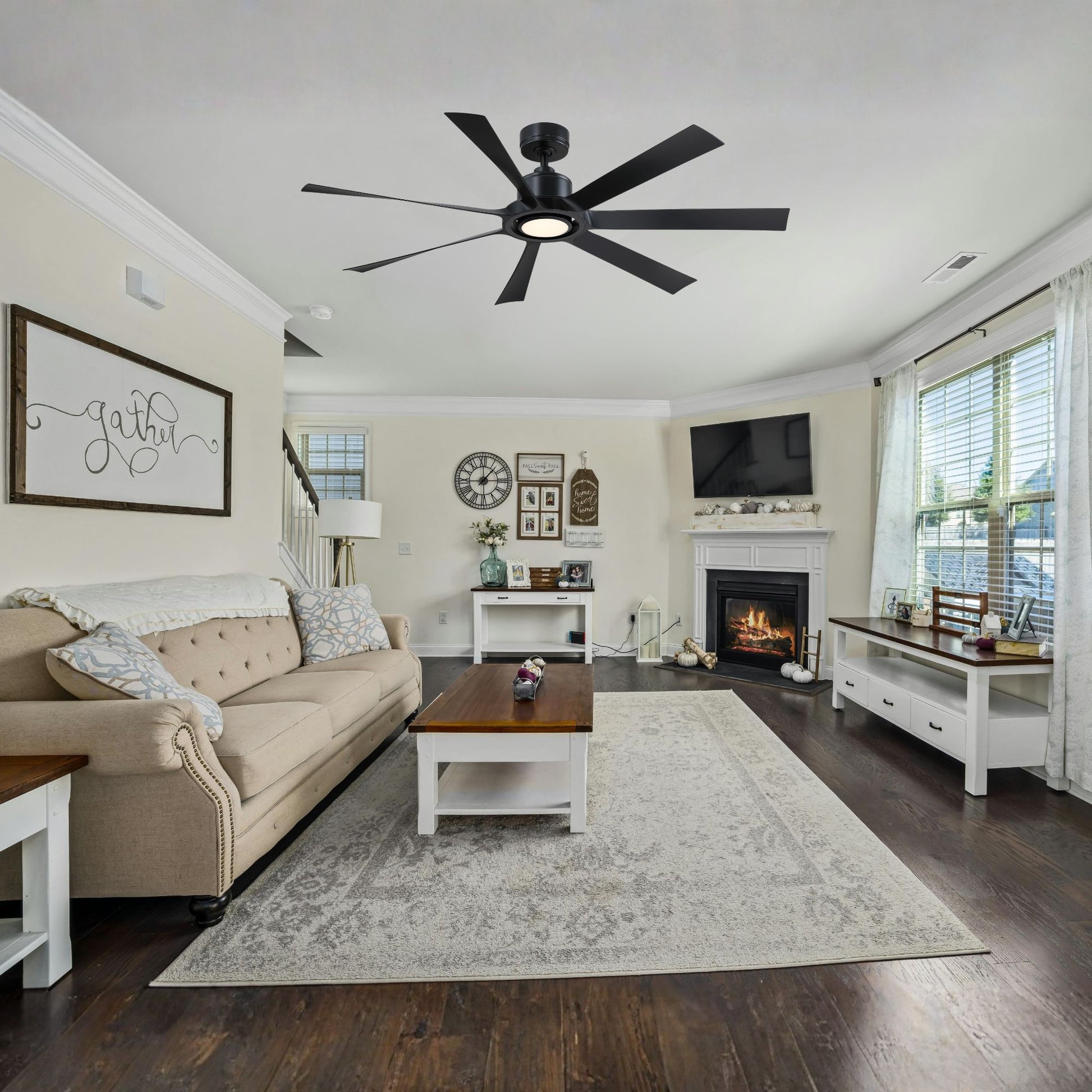

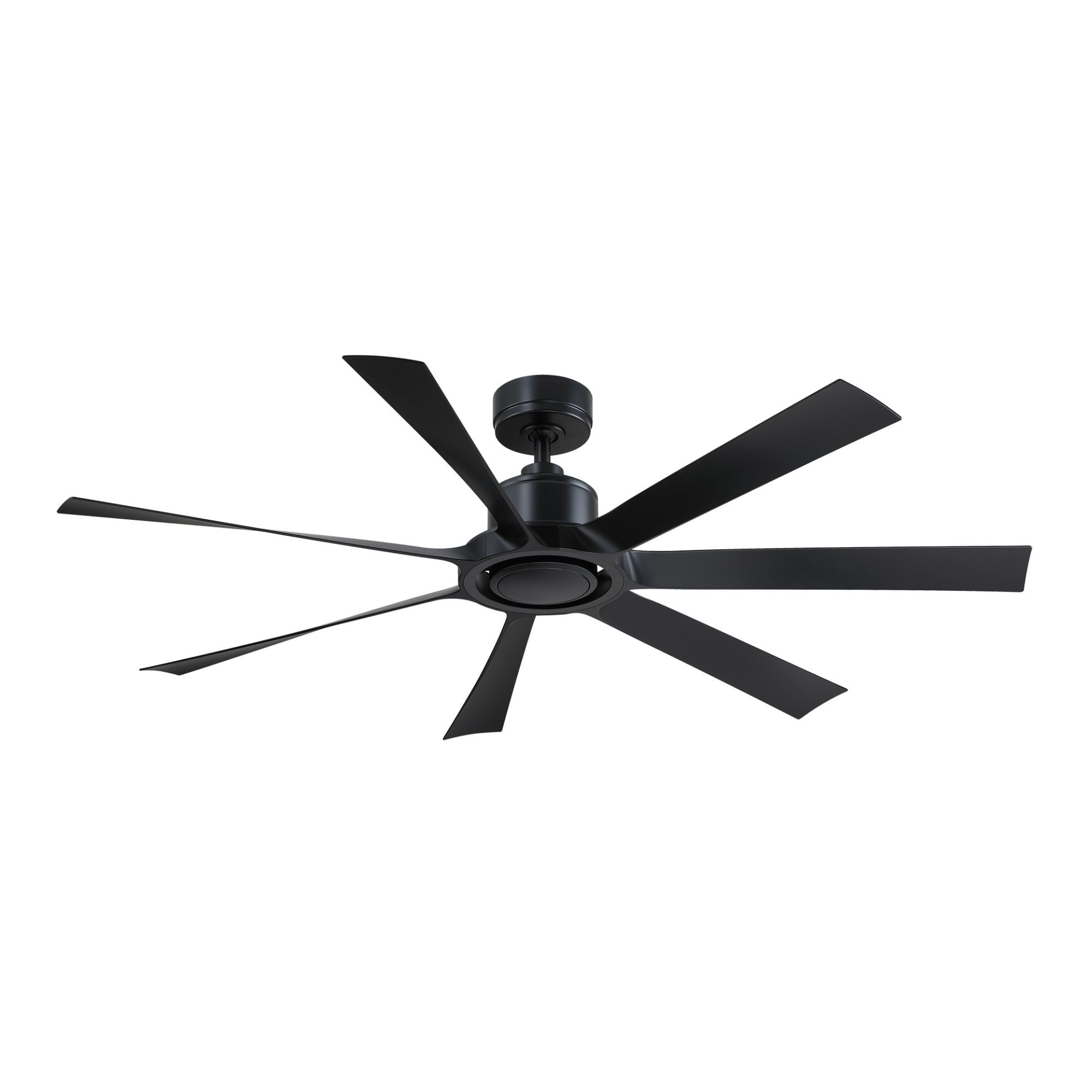

All-Black motor housing with seven Black composite blades at 14° pitch and opal frosted glass with steel cap. 20.07 lbs. KwikWire easy connection. The Lenzi’s bold seven-blade silhouette in all-Black delivers striking graphic drama — a statement piece for modern and industrial interiors and covered outdoor spaces. Limited lifetime warranty.

The FPD7060BL delivers 7,909 CFM high (245 CFM/W, 32W) / 3,306 CFM low (4W). Energy Guide: 5,751 CFM at 22W — 257 CFM/W. Up to 400 sq ft. 24W CCT LED: 2,000 lm initial, CCT 3000/4000/5000K, CRI 90, opal frosted glass with steel cap. Dimmable via remote and app.

• Input Voltage: 120V AC, 60Hz, 15A circuit
• Total Wattage: 32W (fan high) + 24W (light) — 56W max combined
• Reversible Motor: Yes — via TR305 remote
• Included Downrod: 1 in dia. × 4.5 in; optional lengths: 12, 18, 24, 36, 48, 60, 72 in

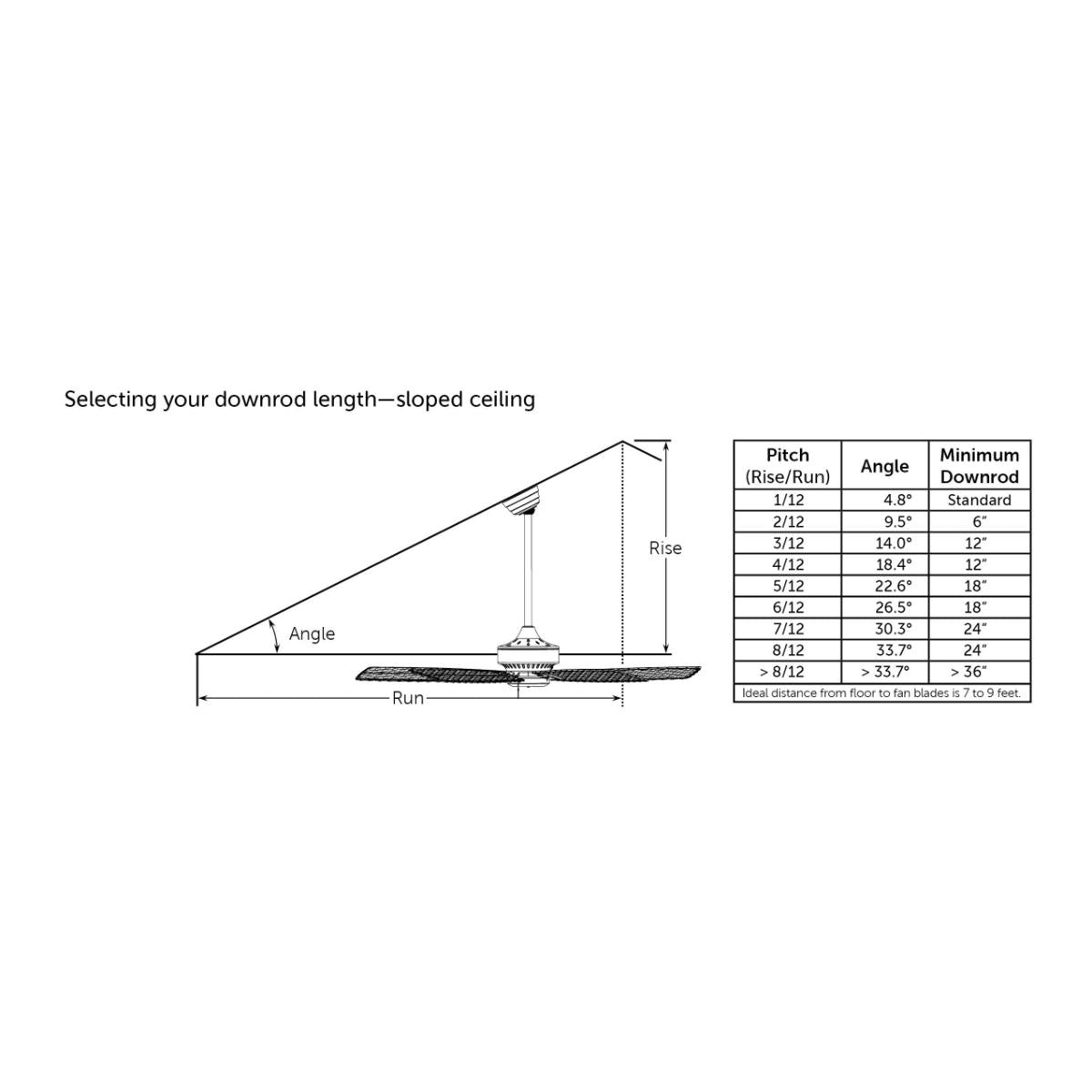

• Sloped Ceiling: Up to 27° standard — up to 42° with SCB1-52 (sold separately)
• Junction Box: Rated for at least 35 lbs
• Connection System: KwikWire easy connection included
• Location Rating: UL Listed for Damp Locations

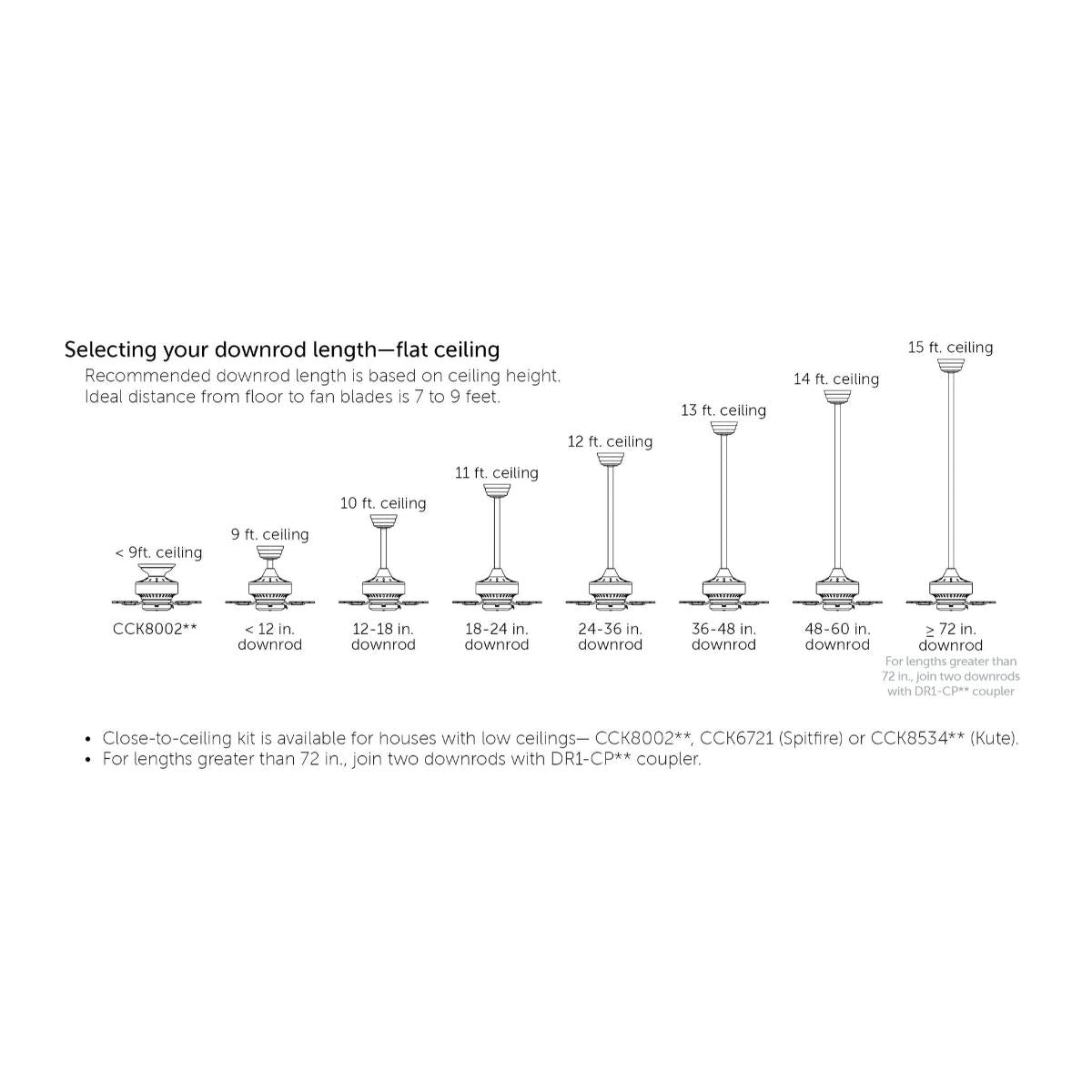

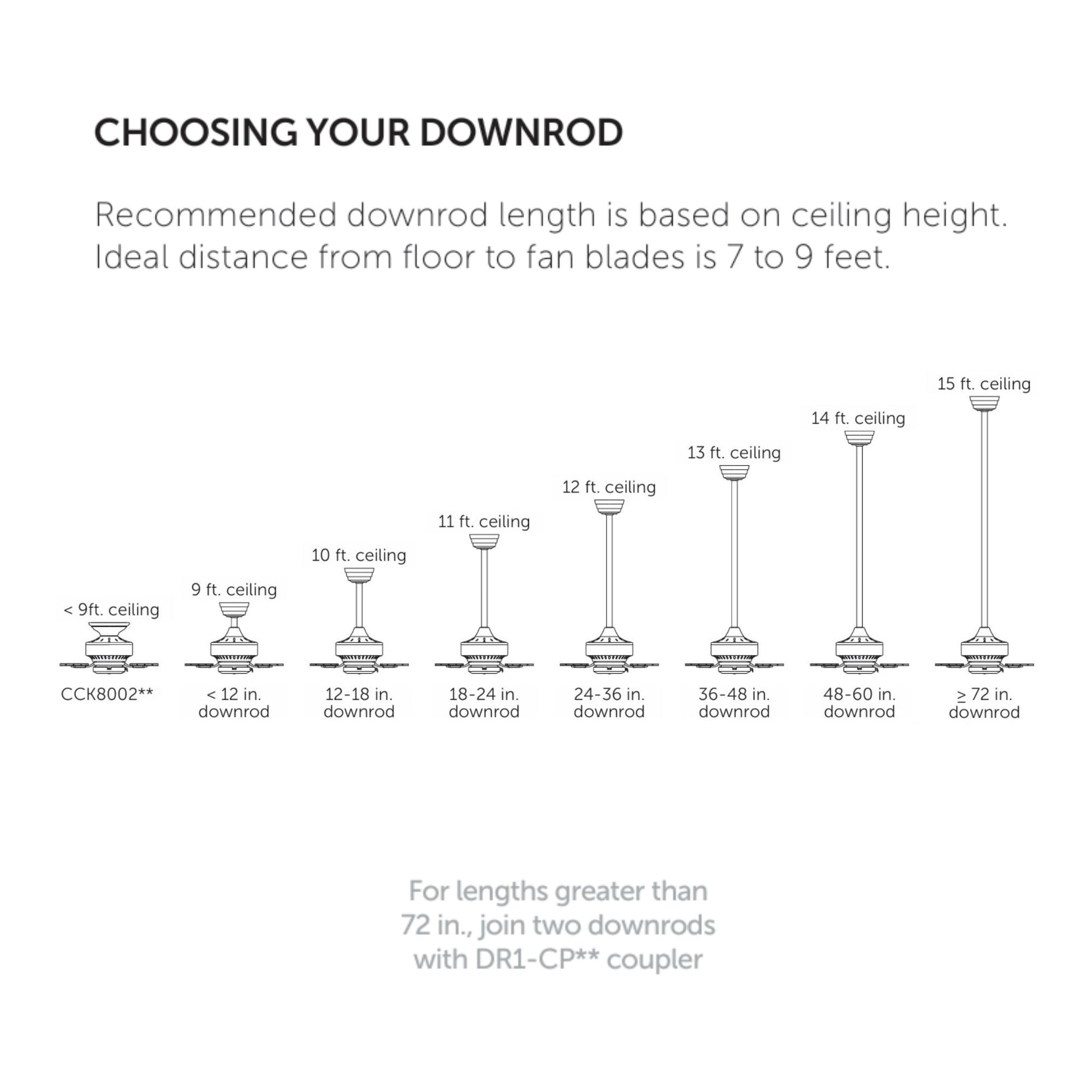

Fan includes a 4.5 in downrod. For runs longer than 72 in, join two downrods with a DR1-CP** coupler. Ideal floor-to-blade distance: 7 to 9 feet.

• 9 ft ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

• FPD7060BL fan — Black body, 7 Black blades
• 24W CCT LED light kit — opal frosted glass, steel cap
• TR305 remote with built-in fanSync WiFi
• 4.5 in downrod
• Mounting hardware
