Fanimation Pendry FPD6872 72 in Smart Ceiling Fan

Pendry's refined steel housing and seven composite blades bring architectural scale to great rooms and open-plan spaces over 400 sq ft. The 72 in sweep and DC126 × 20 sensorless DC motor deliver 8,755 CFM high-speed airflow. A TR305 remote and built-in fanSync WiFi are included. Light kit sold separately; add LK6865 for illumination. Outdoor suitability depends on the selected finish.

Key Features

• Blade sweep: 72 in with seven 33 in composite blades at 14° pitch.
• Motor: DC126 × 20 sensorless DC motor with 16 variable speeds.
• High-speed airflow: 8,755 CFM at 30W and 288 CFM/W.
• Low-speed airflow: 2,690 CFM at 3W.
• Energy Guide average: 5,867 CFM at 21W and 279 CFM/W, distinct from high-speed airflow.
• Location: Black and Matte White are wet rated; Black & Nickel and White & Brass are damp rated.
• Installation: KwikWire easy connection and included 6 in downrod.
• Optional lighting: LK6865 double-walled LED light kit, sold separately.

Smart & Control Features

The included TR305 remote provides 16 fan speeds, fresh air mode, on/off, timers, home away and safe exit. Built-in fanSync WiFi connects to the Fanimation fanSync app on iOS and Android without a separate hub. Lighting and CCT selection require the optional LK6865 light kit. Optional TW306 wall remote is sold separately.

Construction & Design

Seven 33 in composite blades and a defined steel housing create a layered, large-format silhouette. Overall height is 14.57 in; the canopy measures 5.91 in diameter × 2.51 in high. Net weight is 22.27 lb.

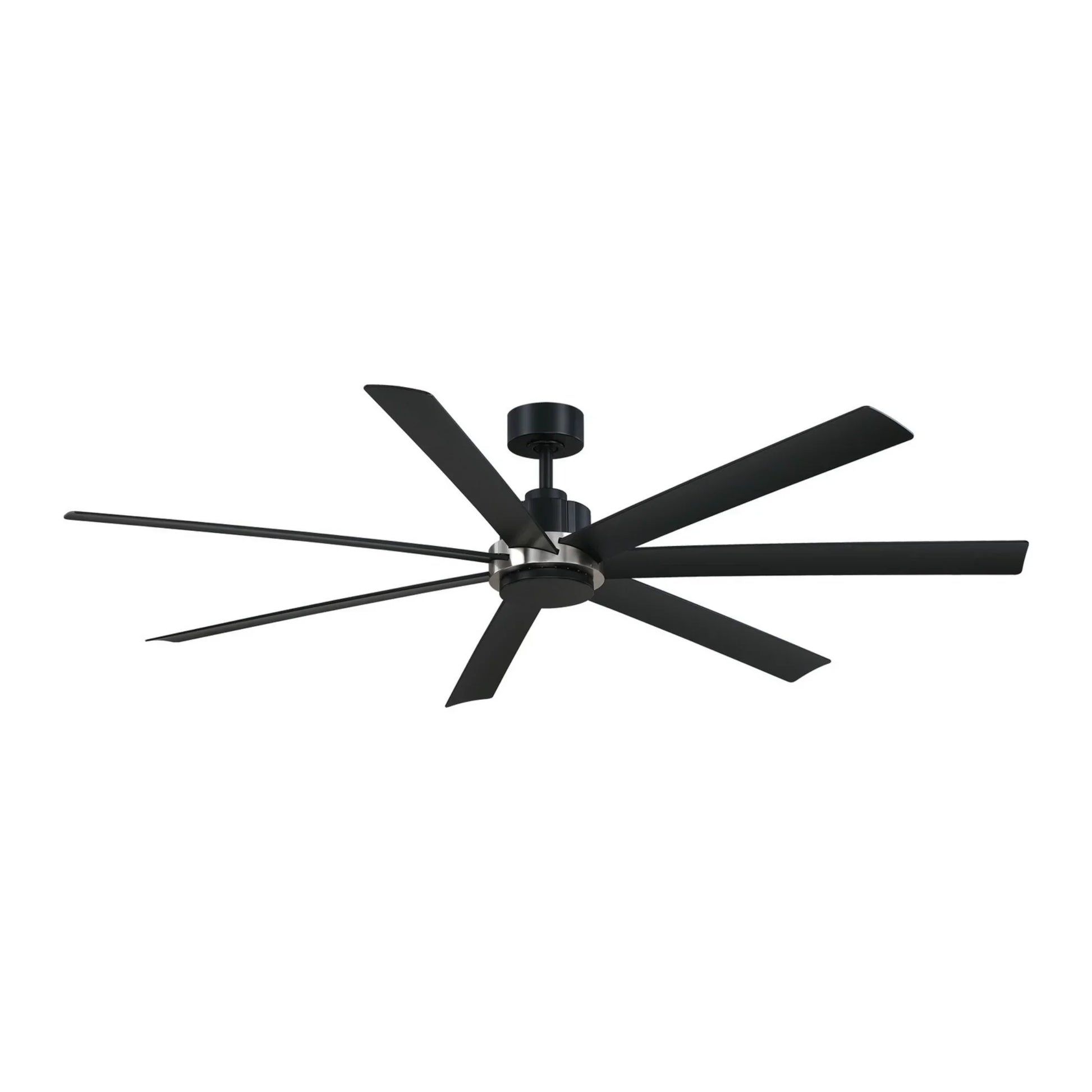

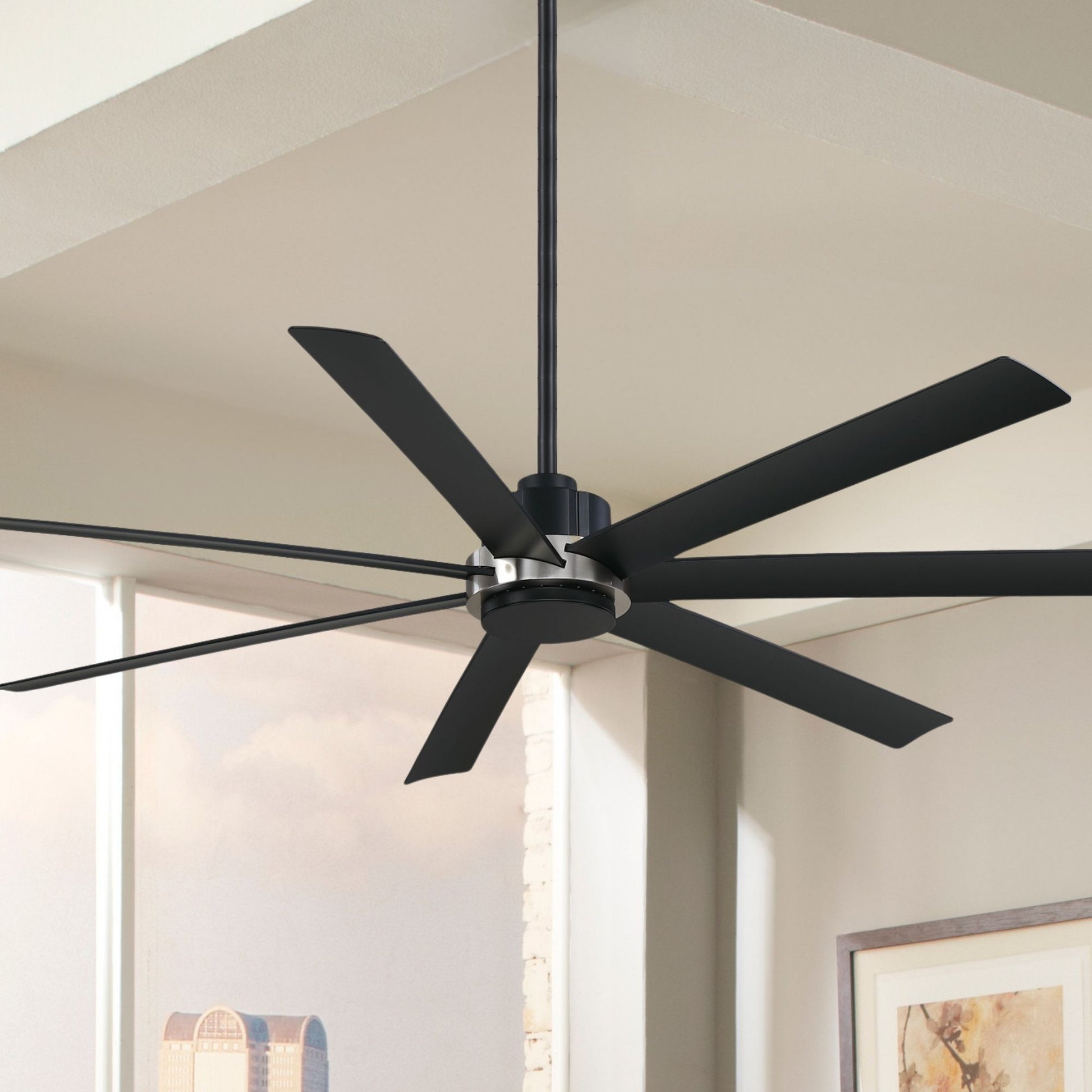

• Black & Nickel, FPD6872BLBN: Black housing and blades with Brushed Nickel flywheel accents; damp rated for indoor and covered outdoor use.

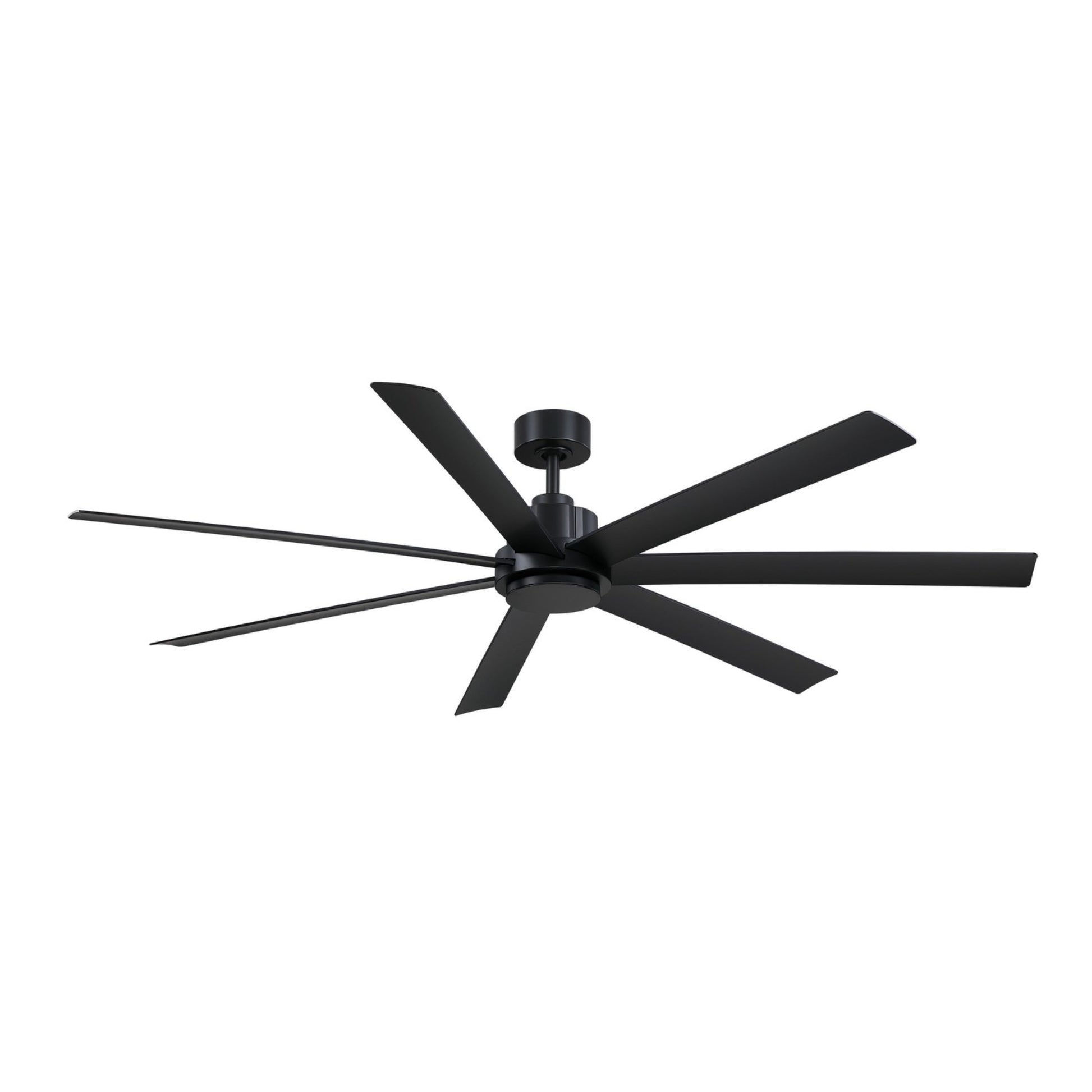

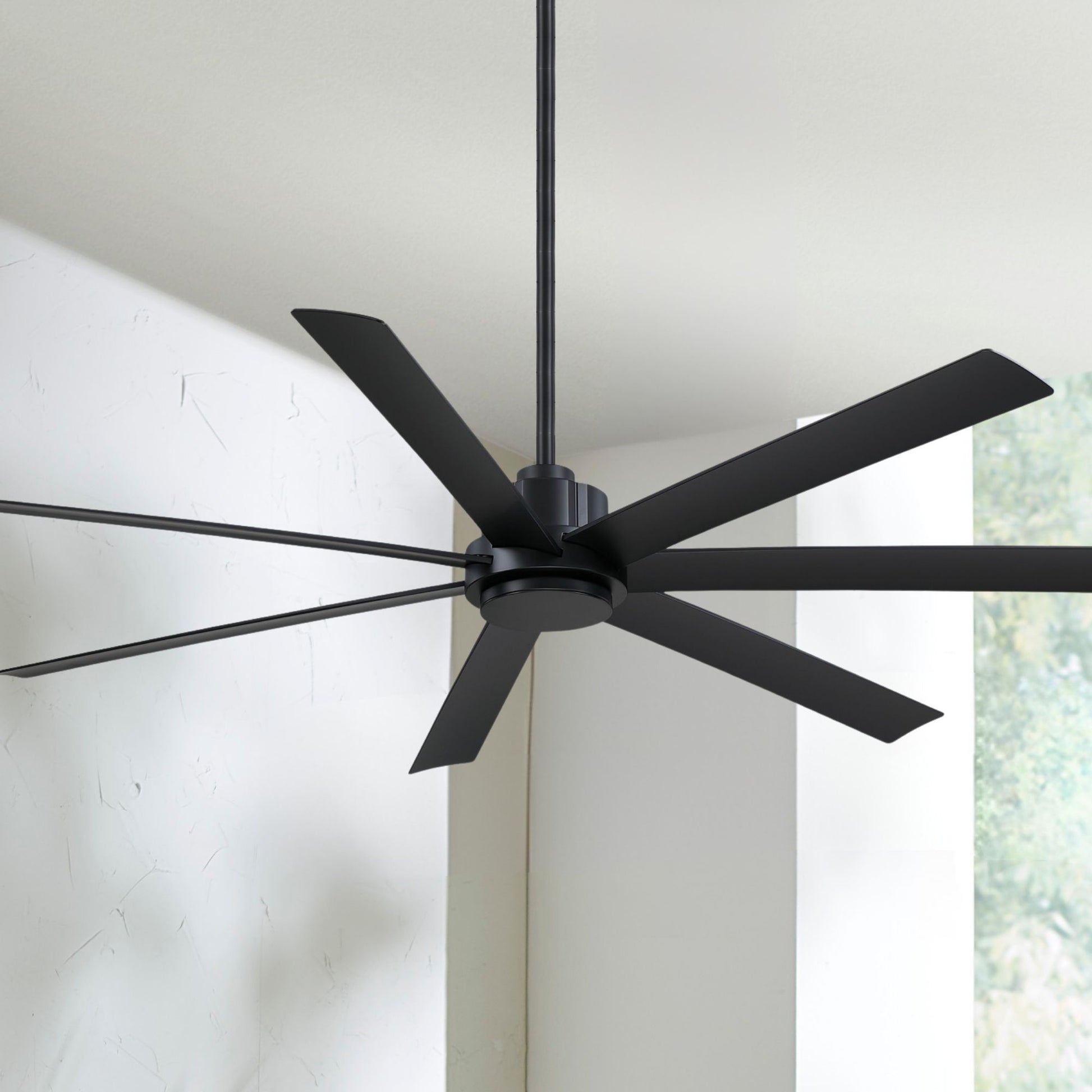

• Black, FPD6872BLW: Black housing and blades; wet rated for indoor, covered and open outdoor use.

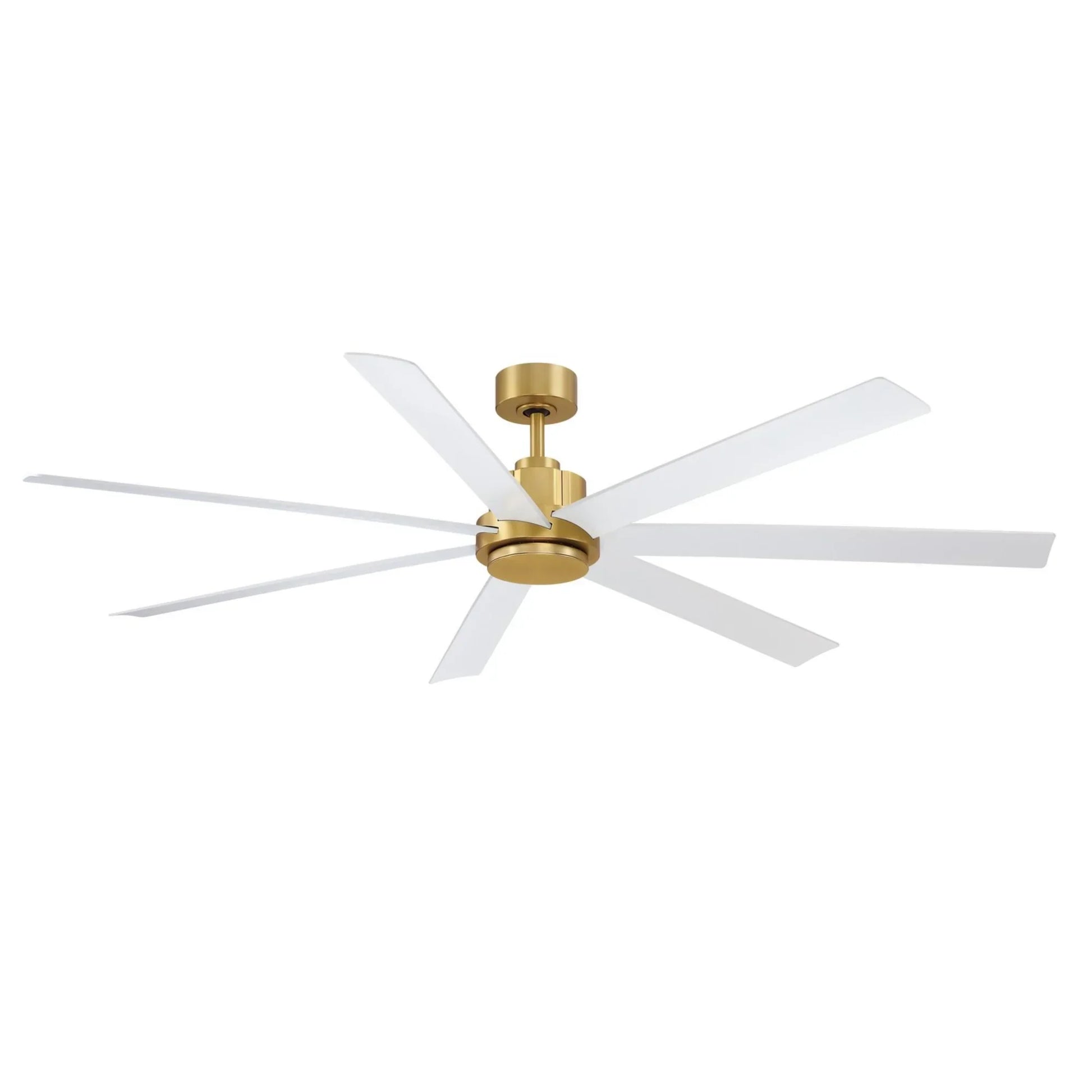

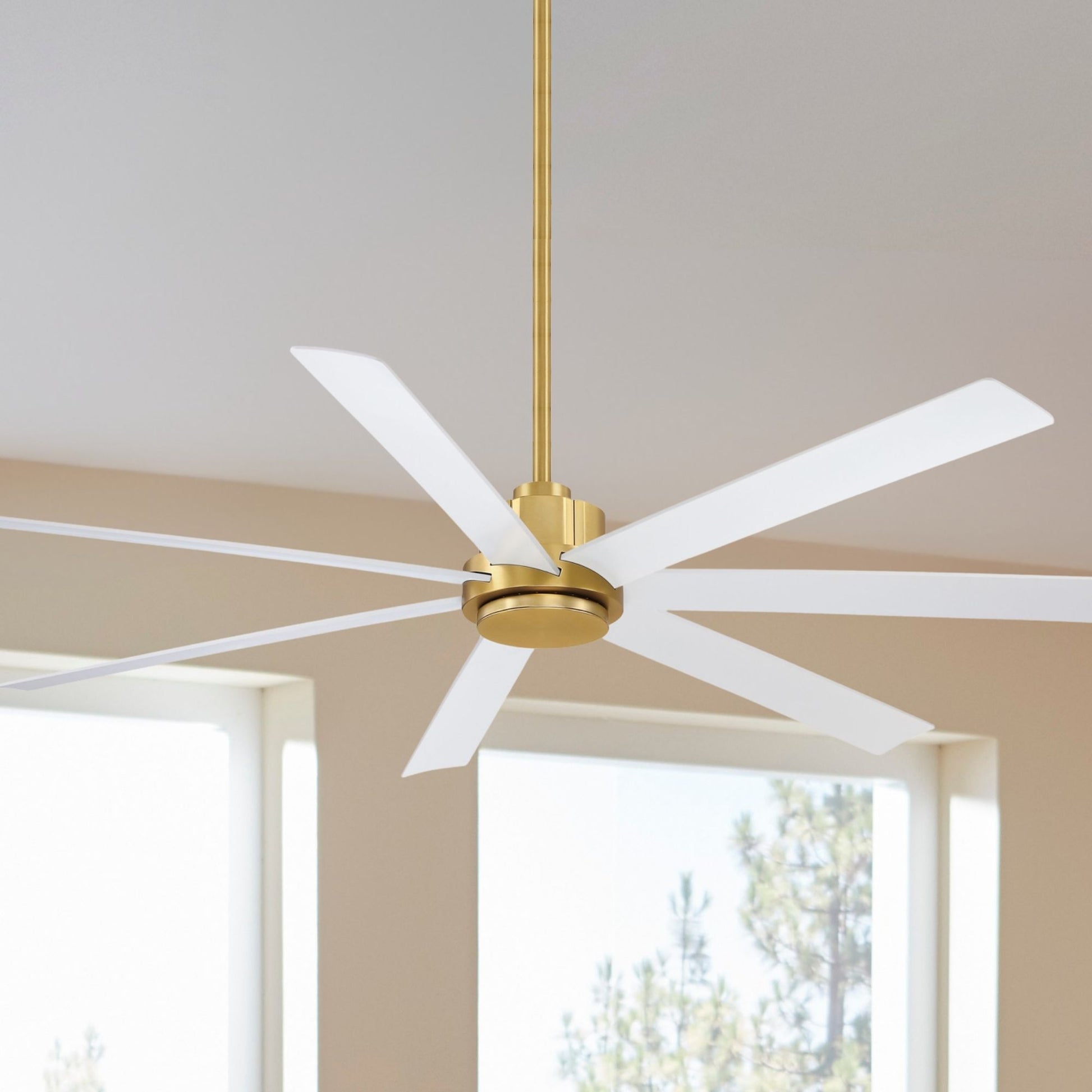

• White & Brass, FPD6872BSMW: Brushed Satin Brass housing with Matte White blades; damp rated for indoor and covered outdoor use.

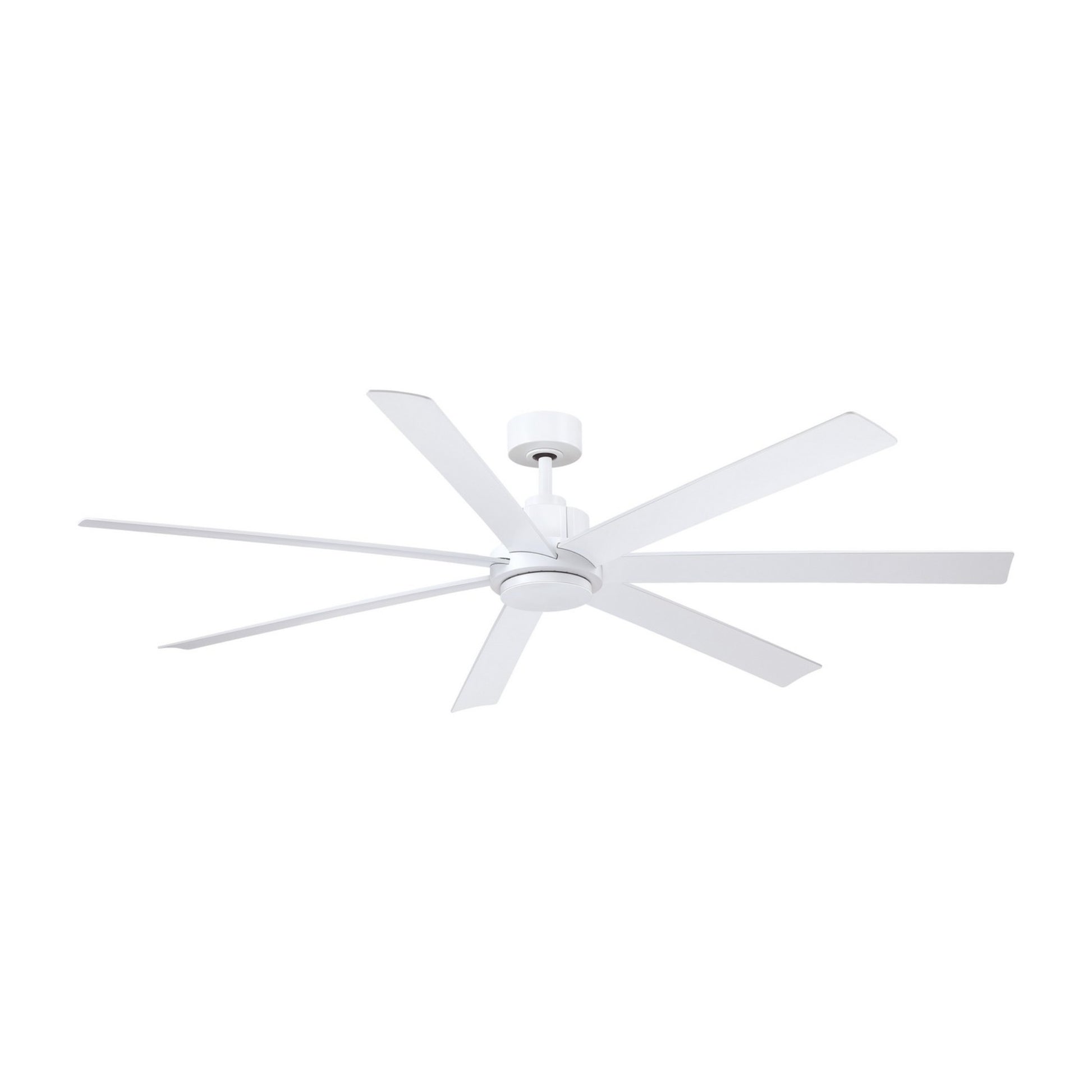

• Matte White, FPD6872MWW: Matte White housing and blades; wet rated for indoor, covered and open outdoor use.

Backed by a limited lifetime warranty.

Light Output & Performance

No light kit is included. The optional LK6865 double-walled LED light kit provides 2,000 lumens at 24W, with selectable 3000K, 4000K or 5000K and CRI 90. Fan performance reaches 8,755 CFM high at 288 CFM/W. The separate Energy Guide average is 5,867 CFM at 279 CFM/W, intended for comparison rather than as the high-speed output.

Electrical & Installation

Operates on 120V AC, 60Hz with KwikWire easy connection. Includes a 6 in downrod with 1 in diameter, DR1-6. Standard mounting supports slopes up to 27°; sloped installations generally require a 24 in or longer downrod for the 72 in span. For slopes above 27° and up to 42°, add the optional SCB1-52 slope ceiling ball kit. Optional CCK8002 close-to-ceiling kit is available separately. Use a securely anchored fan-rated junction box rated for at least 35 lb and accessories suitable for the installation environment. Damp-rated finishes must remain protected from direct rain.

Suggested Downrod by Ceiling Height

A 6 in downrod is included. Longer downrods are sold separately. Select the final length for the mounting angle and completed fan dimensions, maintaining at least 7 ft from floor to blades.

• 9 ft ceiling → shorter than 12 in; 6 in downrod included
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

What's Included

• Pendry 72 in ceiling fan in the selected housing and blade finish pairing
• Seven composite blades
• TR305 remote and built-in fanSync WiFi
• 6 in downrod and mounting hardware

LK6865 LED light kit is sold separately.
