Fanimation Pendry FPD6865 56 in Smart Ceiling Fan

Pendry pairs a refined steel housing with seven composite blades for an architectural look in large rooms over 400 sq ft. Its DC126 × 12 sensorless DC motor delivers 6,847 CFM high-speed airflow across a 56 in sweep. The included TR305 remote and fanSync WiFi provide convenient control. No light kit is included; add the optional LK6865 LED kit for illumination. Outdoor suitability depends on the selected finish.

Key Features

• Blade sweep: 56 in with seven 25 in composite blades at 14° pitch.
• Motor: DC126 × 12 sensorless DC motor with 16 variable speeds.
• High-speed airflow: 6,847 CFM at 32W.
• Low-speed airflow: 1,367 CFM at 2W.
• Energy Guide average: 4,278 CFM at 22W and 196 CFM/W, distinct from high-speed airflow.
• Smart control: TR305 remote and built-in fanSync WiFi included.
• Location rating: Black and Matte White are wet rated; Black & Nickel and White & Brass are damp rated.
• Installation: KwikWire easy connection and included 6 in downrod.
• Optional lighting: LK6865 double-walled LED kit, sold separately.

Smart & Control Features

The included TR305 remote provides 16 fan speeds, fresh air mode, on/off, timers, home away and safe exit. Built-in fanSync WiFi connects to the Fanimation fanSync app on iOS and Android without a separate hub. Lighting and CCT selection require the optional LK6865 light kit. Optional TW306 wall remote is sold separately.

Construction & Design

A defined steel housing and seven composite blades create Pendry's layered silhouette. Overall height is 14.57 in; the canopy measures 5.91 in diameter × 2.51 in high. Net weight is 20.07 lb. Finish and location pairings are:

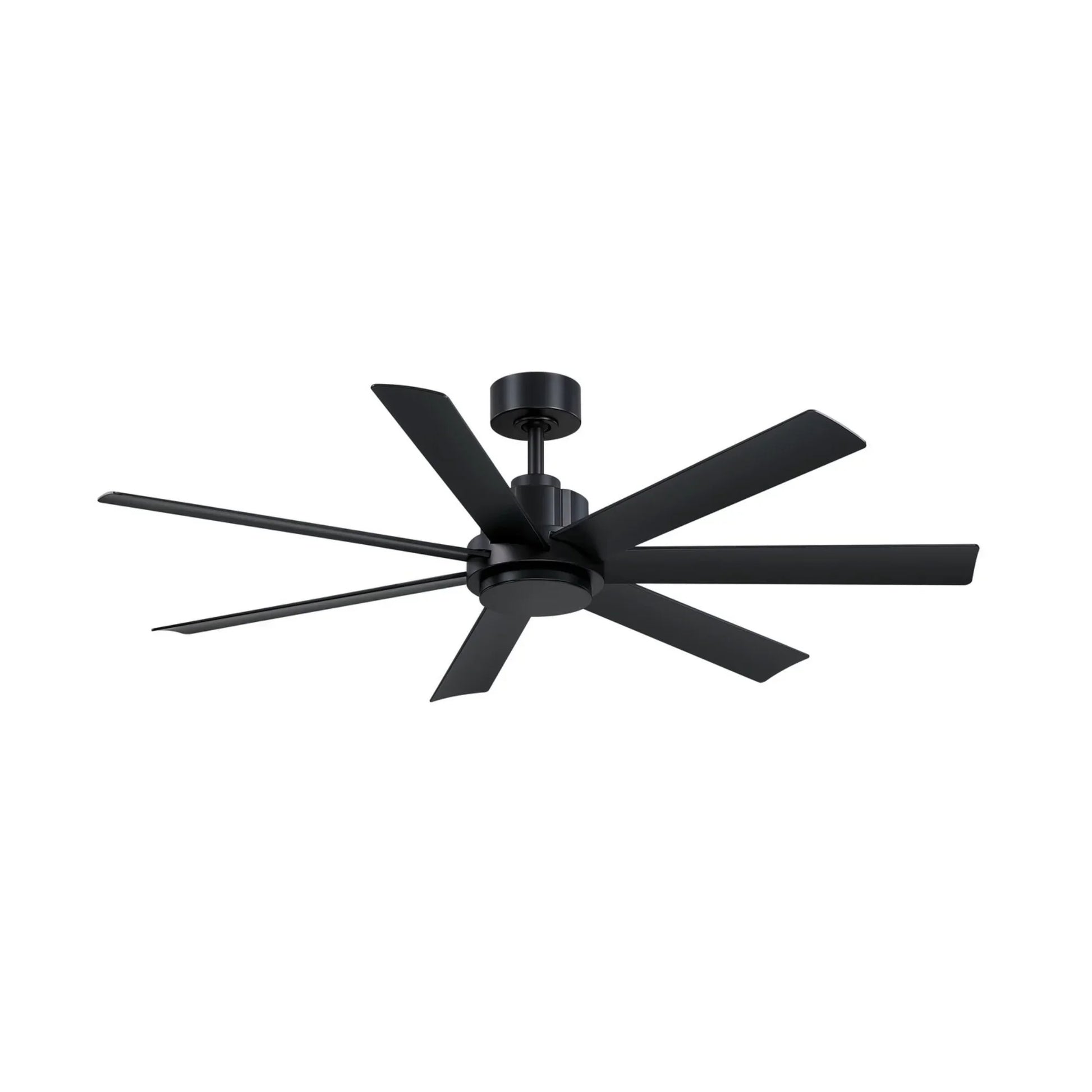

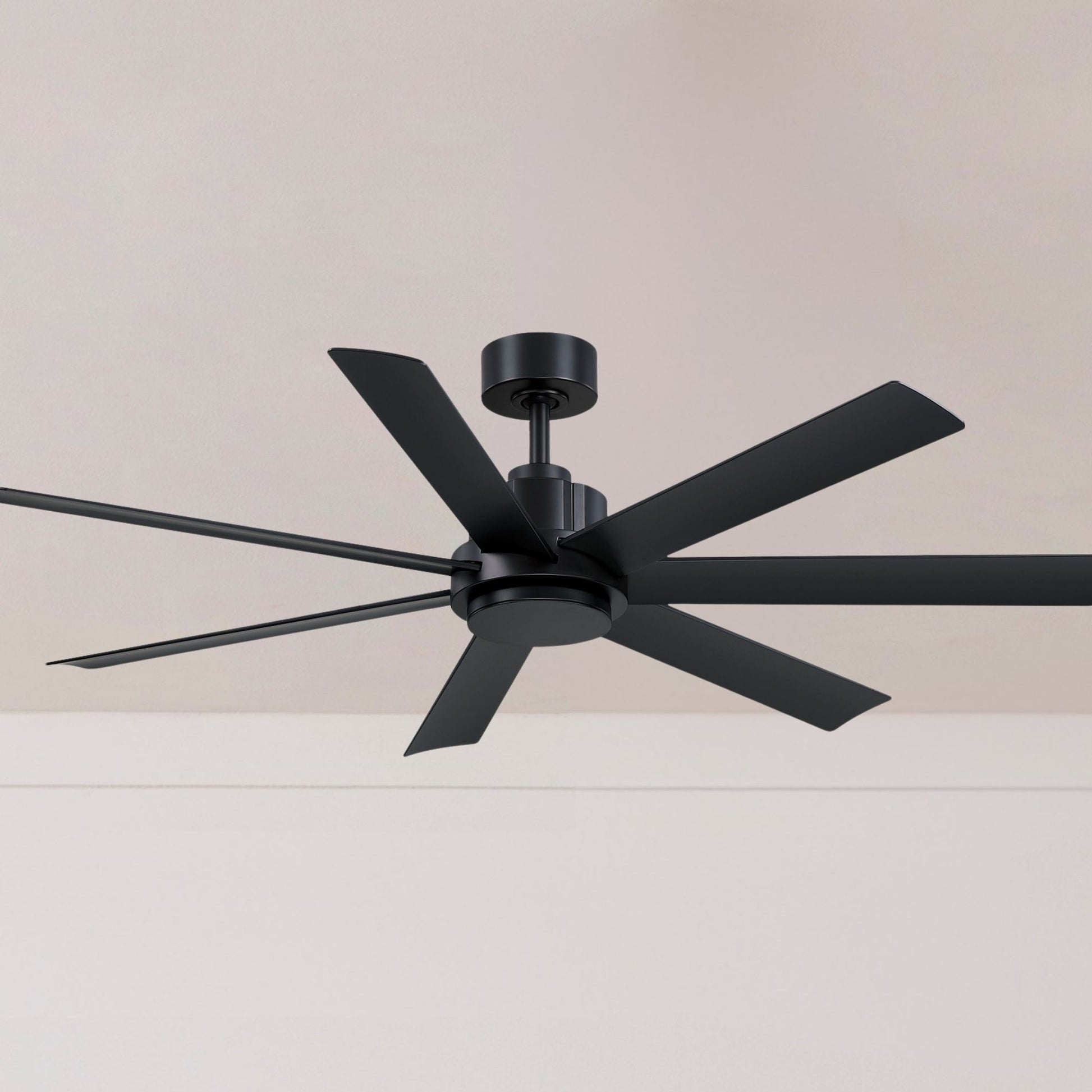

• Black, FPD6865BLW: Black housing and blades; wet rated for indoor, covered and open outdoor use.

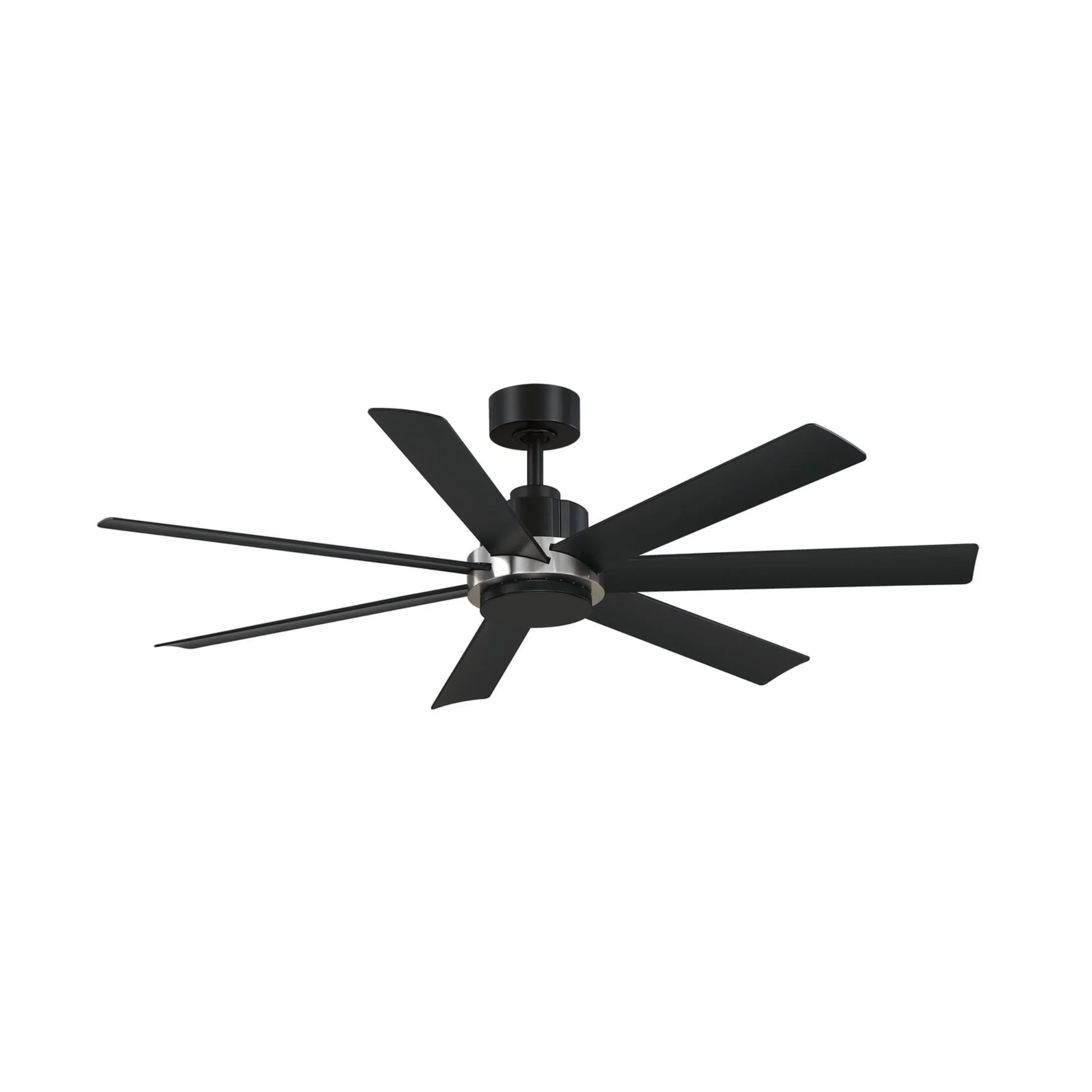

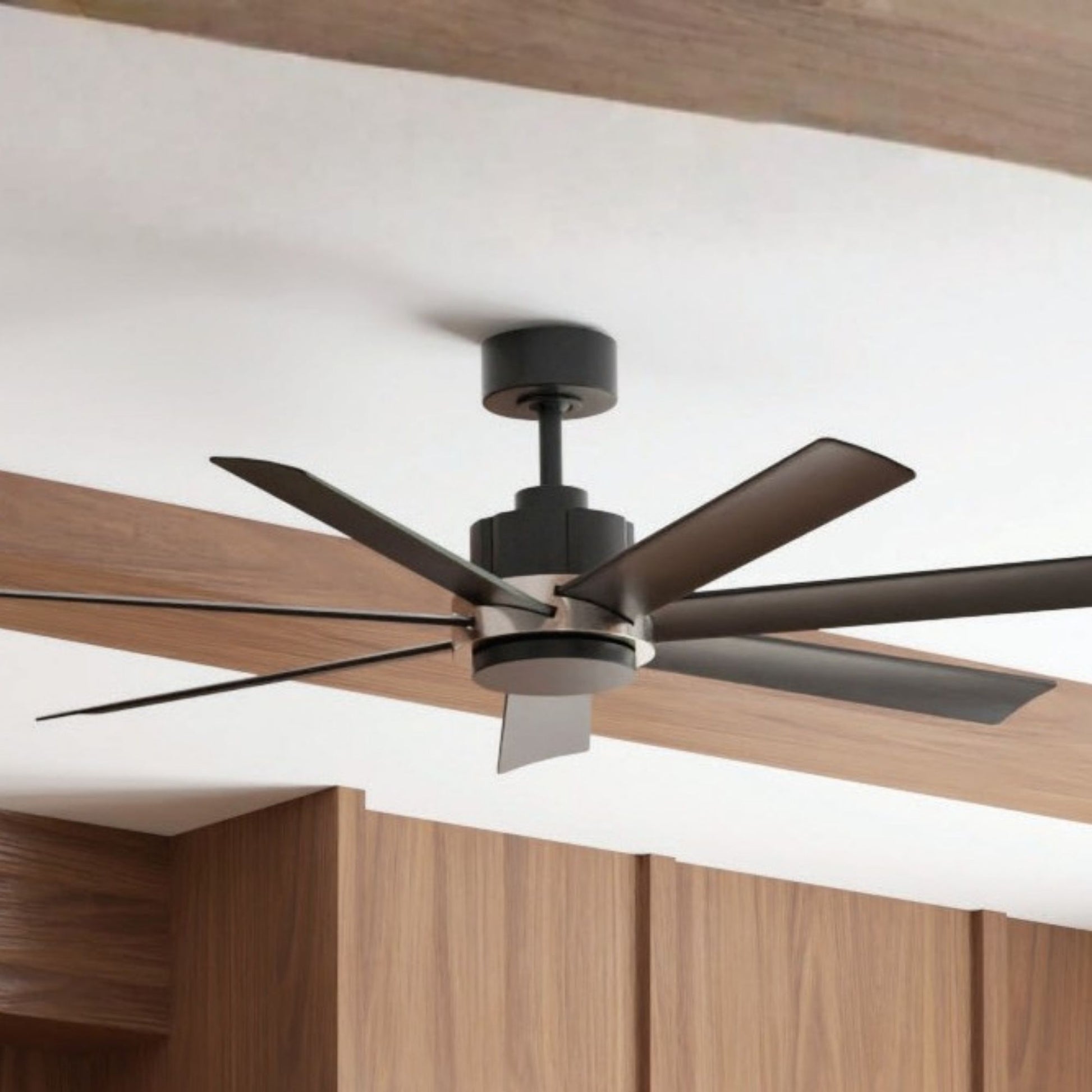

• Black & Nickel, FPD6865BLBN: Black housing and blades with Brushed Nickel flywheel accents; damp rated for indoor and covered outdoor use.

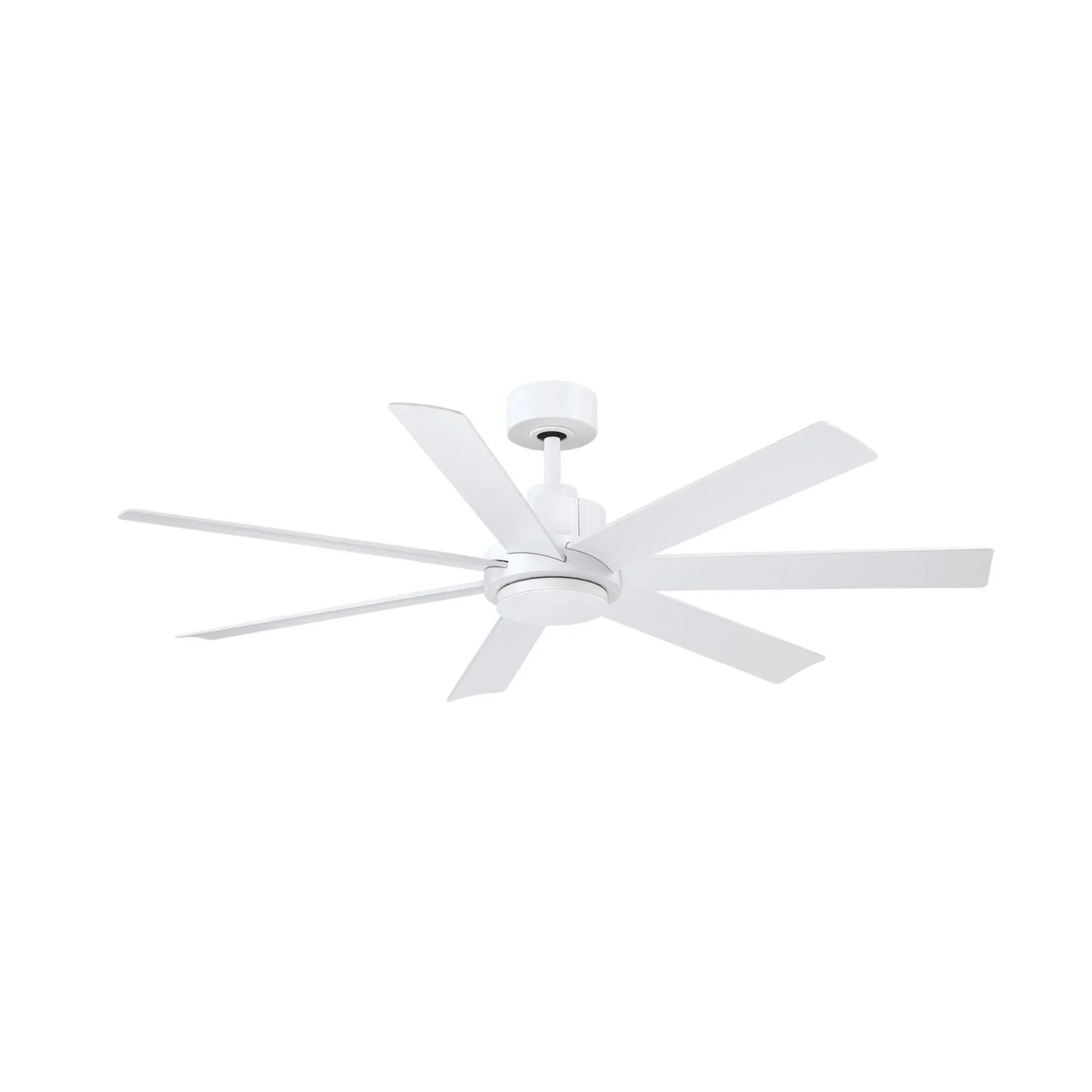

• Matte White, FPD6865MWW: Matte White housing and blades; wet rated for indoor, covered and open outdoor use.

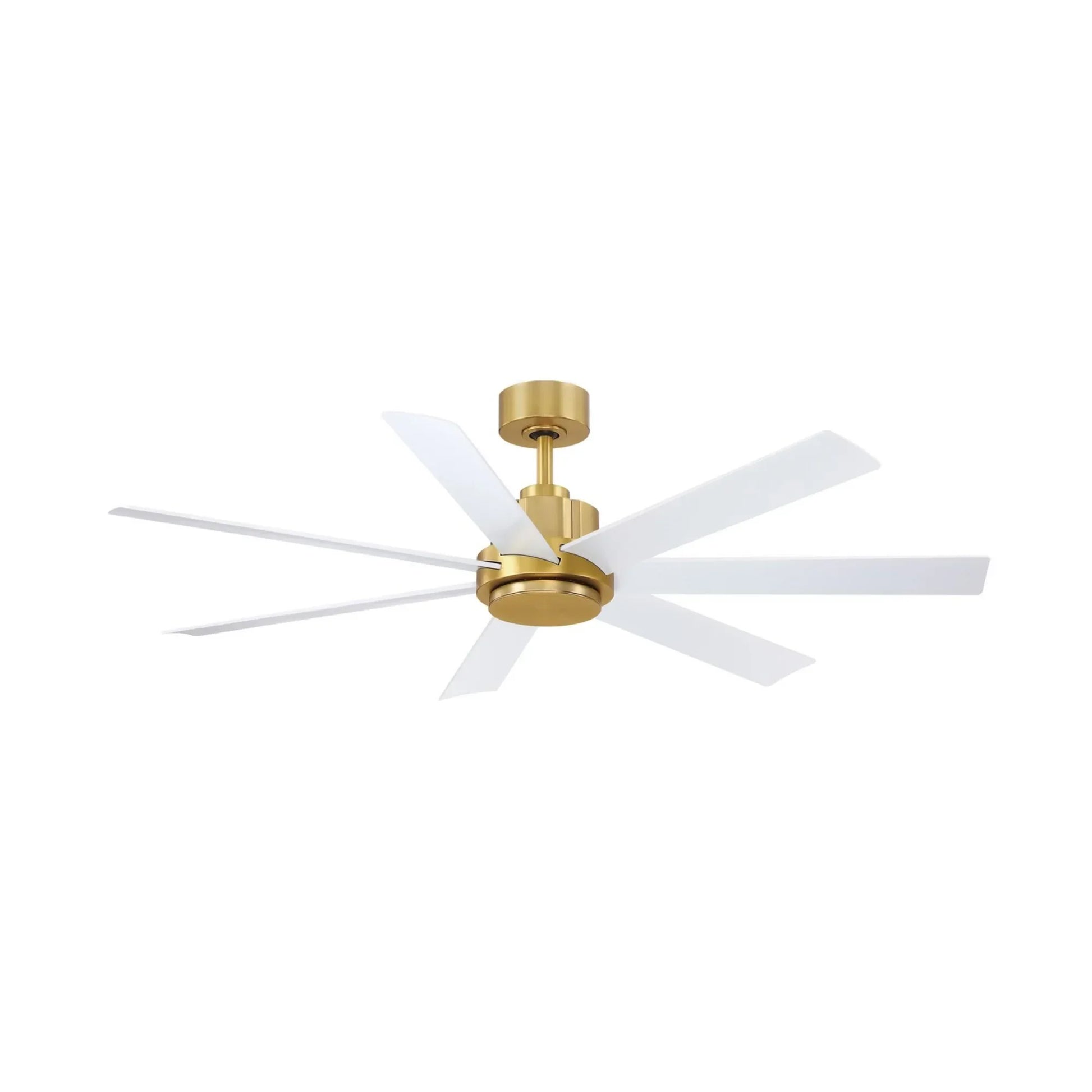

• White & Brass, FPD6865BSMW: Brushed Satin Brass housing with Matte White blades; damp rated for indoor and covered outdoor use.

Backed by a limited lifetime warranty.

Light Output & Performance

This fan does not include a light kit. The optional LK6865 Pendry double-walled LED light kit provides 2,000 lumens at 24W, with selectable 3000K, 4000K or 5000K and CRI 90. Fan airflow reaches 6,847 CFM high; its separate 4,278 CFM Energy Guide average is rated at 196 CFM/W.

Electrical & Installation

Operates on 120V AC, 60Hz with KwikWire easy connection. Includes a 6 in downrod with 1 in diameter, DR1-6. Standard mounting supports slopes up to 27°; sloped installations generally require an 18 in or longer downrod. For slopes above 27° and up to 42°, add the optional SCB1-52 slope ceiling ball kit. Optional CCK8002 close-to-ceiling kit is available separately. Use a securely anchored fan-rated junction box rated for at least 35 lb and accessories appropriate for the installation environment. Damp-rated finishes must remain protected from direct rain.

Suggested Downrod by Ceiling Height

A 6 in downrod is included. Longer downrods are sold separately. Final selection depends on the mounting angle and completed fan dimensions; maintain at least 7 ft from floor to blades.

• 9 ft ceiling → shorter than 12 in; 6 in downrod included
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

What's Included

• Pendry 56 in ceiling fan in the selected housing and blade finish pairing
• Seven composite blades
• TR305 remote and built-in fanSync WiFi
• 6 in downrod and mounting hardware

LK6865 LED light kit is sold separately.
