Fanimation Corke 52 in Indoor Outdoor Ceiling Fan with LED Light DC Black
Available in stock (168)
About this item
About this item
- Airflow Performance: 5,409 CFM high / 1,180 CFM low at 182 CFM/W — Energy Guide average 3,426 CFM at 20W / 170 CFM/W. Sized for rooms up to 400 sq ft.
- DC Motor + fanSync WiFi: DC 125×20 motor with 6 speeds and included fanSync WiFi receiver — full app control of fan, light, CCT, and timer with no hub required.
- Damp Rated: cULus listed for dry and damp locations — ideal for covered porches, patios, bathrooms, and all indoor applications.
- TR360 Remote + WiFi Included: 6-speed control, 5-CCT selection, full-range dimming, fresh air, timer, and reverse. Optional TW406 wall control sold separately.
- 5-CCT LED Light: 24W opal frosted LED — 2,000 lm / CRI 90 / selectable 2700K–5000K / dimmable. No separate light kit required.
We process payments securely and do not store credit card information.
Description
Description

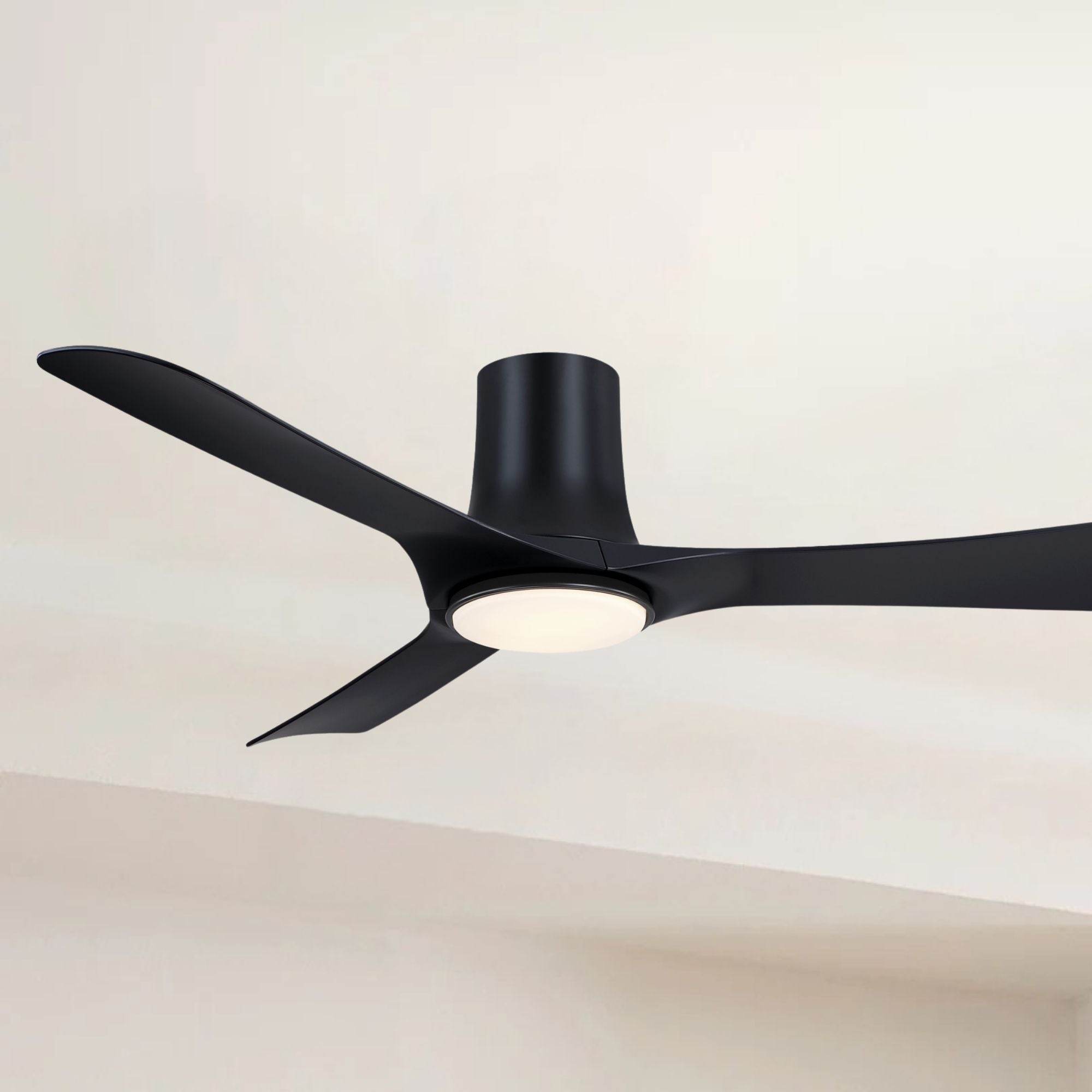

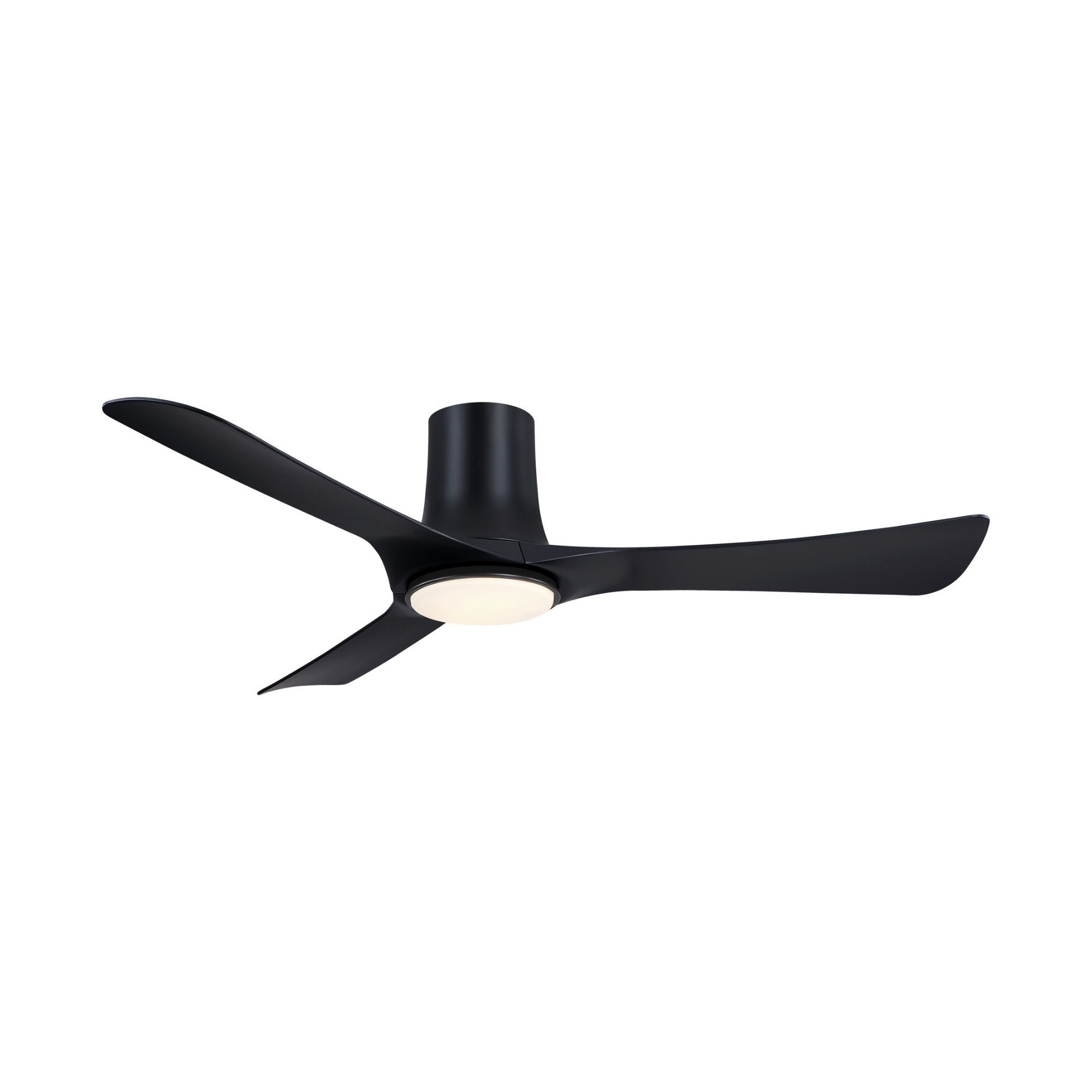

The Fanimation Corke FPD6652BL is a sleek three-blade 52 in flush mount DC ceiling fan in an all-Black finish with matching Black composite blades and an integrated opal frosted LED light. Powered by a whisper-quiet DC 125×20 motor with 6 speeds and remote-operated reverse, it delivers 5,409 CFM at high speed. Rated for dry and damp locations — suitable for indoor and covered outdoor use. Ships with both a TR360 hand-held remote and a fanSync WiFi receiver for smart app control.
Key Features- Blade Span: 52 in / 3 composite blades / 16° pitch
- Motor: DC 125×20, 6 speeds, reverse switch on remote
- Airflow: 5,409 CFM high / 1,180 CFM low
- Efficiency: 182 CFM/W at high speed
- Wattage: 30W high / 11W med / 3W low
- Light Output: 24W 5-CCT LED included — 2,000 lm / CRI 90 / opal frosted / 2700K–3000K–3500K–4000K–5000K / dimmable
- Location Rating: Dry and Damp rated — cULus listed, indoor and covered outdoor use
- Mount Type: Flush mount (hugger) — KwikWire easy connection

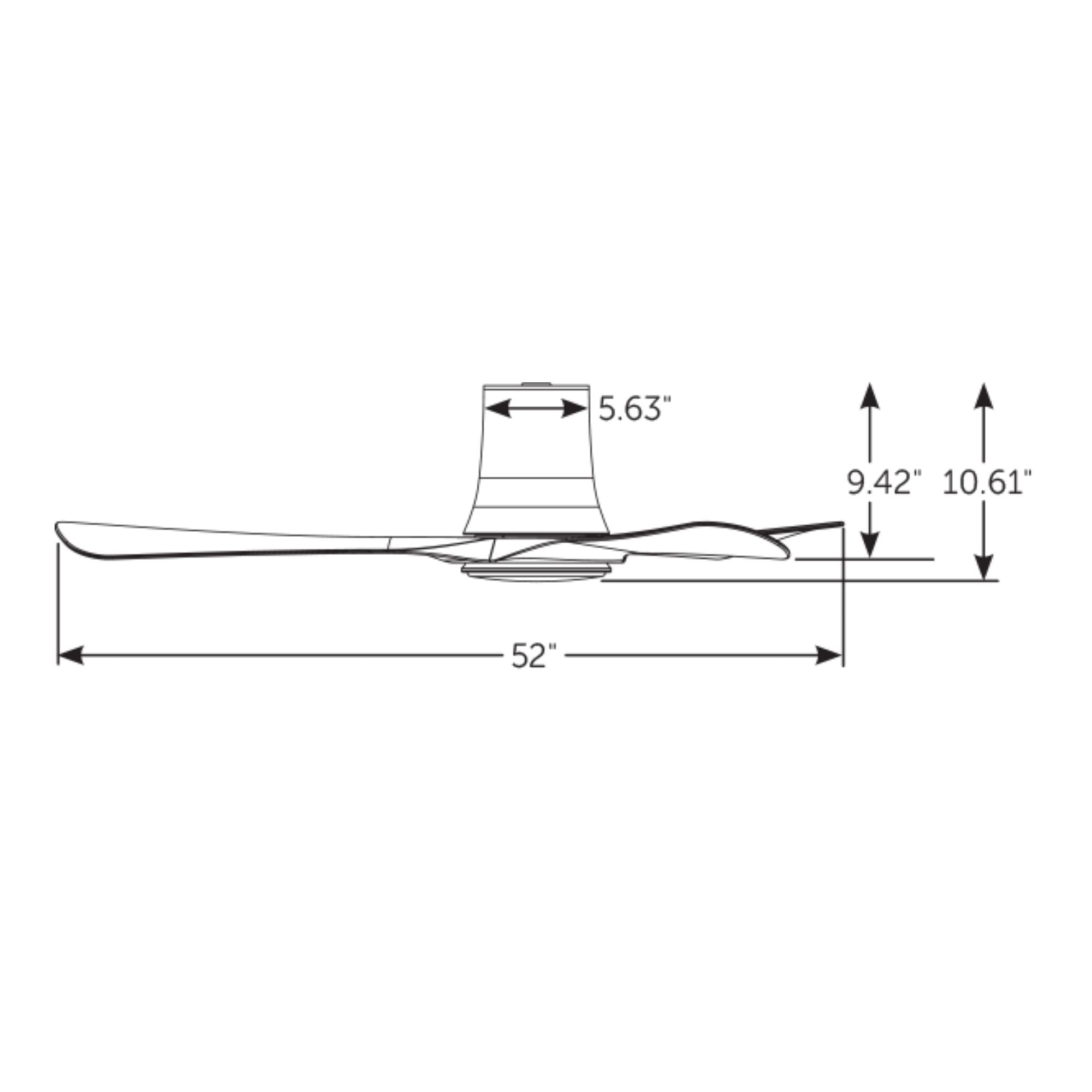

- Overall Dimensions: 52 in dia × 10.58 in H — 14.58 lbs
- Canopy Dimensions: 5.63 in dia
- Fan Velocity: 529 FPM high / 124 FPM low
- Room Size: Designed for rooms up to 400 sq ft

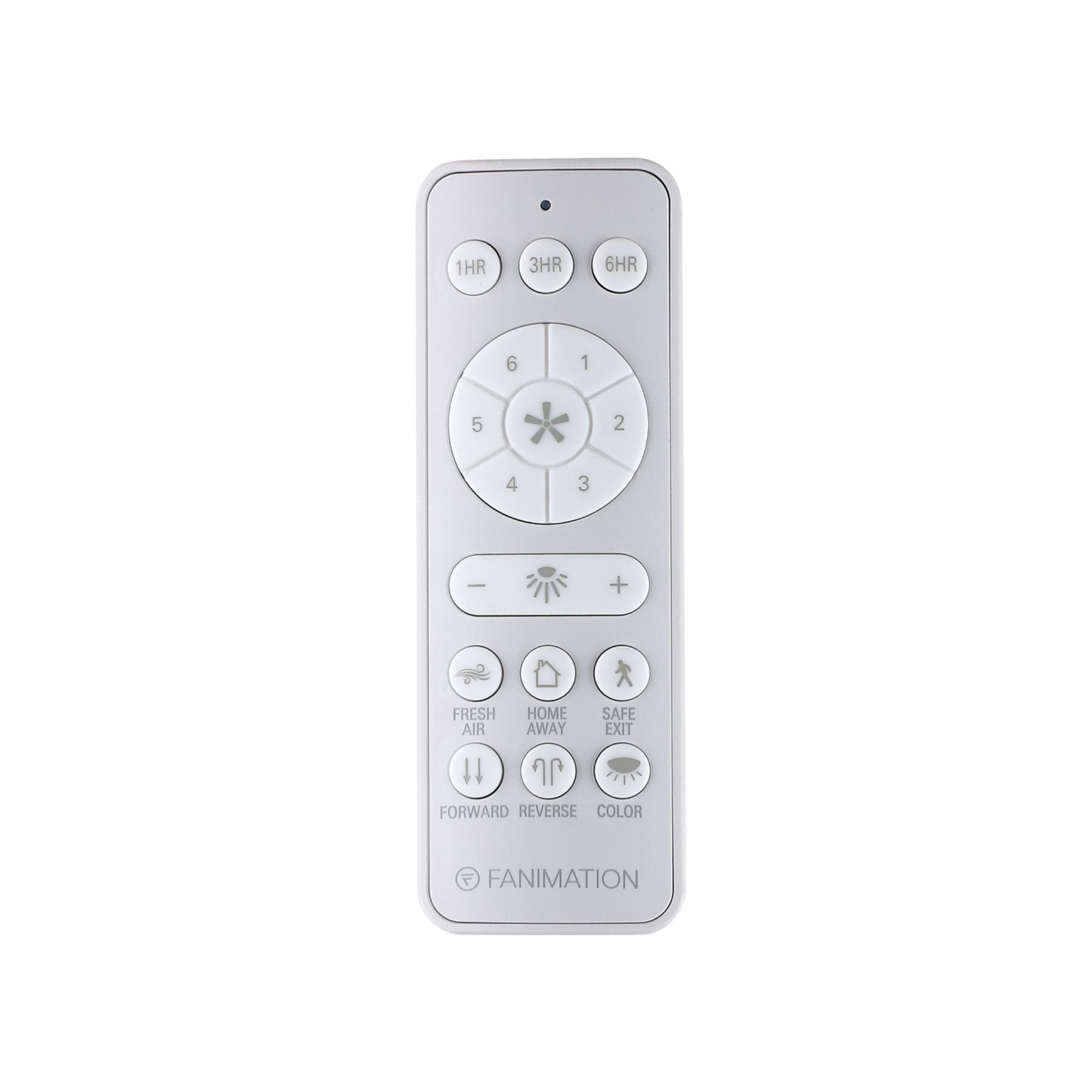

Ships with both a TR360 hand-held remote and a fanSync WiFi receiver — 6-speed fan control, fresh air mode, reverse, on/off, 5-CCT color temperature selection, fan/light timer, home away, safe exit, and off button. Control via the free fanSync app (Apple App Store or Google Play). Optional TW406 wall control (2-wire fan + light) available separately.

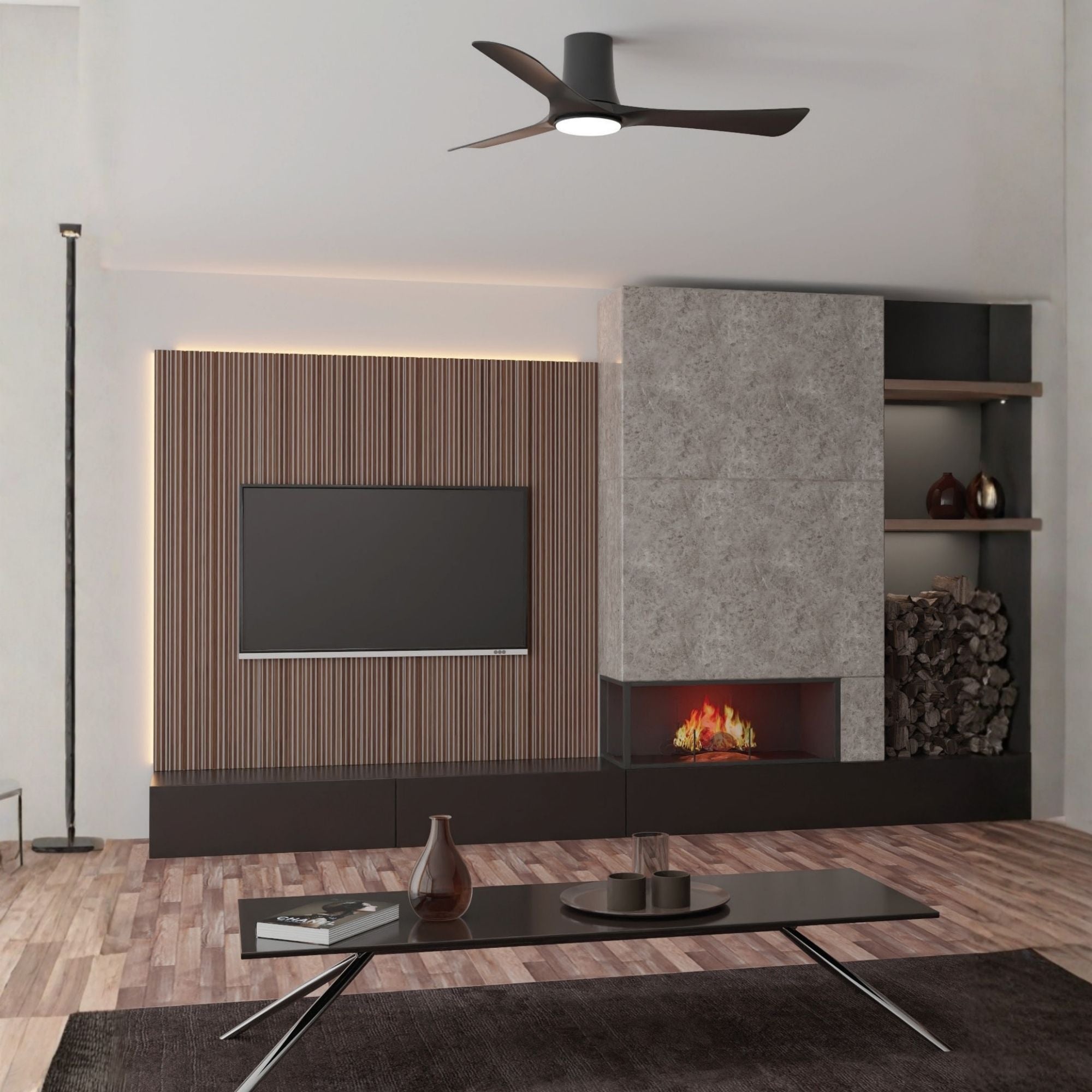

Construction & DesignMotor housing in Black finish with KwikWire easy connection system. Three composite blades in Black at 16° pitch. Net weight: 14.58 lbs. The Corke’s bold all-black flush-mount profile and 52 in sweep suits modern, industrial, and contemporary open-plan living rooms, great rooms, and covered outdoor spaces.
Light Output & PerformanceThe FPD6652BL includes an integrated 24W 5-CCT LED with an opal frosted shade — 2,000 lm initial output across five color temperatures: 2700K / 3000K / 3500K / 4000K / 5000K, CRI 90. Fully dimmable via TR360 remote or fanSync app. Energy Guide average: 3,426 CFM at 20W / 170 CFM/W.
Electrical & Installation120V AC, 60Hz, 15A circuit. Total max draw: 30W fan (high) + 24W light = 54W. DC motor with fanSync WiFi receiver included — no separate hub required. Flush mount with KwikWire easy connection. Canopy: 5.63 in dia. Fan must be attached to a securely anchored electrical junction box capable of withstanding at least 35 lbs.
Recommended Ceiling HeightFlush mount design requires a minimum ceiling height of 7 ft. Ideal for rooms with standard 8–9 ft ceilings where downrod clearance is not possible.
What's Included- FPD6652BL ceiling fan (Black body + 3 Black composite blades)
- Integrated 24W 5-CCT LED light kit (opal frosted shade)
- TR360 hand-held remote
- fanSync WiFi receiver
- Mounting hardware (KwikWire)
