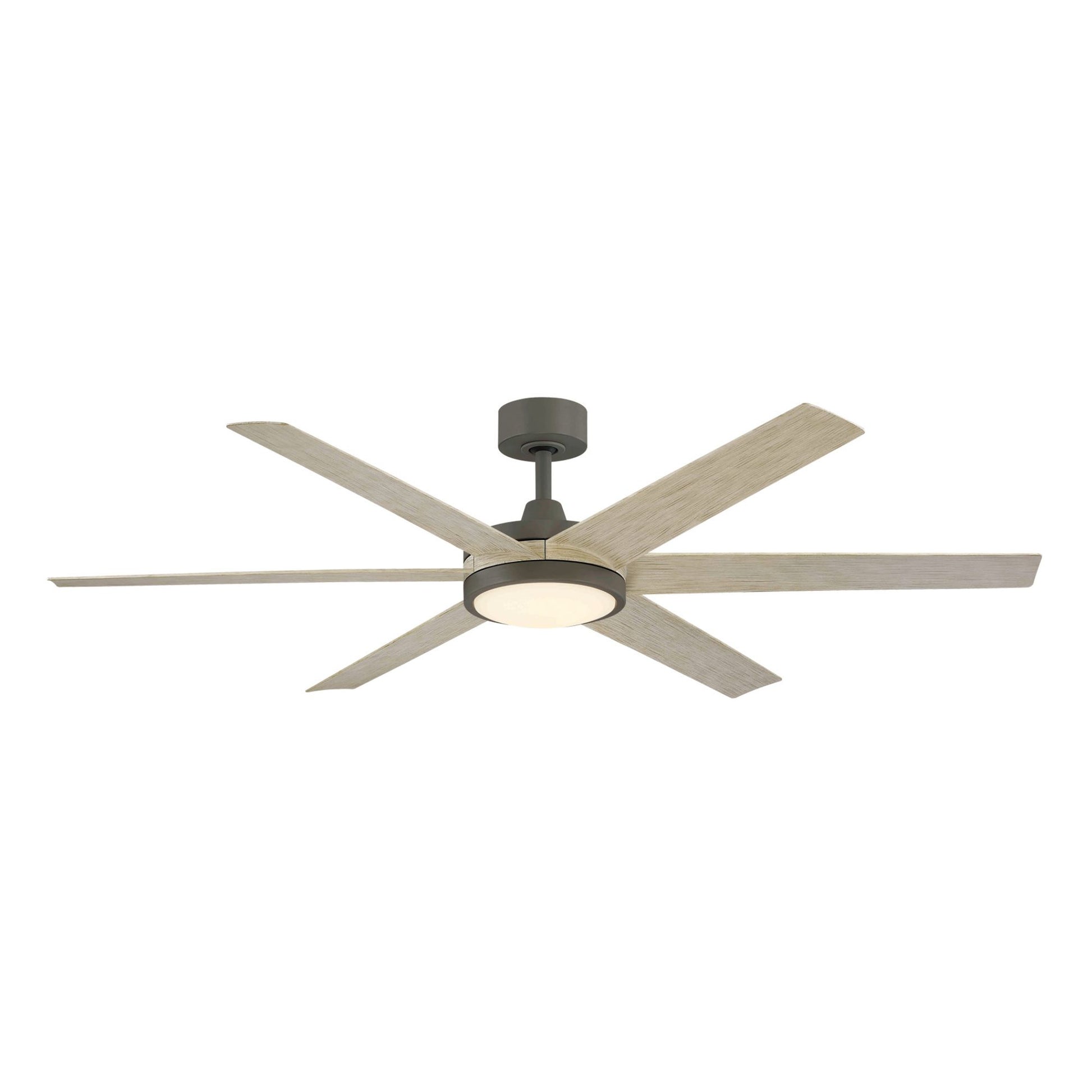

Fanimation Brawn 64 in Outdoor Smart LED Ceiling Fan — Antique Graphite / Light Oak

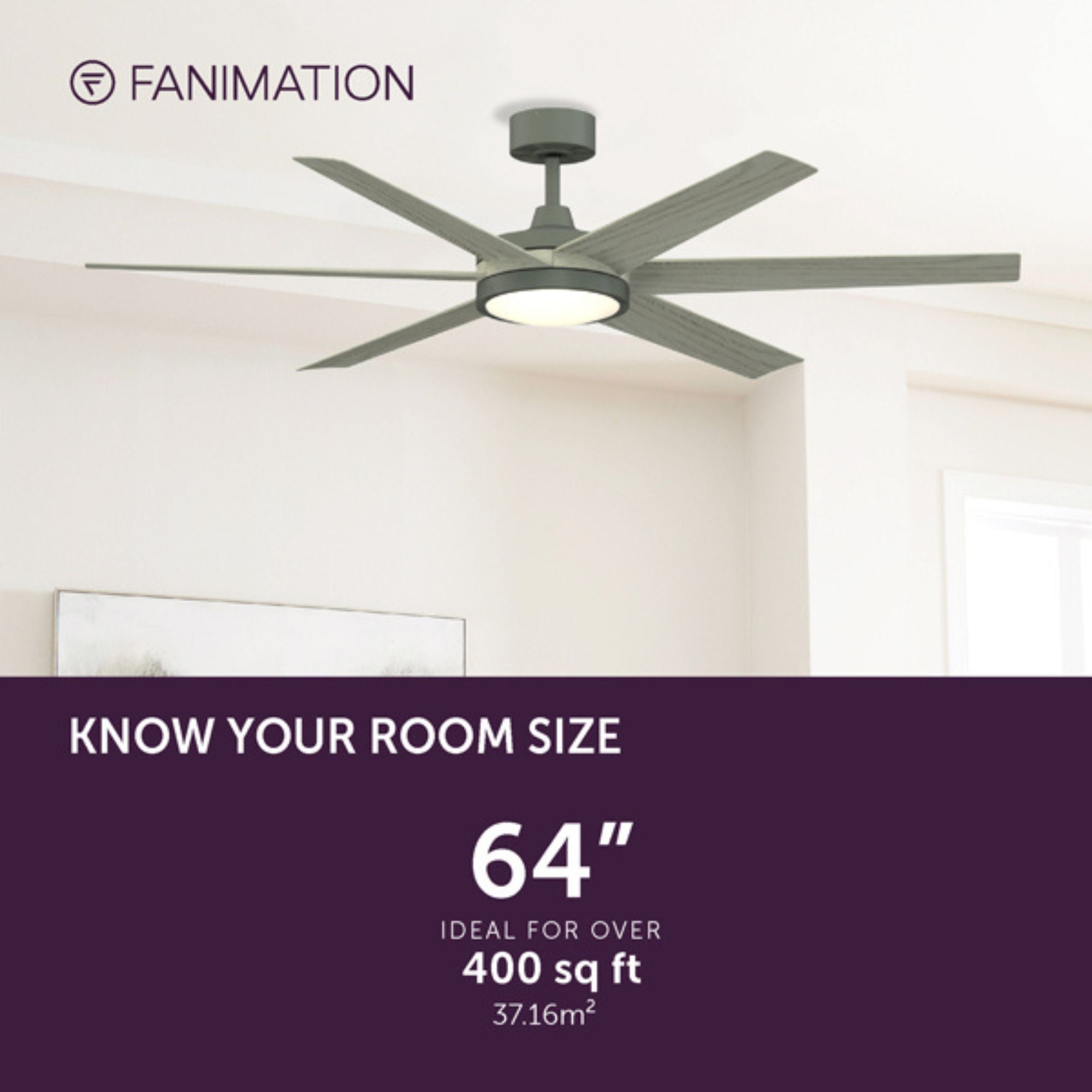

The Fanimation Brawn FPD6605AGP is a 64 in dry and damp-rated smart ceiling fan built for large covered outdoor spaces and expansive indoor rooms over 400 sq ft. Powered by a whisper-quiet sensorless DC126 x 12 motor with 16 fan speeds, it delivers up to 7,443 CFM at high speed (228 CFM/W). The integrated 30W LED light kit outputs 2,700 lumens with selectable 3000K, 4000K, and 5000K color temperatures. Includes TR305 remote and fanSync WiFi receiver for full smart home control. KwikWire easy connection included.

Key Features

• Blade Span: 64 in | 11° pitch | 6 Light Oak composite blades (29 in each)
• Motor: Sensorless DC126 x 12 | 16 speeds | Summer & Winter modes | 136 RPM (high) | 33W (high)

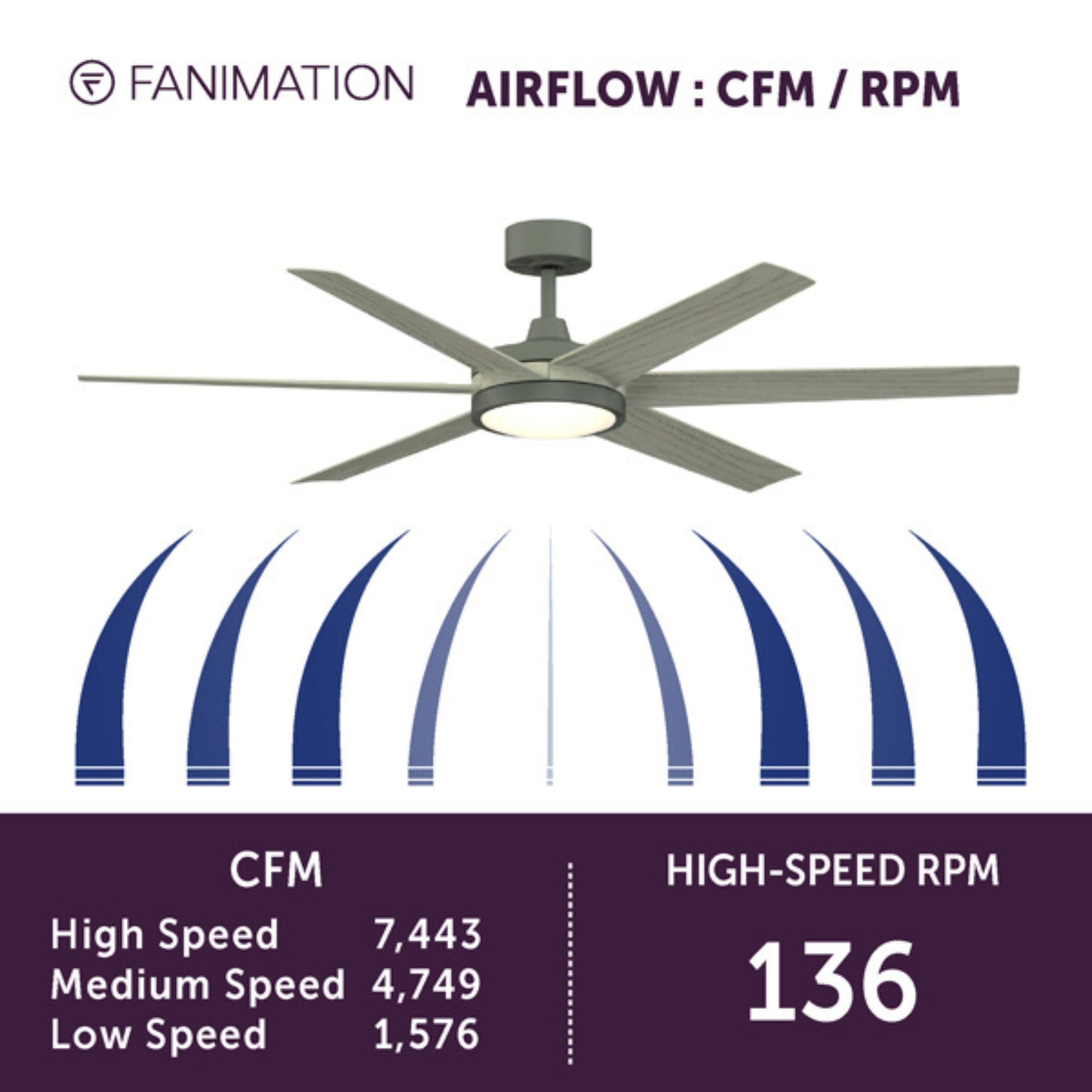

• Airflow: 7,443 CFM (high) | 4,749 CFM (med) | 1,576 CFM (low)
• Efficiency: 228 CFM/W (high) | 561 CFM/W (med) | 713 CFM/W (low)
• Light Output: 2,700 lumens | CRI 90 | 3000K/4000K/5000K selectable | 30W

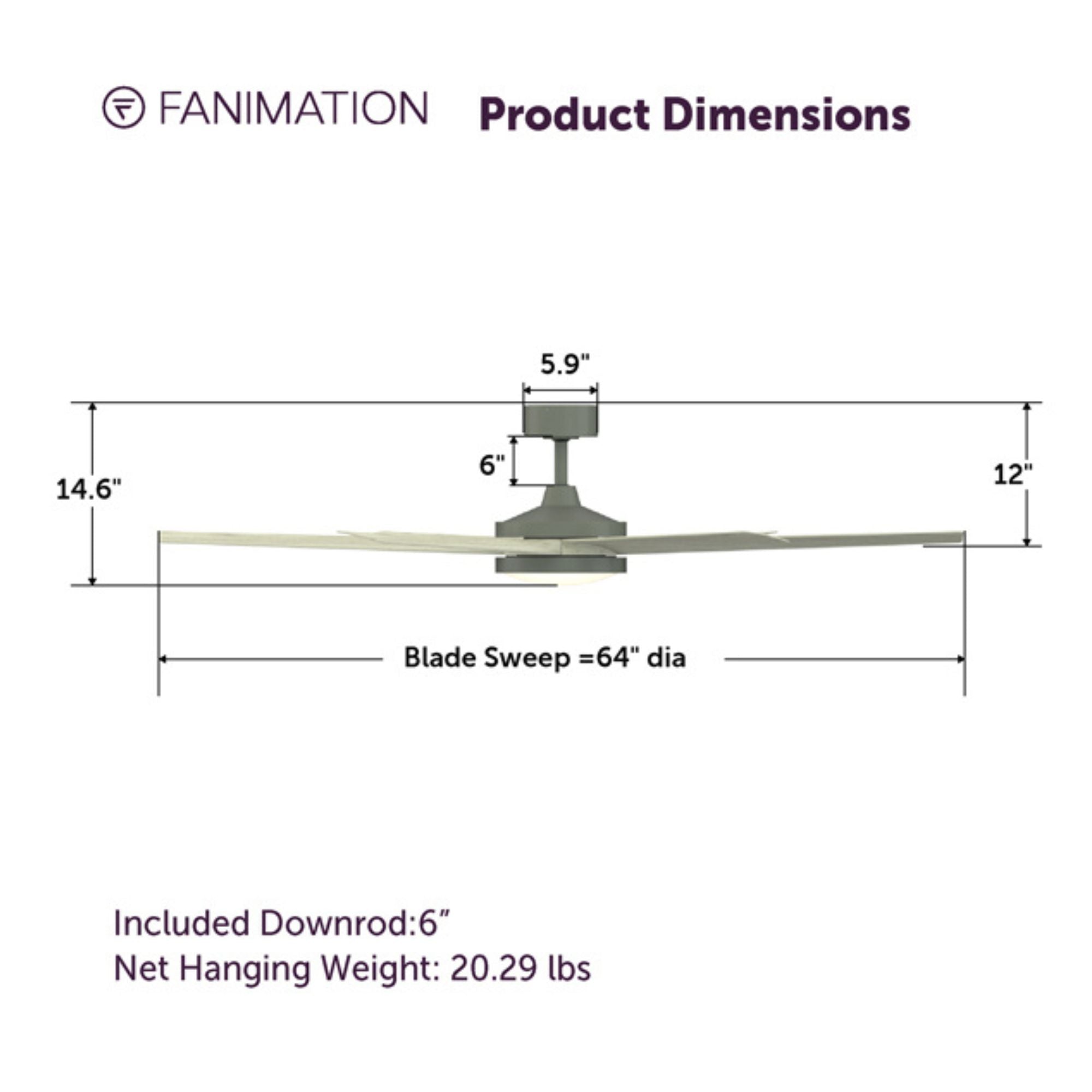

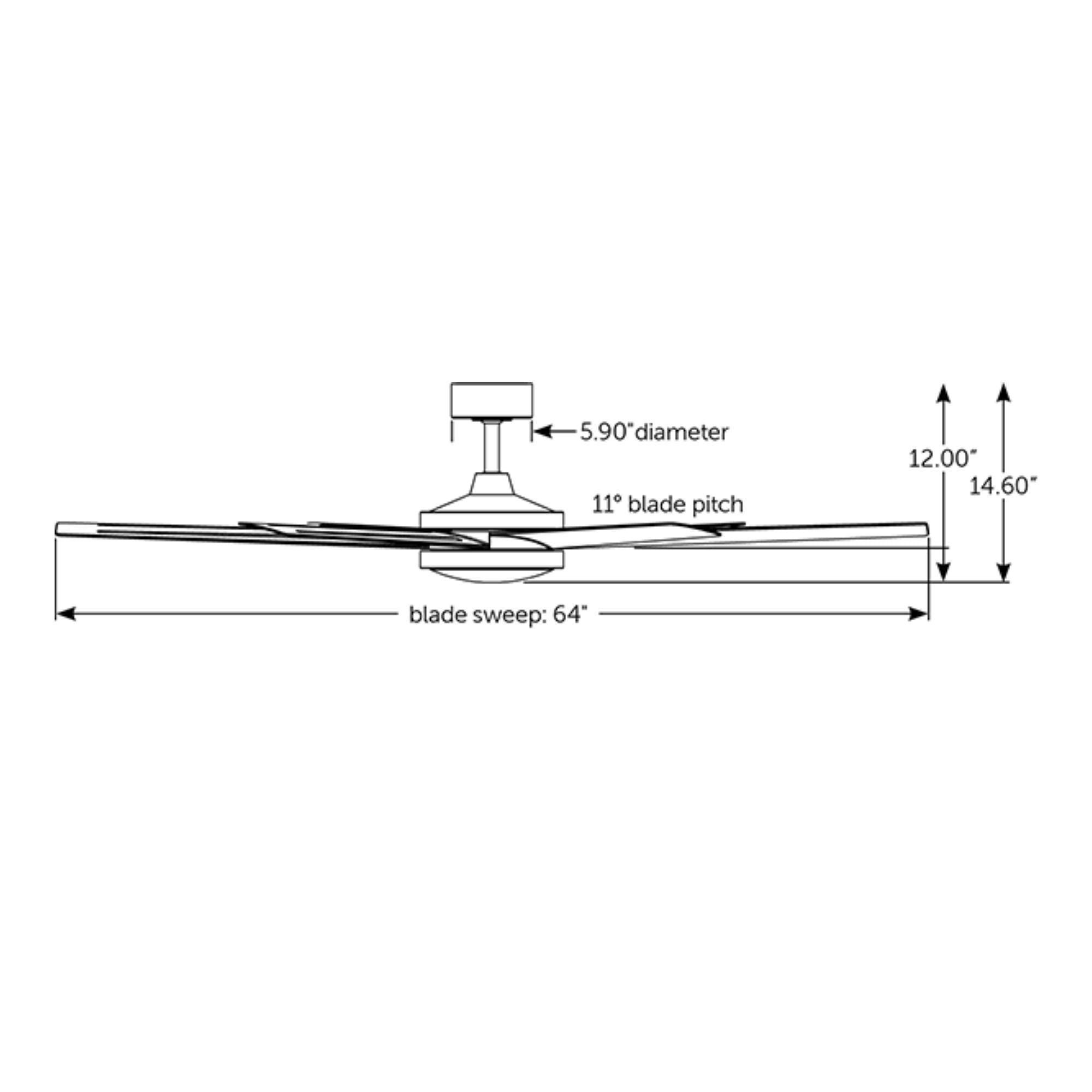

• Overall Dimensions: 64 in DIA x 14.6 in H | Canopy: 5.90 in dia
• Location Rating: Dry and Damp Location (Indoor & Covered Outdoor)
• Mounting: Downrod Mount or Angled Mount | Sloped ceiling compatible up to 27° (SCB1-52 up to 42°)
• Downrod: 6 in included (1 in dia) | Wire: 29 in | Hanging weight: 20.29 lbs
• Voltage: 120V, 60Hz, 15A circuit | Warranty: Limited Lifetime

Smart & Control Features

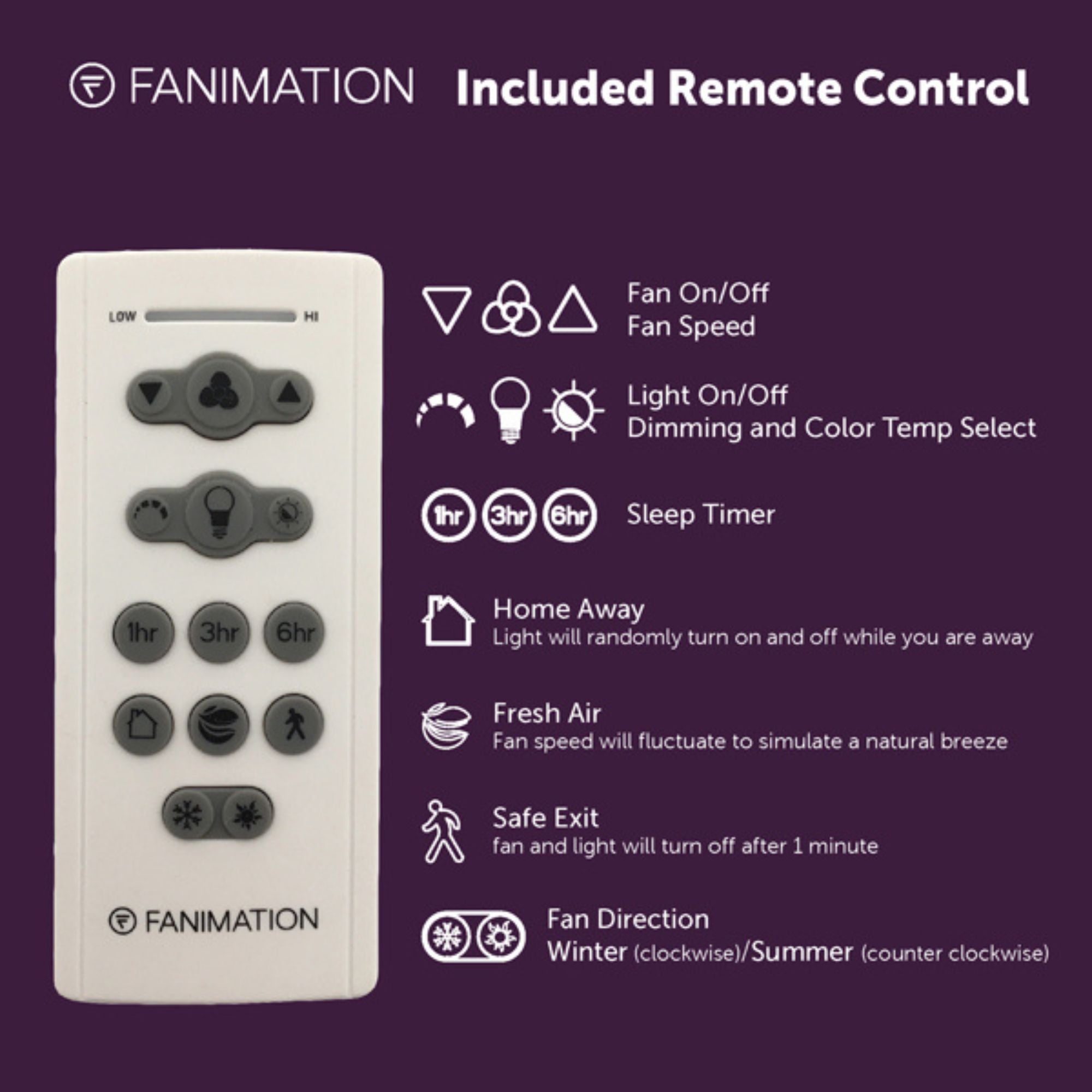

Includes the TR305 remote control — 16-speed fan control (forward & reverse), full-range CCT light selection, ON/OFF dimmer, fan/light timer, home away, and safe exit. The included fanSync WiFi receiver connects the fan to the fanSync app (iOS & Android) for remote access, scheduling, and smart home integration. Compatible with Amazon Alexa and Google Assistant via the fanSync app. Optional TW306 wall control available separately.

Construction & Design

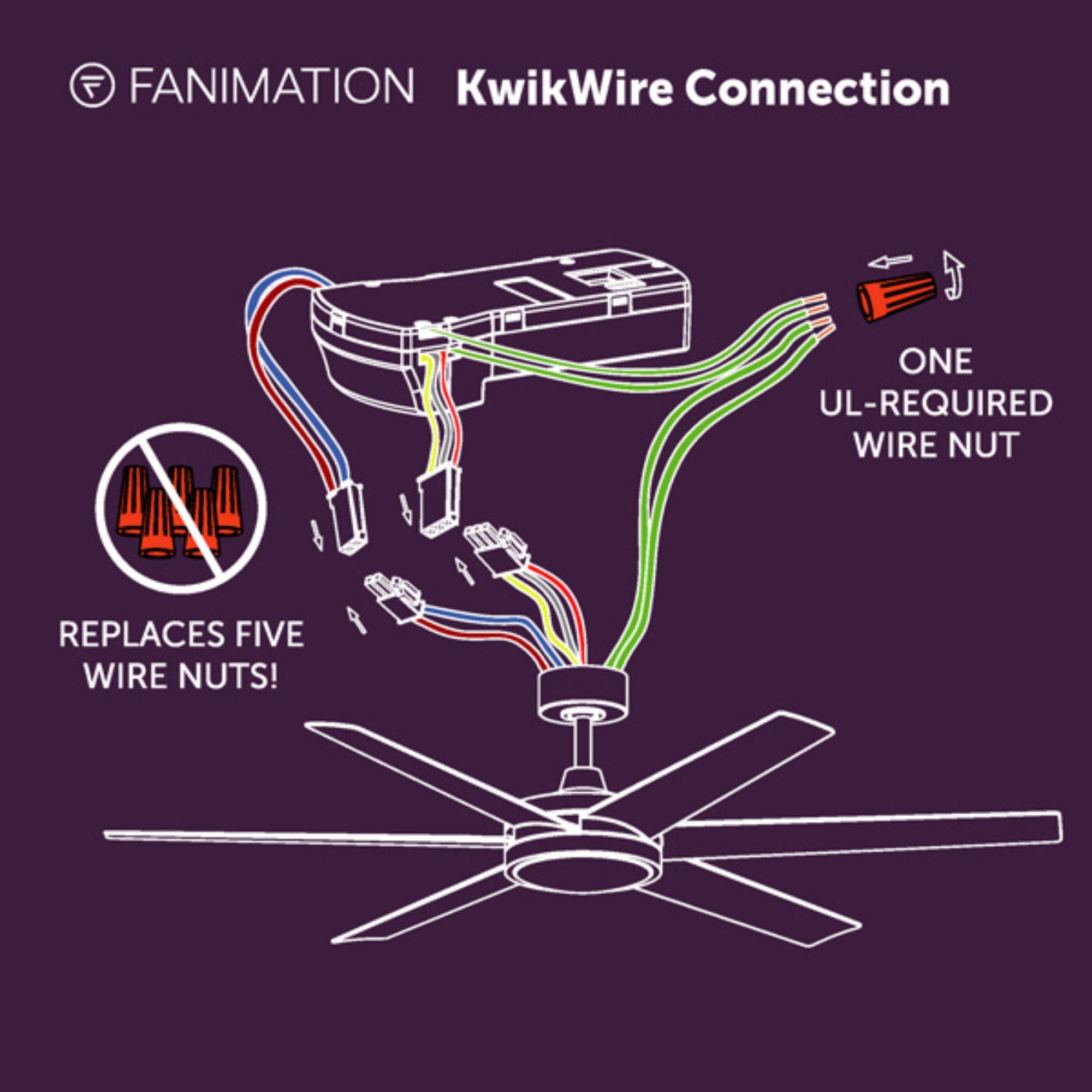

Antique Graphite motor housing paired with six 29 in Light Oak composite blades at an 11° pitch — a warm, nature-inspired two-tone combination that suits transitional, coastal, and contemporary-rustic interiors. Opal frosted glass diffuser softens the 30W LED output. Overall dimensions: 64 in DIA x 14.6 in H with a 5.90 in canopy diameter. Hanging weight: 20.29 lbs. KwikWire easy connection simplifies installation. Rated for dry and damp locations.

Light Output & Performance

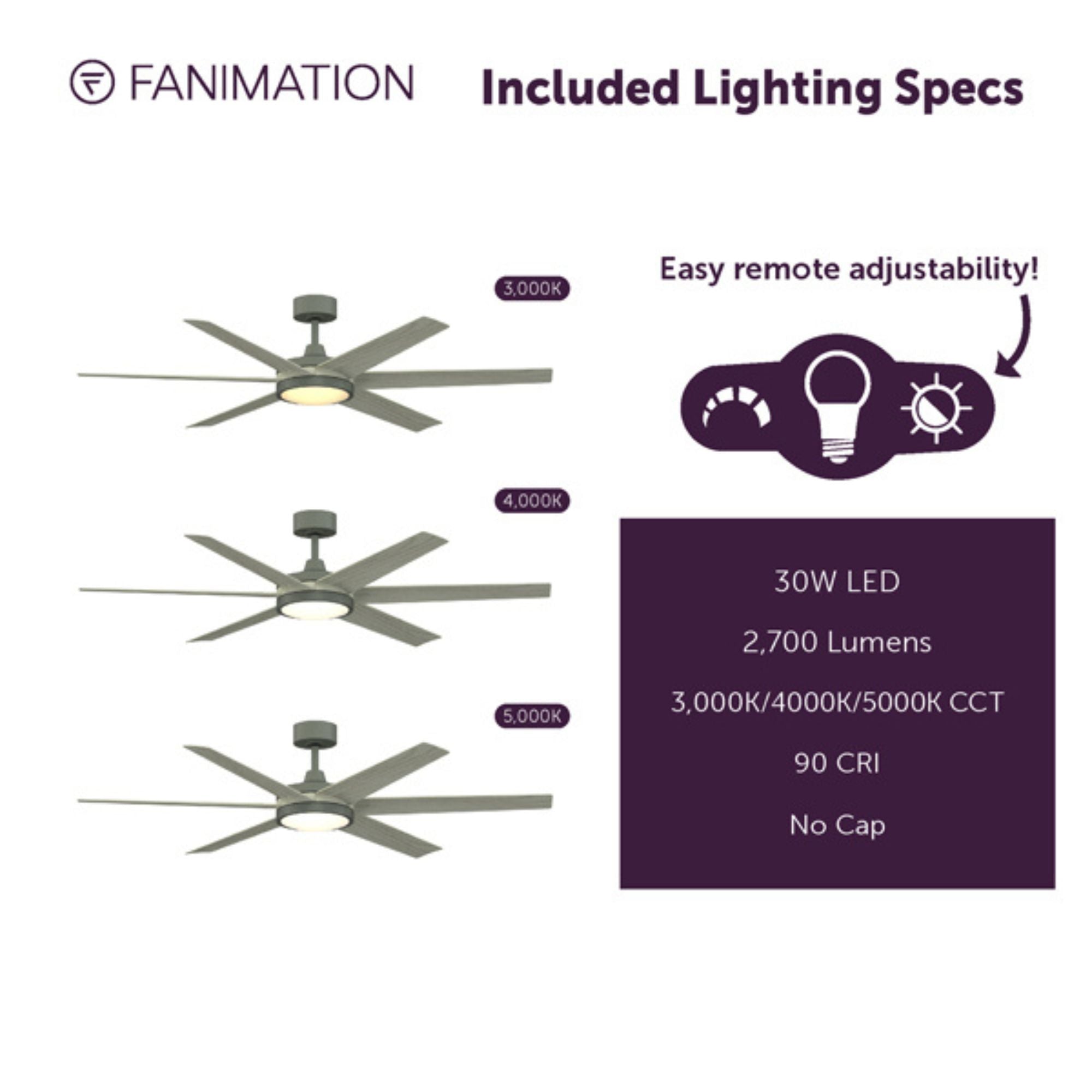

The integrated 30W LED delivers 2,700 lumens, CRI 90, with selectable color temperatures of 3000K, 4000K, and 5000K. Fully dimmable via TR305 remote or fanSync app.

Electrical & Installation

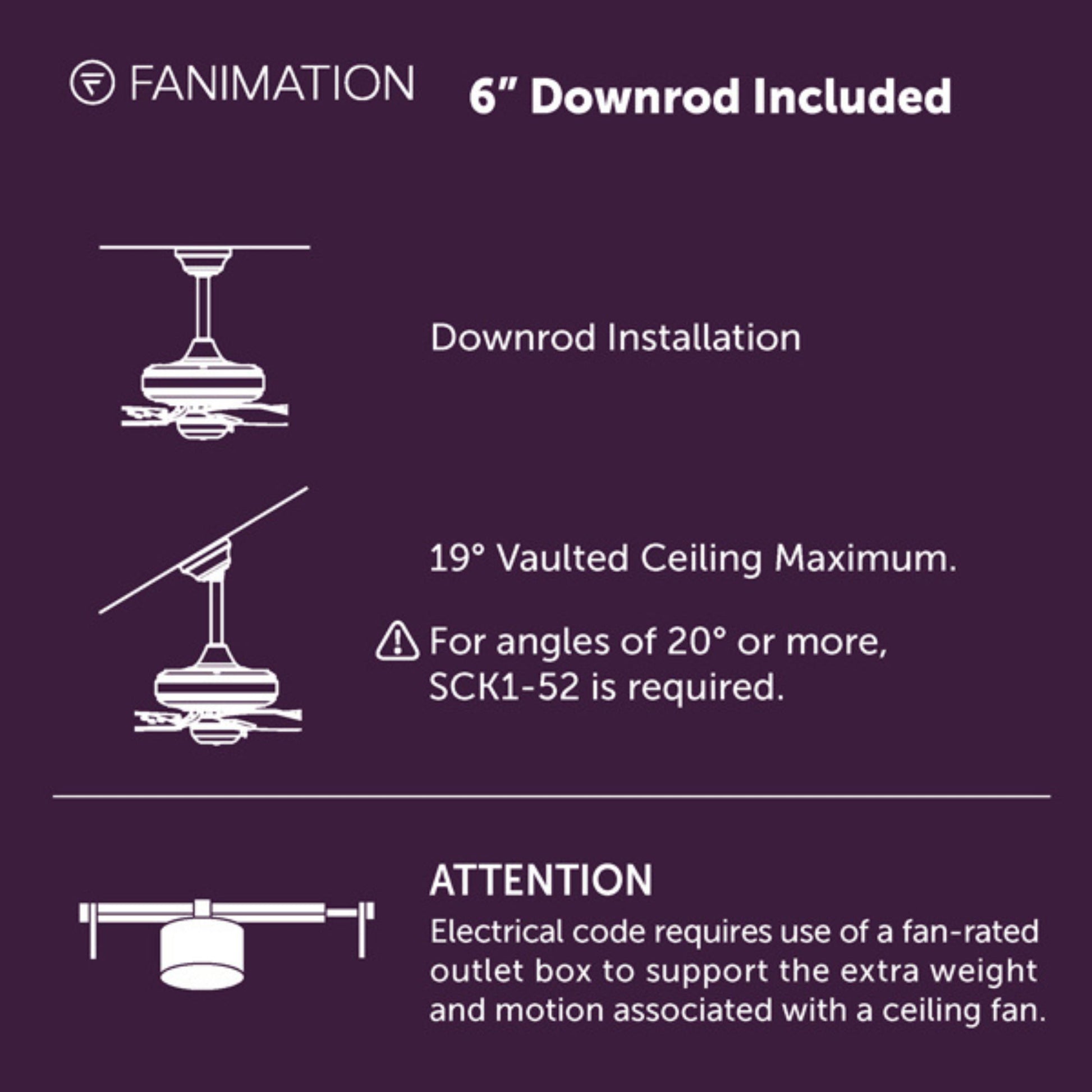

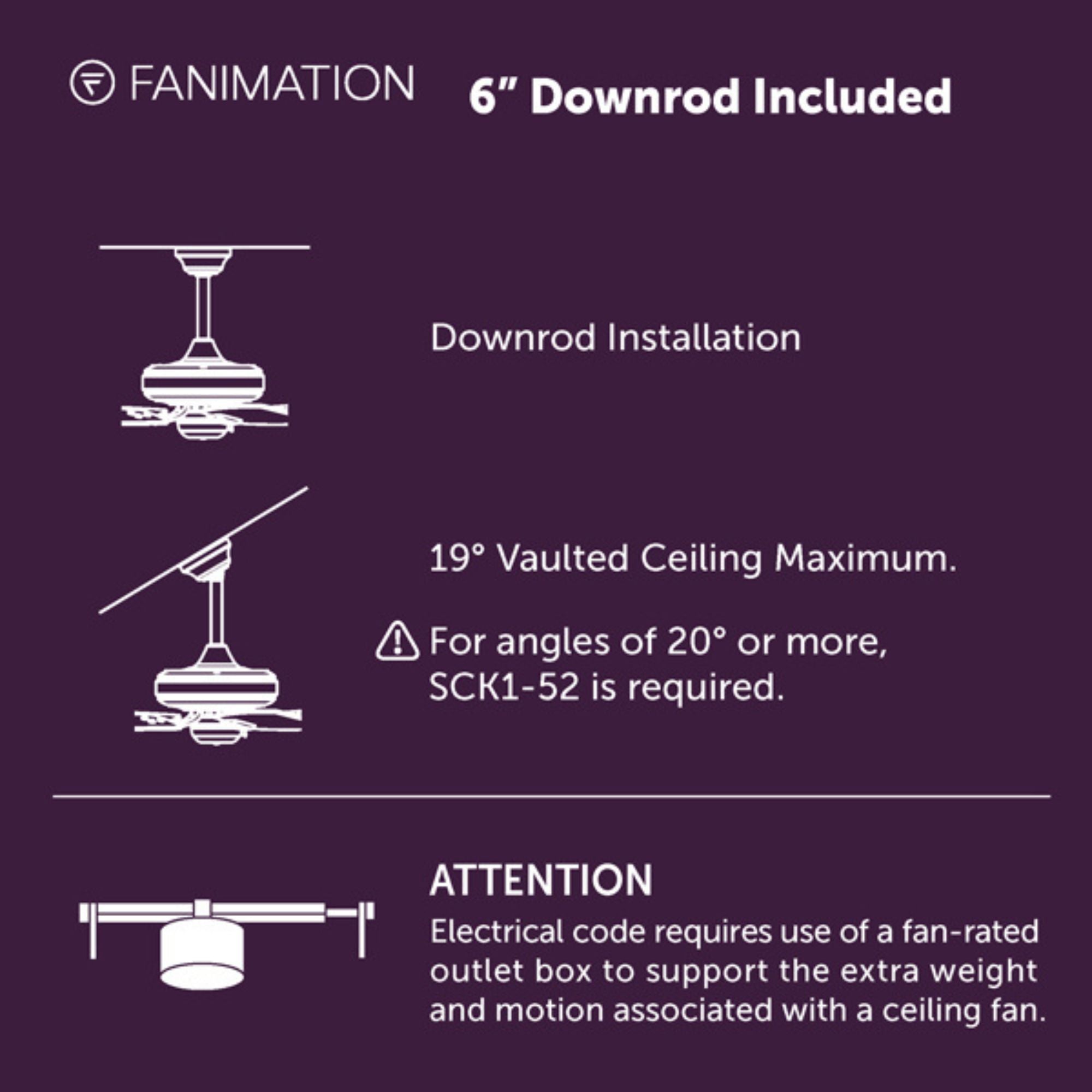

Operates at 120V, 60Hz on a 15A grounded circuit. Includes a 6 in downrod (1 in dia) compatible with flat and sloped ceilings up to 27°. For slopes 27–42°, use the SCB1-52 sloped ceiling kit (sold separately). Wire length: 29 in. Additional downrod lengths available (12, 18, 24, 36, 48, 60, 72 in).

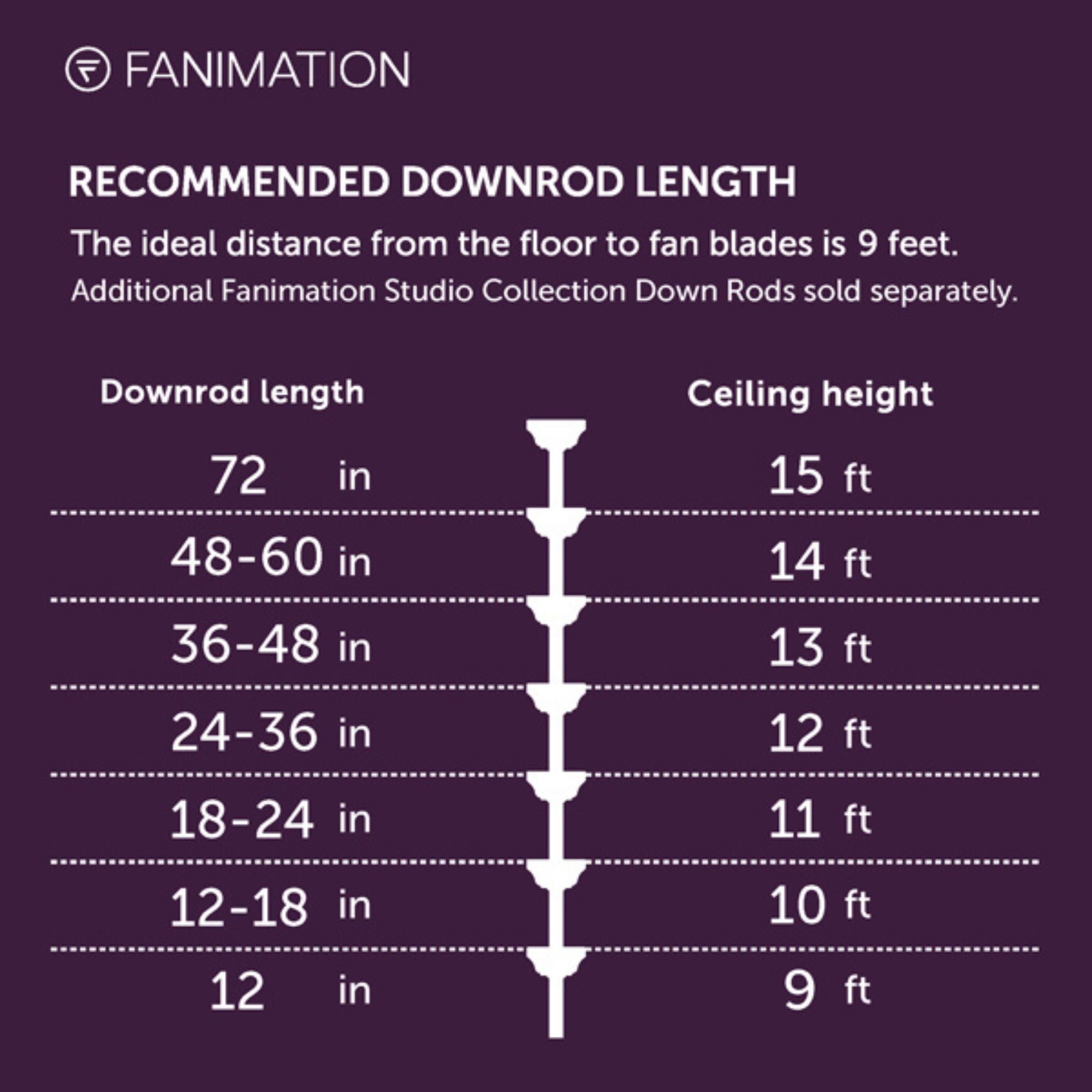

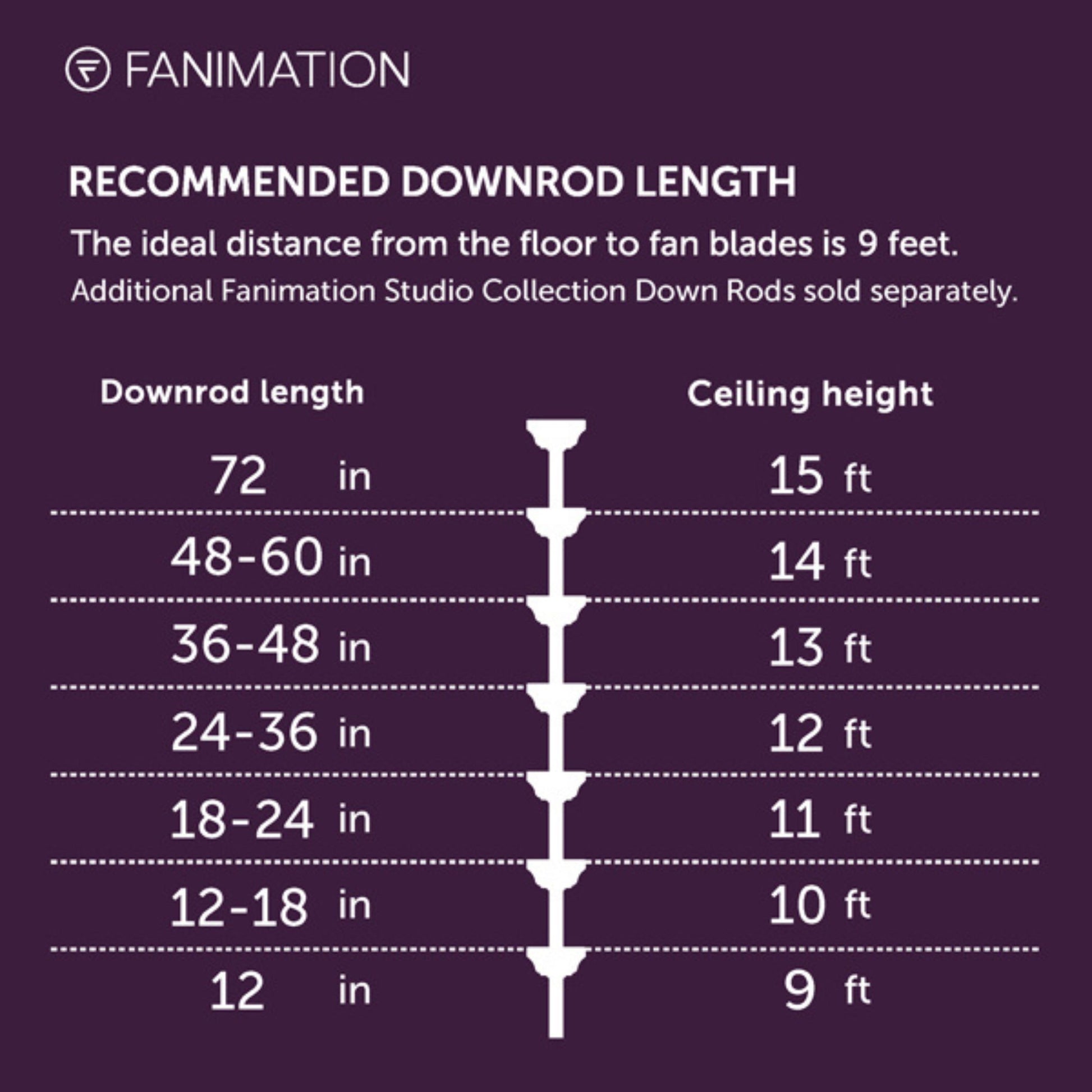

Suggested Downrod by Ceiling Height

• 9 ft ceiling → 6 in downrod (included)
• 10 ft → 12 in | 11 ft → 18 in | 12 ft → 24 in
• 14 ft → 36 in | 16 ft → 48 in | 18 ft → 60 in | 20 ft → 72 in
• Slopes over 72 in require a downrod coupler (sold separately)

Optional Accessories

• TW306 — Compatible Wall Control (sold separately)
• SCB1-52 — Sloped Ceiling Kit for angles 27–42°
• DR1-6 — 6 in downrod (included) | Additional lengths: 12, 18, 24, 36, 48, 60, 72 in

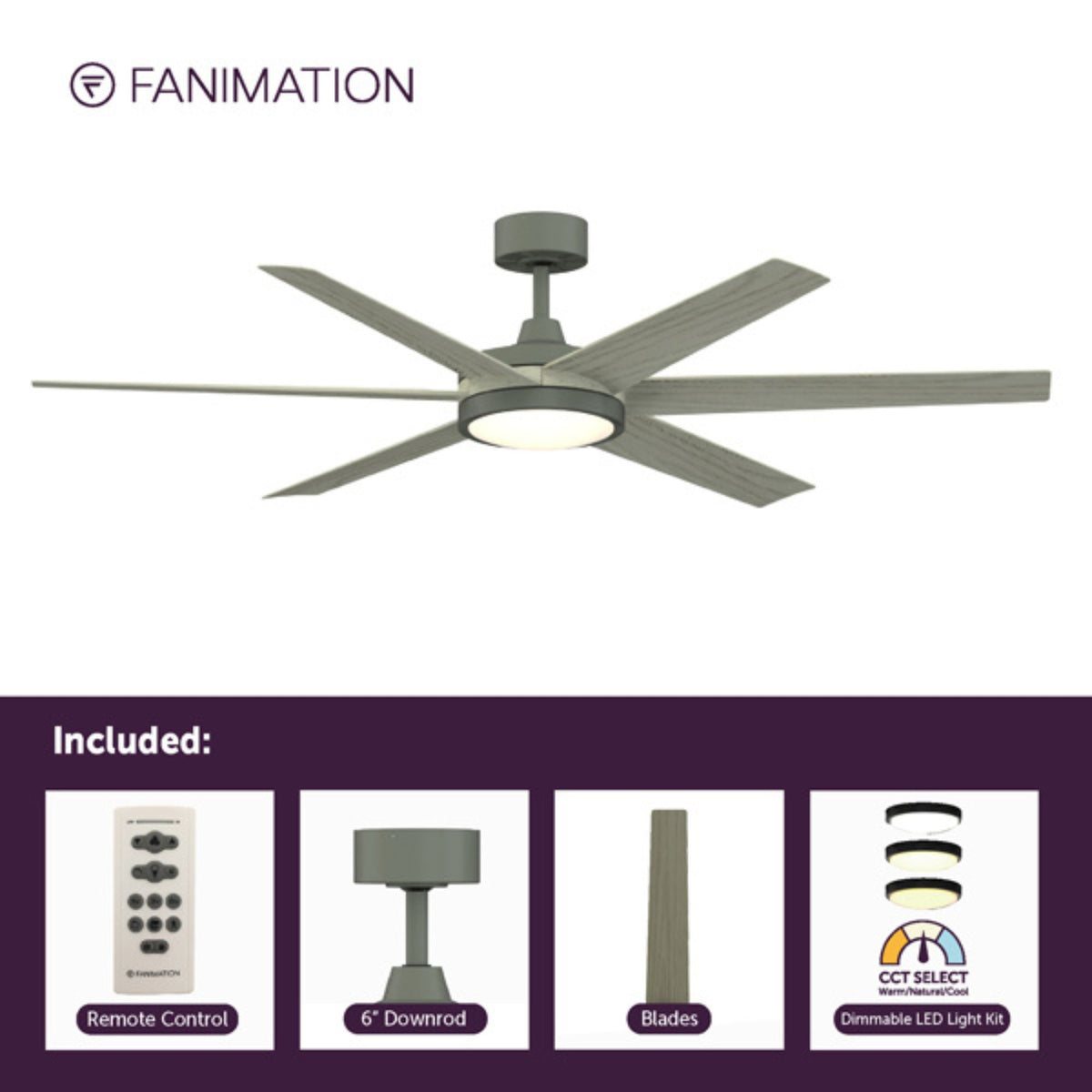

What's Included

• 64 in ceiling fan with integrated LED light kit (opal frosted glass)
• TR305 remote control (16-speed, CCT select, full-range dimmer, timer, home away)
• fanSync WiFi receiver
• 6 in downrod (1 in dia)
• KwikWire connection hardware
• Mounting hardware
