Fanimation Brawn FPD6605 64 in Smart LED Ceiling Fan

The Fanimation Brawn combines a broad six-blade silhouette with 7,443 CFM high-speed airflow for expansive indoor rooms and covered outdoor spaces over 400 sq ft. Its sensorless DC126 × 12 motor offers 16 speeds, while the 30W integrated LED lets you choose warm, cool or daylight illumination. Select Black, Matte White or Antique Graphite with Light Oak blades, then adjust your comfort from the included remote or fanSync app.

Key Features

• Blade Span: 64 in with six composite blades and 11° pitch.
• DC Motor: Sensorless DC126 × 12 with 16 speeds, forward and reverse operation.
• Airflow: 7,443 CFM high, 4,749 CFM medium and 1,576 CFM low; Energy Guide average 4,693 CFM.
• Efficiency: 228 CFM/W at high speed; Energy Guide average 214 CFM/W.
• LED Lighting: Integrated 30W light delivers 2,700 lumens with 90 CRI and selectable 3000K, 4000K or 5000K.
• Smart Control: TR305 remote and fanSync WiFi receiver included.
• Location Rating: Dry and damp locations, including indoor and covered outdoor spaces.
• Mounting: Downrod or angled mounting; 6 in downrod included.
• Warranty: Limited lifetime warranty.

Smart & Control Features

The included TR305 remote provides 16-speed forward and reverse fan control, CCT light selection, dimming, on/off, fan/light timers, home away and safe exit functions. The included fanSync WiFi receiver enables app control, scheduling and remote access through fanSync on iOS and Android. Voice control is compatible with Amazon Alexa and Google Assistant through fanSync. An optional TW306 wall control is available separately.

Construction & Design

Six aerodynamic composite blades, each 29 in long, surround a steel motor housing. An opal frosted glass diffuser softens the LED light. Overall dimensions are 64 in diameter × 14.6 in high, with a 5.90 in diameter canopy and hanging weight of 20.29 lbs. Choose the model that matches your preferred finish:

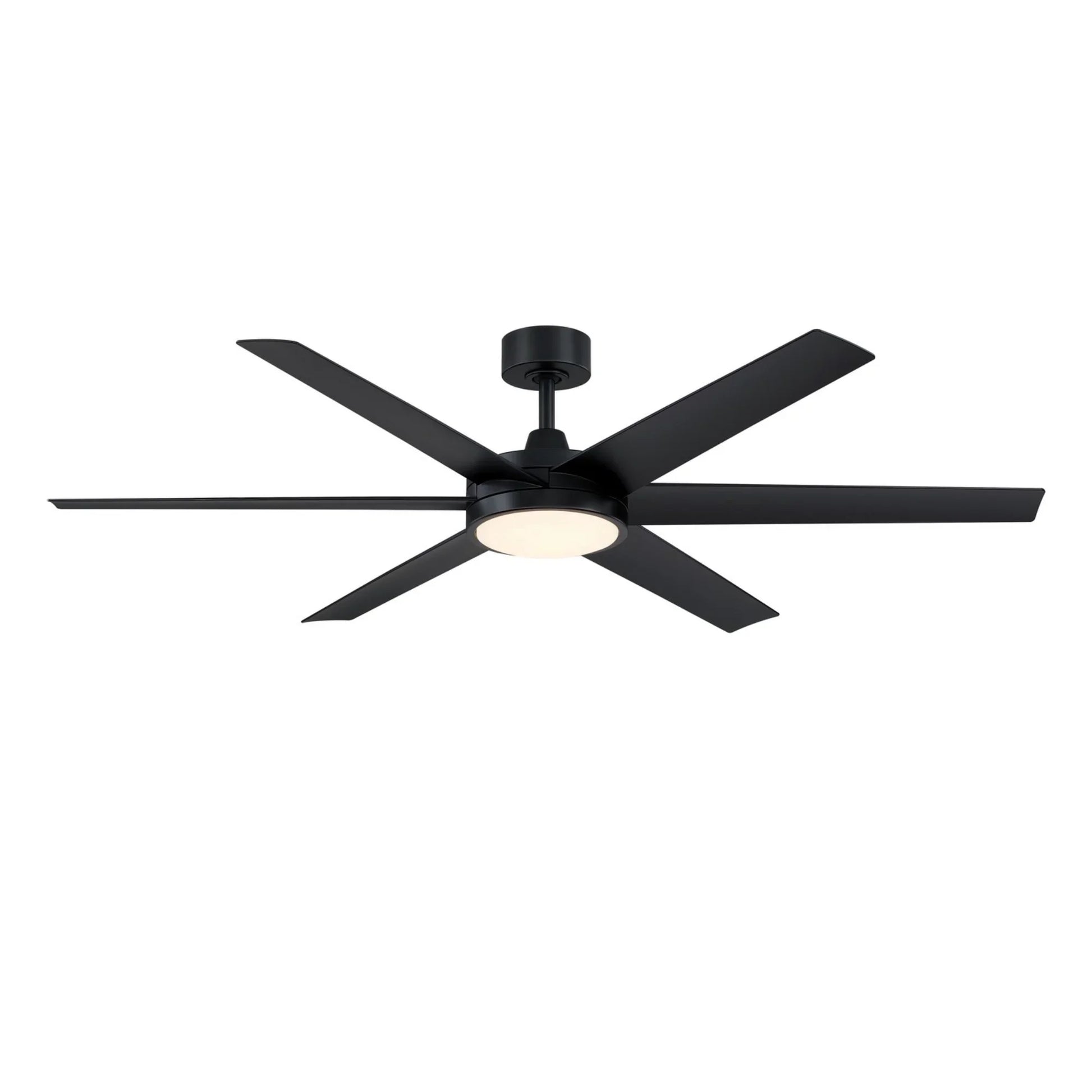

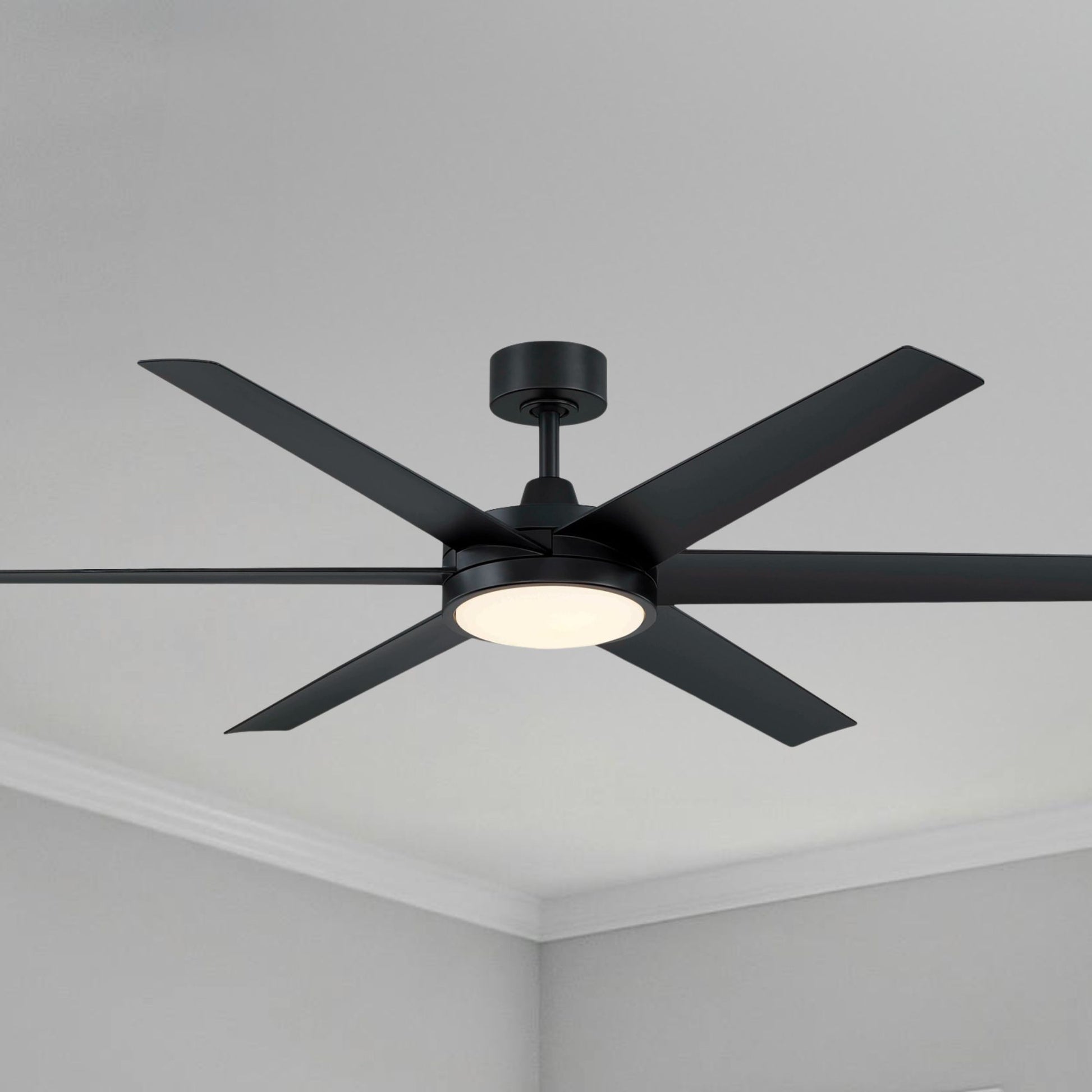

• FPD6605BL: Black housing with Black blades.

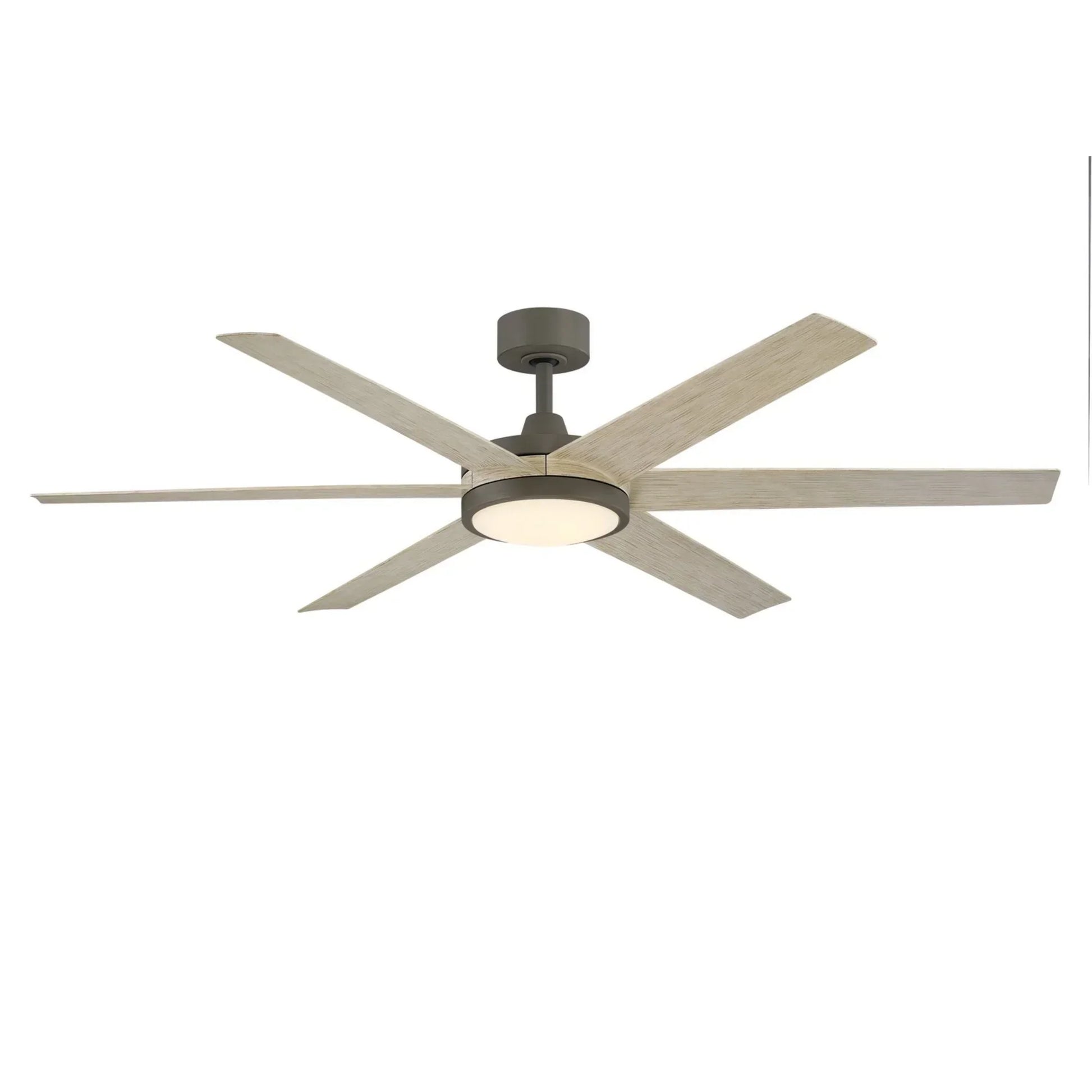

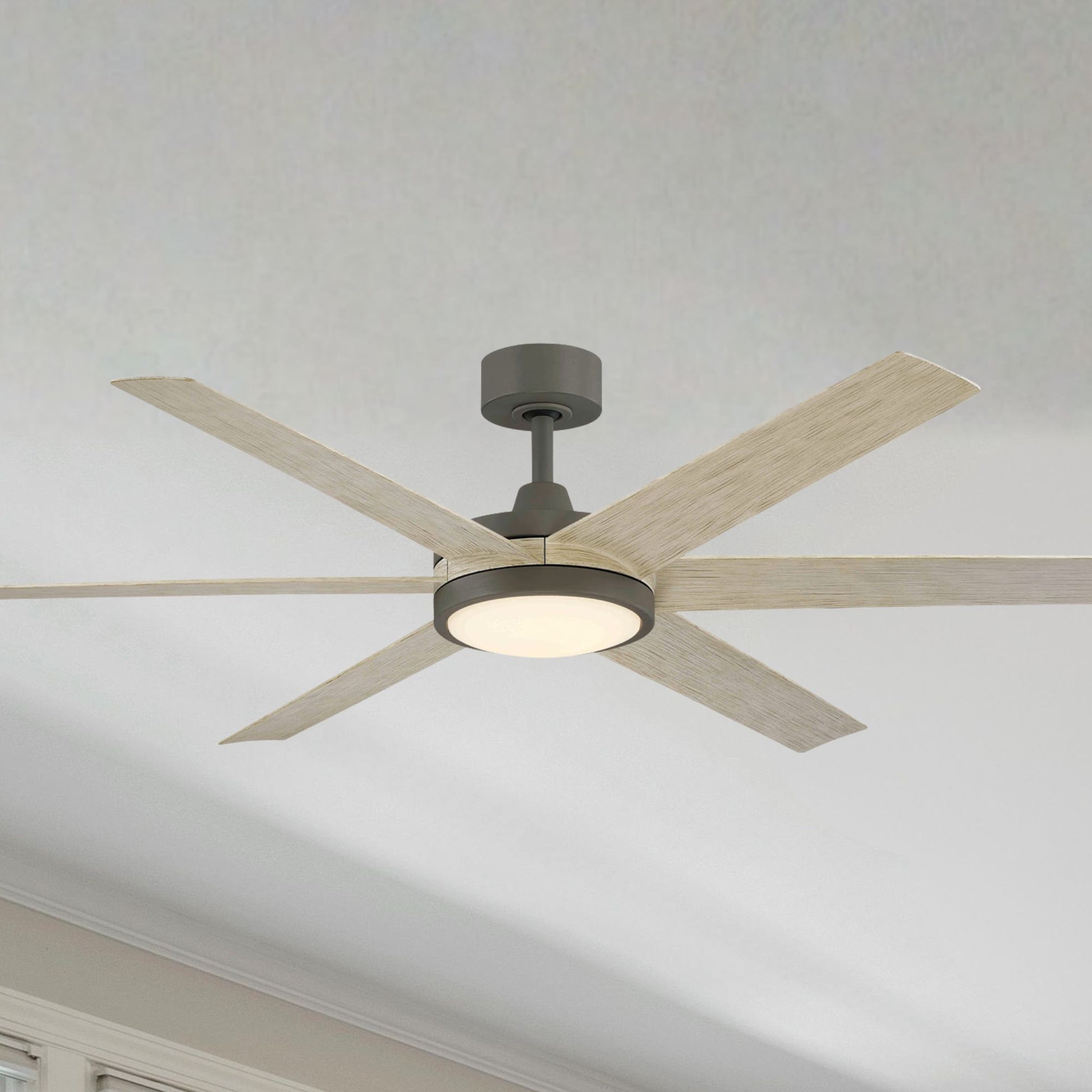

• FPD6605AGP: Antique Graphite housing with Light Oak blades, offered under the Graphite option.
• FPD6605MW: Matte White housing with Matte White blades.

Light Output & Performance

The integrated 30W LED delivers 2,700 lumens with 90 CRI. Select 3000K, 4000K or 5000K and adjust brightness through the TR305 remote or fanSync app. High-speed airflow reaches 7,443 CFM at 136 RPM, 33W and 228 CFM/W. Medium-speed airflow is 4,749 CFM and low-speed airflow is 1,576 CFM. Energy Guide average performance is 4,693 CFM at 214 CFM/W, suited to large rooms and covered outdoor spaces over 400 sq ft.

Electrical & Installation

Operates on 120V AC, 60Hz, with a 15A grounded circuit. The KwikWire connection system simplifies installation. A 1 in diameter × 6 in downrod is included, with downrod and angled mounting supported for slopes up to 27°. For slopes above 27° and up to 42°, use the optional SCB1-52 sloped-ceiling kit. Additional downrod lengths include 12, 18, 24, 36, 48, 60 and 72 in. Use outdoors only in covered locations protected from direct rain.

Suggested Downrod by Ceiling Height

A 6 in downrod is included. Select the length for your ceiling height and installation, maintaining at least 7 ft between the blades and the floor.

• 9 ft ceiling → 6 in downrod, included
• 10 ft ceiling → 12 in downrod
• 11 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

What's Included

• Brawn 64 in ceiling fan with six composite blades in the selected finish.
• Integrated 30W LED light kit with opal frosted glass diffuser.
• TR305 handheld remote.
• fanSync WiFi receiver.
• 1 in diameter × 6 in downrod.
• KwikWire connection hardware and mounting hardware.
