Fanimation Kute5 FPD5534 52 in Smart DC Ceiling Fan

Five composite blades give Kute5 a fuller silhouette while its DC motor delivers 6,495 CFM high-speed airflow. The 52 in sweep suits rooms up to 400 sq ft. An included WiFi receiver and TR305 remote put comfort within easy reach, indoors or in damp-rated covered outdoor spaces.

Key Features

• Blade design: Five composite blades with 52 in sweep and 14° pitch.
• Motor: Sensorless DC motor with variable-speed control.
• High-speed airflow: 6,495 CFM at 30W and 218 CFM/W.
• Medium-speed airflow: 4,660 CFM at 13W.
• Low-speed airflow: 2,157 CFM at 3W.
• Location rating: cUL damp rated for indoor and covered outdoor applications.
• Smart control: WiFi receiver and TR305 hand-held remote included.
• Connection: KwikWire easy connection system.

Smart & Control Features

Includes TR305 remote and WiFi receiver for variable-speed control, fresh air mode, fan timer and on/off. Use the fanSync WiFi app on iOS and Android for wireless control. Optional TW406 wall control is sold separately. Lighting functions require a compatible optional light kit.

Construction & Design

A compact cylindrical housing measures 5.75 in diameter, with five composite blades arranged at 14° pitch. Choose the finish pairing that complements your room:

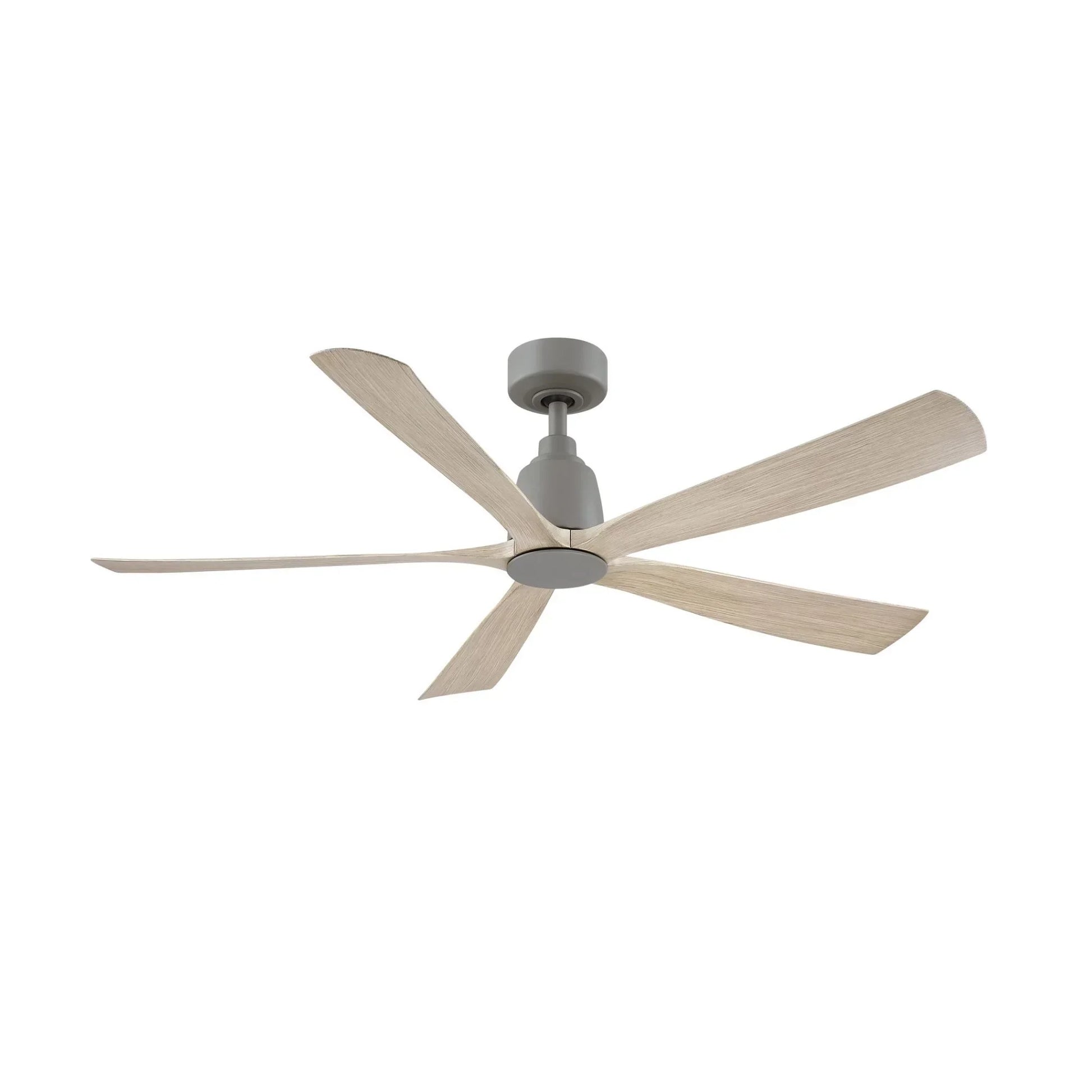

• Graphite Steel option, FPD5534AGP: Antique Graphite housing with Light Oak blades.

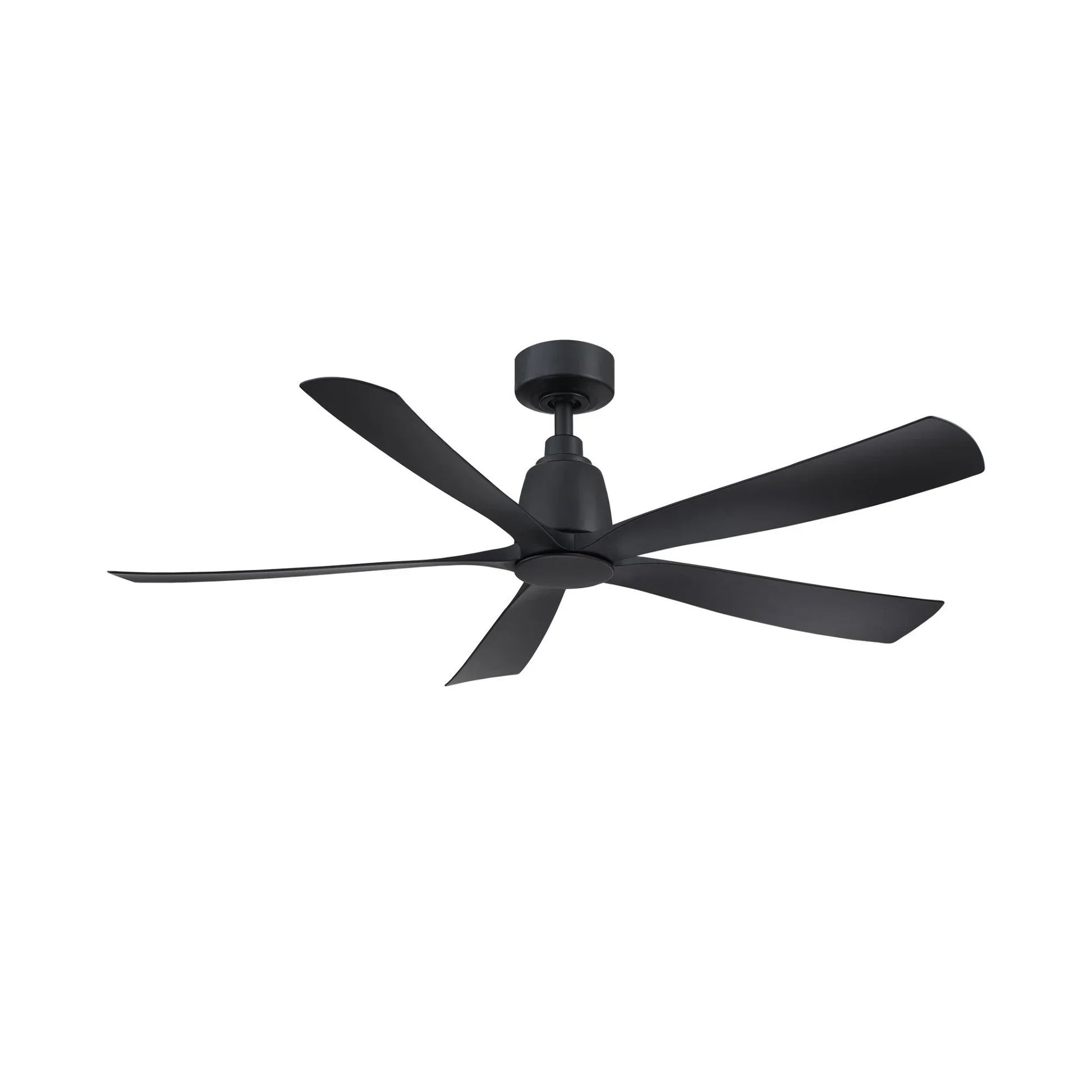

• Black, FPD5534BL: Black housing and blades.

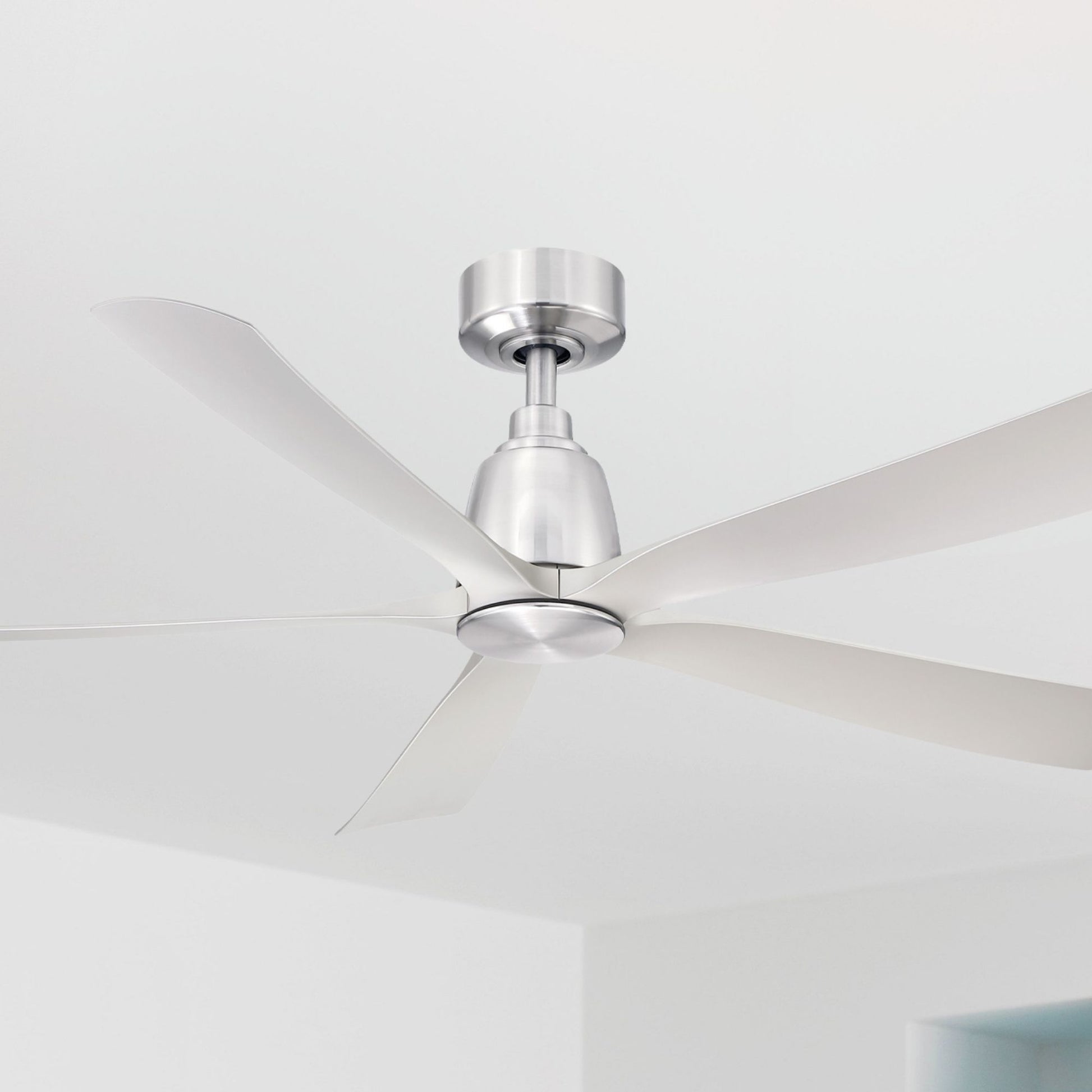

• Brushed Nickel, FPD5534BN: Brushed Nickel housing and blades.

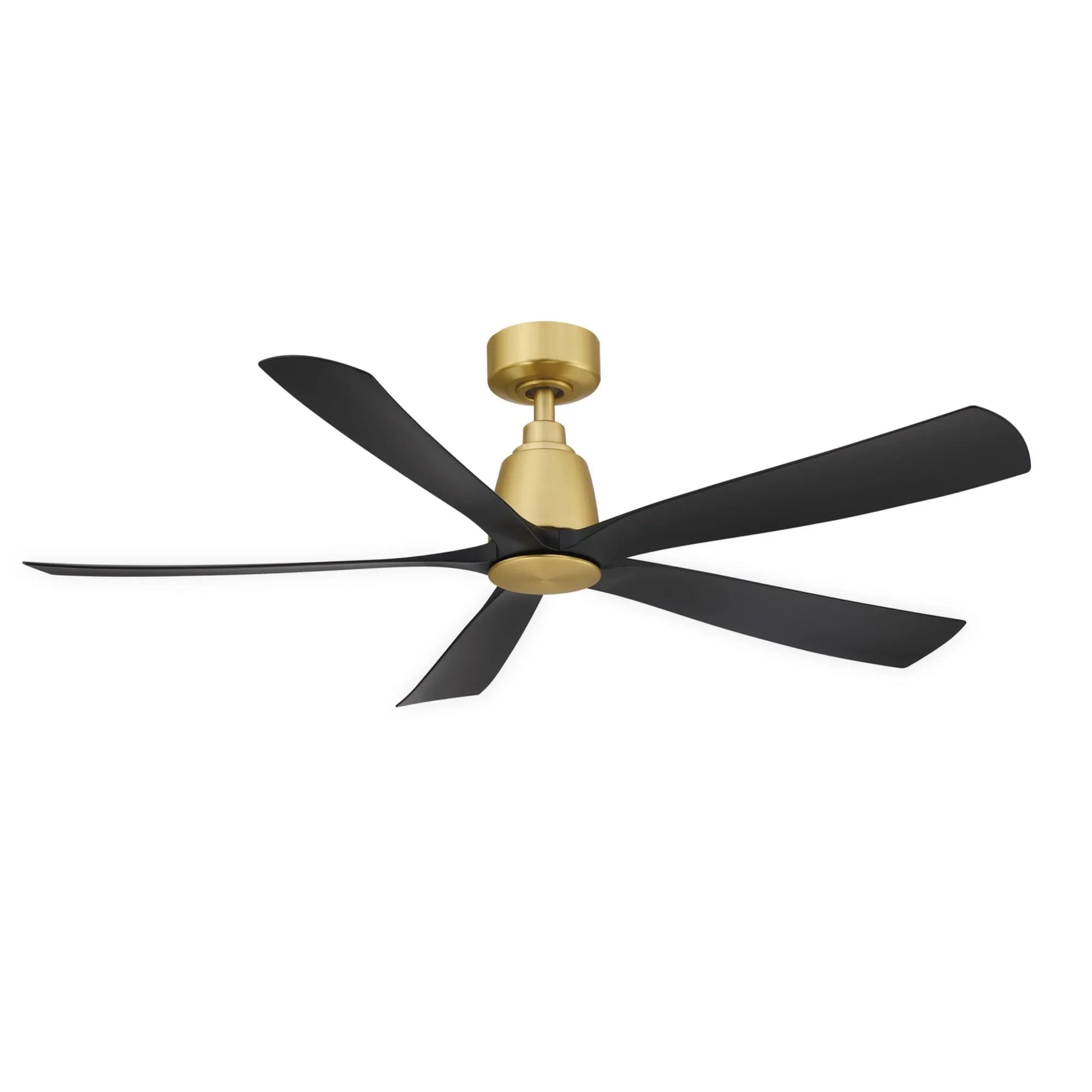

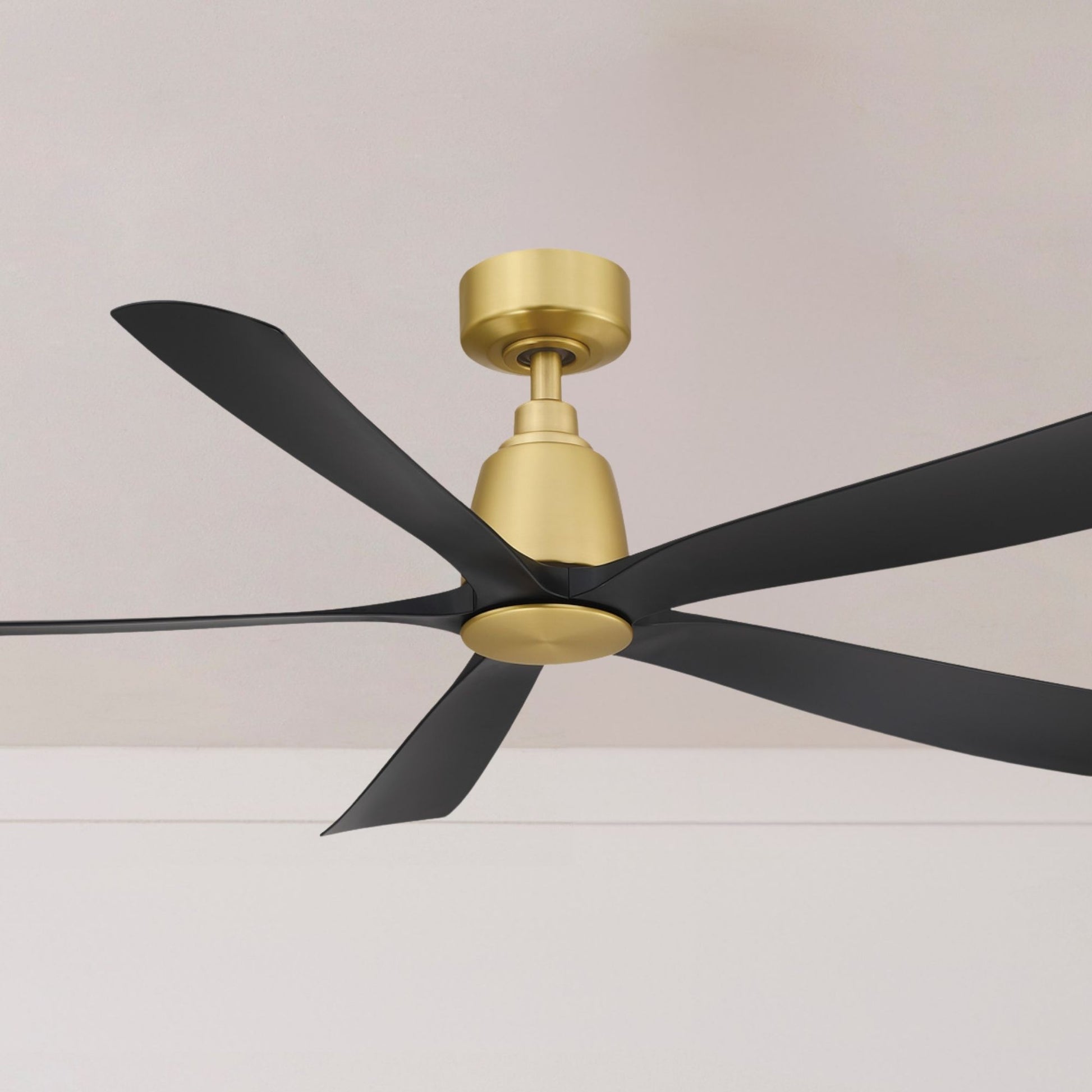

• Black & Brass, FPD5534BSBL: Brushed Satin Brass housing with Black blades.

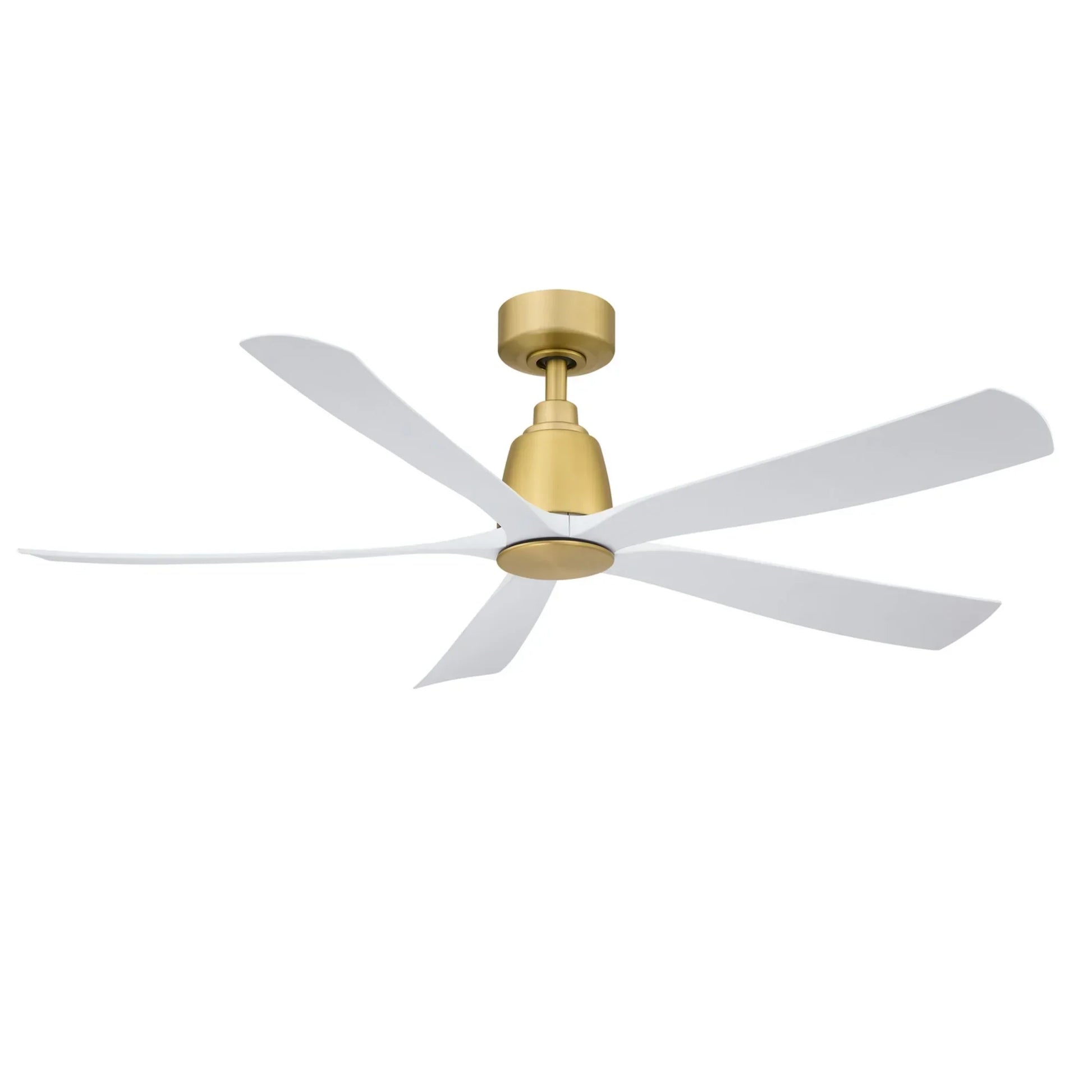

• White & Brass, FPD5534BS: Brushed Satin Brass housing with Matte White blades.

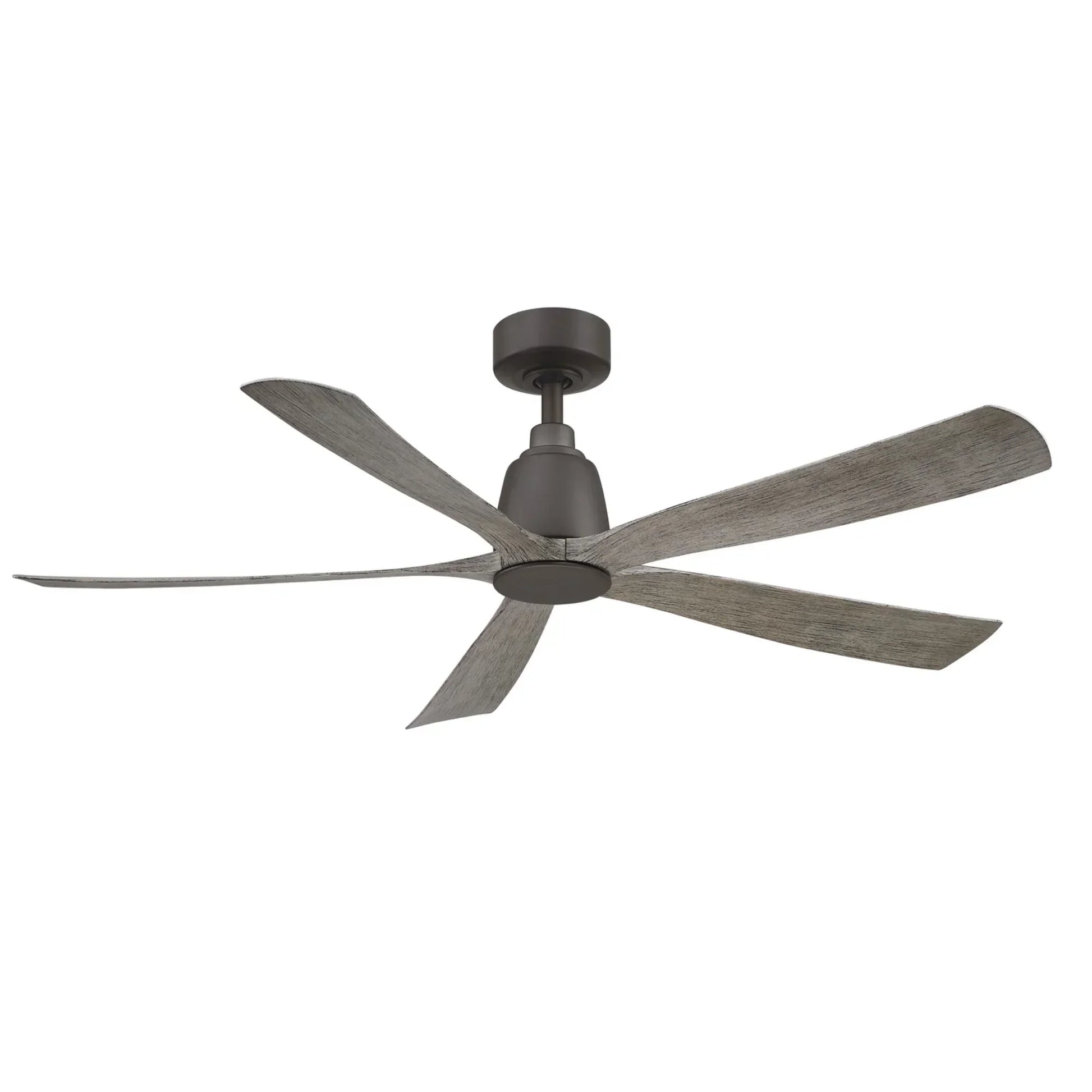

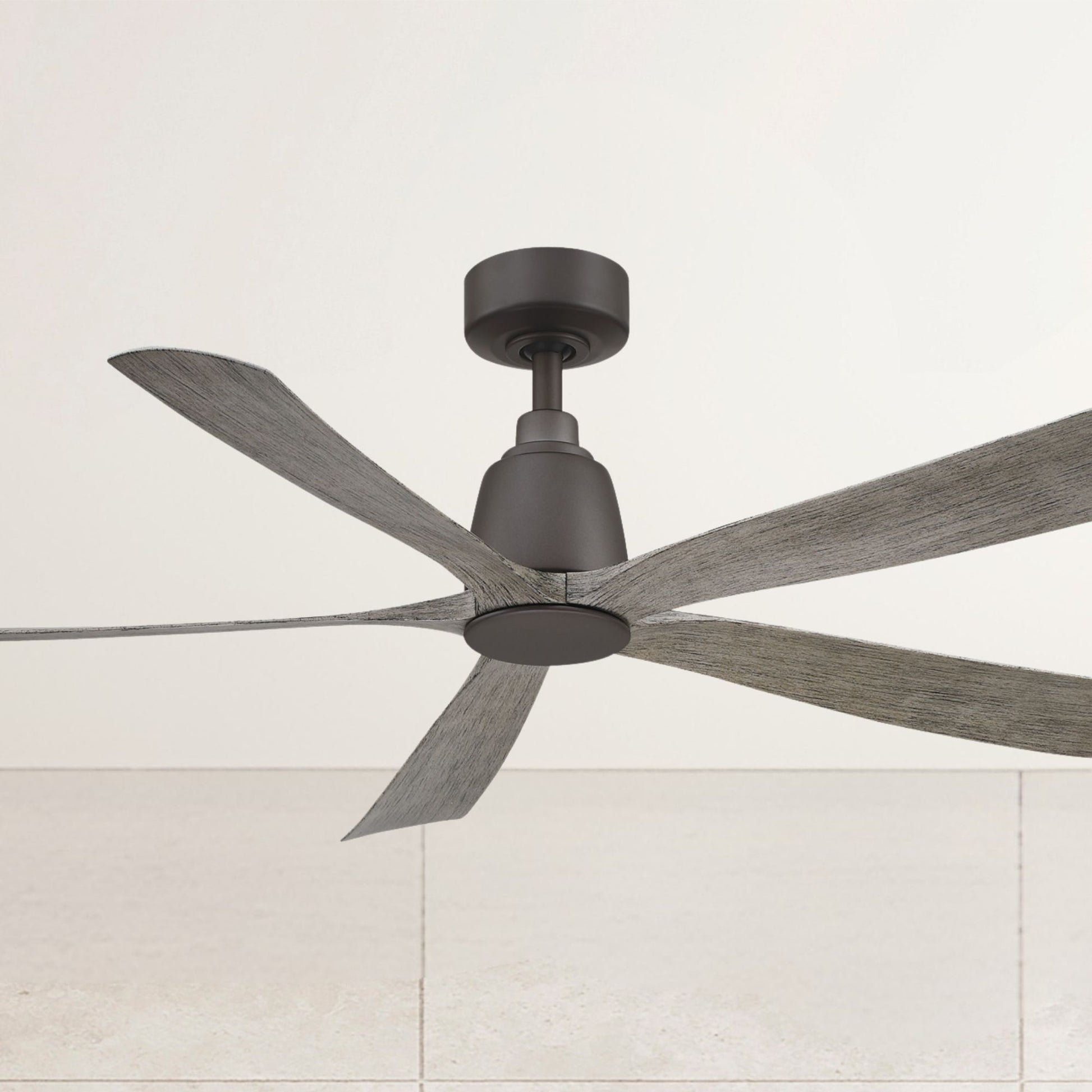

• Matte Greige, FPD5534GR: Matte Greige housing with Weathered Wood blades.

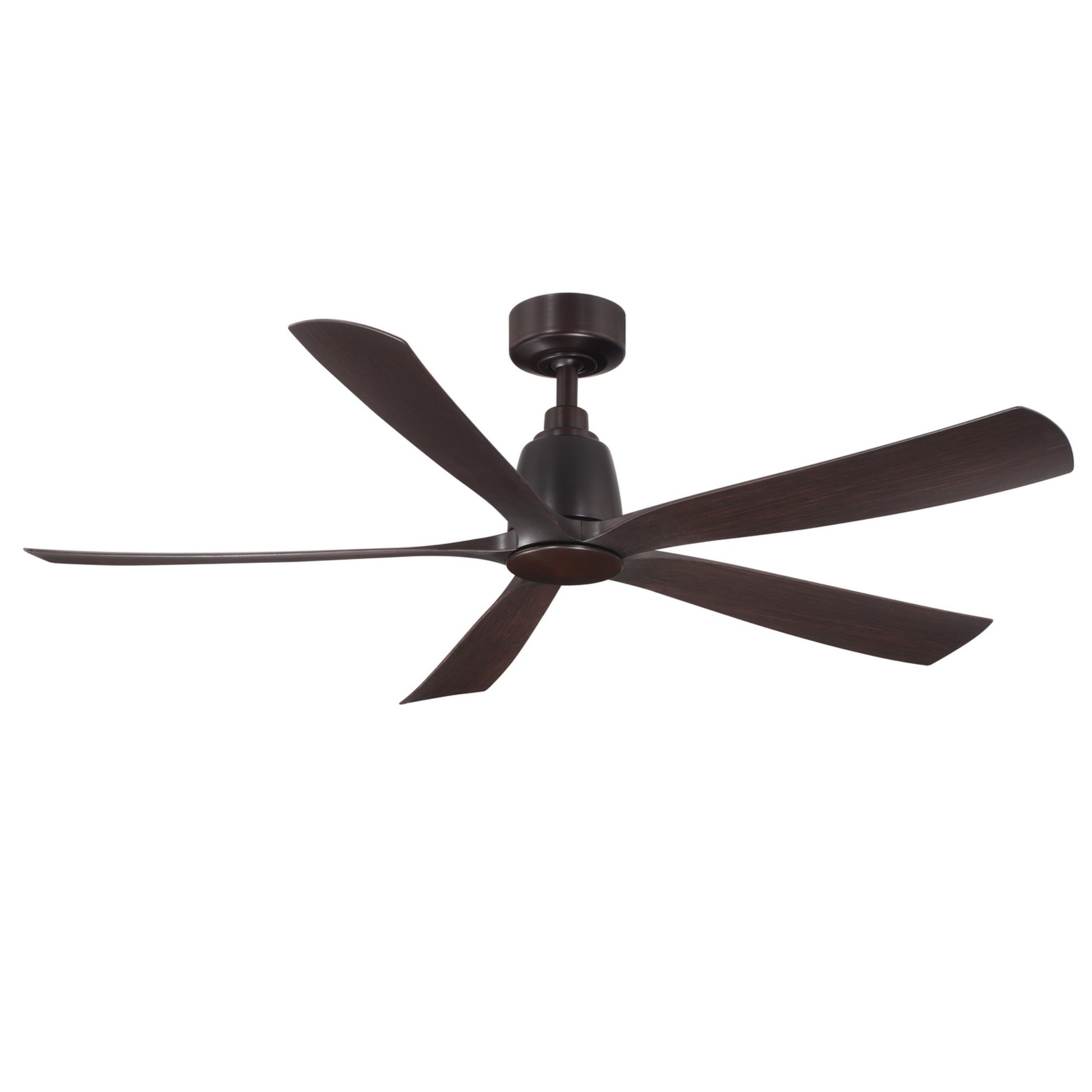

• Dark Bronze, FPD5534DZ: Dark Bronze housing with Dark Walnut blades.

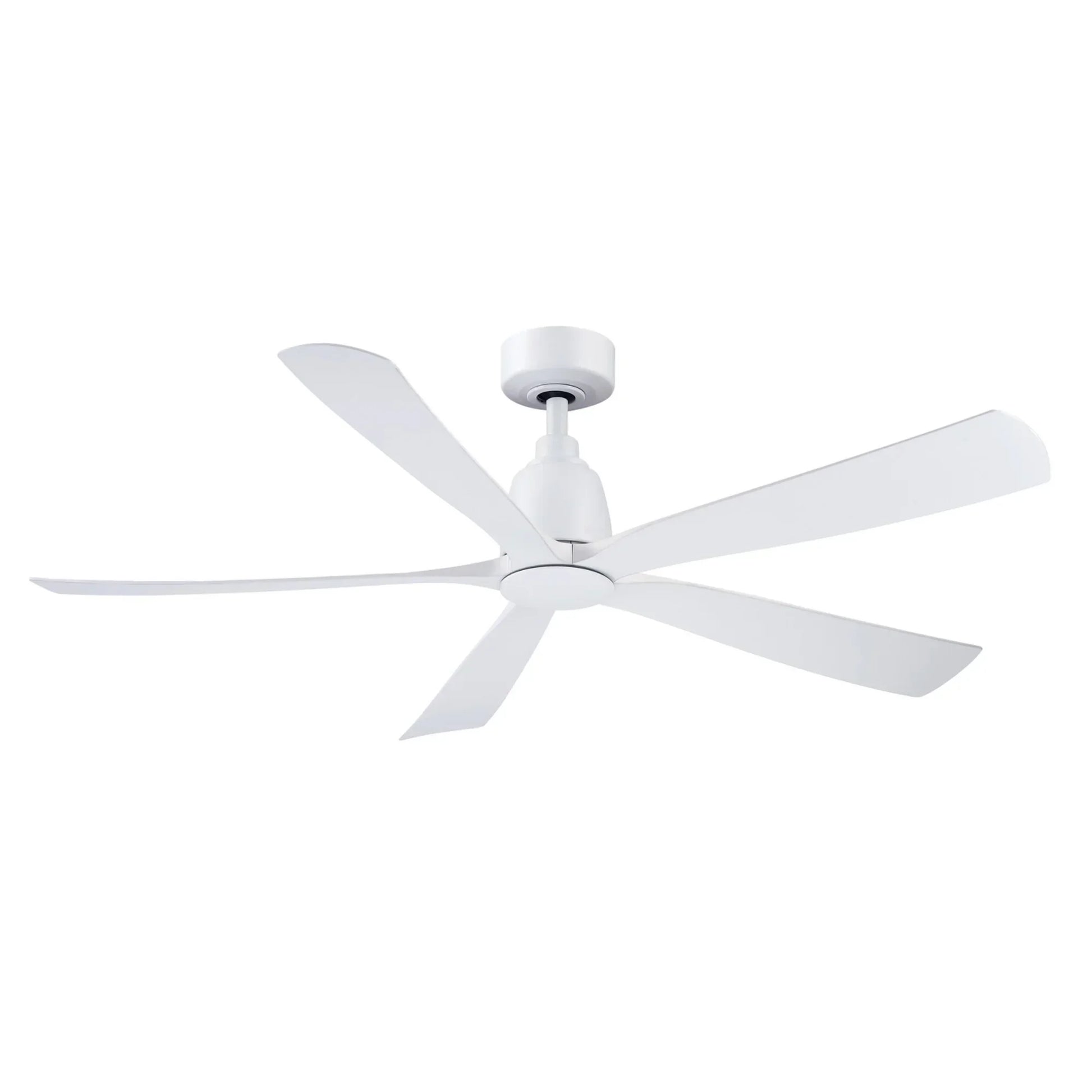

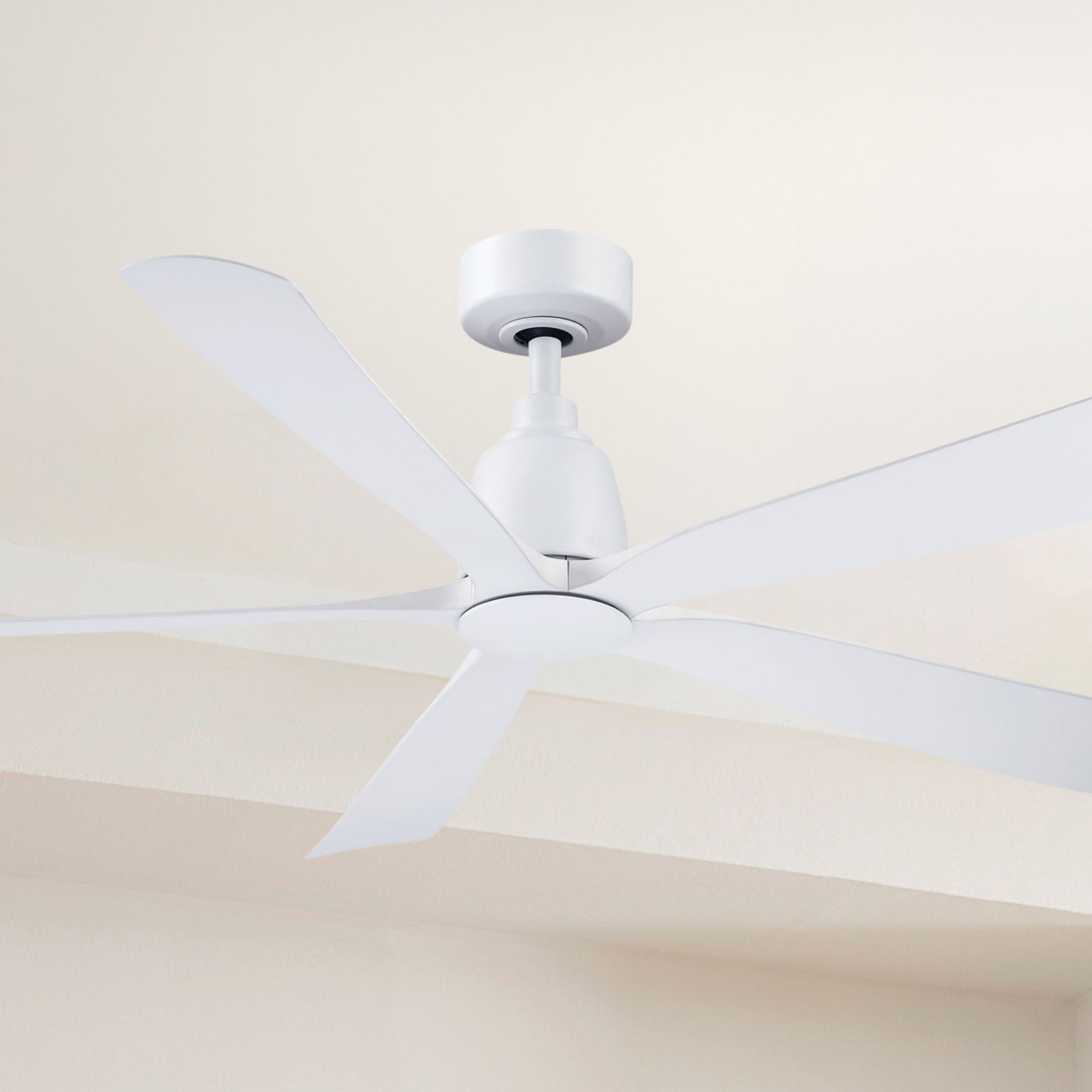

• Matte White, FPD5534MW: Matte White housing and blades.

Light Output & Performance

No light kit is included. Optional opal frosted LK8534 kits provide 1,500 lumens at 16W, CRI 90 and selectable 2700K, 3000K, 3500K, 4000K or 5000K. Optional knurled LK8561 kits and double-walled LK8560 provide 1,600 lumens at 16W, CRI 90 and selectable 3000K, 4000K or 5000K.

• Antique Graphite: LK8534AGP or LK8561AGP.
• Black: LK8534BL or LK8561BL.
• Brushed Nickel: LK8534BN or LK8561BN.
• Brushed Satin Brass housing: LK8534BS or LK8561BS.
• Matte Greige: LK8534GR or LK8561GR.
• Dark Bronze: LK8534DZ or LK8561DZ.
• Matte White: LK8534MW or LK8561MW.

All light kits are sold separately. The fan delivers 6,495 CFM at high speed for rooms up to 400 sq ft.

Electrical & Installation

Operates on 120V AC, 60Hz. Includes a 4.5 in downrod with 1 in diameter. Standard mounting supports slopes up to 27°; optional SCB1-52 sloped ceiling ball supports slopes up to 42°. Optional CCK8534 close-to-ceiling kit is available separately. Covered outdoor installations must remain protected from direct rain.

Suggested Downrod by Ceiling Height

A 4.5 in downrod is included. Select the final length for the installation and maintain at least 7 ft from floor to blades. Additional downrods are sold separately.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

What's Included

• Kute5 52 in fan with five composite blades in the selected finish pairing
• TR305 hand-held remote and WiFi receiver
• 4.5 in downrod with 1 in diameter
• Mounting hardware

No light kit is included.
