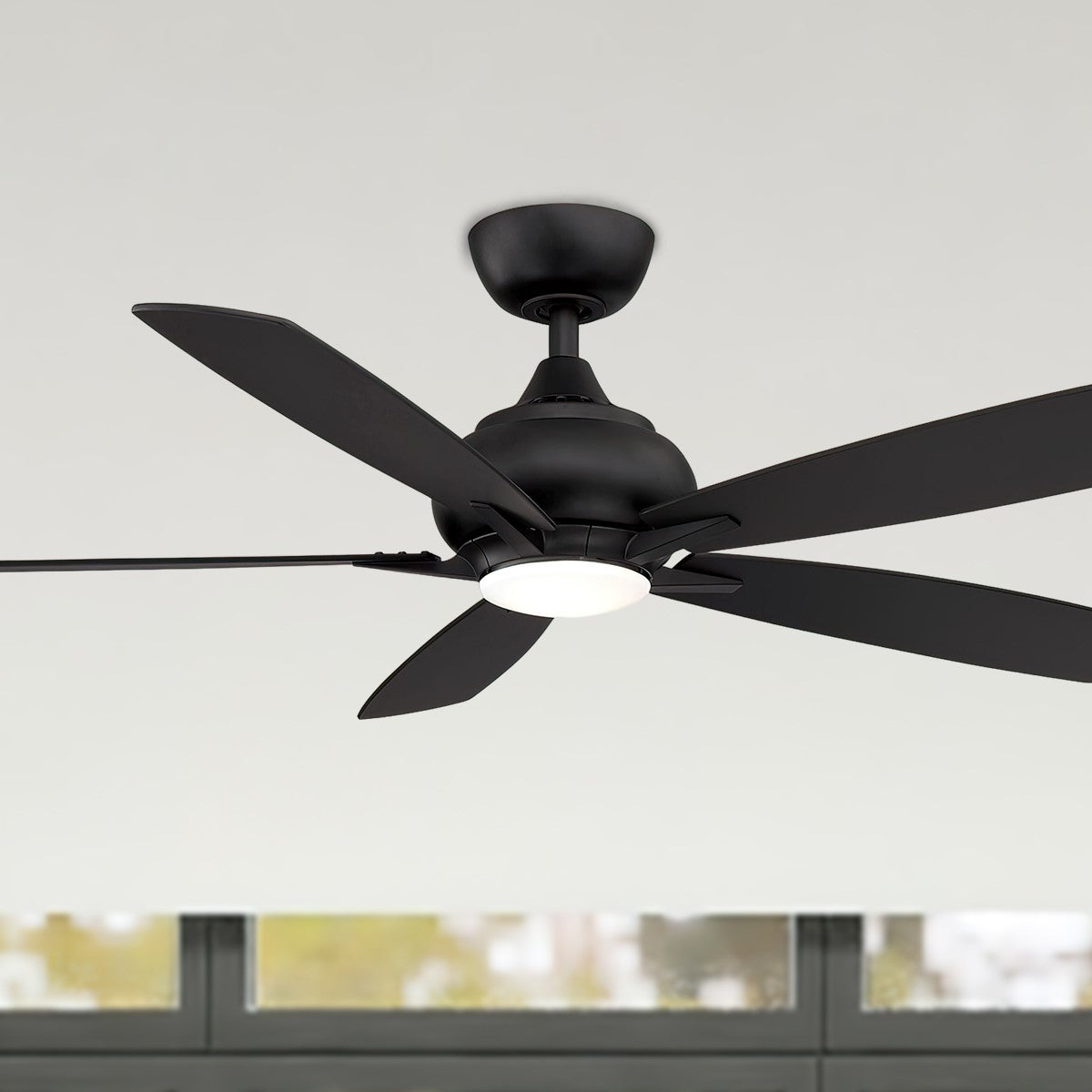

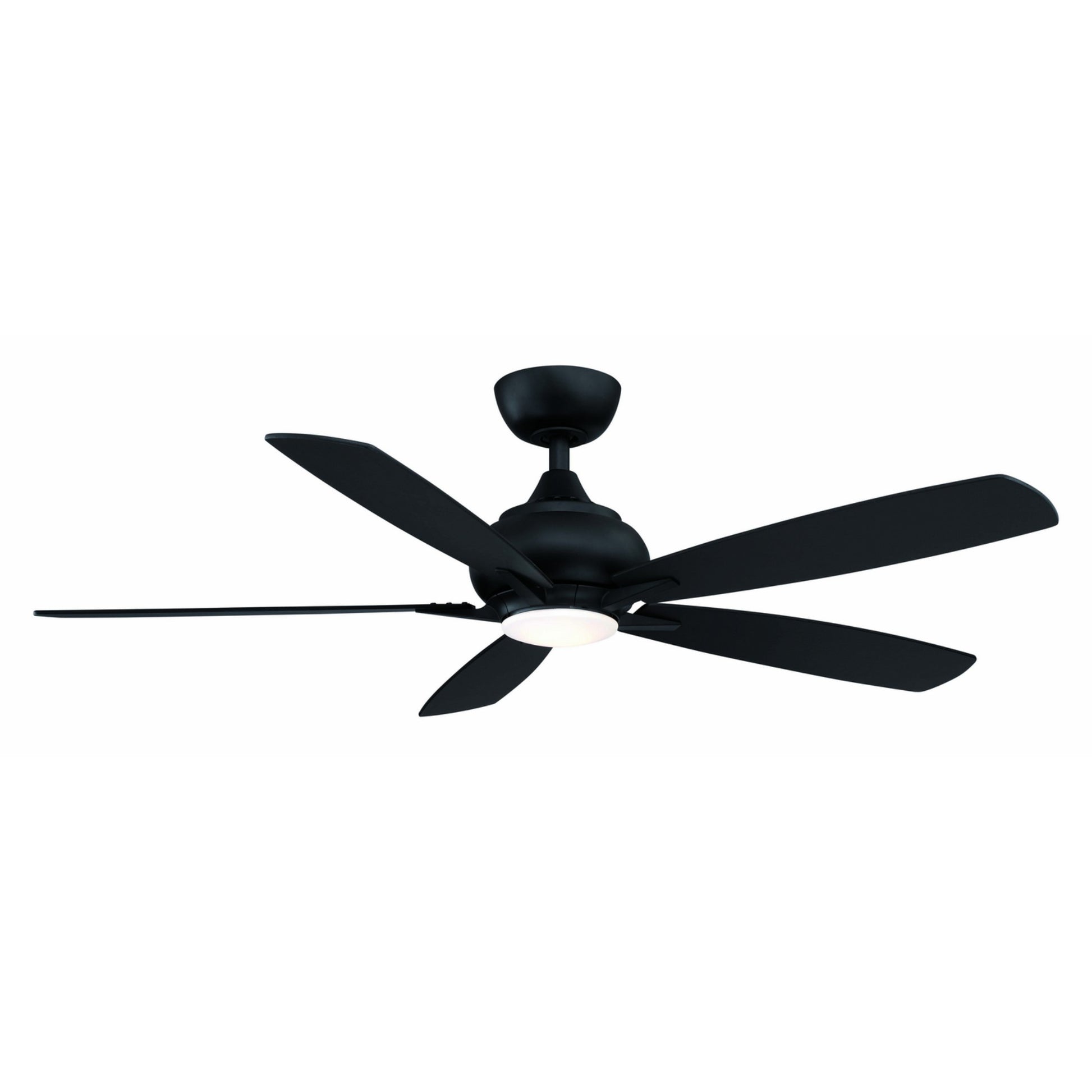

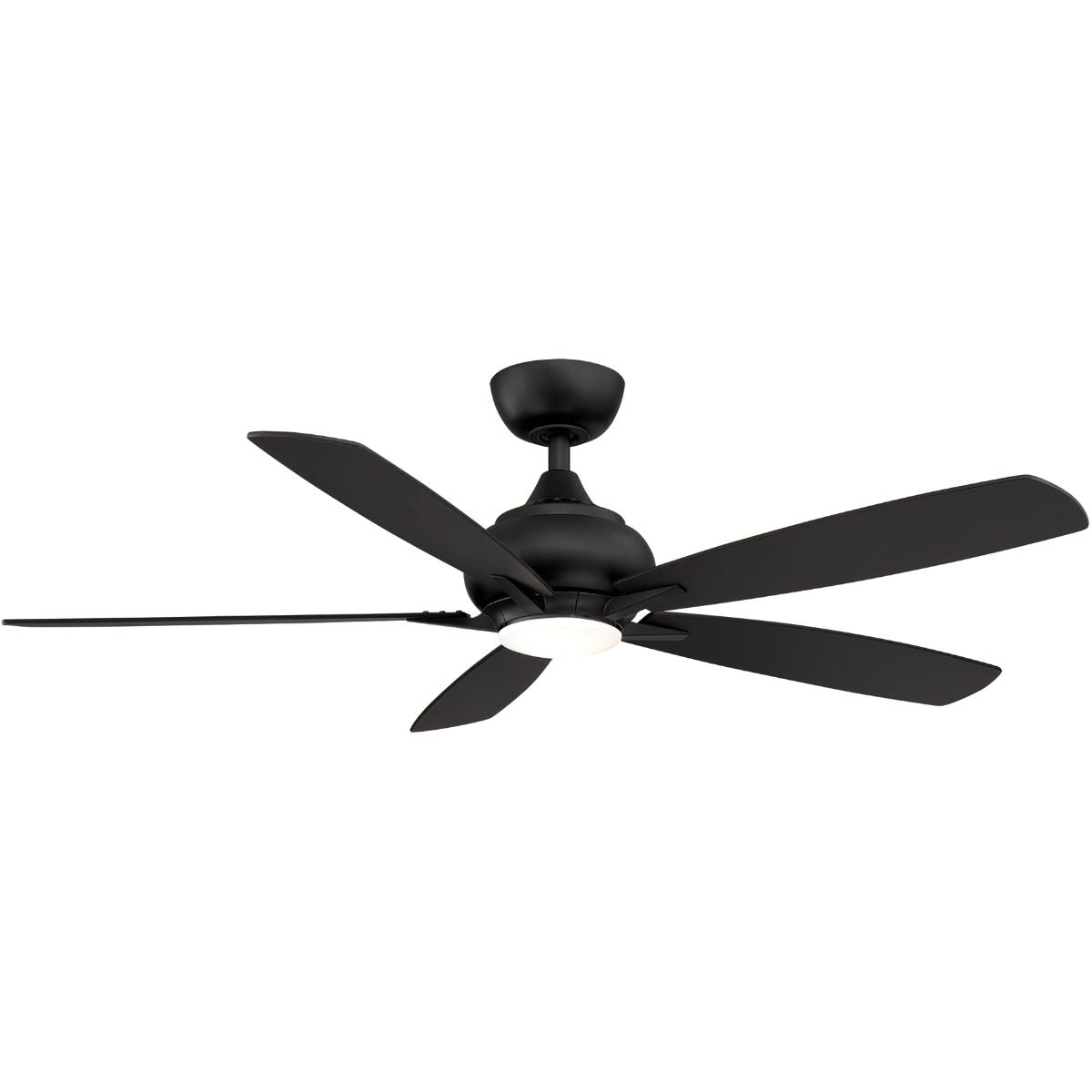

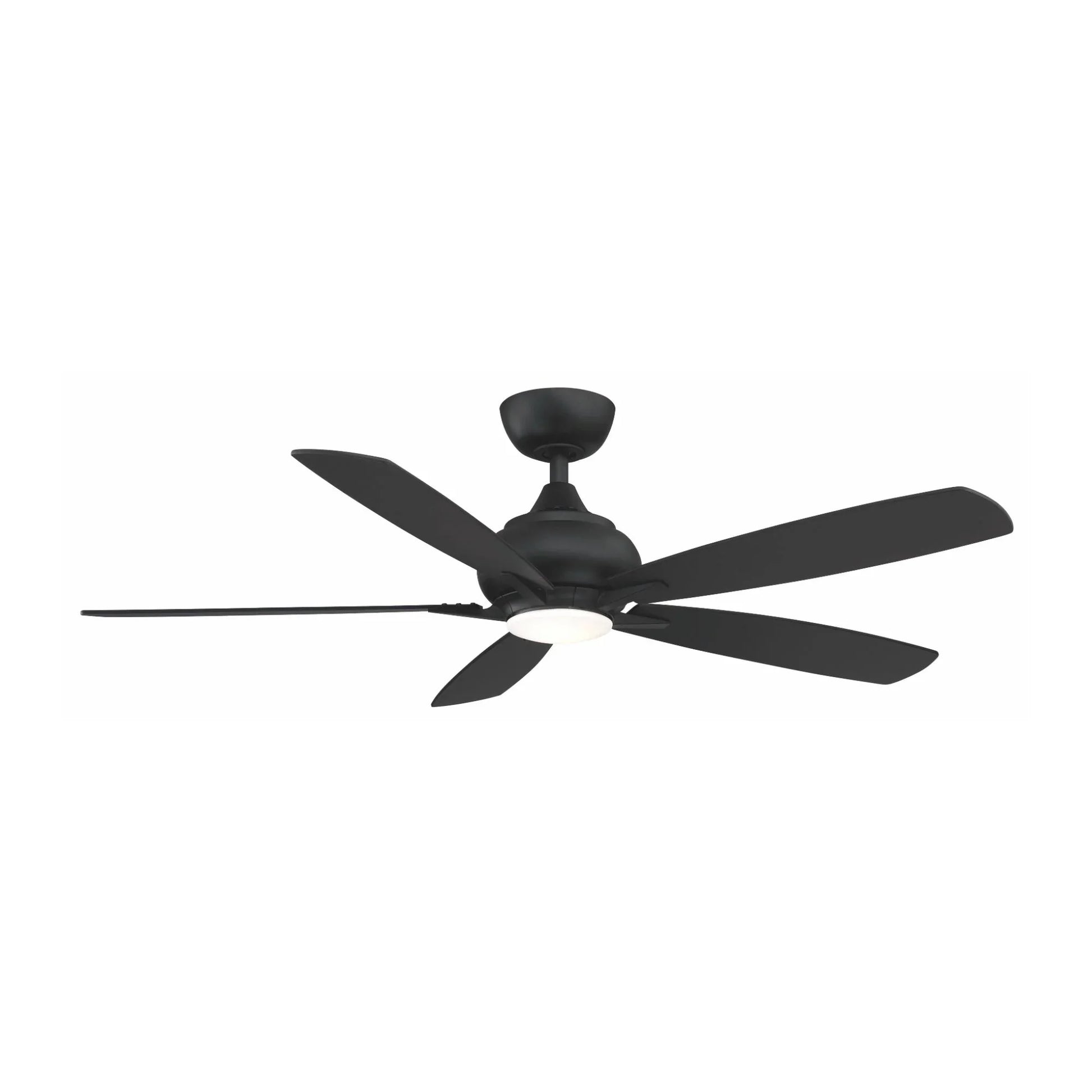

The Fanimation Doren FP8533BL is a sculpted five-blade 52 in downrod ceiling fan in an all-Black finish with matching Black plywood blades and an integrated opal frosted LED light. Powered by a 172×20 AC motor with 3 speeds and a reverse switch on the fan body, it delivers 5,198 CFM at high speed. Rated for dry/indoor locations only. Ships with the TR500 hand-held remote.

• Blade Span: 52 in / 5 plywood blades / 13° pitch
• Motor: AC 172×20, 3 speeds, reverse switch on fan body
• Airflow: 5,198 CFM high / 2,159 CFM low
• Efficiency: 89 CFM/W at high speed
• Wattage: 59W high / 33W med / 13W low
• Light Output: 17W LED included — 1,350 lm initial / 3000K / CRI 90 / opal frosted / dimmable
• Location Rating: Dry rated — cULus listed, indoor use only
• Mount Type: Downrod — 4.5 in downrod included / sloped ceilings up to 27° standard
• Downrod Included: 4.5 in (1 in dia)

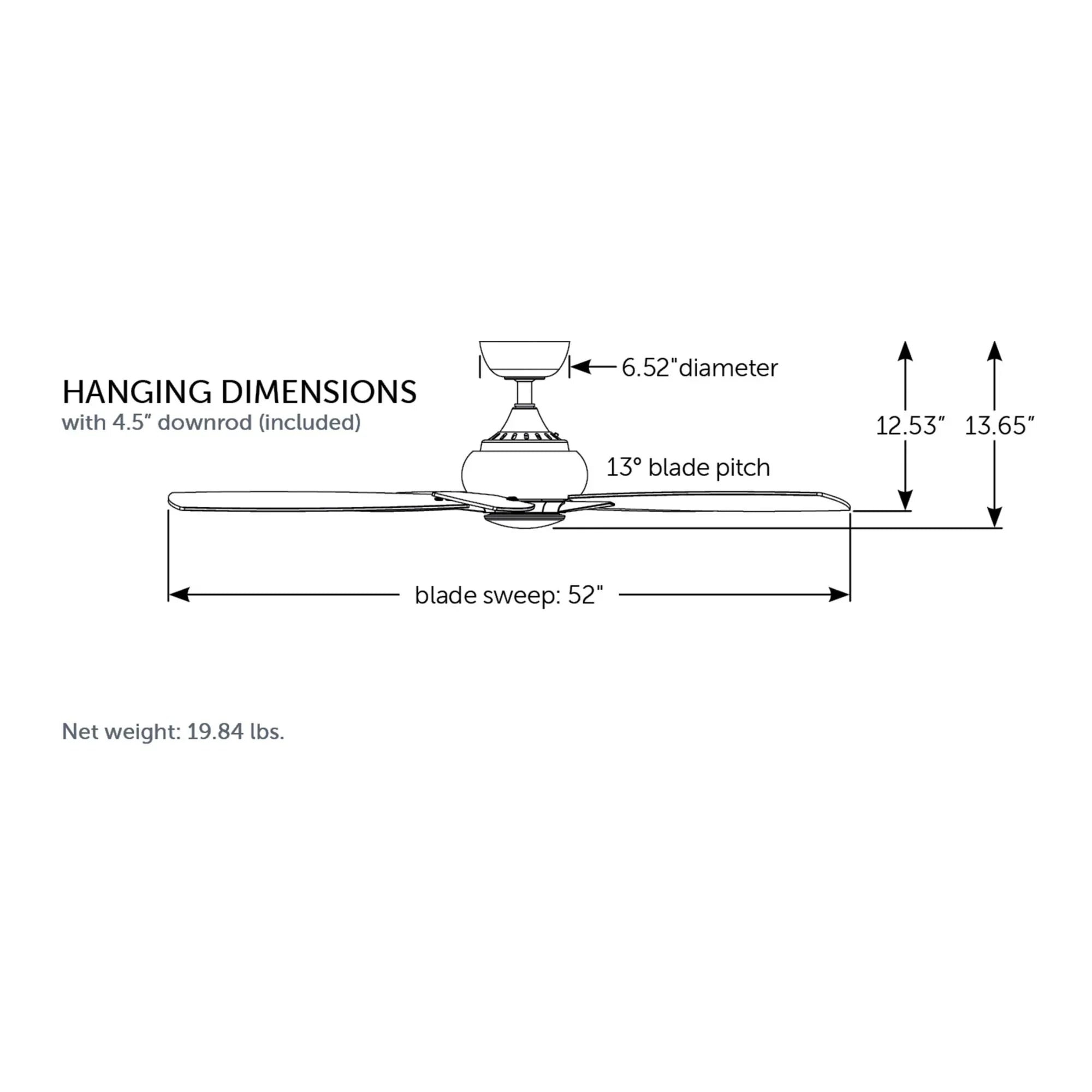

• Overall Dimensions: 52 in dia × 12.53–13.65 in H — 19.84 lbs
• Canopy Dimensions: 6.52 in dia
• Fan Velocity: 439 FPM high / 185 FPM low

Ships with the TR500 hand-held remote — variable fan speeds, infinite light level control, on/off, and reverse. Reverse switch also on fan body. Optional accessories sold separately: WC2WH (3-wire wall control), WR501WH (2-wire wall remote), BTCR9 hand-held Bluetooth remote, BTR9 Bluetooth receiver, and WFR50 fanSync WiFi receiver.

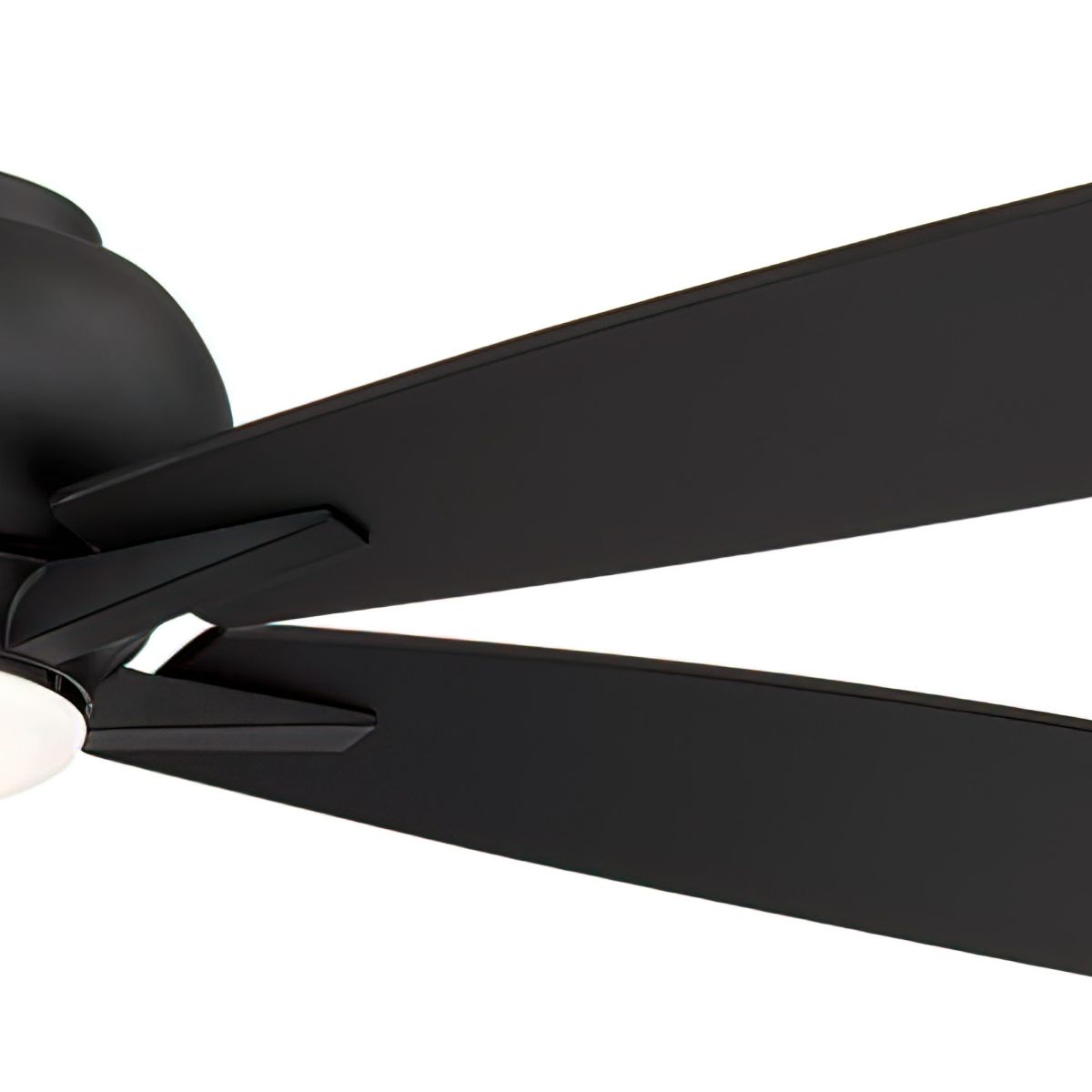

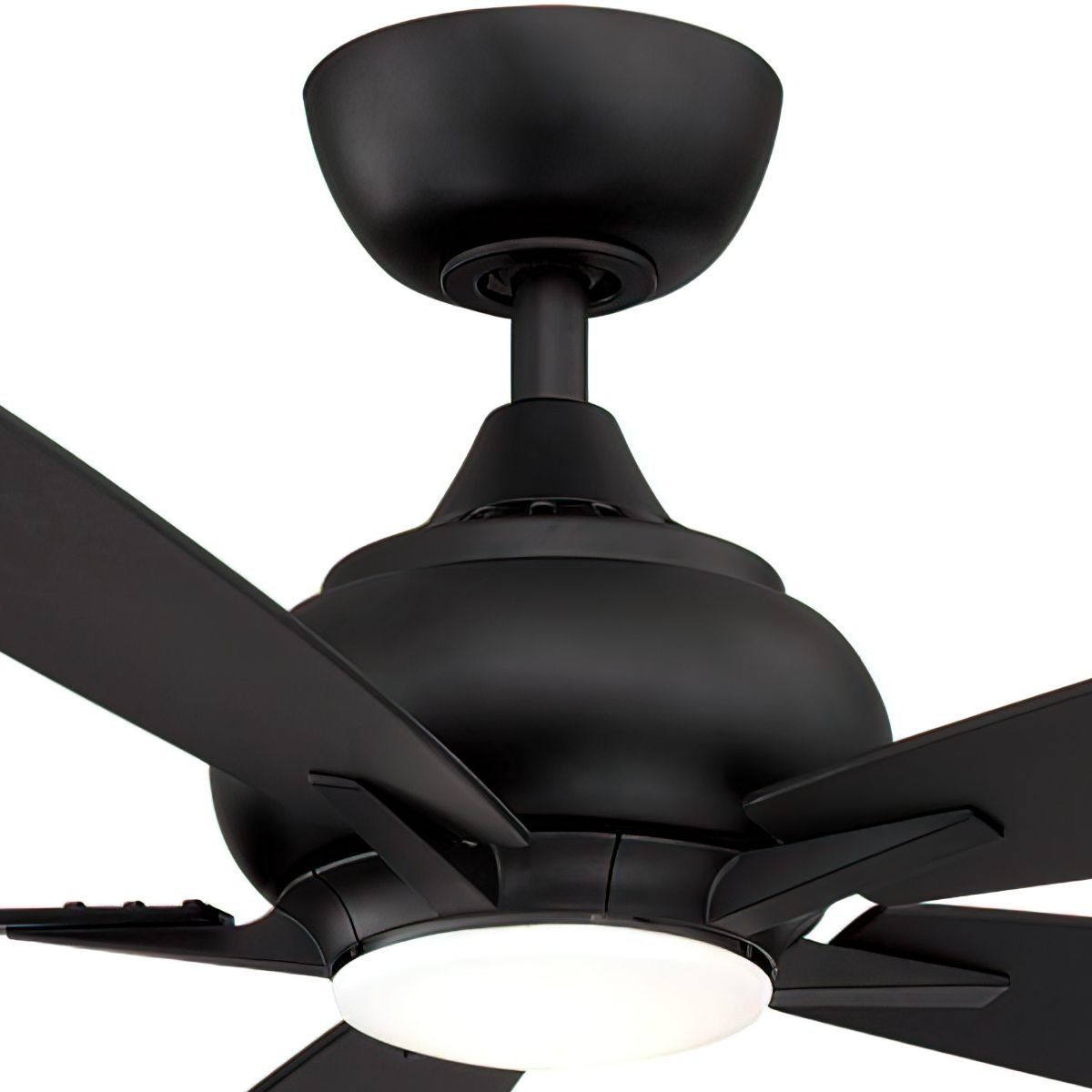

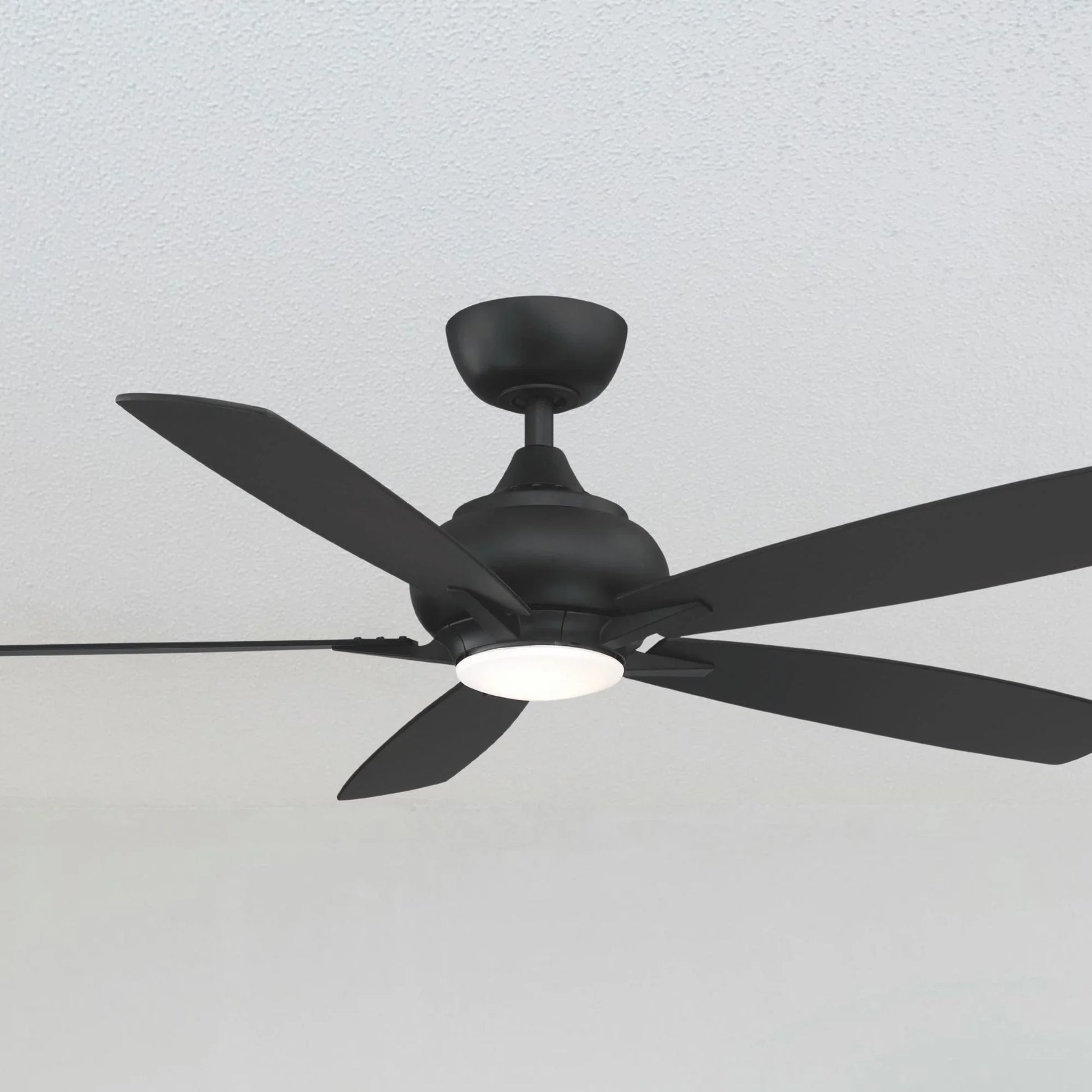

Motor housing and blades in matching Black finish at 13° pitch. Net weight: 19.84 lbs. The Doren’s aerodynamic all-black silhouette makes a bold, graphic statement suited to modern, industrial, and contemporary interiors.

Integrated 17W LED, opal frosted shade — 1,350 lm initial / 3000K / CRI 90. Dimmable via TR500 remote. Energy Guide average: 3,774 CFM at 39W / 97 CFM/W.

120V AC, 60Hz, 15A circuit. Total max draw: 59W fan + 17W light = 76W. Ships with a 4.5 in downrod (1 in dia). Canopy: 6.52 in dia. Sloped ceiling up to 27° standard; up to 42° with optional SCB1-52 sloped ceiling ball kit (sold separately). Optional close-to-ceiling kit CCK8002 also available separately. Fan must be attached to a securely anchored electrical junction box capable of withstanding at least 35 lbs.

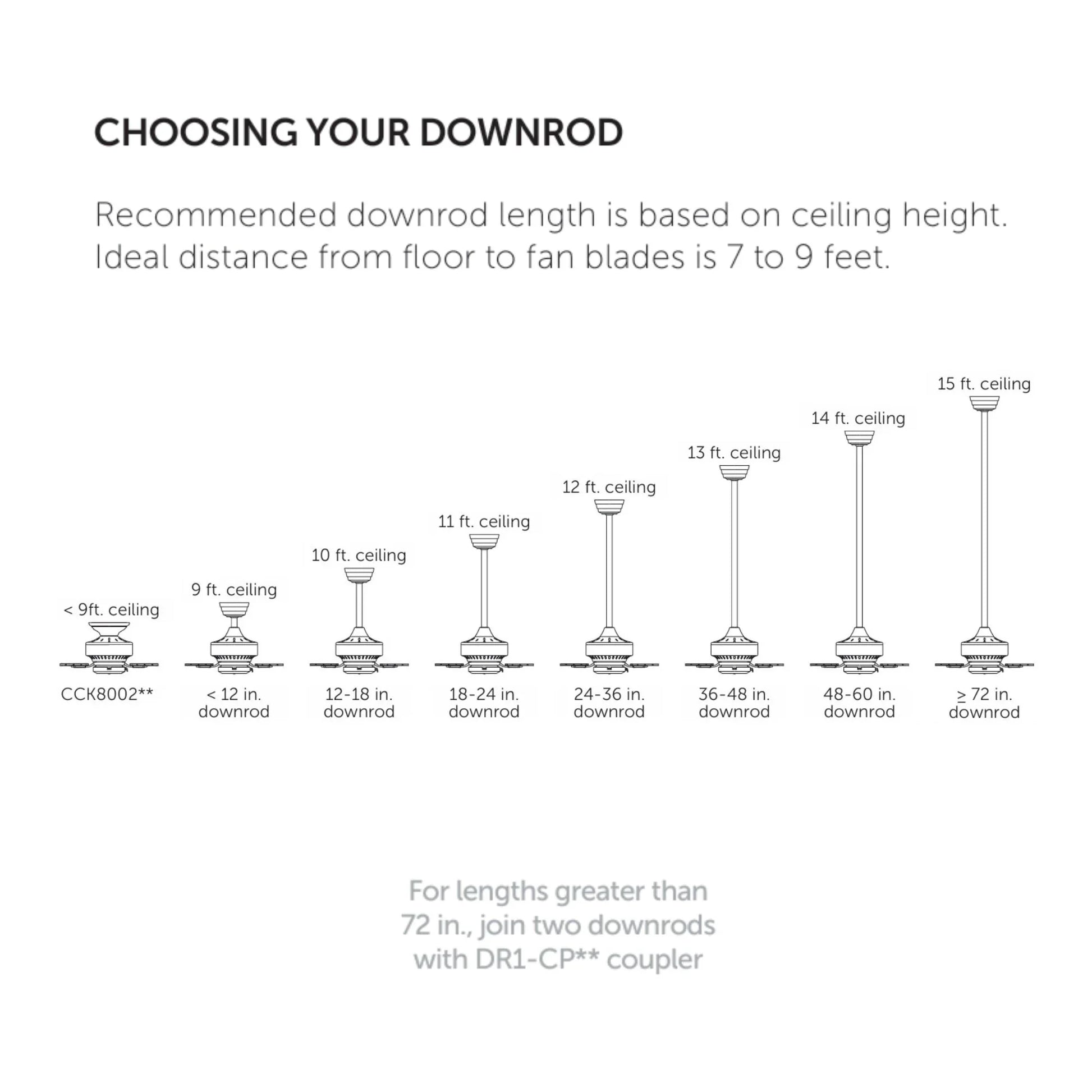

A 4.5 in downrod is included. Additional downrods available in 12, 18, 24, 36, 48, 60, and 72 in lengths (sold separately). For lengths greater than 72 in, join two downrods with a coupler.

• 9 ft ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

Ideal distance from floor to fan blades is 7 to 9 feet.

• FP8533BL ceiling fan (Black body + 5 Black plywood blades)
• Integrated 17W LED light kit (opal frosted shade)
• TR500 hand-held remote
• 4.5 in downrod
• Mounting hardware
