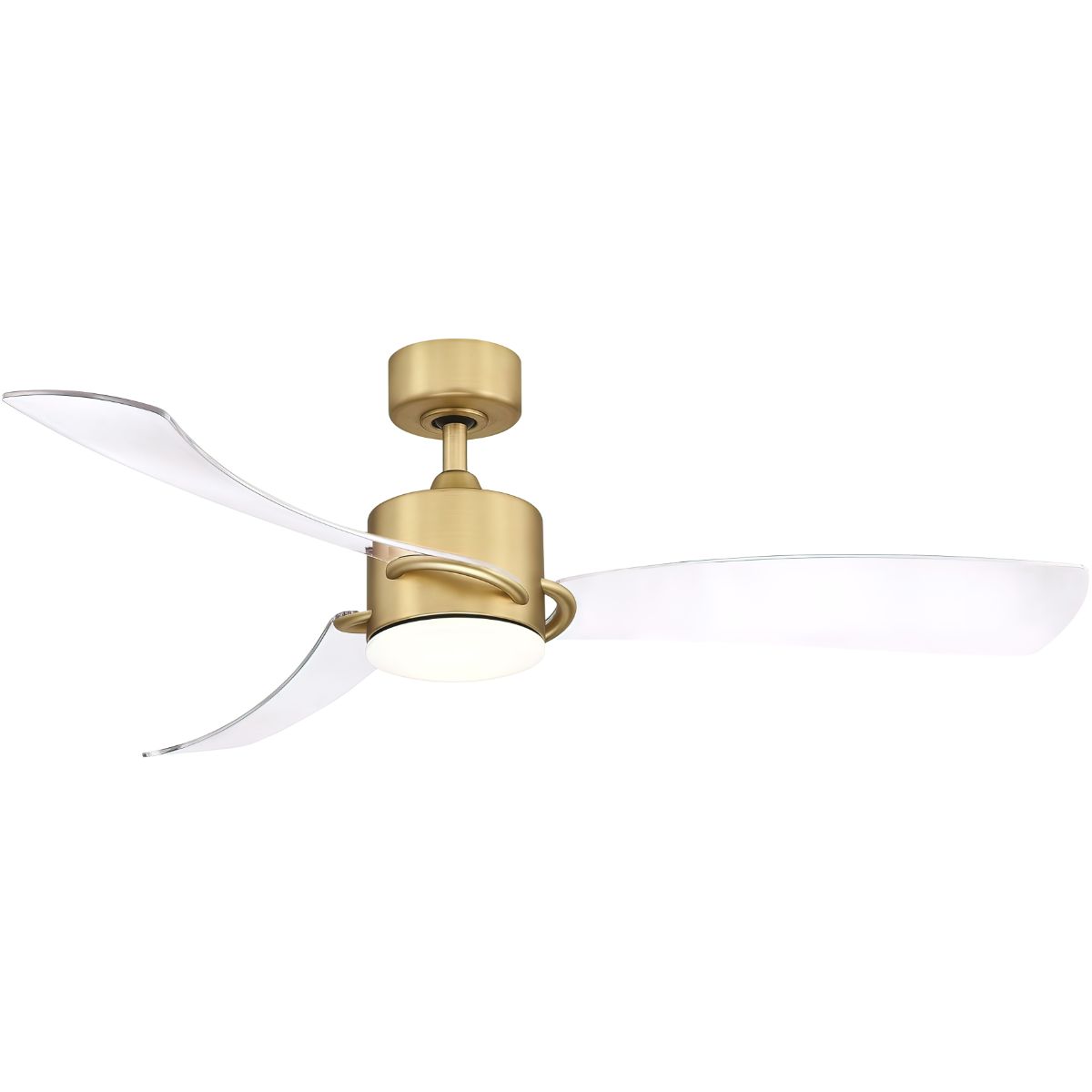

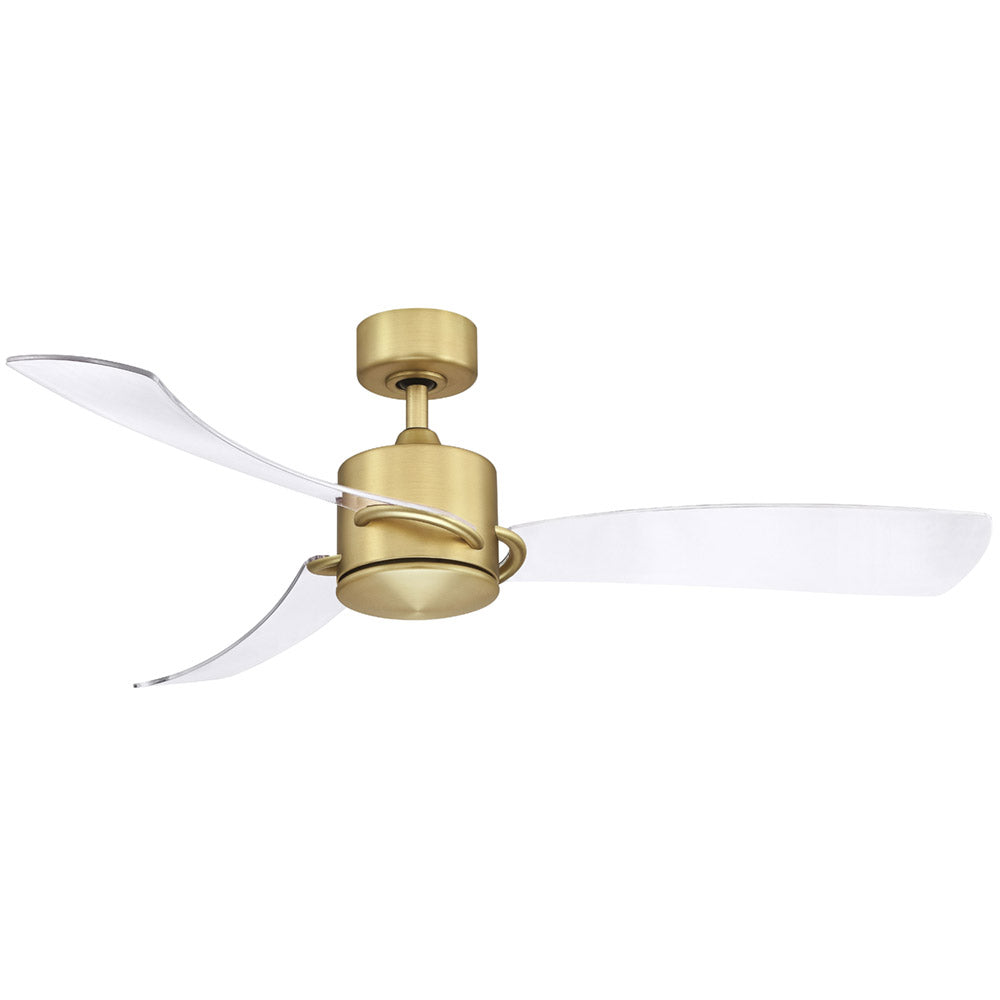

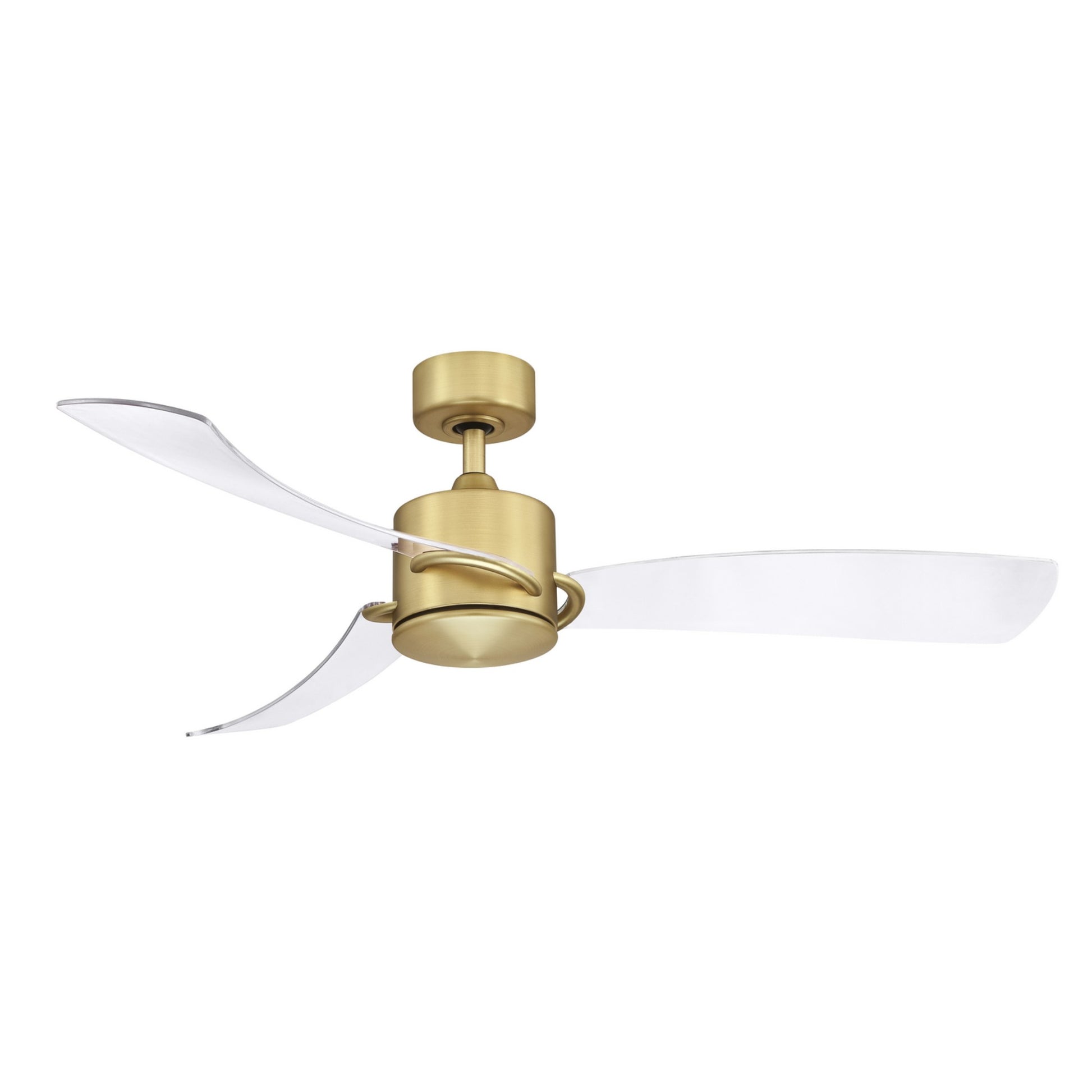

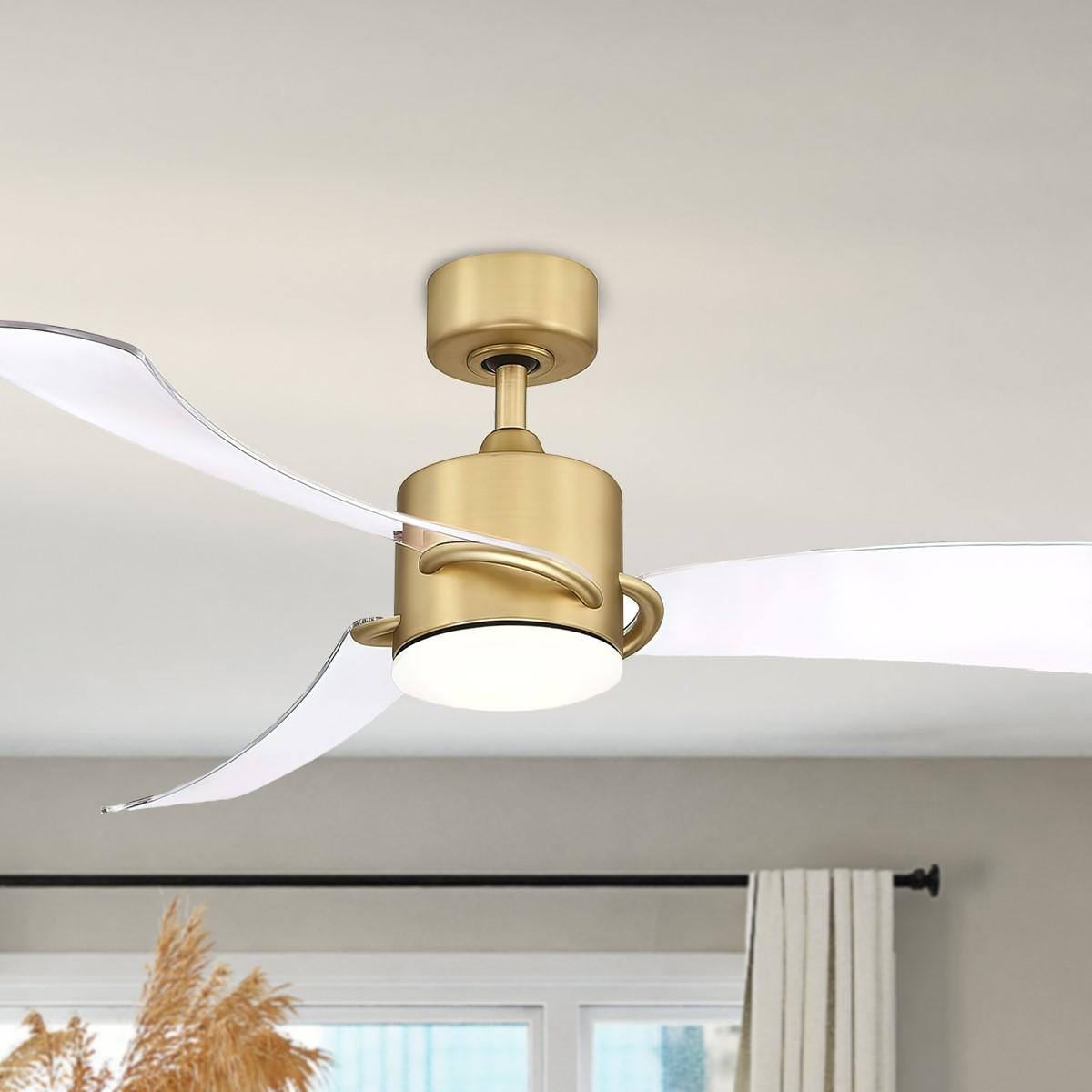

The Fanimation SculptAire FP8511BS is a three-blade 52 in downrod ceiling fan in Brushed Satin Brass with clear composite blades and an integrated LED light kit. Powered by a reliable AC induction 153×20mm motor with 3 speeds via the included hand-held remote, it delivers 4,663 CFM at high speed. Dry rated for indoor use. Includes a 4.5 in downrod.

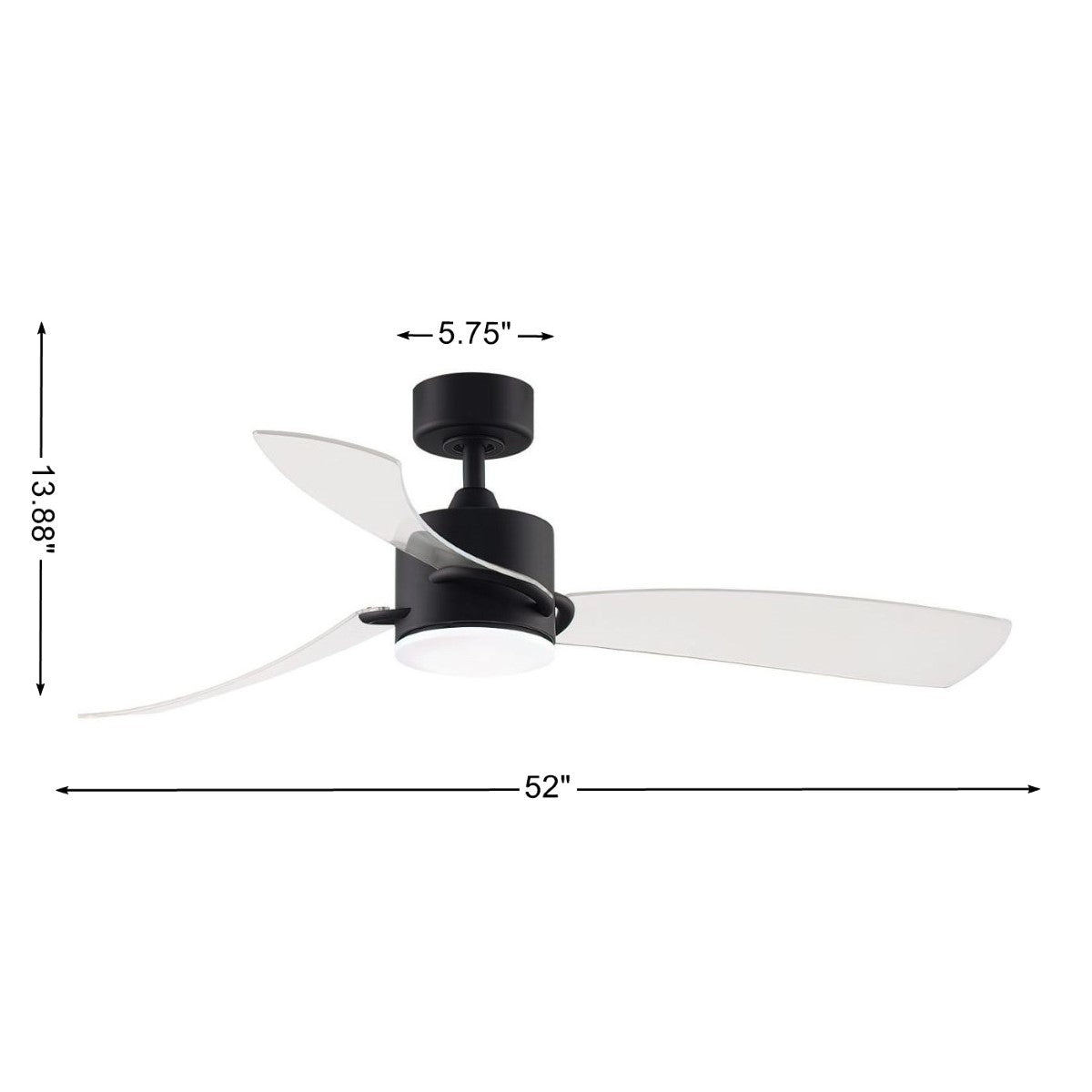

• Blade Span: 52 in / 3 clear composite blades / 13° pitch
• Motor: AC induction 153×20mm / 3 speeds / reverse switch on motor
• Airflow: 4,663 CFM at high / 3,276 CFM at medium / 1,980 CFM at low
• Efficiency: 80 CFM/W at high speed
• Wattage: 58W at high / 18W LED (see Light Output below)
• Light Kit: Integrated LED — 1,500 lm / 3000K / CRI 90 / Opal Frosted lens / dimmable
• Location Rating: Dry rated — indoor use only
• Mount Type: Downrod — 4.5 in downrod included / up to 27° slope standard
• Weight: 18.11 lbs
• Certifications: cUL listed

The FP8511BS includes the TR500 hand-held remote control — variable fan speeds, infinite light level adjustment, and off button. No pull chain. Reverse switch located on the motor body. Optional controls available separately: wall control WC2WH, remote WR501WH, FanSync WiFi receiver WFR50, and Bluetooth remotes BTCR9 / CRL4WH with receiver BTR9.

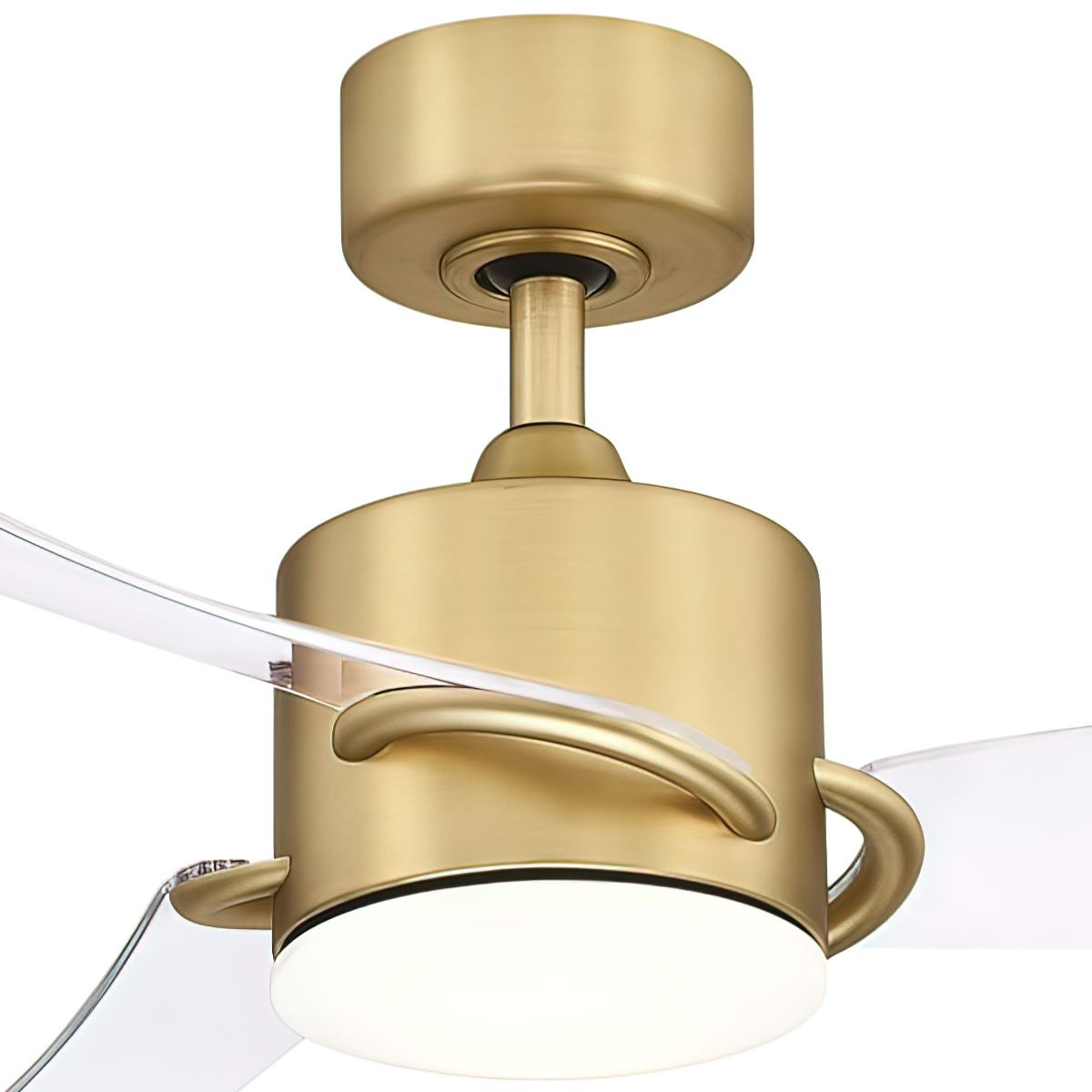

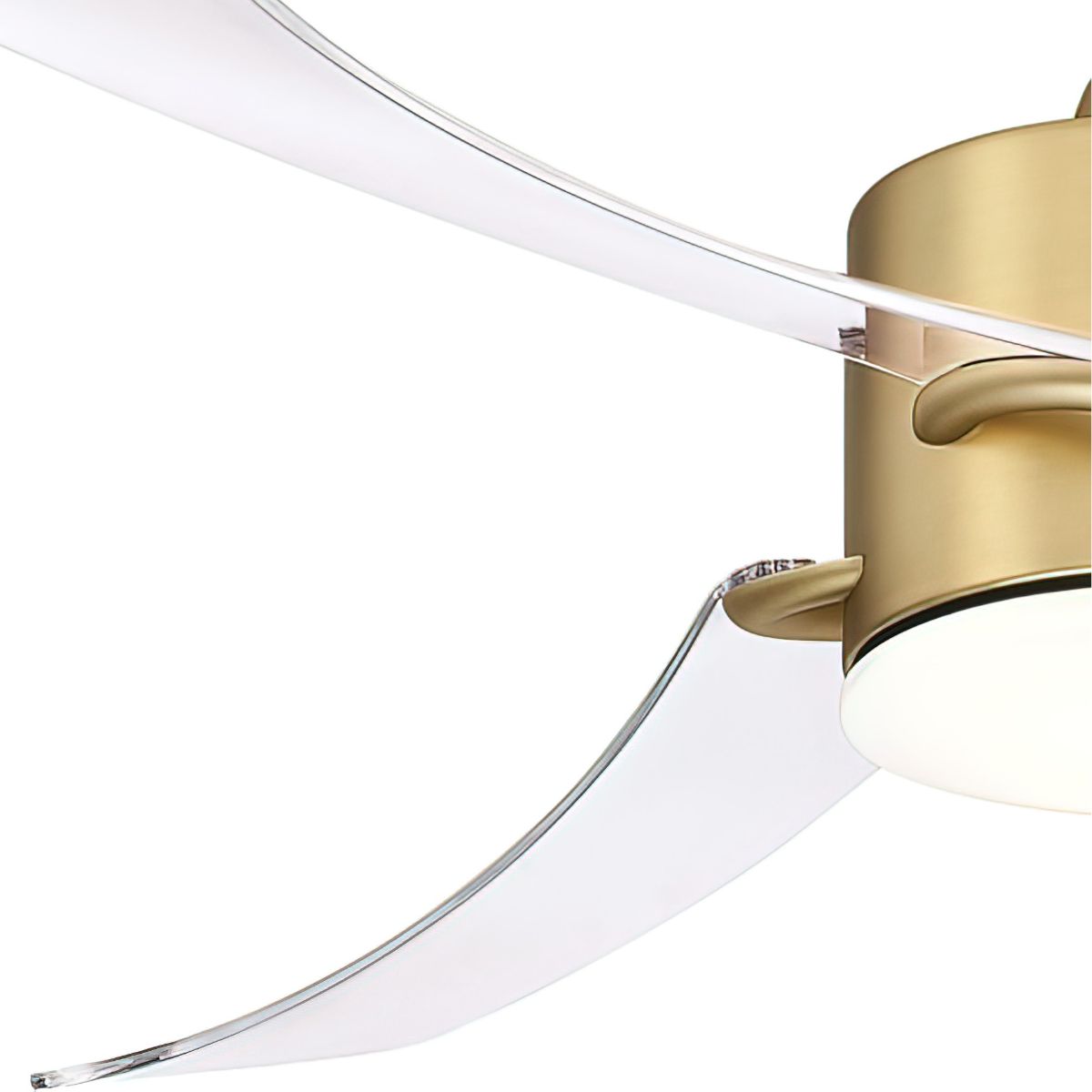

Motor housing in Brushed Satin Brass with three clear composite blades at 13° pitch. Opal Frosted glass lens. Net weight: 18.11 lbs. The SculptAire FP8511BS pairs the warmth of Brushed Satin Brass with sculptural translucent clear blades — a refined, on-trend combination for transitional and contemporary interiors.

Integrated LED light kit — 1,500 lm initial / 3000K warm white / CRI 90 / Opal Frosted lens / dimmable / 1 integrated LED module (18W). The FP8511BS delivers 4,663 CFM at high speed (80 CFM/W, 58W) — ideal for rooms up to approximately 400 sq ft.

120V AC, 60Hz. Fan draw: 58W at high / LED: 18W. Ships with a 4.5 in downrod. Standard slope tolerance: 27°. For slopes 27°–42°, the optional sloped ceiling ball kit SCB1-52 is available separately. A close-to-ceiling kit is also available separately. Fan must be attached to a securely anchored electrical junction box rated for at least 35 lbs. Requires a grounded 120V AC, 60Hz, 15A circuit.

A 4.5 in downrod is included. Additional downrods available in 12, 18, 24, 36, 48, 60, and 72 in lengths. Ideal distance from floor to fan blades is 7 to 9 feet.

• 9 ft ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

• FP8511BS ceiling fan with integrated LED light (Brushed Satin Brass body + 3 clear composite blades)
• Opal Frosted glass lens
• TR500 hand-held remote control
• 4.5 in downrod
• Mounting hardware
