Fanimation SculptAire FP8511 52 in LED Ceiling Fan

SculptAire pairs translucent clear blades with a sculptural housing for a light, contemporary silhouette. Its 153 × 20 mm AC induction motor delivers 4,663 CFM high-speed airflow across a 52 in sweep. An included 18W warm-white LED and TR500 remote complete the fan for spaces up to approximately 400 sq ft. Outdoor suitability depends on the selected finish.

Key Features

• Blade design: Three clear composite blades with a 52 in sweep and 13° pitch.
• Motor: 153 × 20 mm AC induction motor with three speeds.
• High-speed airflow: 4,663 CFM at 58W and 80 CFM/W.
• Medium and low airflow: 3,276 CFM medium and 1,980 CFM low.
• Lighting: Included integrated 18W LED with 1,500 initial lumens, fixed 3000K and CRI 90.
• Location: Black and Matte White are damp rated; Brushed Satin Brass and Chrome are dry rated for indoor use only.
• Control: TR500 hand-held remote included.
• Mounting: Downrod mount with a 4.5 in downrod included.

Smart & Control Features

The included TR500 remote controls fan speeds and light on/off without a pull chain. Optional controls include the WC2WH wall control and WR501WH remote. WiFi is not built in; add the optional WFR50 fanSync WiFi receiver for WiFi connectivity. Optional Bluetooth controls are BTCR9 or CRL4WH with the BTR9 receiver. These accessories are sold separately.

Construction & Design

Clear composite blades preserve SculptAire's airy profile across the housing finishes. The fan combines composite, glass and steel construction with an opal frosted lens. Overall height is 13.88 in; the canopy measures 5.75 in diameter × 2.57 in high. Net weight is 18.11 lb.

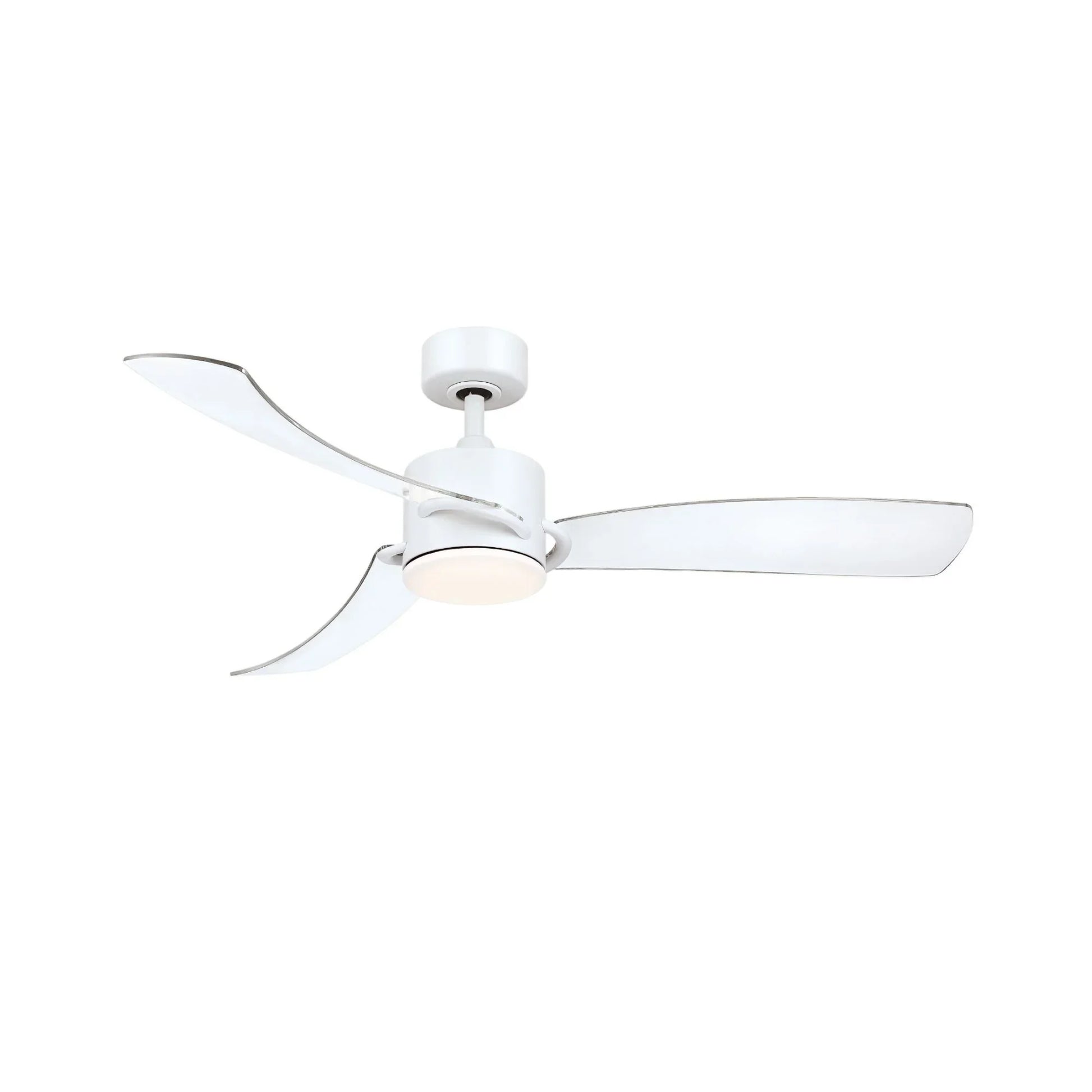

• Matte White, FP8511MW: Matte White housing with clear blades; damp rated for indoor and covered outdoor use.

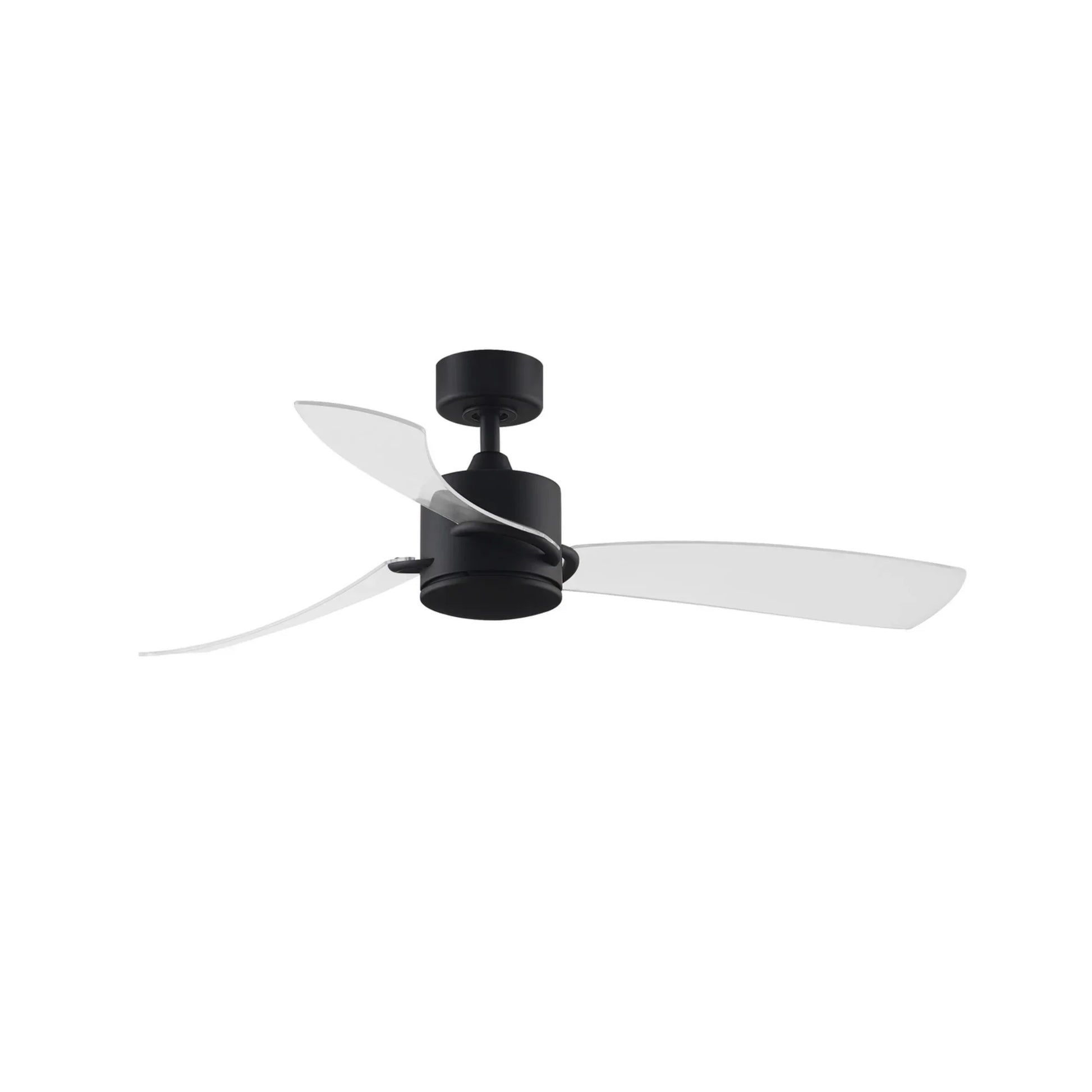

• Black, FP8511BL: Black housing with clear blades; damp rated for indoor and covered outdoor use.

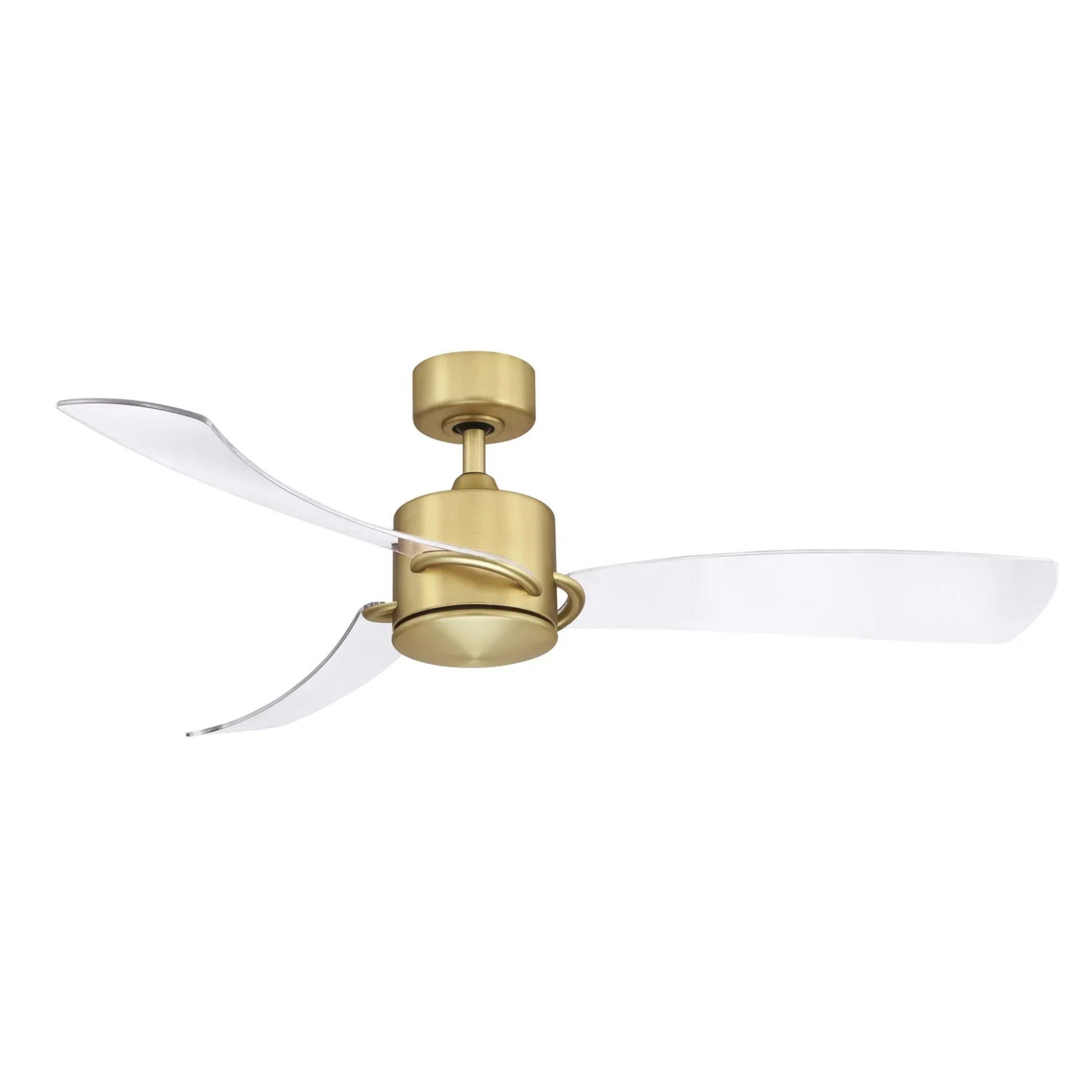

• Brushed Brass option, FP8511BS: Brushed Satin Brass housing with clear blades; dry rated for indoor use only.

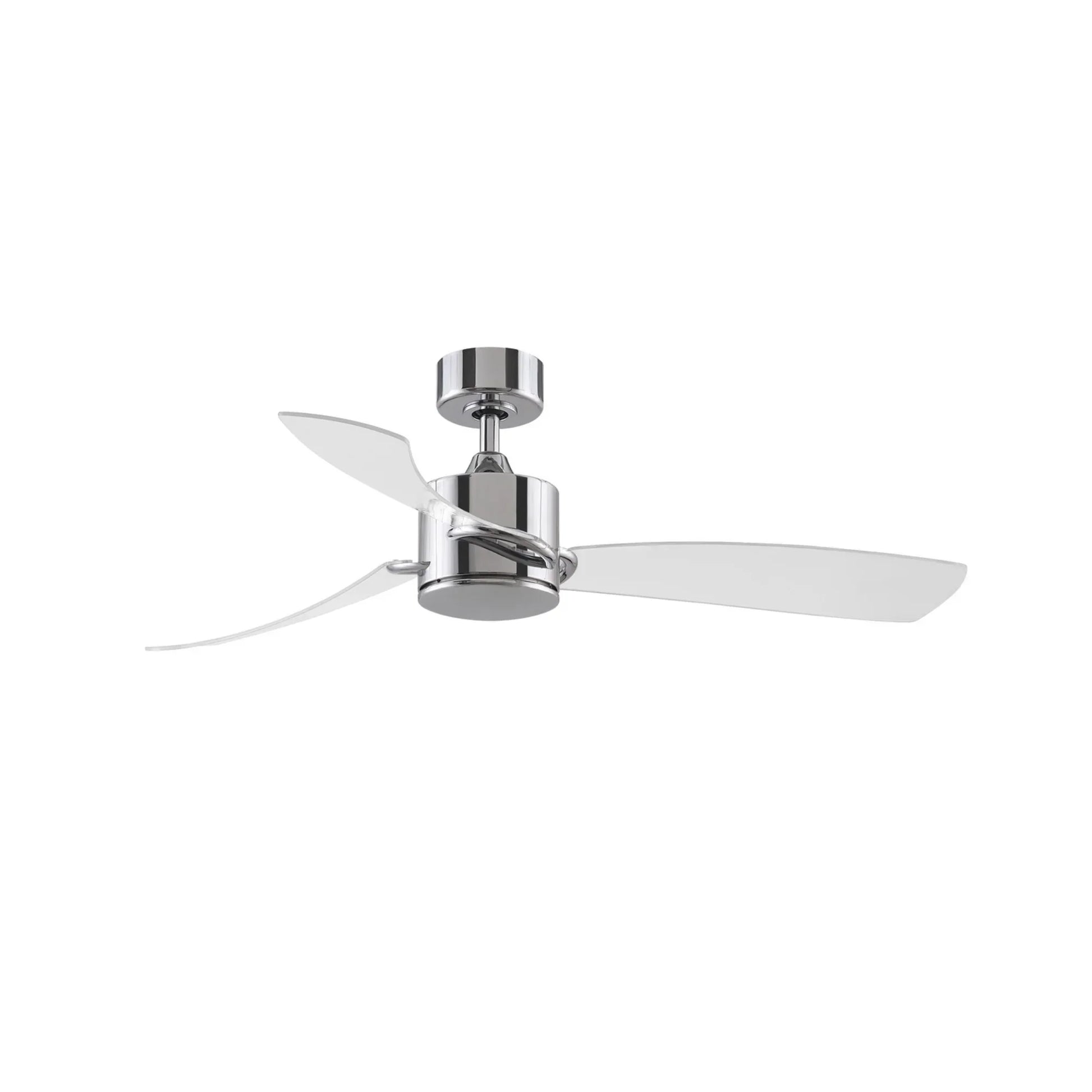

• Chrome, FP8511CH: Chrome housing with clear blades; dry rated for indoor use only.

Backed by a limited lifetime warranty.

Light Output & Performance

The included integrated 18W LED provides 1,500 initial lumens, fixed 3000K warm-white light and CRI 90 through an opal frosted lens. A cap is included for use without the light. Fan output is 4,663 CFM high, 3,276 CFM medium and 1,980 CFM low. High-speed efficiency is 80 CFM/W.

Electrical & Installation

Operates on 120V AC, 60Hz. Fan draw is 58W at high speed, separate from the 18W LED. A 4.5 in downrod is included. Standard mounting supports slopes up to 27°; slopes above 27° and up to 42° require the optional SCB1-52 slope ceiling ball kit. Use a securely anchored fan-rated junction box rated for at least 35 lb. Black and Matte White may be used in covered outdoor areas protected from direct rain; Brushed Satin Brass and Chrome must remain in dry indoor spaces.

Suggested Downrod by Ceiling Height

A 4.5 in downrod is included. Longer downrods are sold separately. Select the final length for the mounting angle and completed fan dimensions, maintaining at least 7 ft from floor to blades.

• 9 ft ceiling → less than 12 in downrod; 4.5 in included
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

What's Included

• SculptAire 52 in ceiling fan in the selected housing finish
• Three clear composite blades
• Integrated 18W LED light kit with opal frosted lens
• Cap for use without the light
• TR500 hand-held remote
• 4.5 in downrod and mounting hardware
