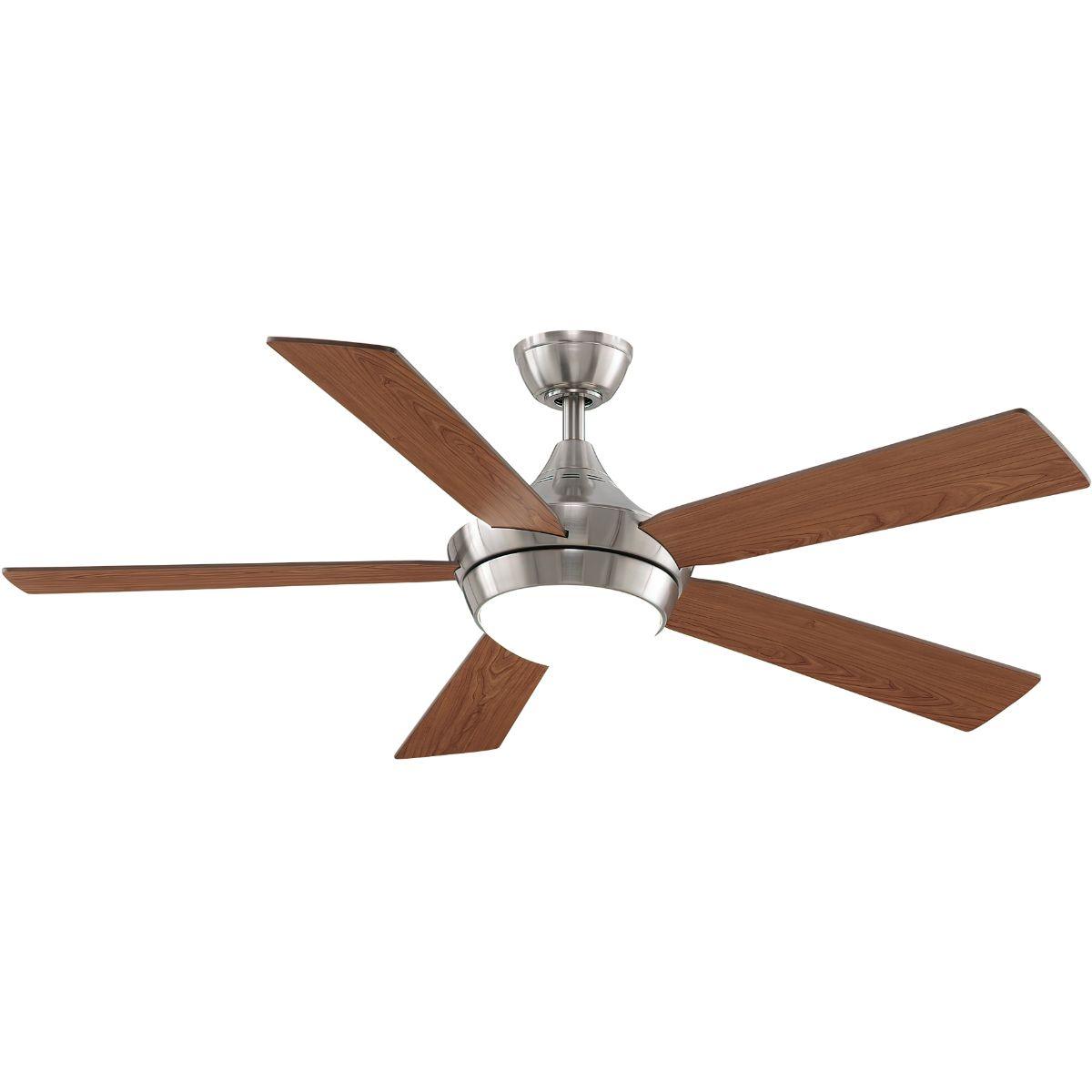

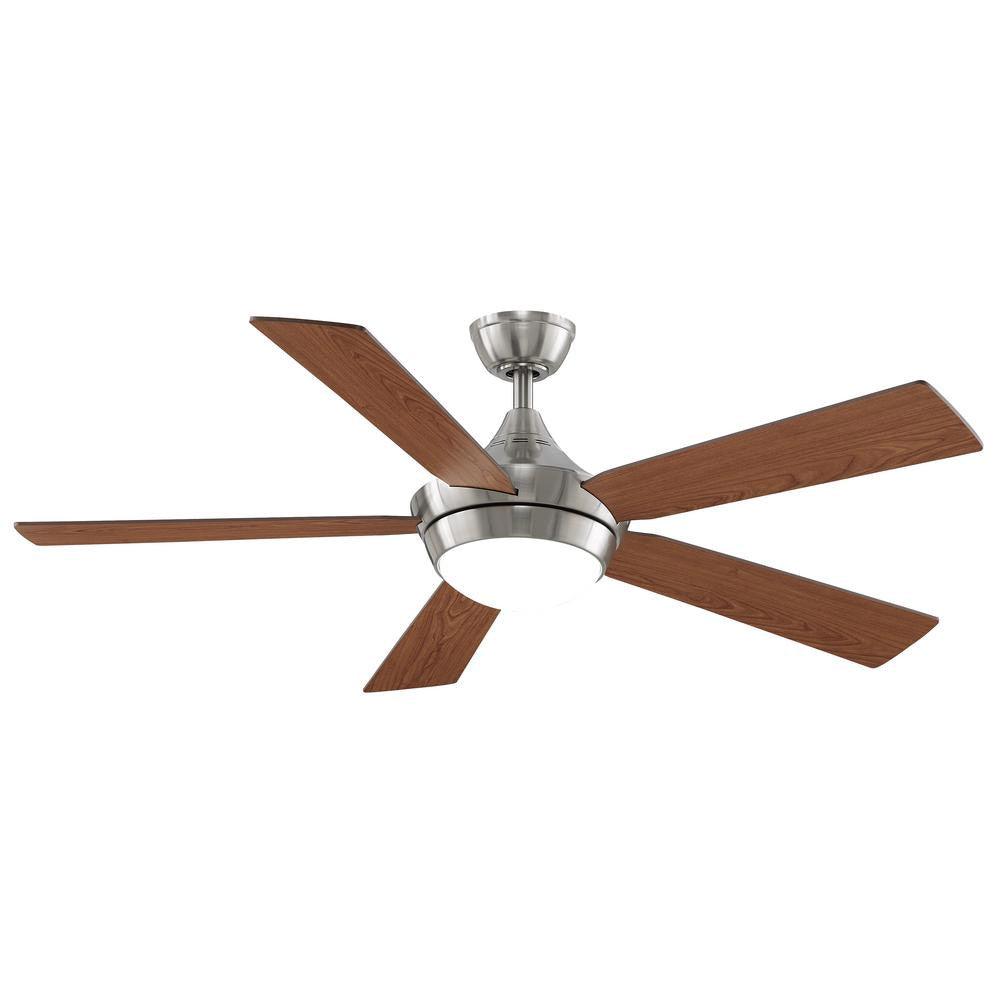

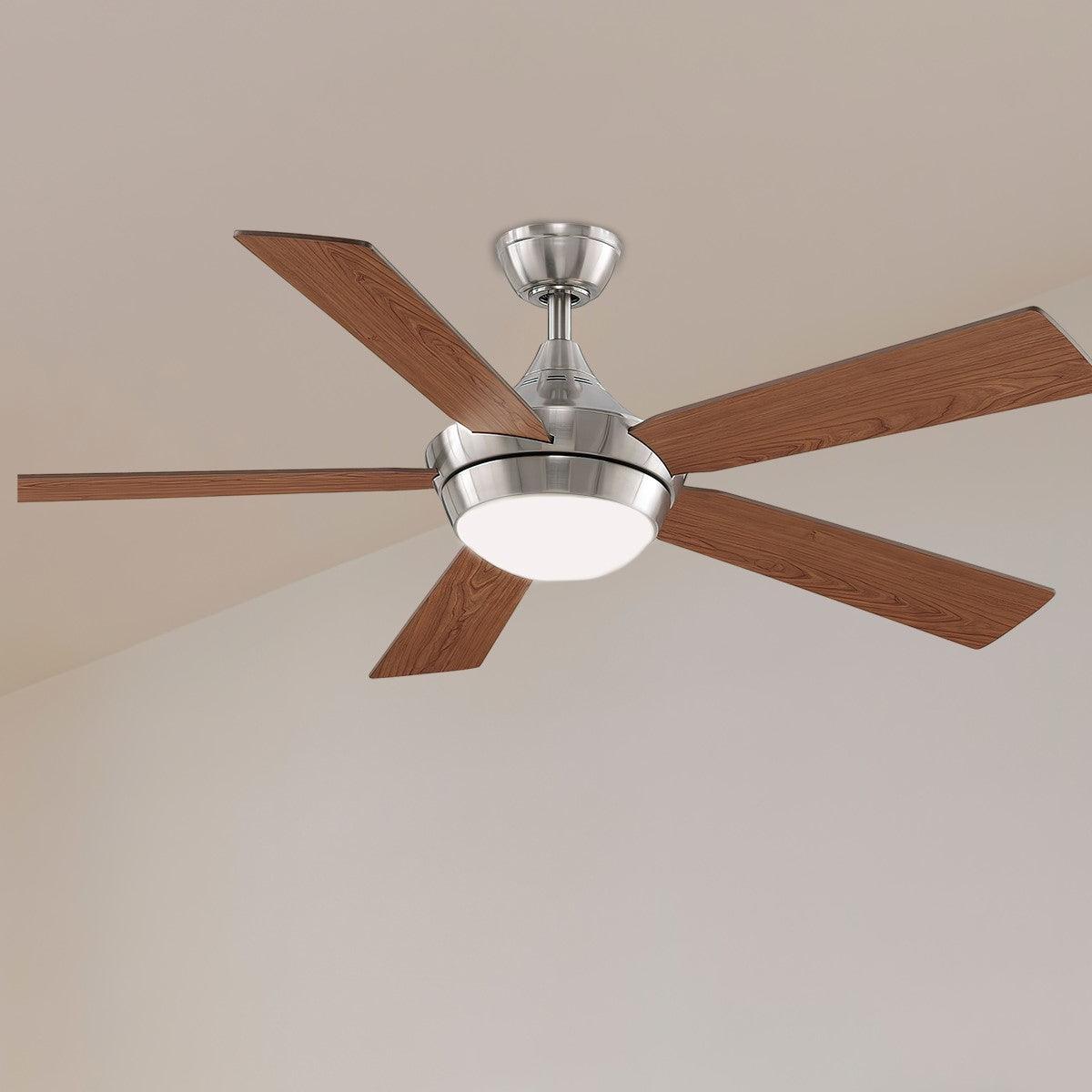

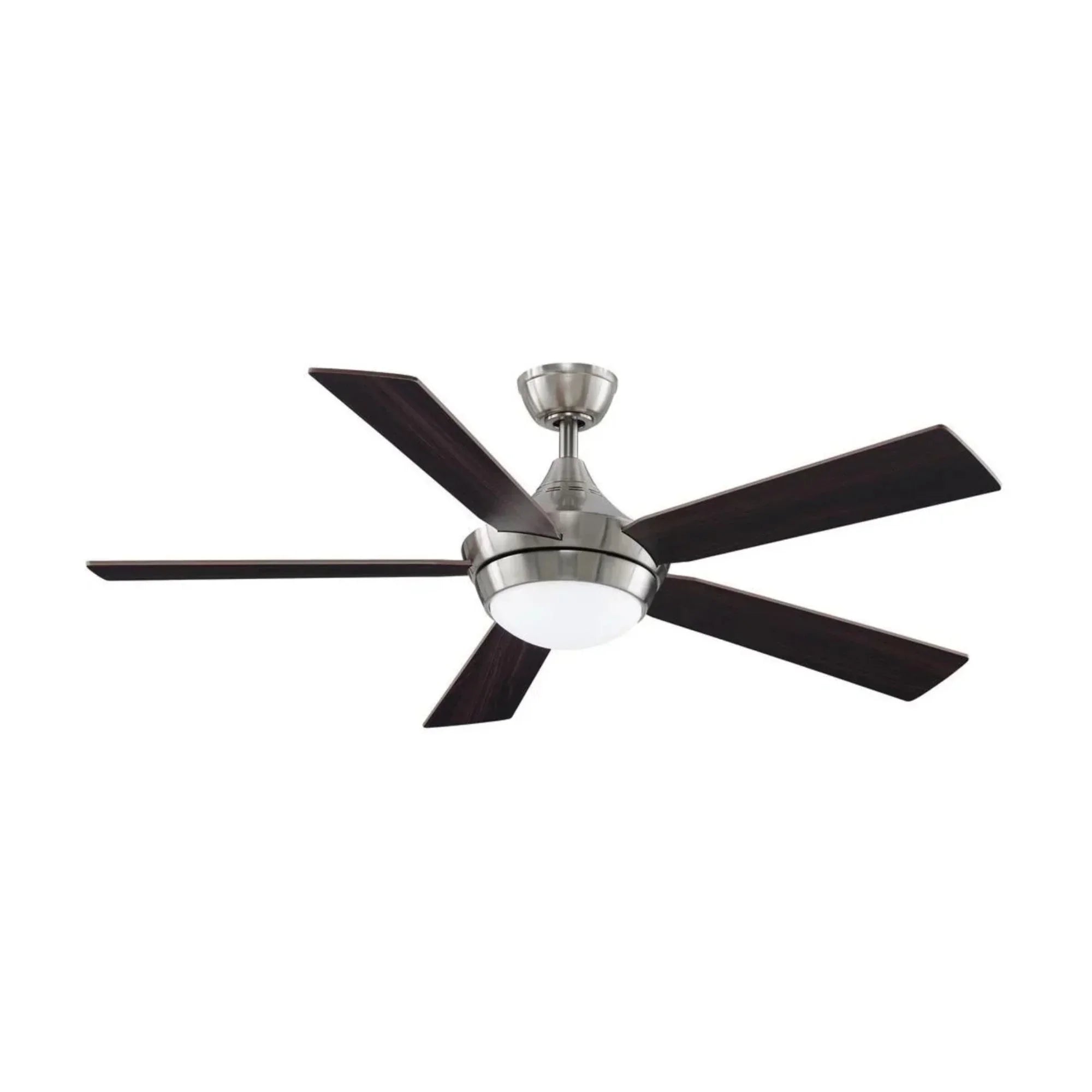

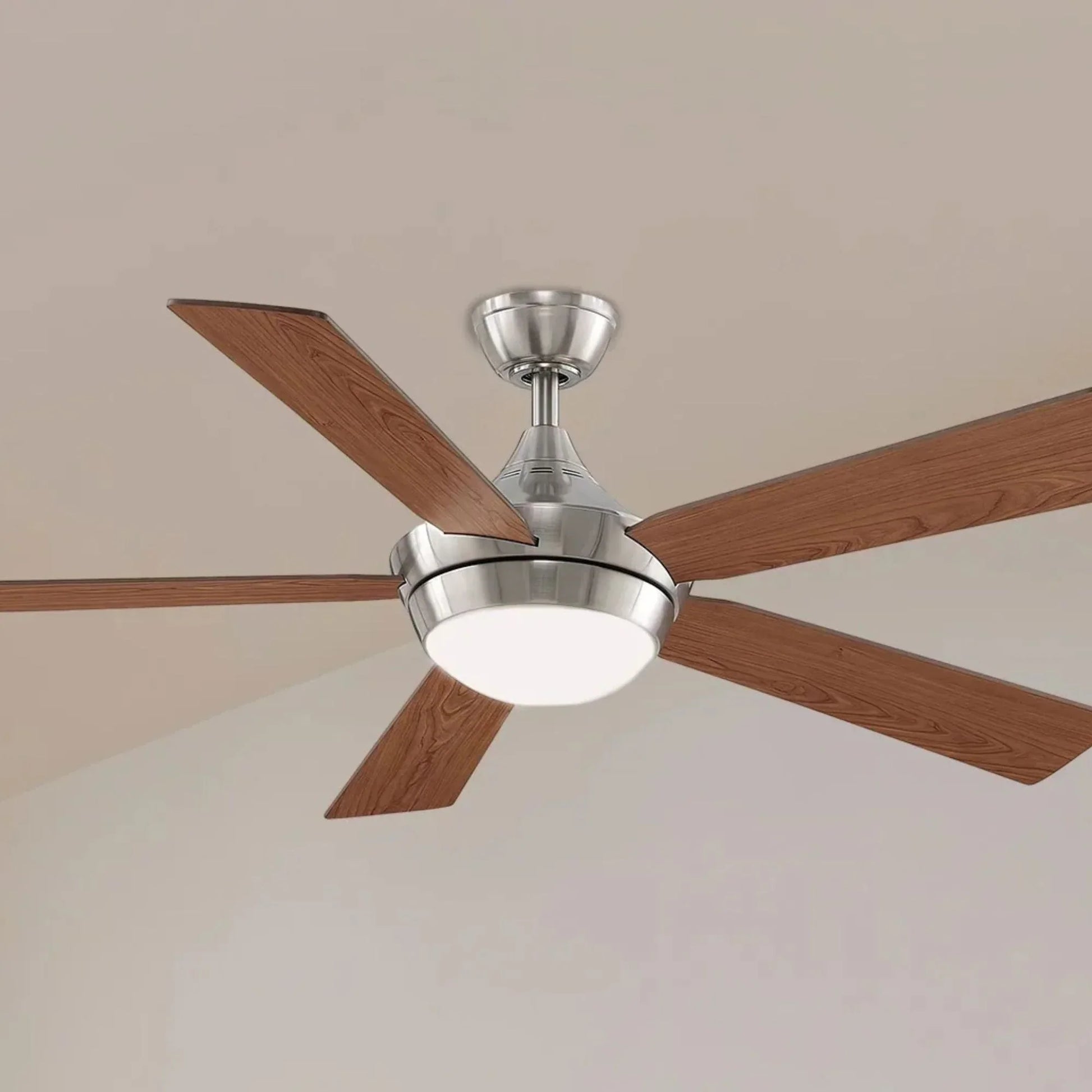

The Fanimation Celano V2 FP8062BBN is a five-blade 52 in AC ceiling fan in Brushed Nickel with reversible Cherry/Dark Walnut plywood blades and an integrated opal frosted LED light. Powered by a AC 172×17 motor with 3 speeds and an on-fan reverse switch, it delivers 5,192 CFM at high speed. Dry rated for all indoor applications. Controlled via the included TR500 hand-held remote.

• Blade Span: 52 in / 5 blades / 12° pitch
• Motor: AC 172×17, 3 speeds, reverse switch on fan body
• Airflow: 5,192 CFM high / 1,532 CFM low
• Efficiency: 88 CFM/W at high speed
• Wattage: 59W high / 26W med / 9W low
• Light Output: 18W LED included — 1,500 lm / 3000K / CRI 90 / opal frosted lens
• Location Rating: Dry rated — cUL listed, indoor use only
• Mounting Slope: Up to 19° standard; SCK1-52** kit (sold separately) for up to 42°
• Downrod Included: 4.5 in (1 in dia)

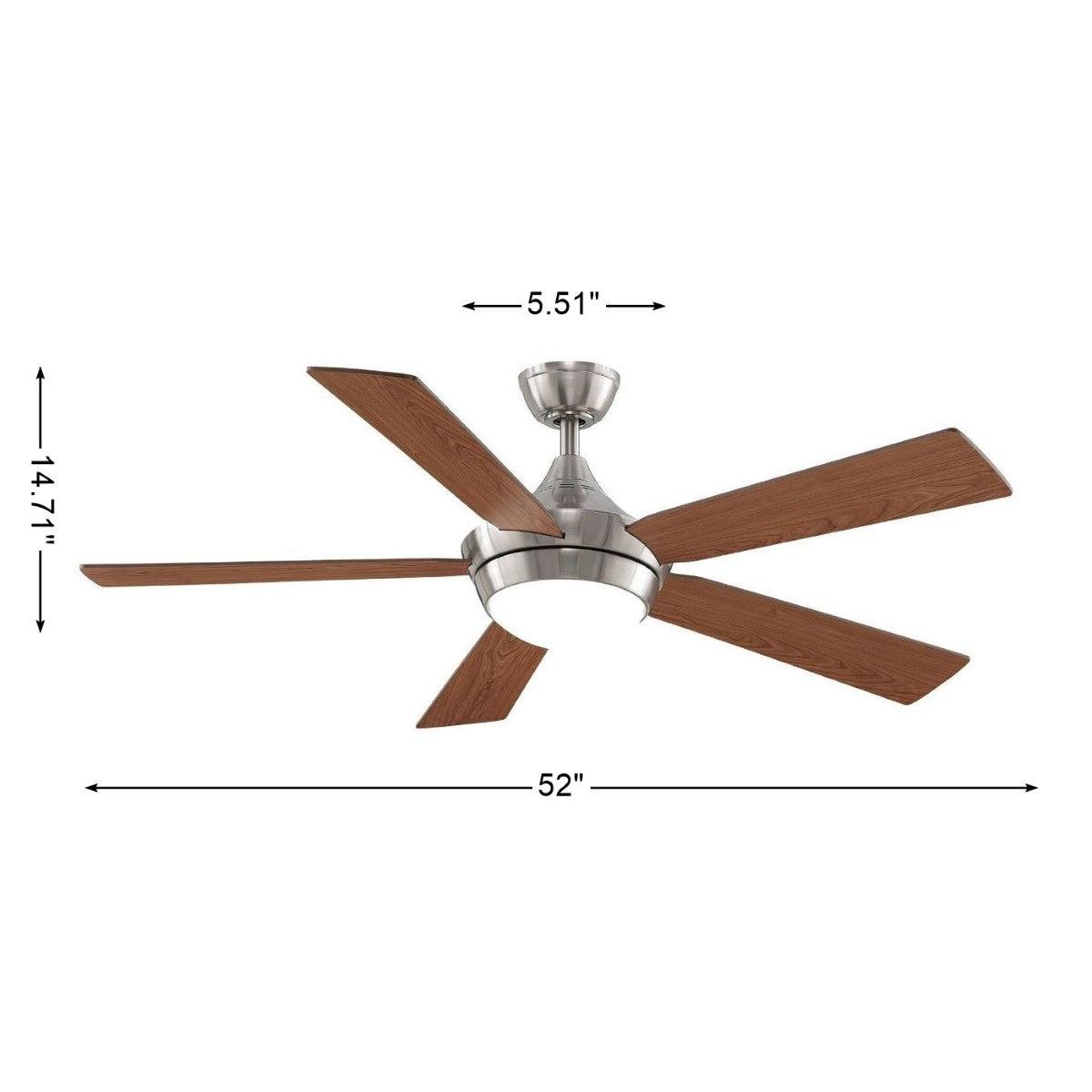

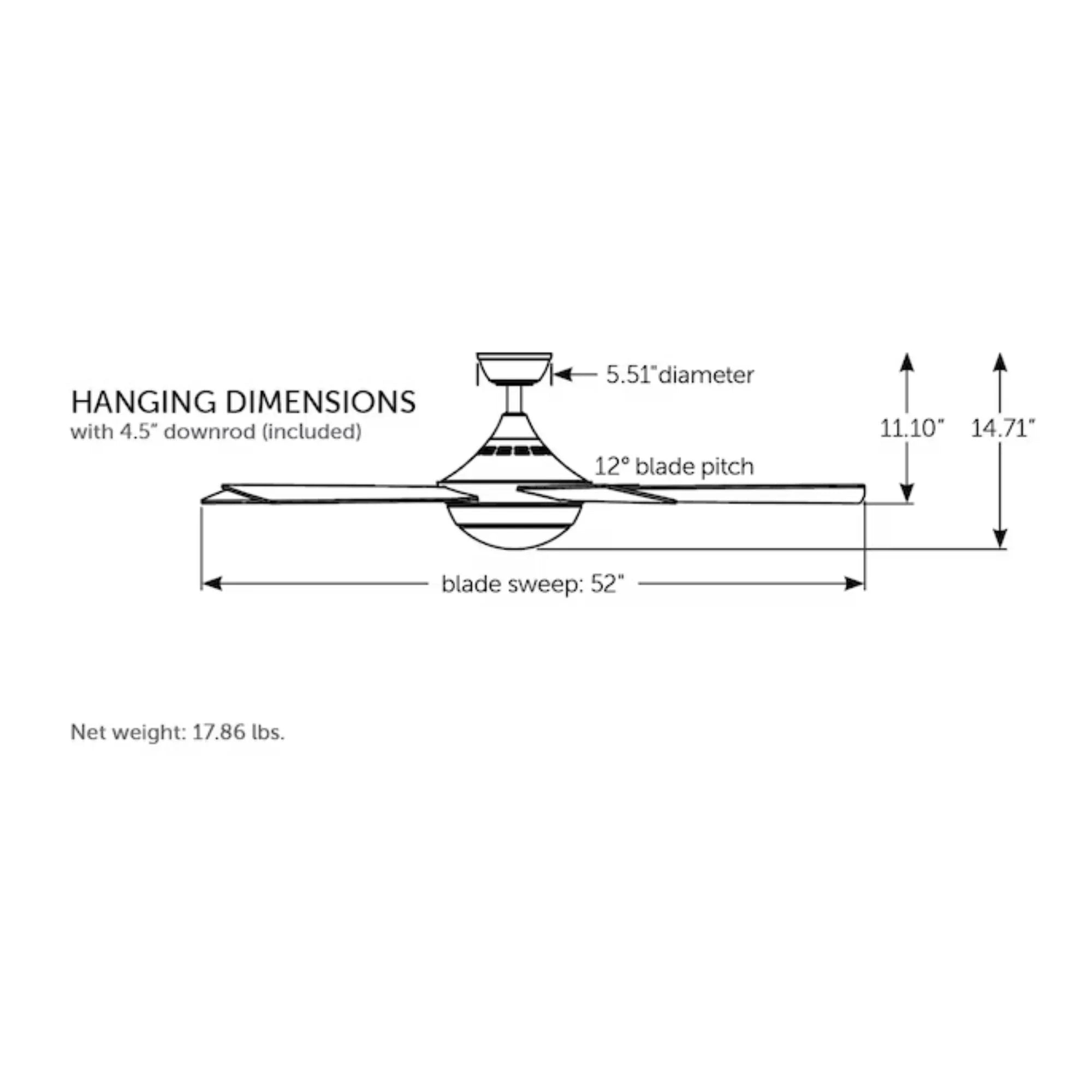

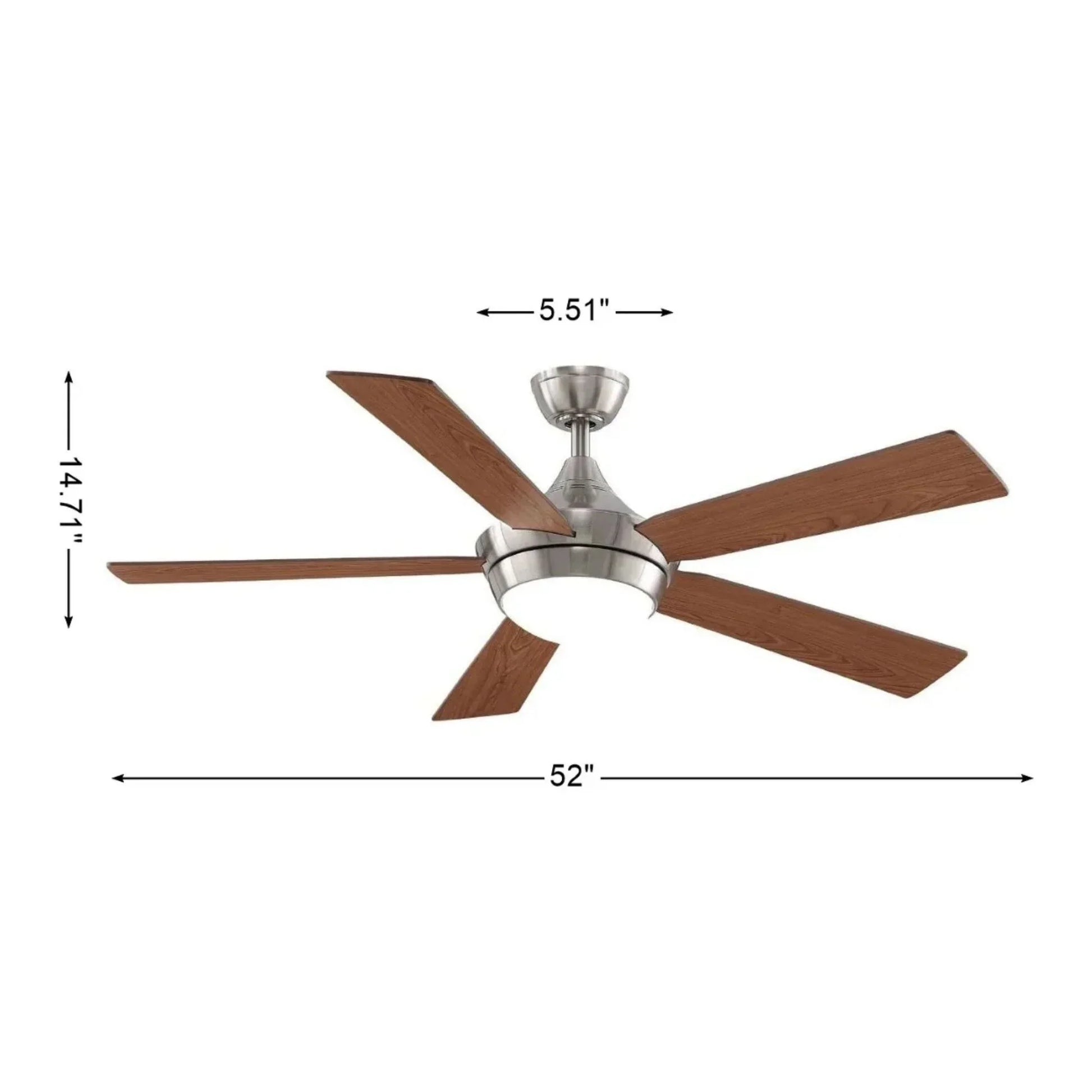

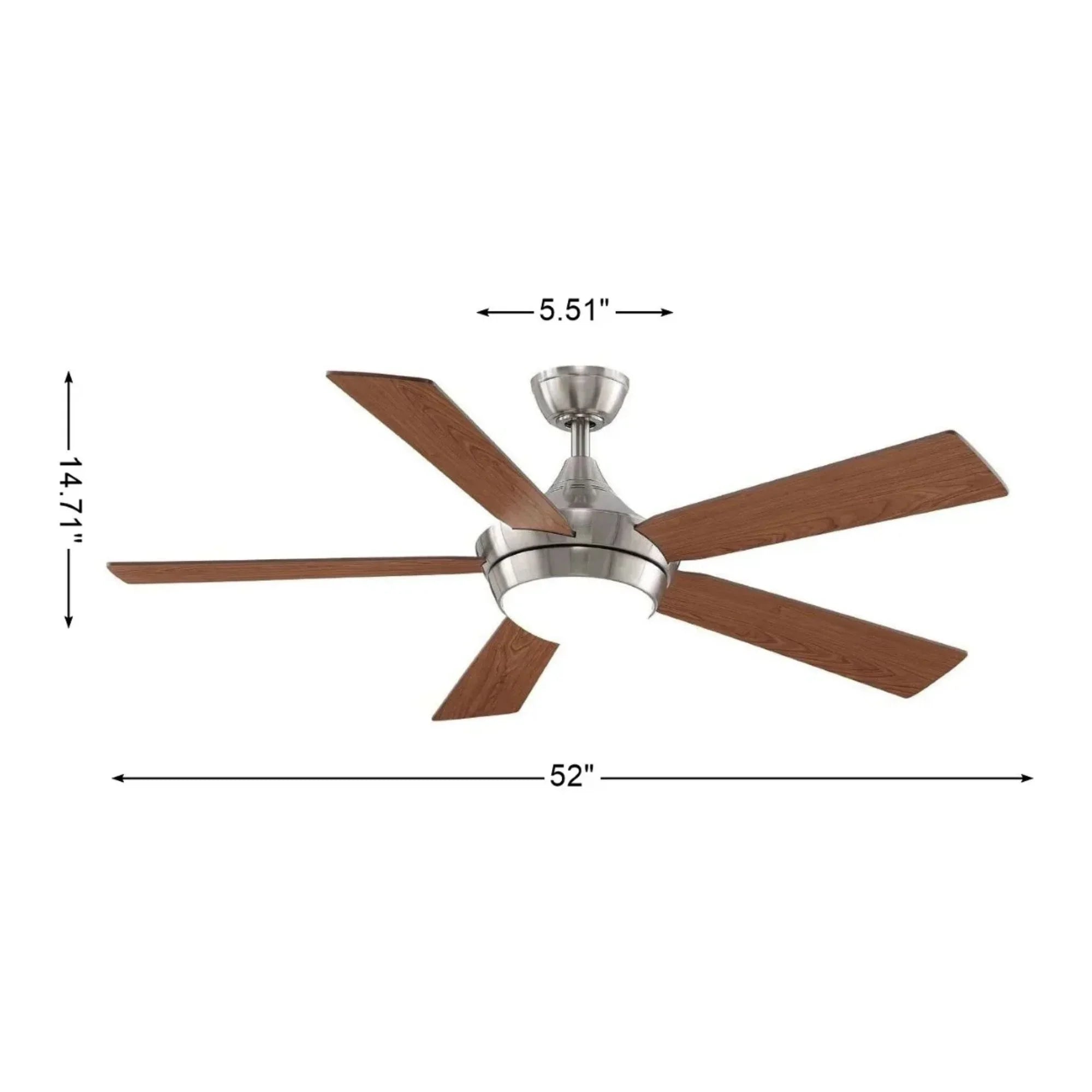

• Overall Dimensions: 52 in dia × 14.71 in H (w/ 4.5 in downrod) — 17.86 lbs
• Canopy Dimensions: 5.51 in dia
• Fan Velocity: 404 FPM high / 144 FPM low

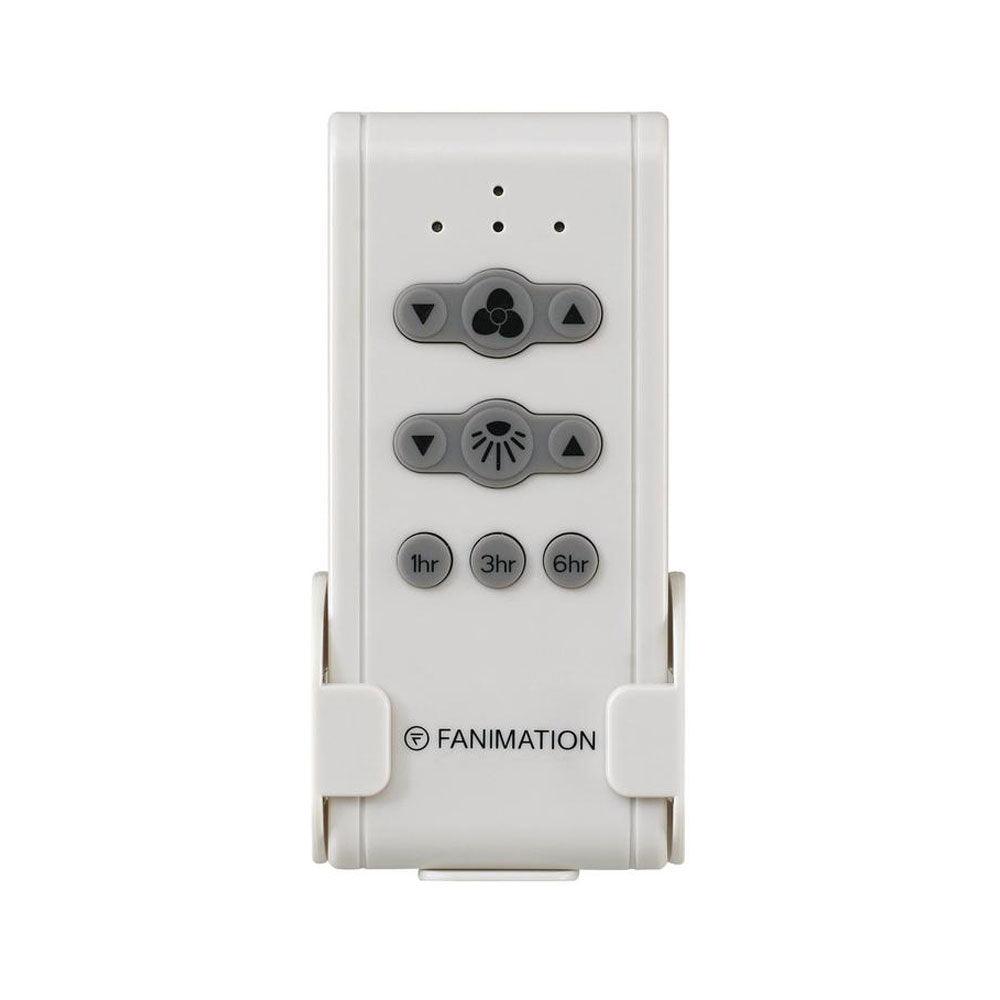

Includes TR500 hand-held remote — variable fan speeds, infinite light levels, fan/light timer, on/off button. Reverse switch located on the fan body. Optional wall controls sold separately: WC2WH (3-wire fan + light wall control), WR501WH (2-wire fan + light wall remote), and WFR50 (fanSync WiFi smart receiver).

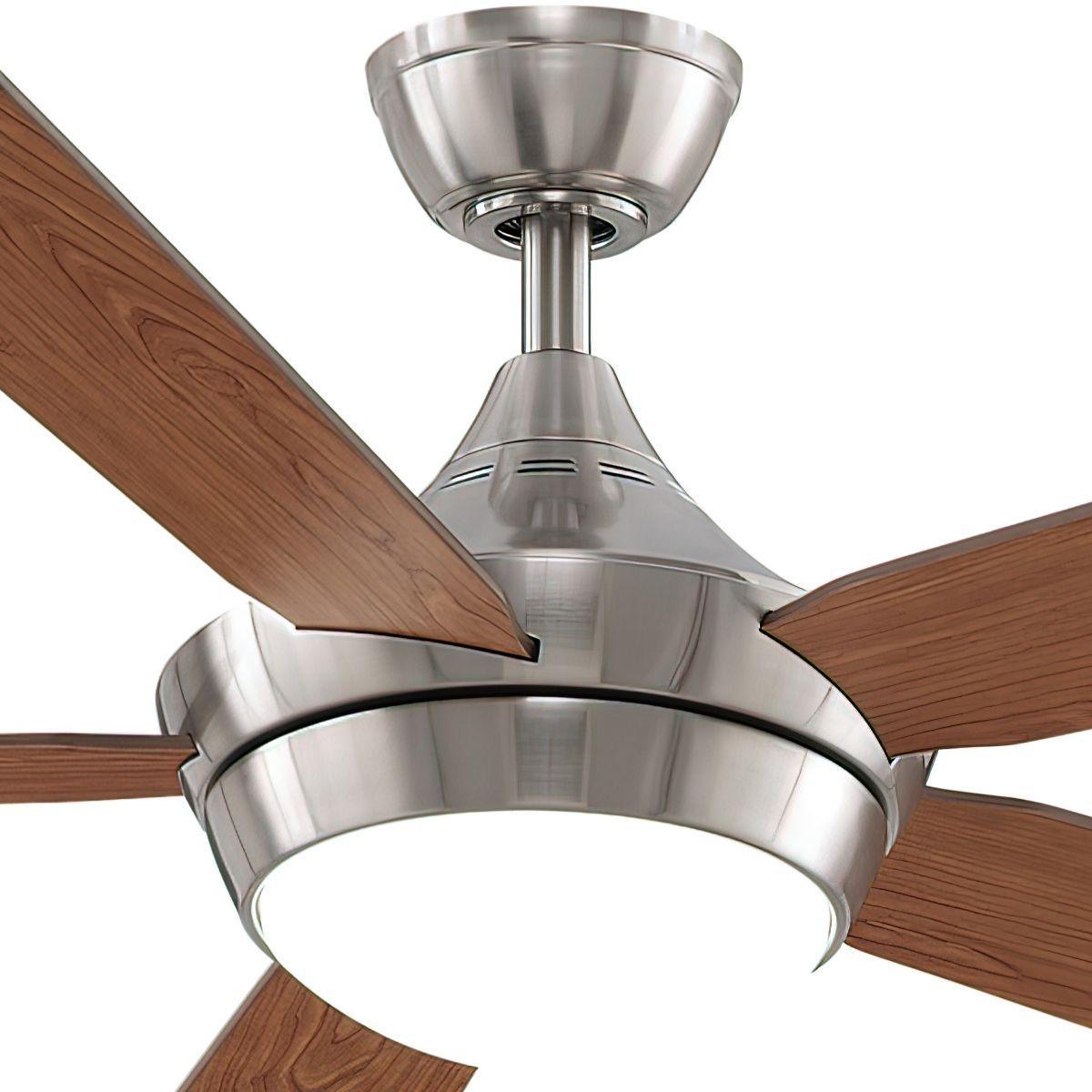

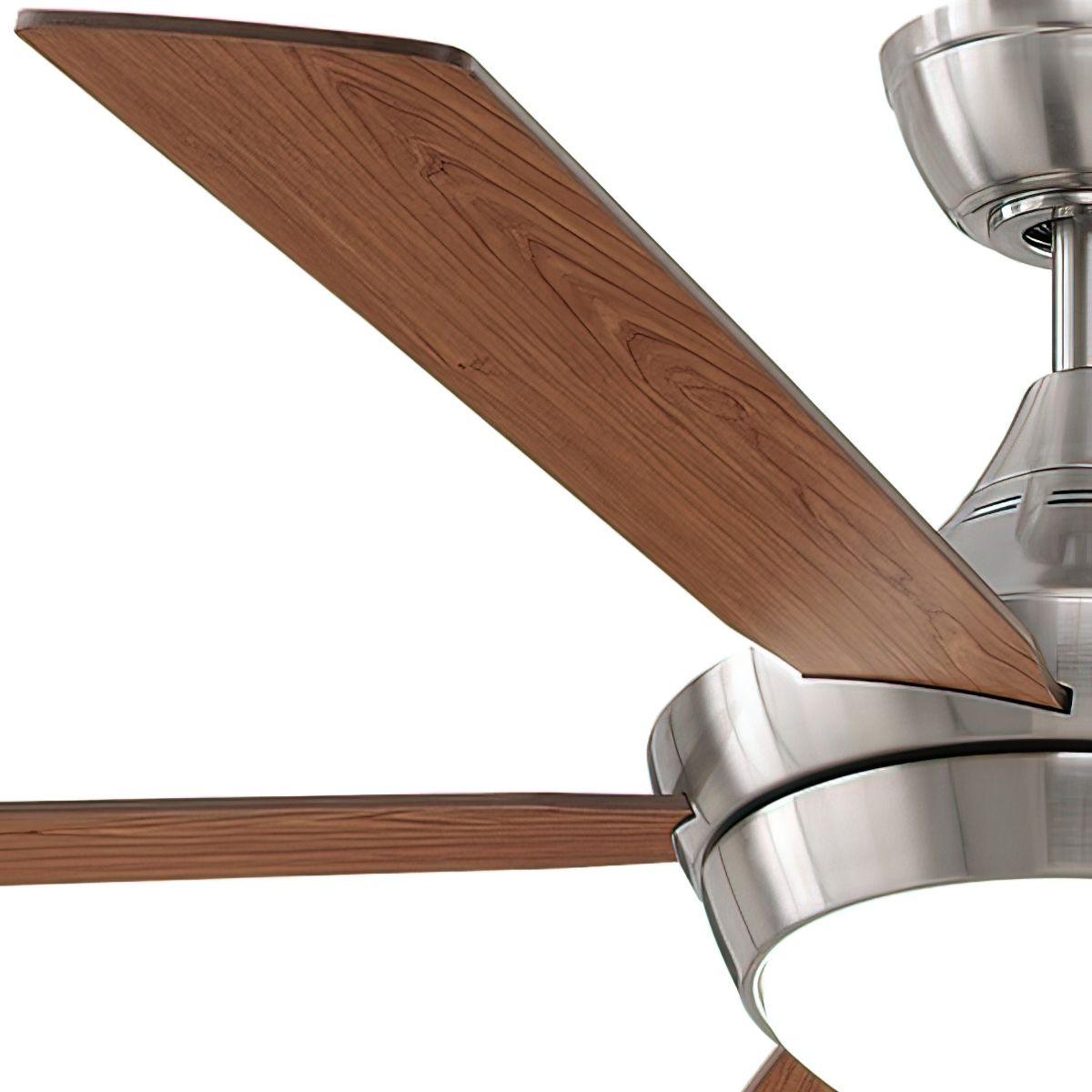

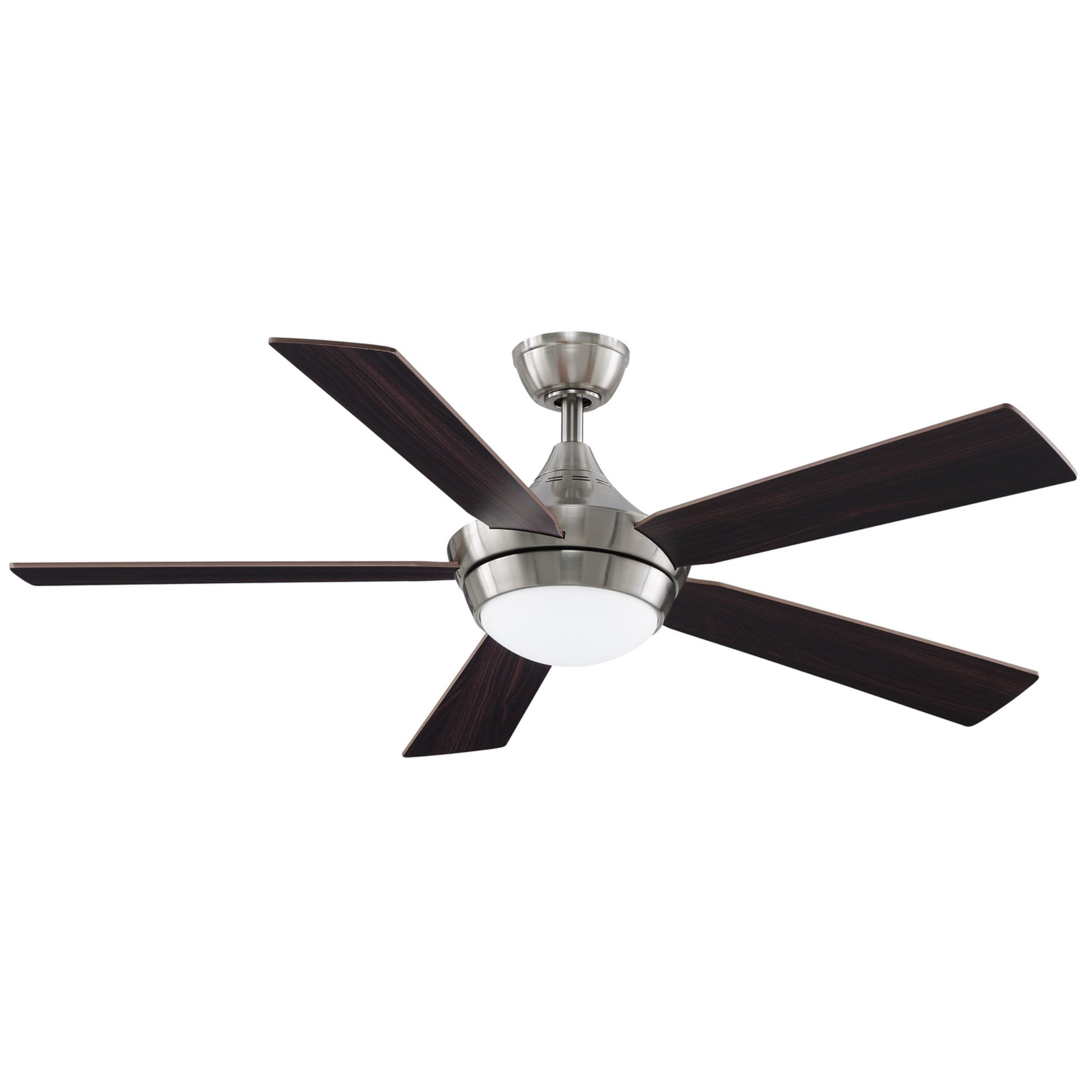

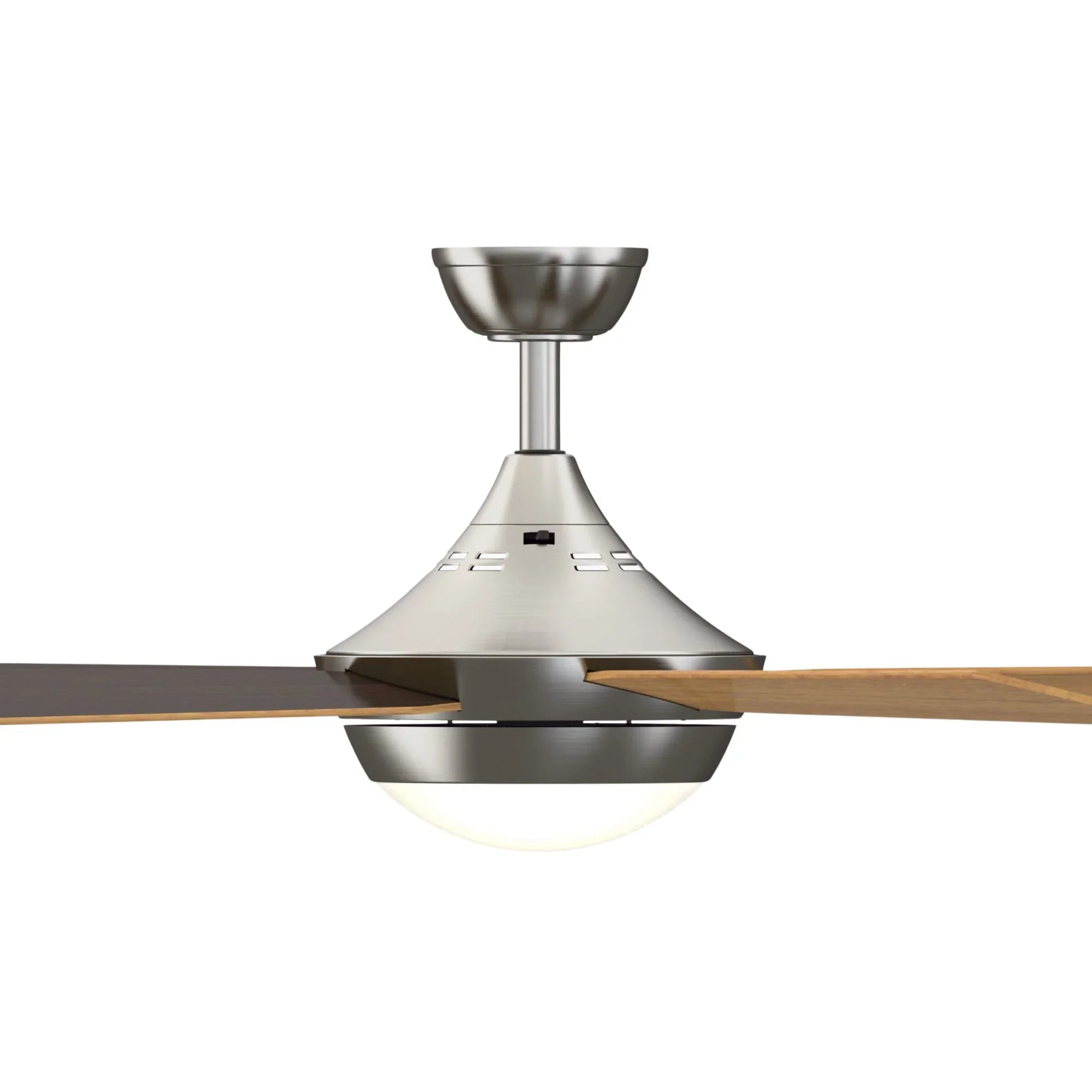

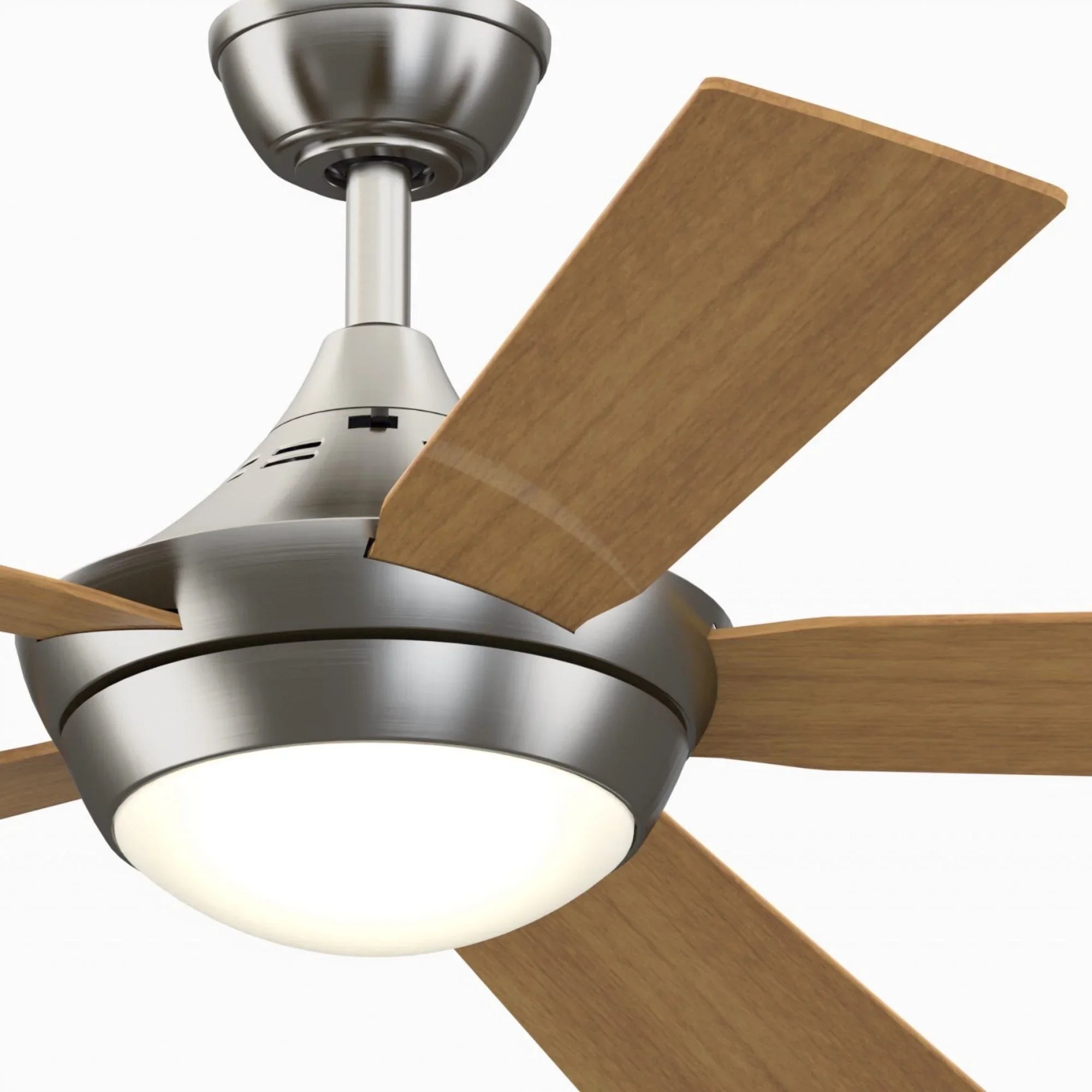

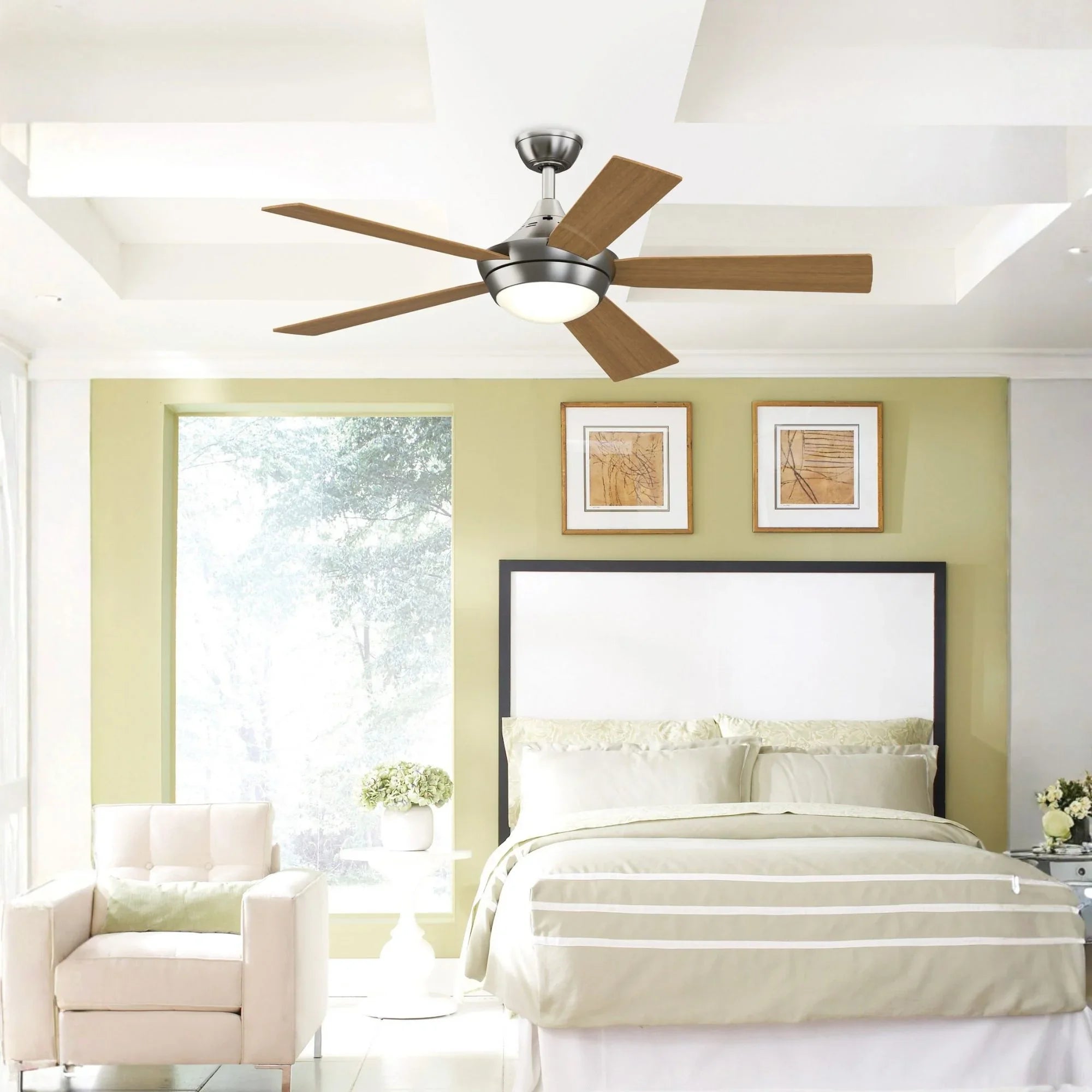

Motor housing in Brushed Nickel finish, 5.51 in diameter. Five reversible plywood blades in Cherry/Dark Walnut at 12° pitch. Net hanging weight: 17.86 lbs. The Celano V2’s streamlined five-blade silhouette in brushed nickel with warm reversible wood-toned blades suits modern, transitional, and coastal bedrooms and living areas.

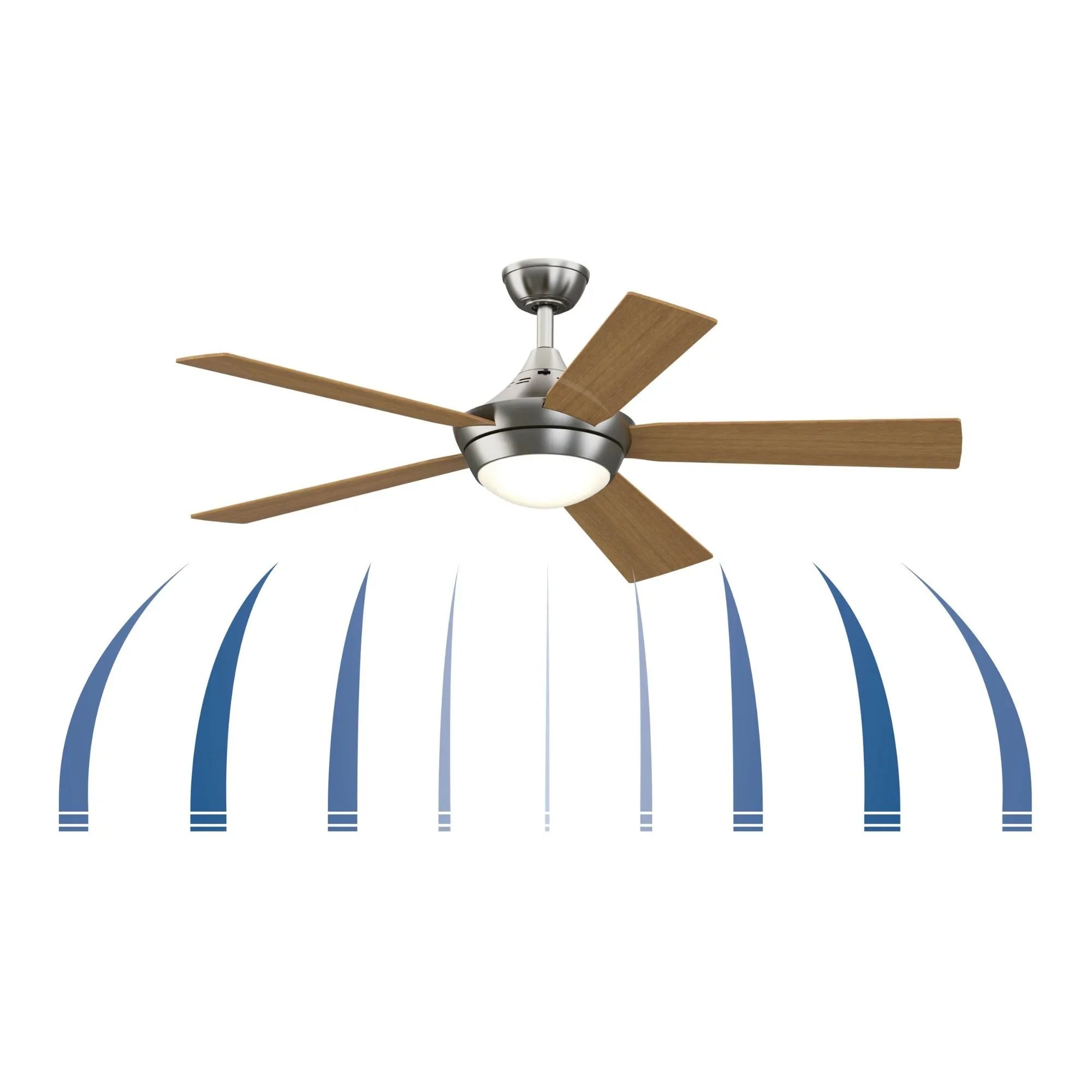

The FP8062BBN includes an integrated 18W LED light kit with an opal frosted lens — 1,500 lm initial output at 3000K, CRI 90. At high speed, delivers 5,192 CFM at 88 CFM/W. Energy Guide rated average: 3,402 CFM at 38W / 90 CFM/W.

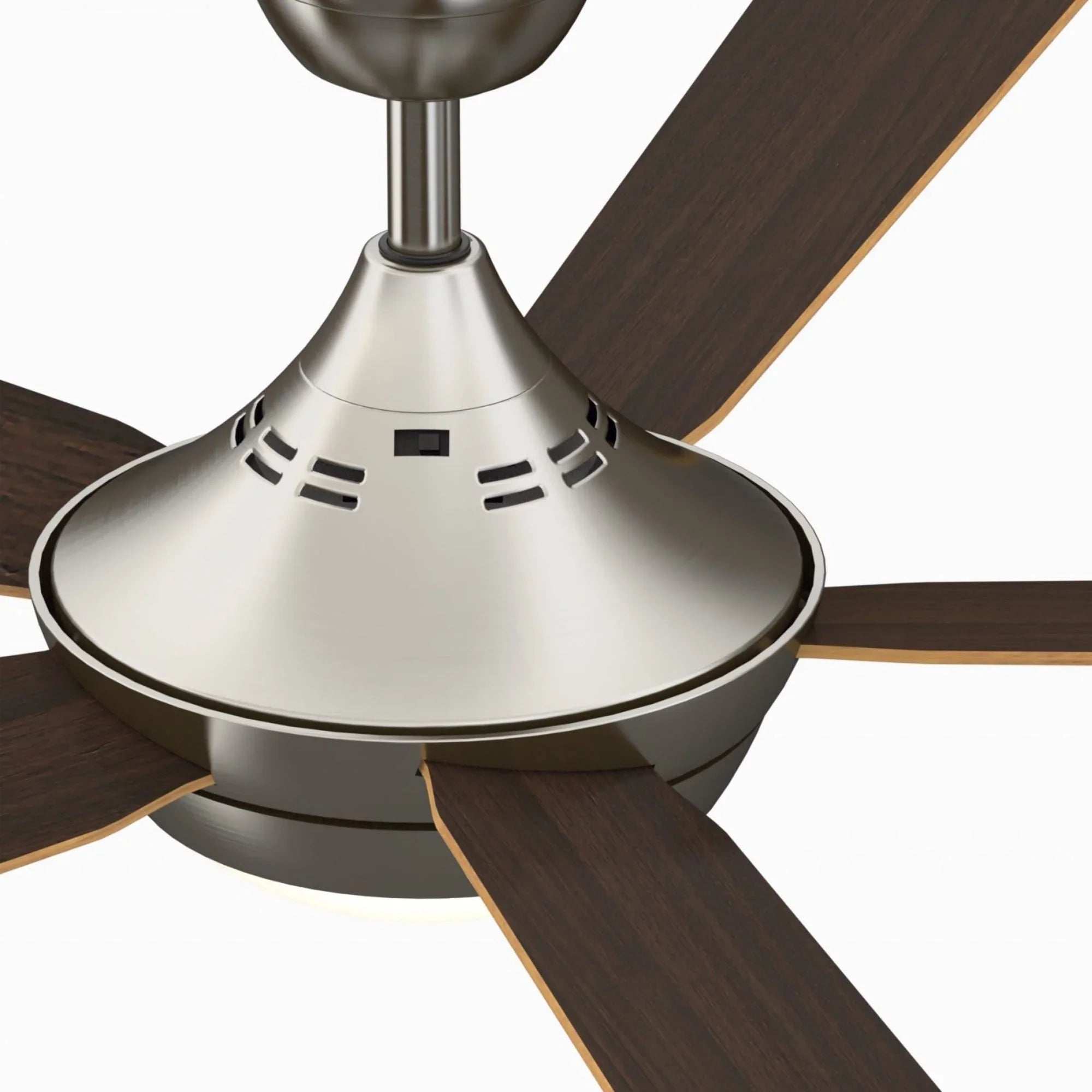

120V AC, 60Hz, 15A circuit. Total max draw: 59W fan (high) + 18W light = 77W. Motor is reversible — reverse switch located on the fan body. Ships with a 4.5 in downrod (1 in dia). Sloped ceiling compatible to 19° standard; the optional SCK1-52** sloped ceiling ball kit (sold separately) extends compatibility to 42°. Canopy: 5.51 in dia. Lead wire: 59 in. Optional close-to-ceiling kit (CCK8002**) available separately. For downrods longer than 72 in, join two rods with the DR1-CP** coupler. Additional downrods available: 12, 18, 24, 36, 48, 60, 72 in.

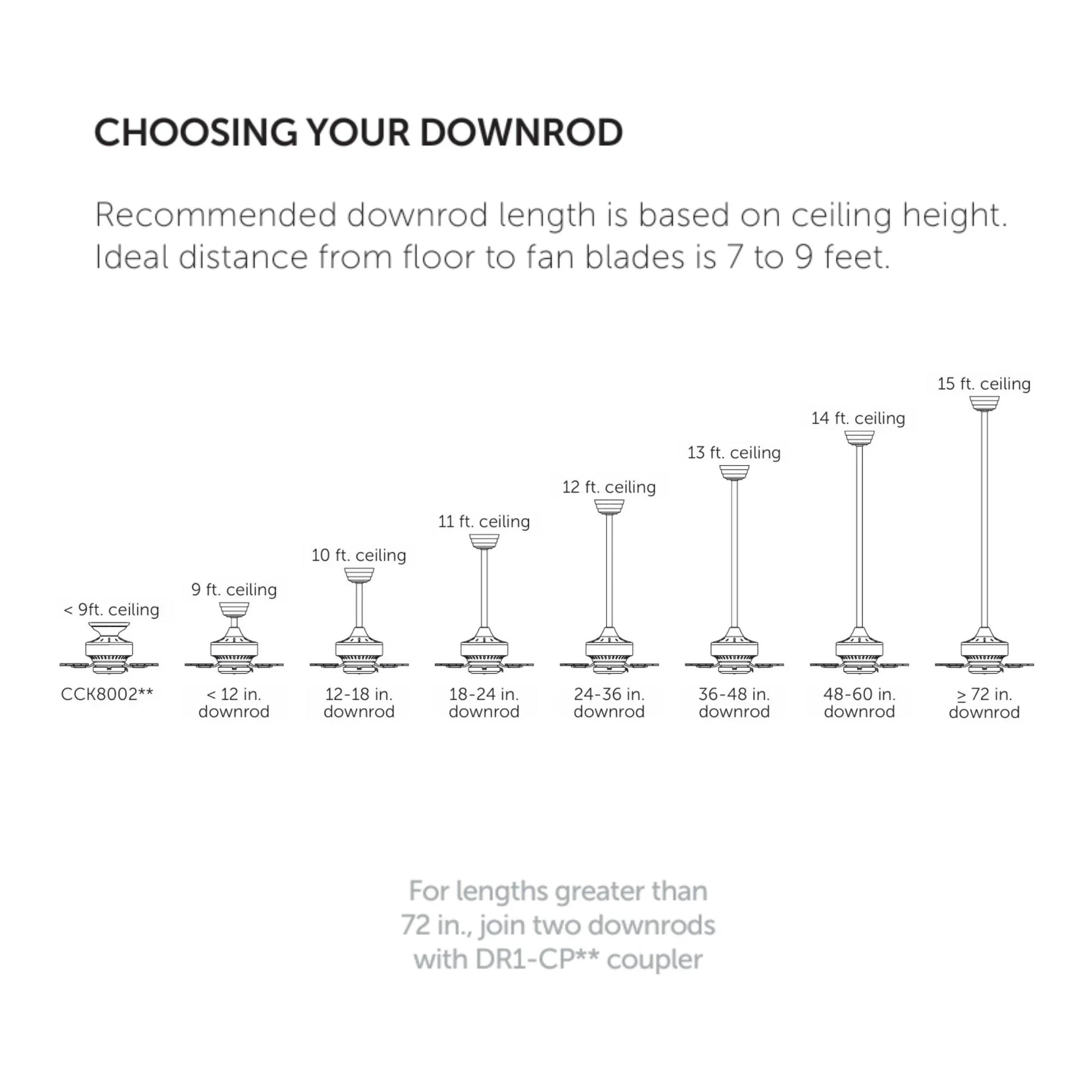

Ships with 4.5 in downrod included. Ideal distance from floor to fan blades is 7 to 9 feet.

• < 9 ft ceiling → CCK8002** close-to-ceiling kit
• 9 ft ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

• FP8062BBN ceiling fan (Brushed Nickel body + 5 reversible Cherry/Dark Walnut plywood blades)
• Integrated 18W LED light kit (opal frosted lens)
• TR500 hand-held remote
• 4.5 in downrod (1 in dia)
• Mounting hardware
