Fanimation Celano V2 FP8062B 52 in Ceiling Fan with LED Light

The Fanimation Celano V2 combines a streamlined five-blade design with 5,192 CFM high-speed airflow and warm LED illumination for everyday indoor comfort. Its 172 × 17 mm AC motor provides three speeds and reversible rotation. Choose Brushed Nickel or Dark Bronze with reversible Cherry and Dark Walnut blades, or Matte White with matching blades. The included TR500 remote puts fan and light adjustments within easy reach while you relax.

Key Features

• Blade Span: 52 in with five plywood blades and 12° pitch.
• AC Motor: Three speeds and reversible rotation with a switch on the fan body.
• Airflow: 5,192 CFM high, 3,226 CFM medium and 1,532 CFM low; Energy Guide average 3,402 CFM.
• Efficiency: 88 CFM/W at high speed; Energy Guide average 90 CFM/W at 38W.
• LED Light Kit: Integrated 18W LED provides 1,500 initial lumens at 3000K with 90 CRI.
• Control: TR500 handheld remote included; optional WFR50 receiver adds WiFi.
• Location: Dry-rated for indoor use only.
• Mounting: Includes a 1 in diameter × 4.5 in downrod.

Smart & Control Features

The included TR500 remote provides fan-speed, light-level, fan/light timer and on/off controls. The reverse switch is located on the fan body. WiFi control requires the optional WFR50 fanSync WiFi receiver, available separately. Optional wall controls include the WC2WH three-wire fan-and-light wall control and WR501WH two-wire fan-and-light wall remote.

Construction & Design

The five-blade silhouette and opal frosted lens suit bedrooms, living rooms and transitional interiors. Overall dimensions are 52 in diameter × 14.71 in high with the included downrod. Net hanging weight is 17.86 lbs, and the canopy measures 5.51 in diameter. Finish and model choices include:

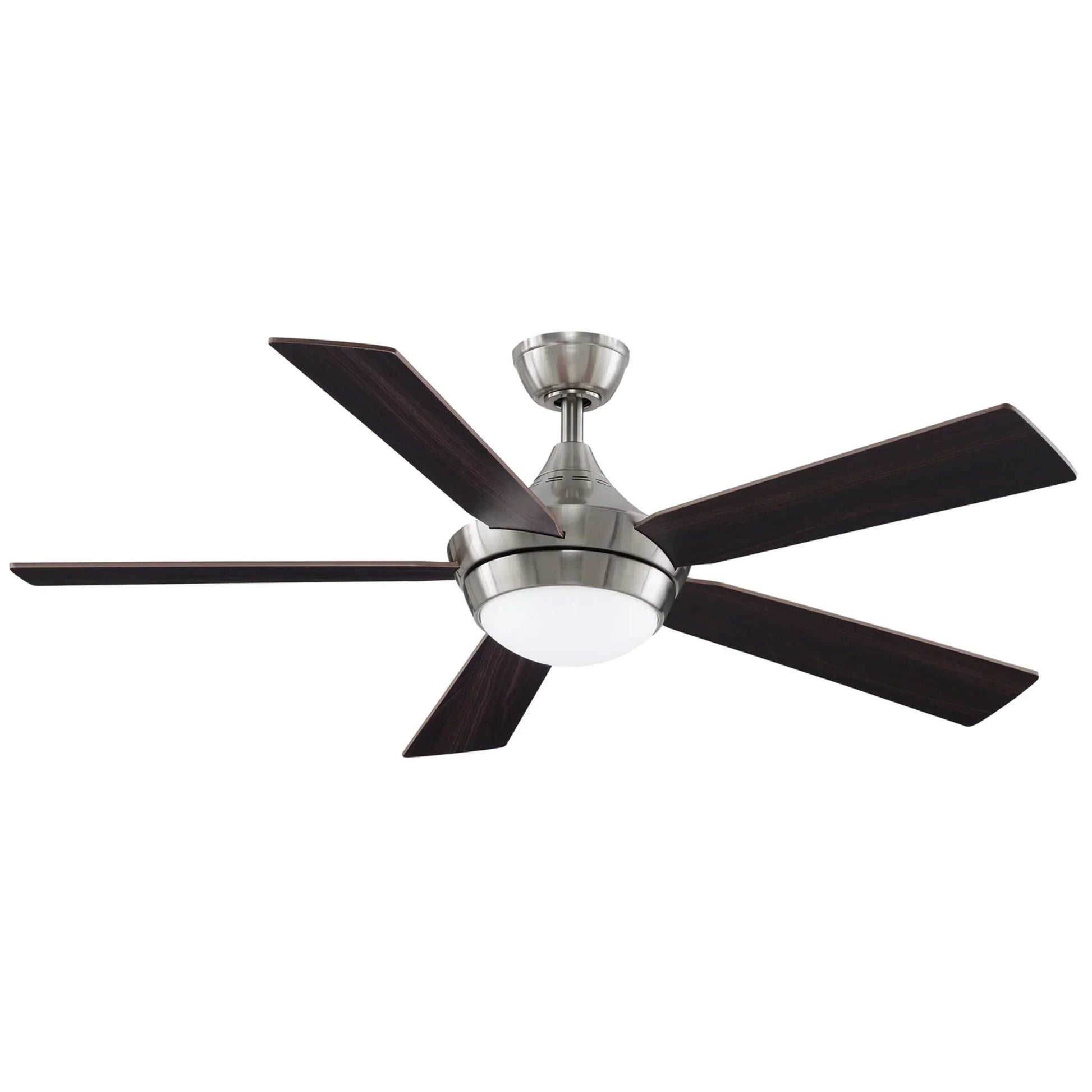

• FP8062BBN: Brushed Nickel housing with reversible Cherry and Dark Walnut plywood blades.

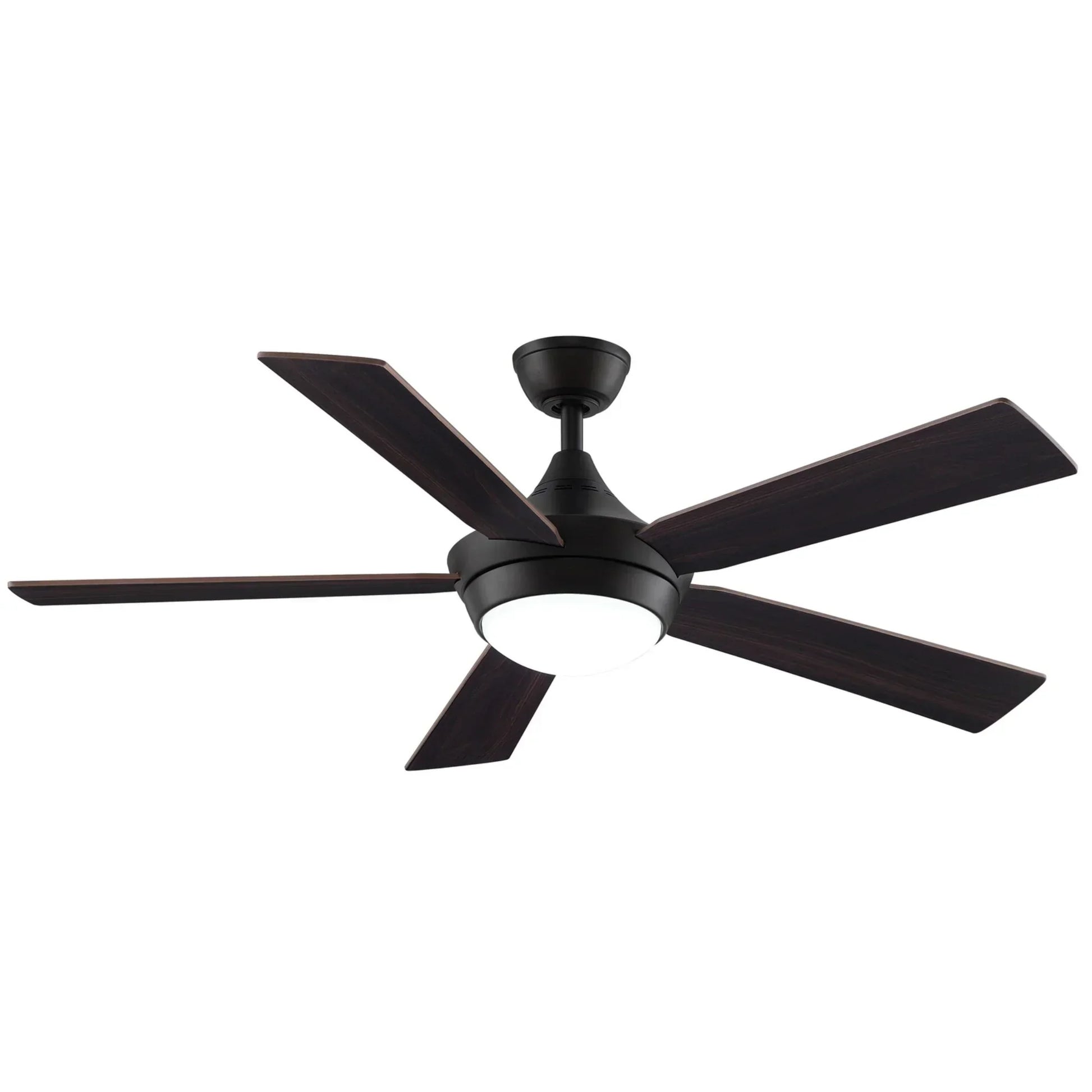

• FP8062BDZ: Dark Bronze housing with reversible Cherry and Dark Walnut plywood blades.

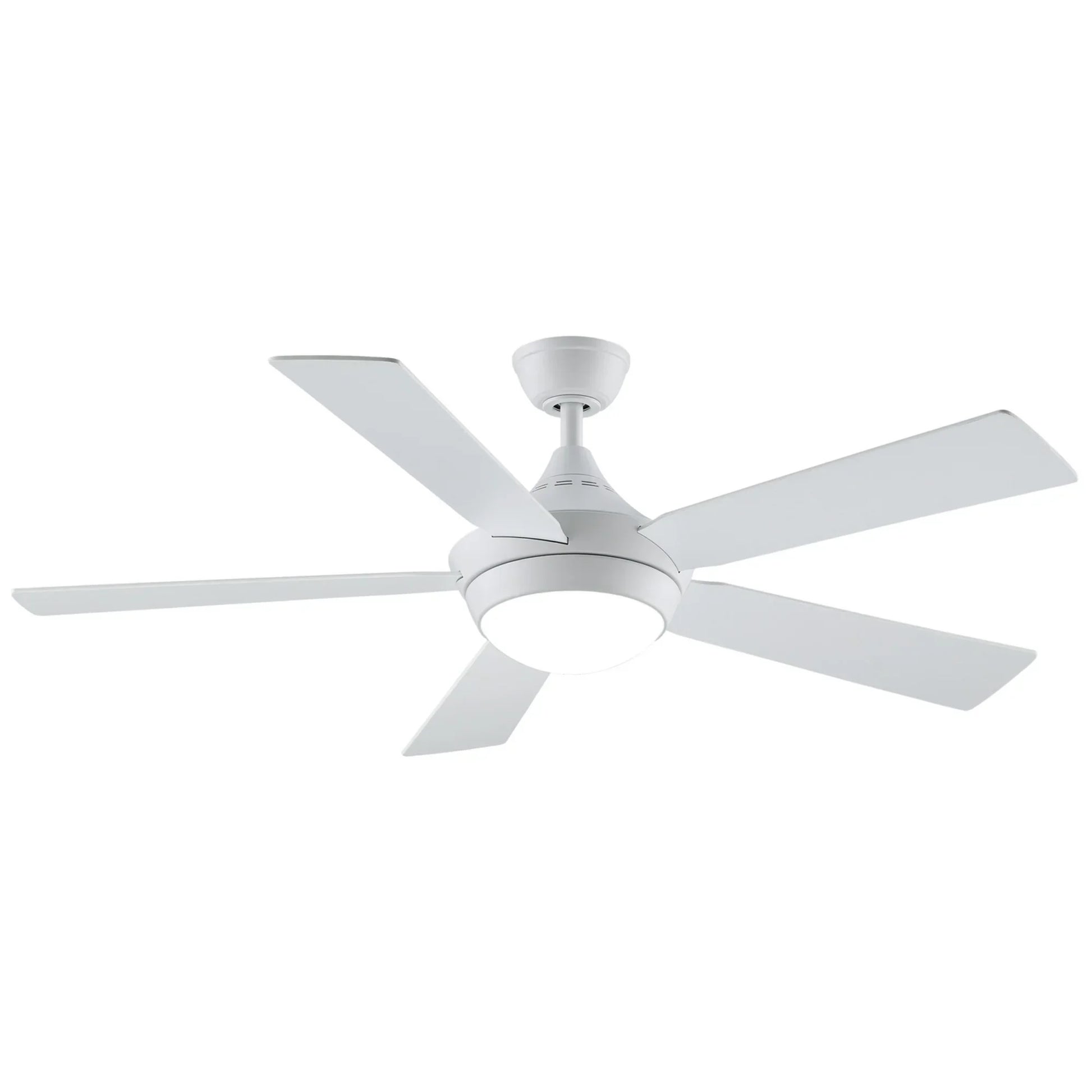

• FP8062BMW: Matte White housing with matching Matte White plywood blades.

Light Output & Performance

The integrated 18W LED delivers 1,500 initial lumens at 3000K warm white with 90 CRI through an opal frosted lens. Adjust light levels using the included TR500 remote. High-speed airflow is 5,192 CFM at 59W and 88 CFM/W; medium-speed airflow is 3,226 CFM at 26W, and low-speed airflow is 1,532 CFM at 9W. Energy Guide average performance is 3,402 CFM at 38W and 90 CFM/W. The 52 in span suits indoor rooms up to approximately 400 sq ft.

Electrical & Installation

Operates on 120V AC, 60Hz. Maximum combined draw is 77W: 59W for the fan and 18W for the light. The included 4.5 in downrod supports standard ceiling slopes up to 19°. For slopes up to 42°, use the optional SCK1-52 sloped-ceiling kit in the appropriate finish. An optional CCK8002 close-to-ceiling kit supports low-ceiling installations. Additional downrods are available in 12, 18, 24, 36, 48, 60 and 72 in lengths. For longer assemblies, the DR1-CP coupler is available in matching finishes. Maintain at least 7 ft between the fan blades and the floor.

Suggested Downrod by Ceiling Height

A 4.5 in downrod is included. Select the mounting configuration and downrod length for your ceiling height while maintaining blade clearance.

• Below 9 ft ceiling → consider the CCK8002 close-to-ceiling kit
• 9 ft ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

What's Included

• Celano V2 ceiling fan with five plywood blades in the selected finish.
• Integrated 18W LED light kit with opal frosted lens.
• TR500 handheld remote.
• 1 in diameter × 4.5 in downrod.
• Mounting hardware.
