Fanimation Kwad 52 in Indoor LED Ceiling Fan AC Motor Brushed Nickel
Available in stock (70)
About this item
About this item
- High-Output Airflow: 4,738 CFM at high speed and 2,168 CFM at low speed — efficient coverage for rooms up to 400 sq ft at 85 CFM/W.
- 153×18 AC Motor: Reliable, quiet AC motor with 3-speed control and reversible airflow for year-round comfort.
- Indoor Dry Location Rated: Suitable for bedrooms, living rooms, offices, and dining areas — not rated for damp or wet locations.
- TR500 Remote Included: Variable fan speeds, infinite light dimming, and off button; optional WFR50 WiFi receiver adds smart control.
- Integrated Dimmable LED: 18W, 1,500 lumens, 3000K, CRI 90 with Opal Frosted Glass diffuser — long-life LED, no bulb replacement needed.
We process payments securely and do not store credit card information.
Description
Description

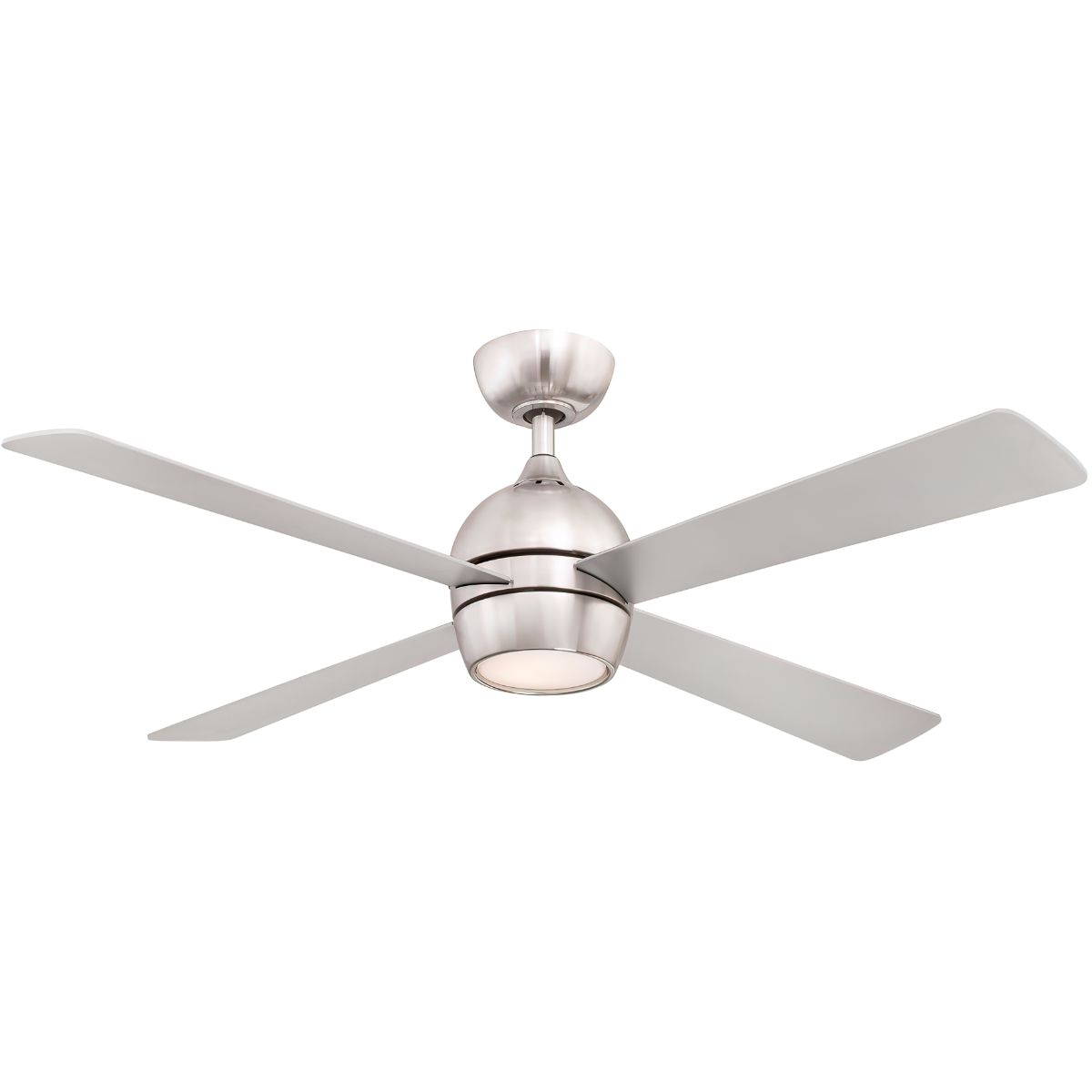

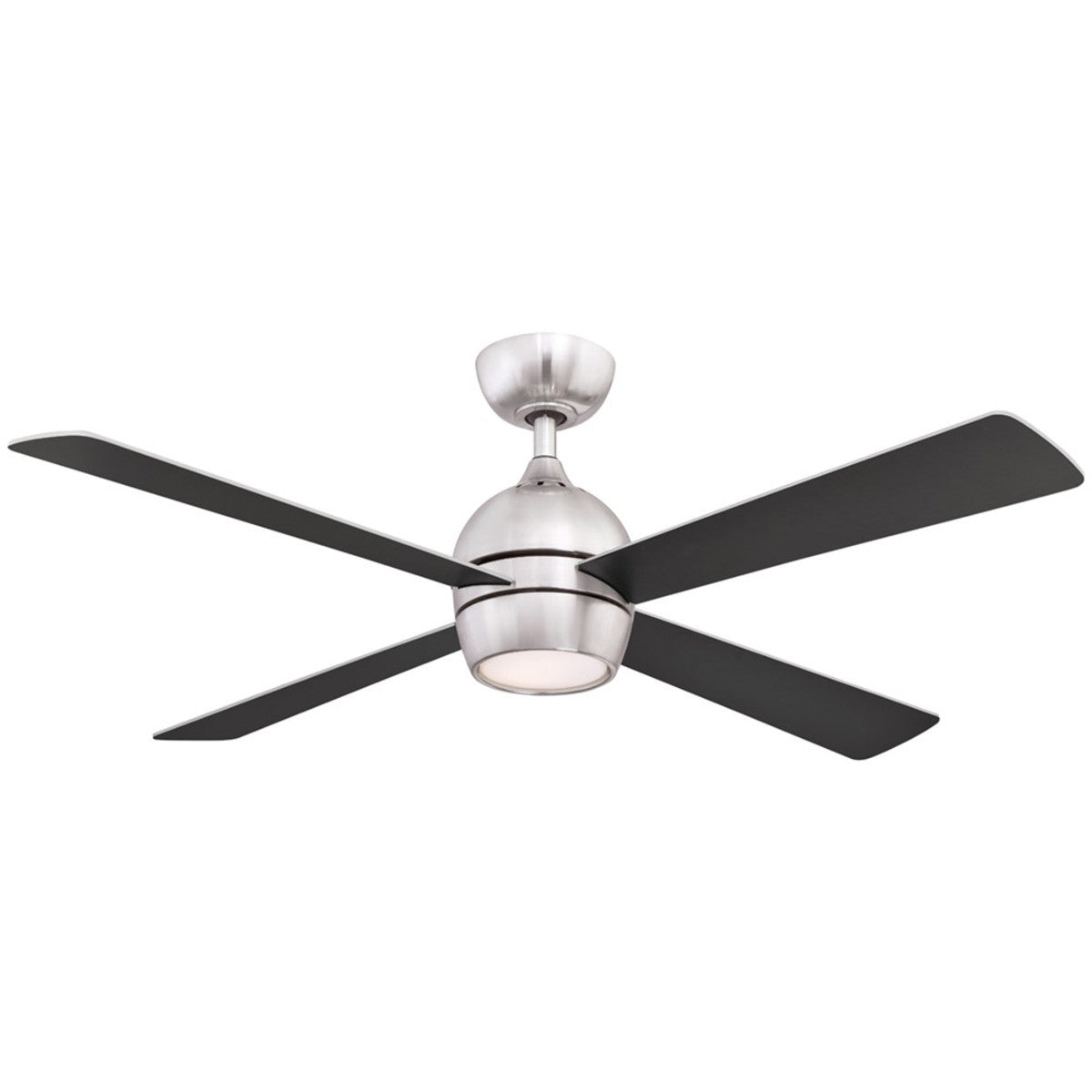

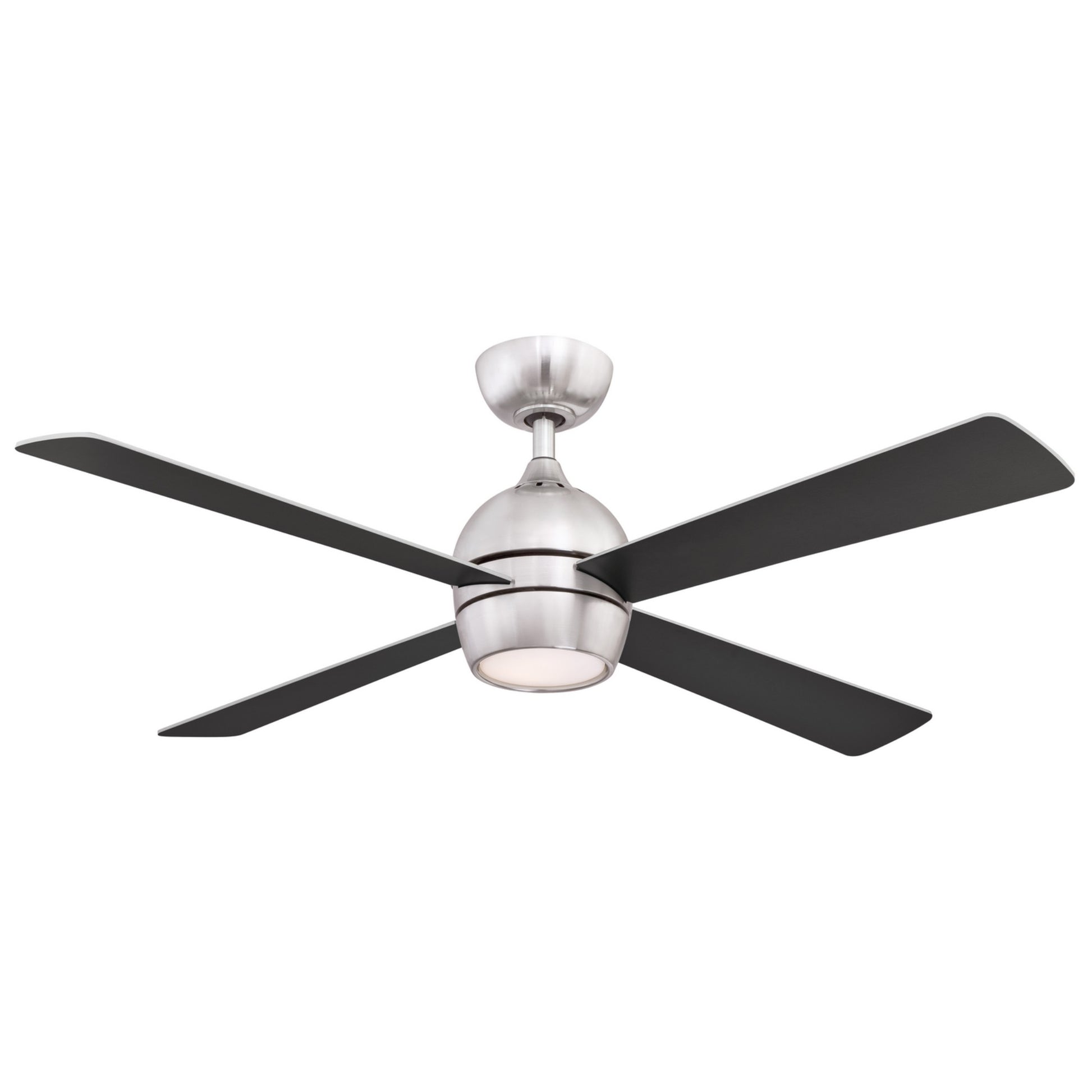

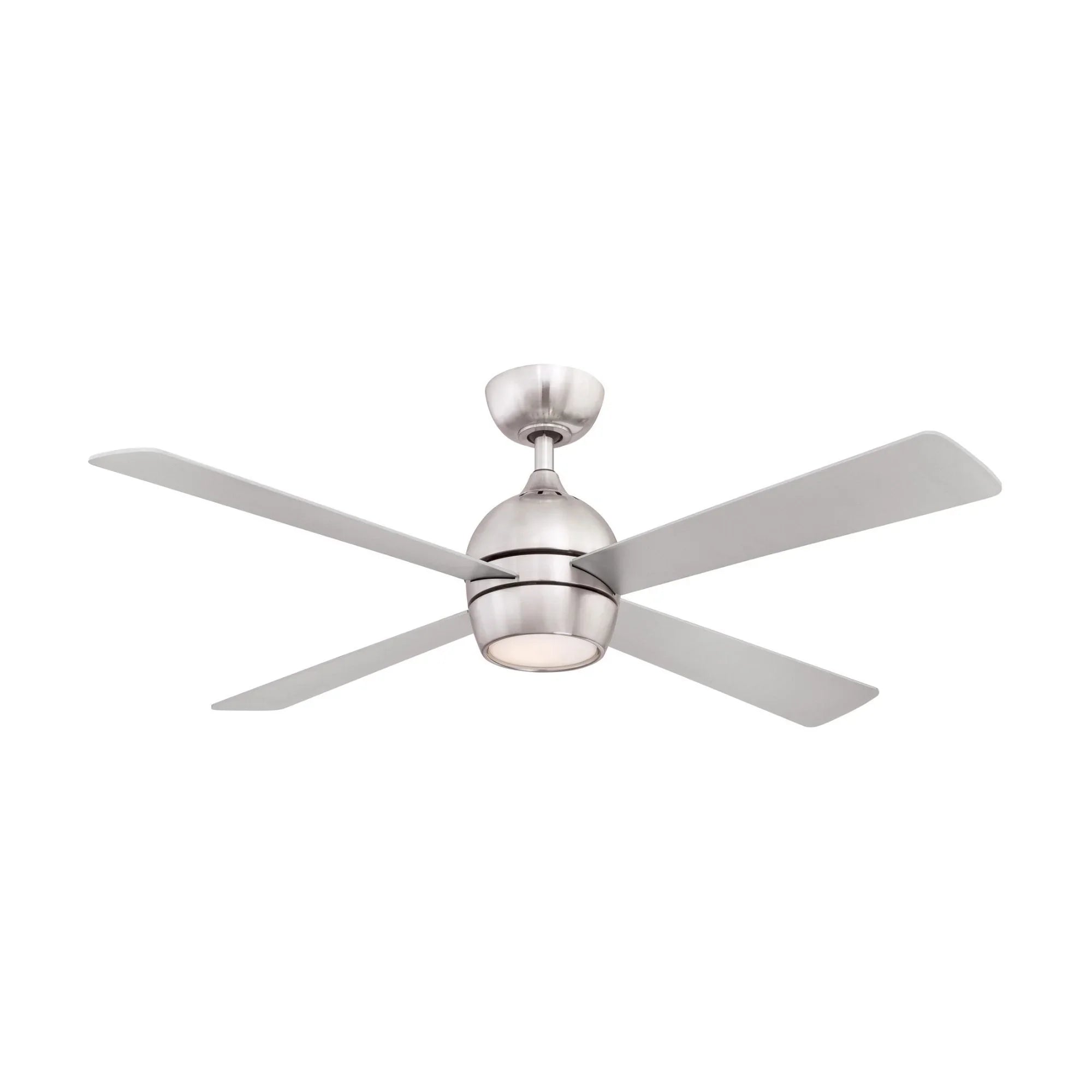

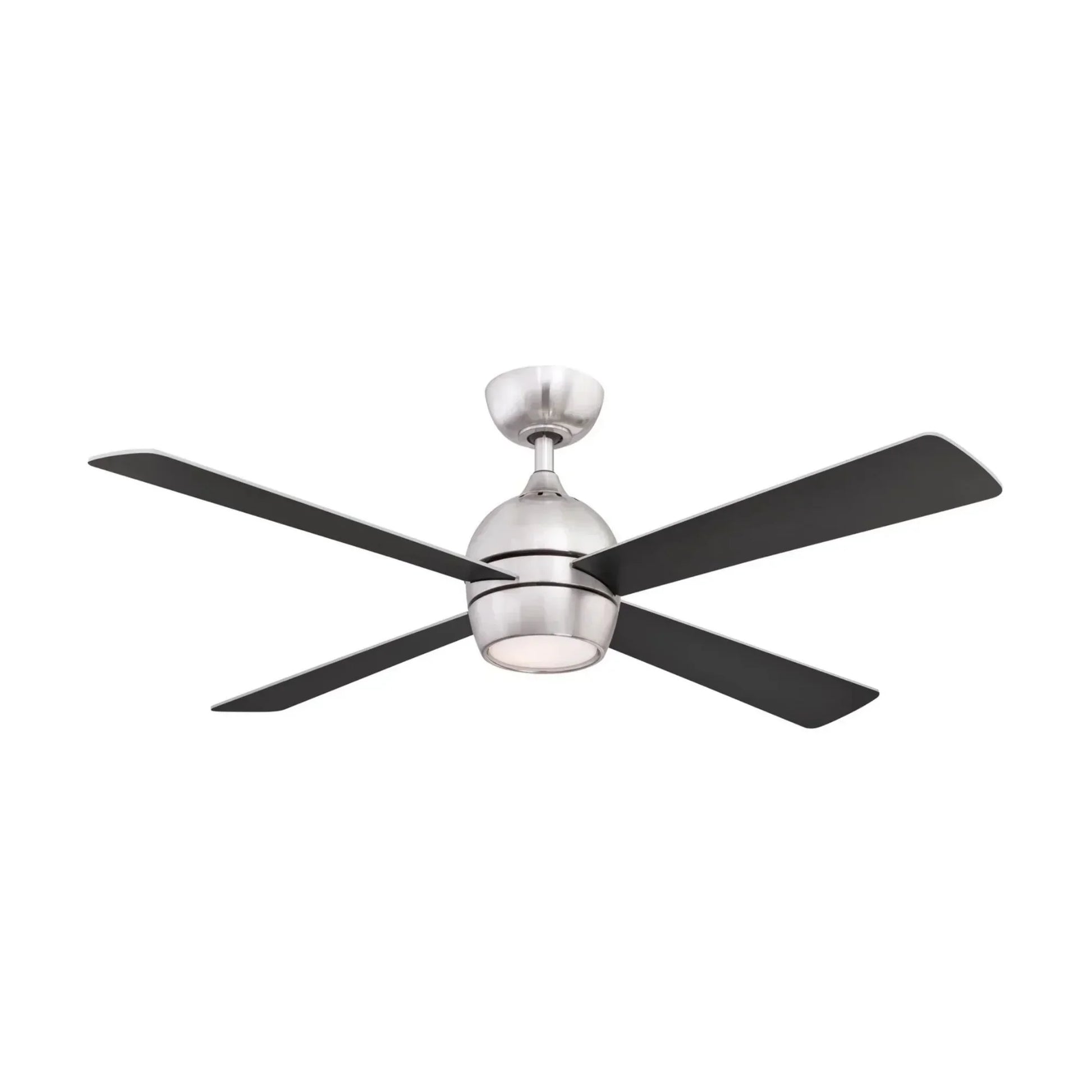

The Fanimation Kwad FP7652BN is a 52 in indoor ceiling fan with a 153×18 AC motor delivering 4,738 CFM at high speed and 85 CFM/W efficiency. Four Brushed Nickel/Black plywood blades sweep at a 12-degree pitch, and the 18W dimmable LED with Opal Frosted Glass adds 1,500 lumens of warm light. A refined two-tone finish with the TR500 remote included — ideal for medium to large rooms.
Key Features- Blade Span: 52 in — ideal for rooms up to ~400 sq ft
- Blades: 4 plywood blades in Brushed Nickel/Black, 12-degree pitch
- Motor: AC, 153×18mm, 3-speed
- Airflow: 4,738 CFM high / 2,168 CFM low
- Efficiency: 85 CFM/W high speed (Energy Guide: 96 CFM/W)
- Wattage: 56W high / 34W medium / 14W low + 18W LED
- Light: 18W LED, 1,500 lm, 3000K, CRI 90, Opal Frosted Glass
- Location: Dry — indoor only
- Sloped Ceiling: Up to 27° standard; up to 42° with SCB1-52 (sold separately)
- Downrod Included: 4.5 in (1 in dia.)

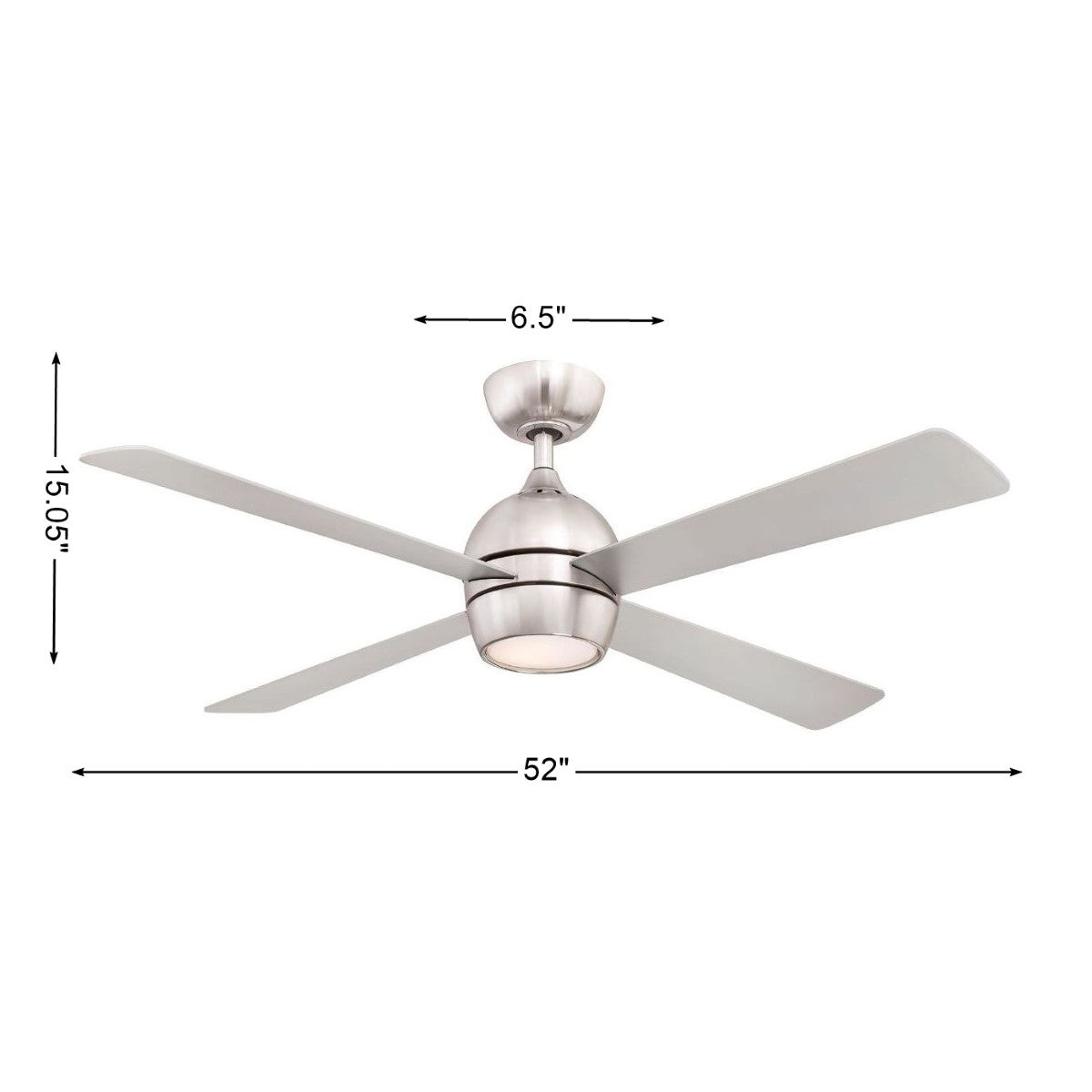

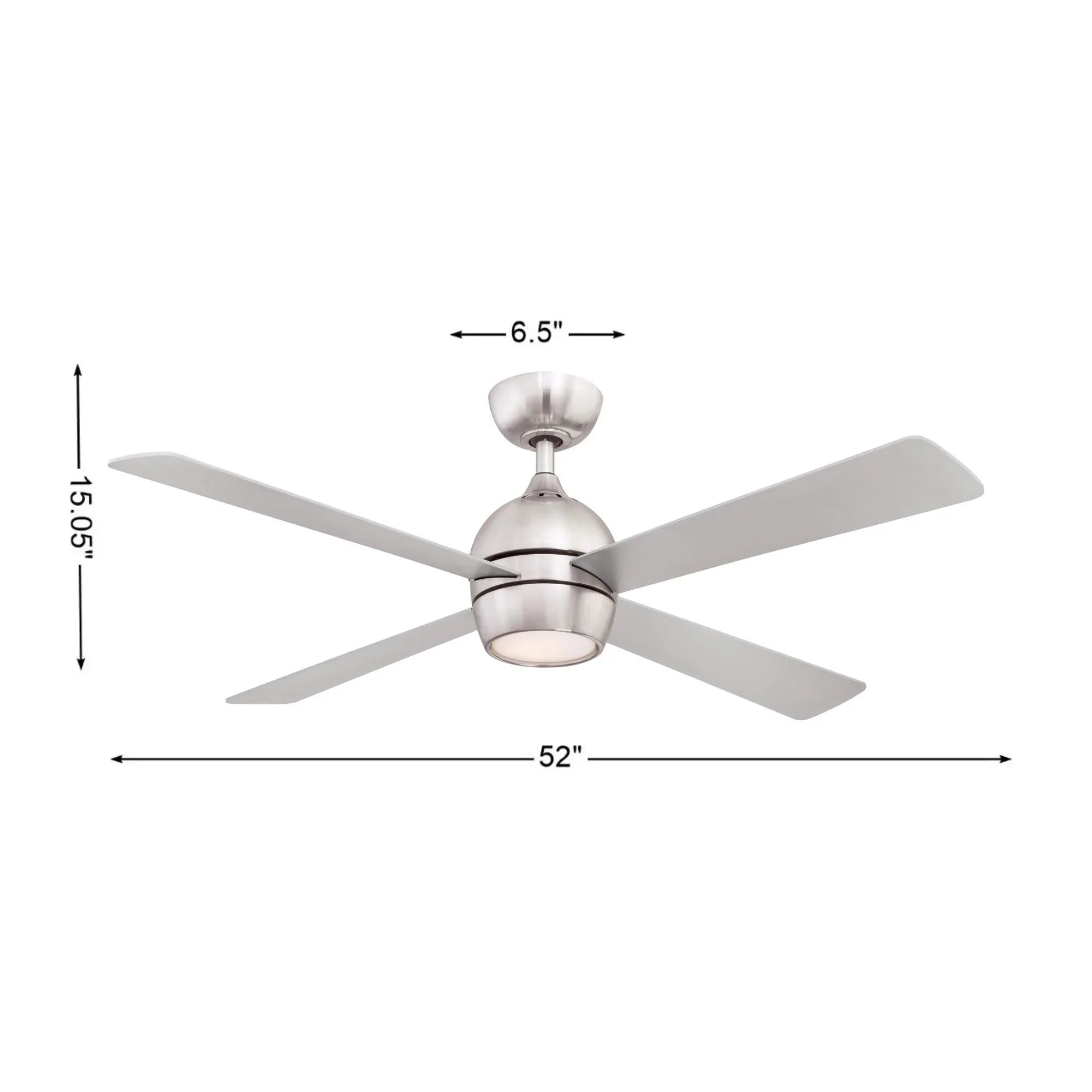

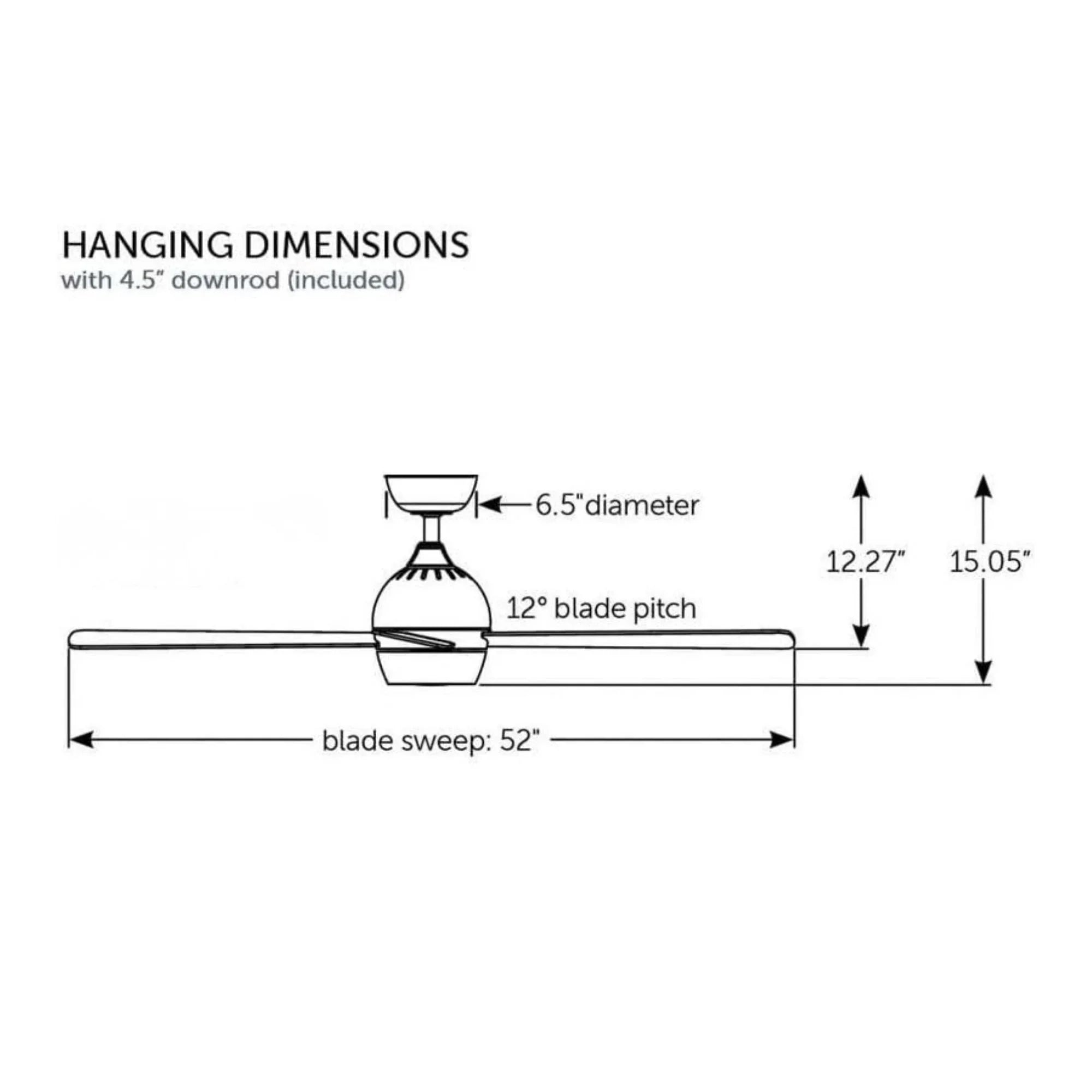

- Dimensions: 52 in DIA; 7 in min. hanging height; 6.5 in canopy dia.
- Net Weight: 16.31 lbs
- Warranty: Limited Lifetime Warranty
Includes the TR500 hand-held remote — variable speeds, infinite dimming, and off. Optional wall controls (WC2WH, WR501WH, CWRL4) and receivers (BTCR9, CRL4WH, BTR9) sold separately. Add the optional WFR50 WiFi receiver for smart app control.

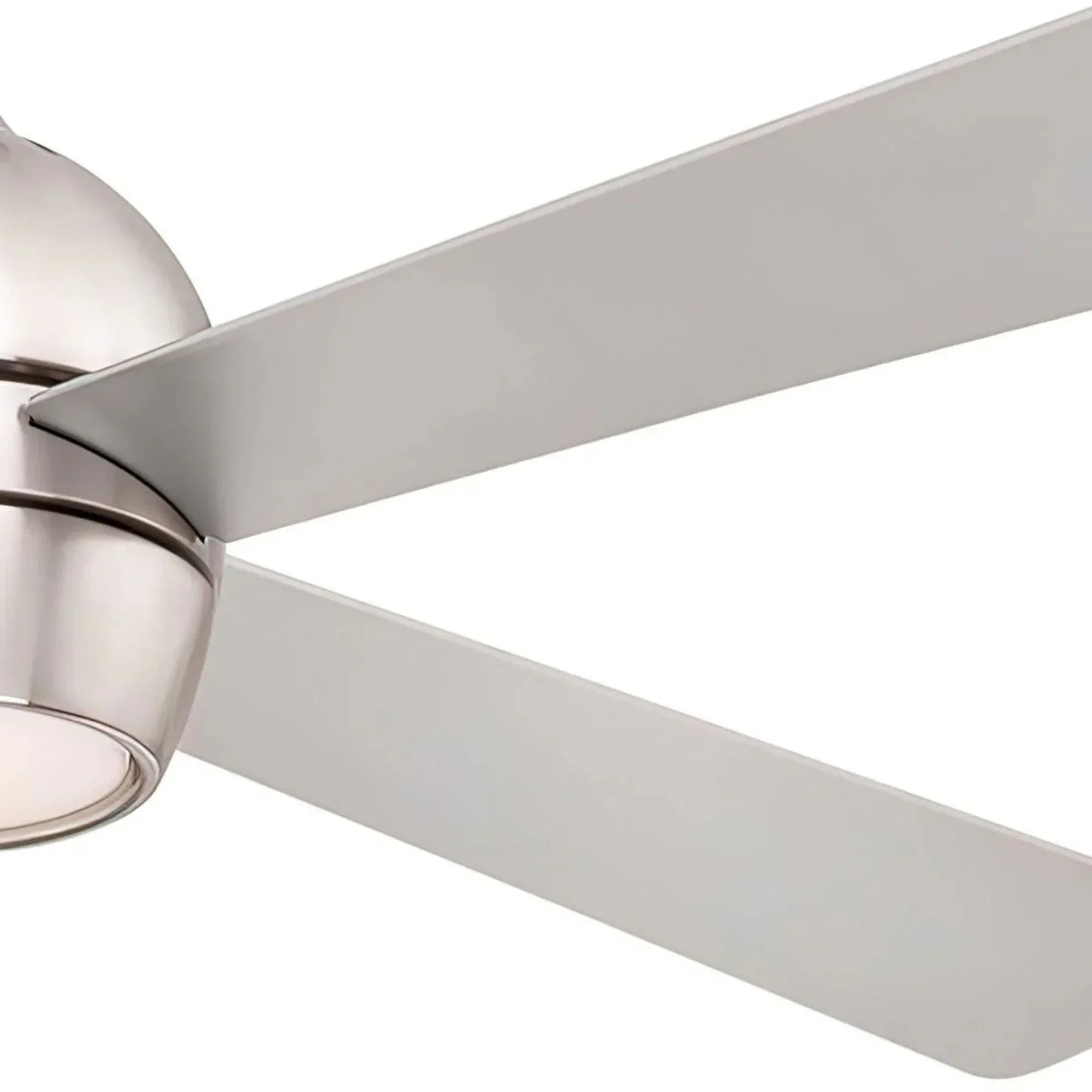

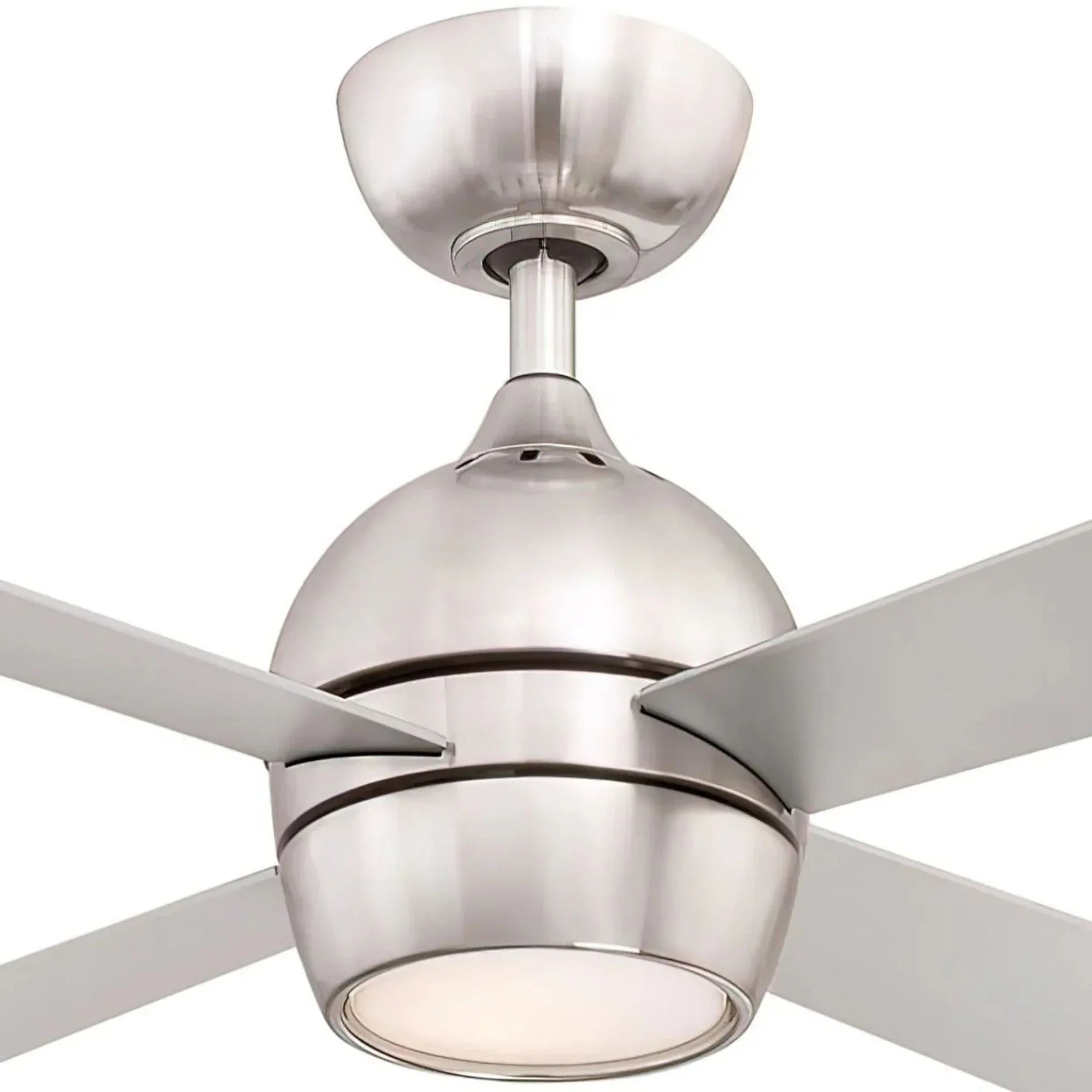

Construction & DesignThe Brushed Nickel motor housing pairs with Brushed Nickel/Black plywood blades at a 12-degree pitch for a refined, two-tone profile suited to contemporary and transitional interiors. The Opal Frosted Glass diffuser delivers soft 3000K ambient light. Canopy diameter: 6.5 in; min. hanging height: 7 in.
Electrical & InstallationInput Voltage: 120V AC, 60Hz, 15A. Wattage: 56W / 34W / 14W (fan) + 18W (LED). Reversible Motor: Yes — Summer & Winter modes. Downrod: 4.5 in included; 12, 18, 24, 36, 48, 60, 72 in available; use DR1-CP coupler for runs over 72 in. Sloped Ceiling: 27° standard; 42° with SCB1-52 kit. Junction box must support ≥35 lbs.
Suggested Downrod by Ceiling HeightShips with a 4.5 in downrod. Ideal blade-to-floor clearance: 7–9 ft.
- < 9 ft → flush mount kit CCK8002 (sold separately)
- 9 ft → < 12 in downrod
- 10 ft → 12–18 in downrod
- 11 ft → 18–24 in downrod
- 12 ft → 24–36 in downrod
- 13 ft → 36–48 in downrod
- 14 ft → 48–60 in downrod
- 15 ft → ≥ 72 in downrod
- Fanimation Kwad 52 in ceiling fan (motor + blades)
- 18W dimmable LED light kit with Opal Frosted Glass
- TR500 hand-held remote
- 4.5 in downrod
- Canopy and mounting hardware
- Limited Lifetime Warranty
