Fanimation Kwad FP7652 52 in LED Ceiling Fan
Kwad brings a broad four-blade profile and warm ambient light to living rooms, dining areas and bedrooms. Its 52 in sweep and three-speed AC motor deliver 4,738 CFM high-speed airflow for rooms up to approximately 400 sq ft. The included LED supplies 1,500 lumens at 3000K, with a TR500 remote for everyday fan and light control.
Key Features
- Blade design: Four plywood blades with 52 in sweep and 12° pitch.
- Motor: AC motor with three speeds.
- High-speed airflow: 4,738 CFM at 56W and 85 CFM/W.
- Low-speed airflow: 2,168 CFM at 14W.
- Medium-speed power: 34W.
- Energy Guide average: 3,533 CFM at 37W and 96 CFM/W.
- Lighting: Included 18W LED, 1,500 lumens, 3000K and CRI 90.
- Location: Dry rated for enclosed indoor use only.
Smart & Control Features
Includes the TR500 hand-held remote for fan and light control. WiFi is not included; optional WFR50 WiFi receiver adds smart app control. Optional controls include WC2WH, WR501WH and CWRL4. Additional receiver options listed for this family include BTCR9, CRL4WH and BTR9. Accessories are sold separately.
Construction & Design
Four plywood blades at 12° pitch frame the motor housing, with an Opal Frosted Glass light diffuser below. Net weight is 16.31 lb. Finish and blade pairings are:

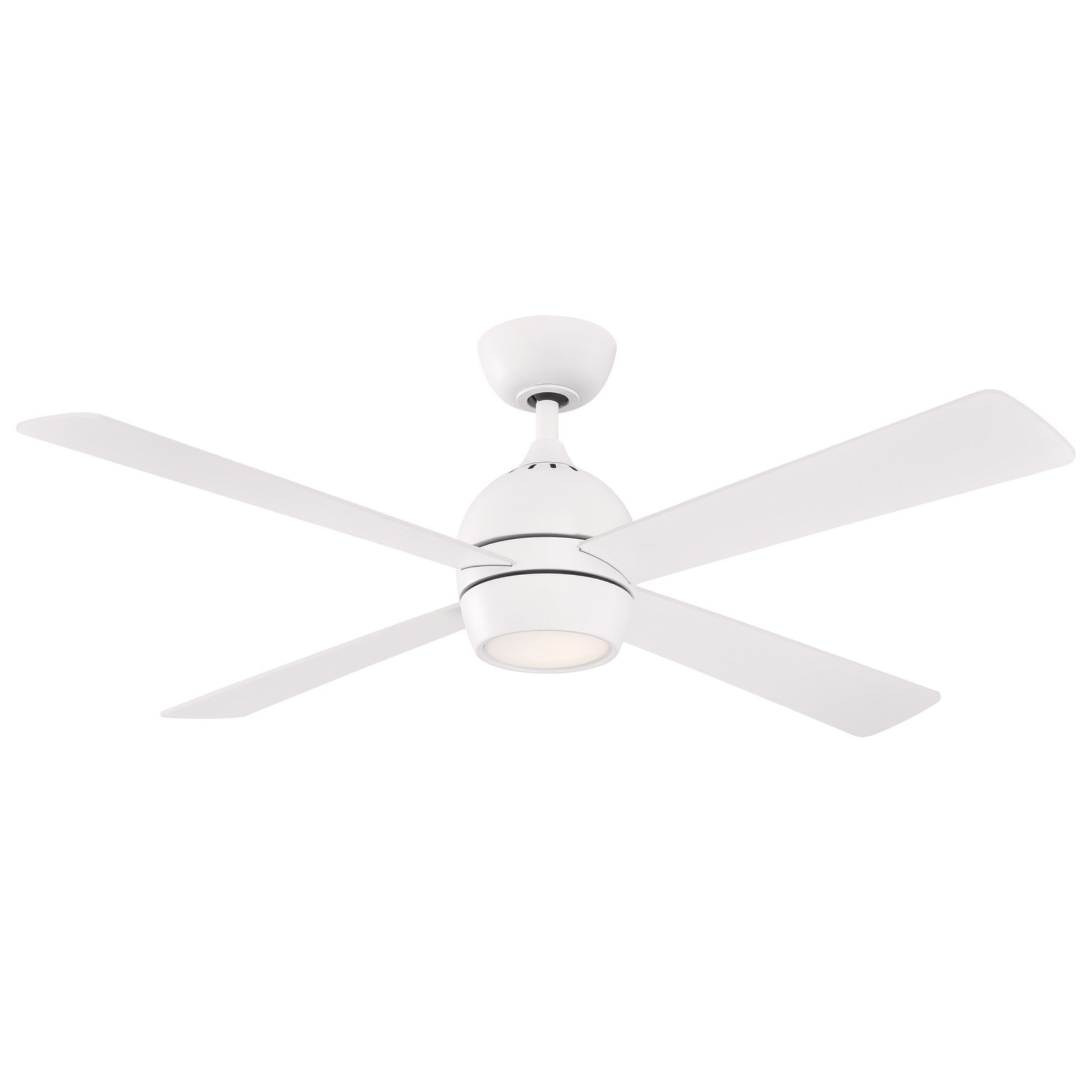

- Matte White, FP7652MW: Matte White housing and blades.

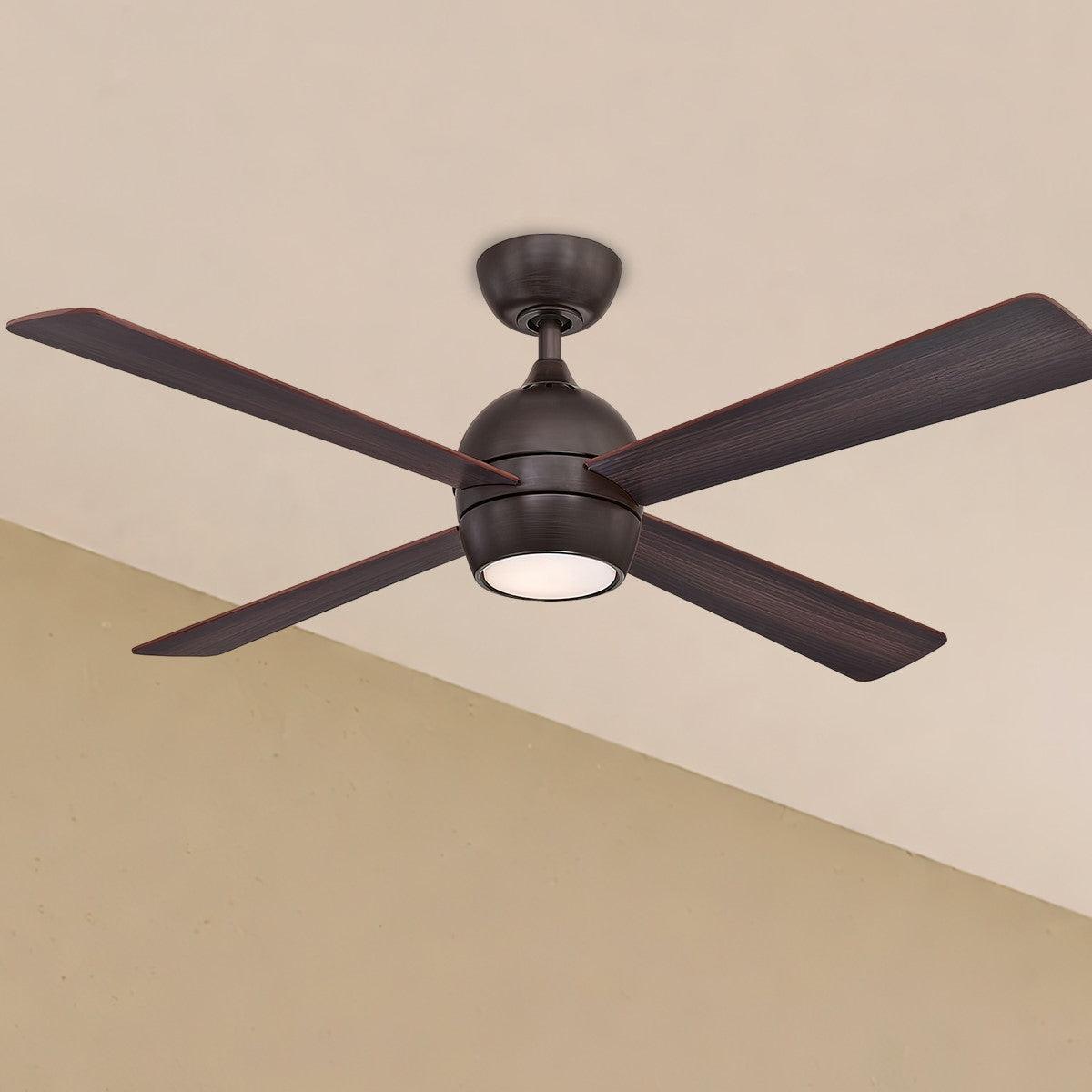

- Dark Bronze, FP7652DZ: Dark Bronze housing with Cherry and Dark Walnut blade finishes.

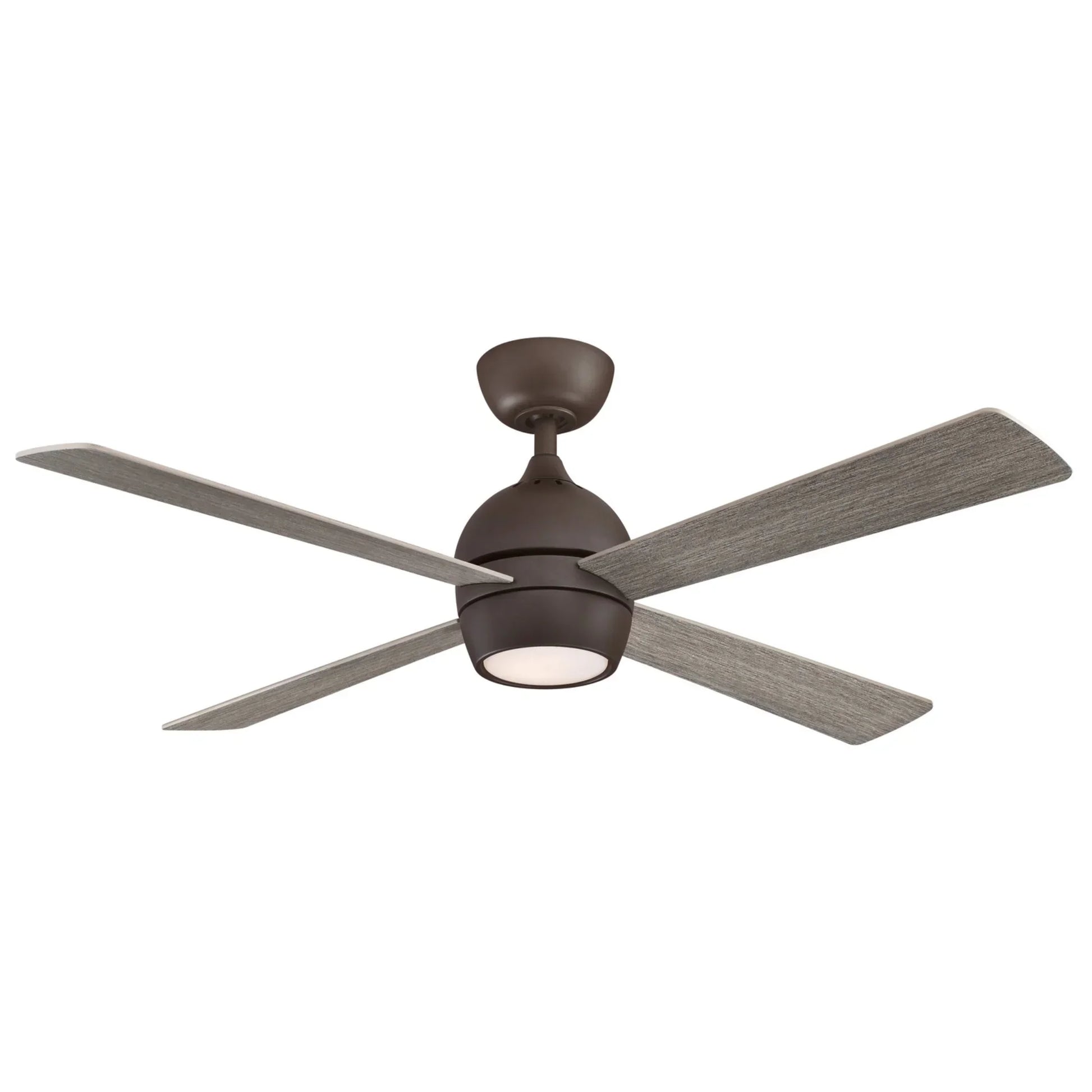

- Matte Greige, FP7652GR: Matte Greige housing with Weathered Wood blades.

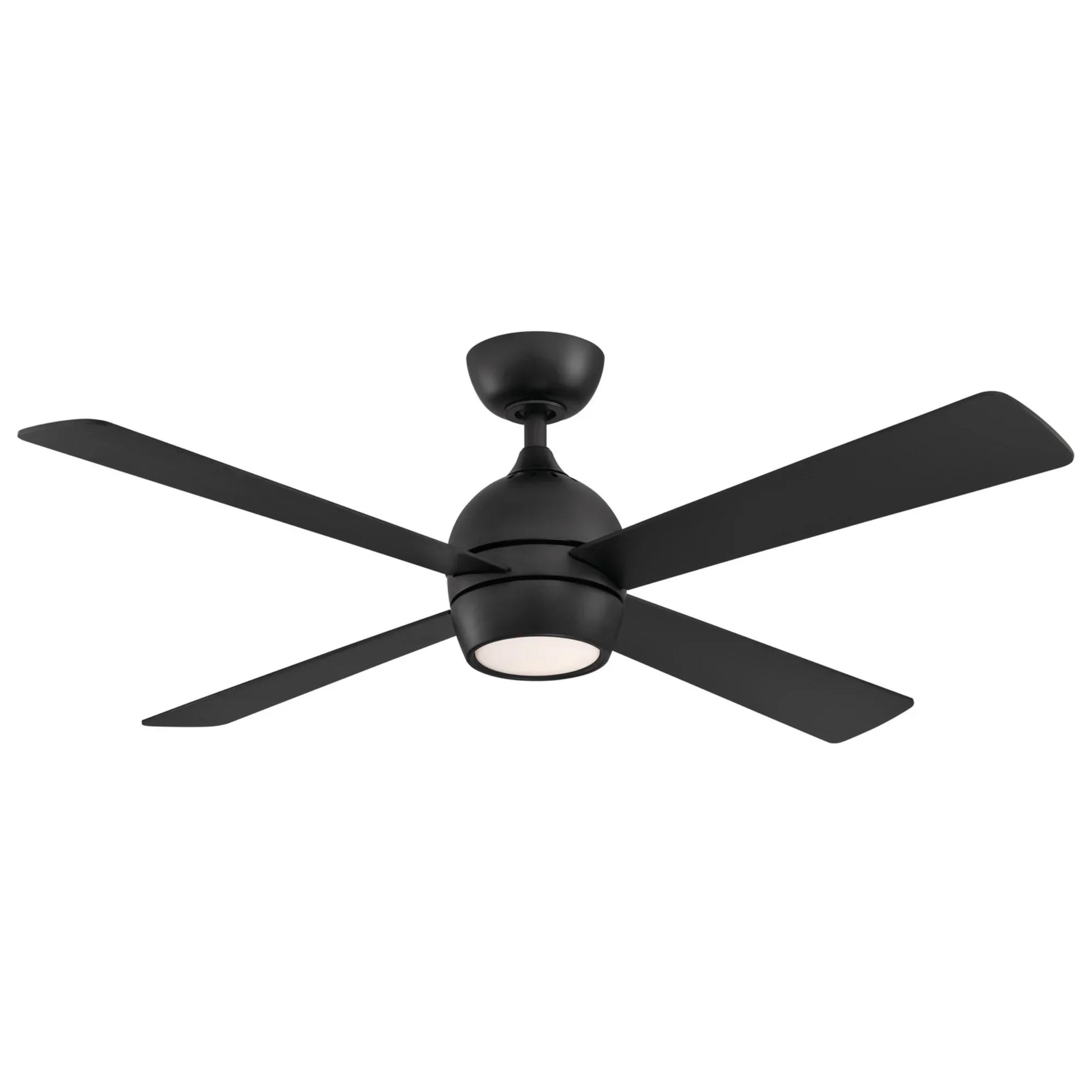

- Black option, FP7652BL: Matte Black housing with Black blades.

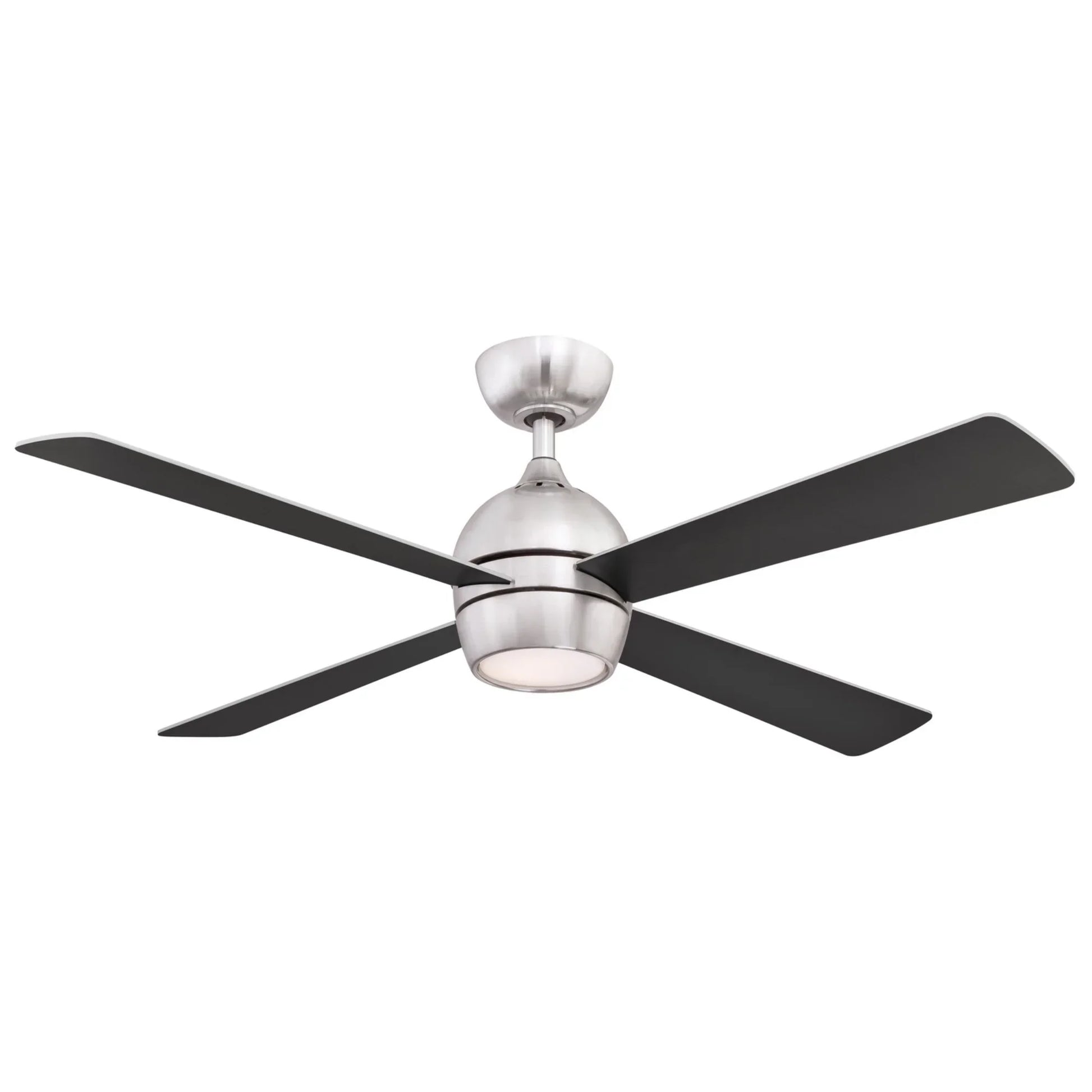

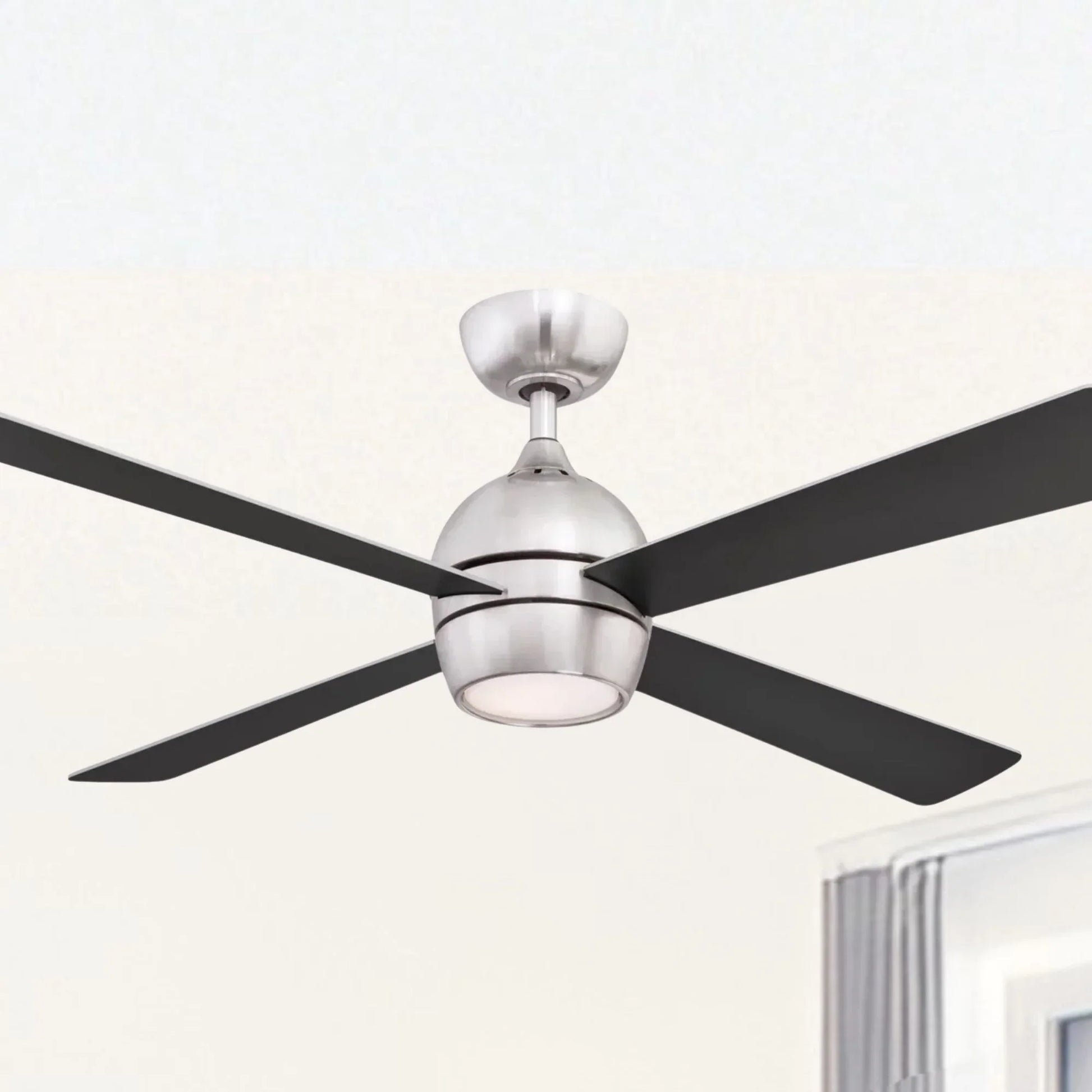

- Brushed Nickel, FP7652BN: Brushed Nickel housing with Brushed Nickel and Black blade finishes.

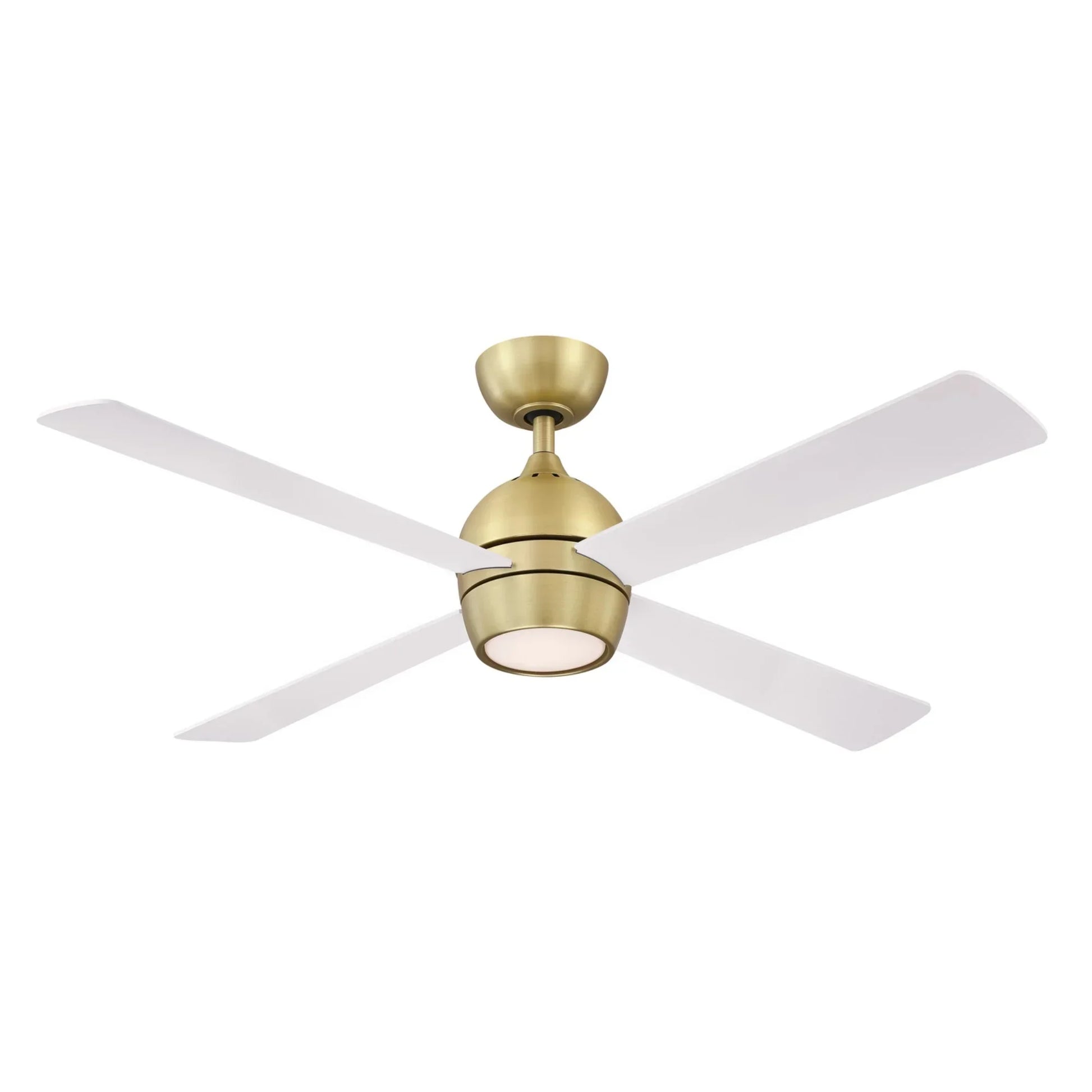

- Brushed Brass option, FP7652BS: Brushed Satin Brass housing with Matte White blades.
Light Output & Performance
The included 18W LED produces 1,500 lumens at warm 3000K with CRI 90. Opal Frosted Glass softens the light for relaxed indoor living spaces. High-speed fan airflow of 4,738 CFM is distinct from the 3,533 CFM Energy Guide average. The 52 in sweep suits rooms up to approximately 400 sq ft.
Electrical & Installation
Operates on 120V AC, 60Hz. Includes a 4.5 in downrod with 1 in diameter, canopy and mounting hardware. Standard mounting supports slopes up to 27°; optional SCB1-52 sloped ceiling kit supports slopes up to 42°. Optional CCK8002 close-to-ceiling kit accommodates lower-clearance installations. Install only in enclosed dry indoor spaces.
Suggested Downrod by Ceiling Height
A 4.5 in downrod is included. Additional downrods and mounting accessories are sold separately. Select the final length for the installation and maintain at least 7 ft from floor to blades.
- Below 9 ft ceiling → CCK8002 close-to-ceiling kit, where clearance permits
- 9 ft ceiling → downrod shorter than 12 in
- 10 ft ceiling → 12–18 in downrod
- 11 ft ceiling → 18–24 in downrod
- 12 ft ceiling → 24–36 in downrod
- 13 ft ceiling → 36–48 in downrod
- 14 ft ceiling → 48–60 in downrod
What's Included
- Kwad 52 in ceiling fan with four plywood blades in the selected finish pairing
- 18W LED light kit with Opal Frosted Glass
- TR500 hand-held remote
- 4.5 in downrod
- Canopy and mounting hardware
