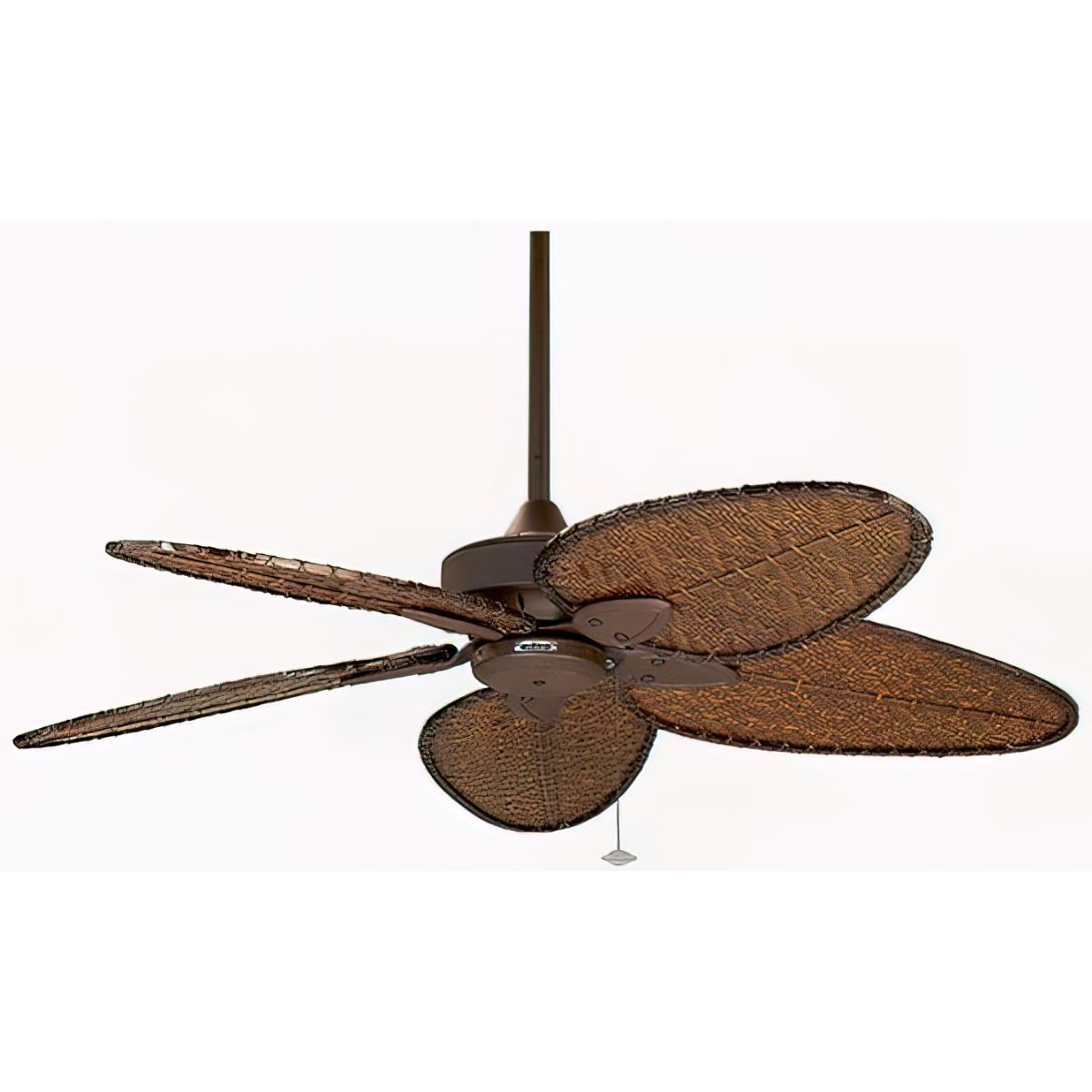

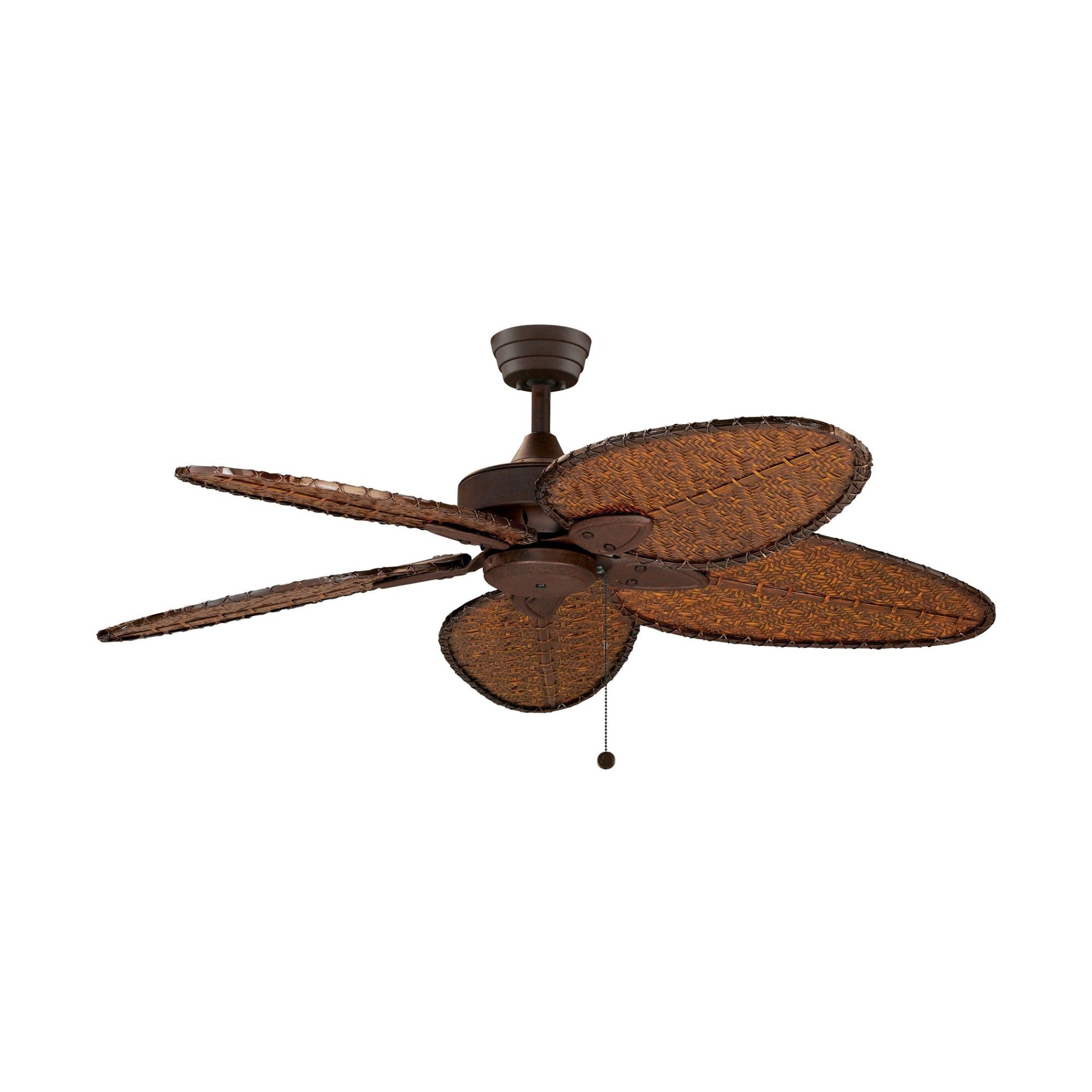

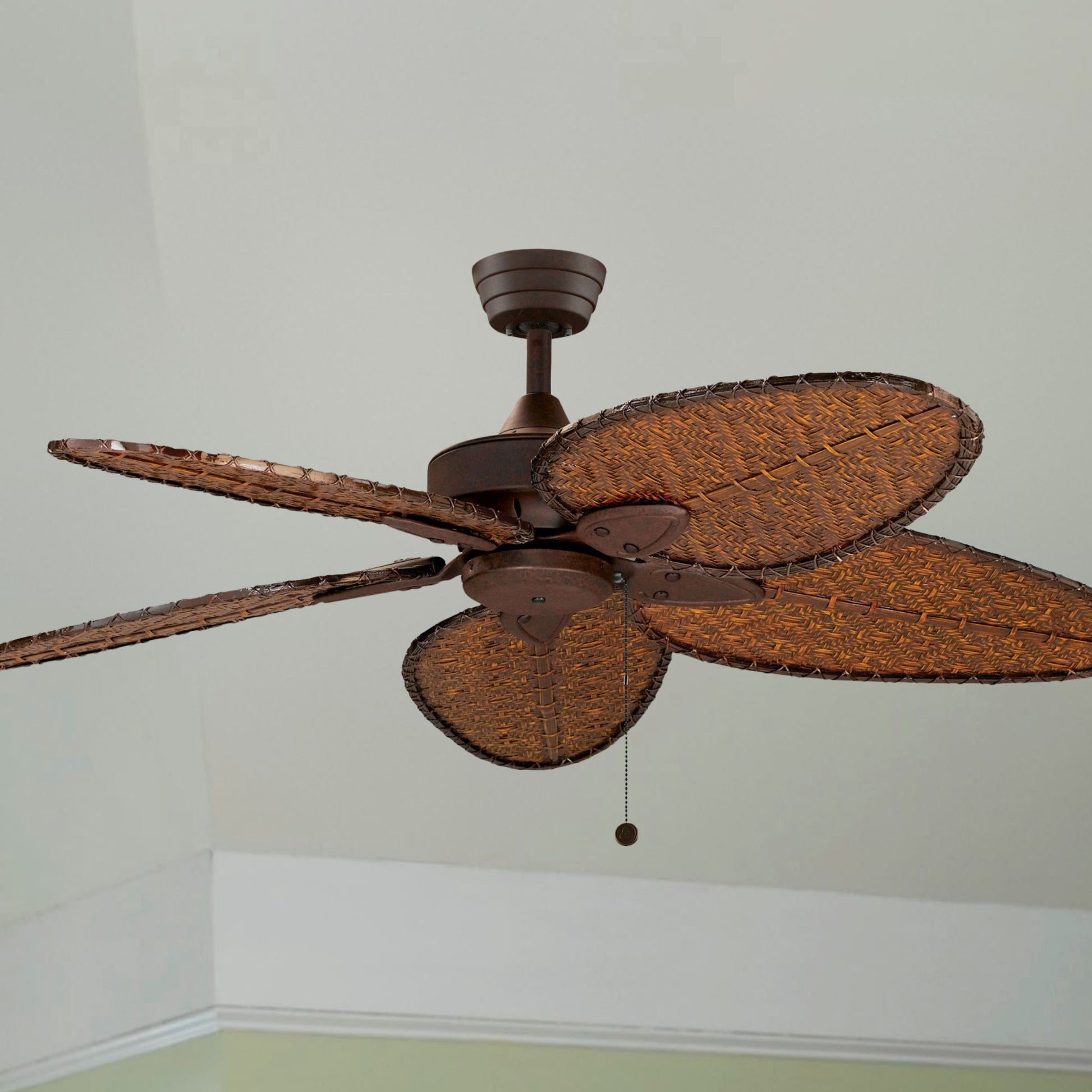

The Fanimation Windpointe FP7500RS is a classic five-blade 52 in downrod ceiling fan in warm Rust with five sculpted antique woven real bamboo blades at 18° pitch. Powered by a proven AC 188×25mm motor with 3 speeds and a reverse switch on the fan body, it delivers 2,551 CFM at high speed. Damp rated for indoor and covered outdoor use.

• Blade Span: 52 in / 5 real bamboo blades / 18° pitch / antique woven finish
• Motor: AC 188×25mm, 3 speeds, reverse switch on fan body
• Airflow: 2,551 CFM high / 1,175 CFM low
• Efficiency: 60.74 CFM/W at high speed
• Wattage: 42W high / 17W low
• Location Rating: Damp rated — suitable for indoor and covered outdoor spaces
• Mount Type: Downrod — 6 in downrod included / sloped ceilings up to 27° standard
• Downrod Included: 6 in (1 in dia)

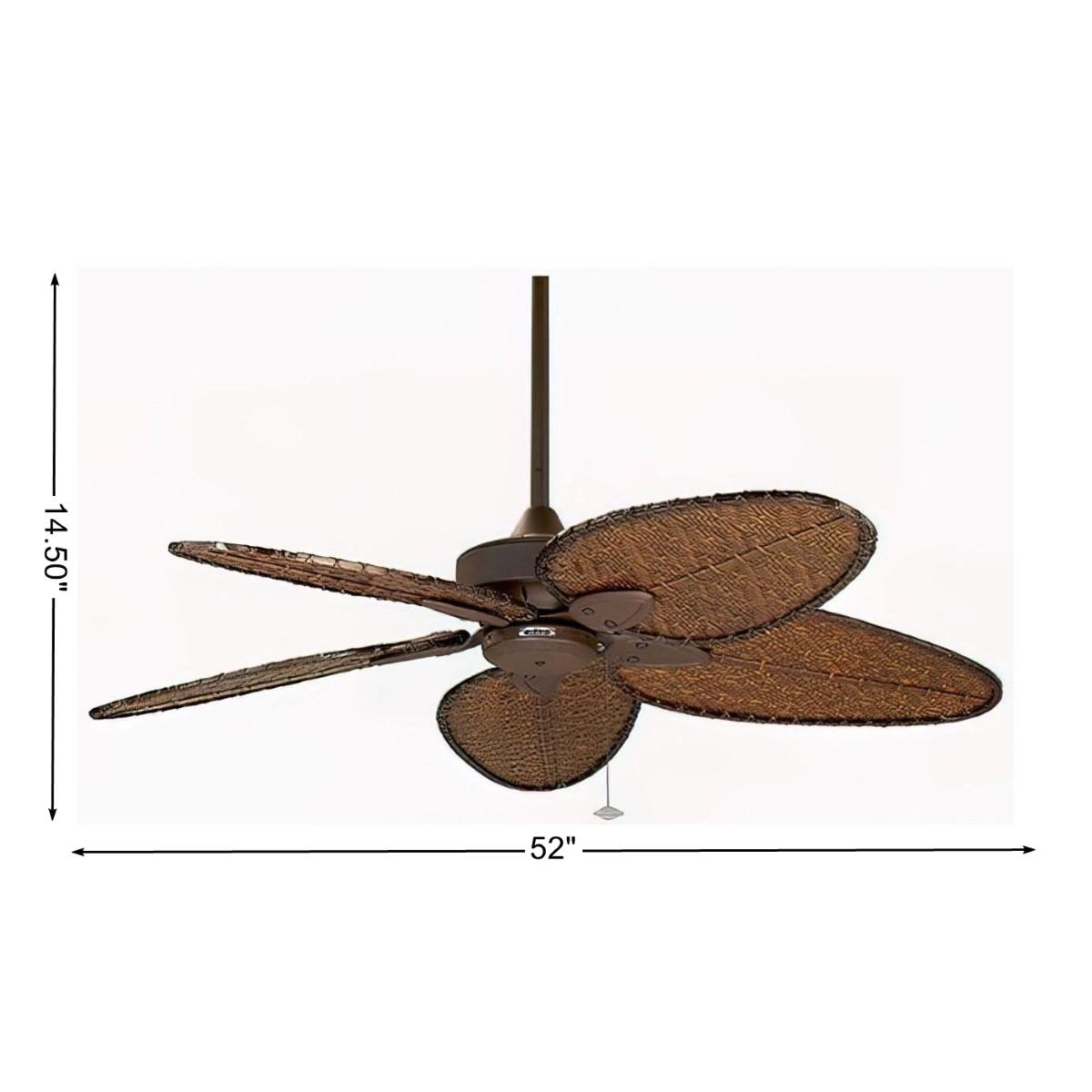

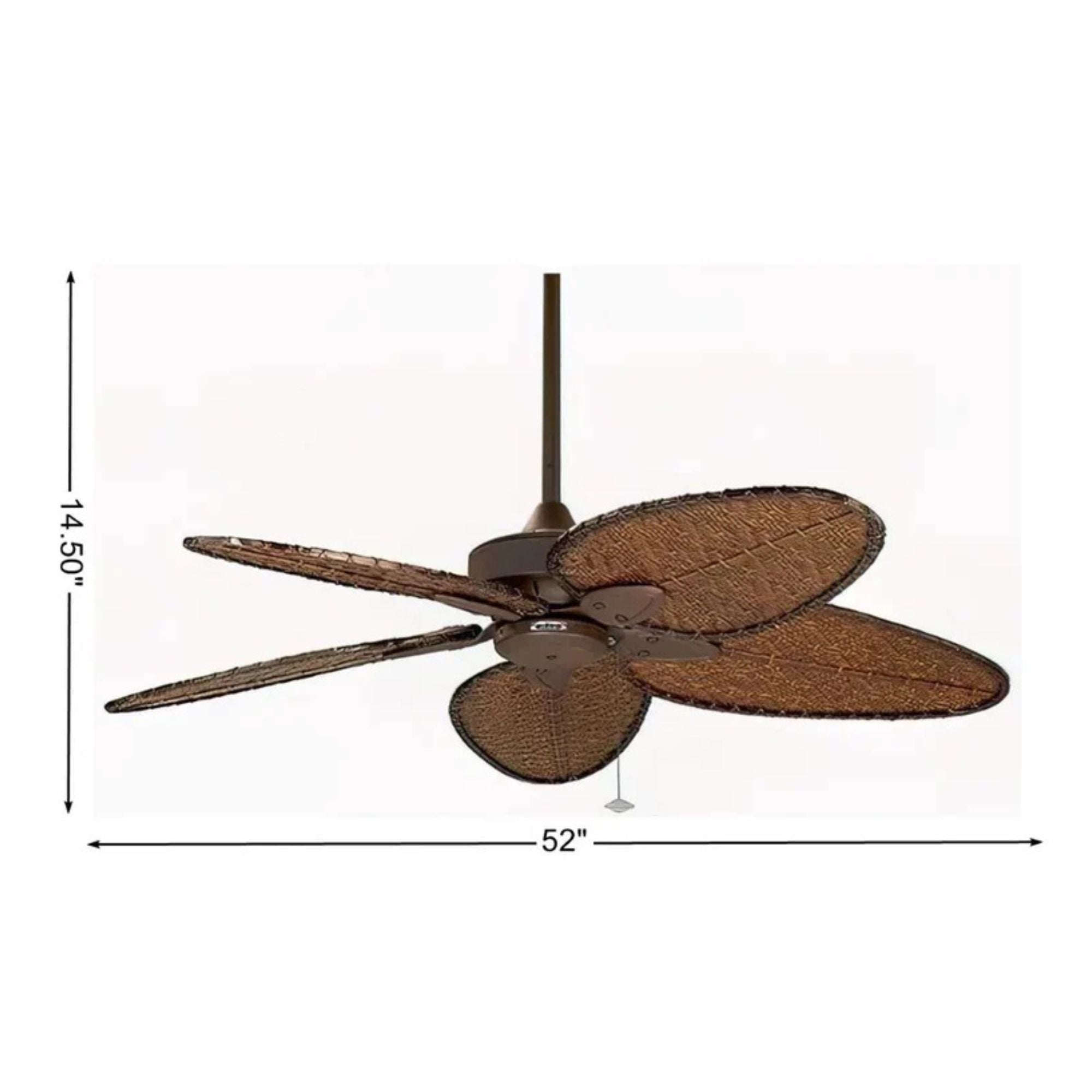

• Overall Height: 14.00–14.50 in (varies by downrod)
• Weight: 27.06 lbs

The FP7500RS is controlled via pull chain (3 speeds) with a reverse switch on the fan body. No remote is included. Optional accessories sold separately: wall controls WC1WH (3-wire fan only), WC2WH (3-wire fan + light), WR500WH (fan only wall remote), WR501WH (fan + light wall remote), CWRL4; remotes BTCR9, CRL4WH, CR500; and BTR9 Bluetooth receiver and WFR50 fanSync WiFi receiver.

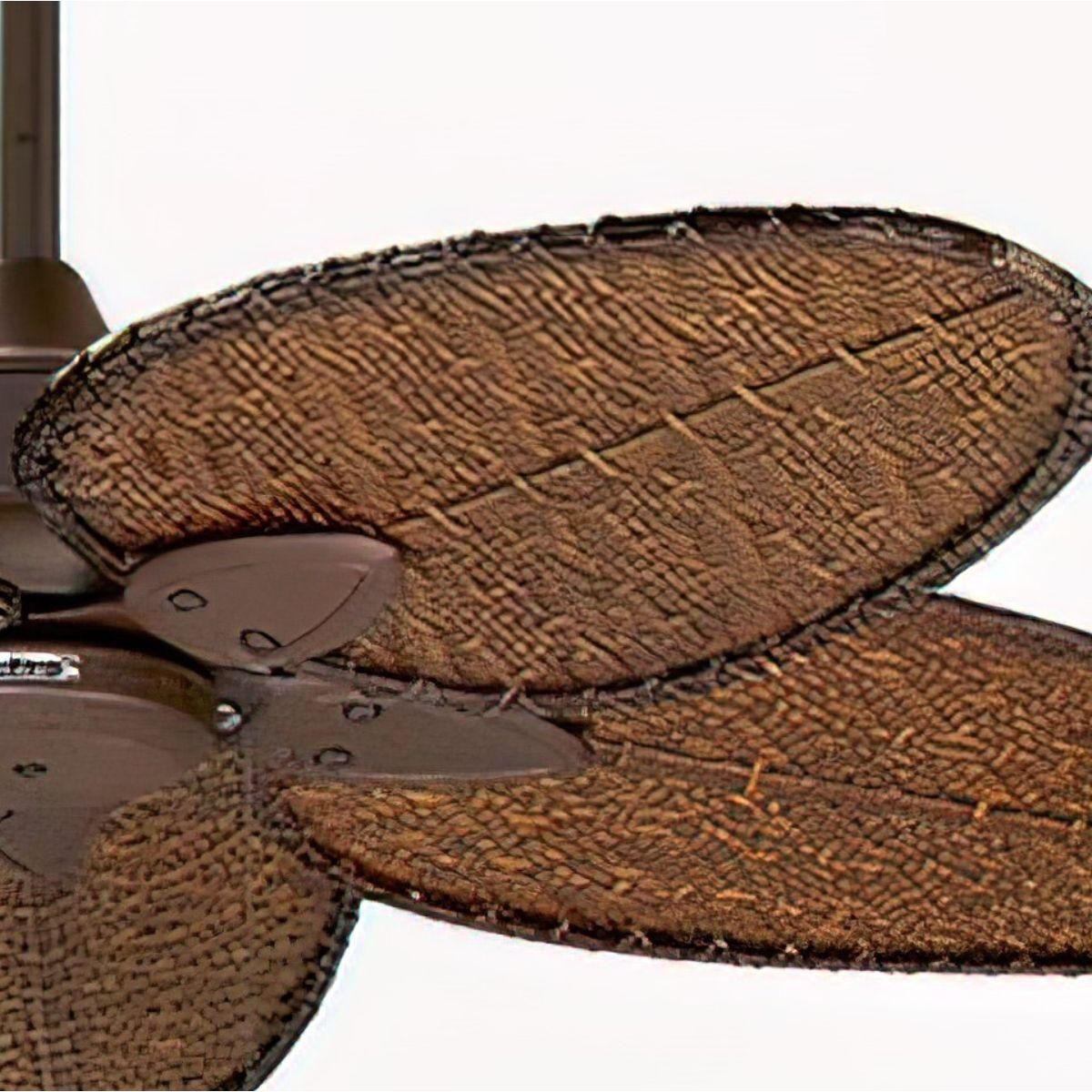

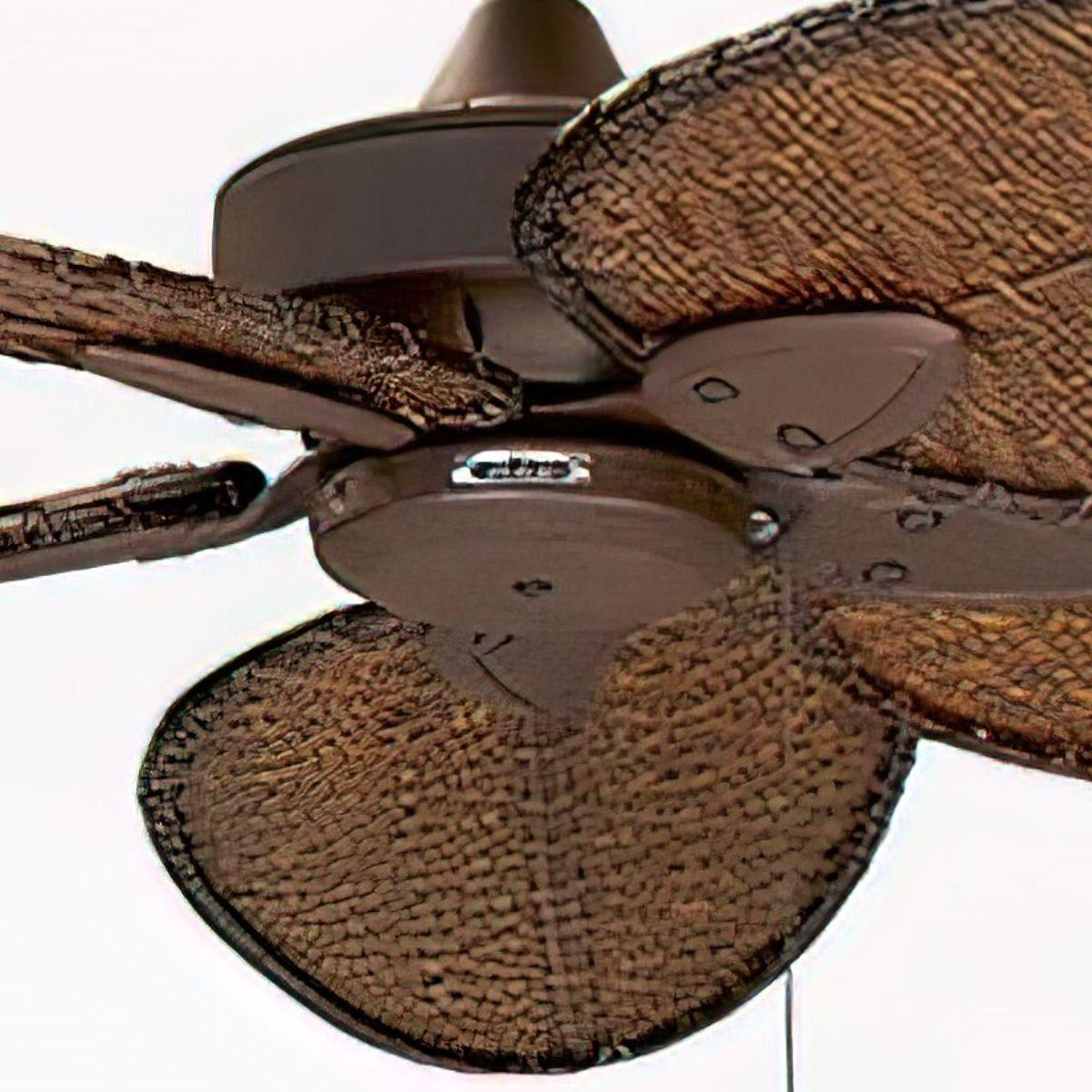

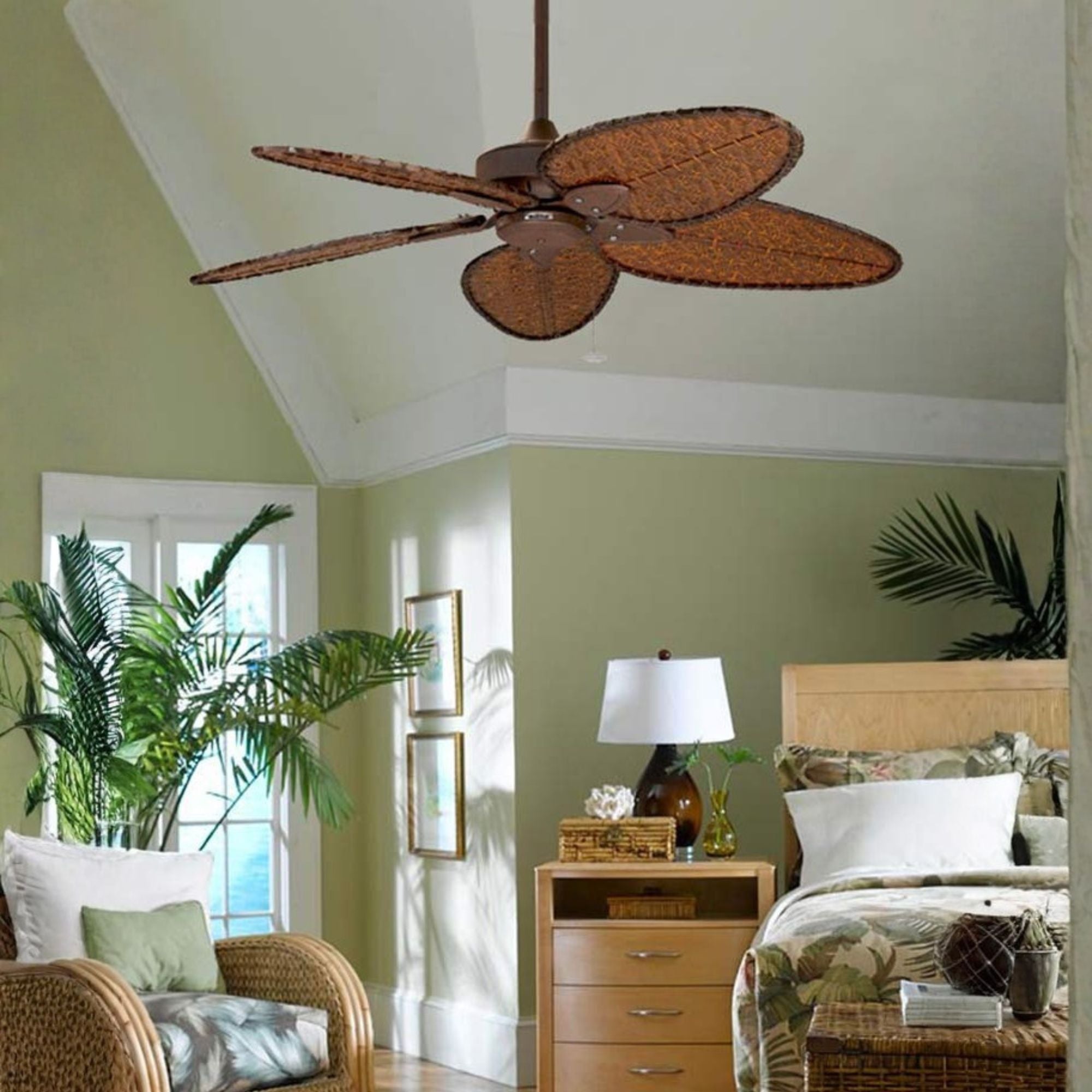

Motor housing in Rust with five antique woven real bamboo blades at 18° pitch. Net weight: 27.06 lbs. The Windpointe’s organic bamboo blades bring authentic tropical character to covered patios, sunrooms, and coastal interiors — a timeless silhouette built for both indoor and covered outdoor environments.

The FP7500RS delivers 2,551 CFM at high speed (60.74 CFM/W, 42W) and 1,175 CFM at low speed (17W) — suited for medium rooms up to approximately 300 sq ft. Energy Guide average: 2,374 CFM at 32W / 74 CFM/W.

120V AC, 60Hz, 15A circuit. Max draw: 42W. Ships with a 6 in downrod (1 in dia). Sloped ceiling compatible up to 27° with standard downrod. For slopes 27°–42°, the optional sloped ceiling ball kit SCB1-52 is available separately. Optional close-to-ceiling kit CCK8002 available separately. Fan must be attached to a securely anchored electrical junction box capable of withstanding at least 35 lbs.

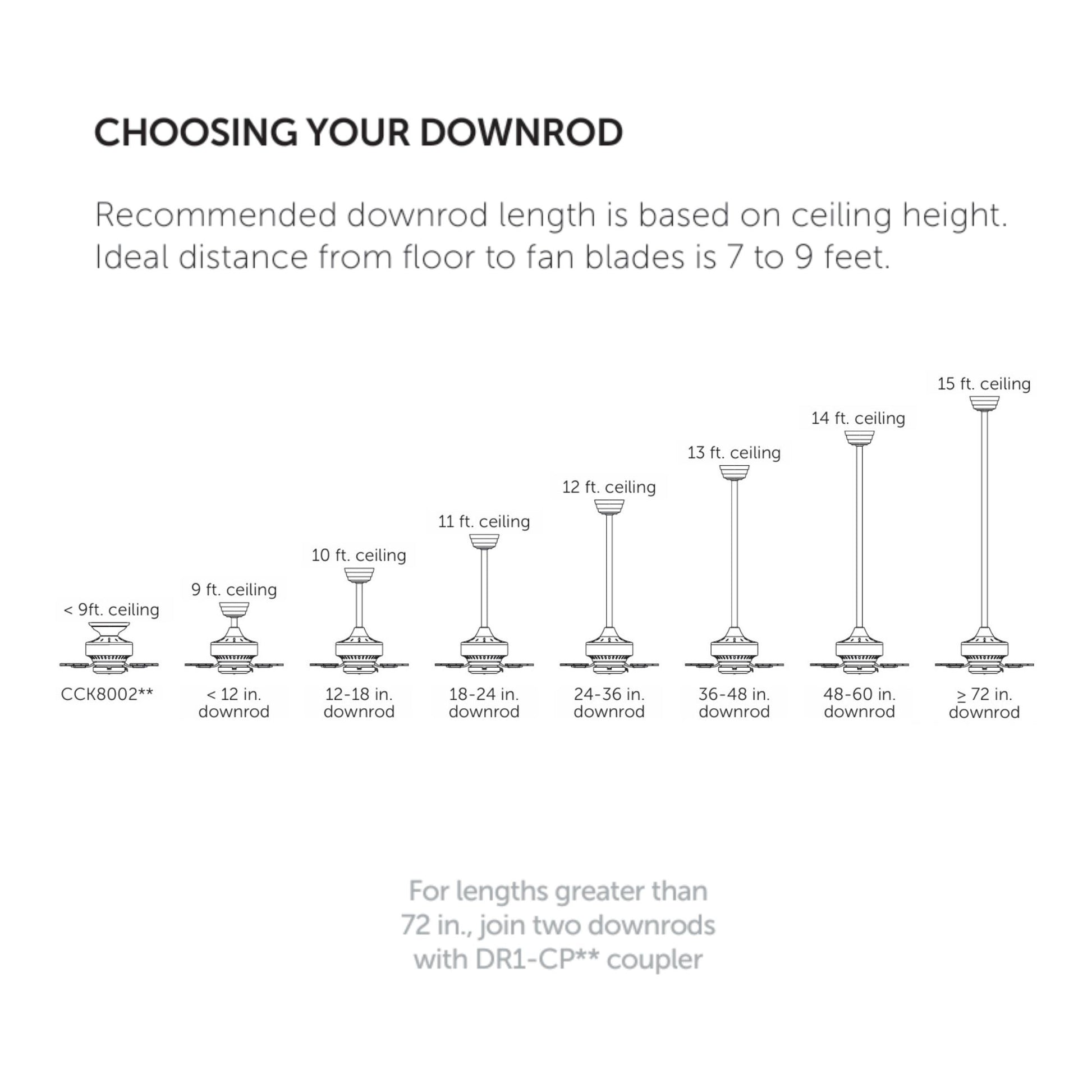

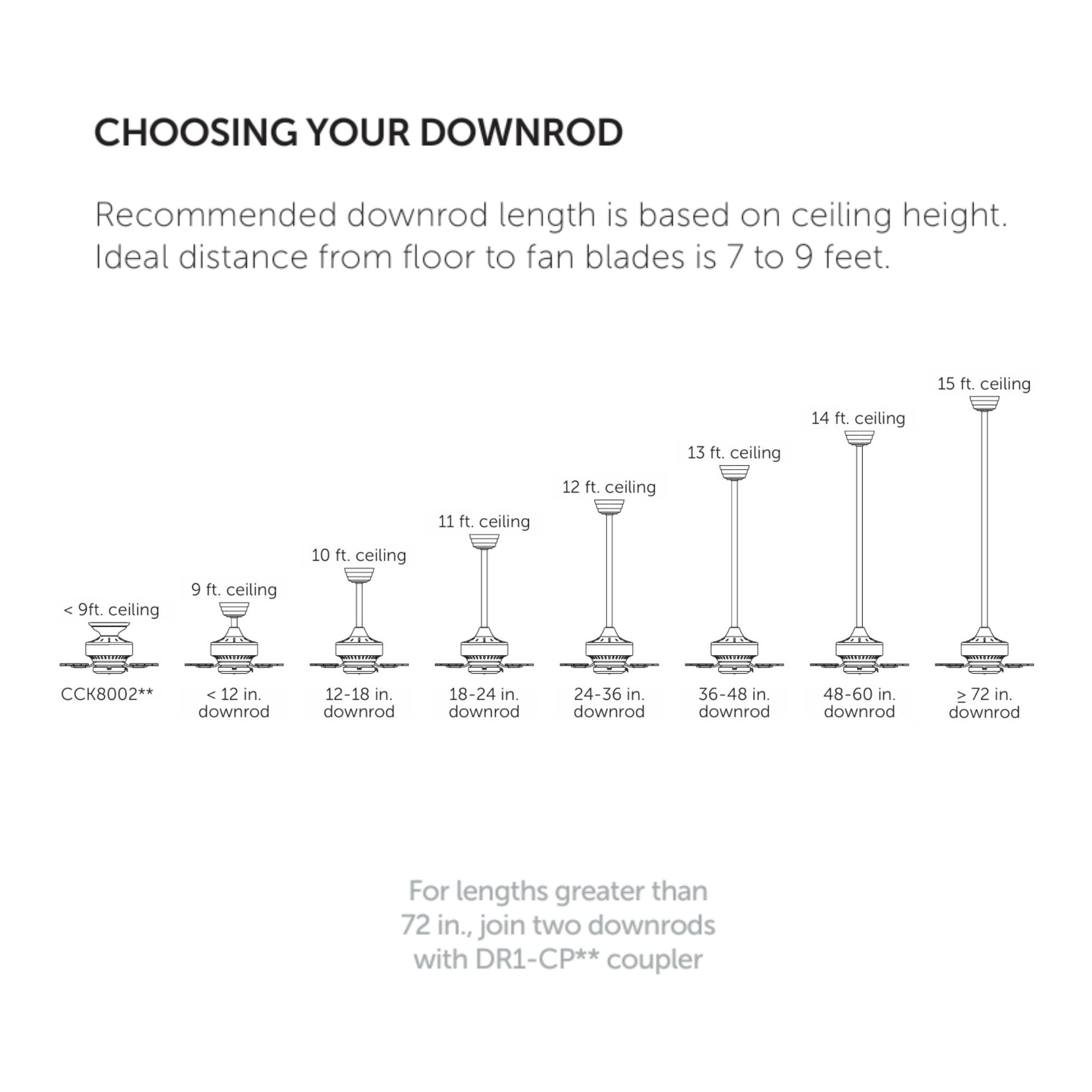

A 6 in downrod is included. Additional downrods available in 12, 18, 24, 36, 48, 60, and 72 in lengths (sold separately). For lengths greater than 72 in, join two downrods with a coupler.

• 9 ft ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

Ideal distance from floor to fan blades is 7 to 9 feet.

• FP7500RS ceiling fan (Rust body + 5 antique woven real bamboo blades)
• Pull chain control
• 6 in downrod
• Mounting hardware
