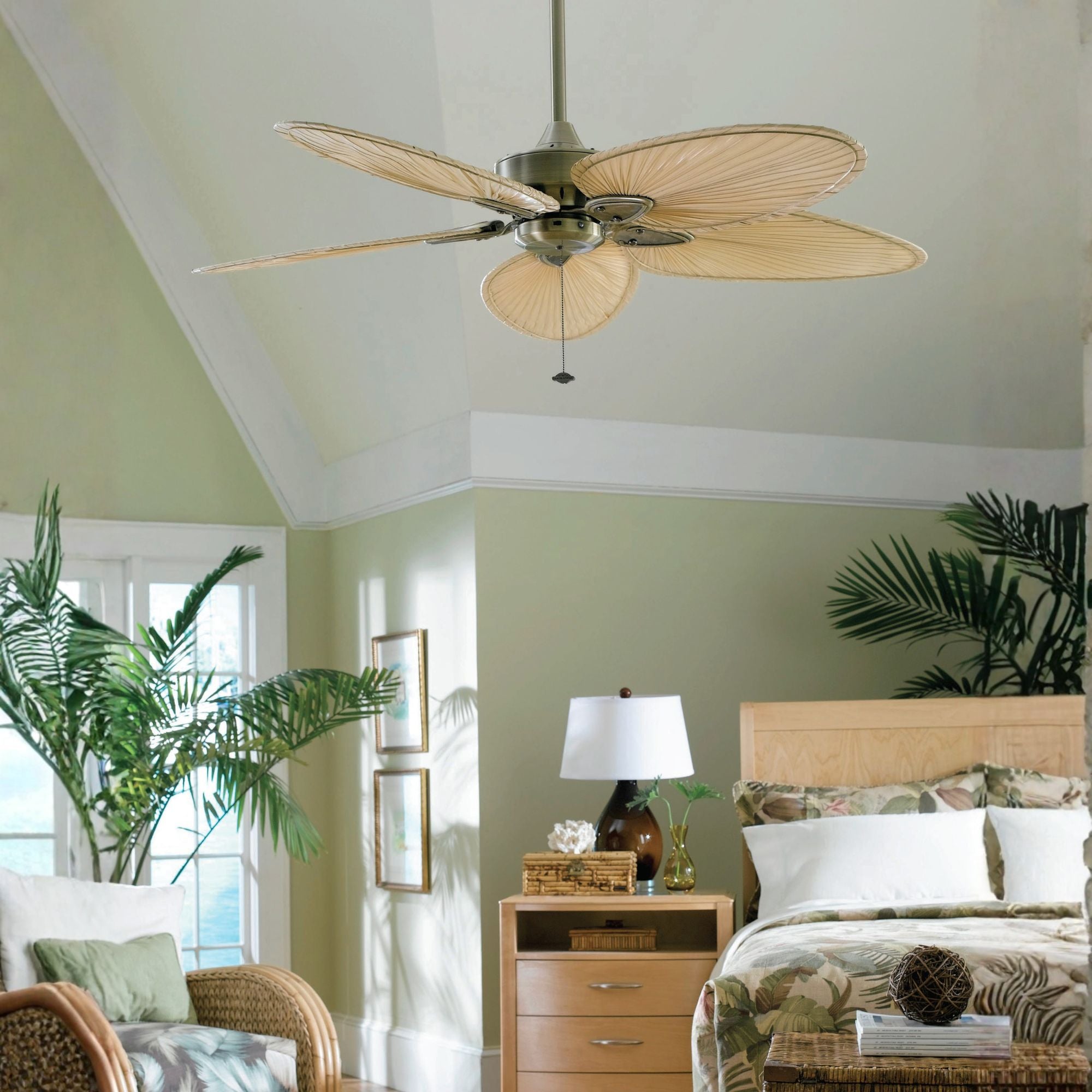

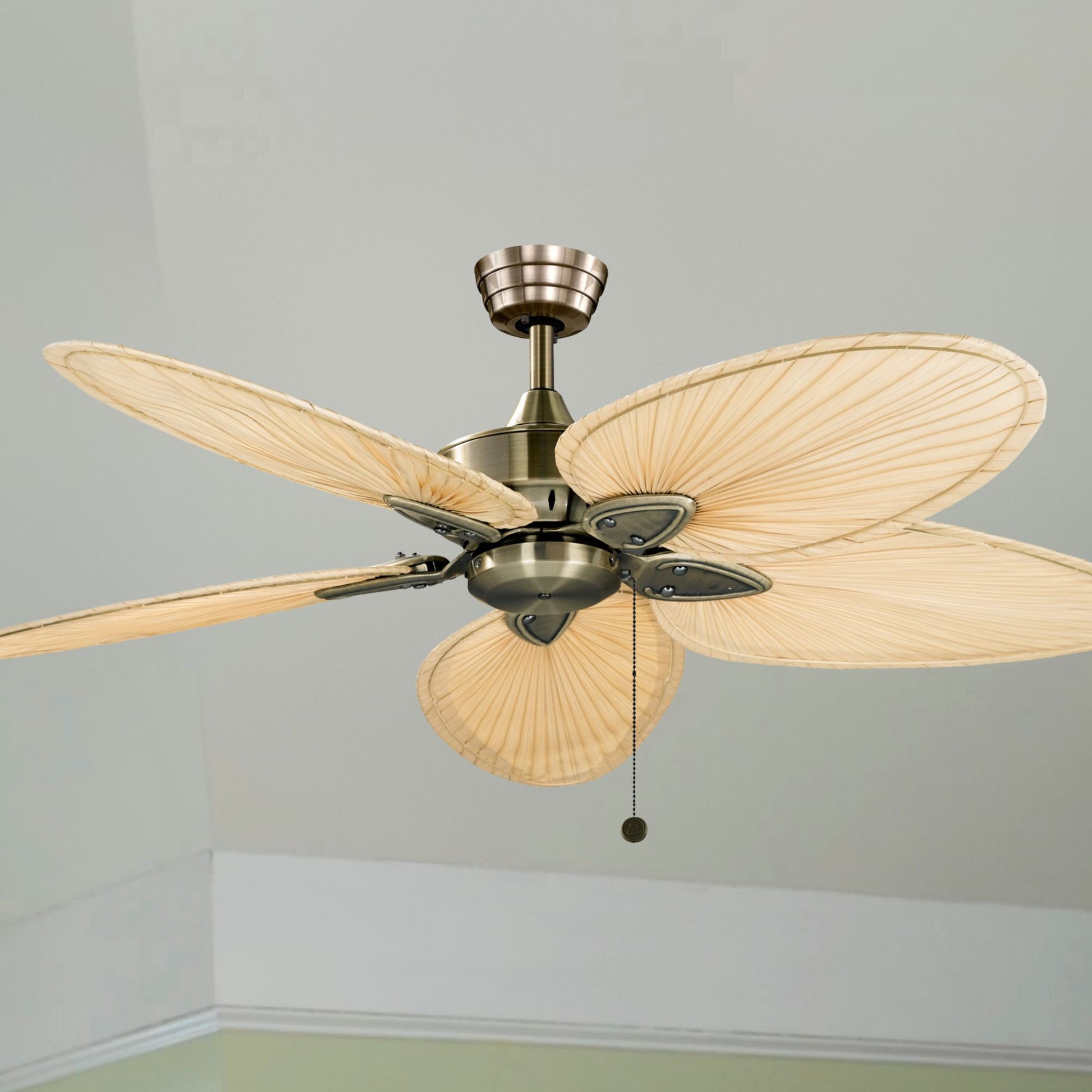

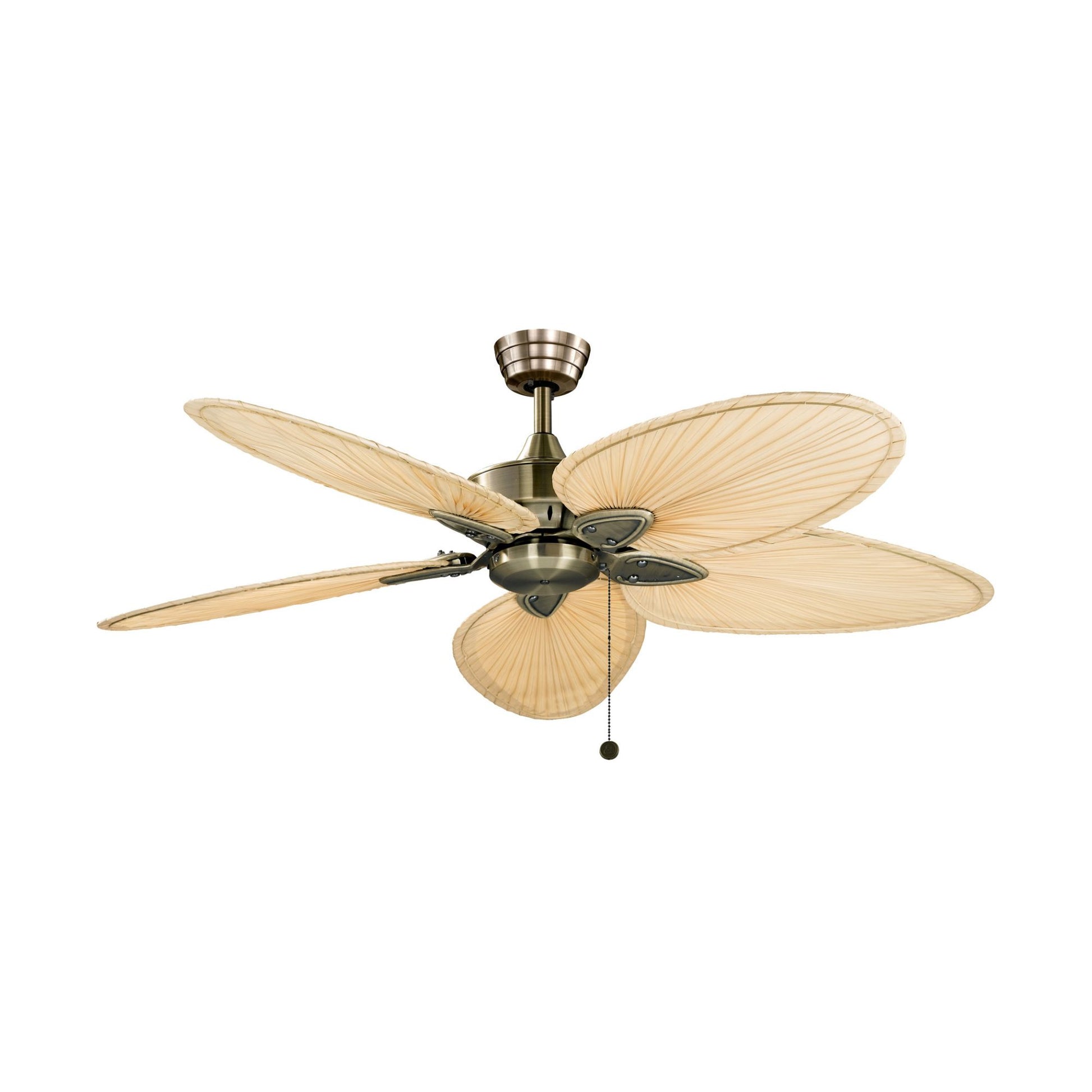

The Fanimation Windpointe FP7500AB is a classic five-blade 52 in downrod ceiling fan in warm Antique Brass with five sculpted natural real palm blades at 18° pitch. Powered by a proven AC 188×25mm motor with 3 speeds and a reverse switch on the fan body, it delivers 3,312 CFM at high speed. Rated for dry indoor locations.

• Blade Span: 52 in / 5 real palm blades / 18° pitch / natural finish
• Motor: AC 188×25mm, 3 speeds, reverse switch on fan body
• Airflow: 3,312 CFM high / 1,846 CFM low
• Efficiency: 69 CFM/W at high speed
• Wattage: 48W high / 15W low
• Location Rating: Dry rated — indoor use only
• Mount Type: Downrod — 6 in downrod included / sloped ceilings up to 27° standard
• Downrod Included: 6 in (1 in dia)

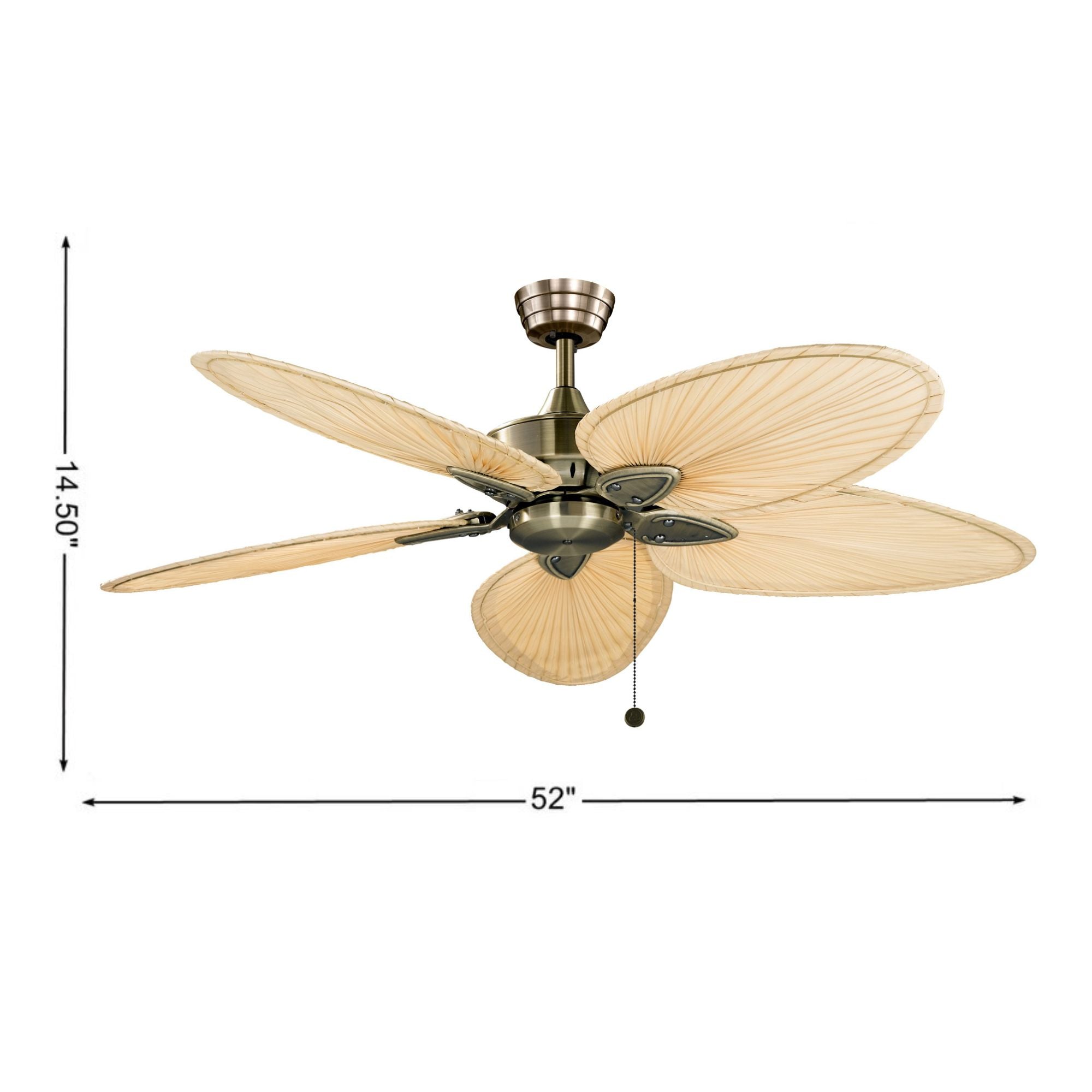

• Overall Height: 14.00–14.50 in (varies by downrod)
• Weight: 24.90 lbs

The FP7500AB is controlled via pull chain (3 speeds) with a reverse switch on the fan body. No remote is included. Optional accessories sold separately: wall controls WC1WH (3-wire fan only), WC2WH (3-wire fan + light), WR500WH (fan only wall remote), WR501WH (fan + light wall remote), CWRL4; remotes BTCR9, CRL4WH, CR500; and BTR9 Bluetooth receiver and WFR50 fanSync WiFi receiver.

Motor housing in Antique Brass with five natural real palm blades at 18° pitch. Net weight: 24.90 lbs. The Windpointe’s iconic palm blade silhouette brings authentic tropical warmth to living rooms, bedrooms, and sunrooms — a timeless design that has defined coastal-inspired interiors for decades.

The FP7500AB delivers 3,312 CFM at high speed (69 CFM/W, 48W) and 1,846 CFM at low speed (15W) — suited for medium to large rooms up to approximately 350 sq ft. Energy Guide average: 2,964 CFM at 33W / 91 CFM/W.

120V AC, 60Hz, 15A circuit. Max draw: 48W. Ships with a 6 in downrod (1 in dia). Sloped ceiling compatible up to 27° with standard downrod. For slopes 27°–42°, the optional sloped ceiling ball kit SCB1-52 is available separately. Optional close-to-ceiling kit CCK8002 available separately. Fan must be attached to a securely anchored electrical junction box capable of withstanding at least 35 lbs.

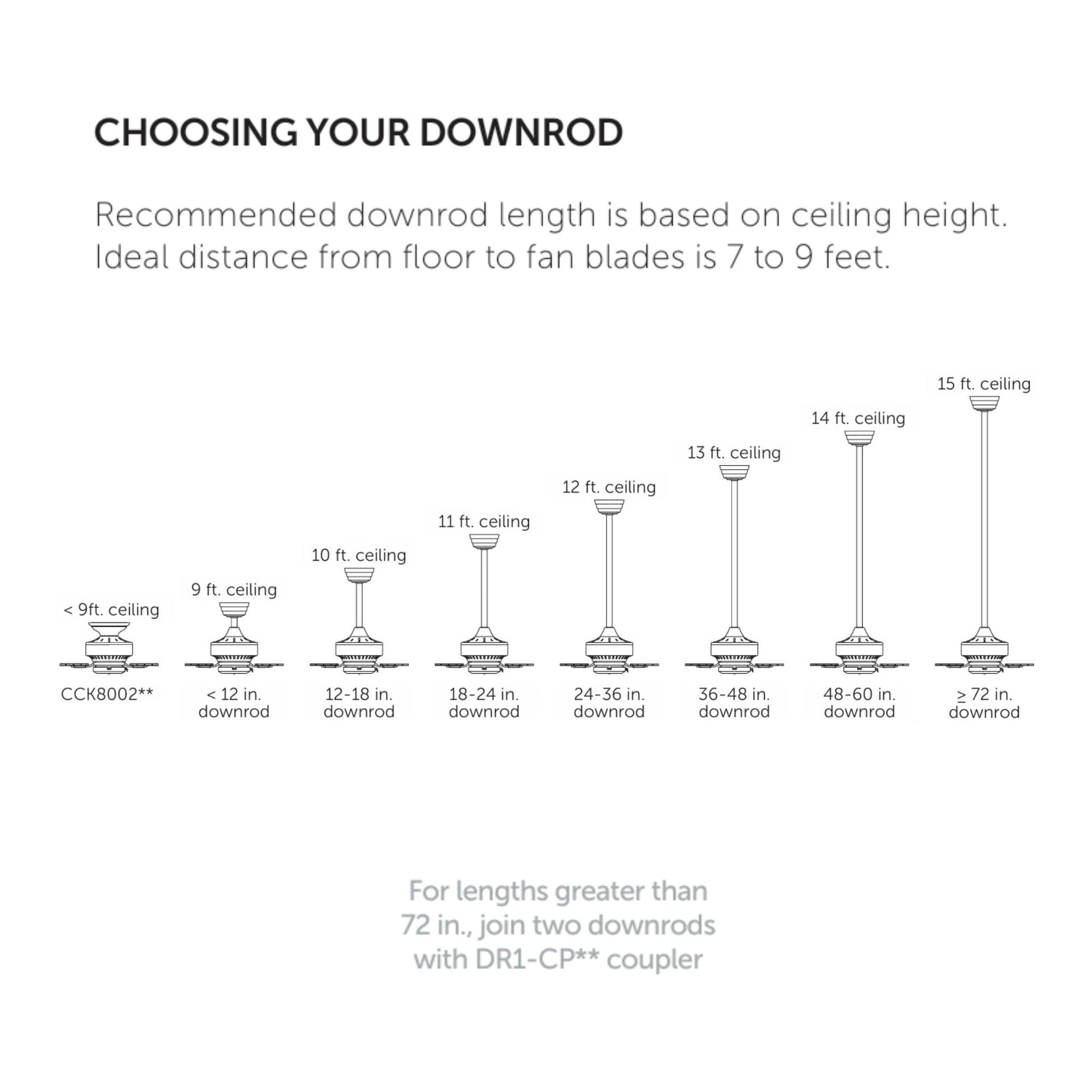

A 6 in downrod is included. Additional downrods available in 12, 18, 24, 36, 48, 60, and 72 in lengths (sold separately). For lengths greater than 72 in, join two downrods with a coupler.

• 9 ft ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

Ideal distance from floor to fan blades is 7 to 9 feet.

• FP7500AB ceiling fan (Antique Brass body + 5 natural real palm blades)
• Pull chain control
• 6 in downrod
• Mounting hardware
