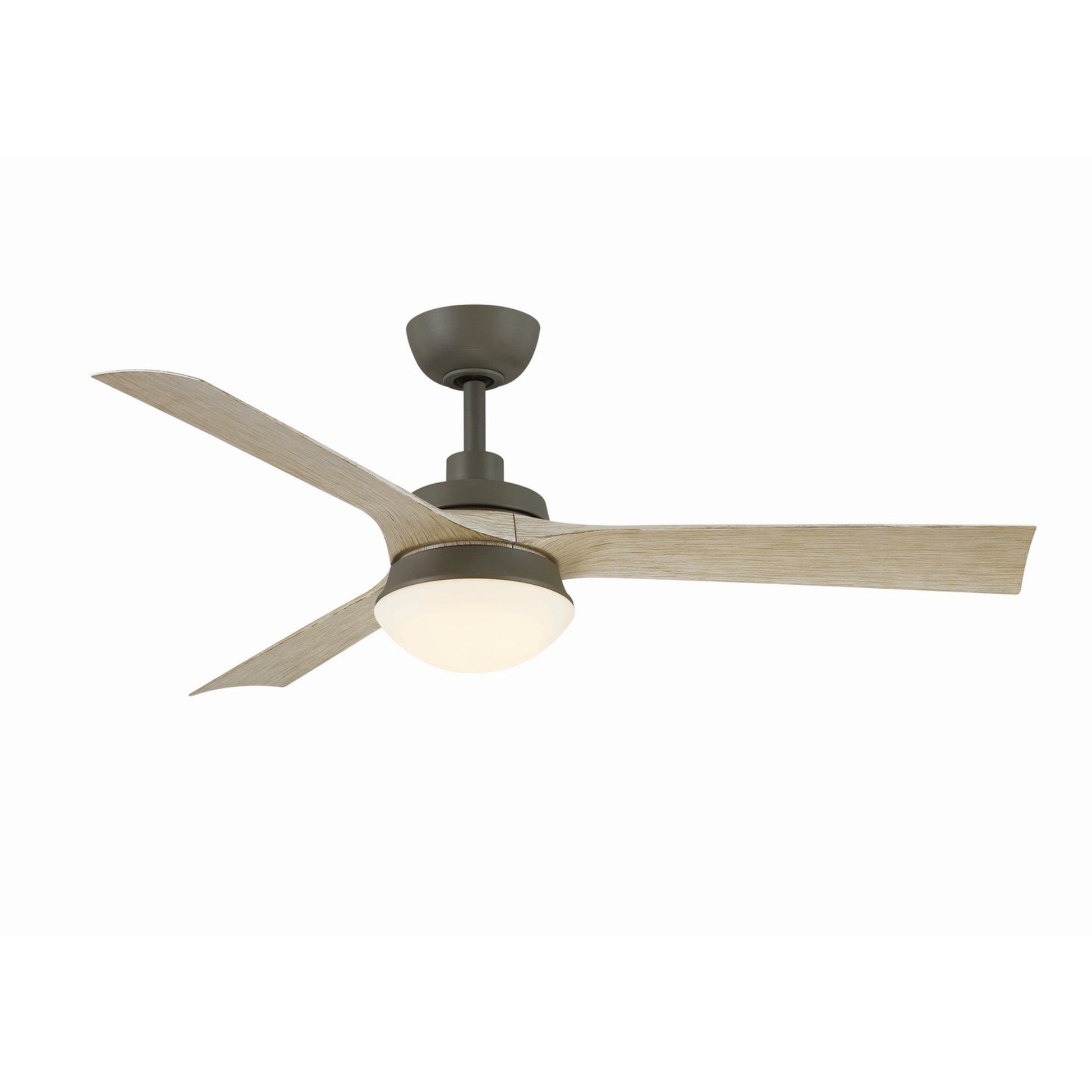

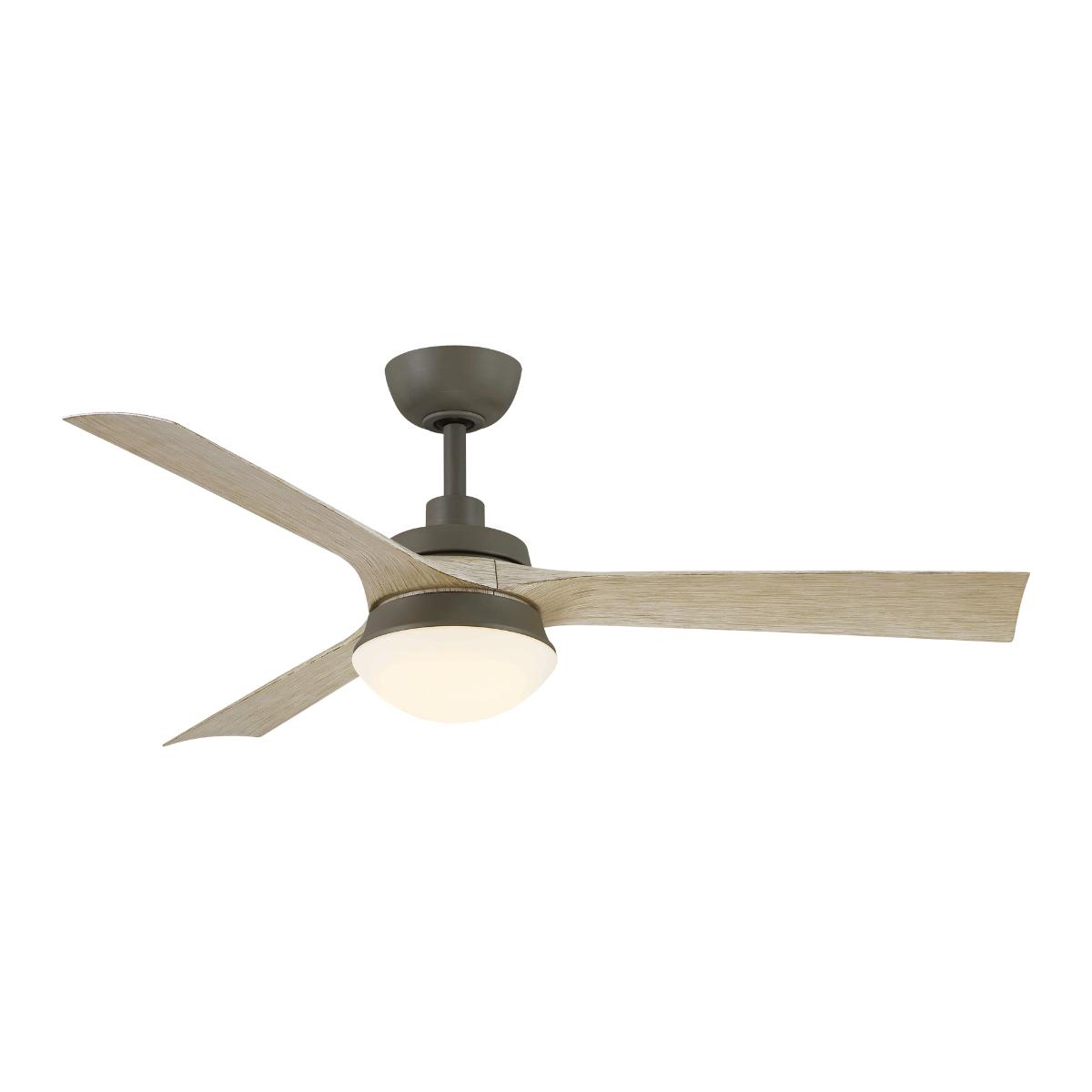

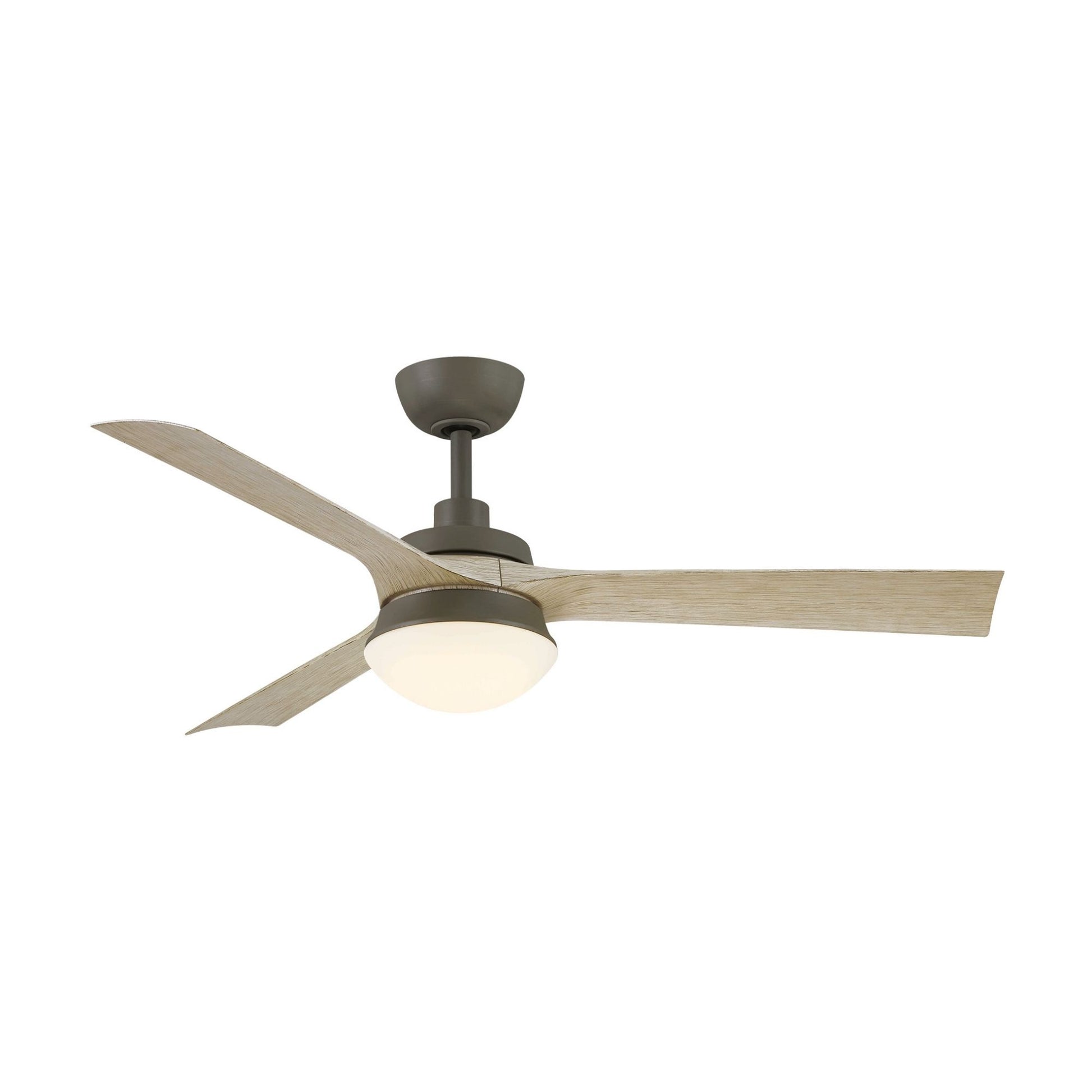

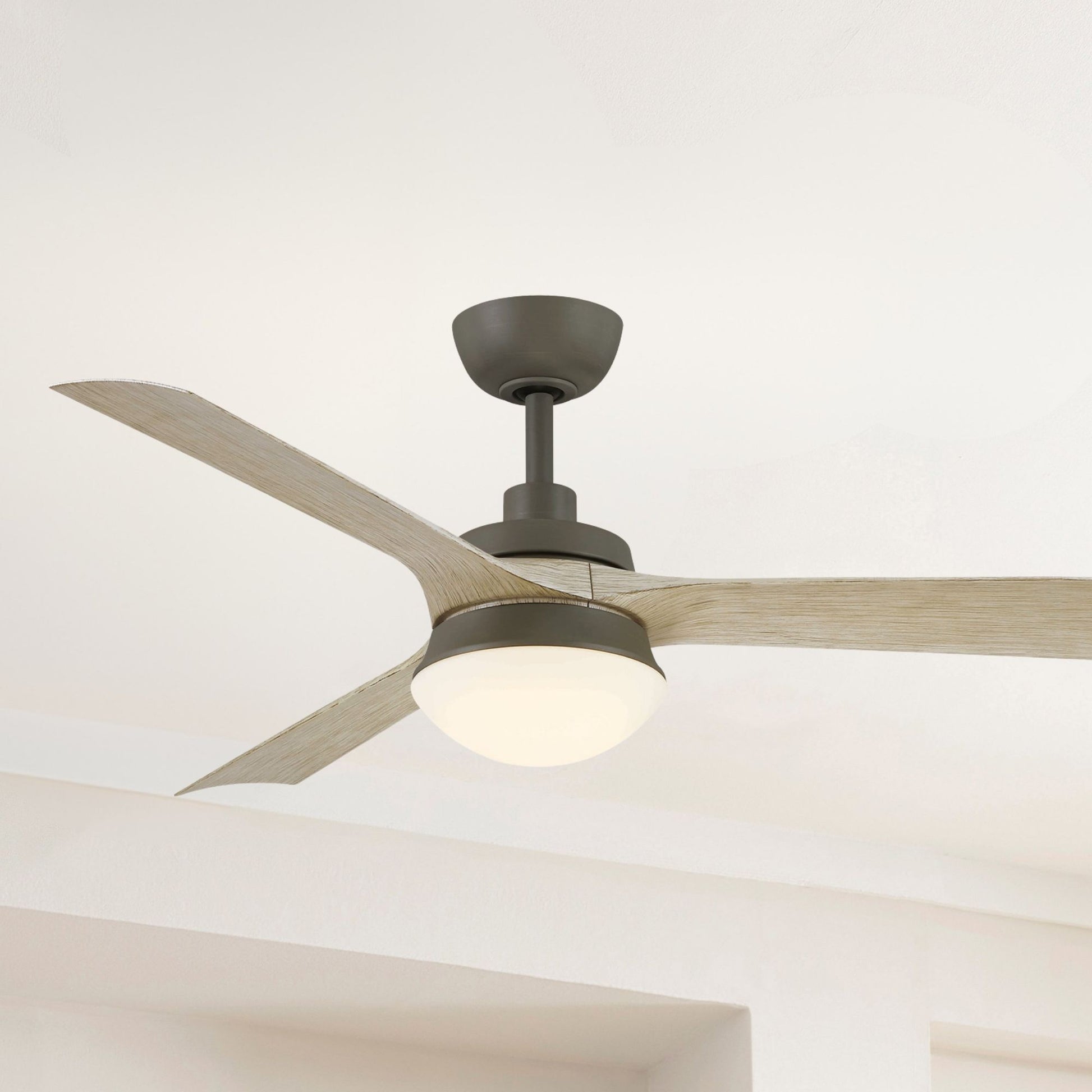

The Fanimation Barlow FP6807AGP is a refined three-blade 52 in downrod ceiling fan in Antique Graphite with warm Light Oak composite blades and an integrated opal frosted LED light. Powered by a 153×20 AC motor with 3 speeds and a reverse switch on the fan body, it delivers 5,476 CFM at high speed. Rated for dry and damp locations. Ships with the TR500 hand-held remote.

• Blade Span: 52 in / 3 composite blades / 14° pitch
• Motor: AC 153×20, 3 speeds, reverse switch on fan body

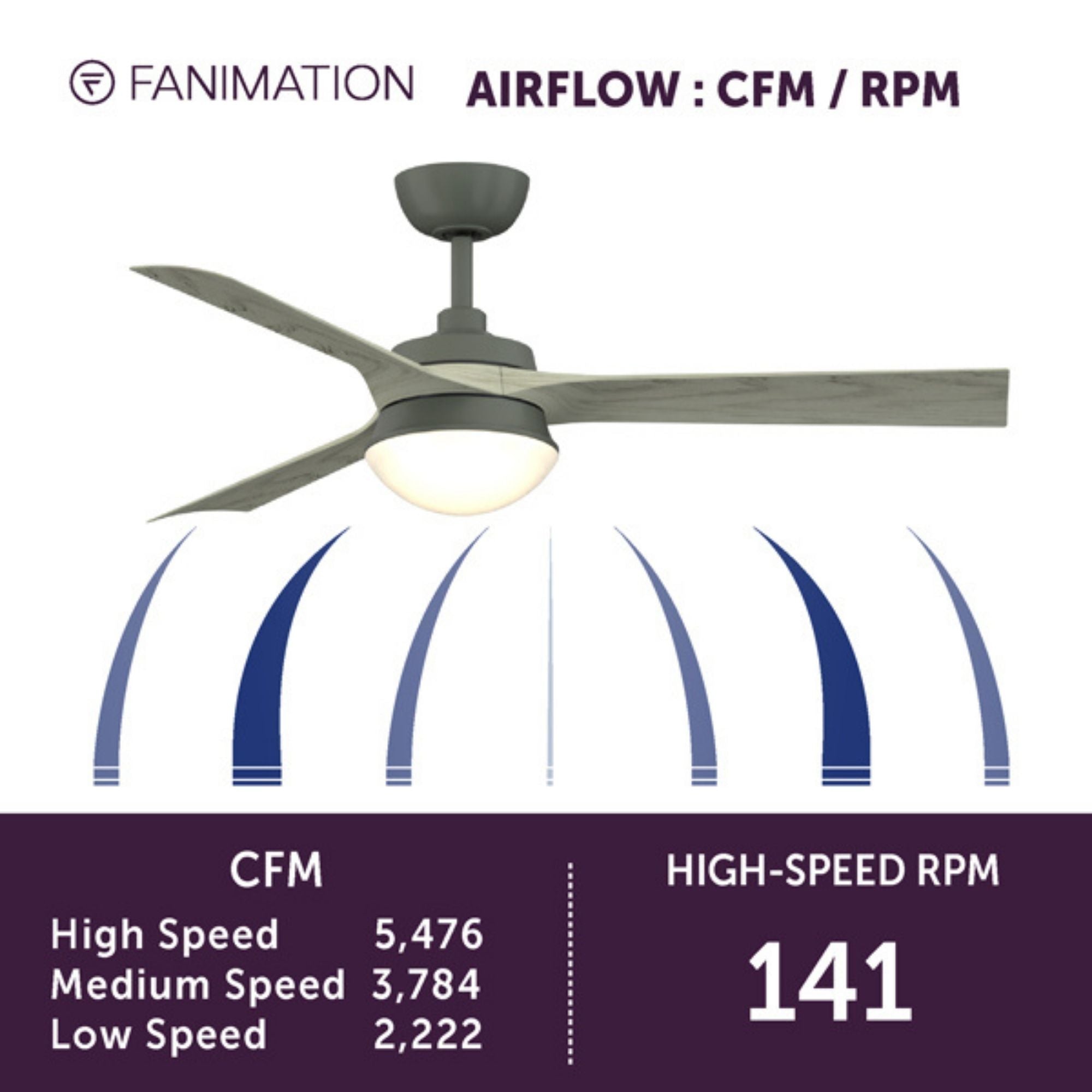

• Airflow: 5,476 CFM high / 2,222 CFM low
• Efficiency: 93 CFM/W at high speed
• Wattage: 59W high / 31W med / 13W low
• Light Output: 24W LED included — 2,000 lm initial / 1,190 lm delivered / 3000K / CRI 90 / opal frosted / dimmable
• Location Rating: Dry and Damp rated — cULus listed
• Mount Type: Downrod — 6 in downrod included / sloped ceilings up to 27° standard
• Downrod Included: 6 in (1 in dia)

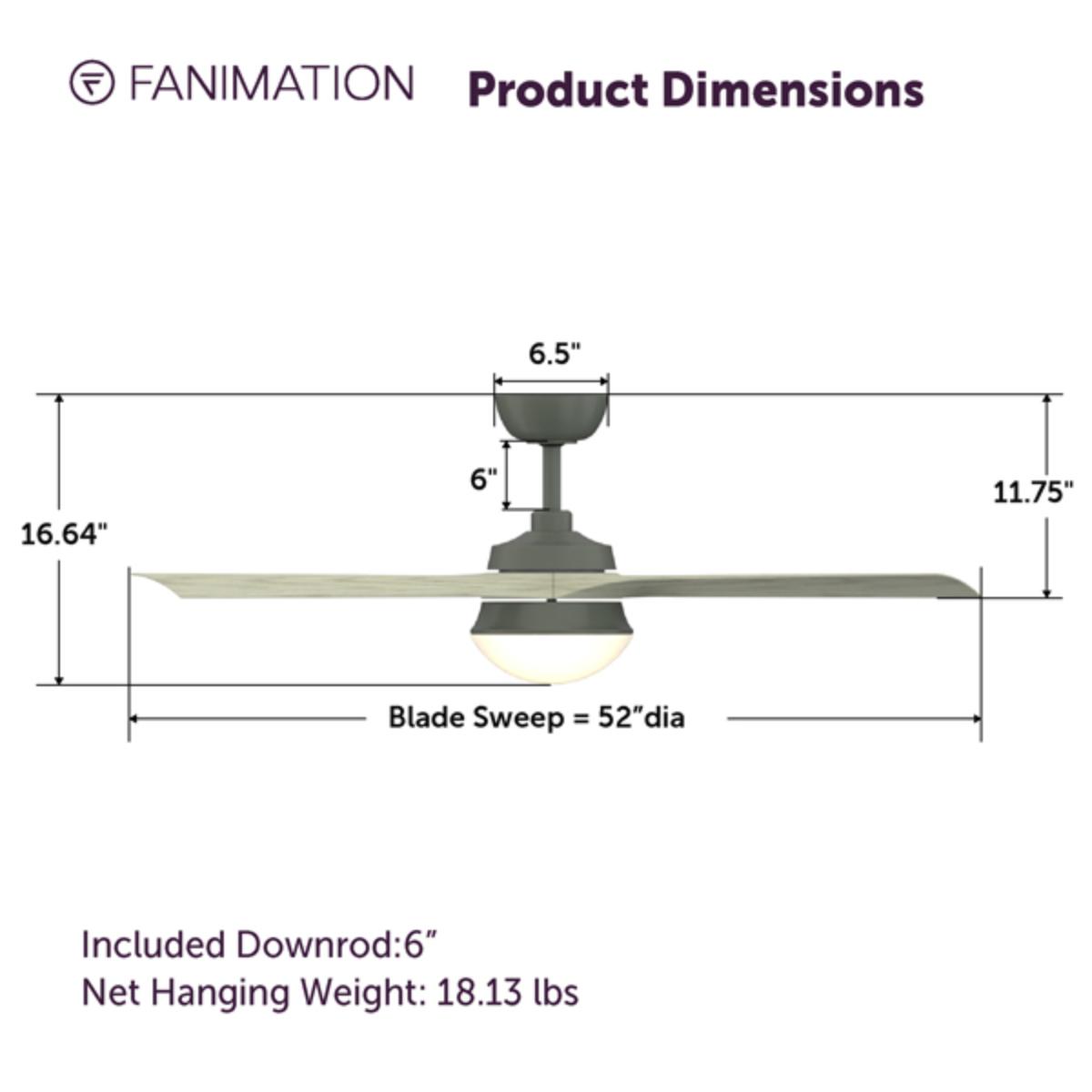

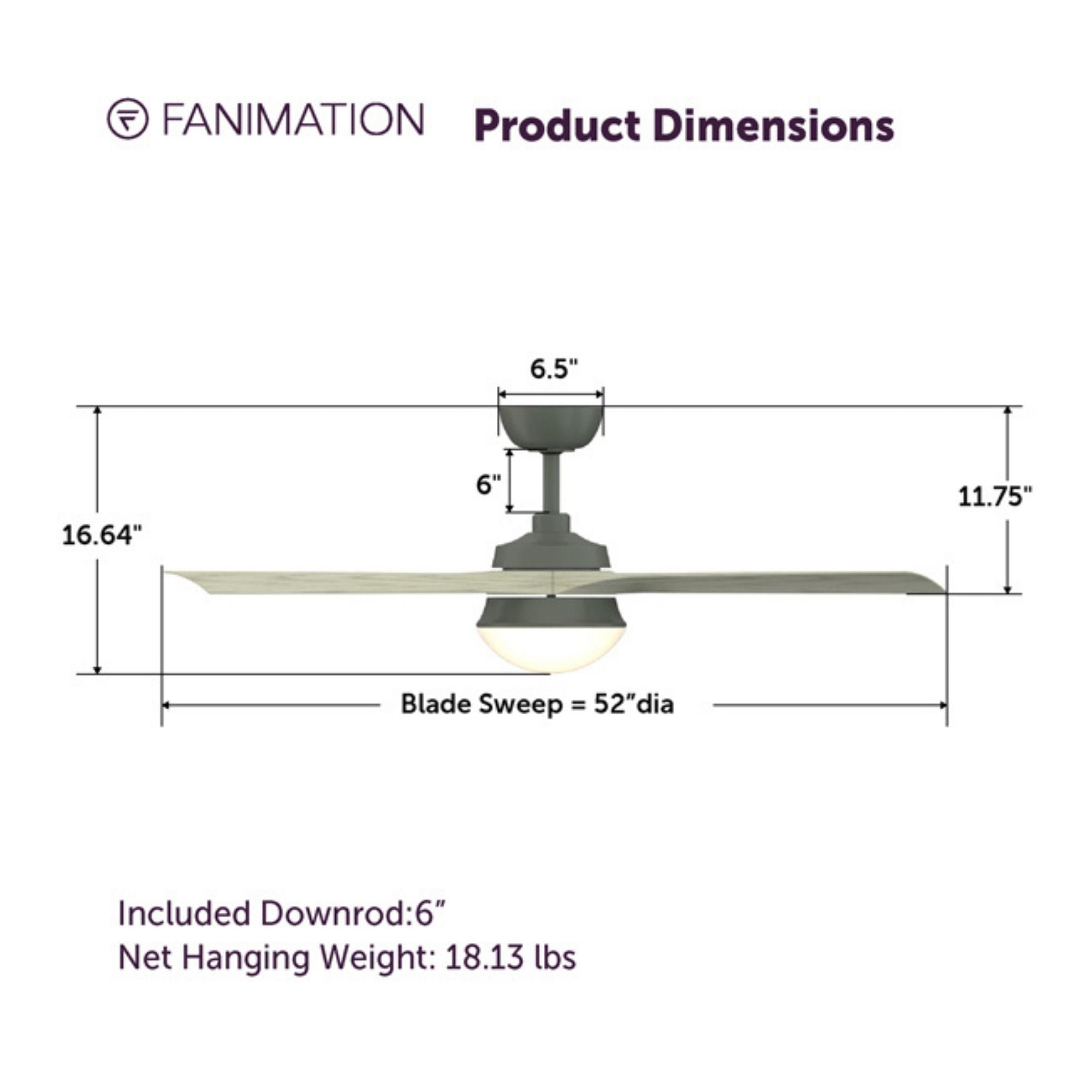

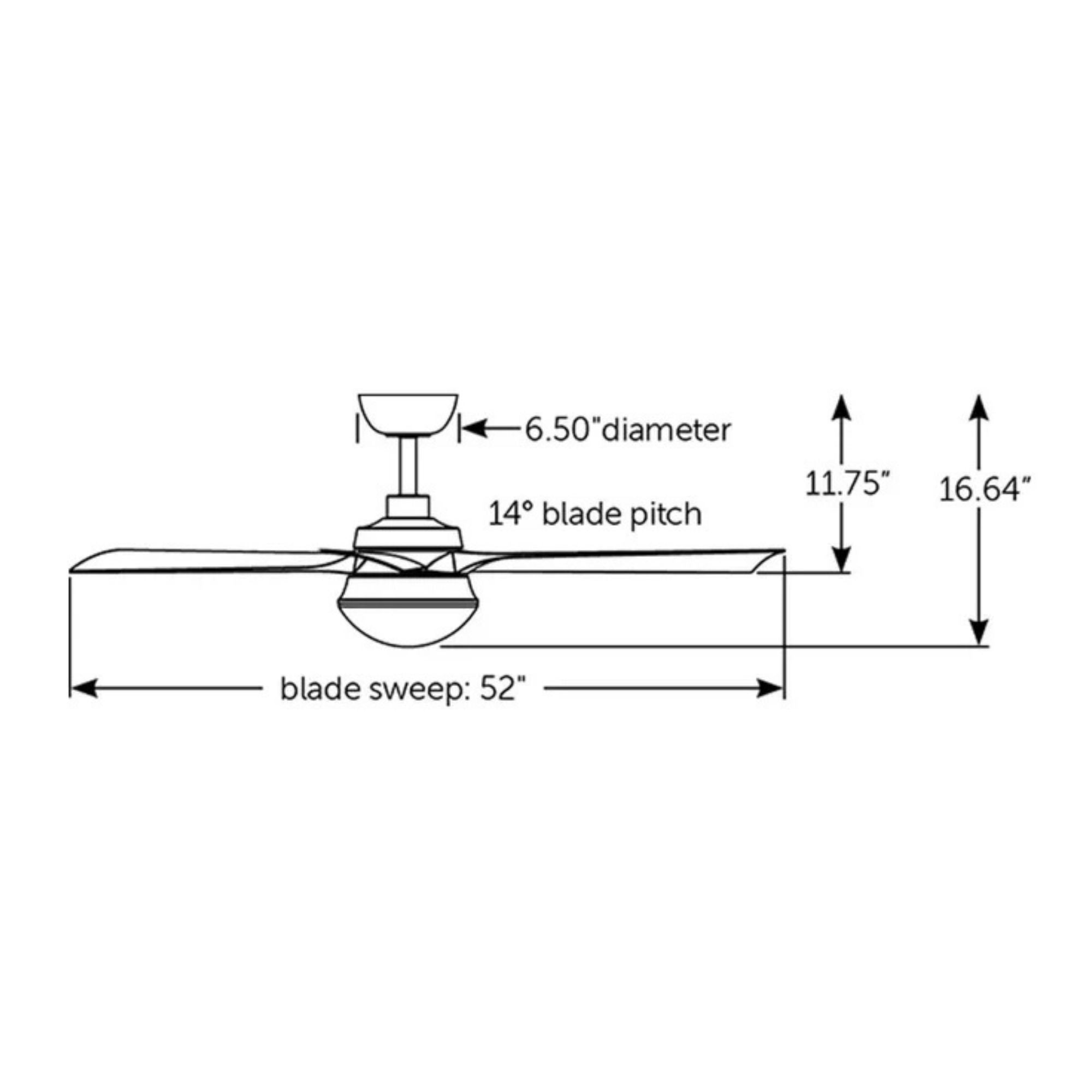

• Overall Dimensions: 52 in dia × 16.64 in H (w/ 6 in downrod) — 18.13 lbs
• Canopy Dimensions: 6.50 in dia
• Fan Velocity: 486 FPM high / 200 FPM low

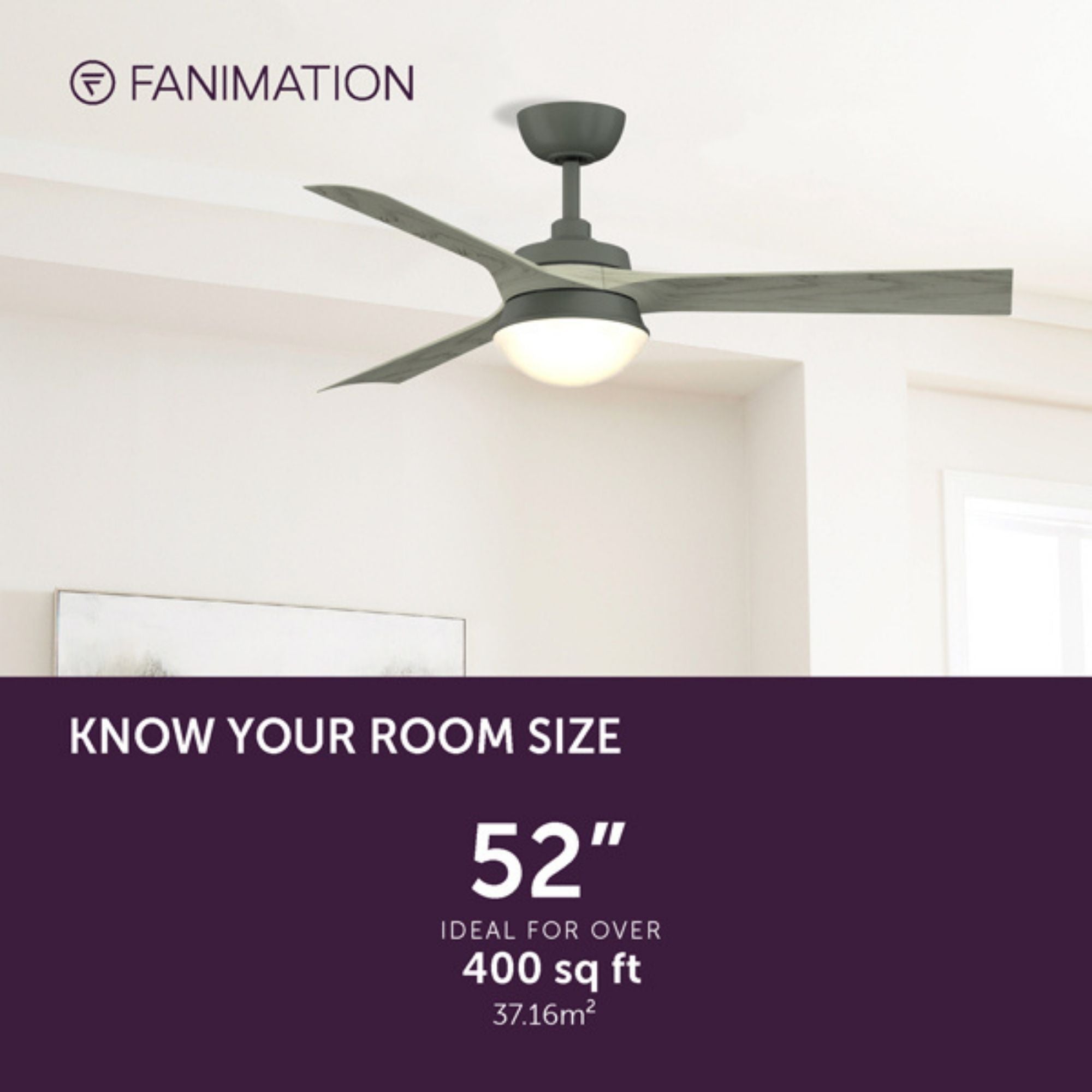

• Room Size: Designed for rooms up to 400 sq ft

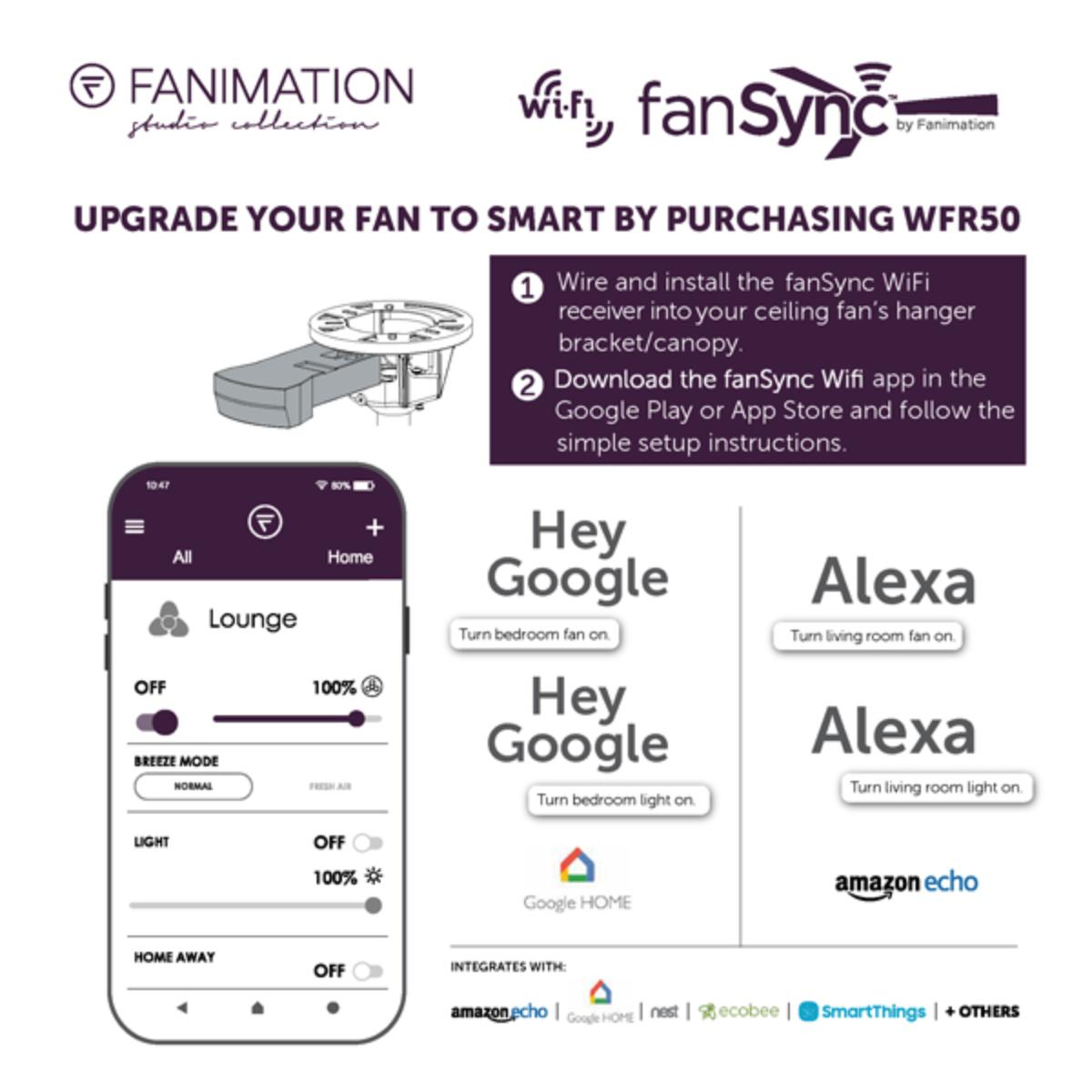

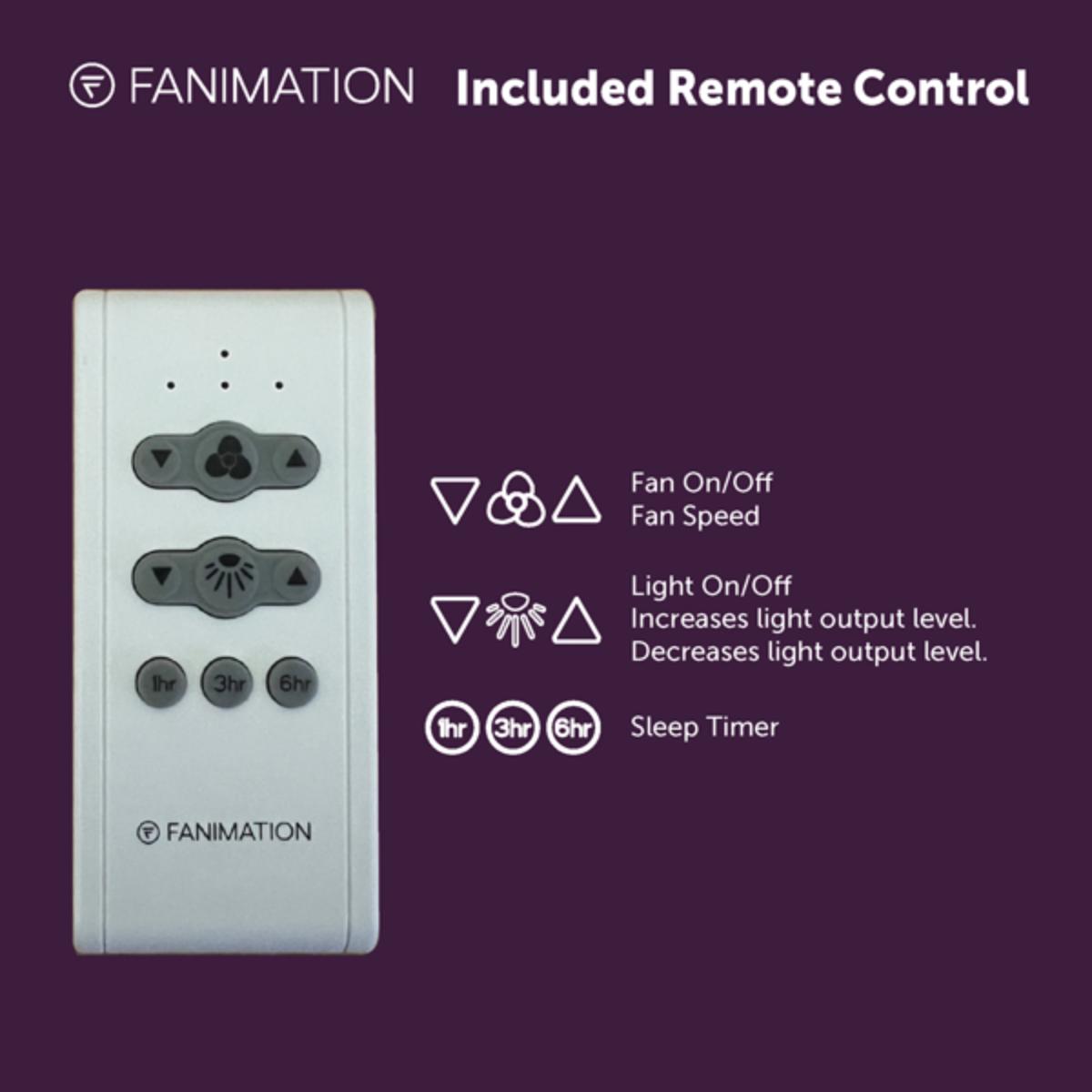

Ships with the TR500 hand-held remote — variable fan speeds, infinite light level control, on/off, and reverse. Reverse switch also on fan body. Optional: WC2WH (3-wire wall control), WR501WH (2-wire wall remote), WFR50 (fanSync WiFi receiver) — all sold separately.

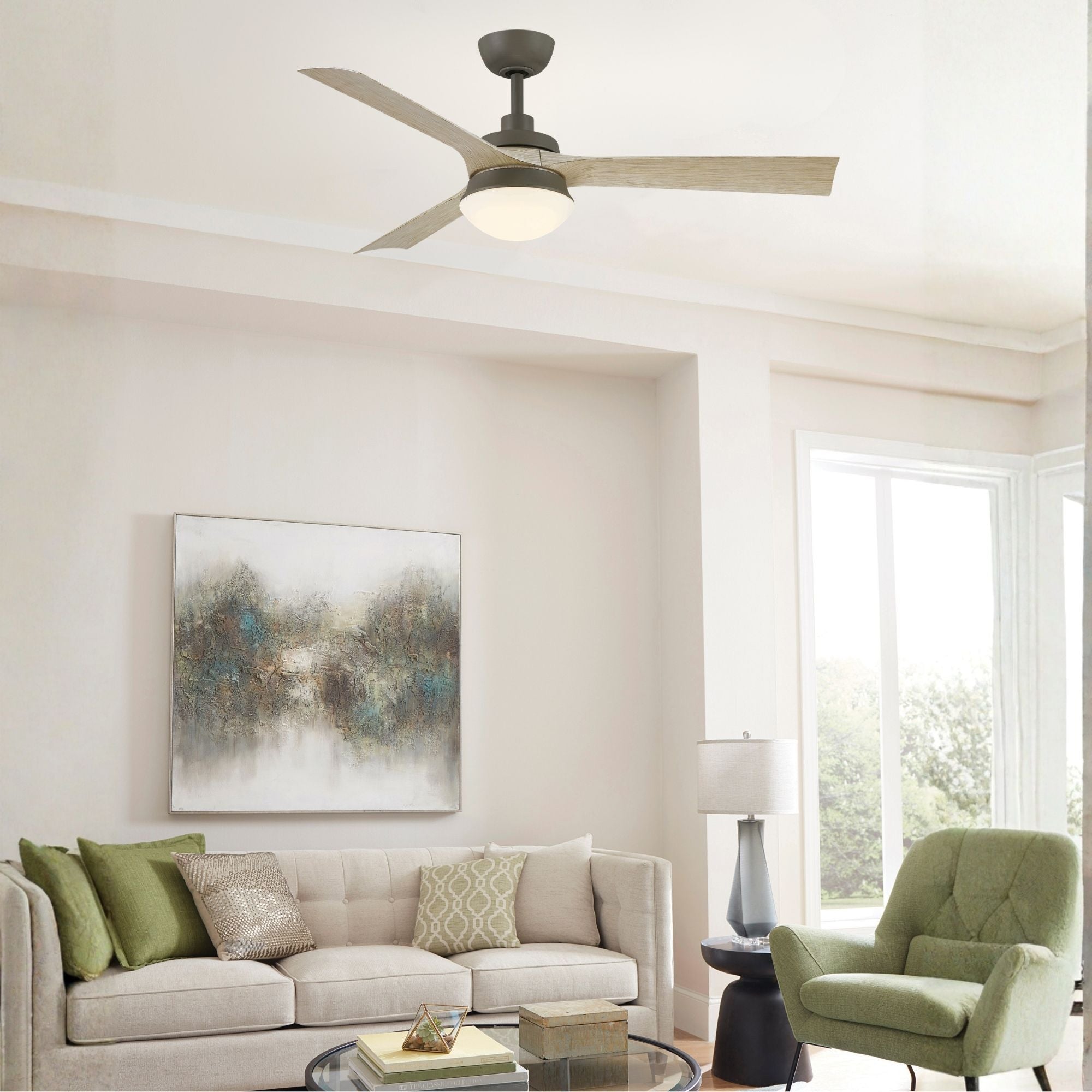

Motor housing in Antique Graphite with three Light Oak composite blades at 14° pitch. Net weight: 18.13 lbs. The graphite and oak pairing brings organic warmth to the Barlow’s sweeping silhouette — suited to transitional, coastal, and nature-inspired interiors.

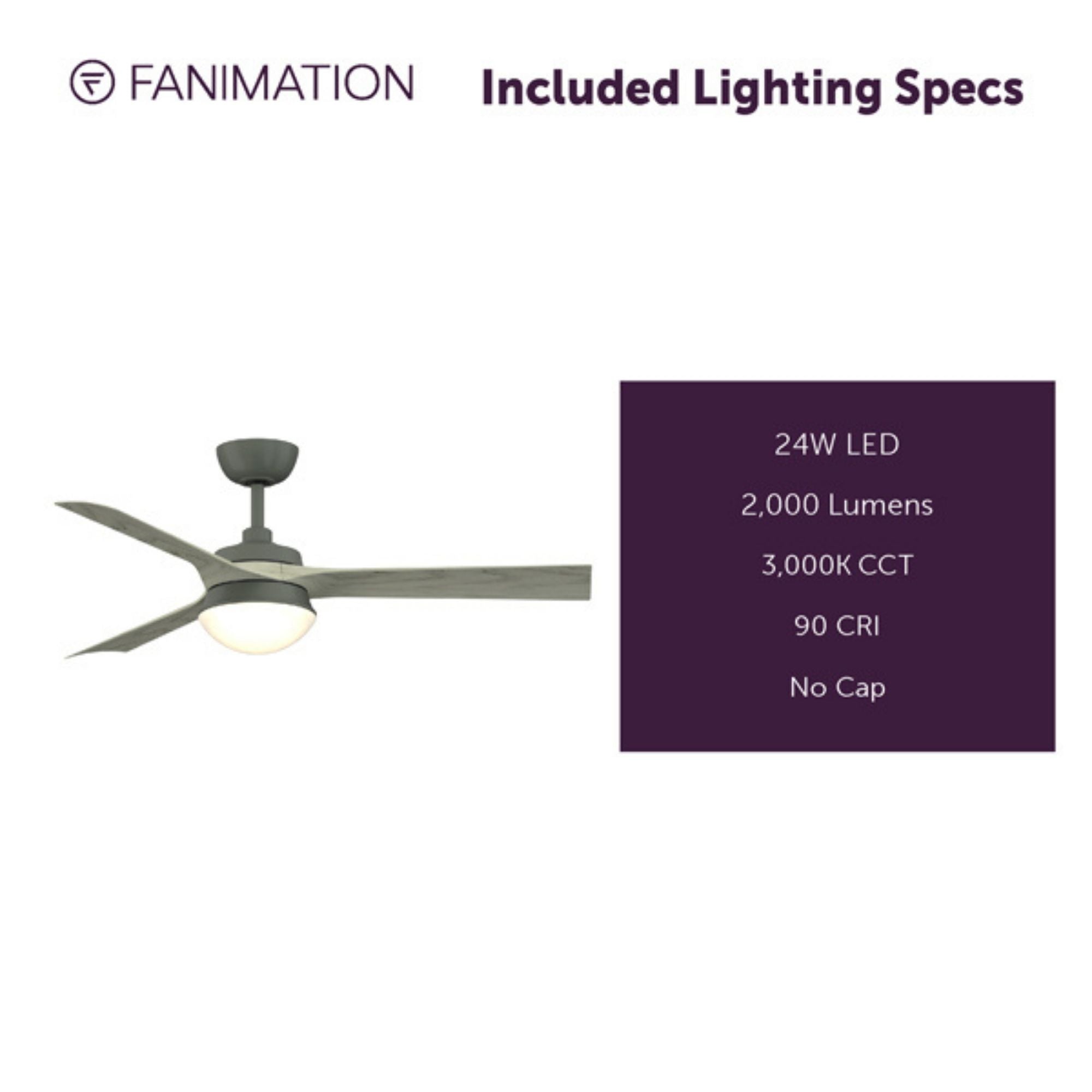

Integrated 24W LED, opal frosted shade — 2,000 lm initial / 1,190 lm delivered / 3000K / CRI 90. Dimmable via TR500 remote. Energy Guide average: 3,951 CFM at 38W / 105 CFM/W.

120V AC, 60Hz, 15A circuit. Total max draw: 59W fan + 24W light = 83W. Ships with a 6 in downrod (1 in dia). Canopy: 6.50 in dia. Sloped ceiling up to 27° standard; up to 42° with optional SCB1-52 kit (sold separately). Fan must be attached to a securely anchored electrical junction box capable of withstanding at least 35 lbs.

A 6 in downrod is included. Additional downrods available in 12, 18, 24, 36, 48, 60, and 72 in lengths (sold separately). For lengths greater than 72 in, join two downrods with a coupler.

• 9 ft ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

Ideal distance from floor to fan blades is 7 to 9 feet.

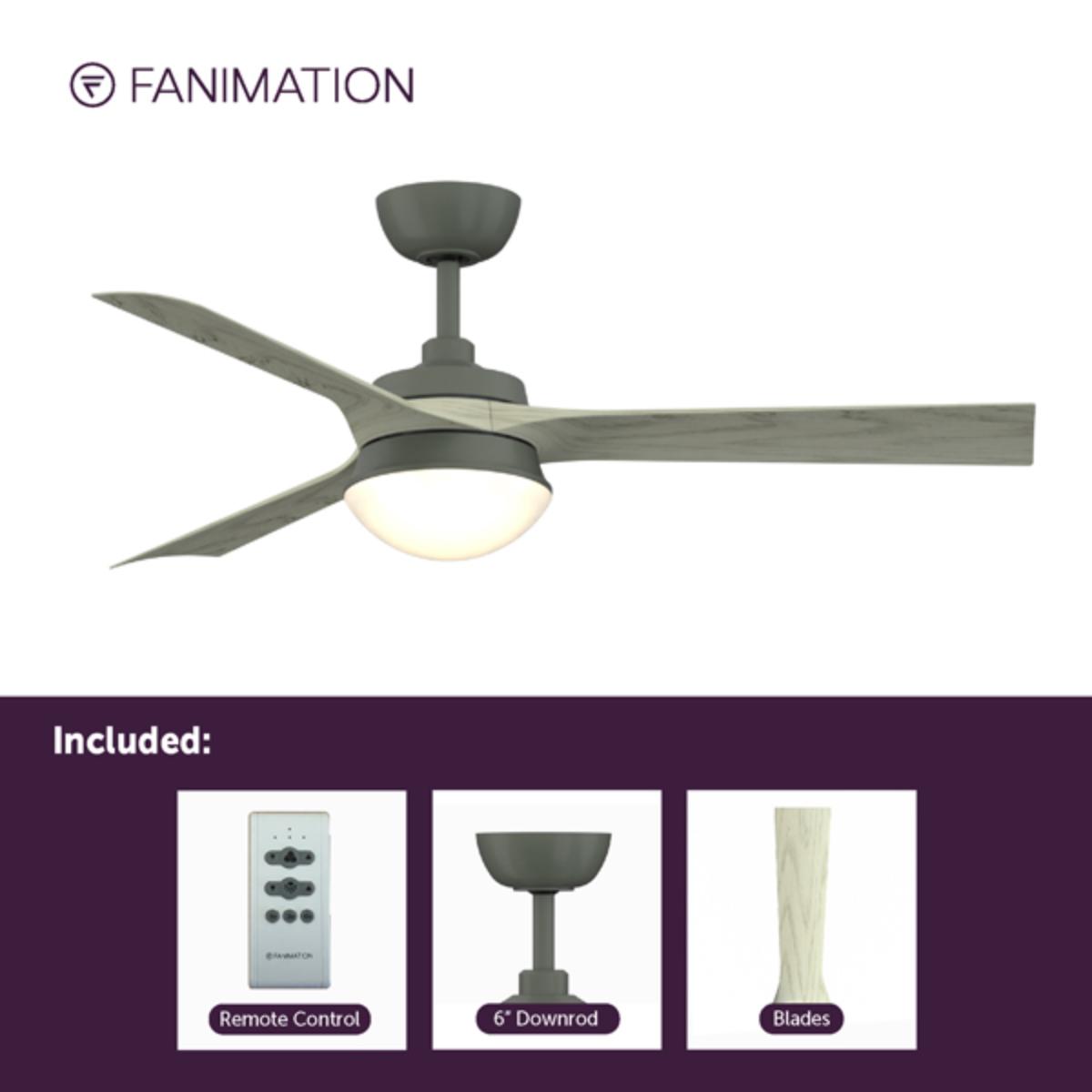

• FP6807AGP ceiling fan (Antique Graphite body + 3 Light Oak composite blades)
• Integrated 24W LED light kit (opal frosted shade)
• TR500 hand-held remote
• 6 in downrod
• Mounting hardware
