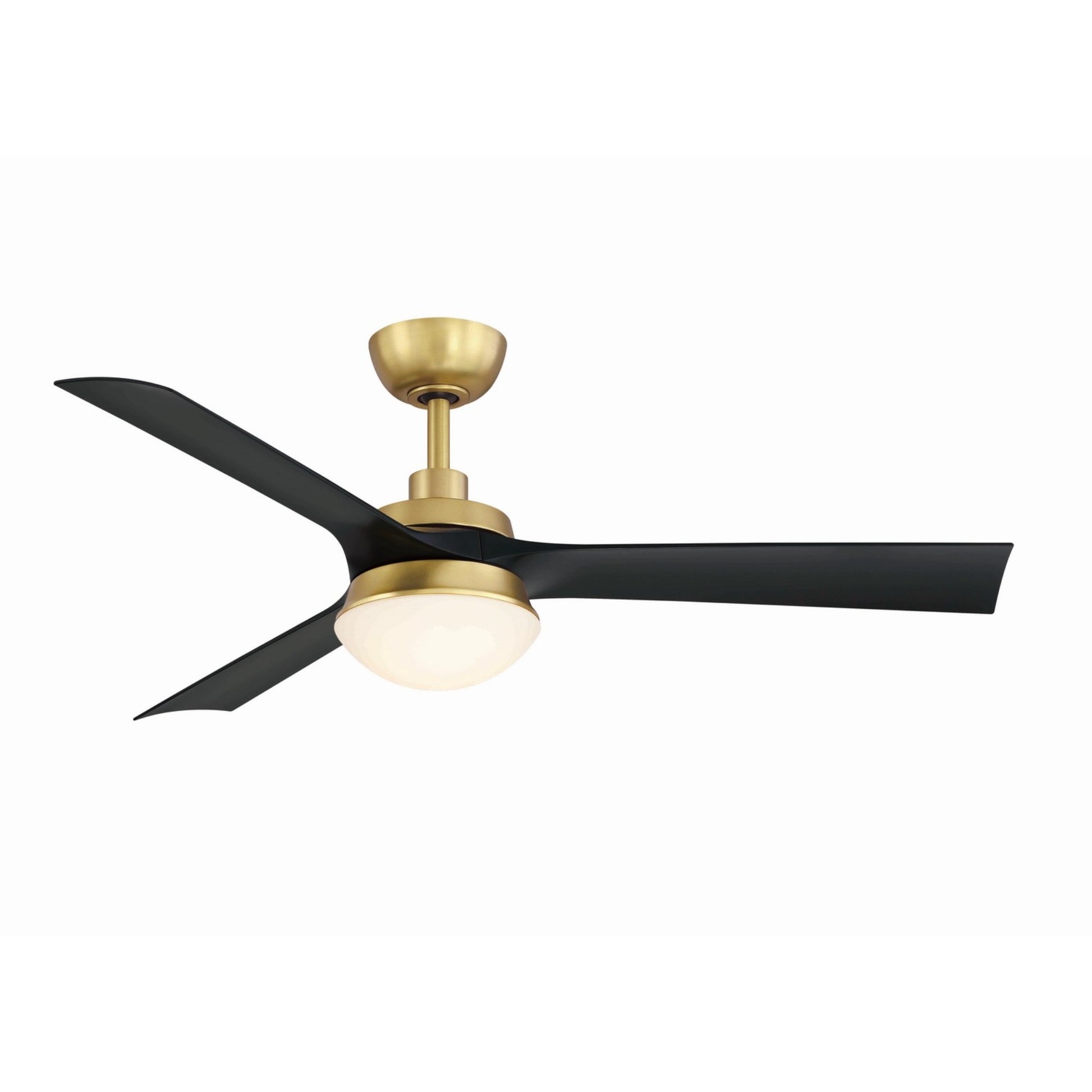

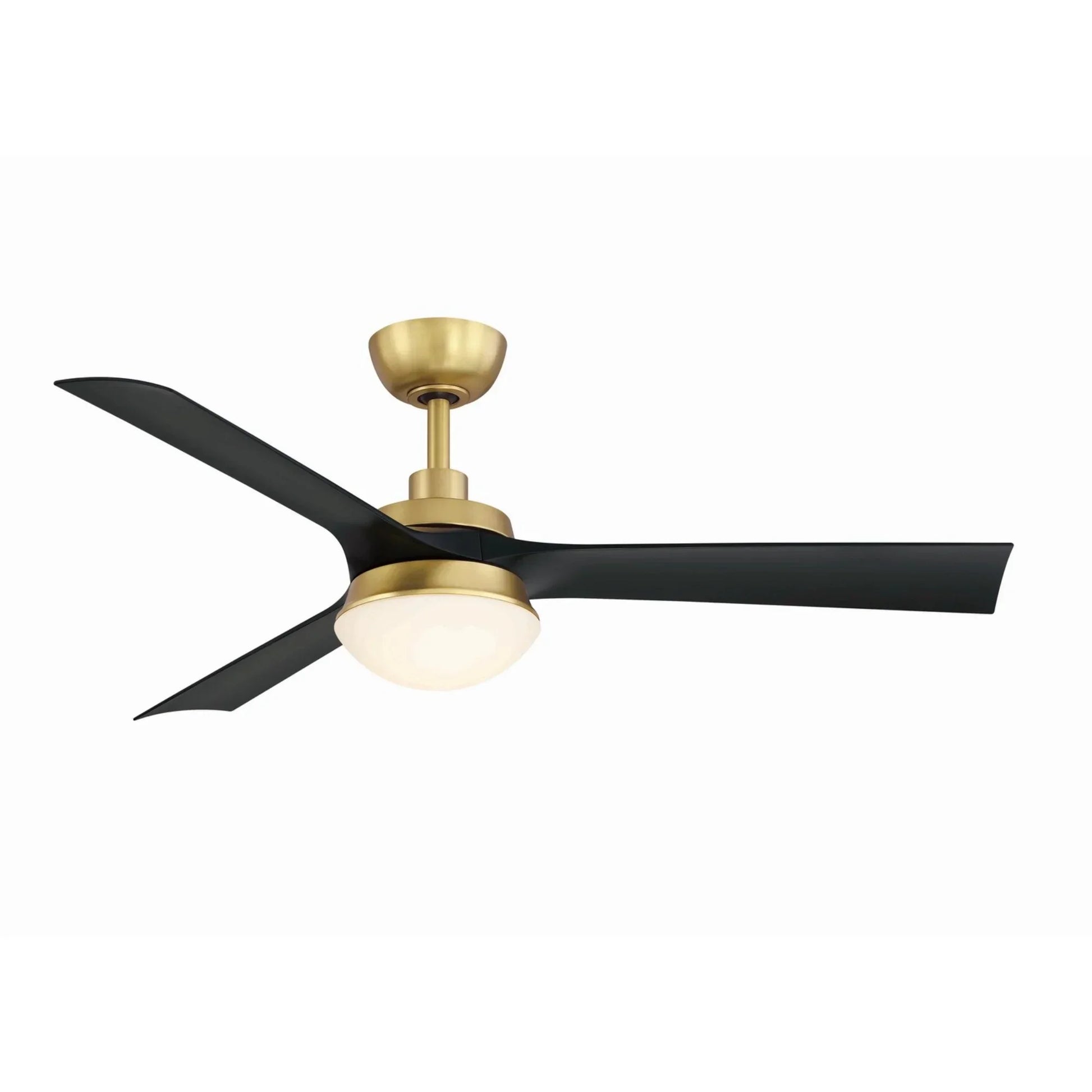

Fanimation Barlow FP6807 52 in Ceiling Fan with LED Light

The Fanimation Barlow brings a pendant-inspired light and sweeping three-blade profile to living rooms, bedrooms and covered patios. Its 153 × 20 mm AC motor delivers 5,476 CFM at high speed, while the 24W integrated LED adds warm 3000K illumination through an opal frosted shade. Set your preferred fan speed from the sofa with the included TR500 remote, and choose a finish that complements your room.

Key Features

• Blade Span: 52 in with three composite blades and 14° pitch.
• AC Motor: Three speeds with a reverse switch on the fan body.
• Airflow: 5,476 CFM high and 2,222 CFM low; Energy Guide average 3,951 CFM.
• Efficiency: 93 CFM/W at high speed; Energy Guide average 105 CFM/W at 38W.
• LED Lighting: 24W module provides 2,000 initial lumens and 1,190 delivered lumens at 3000K with 90 CRI.
• Control: TR500 handheld remote included; optional WFR50 receiver adds fanSync WiFi.
• Location: Rated for dry and damp locations, including covered outdoor spaces.
• Mounting: Includes a 1 in diameter × 6 in downrod.

Smart & Control Features

The included TR500 handheld remote provides fan-speed, light-level and on/off controls. Change motor direction using the reverse switch on the fan body. WiFi is not built in: add the optional WFR50 receiver for fanSync app control on iOS and Android. Optional wall controls include the WC2WH three-wire fan-and-light wall control and WR501WH two-wire fan-and-light wall remote, available separately.

Construction & Design

A steel housing, three composite blades and an opal frosted LED shade create the Barlow's transitional profile. Overall dimensions are 52 in diameter × 16.64 in high with the included 6 in downrod. Net weight is 18.13 lbs, and the canopy measures 6.50 in diameter. Finish and model choices include:

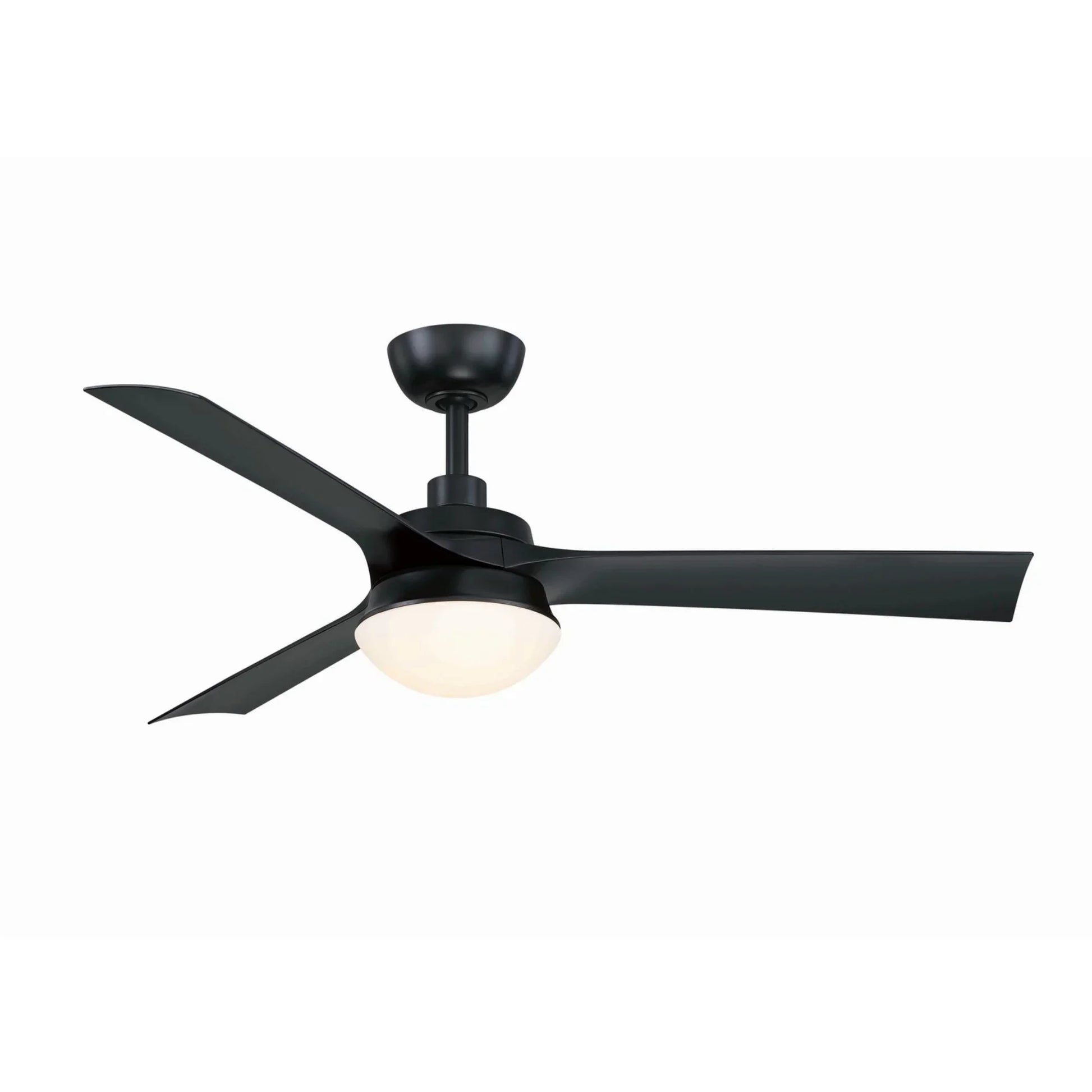

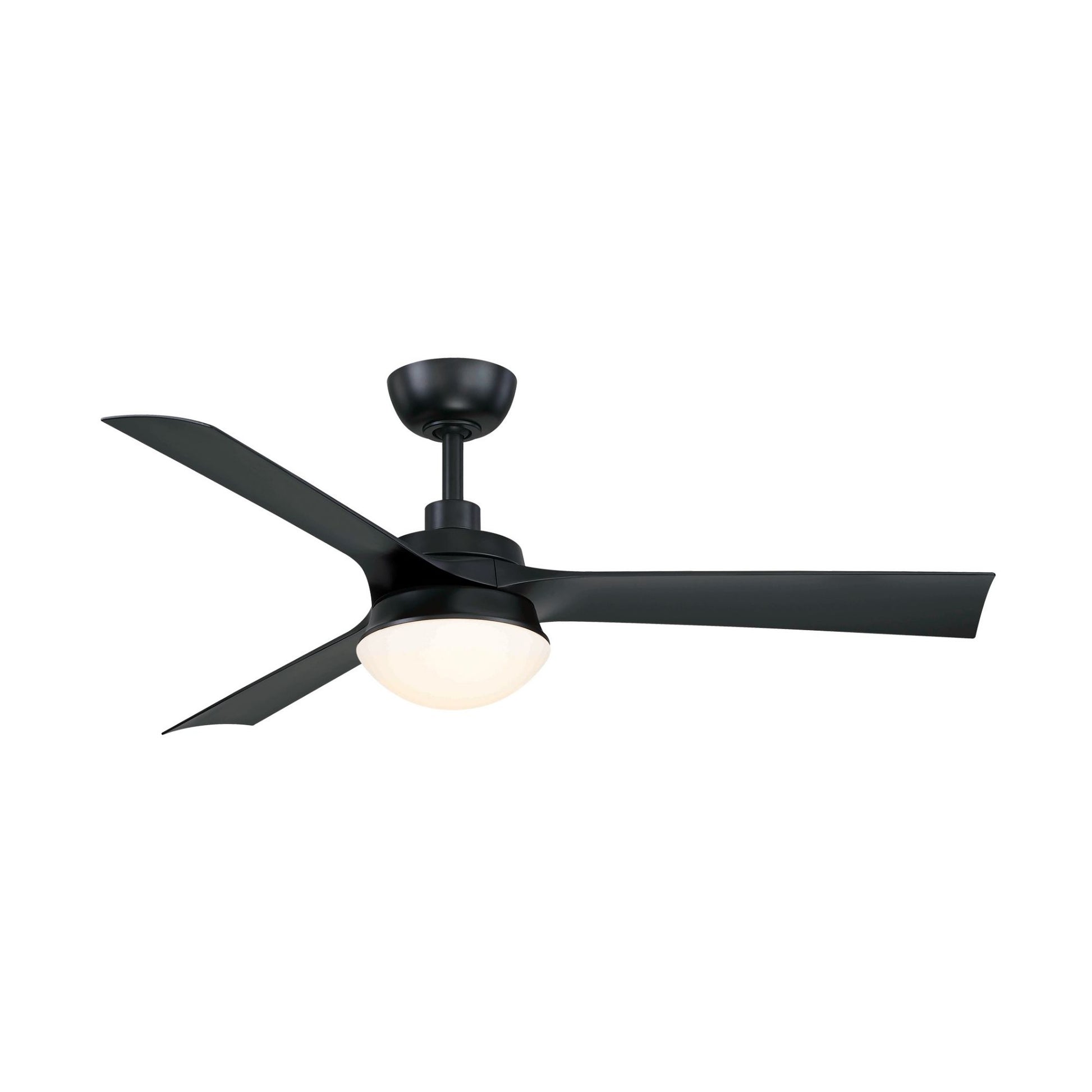

• FP6807BL: Black housing with Black blades.
• FP6807BSBL: Brushed Satin Brass housing with Black blades.

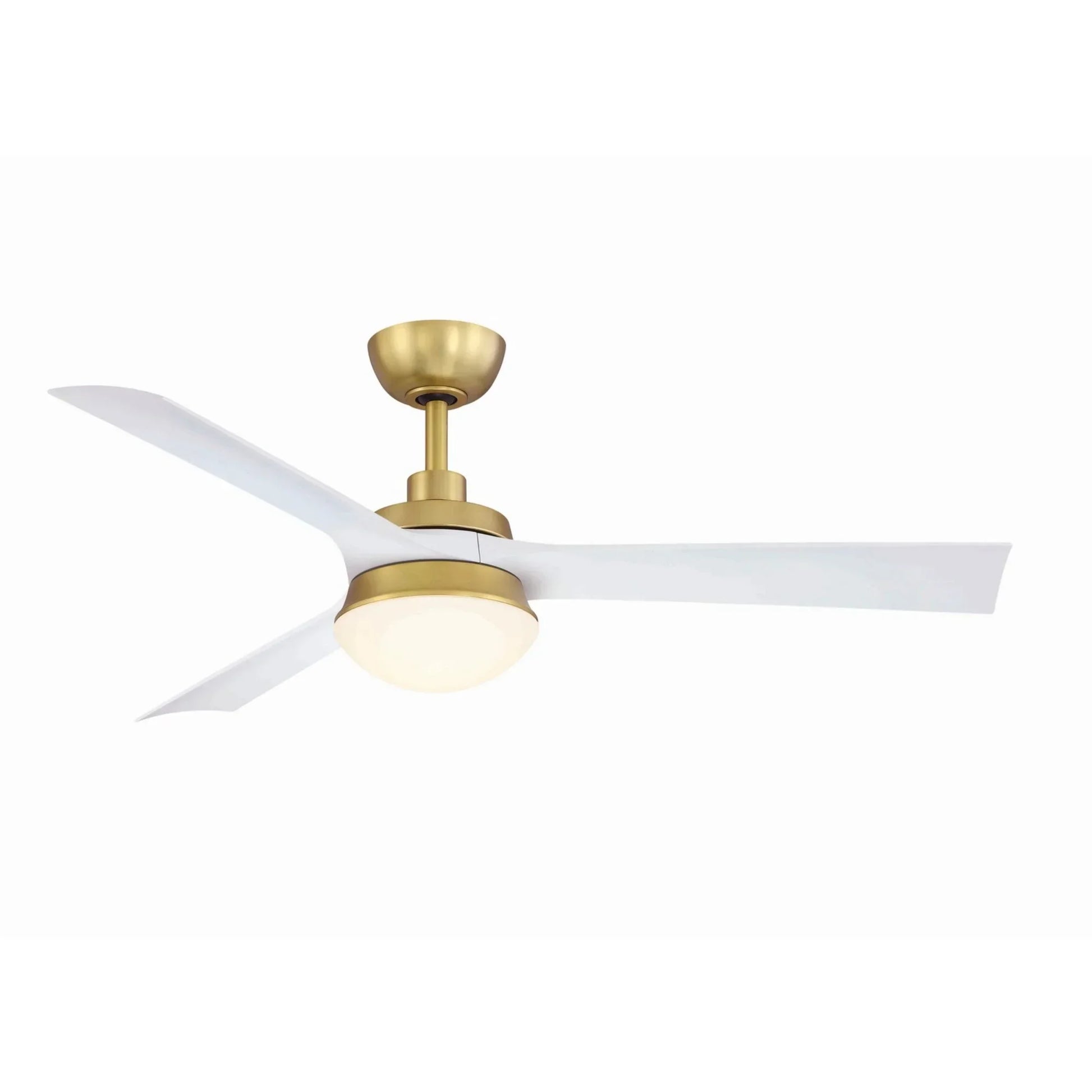

• FP6807BSMW: Brushed Satin Brass housing with Matte White blades.

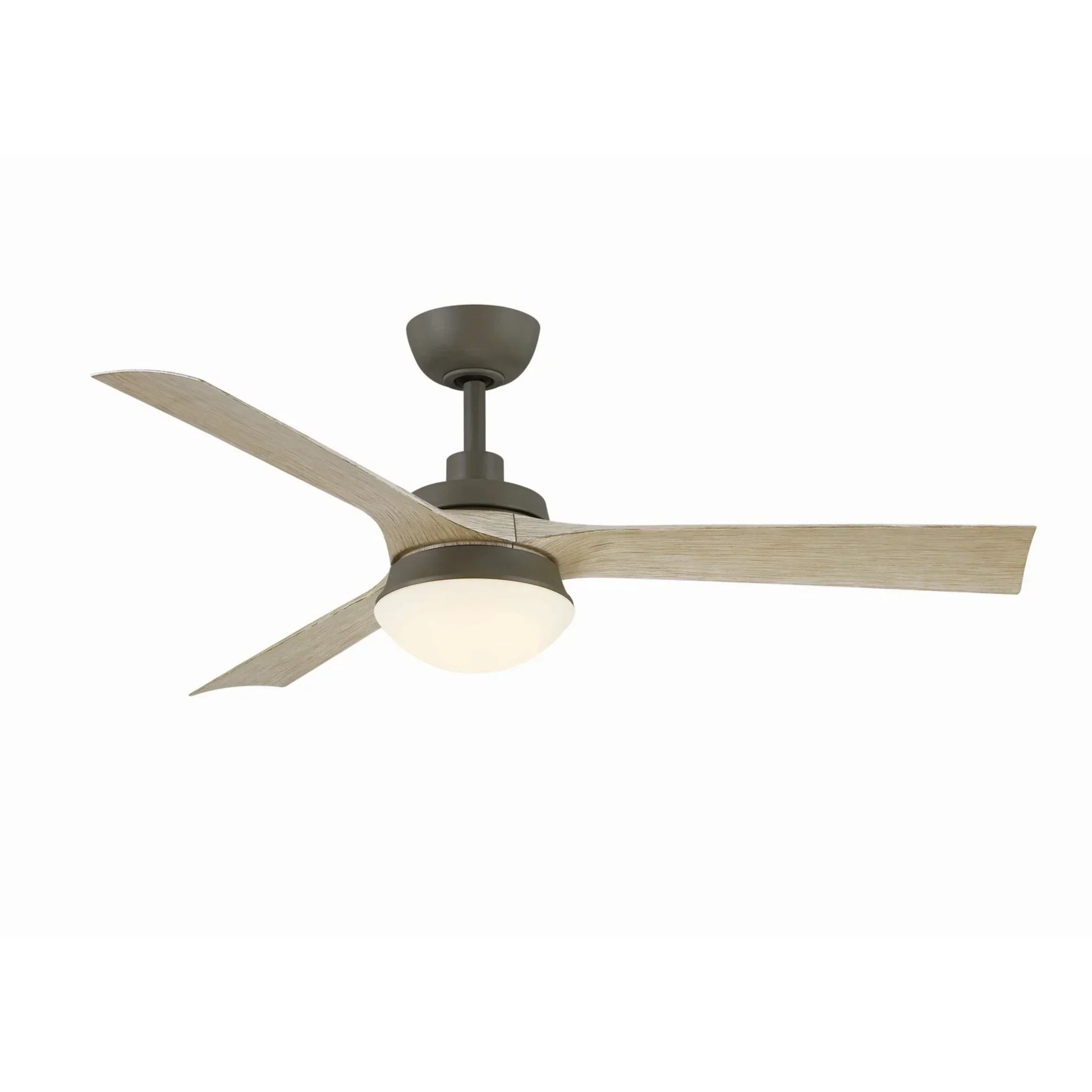

• FP6807AGP: Antique Graphite housing with Light Oak blades, offered under the Graphite Steel option.

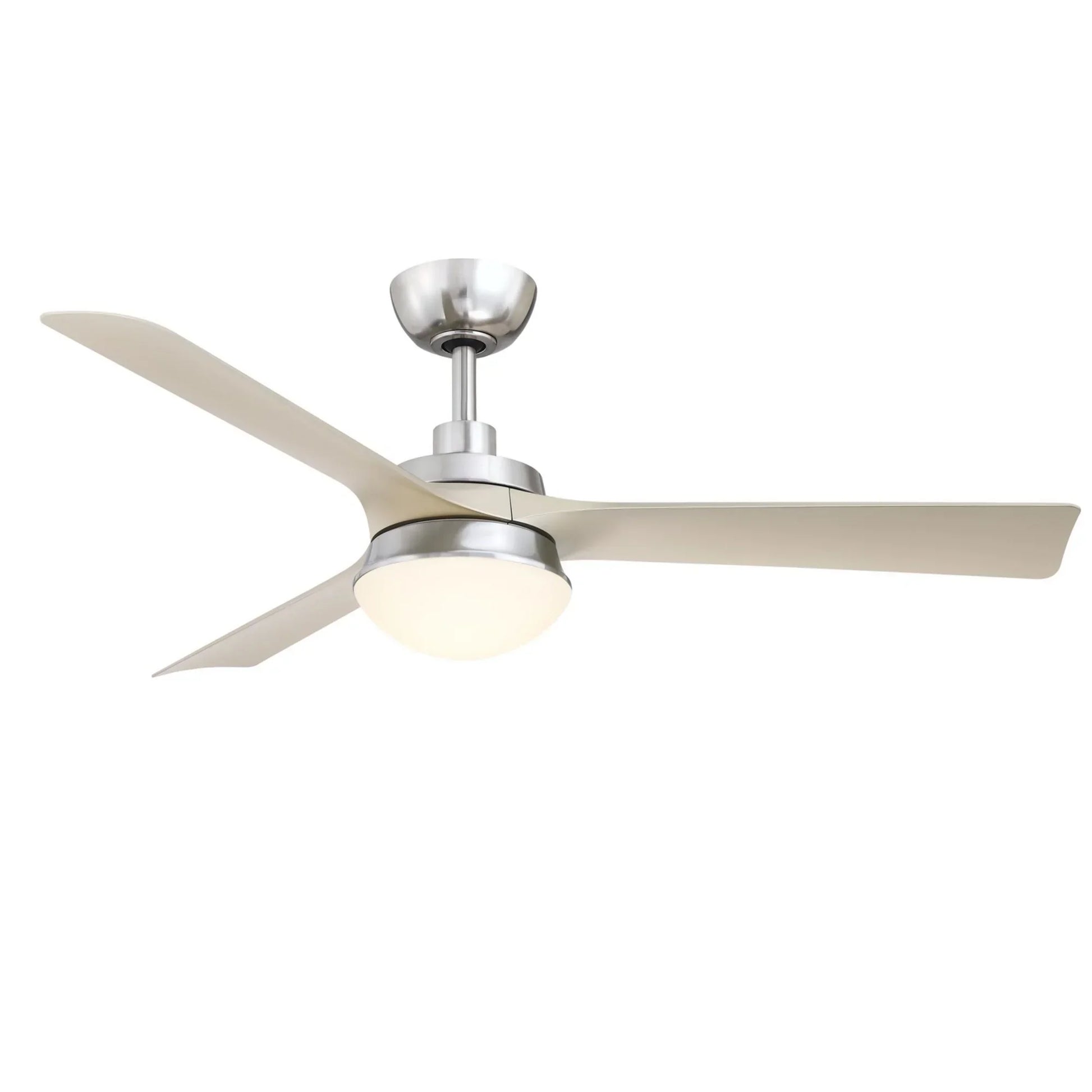

• FP6807BN: Brushed Nickel model.

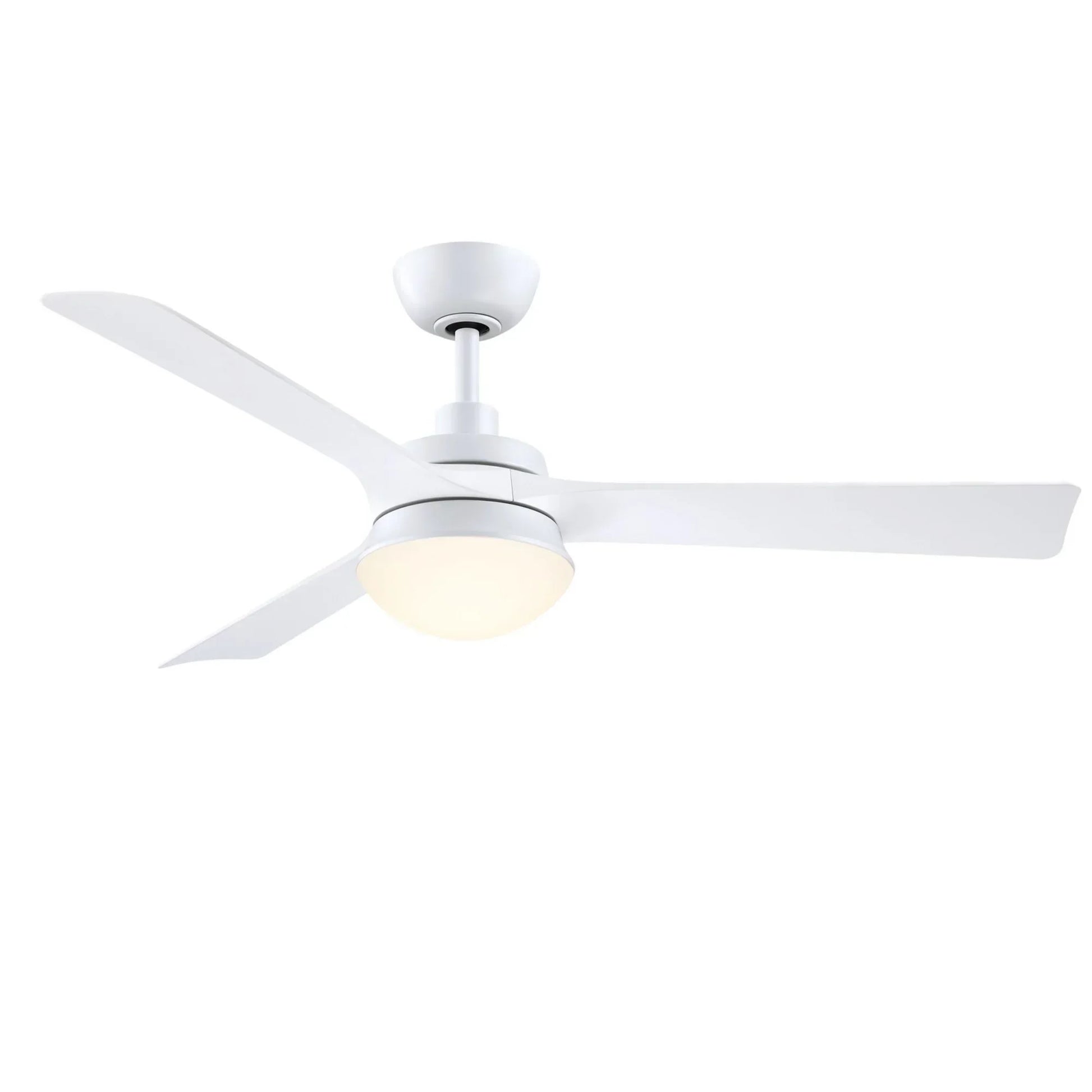

• FP6807MW: Matte White housing with Matte White blades.

Light Output & Performance

The integrated 24W LED produces 2,000 initial lumens and 1,190 delivered lumens at 3000K with 90 CRI through the opal frosted shade. High-speed airflow is 5,476 CFM at 59W and 93 CFM/W; low-speed airflow is 2,222 CFM at 13W. Energy Guide average performance is 3,951 CFM at 38W and 105 CFM/W. The 52 in span suits rooms up to approximately 400 sq ft.

Electrical & Installation

Operates on 120V AC, 60Hz. Maximum combined draw is 83W: 59W for the fan and 24W for the light. The included 6 in downrod supports standard sloped-ceiling installation up to 27°. For slopes up to 42°, use the optional SCB1-52 sloped-ceiling ball kit. Install on a securely anchored fan-rated junction box rated for at least 35 lbs and maintain at least 7 ft of blade clearance above the floor. Suitable for indoor and covered outdoor locations protected from direct rain.

Suggested Downrod by Ceiling Height

A 6 in downrod is included. Choose additional downrod lengths to suit ceiling height while maintaining blade clearance.

• 9 ft ceiling → less than 12 in downrod
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod

What's Included

• Barlow ceiling fan with three composite blades in the selected finish.
• Integrated 24W LED light kit with opal frosted shade.
• TR500 handheld remote.
• 1 in diameter × 6 in downrod.
• Mounting hardware.
