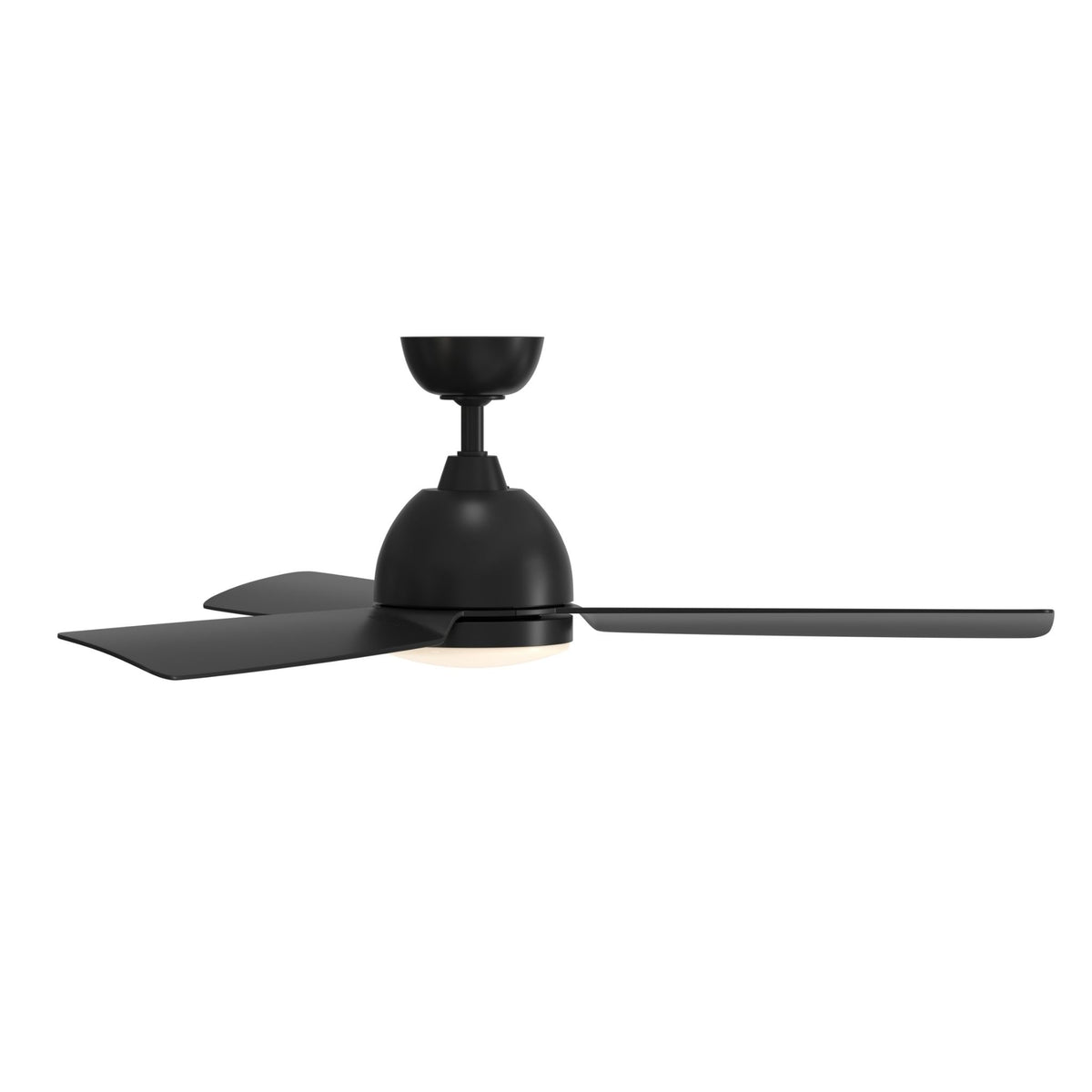

Fanimation Starboard L FP6752 52 in LED Ceiling Fan

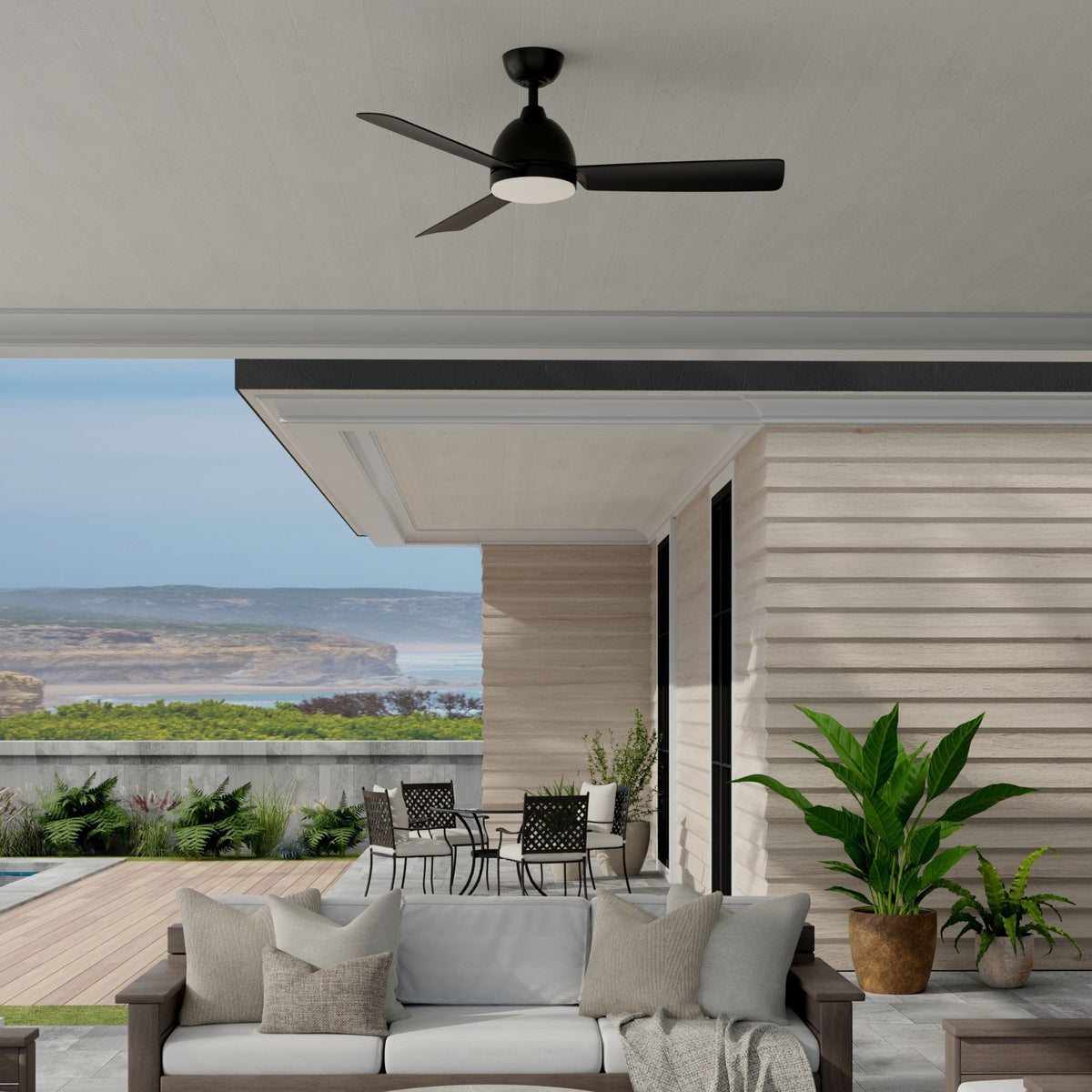

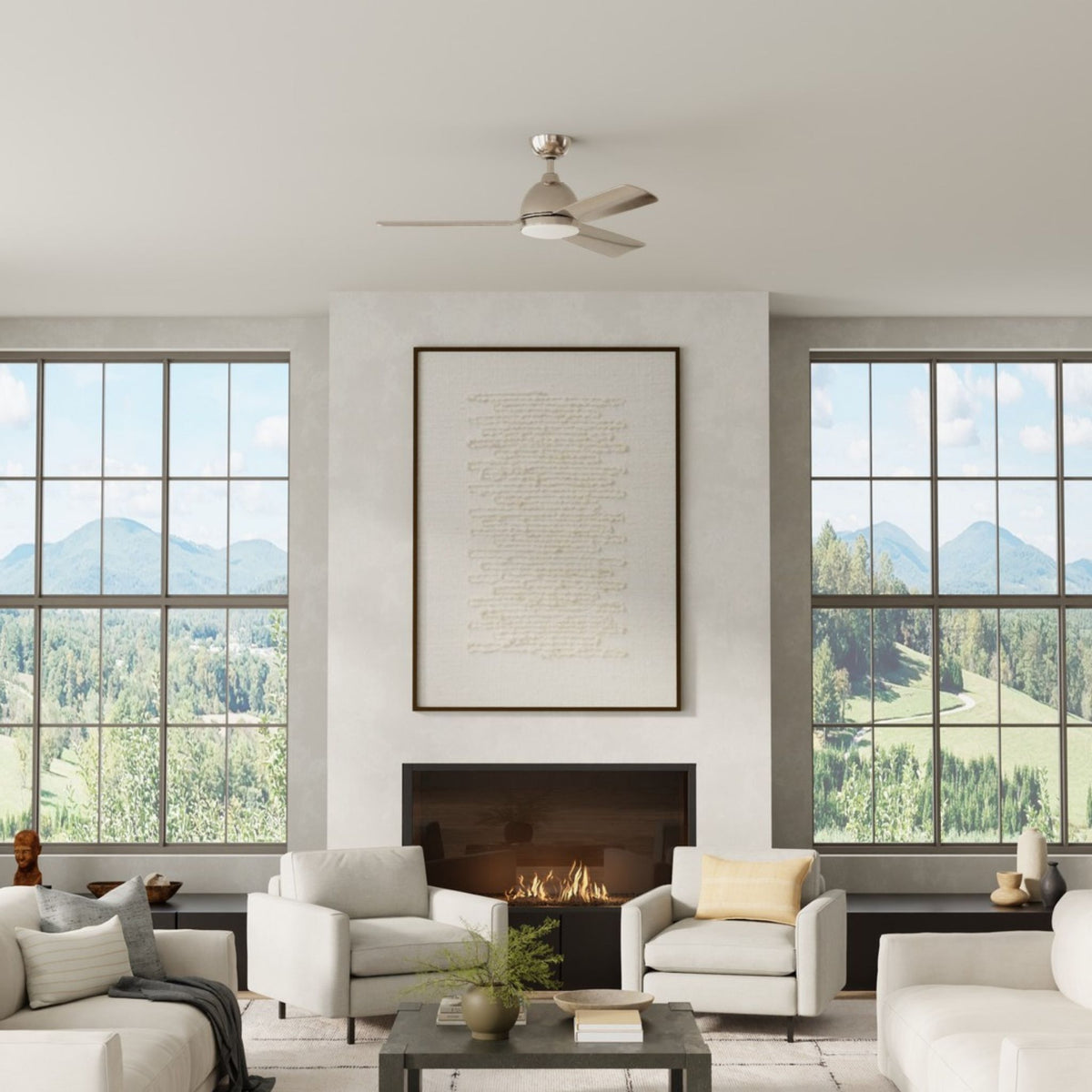

Bring a clean, nautical-inspired silhouette to a patio or living space with the Starboard L 52 in ceiling fan. Its 188 × 25 mm AC motor delivers 6,718 CFM high-speed airflow, while an included 24W LED provides warm illumination through an opal frosted lens. Marine Grade construction and a wet-location rating support indoor, covered outdoor and fully exposed outdoor use. Composite blades, LED light kit and wall control are included.

Key Features

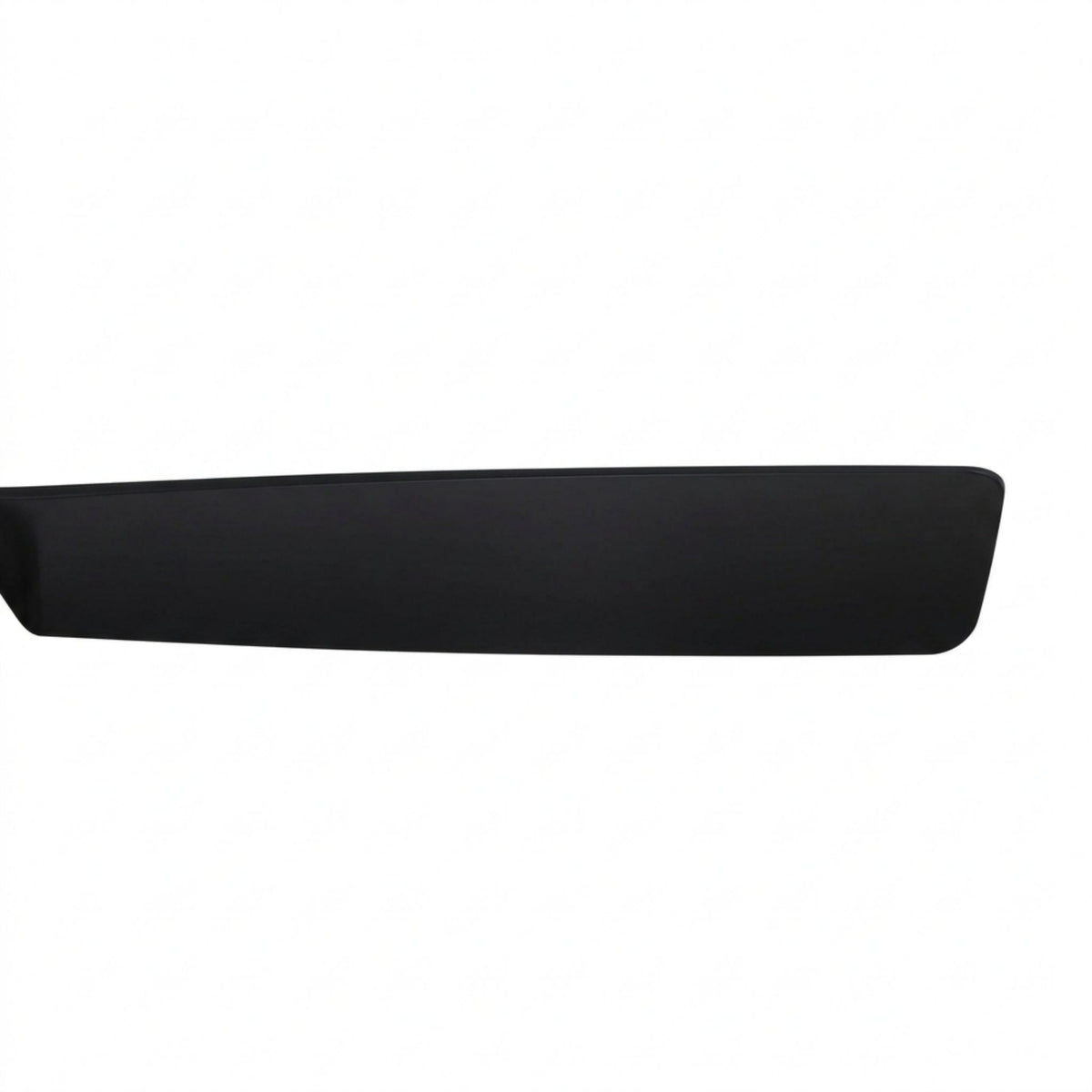

• Blade sweep: 52 in with three composite blades and 14° pitch.
• Motor: 188 × 25 mm AC motor with three speeds.
• High airflow: 6,718 CFM at 88W and 77 CFM/W.
• Energy Guide performance: 4,473 CFM at 52W and 86 CFM/W, distinct from high-speed performance.
• Included LED: 24W, 1,103 delivered lumens, 3000K and 90 CRI.
• Outdoor construction: Marine Grade and UL listed for wet locations.
• Included control: CW2WH-6752 three-speed wall control.
• Room size: Suitable for spaces up to 400 sq ft.

Smart & Control Features

The included CW2WH-6752 slide-button wall control provides three fan speeds and off. WiFi is not built in; an optional WFR50 receiver adds WiFi connectivity. Optional controls include WC2WH, WR501WH and WR506WH wall controls, CWRL4LA handheld control and CR530 remote, sold separately.

Construction & Design

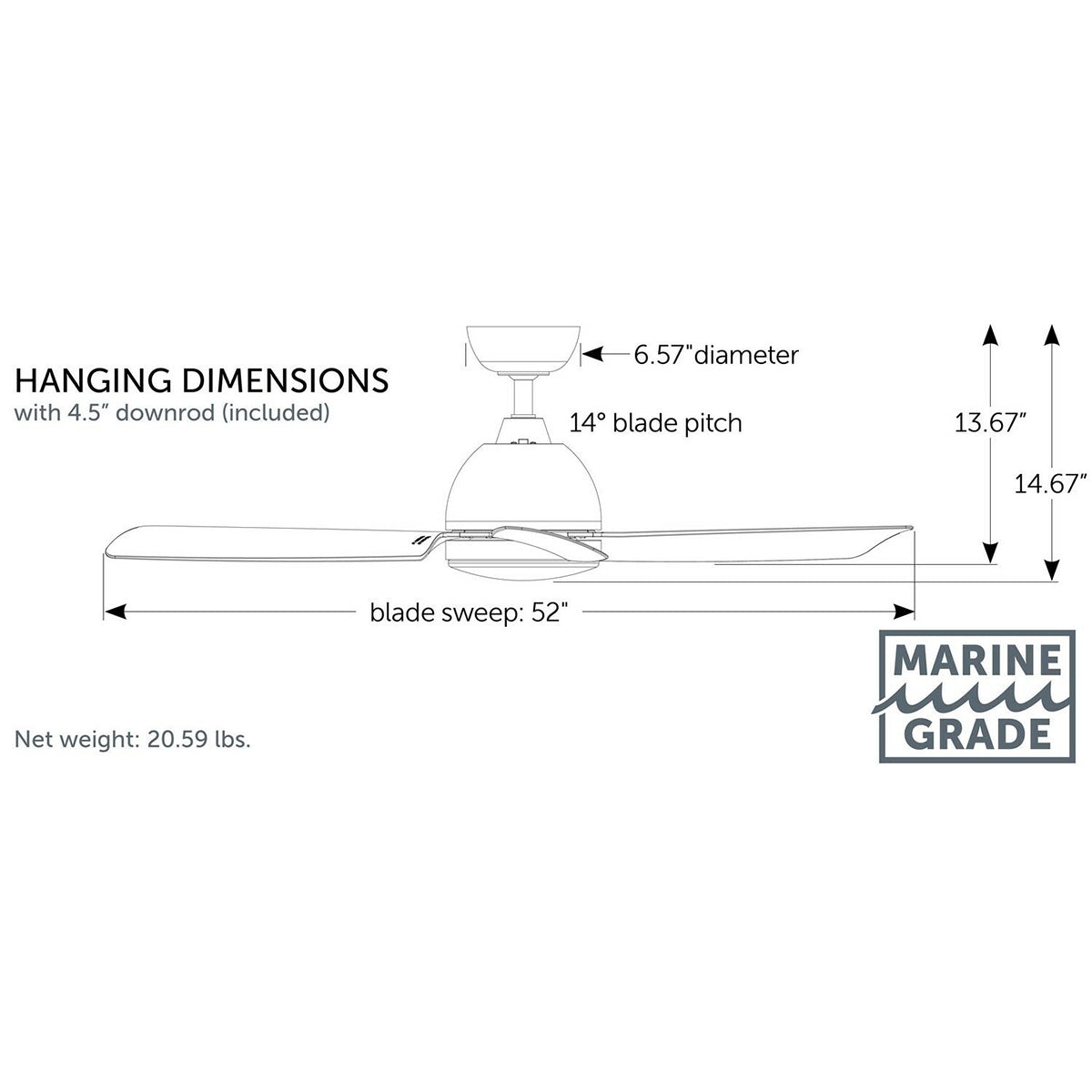

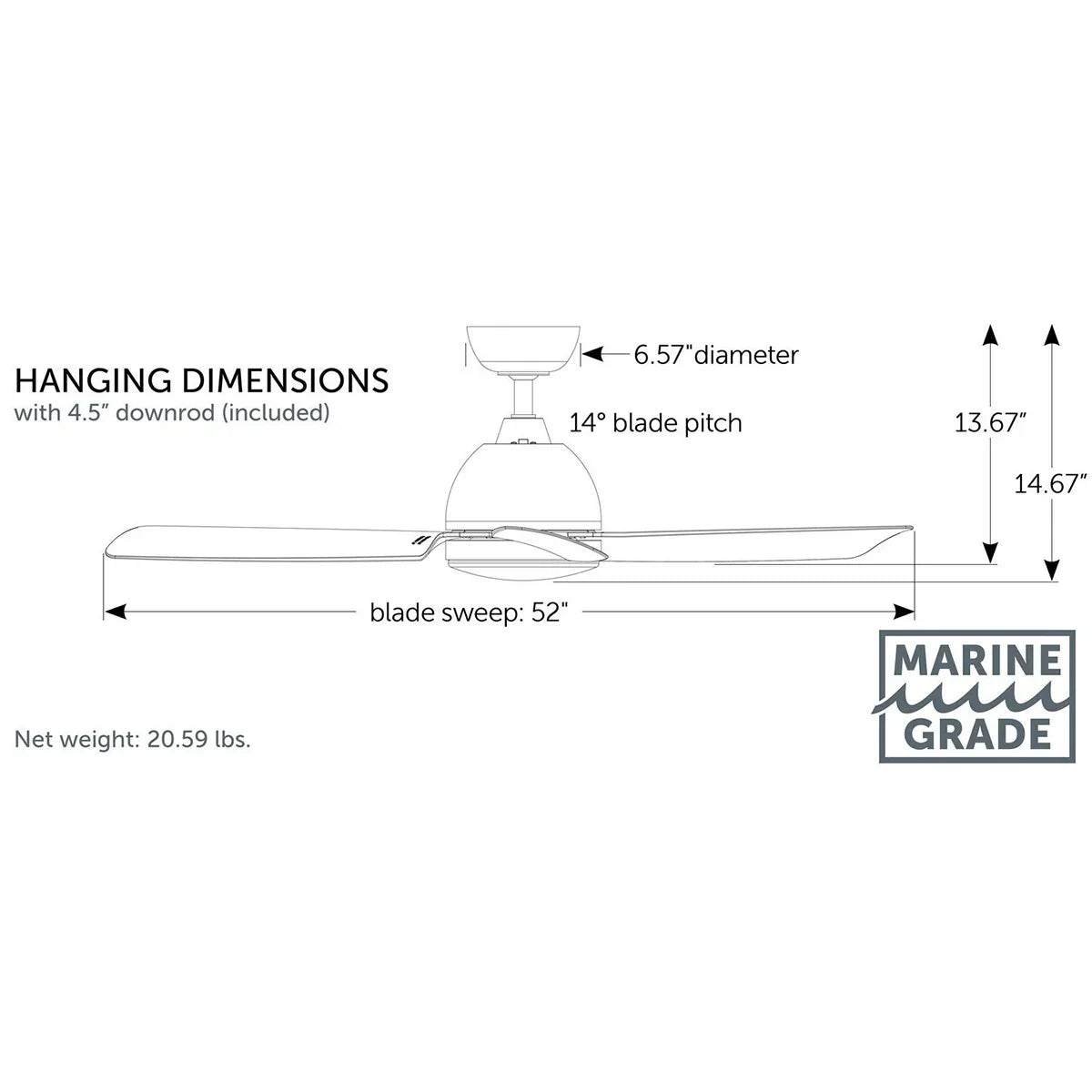

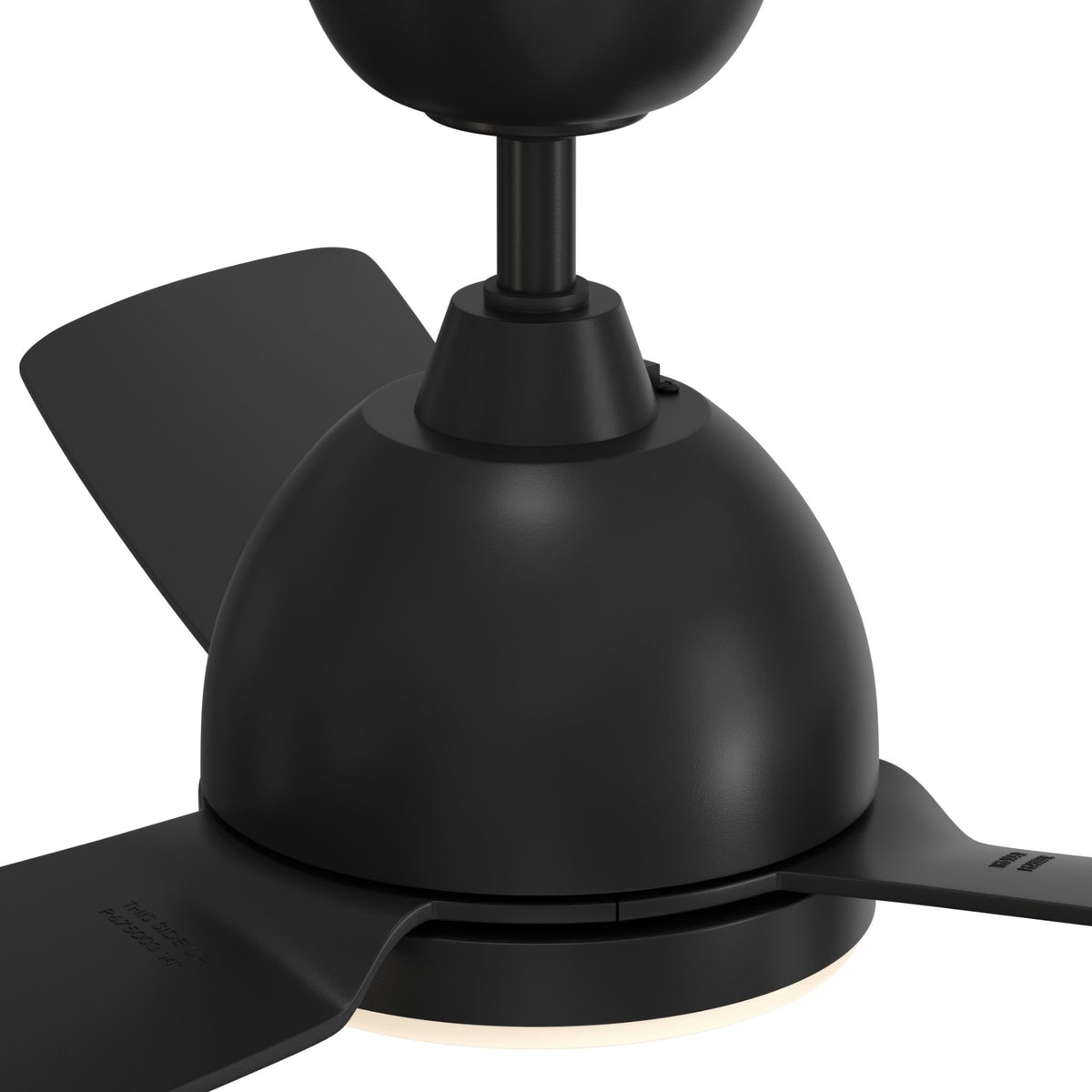

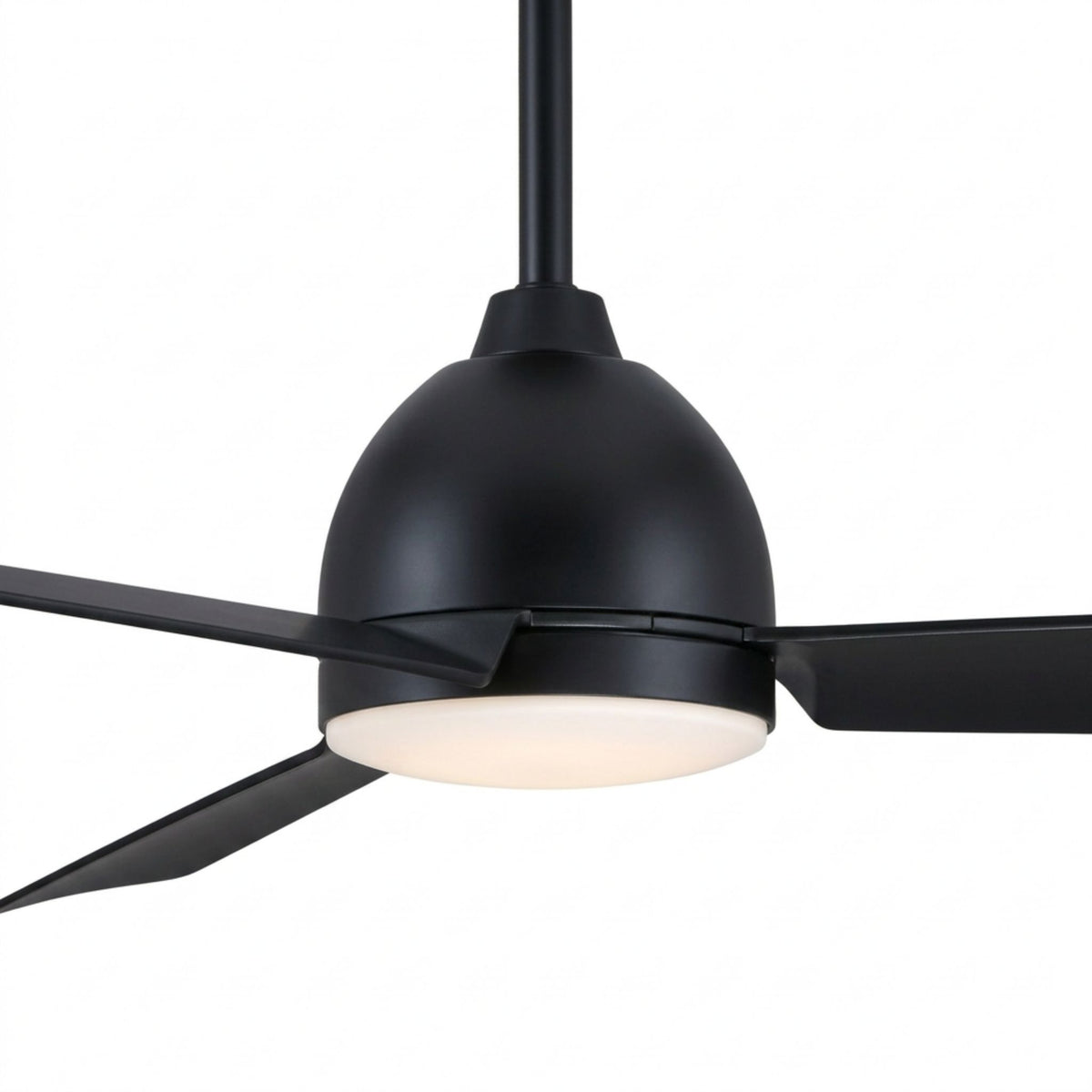

The rounded housing and three-blade profile suit coastal patios, porches and contemporary interiors. Overall dimensions are 52 in wide × 14.67 in high, with a 6.57 in diameter canopy and 20.59 lb net weight. An opal frosted lens diffuses the included LED light. Finish and model pairings are:

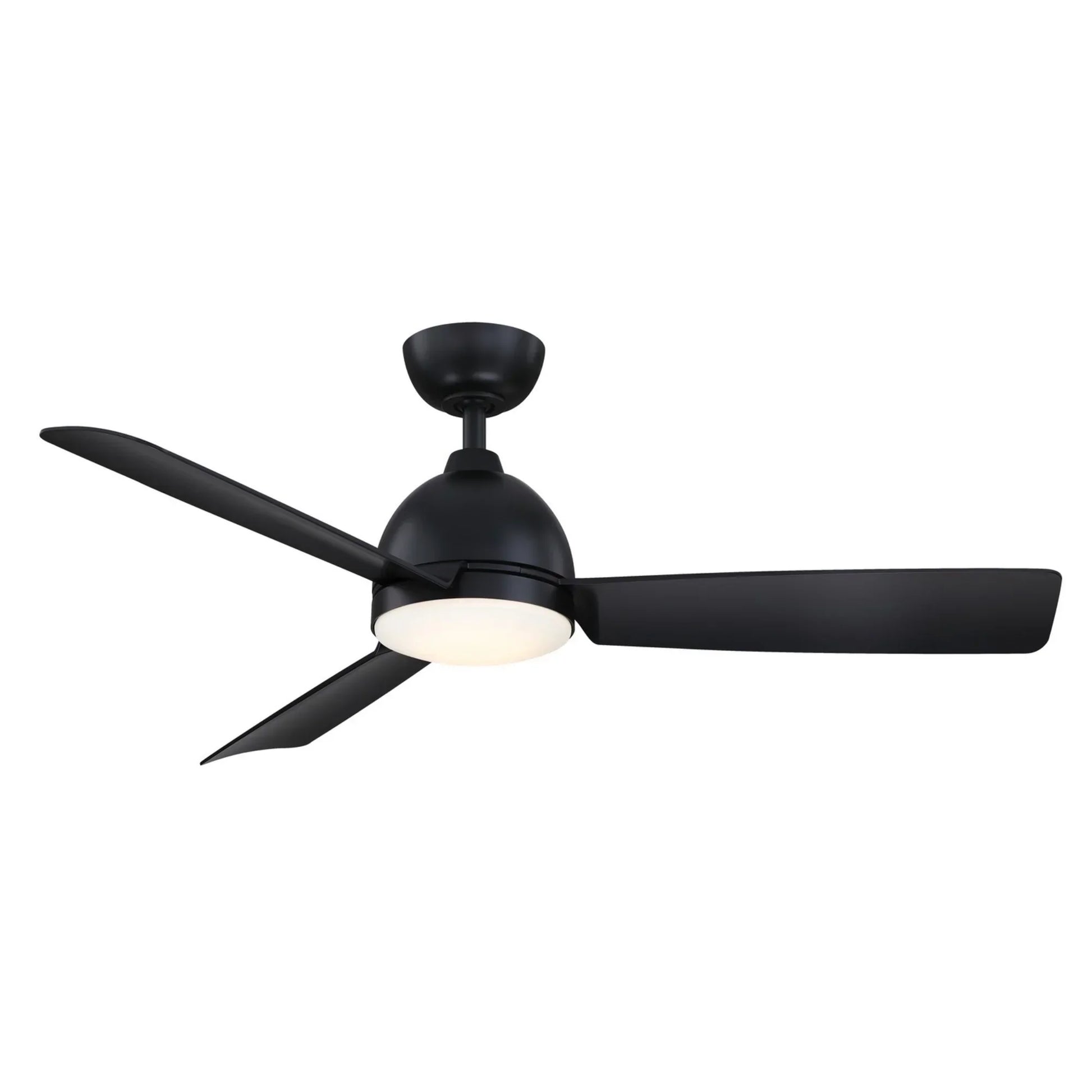

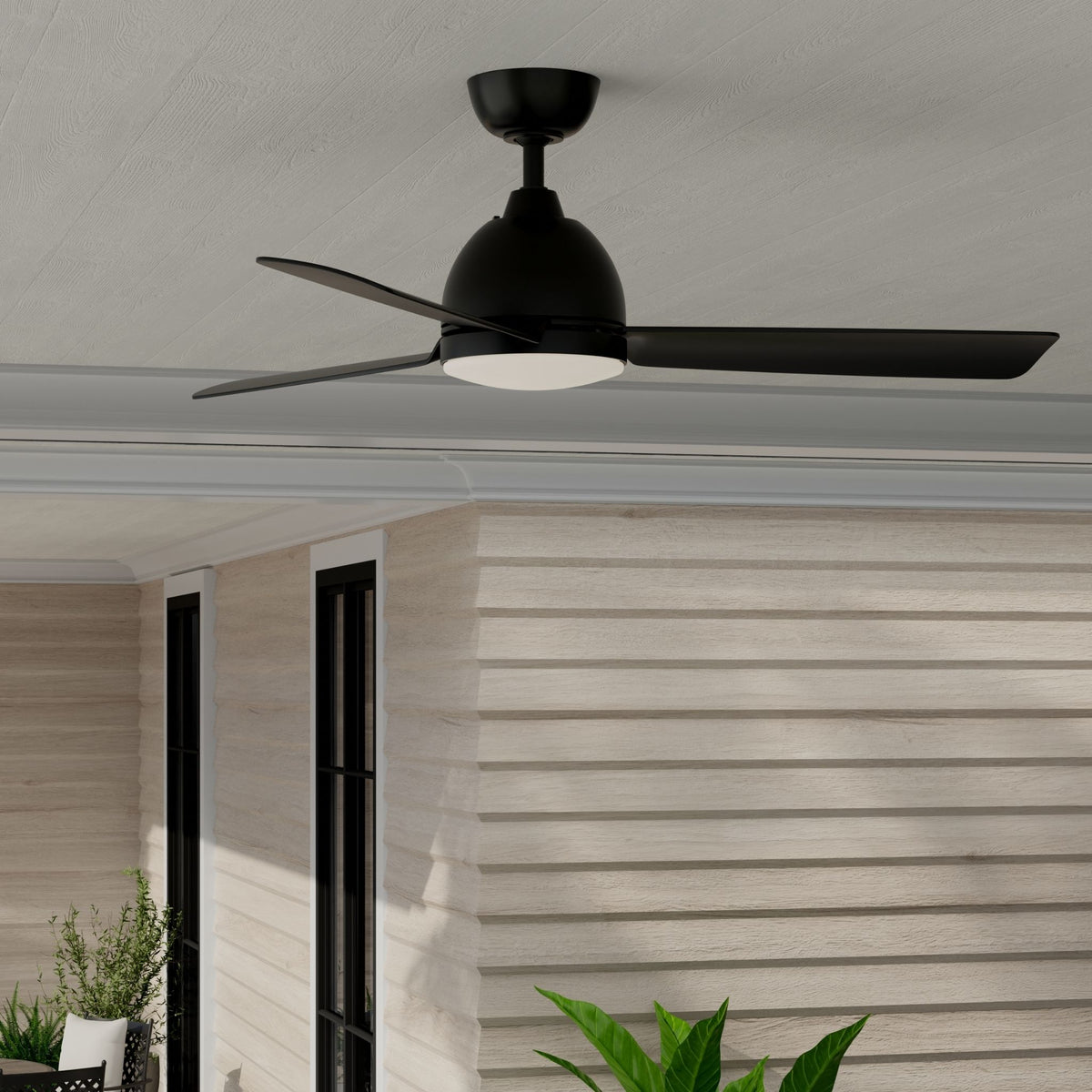

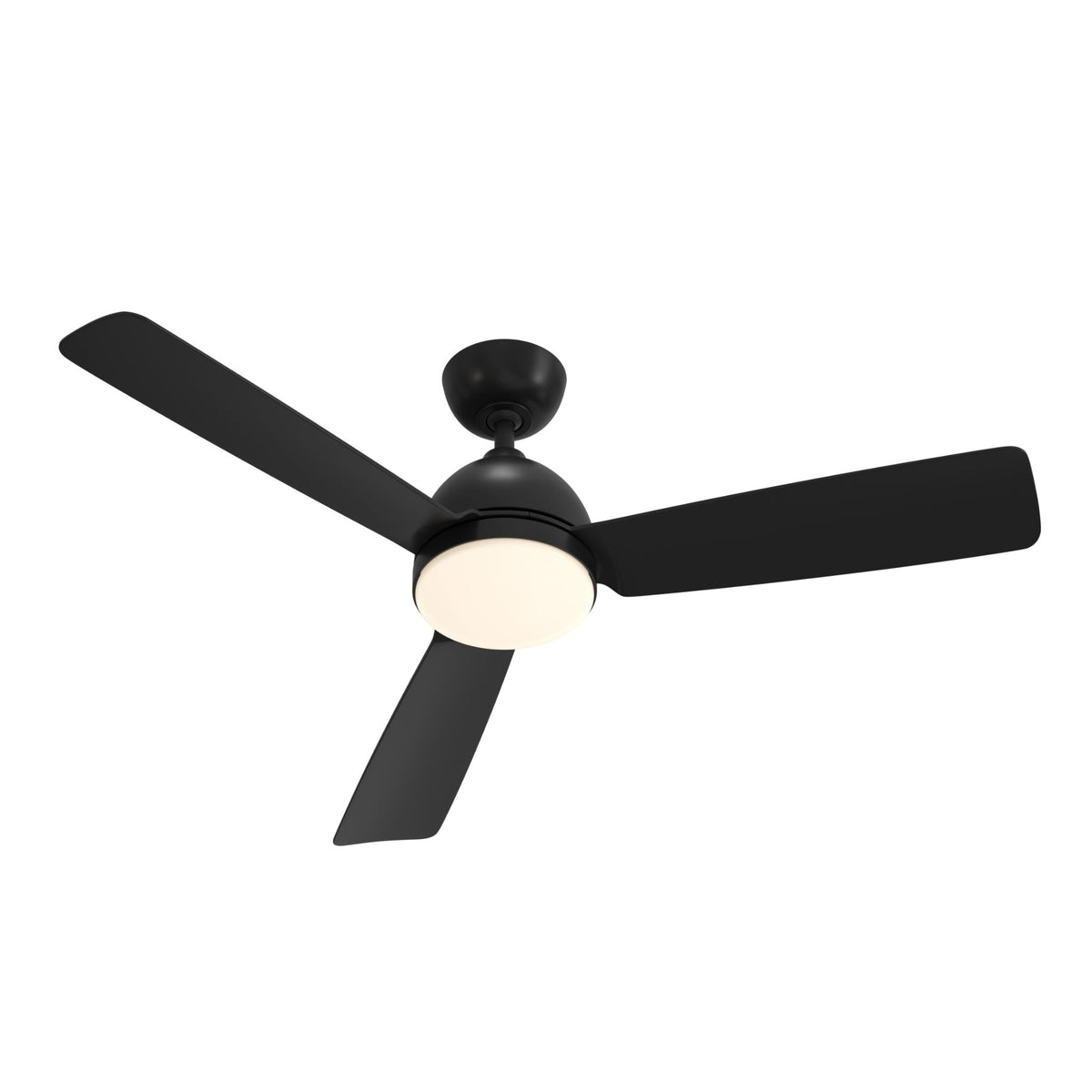

• Black: FP6752BLM, with Black composite blades.

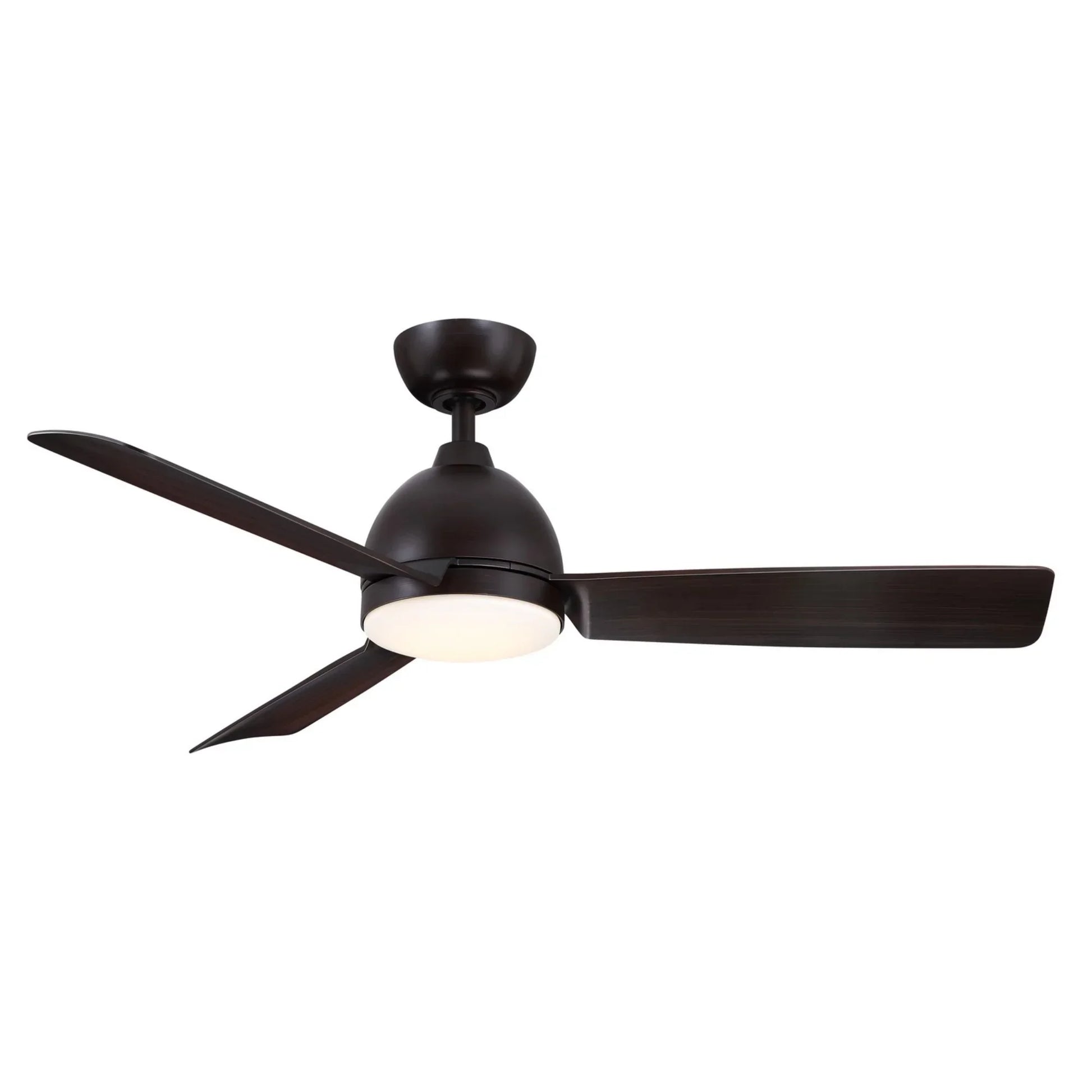

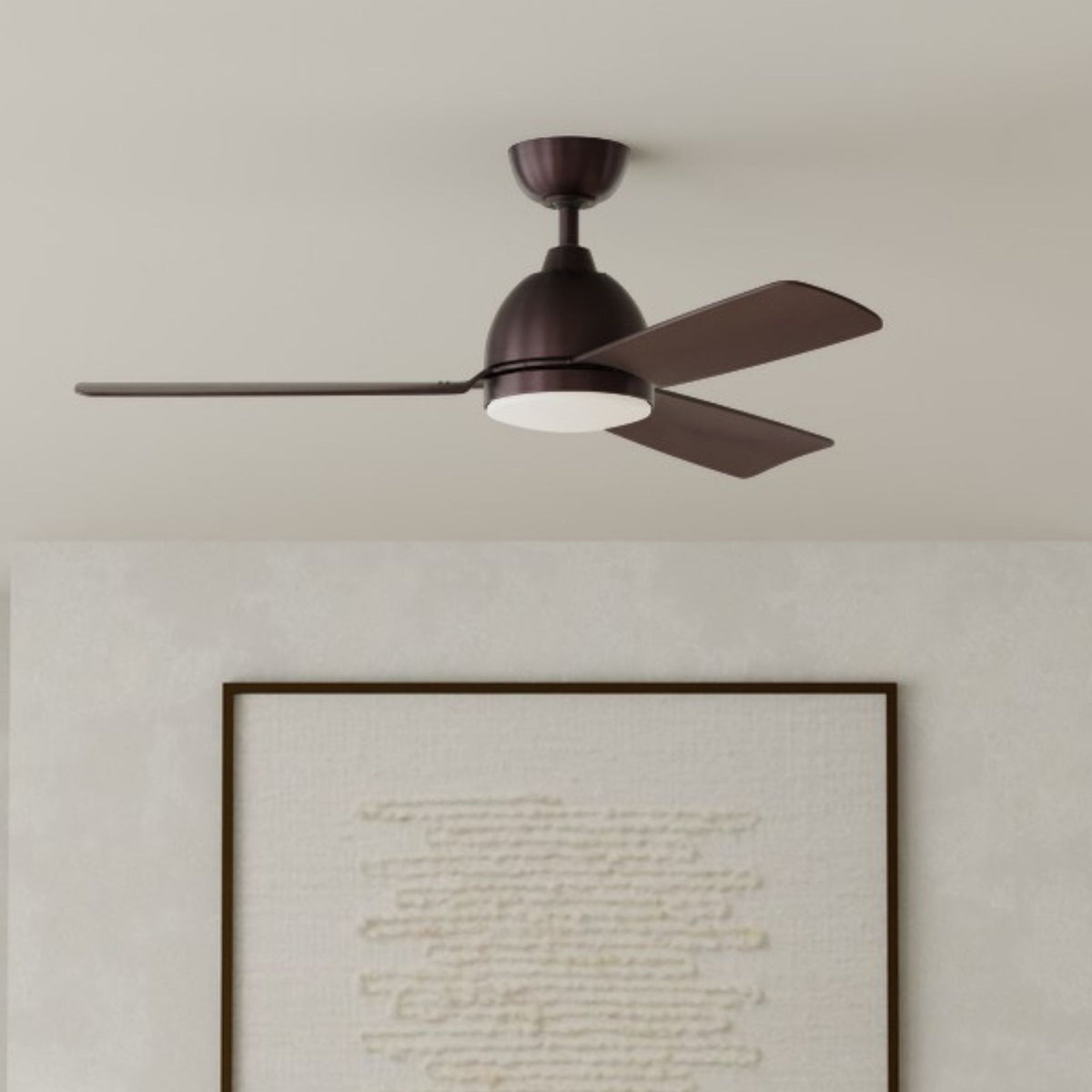

• Dark Bronze: FP6752DZM, with Dark Bronze composite blades.

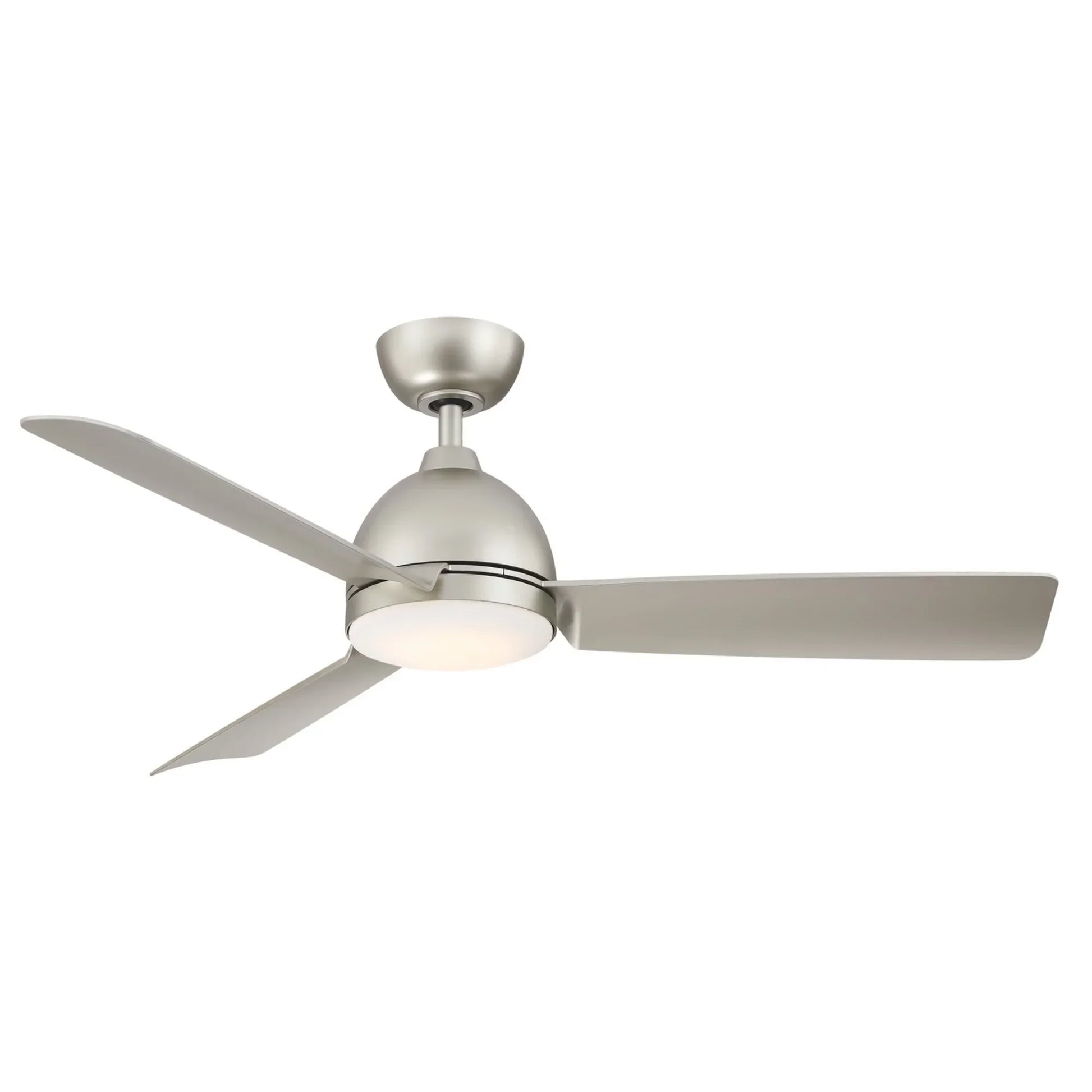

• Brushed Nickel: FP6752BNM, with composite blades.

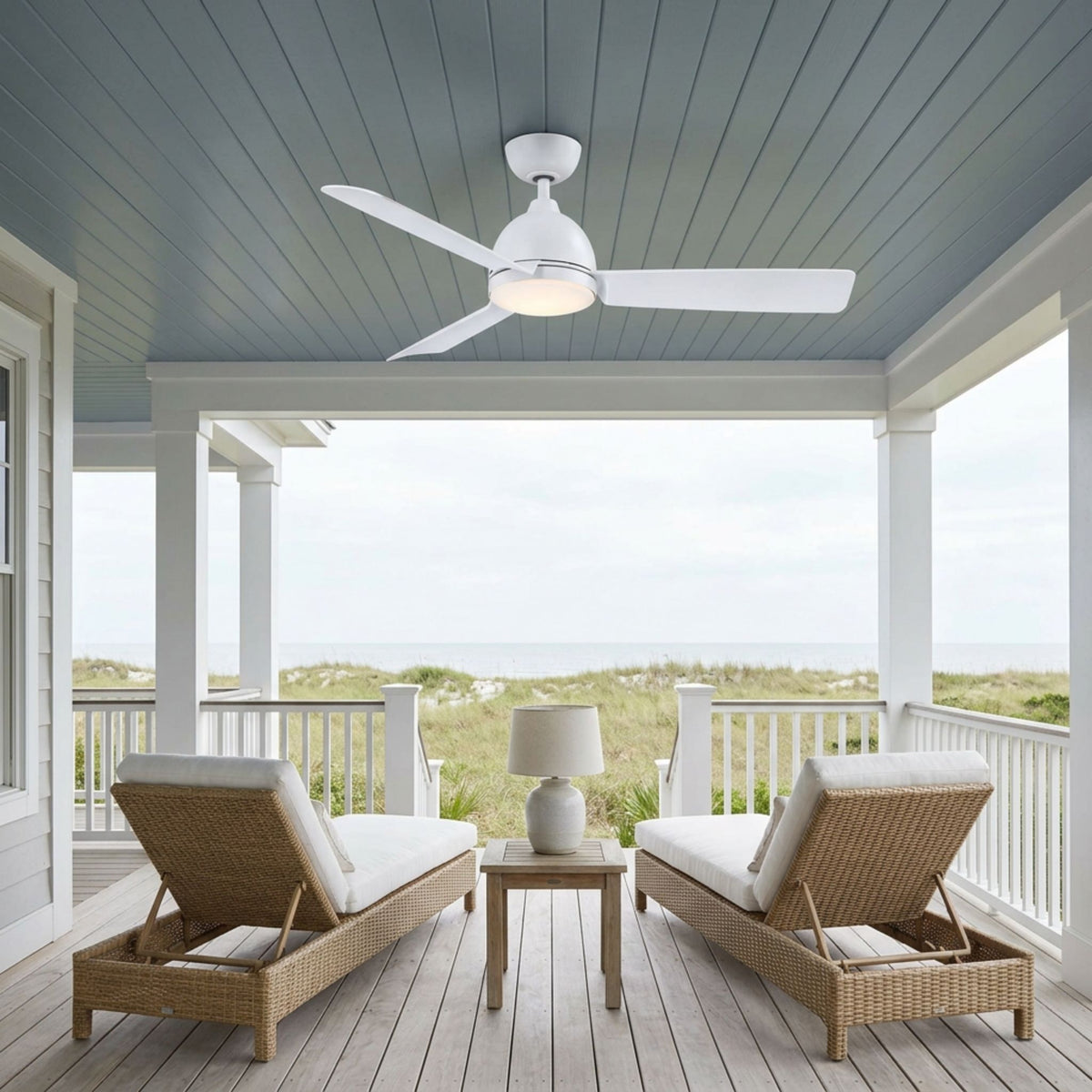

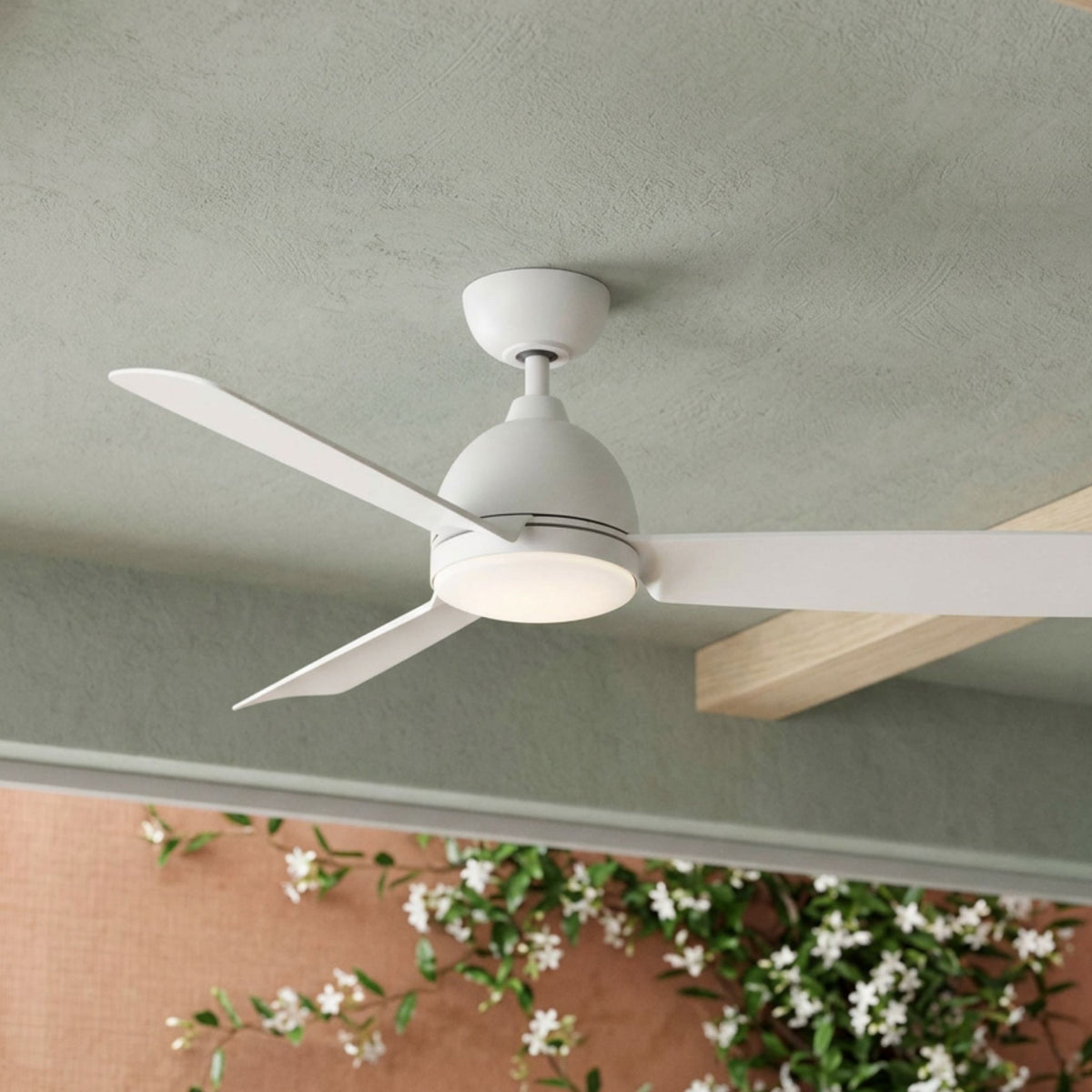

• Matte White: FP6752MWM, with Matte White composite blades.

Light Output & Performance

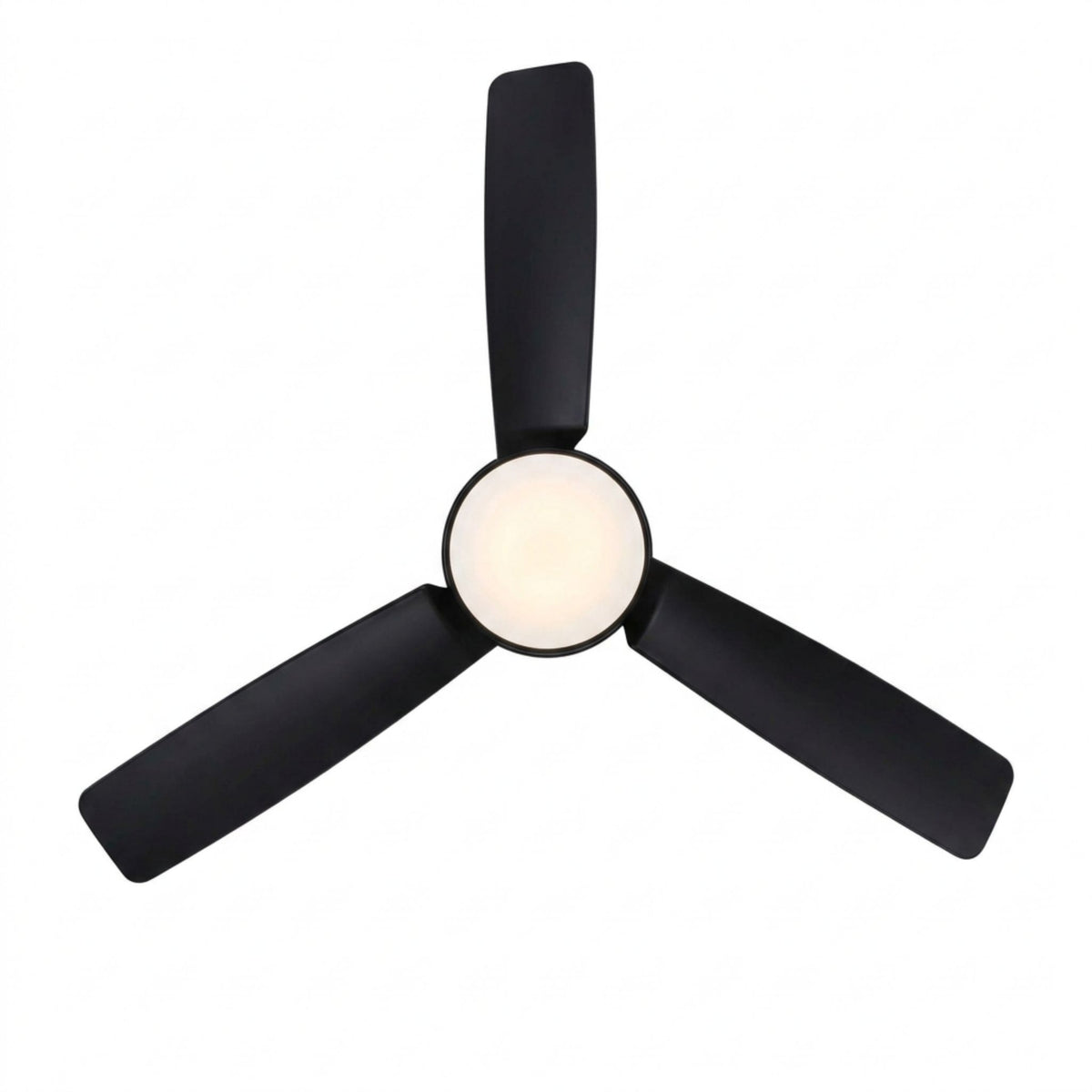

The included 24W LED light kit provides 1,103 delivered lumens at 3000K warm white with 90 CRI through an opal frosted lens. Fan airflow is 6,718 CFM high, 3,988 CFM medium and 1,926 CFM low. The separate Energy Guide figure is 4,473 CFM at 52W and 86 CFM/W; it is not the high-speed airflow rating.

Electrical & Installation

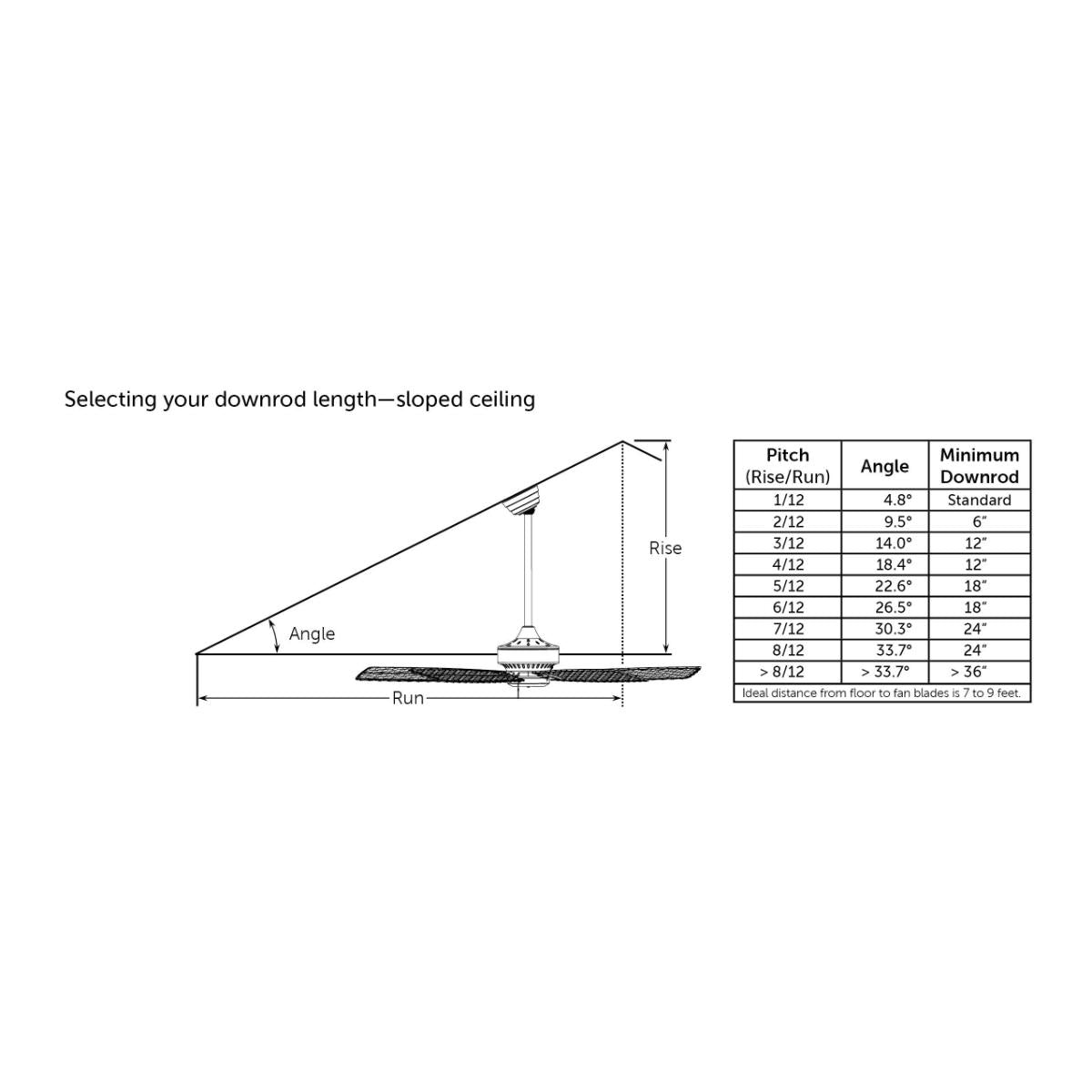

Designed for 120V AC, 60Hz operation. Fan power at high speed is 88W; LED power is 24W. Includes a 4.5 in stainless wet-location downrod, DR1SS-45, with 1 in diameter. Use a fan-rated junction box rated for at least 35 lb. Standard mounting supports slopes up to 27°; most sloped installations require an optional 18 in or longer downrod. For slopes beyond 27° up to 42°, add the optional SCB1-52 sloped ceiling ball kit. The optional CCK8002 close-to-ceiling kit is sold separately. Maintain at least 7 ft floor-to-blade clearance.

Suggested Downrod by Ceiling Height

The 4.5 in stainless wet-location downrod is included. Longer downrods and mounting accessories are sold separately. Match hardware to the installation environment, ceiling slope and required clearance; maintain at least 7 ft from floor to blades.

• 9 ft ceiling → shorter than 12 in; 4.5 in downrod included
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod arrangement as required

What's Included

• Starboard L FP6752 ceiling fan in the selected finish
• Three composite blades
• 24W LED light kit with opal frosted lens
• CW2WH-6752 wall control
• 4.5 in stainless wet-location downrod
• Mounting hardware
