Fanimation Starboard NL FP6750 52 in Ceiling Fan Without Light

Bring coastal style and a clean, unlit silhouette to your patio or living space with the Starboard NL 52 in ceiling fan. Its 188 × 25 mm AC motor delivers 6,718 CFM high-speed airflow, with composite blades and a CW1WH-6750 wall control included. Marine Grade construction and a wet-location rating support indoor, covered outdoor and fully exposed outdoor use. This is the complete fan-only FP6750 model, with blades included but no light kit.

Key Features

• Blade sweep: 52 in with three composite blades and 14° pitch.
• Motor: 188 × 25 mm AC motor with three speeds.
• High airflow: 6,718 CFM at 88W and 77 CFM/W.
• Energy Guide performance: 4,473 CFM at 52W and 86 CFM/W, distinct from high-speed performance.
• No light included: Unlit design, distinct from the LED-equipped FP6752 family.
• Outdoor construction: Marine Grade and UL listed for wet locations.
• Included control: CW1WH-6750 three-speed wall control.
• Room size: Suitable for spaces up to 400 sq ft.

Smart & Control Features

The included CW1WH-6750 slide-button wall control provides three fan speeds and off. WiFi is not built in; add the optional WFR50 receiver for WiFi connectivity. Optional controls include WC1WH, WR500WH and WR505WH wall controls, CWRL4LA handheld control and CR530 remote, sold separately. These are the controls specified for the fan-only FP6750 platform, not the included control from the LED version.

Construction & Design

The rounded housing and three-blade profile suit coastal patios, porches and contemporary interiors without an integrated light lens. Overall dimensions are 52 in wide × 13.61 in high, with a 6.57 in diameter canopy and 19.86 lb net weight. Finish and model pairings are:

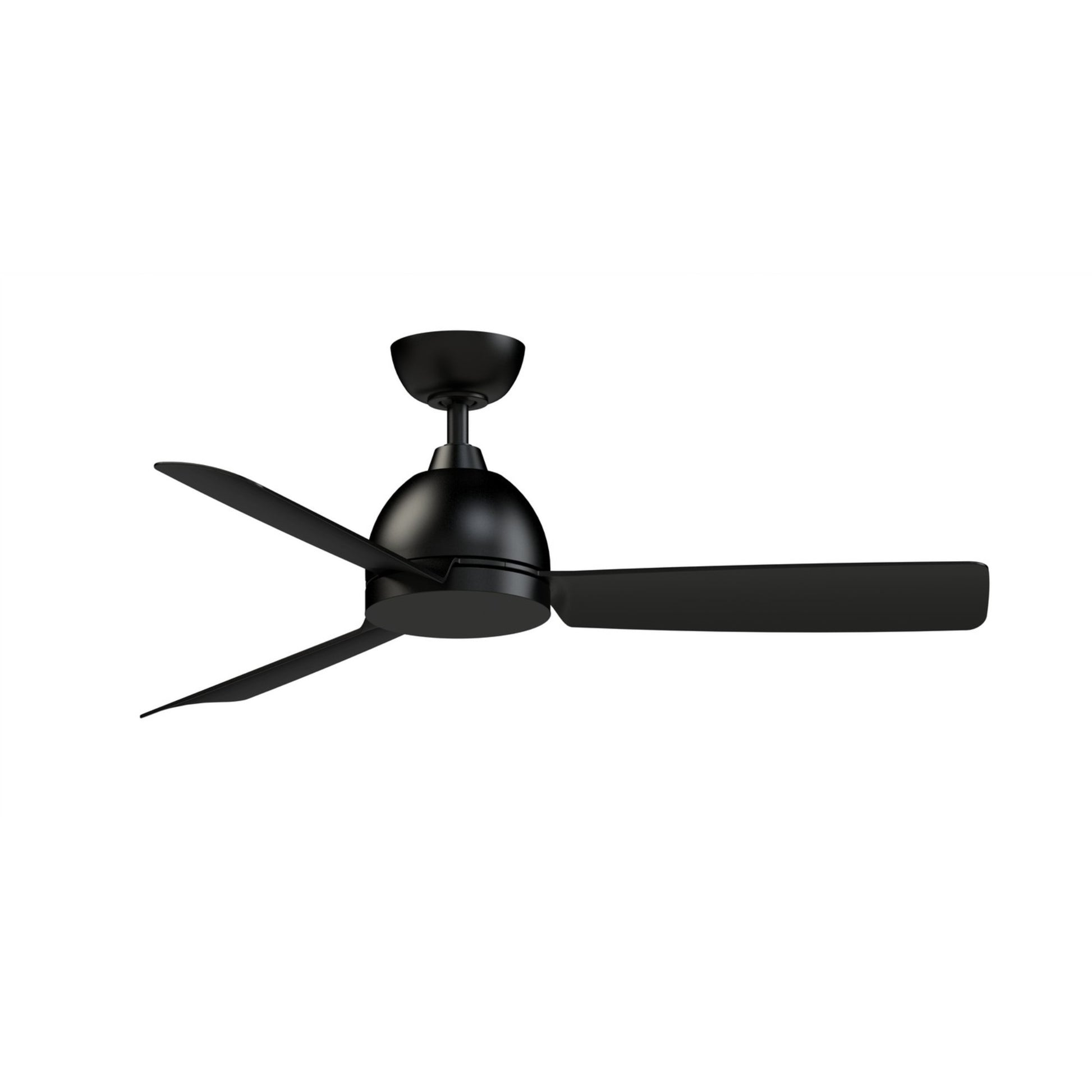

• Black: FP6750BLM, with Black composite blades.

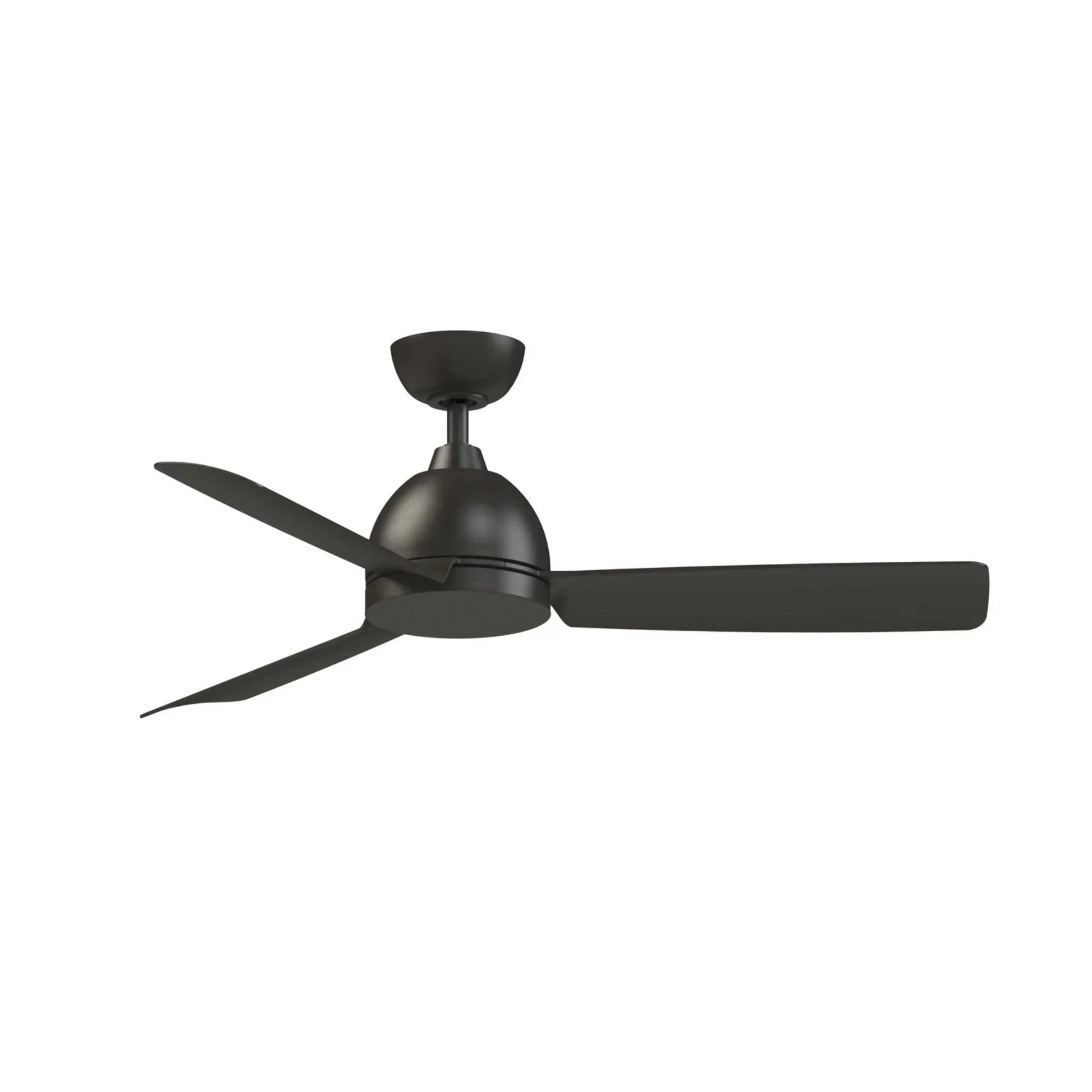

• Dark Bronze: FP6750DZM, with Dark Bronze composite blades.

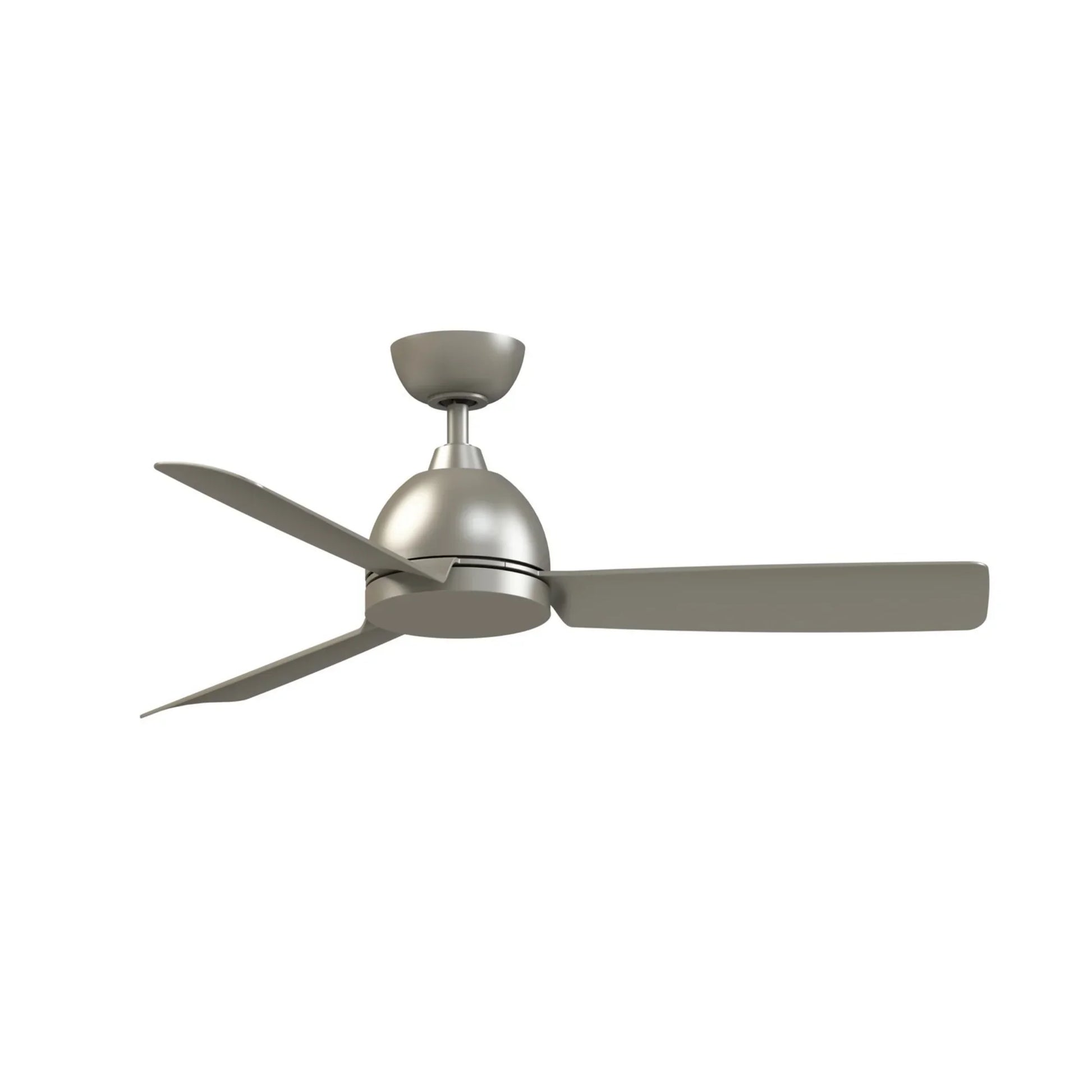

• Brushed Nickel option: FP6750BNM, with composite blades.

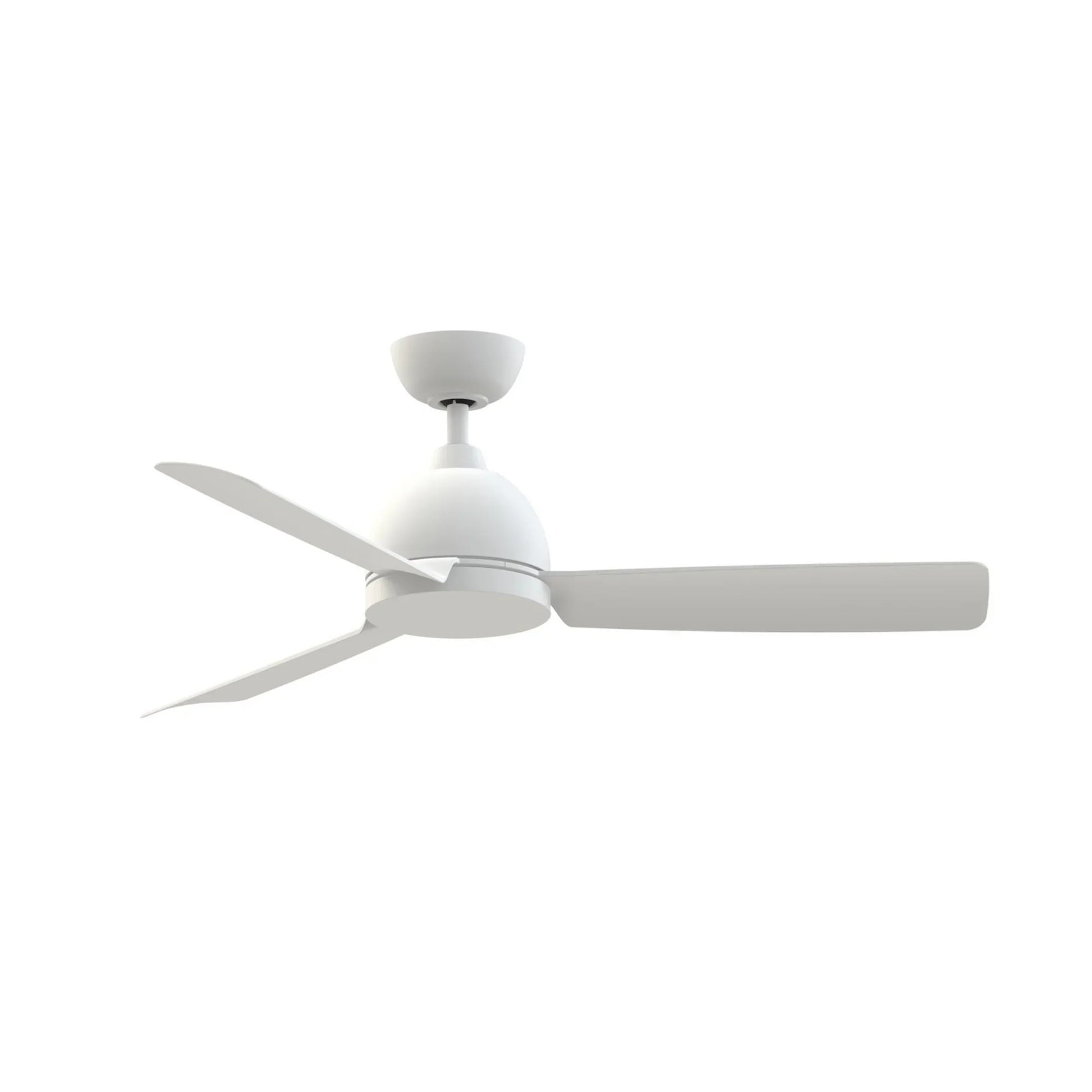

• Matte White: FP6750MWM, with Matte White composite blades.

Light Output & Performance

No light kit is included with FP6750 models. For an LED-equipped fan, the separate Starboard L models are FP6752BLM in Black, FP6752DZM in Dark Bronze, FP6752BNM in Brushed Nickel and FP6752MWM in Matte White. These are separate complete-fan models, not included accessories. The FP6750 fan delivers 6,718 CFM high, 3,988 CFM medium and 1,926 CFM low. Its separate Energy Guide figure is 4,473 CFM at 52W and 86 CFM/W, not the high-speed airflow rating.

Electrical & Installation

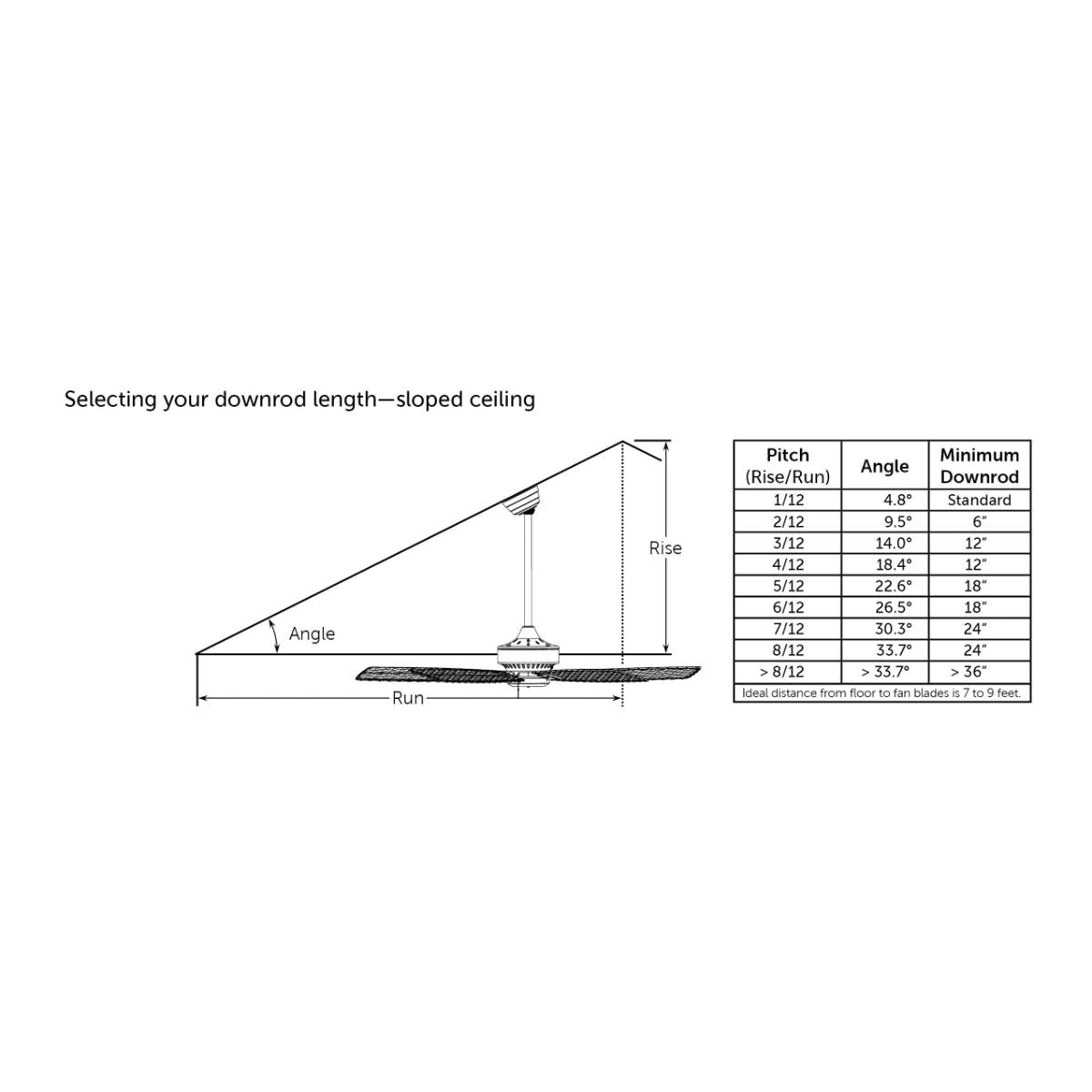

Designed for 120V AC, 60Hz operation, with 88W fan power at high speed. Includes a 4.5 in stainless wet-location downrod, DR1SS-45, with 1 in diameter. Use a fan-rated junction box rated for at least 35 lb. Standard mounting supports slopes up to 27°; most sloped installations require an optional 18 in or longer downrod. For slopes beyond 27° up to 42°, add the optional SCB1-52 sloped ceiling ball kit. The optional CCK8002 close-to-ceiling kit is sold separately. Maintain at least 7 ft floor-to-blade clearance.

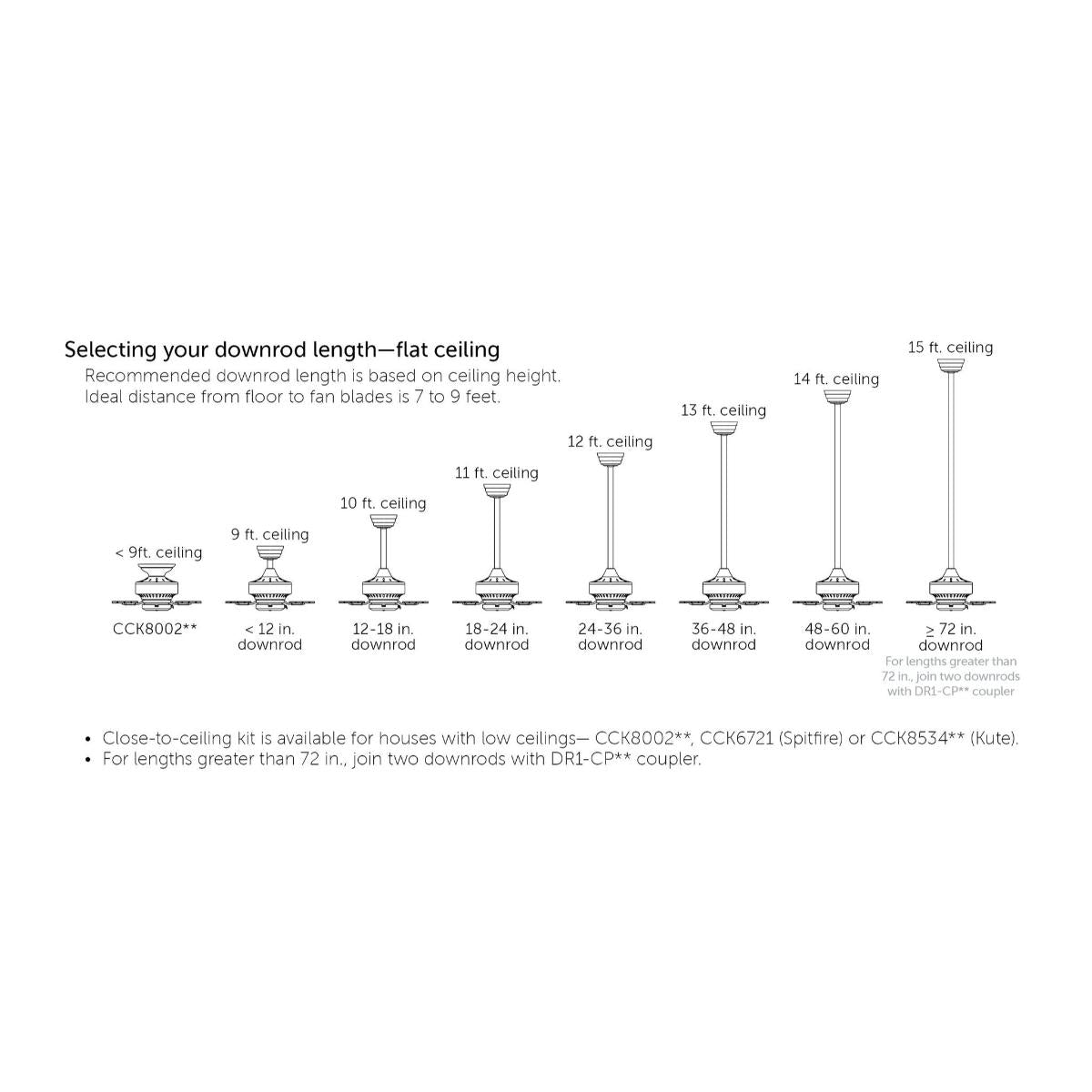

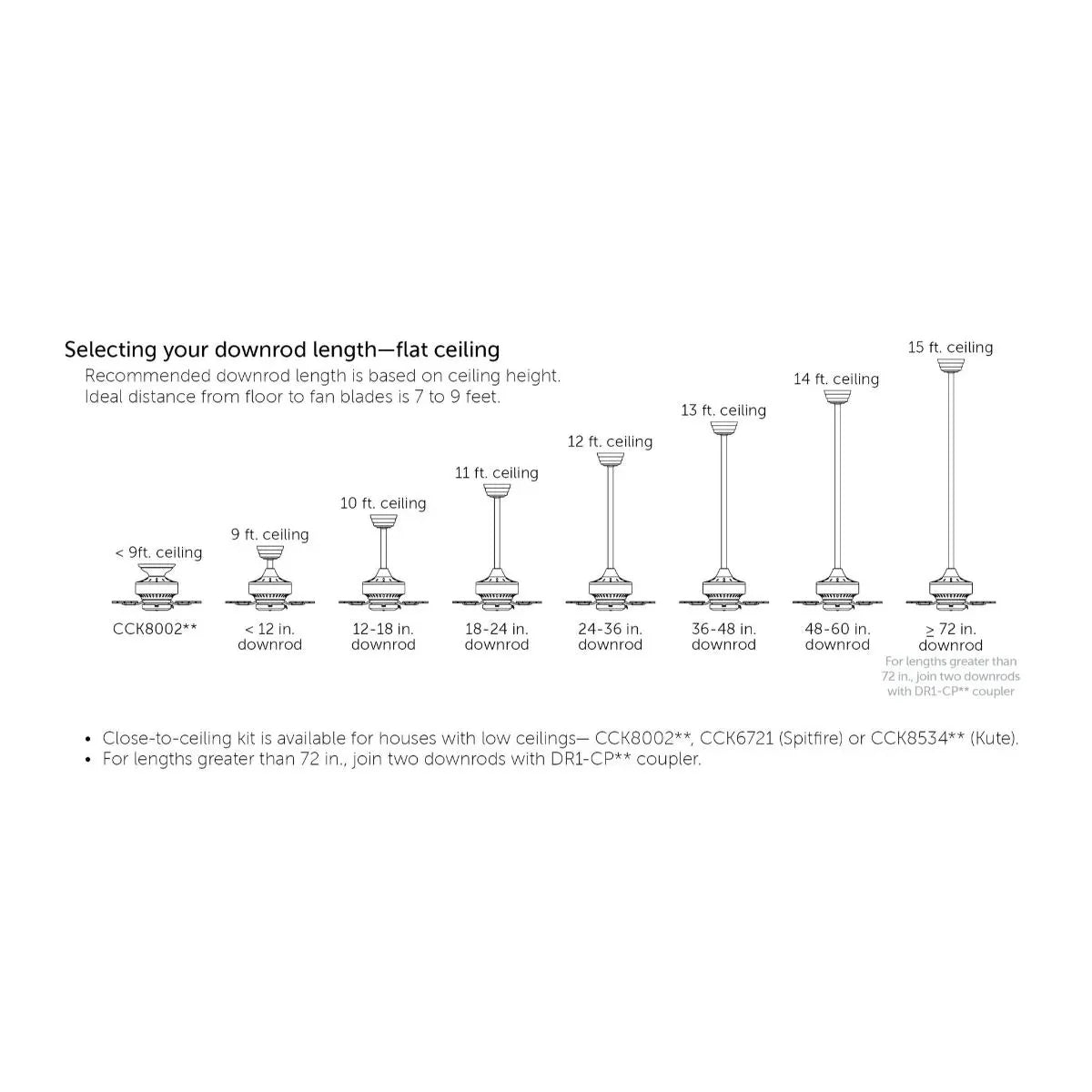

Suggested Downrod by Ceiling Height

The 4.5 in stainless wet-location downrod is included. Longer downrods and mounting accessories are sold separately. Match hardware to the installation environment, ceiling slope and required clearance; maintain at least 7 ft from floor to blades.

• 9 ft ceiling → shorter than 12 in; 4.5 in downrod included
• 10 ft ceiling → 12–18 in downrod
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod arrangement as required

What's Included

• Starboard NL FP6750 ceiling fan in the selected finish
• Three composite blades
• CW1WH-6750 wall control
• 4.5 in stainless wet-location downrod
• Mounting hardware

No light kit is included.
