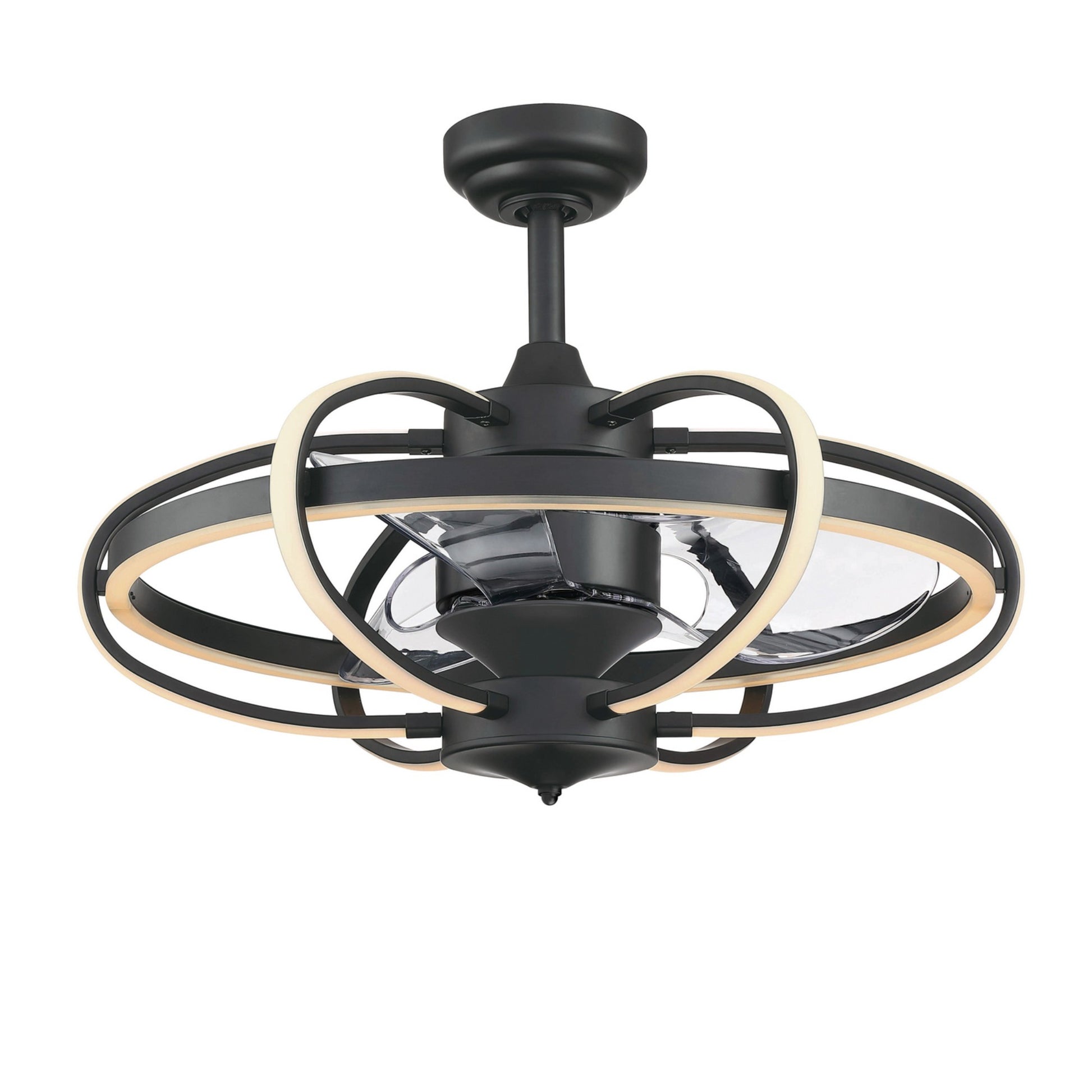

Fanimation Obvi FP3050 26 in LED Fandelier

Obvi pairs an elliptical-ring silhouette with three clear blades for a sculptural approach to indoor air movement. The fixture measures 26.43 in overall width, with a distinct 22 in blade sweep. A sensorless DC motor delivers 1,426 CFM high-speed airflow, while integrated arm and center-band LEDs add warm 3000K light. TR205D remote included.

Key Features

• Fixture size: 26 in nominal fandelier, 26.43 in overall width.
• Blade sweep: 22 in with three clear composite blades.
• Motor: 153 × 12 sensorless DC motor with 16 variable speeds.
• High-speed airflow: 1,426 CFM at 26W and 55 CFM/W.
• Low-speed airflow: 817 CFM at 7W.
• Energy Guide average: 1,177 CFM at 19W and 62 CFM/W.
• Lighting: Integrated arm and center-band LEDs, 3000K and CRI 90.
• Location: Dry rated for indoor use only.

Smart & Control Features

The included TR205D push-button remote provides 16 variable fan speeds, fresh air mode, fan and light timers, home away, safe exit and off, with control of the integrated lighting. Optional TW206D two-wire fan and light wall control is sold separately.

Construction & Design

The elliptical-ring frame surrounds three clear composite blades, balancing decorative lighting with compact air movement. Overall width is 26.43 in, blade sweep is 22 in, and the canopy measures 5.83 in diameter × 2.17 in high. Net weight is 21.16 lb. Choose Black, FP3050BL, or Brushed Nickel, FP3050BN; both pair the selected frame finish with Clear blades. Limited lifetime warranty.

Light Output & Performance

Fully integrated LEDs in the six arms and center band provide warm 3000K light with CRI 90. The arm lighting is listed at 2,580 initial lumens, and the center-band lighting at 1,370 initial lumens; these are separate component figures, not a combined fixture-output rating. No separate light kit is required. High-speed airflow is 1,426 CFM, distinct from the 1,177 CFM Energy Guide average. Recommended for compact rooms up to approximately 100 sq ft.

Electrical & Installation

Operates on 120V AC, 60Hz. Includes a 6 in downrod with 1 in diameter. Standard mounting supports slopes up to 19°; optional SCK1-52 sloped ceiling kit supports slopes up to 42°. Use a securely anchored fan-rated junction box rated for at least 35 lb. Install only in enclosed dry indoor spaces and maintain at least 7 ft from floor to blades.

Suggested Downrod by Ceiling Height

A 6 in downrod is included. Optional lengths are 12, 18, 24, 36, 48, 60 and 72 in. Select the final length for ceiling geometry and at least 7 ft floor-to-blade clearance; a 7 ft ceiling alone is insufficient.

• Lower ceiling → included 6 in downrod only where blade clearance permits
• Higher ceiling → longer downrod selected to maintain approximately 7–9 ft floor-to-blade height
• Sloped ceiling up to 19° → standard mounting with 6 in or longer downrod as clearance requires
• Slope above 19° and up to 42° → SCK1-52 kit with suitable downrod

What's Included

• Obvi fandelier in the selected finish with three Clear blades
• Integrated arm and center-band LED lighting
• TR205D push-button hand-held remote
• 6 in downrod
• Mounting hardware
