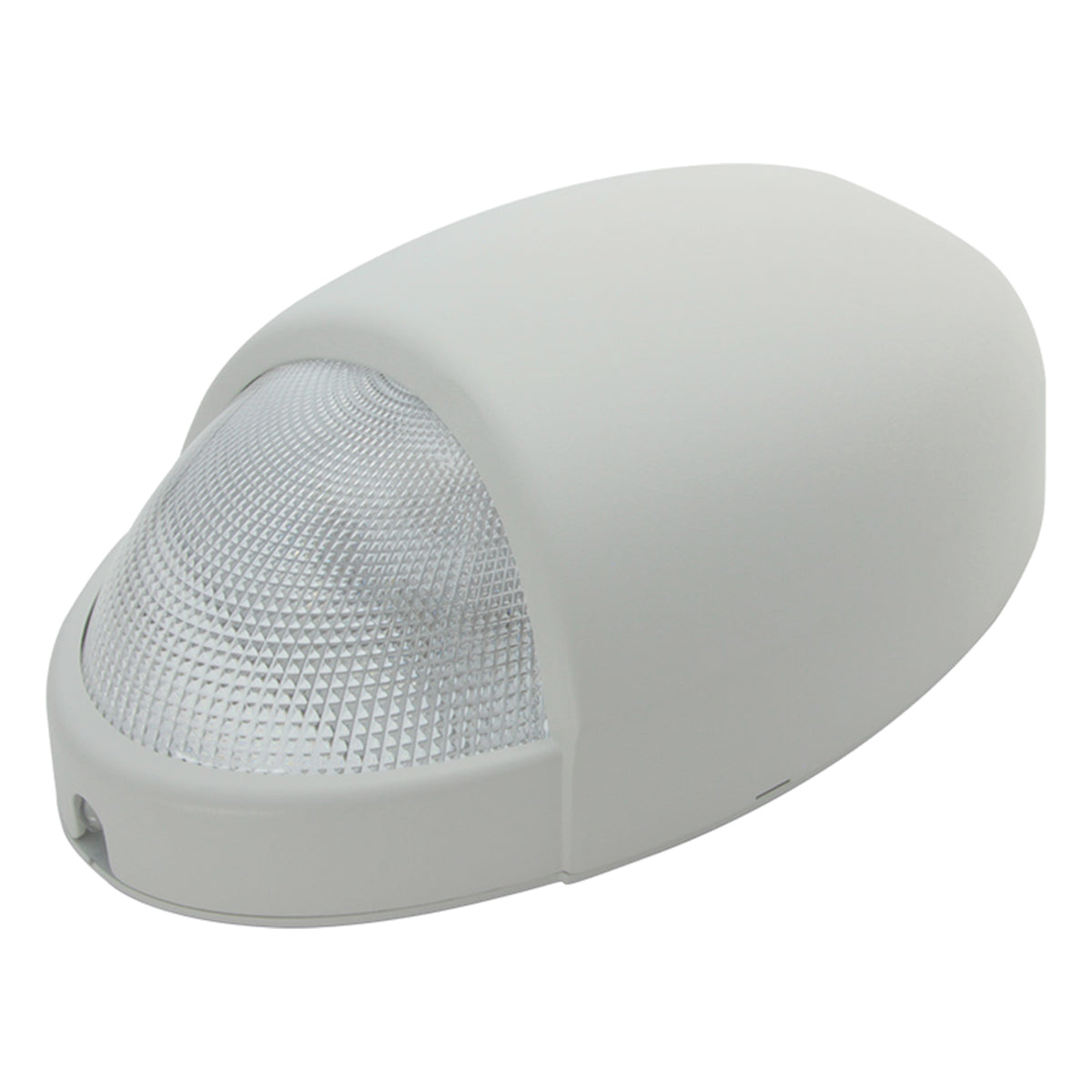

Exitronix Triton LED Series Emergency Light — 90-Minute Backup, 120-277V

The Exitronix TRL-ACEM-WH-CL is a high-performance emergency light designed for both indoor and outdoor applications. Featuring a 90-minute battery backup and 120-277V input, this unit ensures reliable illumination during power outages. Its wet-rated construction makes it suitable for various environments, while compliance with UL 924, NEC, and NFPA 101 standards guarantees safety and reliability.

Key Features

• Battery Backup: Provides a 90-minute emergency run time with a 24-hour recharge cycle.
• Voltage Compatibility: Operates on dual-voltage input of 120 or 277VAC at 60Hz.
• Self-Testing: Guardian self-test and self-diagnostics ensure operational readiness.
• LED Illumination: Equipped with an 11W LED delivering 1080 lumens in AC mode and 260 lumens in emergency mode.
• Construction: Die-cast aluminum housing with a low-profile design and powder-coated finish.
• Mounting Options: Universal J-box pattern or surface wiring through top conduit.
• Recharge Time: Battery recharges fully in 24 hours.
• Operating Temperature: Functions effectively between 0°C to 50°C (32°F to 122°F).
• Cold Location Option: Available for environments as low as -20°C (-4°F).
• Safety Compliance: Meets UL 924, NEC, and NFPA 101 standards for emergency lighting.

Performance & Illumination

The unit features a high-performance 11W LED with a 5000K color temperature, providing 1080 lumens in AC mode and 260 lumens during emergency operation. The UV-stable mirror-bright reflector and prismatic polycarbonate refractor optimize light output.

Electrical & Battery

Designed for dual-voltage input of 120 or 277VAC, the unit includes a maintenance-free NiCad battery with a 24-hour recharge time. The Guardian self-test and self-diagnostics ensure the unit's readiness, while the test button allows manual verification.

Physical & Installation Details

Constructed with die-cast aluminum housing, the unit is designed for wet locations. It includes a universal J-box mounting pattern and surface wiring options for flexible installation. The fixture measures 6.50 inches in length, 3.80 inches in width, and 10.50 inches in height.

Compliance & Safety

Certified for wet locations, the unit meets cULus, UL 924, NEC, and NFPA 101 standards. It operates within a temperature range of 0°C to 50°C (32°F to 122°F) and is available with a cold location package for temperatures down to -20°C (-4°F).

What's Included

• Exitronix Triton LED Series Emergency Light
• Installation Instructions
• Universal J-box Mounting Hardware
