Exitronix S900 Series Edge-Lit Exit Sign — 90-Minute Emergency Capability with 120-277V Input

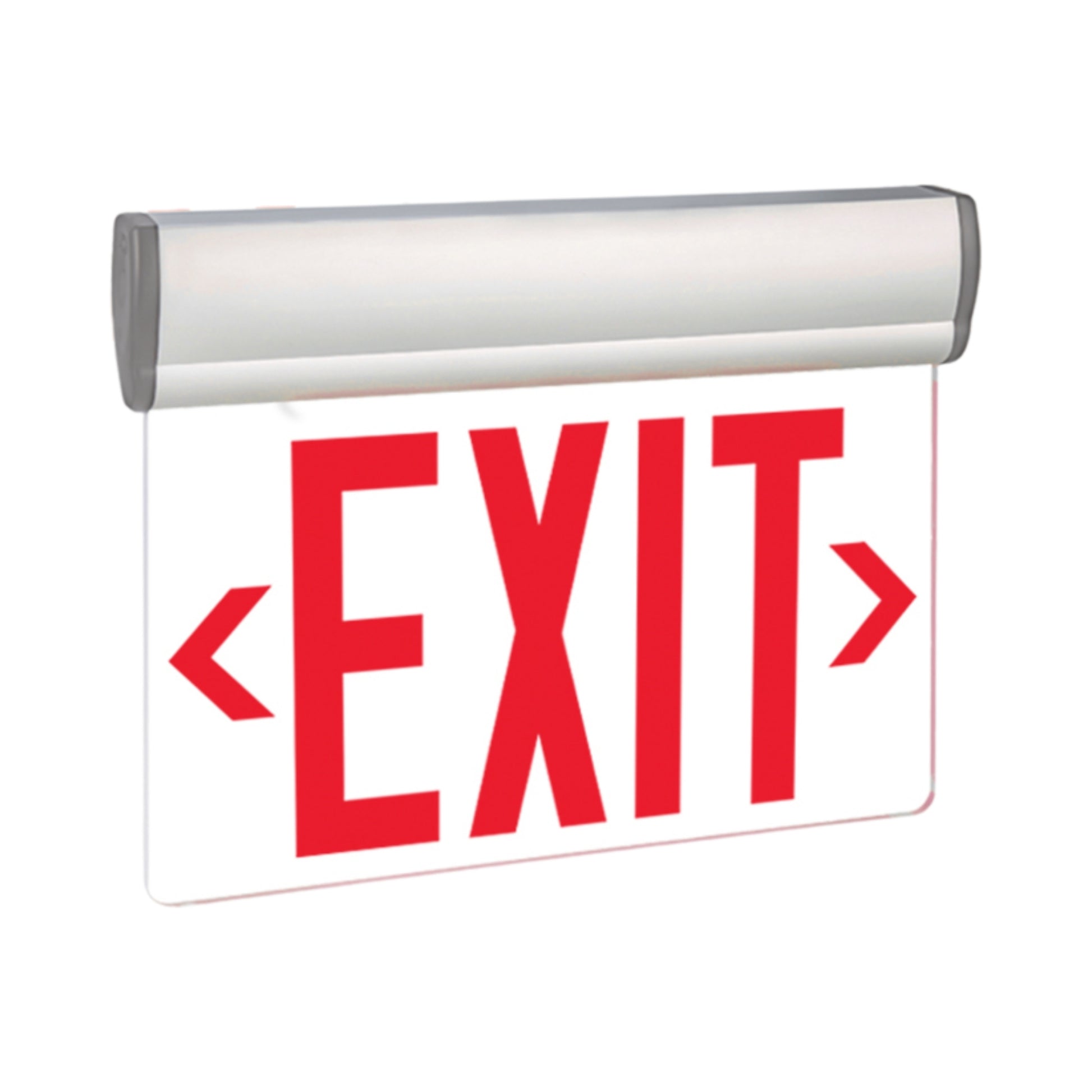

The Exitronix S900U-WB-SR-R-AG is a versatile LED edge-lit exit sign featuring red illumination and a 90-minute battery backup. Designed for indoor use, it supports 120-277V input and is UL 924 Listed for damp locations, ensuring reliability and safety in emergency situations.

Key Features

• Battery Backup: Ensures 90 minutes of emergency illumination with a 24-hour recharge time.
• Voltage Compatibility: Operates on 120V or 277V AC input for flexible installation.
• LED Illumination: Long-life, high-intensity red LEDs provide superior brightness and visibility.
• Construction: Durable extruded aluminum housing with a high-grade acrylic panel.
• Mounting Flexibility: Includes hardware for ceiling, end, and recessed mounting.
• Directional Chevrons: Field-selectable chevrons for customizable exit direction.
• Energy Efficiency: Consumes less than 5W in battery backup mode.
• Safety Compliance: Meets or exceeds CEC, NEC, and NFPA 101 standards.

Performance & Illumination

The exit sign features 6-inch high letters with a 3/4-inch stroke, ensuring a minimum 100-foot viewing distance. High-output red LEDs provide consistent and energy-efficient illumination.

Electrical & Battery

Equipped with a maintenance-free NiCad battery, the unit supports dual-voltage input (120/277VAC) and includes a test button for manual operation checks.

Physical & Installation Details

The sign's extruded aluminum housing is available in a brushed aluminum finish. It includes a universal mounting canopy and all necessary hardware for surface or recessed installation.

Compliance & Safety

UL 924 Listed for Damp Locations, the S900 Series complies with CEC, NEC, and NFPA 101 standards, ensuring safety and reliability.

What's Included

• Exit Sign with Red LED Illumination
• Universal Mounting Canopy

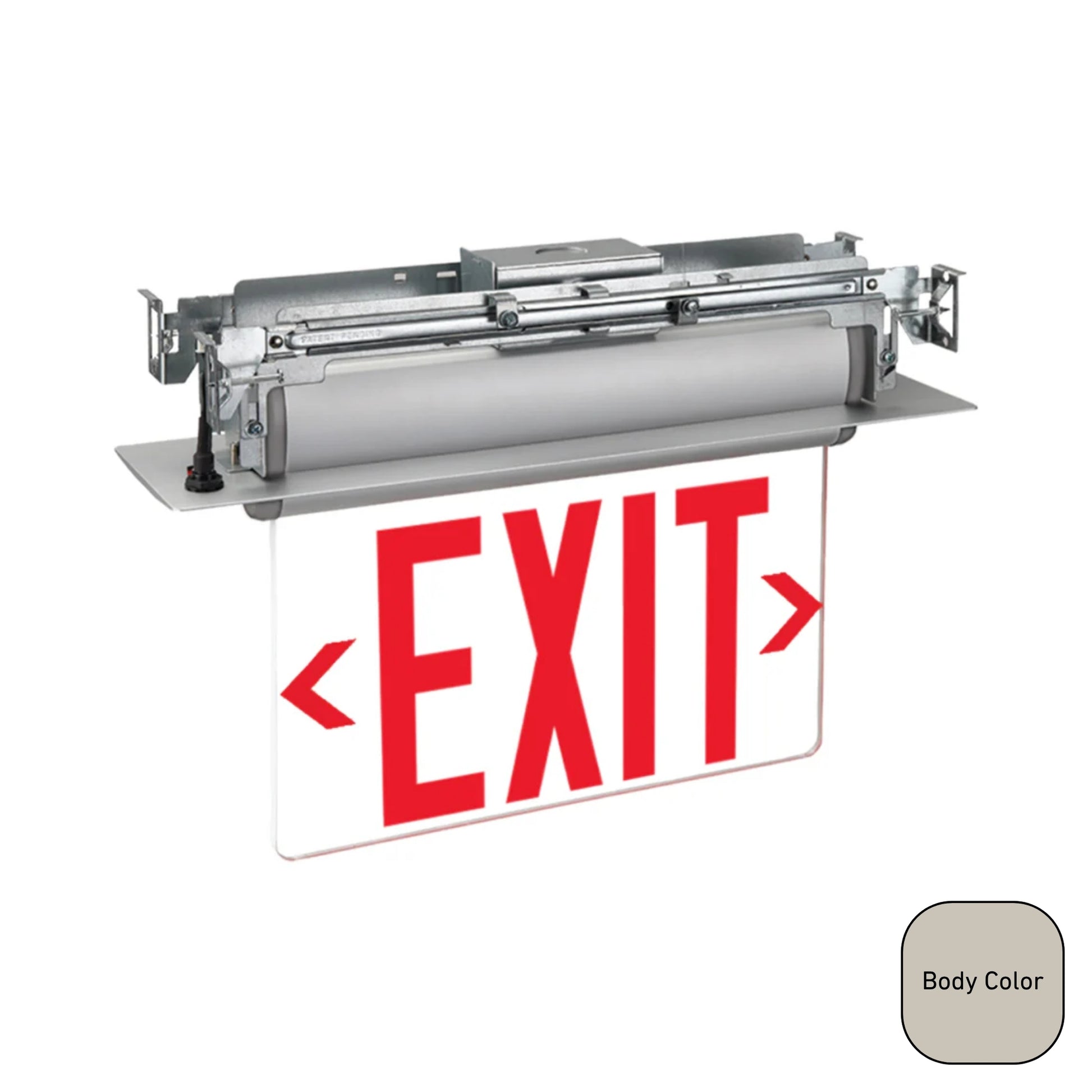

• Recessed Mounting Hardware
• Installation Instructions
