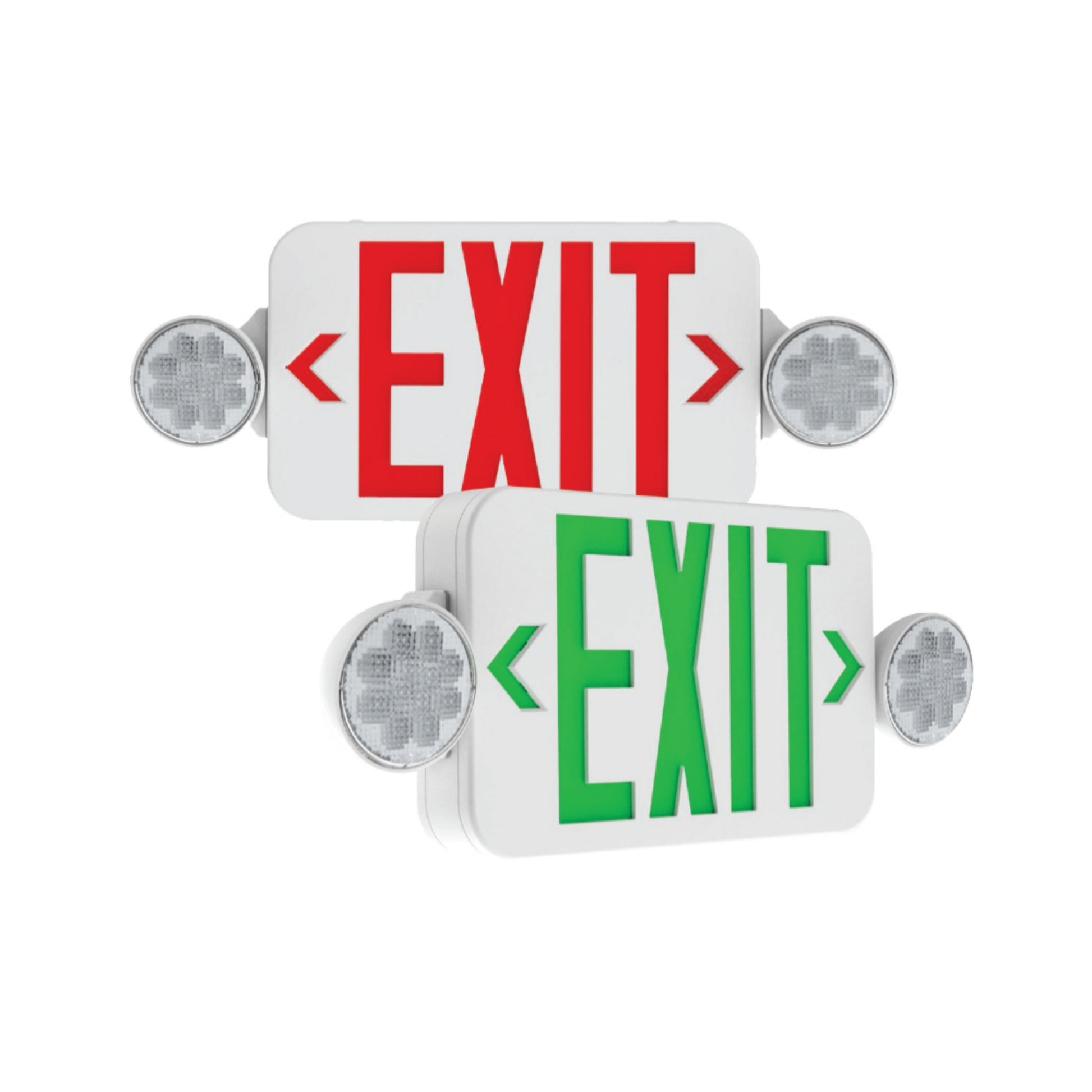

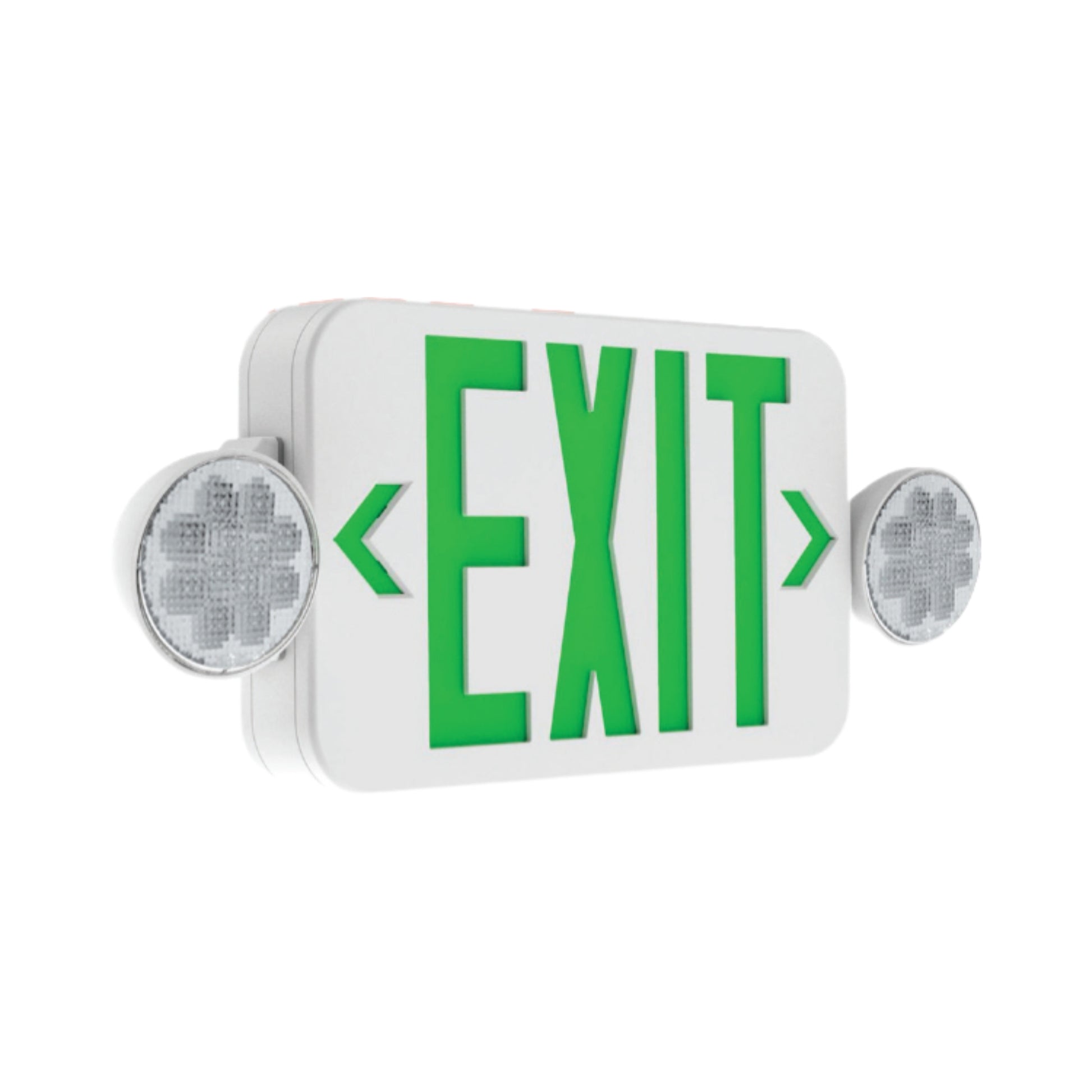

Exitronix QCRS Series Universal Red/Green LED Combo Unit 90-Min Backup 120-277V Ceiling/Wall Mount White
Hurry up, only 10 items left in stock.
About this item
About this item
- Battery Backup: Provides a reliable 90-minute emergency run time for safety and compliance.
- Illumination: Features field-selectable red or green LEDs with color-matched diffusers for optimal visibility.
- Input Voltage: Operates on a dual-voltage input of 120-277VAC, ensuring compatibility with various electrical systems.
- Mounting: Includes a snap-in canopy for easy ceiling or wall mounting, adaptable to different installation needs.
- Safety Certifications: UL 924 Listed for Damp Locations and compliant with NFPA 101, NEC, and OSHA standards.
We process payments securely and do not store credit card information.
Description
Description
Exitronix QCRS Series Combo Unit — 90-Minute Emergency Capability with 120-277V Input
The Exitronix QCRS-U-WH is a universal red/green LED combination exit and emergency unit designed for versatile applications. It features a 90-minute battery backup and operates on 120-277V input, making it suitable for various environments. This unit is damp location rated and compliant with UL 924, NFPA 101, and CEC Title 20 standards, ensuring safety and reliability in emergency situations.
Key Features
- Universal LED Colors: Field-selectable red or green LEDs with matching diffusers for flexible installation.
- Dual Face Capability: Includes an extra stencil face for single or double-face configurations.
- Adjustable Heads: Two 1.5W fully adjustable round LED lamp heads for targeted illumination.
- Thermoplastic Housing: Constructed from high-impact, flame-retardant thermoplastic for durability.
- Easy Installation: Snap-together design with a universal J-box mounting pattern for quick setup.
- Solid-State Transfer: Ensures reliable switching to emergency mode during power loss.
- Test Button: Manual verification of the transfer circuit and emergency lamps for maintenance checks.
- Recharge Time: 24-hour maximum recharge time for the maintenance-free NiCad battery.
Performance & Illumination
The unit features fully illuminated 6-inch characters with a 3/4-inch stroke, providing clear visibility. The high-output LEDs ensure consistent illumination without hot spots.
Electrical & Battery
Operates on a dual-voltage input of 120 or 277VAC. Equipped with a maintenance-free 3.6V NiCad battery, it offers a 90-minute emergency run time and a 24-hour recharge cycle.
Physical & Installation Details
The housing is made from injection-molded, flame-retardant thermoplastic. It includes a snap-in canopy for ceiling or wall mounting, and the unit is designed for easy maintenance with toolless access.
Compliance & Safety
UL 924 Listed for Damp Locations, the QCRS Series meets NFPA 101, NEC, and OSHA standards, ensuring compliance and safety in emergency lighting applications.
What's Included
- Exitronix QCRS-U-WH Combo Unit
- Snap-in Mounting Canopy
- Extra Stencil Face
- Red and Green Diffusers
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the battery backup time for the Exitronix QCRS-U-WH?
What is the battery backup time for the Exitronix QCRS-U-WH?
Can the Exitronix QCRS-U-WH be mounted on both walls and ceilings?
Can the Exitronix QCRS-U-WH be mounted on both walls and ceilings?
Does the Exitronix QCRS-U-WH support dual voltage?
Does the Exitronix QCRS-U-WH support dual voltage?
What are the LED color options for the Exitronix QCRS-U-WH?
What are the LED color options for the Exitronix QCRS-U-WH?
Is the Exitronix QCRS-U-WH suitable for damp locations?
Is the Exitronix QCRS-U-WH suitable for damp locations?
