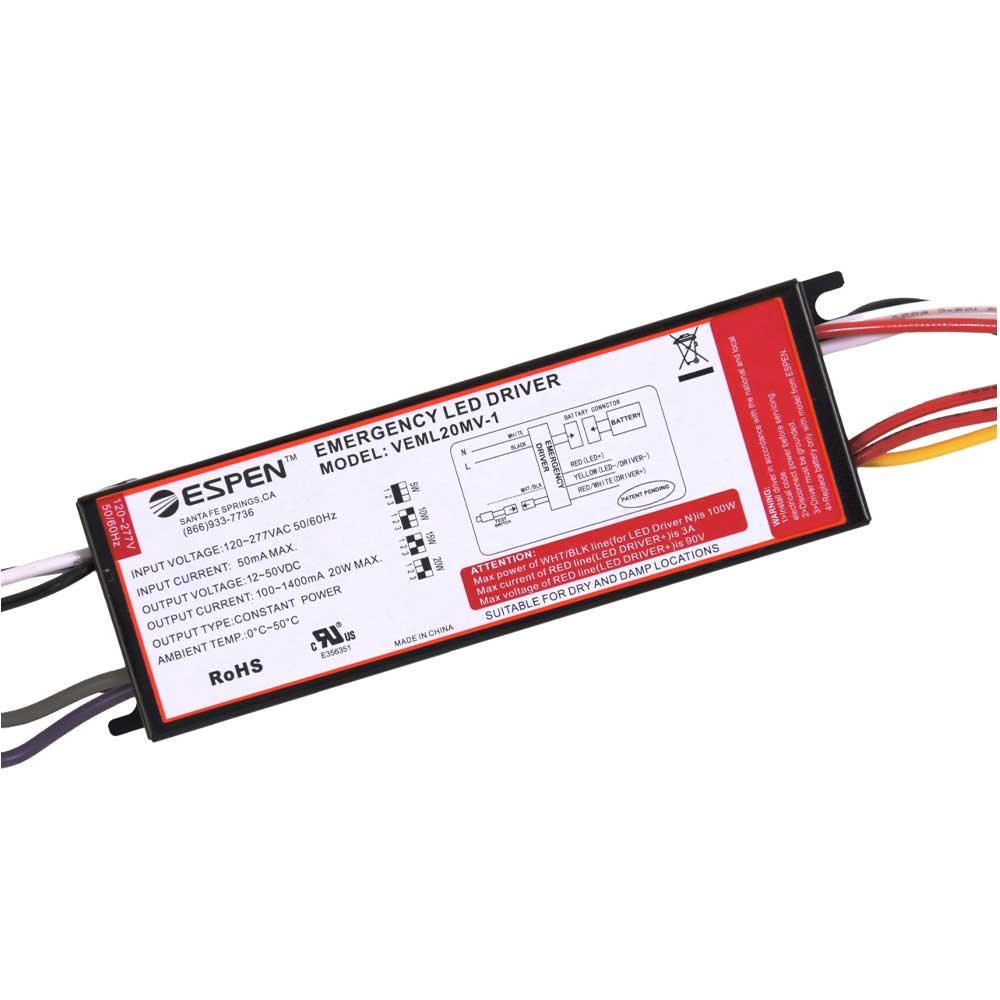

Espen VEML20MV-1 20W Emergency Driver — 12-50V DC

The Espen VEML20MV-1 is a robust 20W Emergency Driver designed to work seamlessly with LED drivers, enabling LED fixtures to operate during power outages. With an output voltage of 12-50V DC, it ensures reliable emergency lighting for a minimum of 90 minutes. This unit is ideal for both new installations and retrofit applications, featuring a non-dimmable design and a multi-voltage input of 120-277V. The durable metal enclosure houses a maintenance-free LiFePO4 battery, ensuring long-lasting performance.

Key Features

• Power Output: Delivers a constant 20W output for emergency lighting.
• Output Voltage: Safety extra low voltage range of 12-50VDC.
• Dimming: Non-dimmable design for consistent emergency operation.
• Input Voltage: Supports 120-277VAC, 50/60Hz for flexible installation.
• Dimensions: Compact size of 5.52 in. L x 1.65 in. W x 1.00 in. H.
• Enclosure Type: Sturdy metal construction for dry-rated environments.
• IP Rating: Suitable for dry locations.
• Class 2: Compliant with Class 2 safety standards.
• Certifications: UL and cUL 924 listed, FCC Part 15 Class B, RoHS Compliant.

Physical Design & Installation

The metal enclosure provides robust protection, suitable for dry-rated environments. It includes installation hardware for easy setup.

Dimming & Controls

Designed for non-dimmable operation, ensuring consistent performance during emergency mode. Compatible with switched or unswitched fixtures.

Performance & Build

Features a maintenance-free LiFePO4 battery with a 24-48 hour recharge time, providing 90 minutes of emergency power. Compliant with Class 2 and UL standards.

Typical Applications

• Commercial LED lighting systems
• Office emergency lighting
• Retail lighting solutions
• Industrial LED fixtures
