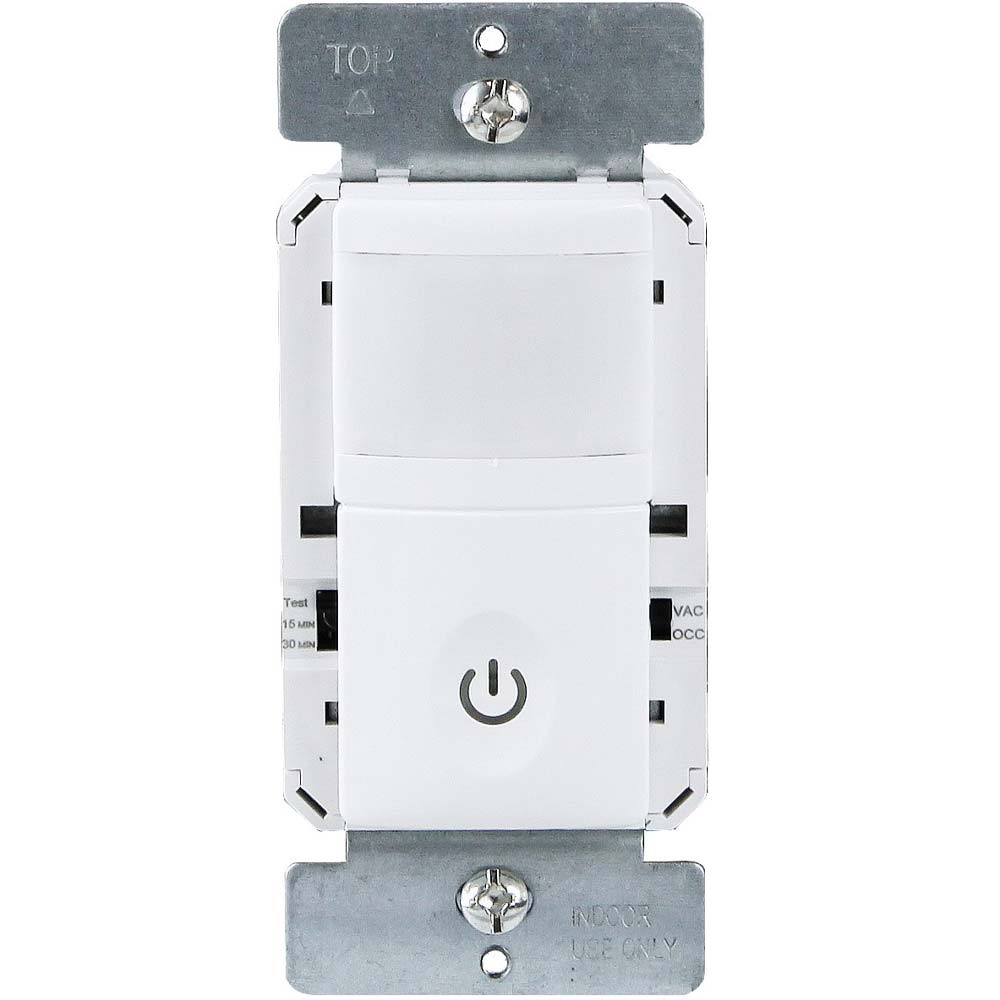

Enerlites PIR Motion Sensor Wall Switch | HMOS Occupancy/Vacancy & HMVS Vacancy | 700 sq ft
Enerlites PIR Motion Sensor Wall Switch | HMOS Occupancy/Vacancy & HMVS Vacancy | 700 sq ft
5A • Single Pole • Neutral Required • 700 sq. ft Coverage
Available in stock (28)
Overview
Professional-grade PIR motion sensor wall switches for residential and light commercial automatic lighting control. Available in dual-mode occupancy/vacancy configuration (HMOS series) or vacancy-only operation (HMVS series), both featuring 180° wide-angle detection with 700 sq. ft. coverage, UL listing, and California Title 24 compliance for energy-efficient hands-free lighting control.
Product Lines & Variants
HMOS Series – Occupancy/Vacancy Sensor (Dual Mode):
- Model HMOS: Switchable between occupancy mode (auto-on/auto-off) and vacancy mode (manual-on/auto-off)
- Includes manual ON/OFF push-button for override control
- LED indicator light flashes when sensor detects motion
- Available in White (HMOS-W, HMOS-J-W) and Light Almond (HMOS-LA)
- Model HMOS-J-W: Universal voltage version supporting both 120VAC and 277VAC applications
HMVS Series – Vacancy Sensor (Manual-On Only):
- Model HMVS: Vacancy mode only – requires manual activation, auto-off after preset delay
- Ideal for code-compliant installations requiring manual light activation
- Available in White (HMVS-W) and Light Almond (HMVS-LA)
Key Features
- Wide PIR Detection: 180° horizontal field of view covers up to 700 sq. ft.
- Adjustable Time Delay: Programmable shut-off timer from 15 seconds to 20 minutes
- High Sensitivity Coverage: Dense detection pattern for exceptional performance in hallways, closets, and utility spaces
- 5A Switching Capacity: Controls up to 500W incandescent, 500VA electronic ballast, or 1/8 HP motor loads
- Single-Pole Configuration: Standard wall box installation, neutral wire required
- Universal Voltage Option: HMOS-120-277V supports both 120VAC and 277VAC for commercial flexibility
- Interchangeable Face Covers: Field-replaceable with alternative color options
- Manual Override Button: Convenient push-button provides instant ON/OFF control (HMOS models)
Technical Specifications
- Detection Technology: Passive Infrared (PIR)
- Coverage Area: 700 sq. ft. maximum
- Detection Angle: 180° horizontal
- Voltage: 120VAC, 60 Hz (standard models); 120-277VAC, 60 Hz (HMOS-J-W)
- Load Capacity: 5A resistive, 500W incandescent, 500VA electronic ballast, 1/8 HP motor
- Time Delay Range: 15 seconds to 20 minutes (adjustable)
- Operating Temperature: Standard indoor conditions
- Certifications: UL Listed, California Title 24 compliant
- Mounting: Single-gang wall box, neutral wire required
- Finish Options: White, Light Almond
- Warranty: 2 years
Applications & Installation
Ideal Applications: Bathrooms, kitchens, garages, offices, meeting rooms, utility rooms, laboratories, restaurants, hotels, and basements. HMOS occupancy mode suits high-traffic areas where automatic activation improves convenience. HMVS vacancy mode meets building codes requiring manual light activation while providing energy-saving auto-off functionality. The HMOS-J-W universal voltage model is ideal for commercial installations with 277VAC lighting circuits.
Installation Notes: Single-pole configuration only. Neutral wire required for proper operation. Compatible with incandescent, CFL, and LED lighting loads. Professional installation recommended for optimal sensor positioning and code compliance. Interchangeable face covers allow color customization in the field.
