Enerlites DWHS-W Humidity Sensor Wall Switch - 3A Fan, Neutral Required, Single-Pole, White
Enerlites DWHS-W Humidity Sensor Wall Switch - 3A Fan, Neutral Required, Single-Pole, White
Available in stock (99)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Automatic Humidity Detection with 3 Settings: Choose high, medium, or low sensitivity to activate fan when moisture is detected—turns off when humidity drops
- 20-Minute Time Delay: Fan continues running after humidity normalizes to ensure complete moisture removal and prevent mold growth
- Manual Override Option: Push-button control allows immediate fan operation independent of humidity sensing when needed
- 3A Fan Capacity with Neutral Required: Controls exhaust fans up to 3A (1/4 HP) at 120V—requires neutral wire connection for sensor operation
- Interchangeable Face Cover: Customize appearance with alternative color covers (sold separately) — replaces single pole switch, UL listed & Title 24 compliant
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

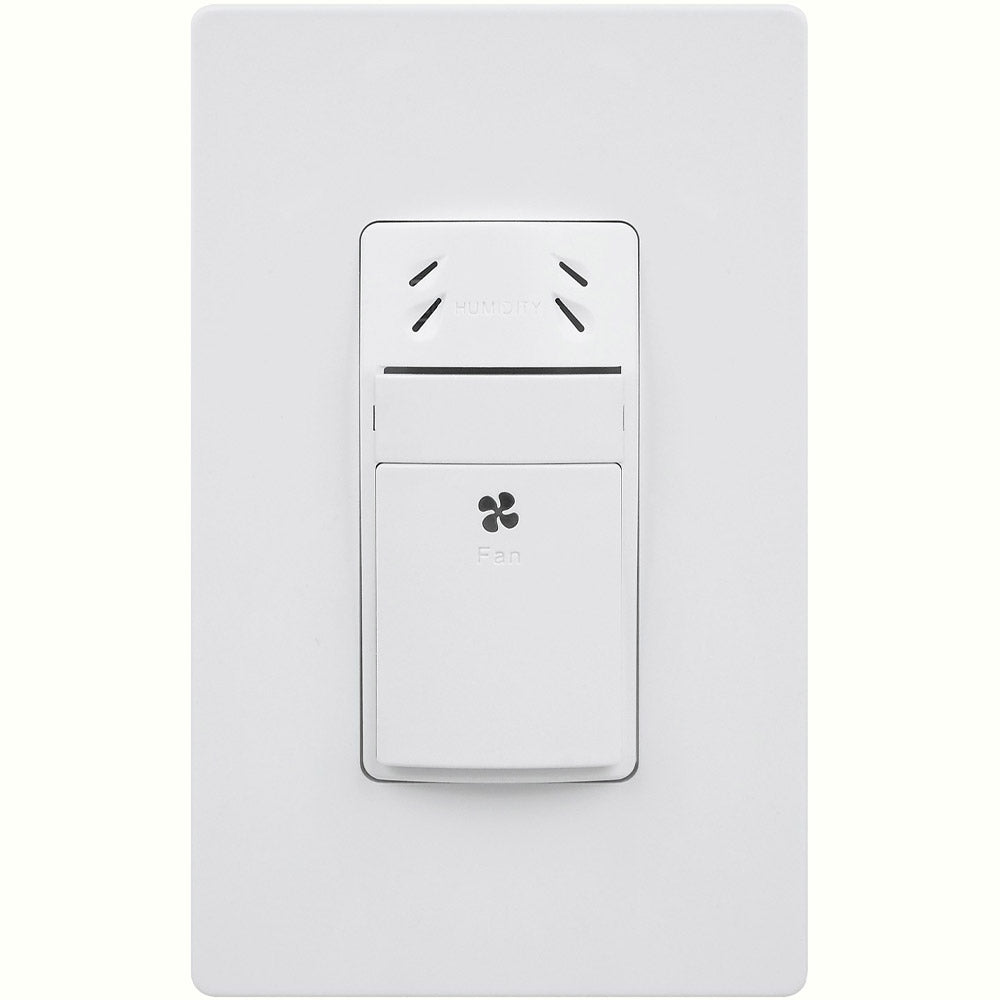

Enerlites DWHS-W Humidity Sensor Wall Switch
The DWHS-W is an Enerlites humidity sensor wall switch in white designed for automatic ventilation fan control based on moisture levels. Experience superior comfort and energy efficiency with intelligent humidity sensing that activates your exhaust fan only when needed and turns it off when moisture is removed. This single-pole control features adjustable humidity settings and a 20-minute timer—ideal for bathrooms, basements, laundry rooms, and home spas requiring automated moisture management.
Enerlites DWHS-W Features
- Automatic Humidity Detection: Activates fan when humidity is detected and turns off when humidity level drops for healthier, more comfortable environment
- 3 Humidity Settings: Choose from high, medium, or low sensitivity levels to match your space requirements
- 20-Minute Time Delay: Fan continues running for 20 minutes after humidity drops to ensure complete moisture removal and prevent mold
- Humidity Override Option: Manual control allows fan operation independent of humidity sensing for immediate ventilation needs
- 3A Fan Capacity: Controls exhaust fans up to 3A (1/4 HP) at 120V AC
- Humidity Range: Detects moisture levels from 45%-80% relative humidity
- Single-Pole Configuration: Standard single-location wiring for straightforward installation
- Replaces Single Pole Switch: Direct replacement for existing single-pole fan switches
- Interchangeable Face Cover: Customize appearance with alternative color face covers (sold separately)
- White Finish: Clean white thermoplastic construction coordinates with standard wallplates
- Neutral Wire Required: Requires neutral connection for sensor operation
- UL Listed & California Title 24 Compliant: Meets safety standards and energy code requirements
Humidity Sensor Wall Switch Applications
- Residential bathrooms and powder rooms
- Master bathroom suites with showers and tubs
- Basement bathrooms and moisture-prone areas
- Laundry rooms and utility spaces
- Home spas and steam rooms
- Guest bathrooms and en-suite facilities
- Multi-family residential units
- Light commercial restrooms
Installation & Operation
The Enerlites DWHS-W installs in a standard single-gang wallbox with neutral wire connection required for proper sensor operation. Select your desired humidity sensitivity level from three preset options (high, medium, or low) based on your space and climate conditions. When humidity is detected, the fan automatically activates and continues running for 20 minutes after moisture levels drop to ensure complete ventilation. Use the manual override for immediate fan control when needed, regardless of current humidity levels. The interchangeable face cover allows color customization to match your décor.
Compatible Fans & Specifications
- Fan Load: Up to 3A resistive or 1/4 HP motor load for exhaust fans
- Voltage Rating: 120V AC, 60Hz
- Humidity Range: 45%-80% relative humidity detection range
- Humidity Settings: 3 preset levels (high, medium, low)
- Time Delay: 20 minutes (fixed)
- Wiring: Single-pole configuration, neutral wire required
- Warranty: 2 years limited warranty
Why Choose Enerlites Humidity Sensors
Enerlites is a trusted manufacturer of innovative electrical devices and lighting controls designed for energy efficiency and convenience. The DWHS-W delivers intelligent moisture management that protects bathrooms from mold, mildew, and structural damage while reducing energy waste through automatic operation only when needed. The three adjustable humidity settings provide flexibility for different spaces and climates, while the 20-minute time delay ensures thorough moisture removal. With manual override capability, UL listing, California Title 24 compliance, and a 2-year warranty, the DWHS-W provides professional-grade humidity control for residential and light commercial applications.
Why Buy From Us: As an authorized Enerlites dealer, we guarantee 100% genuine products with full manufacturer warranty and expert customer support.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What does a humidity switch do?
What does a humidity switch do?
A humidity switch monitors the moisture level in the air and automatically turns on a ventilation fan when it detects high humidity, then turns it off once the air has cleared.
Where should I install a humidity sensor switch?
Where should I install a humidity sensor switch?
They are most effective in bathrooms, laundry rooms, home spas, and basements—anywhere prone to condensation, dampness, or mold growth.
Will the fan turn on every time it rains?
Will the fan turn on every time it rains?
Not if you have a high-quality humidity sensor switch. Modern sensors use "rate-of-rise" technology to distinguish between the fast moisture increase of a shower and the slow, natural increase of a rainy day.
Can I manually turn the fan on?
Can I manually turn the fan on?
Yes. Every humidity switch includes a manual override button. If you need immediate ventilation for odors, you can press the button to run the fan for a set "timeout" period.
How long does the fan stay on?
How long does the fan stay on?
This is determined by your "Time Delay" setting. Most switches allow you to choose between 10, 20, 30, or 45 minutes. The fan will run for this duration or until the humidity drops below your set threshold.
