Enerlites Single Pole Switch and Receptacle Combo — Gray & Tamper-Resistant

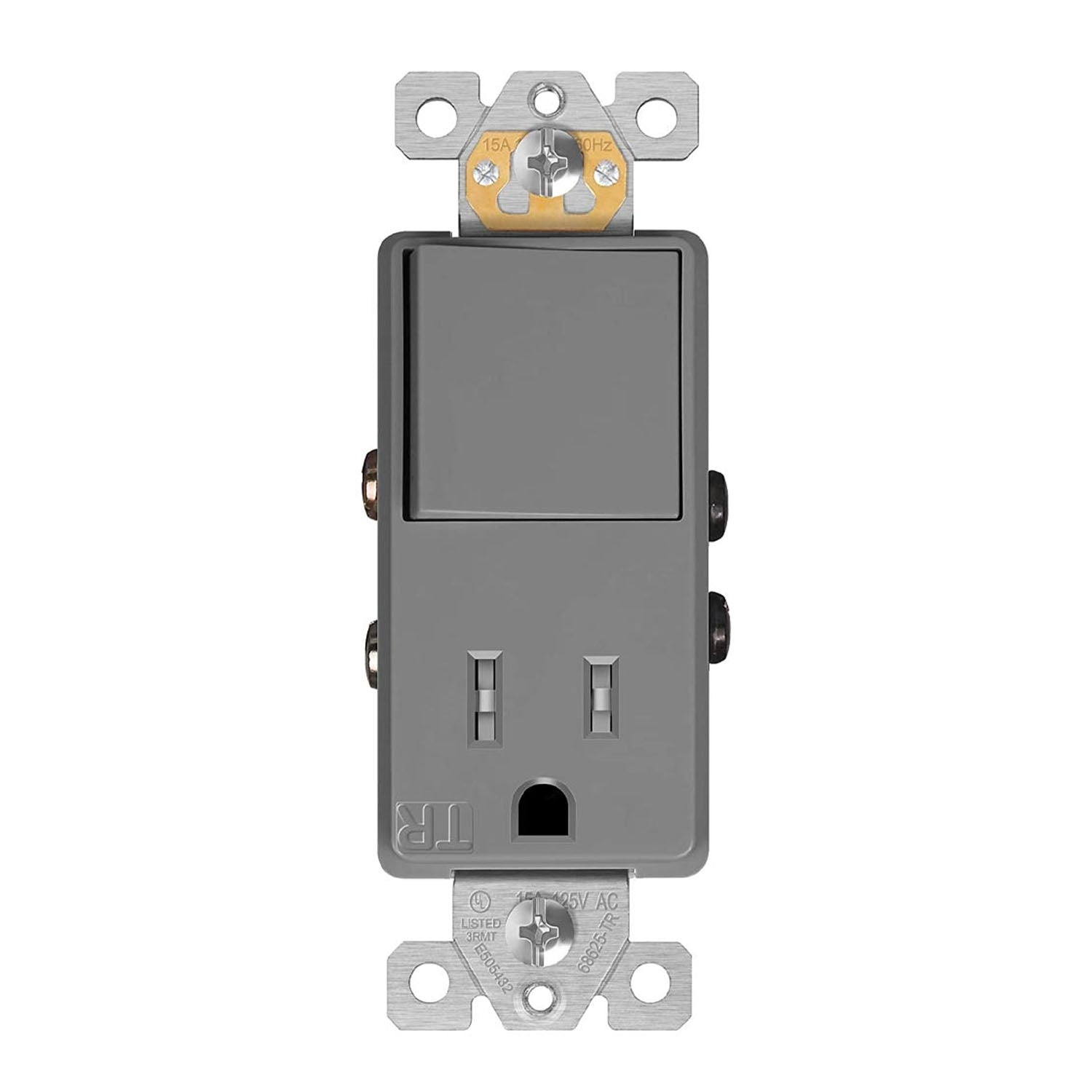

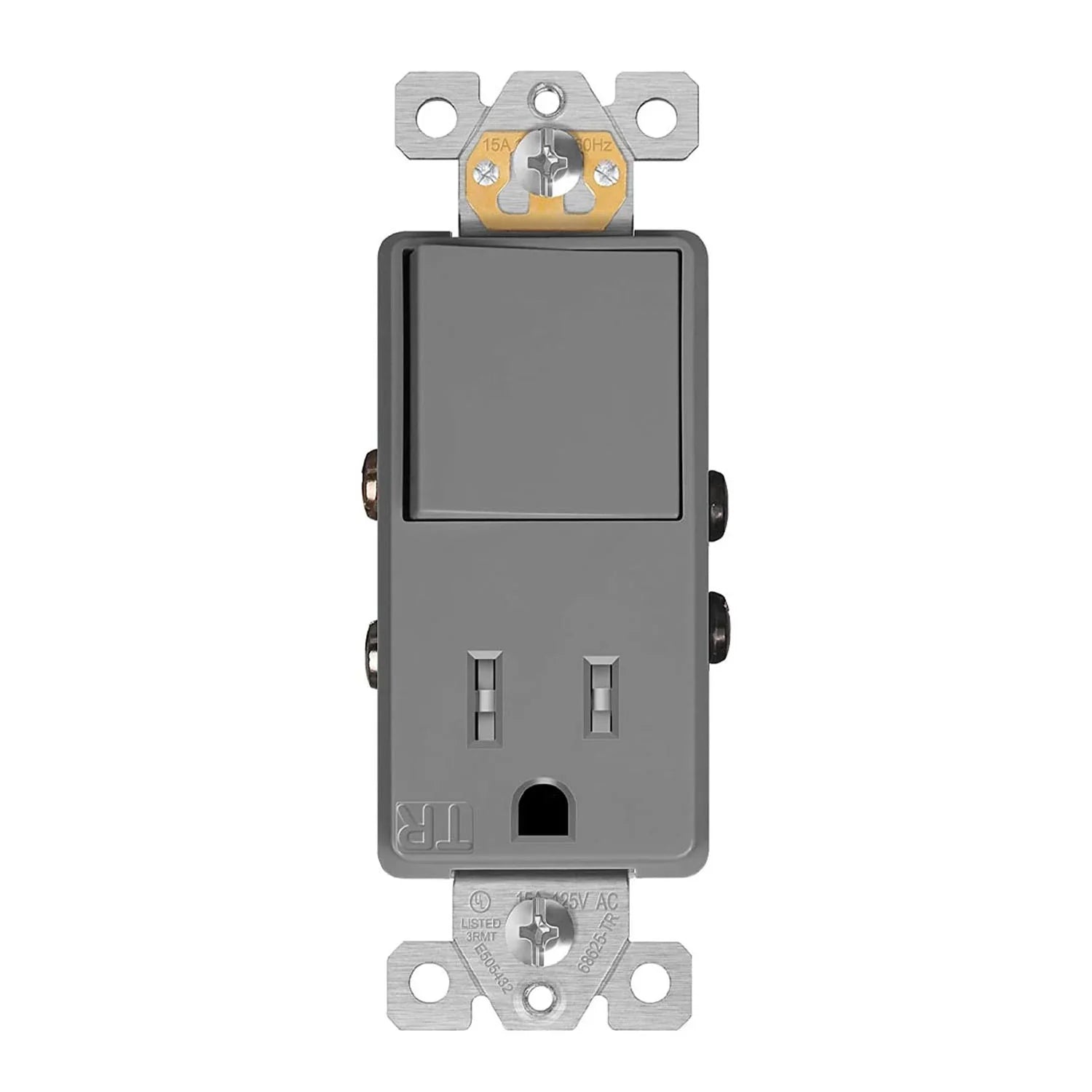

The Enerlites 68625-TR-GY is a versatile combination device featuring a single pole switch and a NEMA 5-15R receptacle in a gray finish. This device is rated for 15 Amps and operates at 120VAC for the switch and 125VAC for the receptacle. It is designed with tamper-resistant technology to enhance safety.

Key Features

• Amperage: 15 Amp rating for reliable performance.
• Voltage: 120VAC for switch, 125VAC for receptacle.
• NEMA Configuration: NEMA 5-15R for standard plug compatibility.
• Tamper-Resistant: Yes, includes safety shutters.
• Operating Temperature: -104° F to 167° F for wide temperature tolerance.
• Self-Grounding: Features optional grounding with a self-grounding clip or green terminal screw.
• Wiring: Back and side wire terminals for 12 or 14 AWG copper wires.
• Material: Impact-resistant thermoplastic body for durability.
• Dimensions: 1.45 in. width, 1.30 in. height, 3.50 in. length.
• Warranty: 2-year warranty for peace of mind.

Construction & Interface

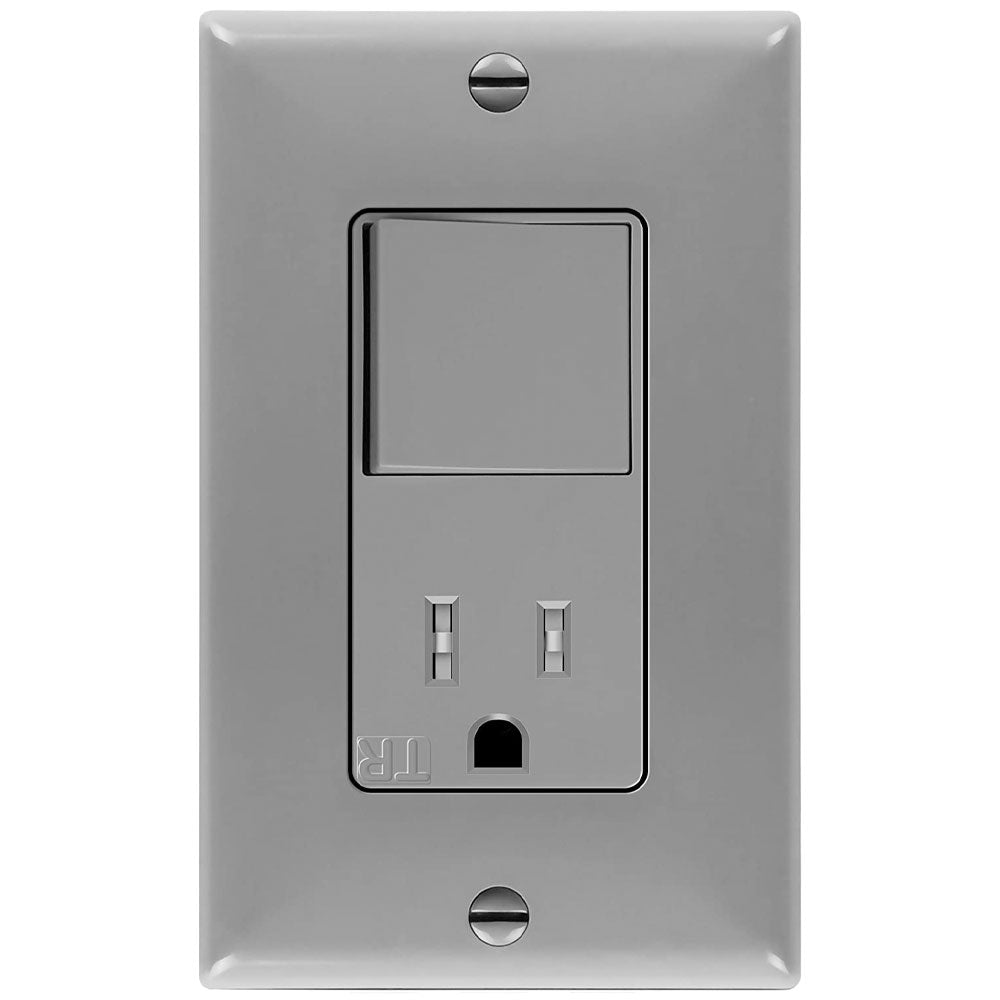

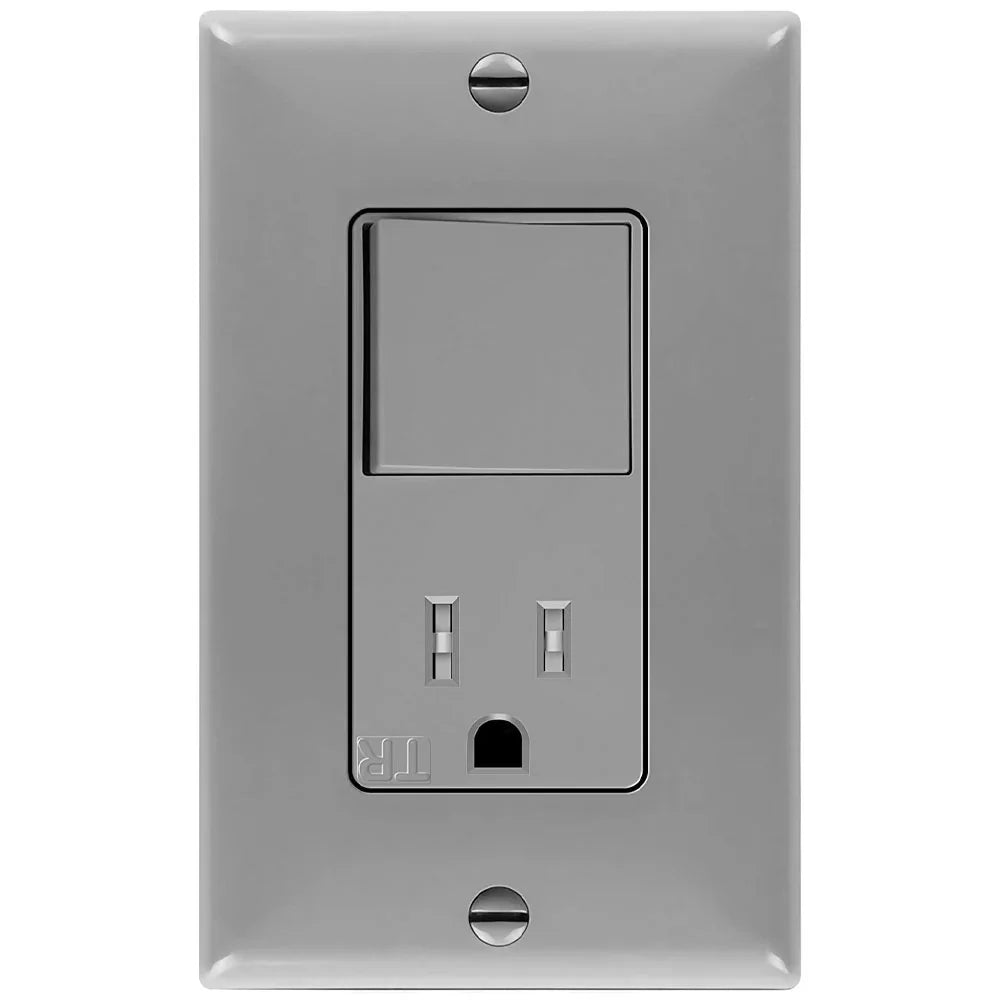

The device features a decorator-style interface with an impact-resistant thermoplastic body, ensuring durability. The wallplate is sold separately.

Safety & Ground Fault Protection

This combination device includes tamper-resistant shutters to prevent accidental insertion of foreign objects, enhancing safety for residential and commercial environments.

Wiring & Installation

Designed for easy installation, it supports back and side wiring with 12 or 14 AWG copper wires. The device includes terminal screws that are backed out and ready for wiring, with optional self-grounding via a clip or green terminal screw.
