Enerlites Flush Mount Receptacle — Black & High-Power

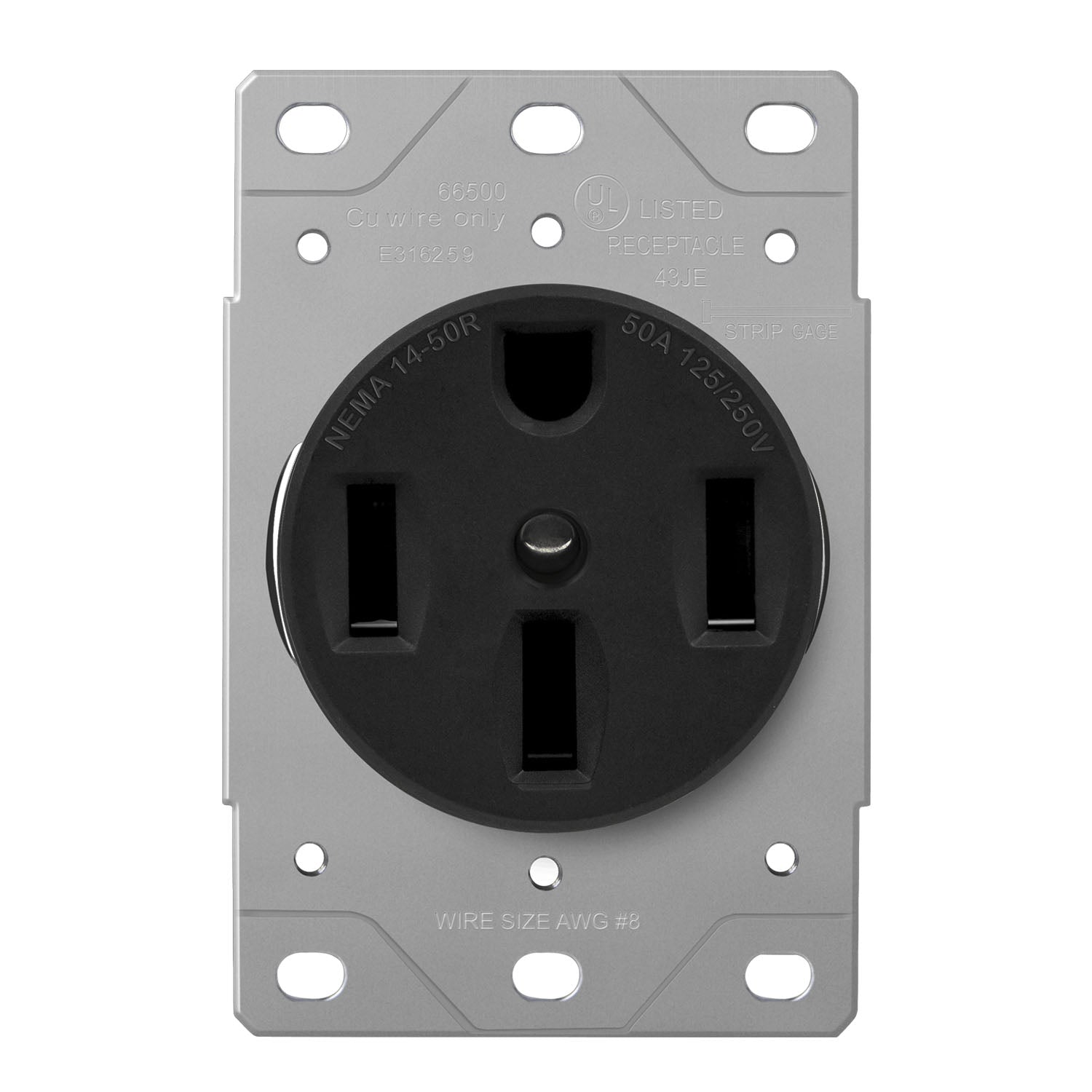

The Enerlites 66500-BK is a black flush mount receptacle designed for high-power applications. This receptacle features a NEMA 14-50R configuration, supports up to 50A, and operates at 125/250VAC. It is ideal for use in homes, offices, and industrial environments.

Key Features

• Amperage: Rated for 50A to handle high-power electrical devices.

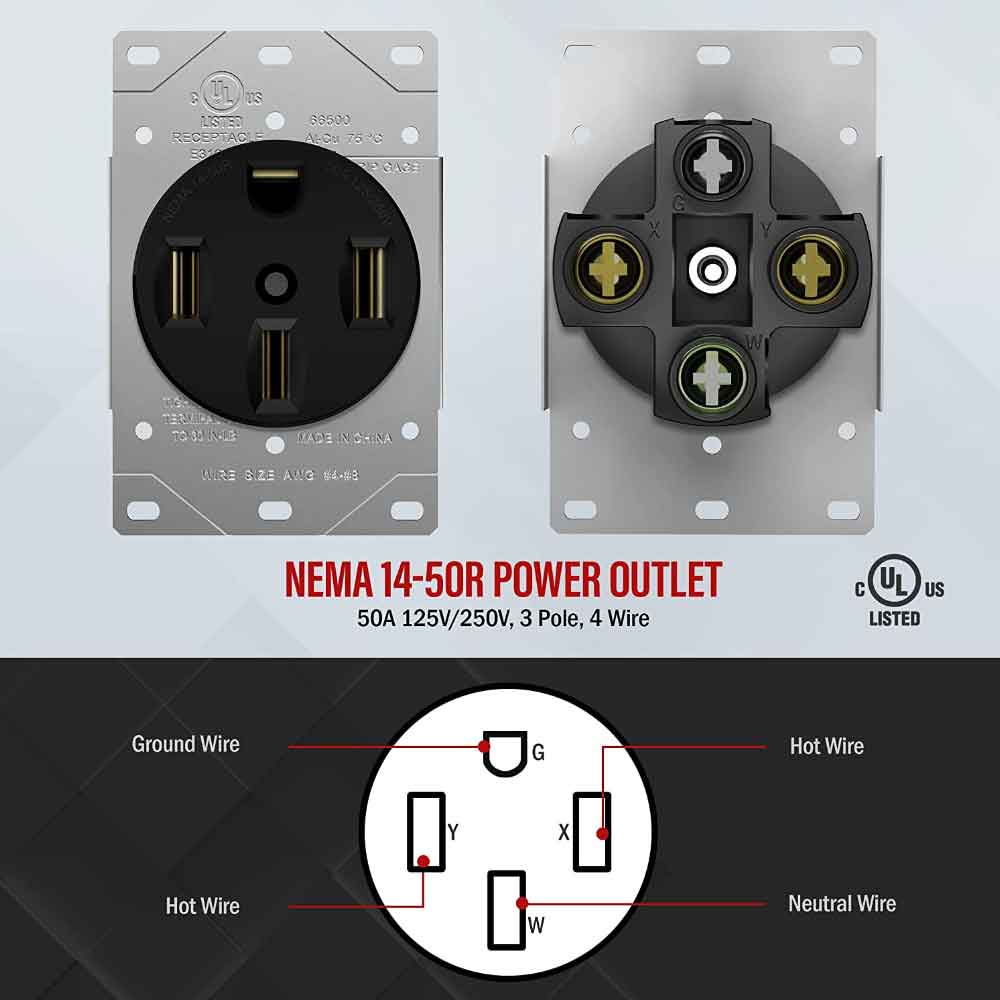

• NEMA Configuration: NEMA 14-50R ensures a secure and reliable connection.
• Voltage: Compatible with 125/250VAC for flexible installation options.

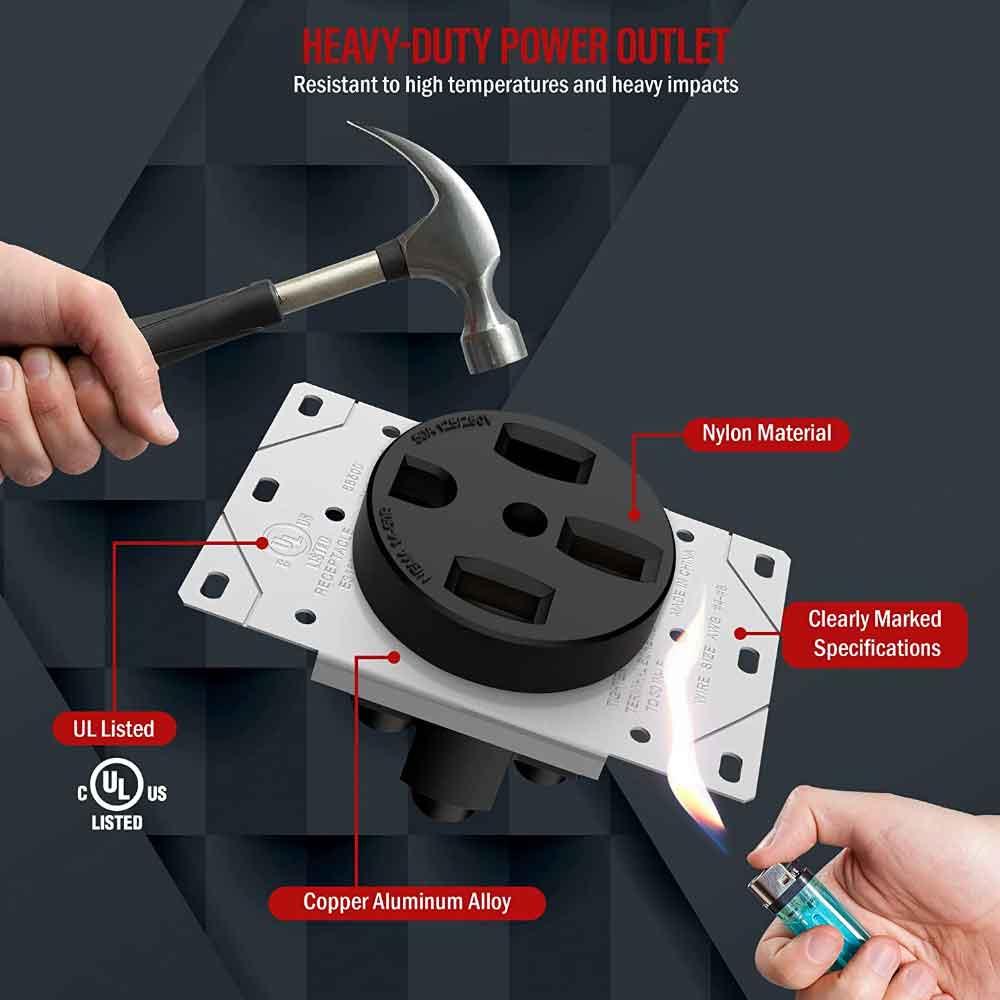

• Material: Constructed from thermoplastic for durability and impact resistance.
• Mounting: Flush mount design fits standard one or two gang enclosures.
• Corrosion Resistance: Features a zinc-plated steel mounting strap.
• Wire Gauge: Supports #10 to #4 AWG wire for versatile wiring options.
• Warranty: Comes with a 2-year warranty for peace of mind.

Construction & Interface

The receptacle is made from durable thermoplastic material and features a heavy gauge steel mounting strap that is zinc-plated for corrosion resistance. It is designed for flush mounting in one or two gang enclosures. The wallplate is sold separately.

Power & Electrical Performance

This flush mount receptacle is designed to provide a secure and reliable connection for high-power applications. The NEMA 14-50R configuration ensures a tight fit to prevent accidental disconnection, reducing the risk of electrical shock or device damage.

Wiring & Installation

The Enerlites 66500-BK supports #10 to #4 AWG wire and features terminal markings for easy identification and quick cabling. The large head combination screws facilitate fast wiring, and the device is permanently marked with ratings and NEMA identification for easy reference.
