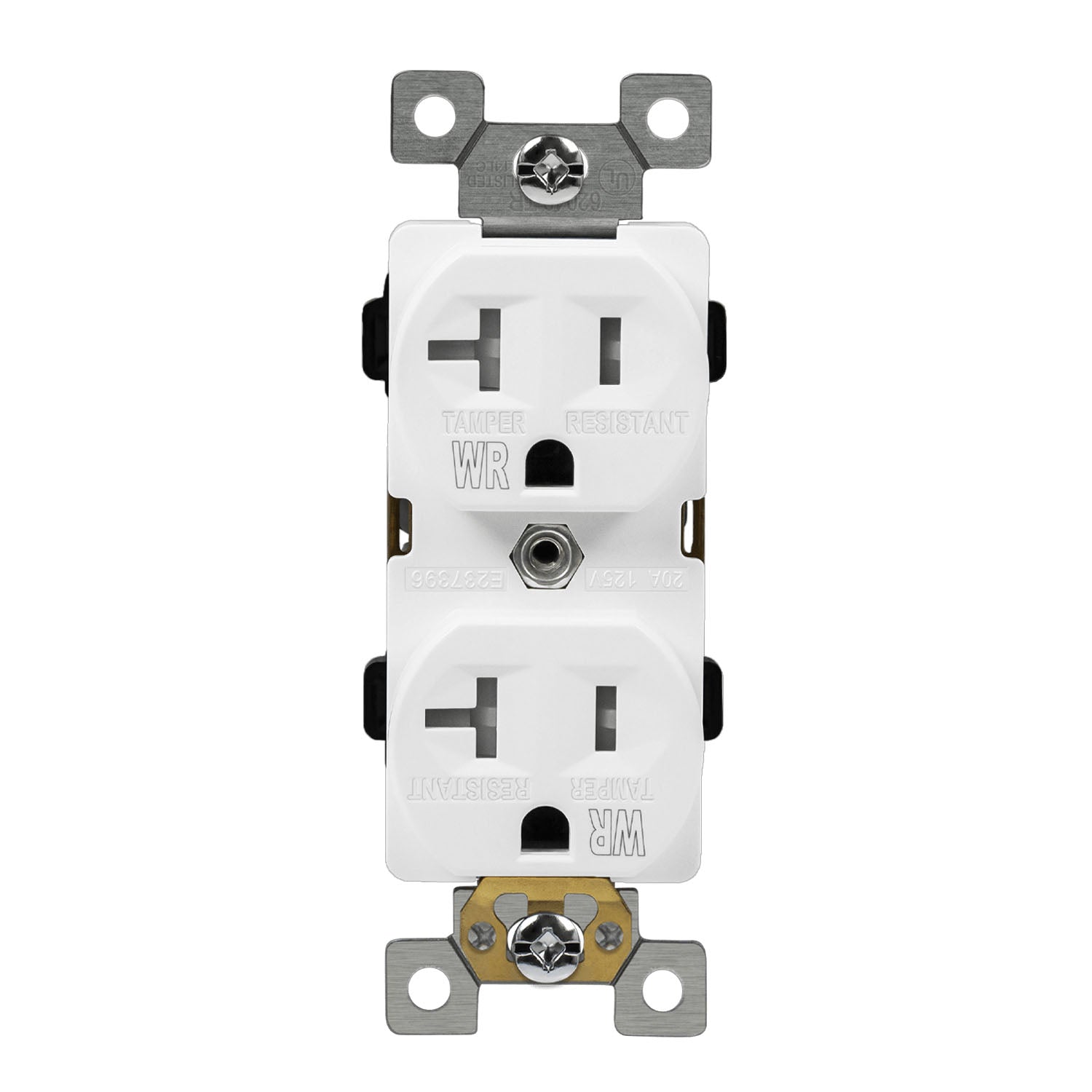

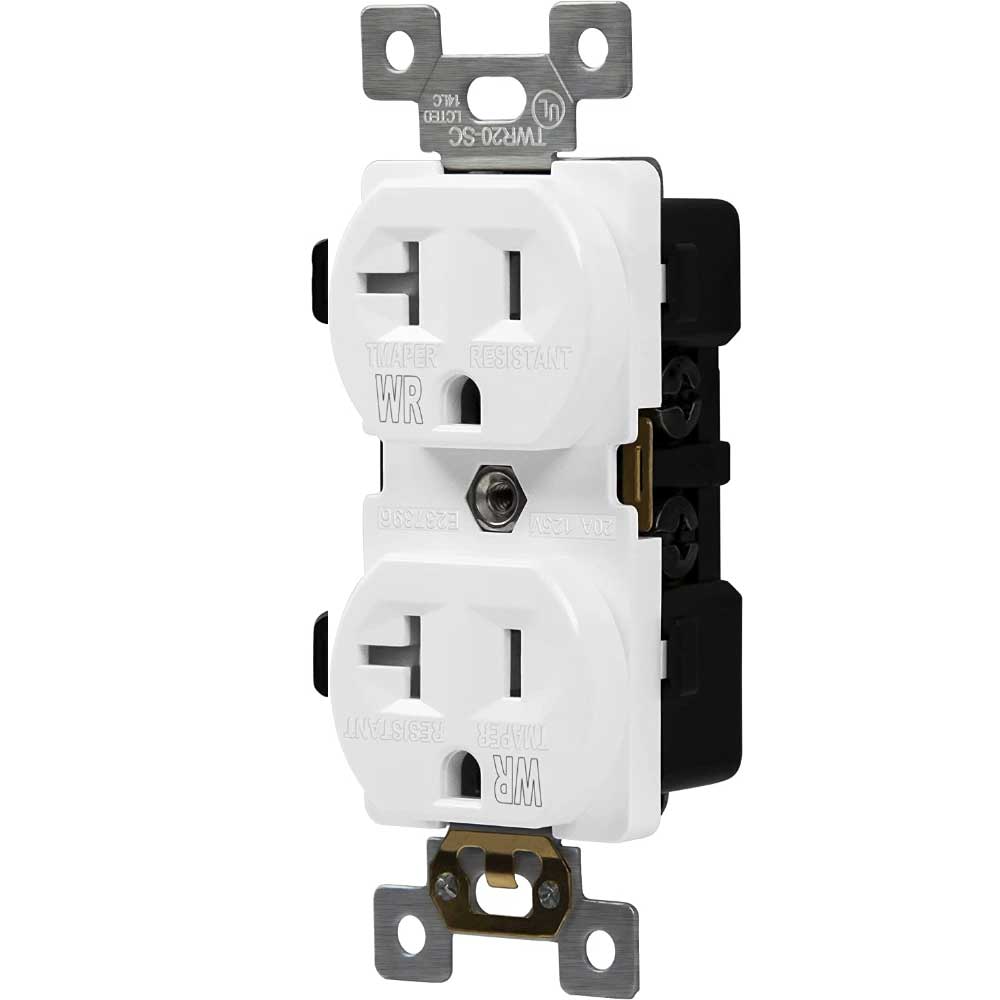

Enerlites 62040 Duplex Outlet — White & Tamper-Resistant

The Enerlites 62040-TWR-W is a white duplex outlet designed for commercial applications. This outlet is rated at 20 Amps and 125VAC, featuring a NEMA 5-20R configuration. It combines Tamper-Resistant and Weather-Resistant features, making it ideal for both safety and durability in challenging environments.

Key Features

• Voltage: Operates at 125VAC for standard electrical systems.
• Amperage: Supports 20A for high-demand devices.
• NEMA Configuration: 5-20R ensures compatibility with a wide range of plugs.
• Tamper-Resistant: Built-in shutters prevent foreign object insertion.

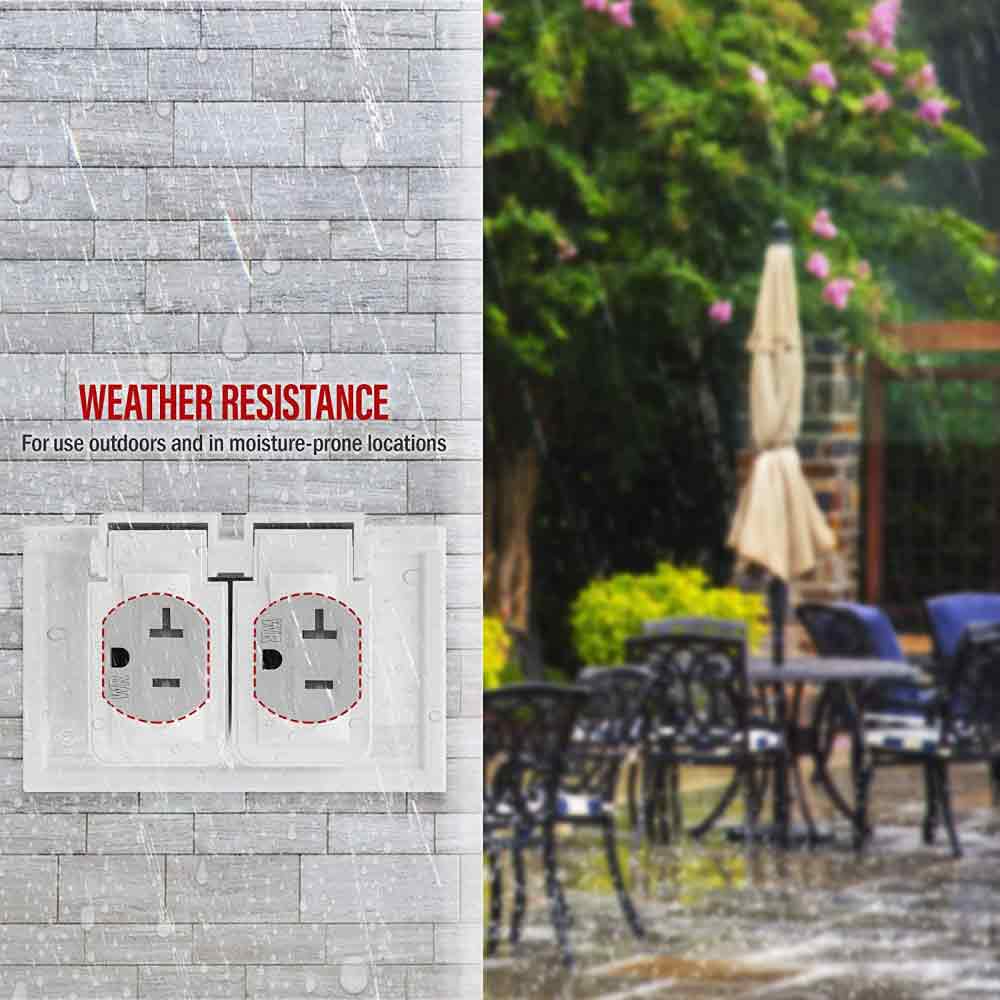

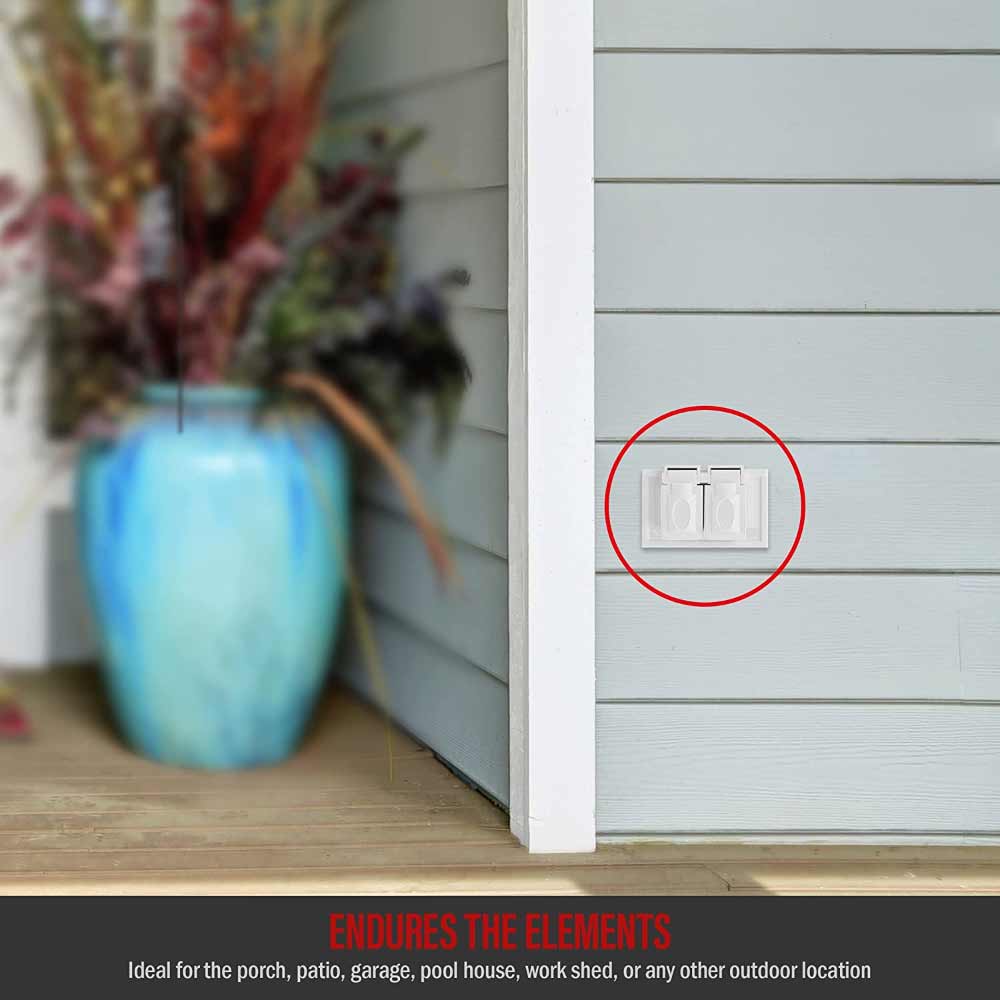

• Weather-Resistant: Suitable for wet or damp locations.
• Grade: Commercial grade for robust performance.

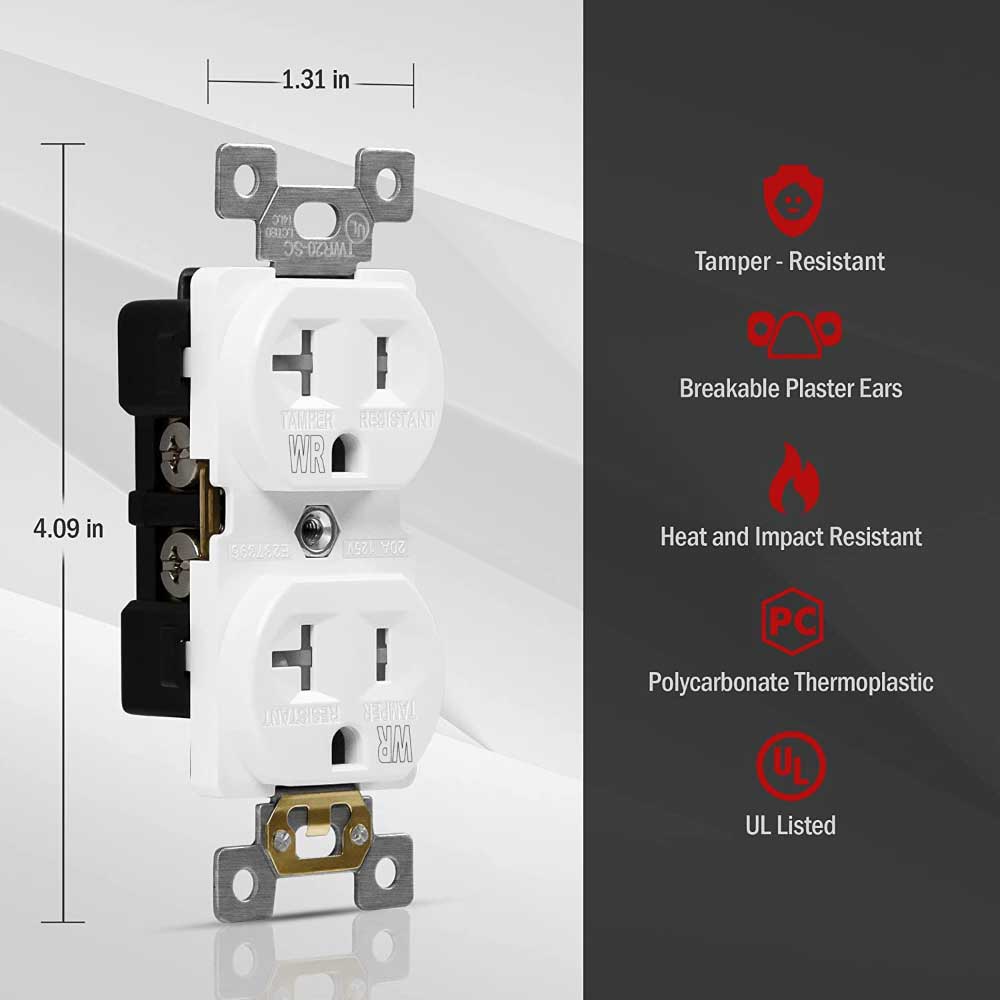

• Dimensions: Measures 1.08 in. width, 4.06 in. height, and 1.31 in. length.
• Material: Constructed from durable thermoplastic.
• Operating Temperature: Functions between -104° F to 167° F.
• Warranty: Backed by a 2-year warranty.

Construction & Interface

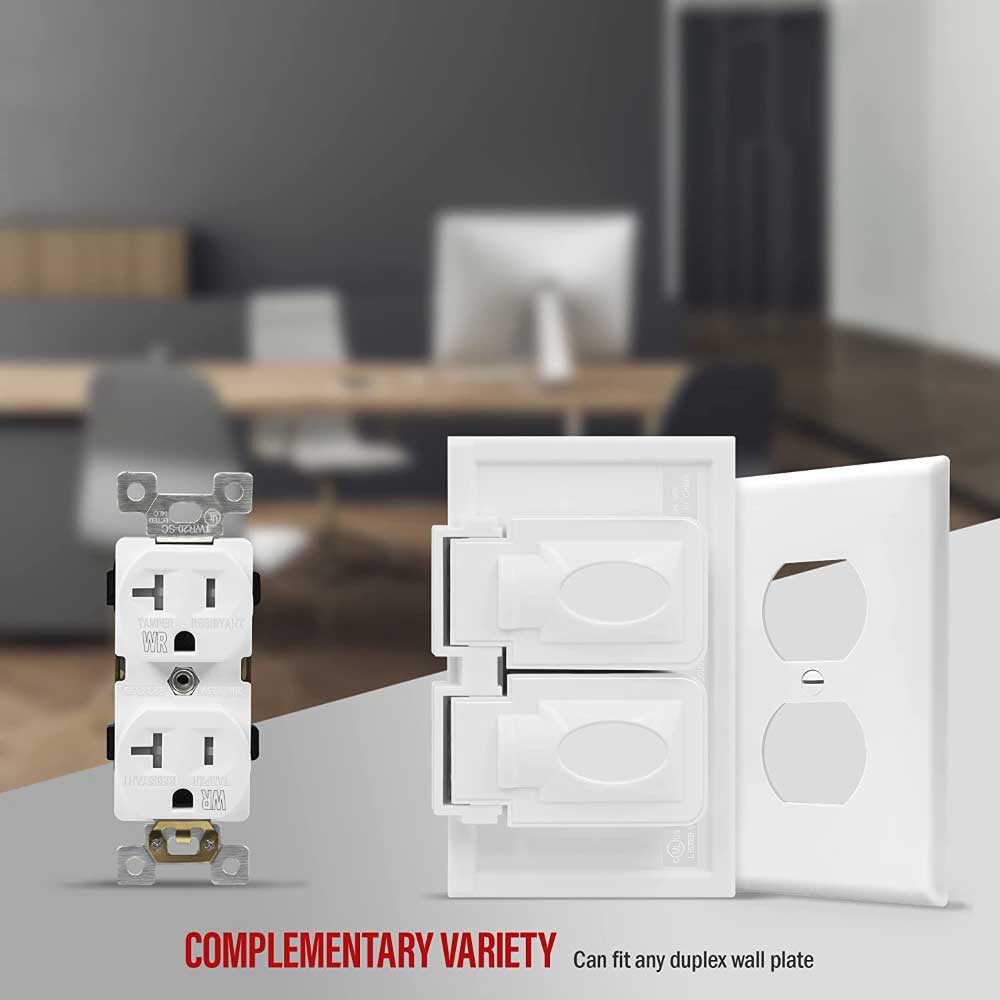

This duplex outlet features a shallow design for maximum wiring room and is constructed from impact-resistant thermoplastic. The wallplate is sold separately.

Safety & Ground Fault Protection

The outlet's tamper-resistant design includes internal shutters to prevent accidental insertion of foreign objects, enhancing safety in residential and commercial settings.

Wiring & Installation

Designed for back wiring, this outlet includes terminal screws that are backed out for easy installation. It accepts wire gauges from #14 to #10 AWG and features a combination Slot/Phillips head for mounting and terminal screws.
