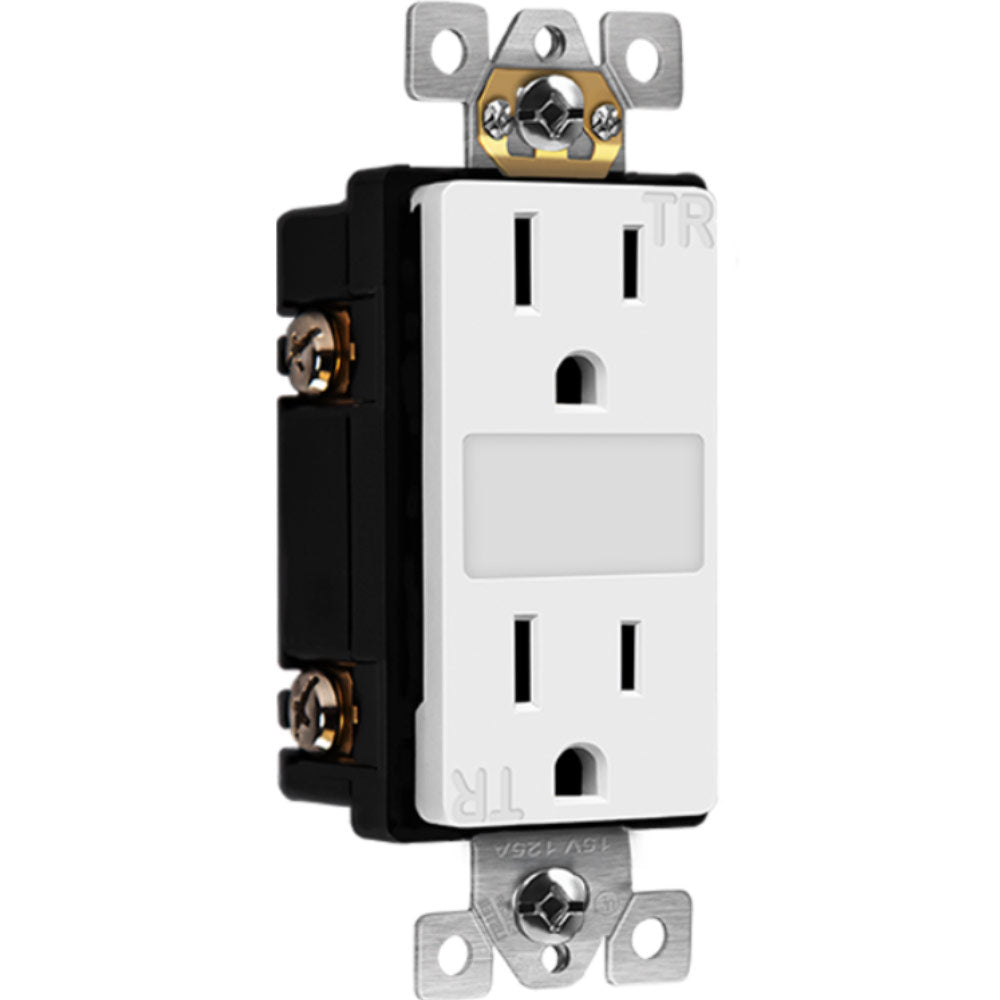

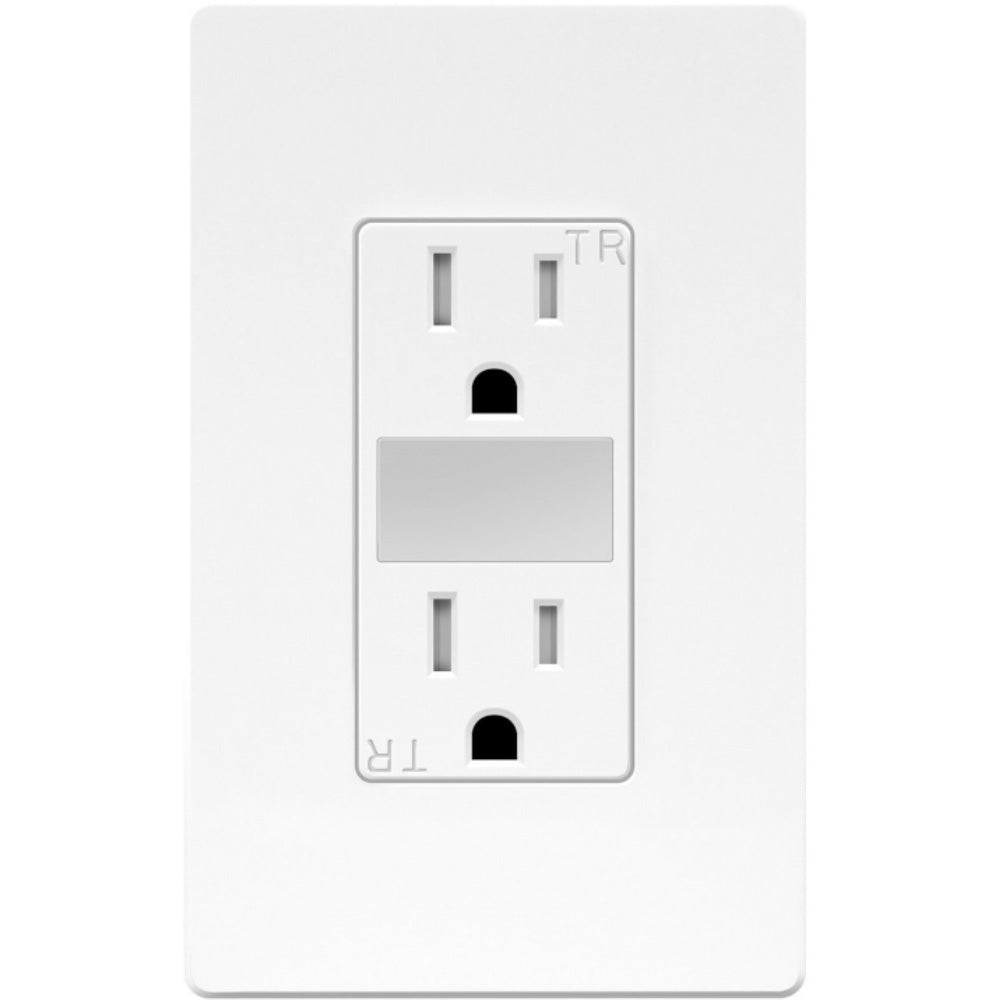

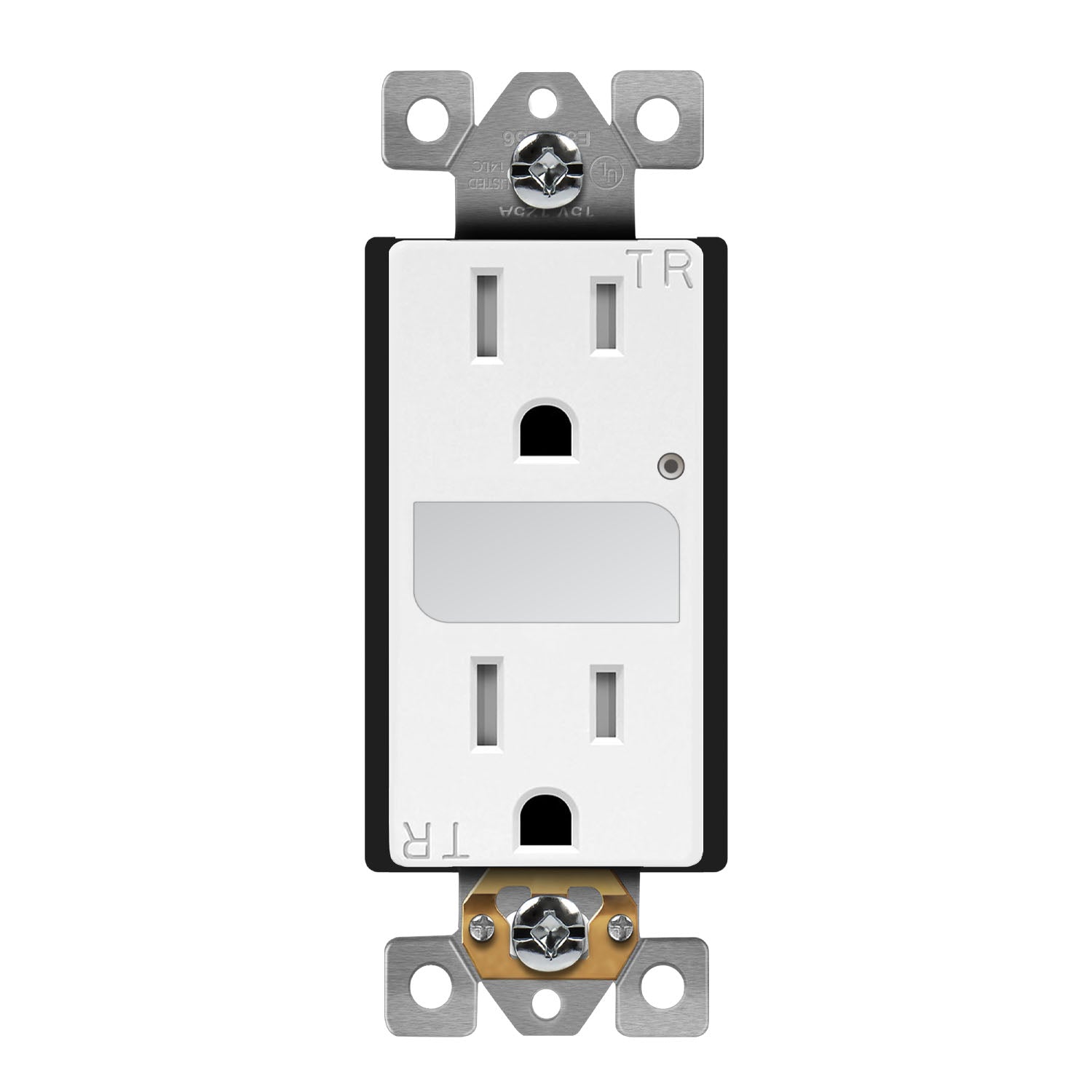

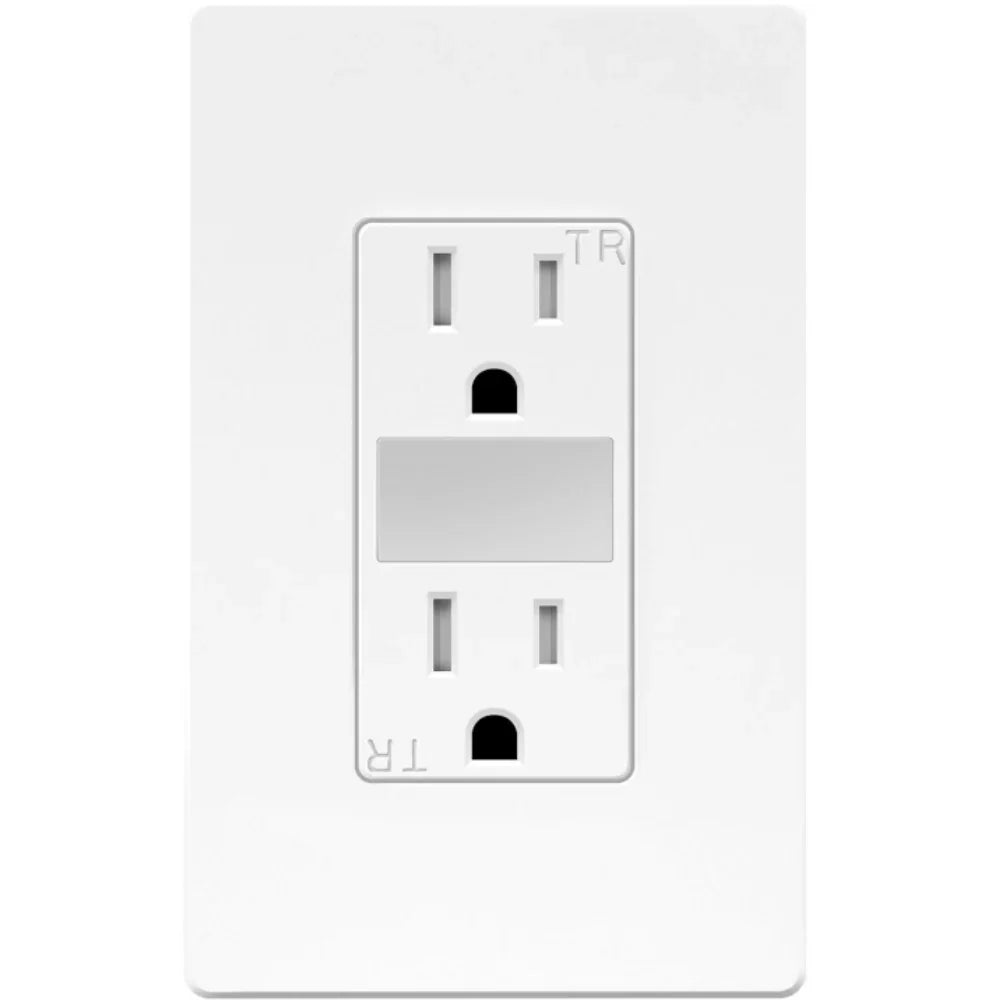

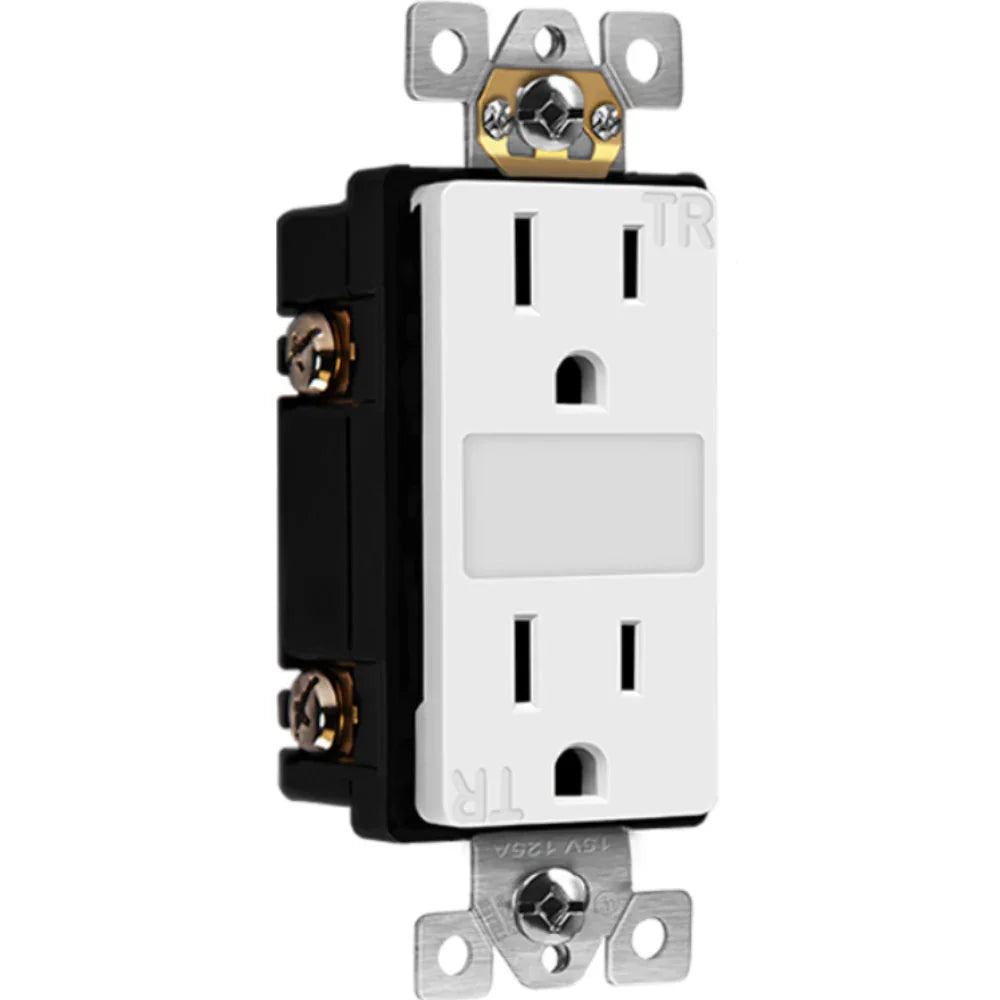

Enerlites Decorator Tamper-Resistant Duplex Outlet — White & LED Guide Light

The Enerlites 61501-TRGL-W is a white decorator tamper-resistant duplex outlet featuring an integrated LED guide light. This outlet is rated for 15 Amps and 125VAC, with a NEMA 5-15R configuration. It includes tamper-resistant shutters for enhanced safety.

Key Features

• Amperage: 15 Amp rating suitable for residential and commercial applications.
• Voltage: Operates at 125VAC for standard electrical systems.
• NEMA Configuration: NEMA 5-15R ensures compatibility with standard plugs.
• Tamper-Resistant: Yes, equipped with internal safety shutters.
• LED Guide Light: Provides illumination in dark environments.
• Material: High-impact resistant polycarbonate thermoplastic for durability.
• Grounding: Green grounding screw and self-grounding clip for secure installation.
• Design: Shallow design allows for more wiring space in the box.
• Dimensions: 1.29 in. width x 4.20 in. height x 1.30 in. length.
• Operating Temperature: -104° F to 167° F for reliable performance in various conditions.
• Warranty: Backed by a 2-year warranty.

Construction & Interface

This outlet features a decorator design with a high-impact resistant polycarbonate thermoplastic body. The wallplate is sold separately.

Safety & Ground Fault Protection

The tamper-resistant design includes internal shutters to prevent accidental insertion of foreign objects, enhancing safety in homes and commercial spaces.

Wiring & Installation

Designed for side wire termination, it accepts #14 to #10 AWG wire. The outlet includes a green grounding screw and self-grounding clip for secure installation in grounded metal wall boxes.
