Enerlites Duplex Outlet — Light Almond & Tamper-Resistant

The Enerlites 61501-TR-LA is a light almond duplex outlet designed for both residential and commercial use. This outlet is rated at 15 amps and 125VAC, featuring a NEMA 5-15R configuration. It is tamper-resistant, providing enhanced safety with internal shutters.

Key Features

• Amperage: 15A for standard electrical loads.
• Voltage: 125VAC, suitable for typical residential circuits.
• NEMA Configuration: 5-15R, compatible with most household plugs.
• Tamper-Resistant: Yes, includes safety shutters to prevent foreign object insertion.
• Material: Made from durable polycarbonate thermoplastic.
• Grade: Residential and light commercial grade.
• Wiring: Rear push-in and side wire options available.
• Operating Temperature: -104°F to 167°F, suitable for various environments.
• Dimensions: 4.30 in. width, 2.60 in. height, 8.10 in. length.
• Warranty: 2-year limited warranty.

Construction & Interface

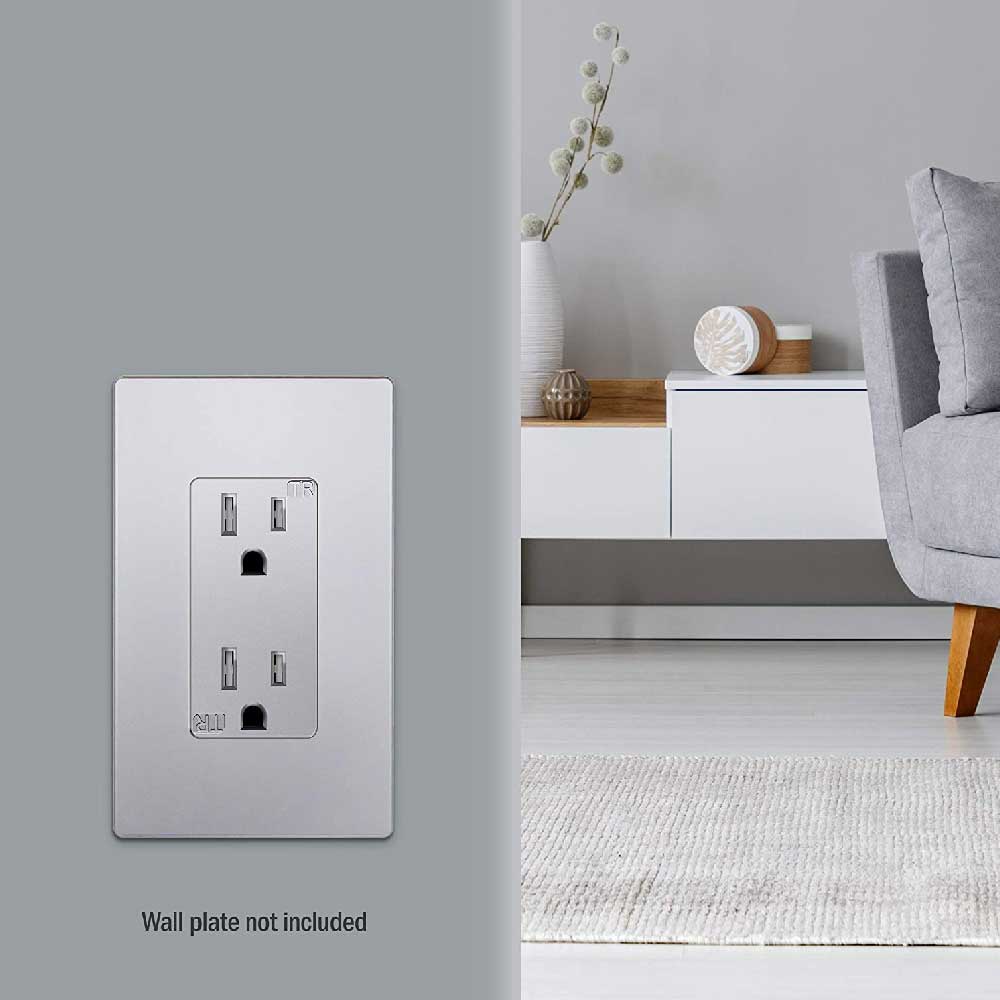

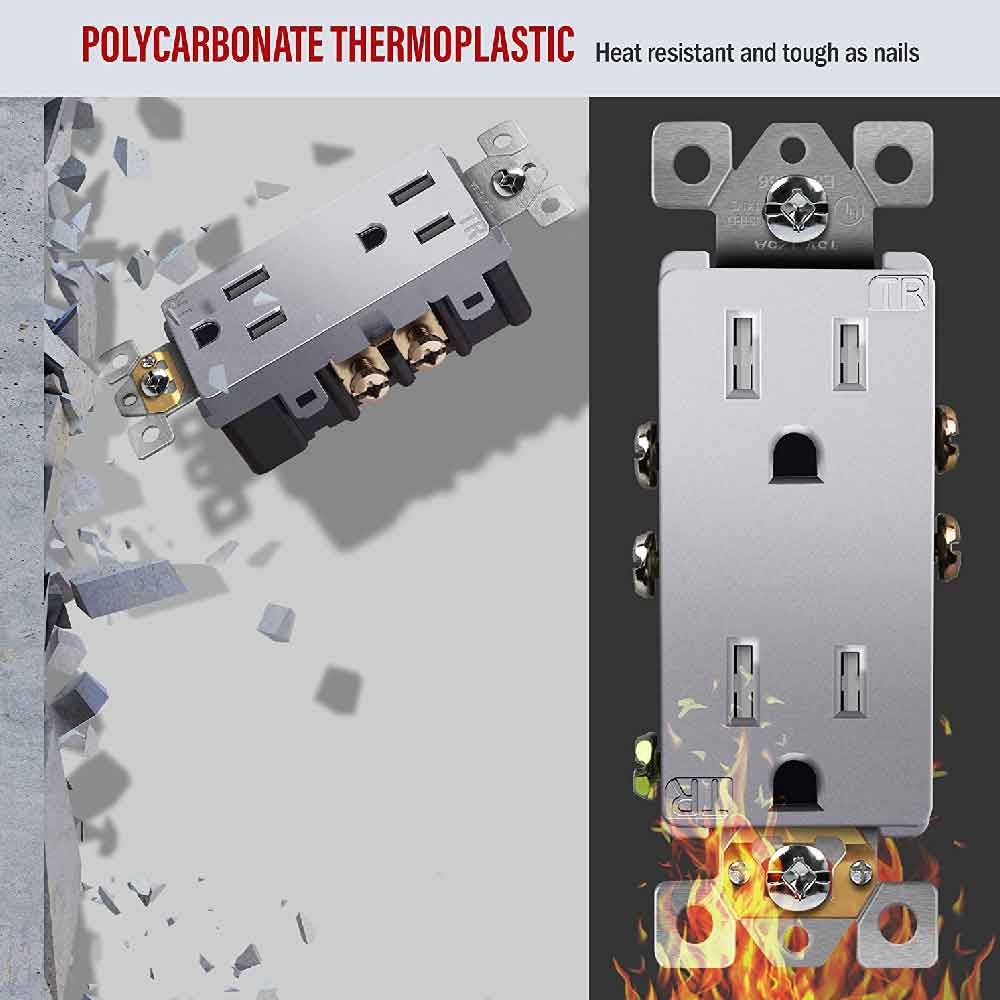

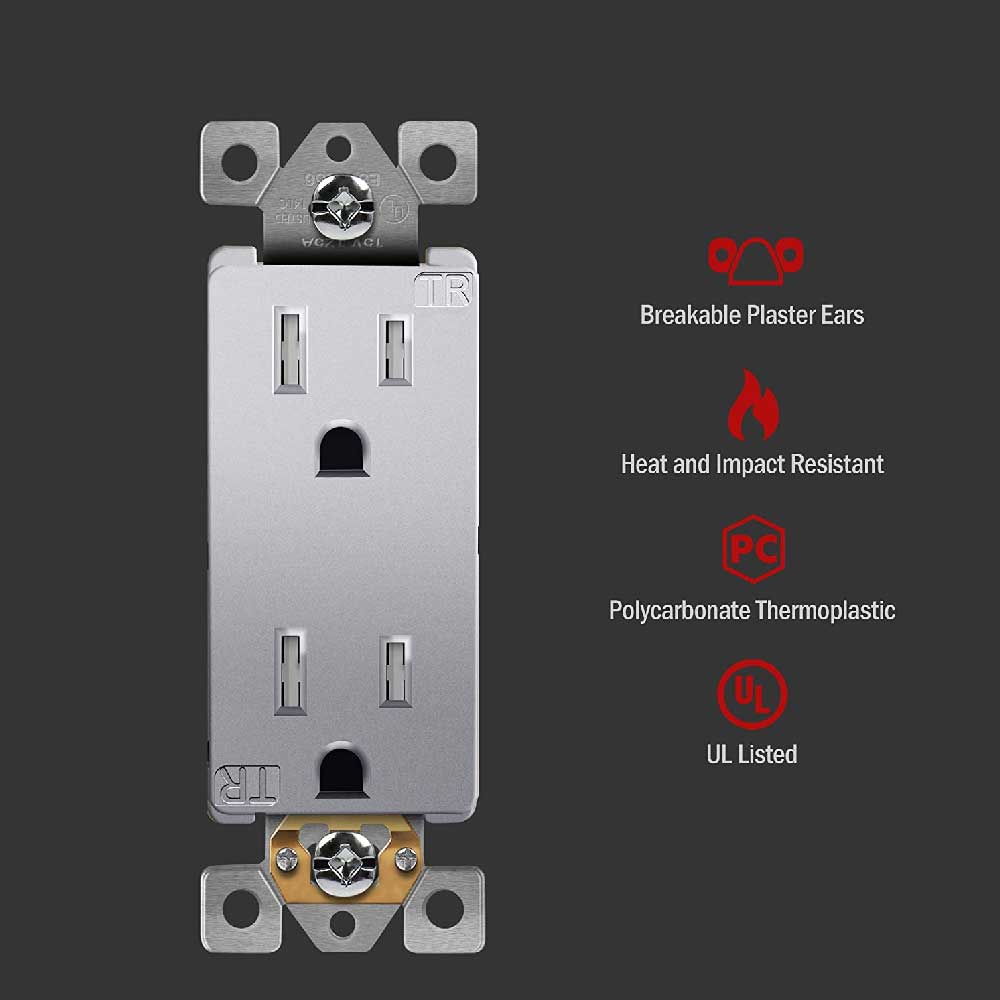

This decorator-style outlet is constructed from high-impact resistant polycarbonate thermoplastic, ensuring long service life. The wallplate is sold separately.

Safety & Ground Fault Protection

The tamper-resistant design features internal shutters that prevent accidental insertion of foreign objects, enhancing safety in homes and commercial spaces.

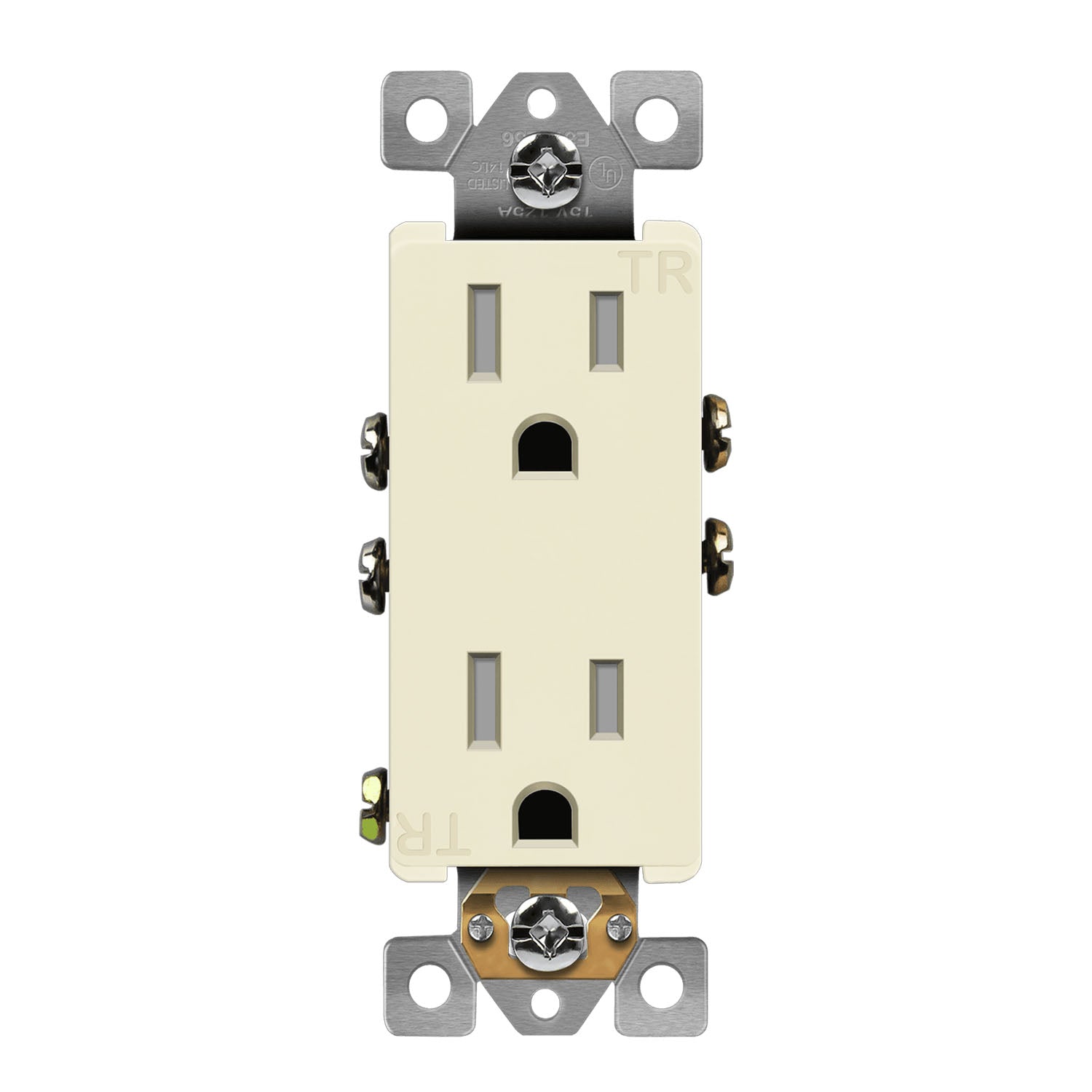

Wiring & Installation

The outlet supports both backstab and side wiring methods, accommodating #14 AWG copper solid wire for 15A branch circuits. It includes a self-grounding clip and green terminal screw for secure grounding.
