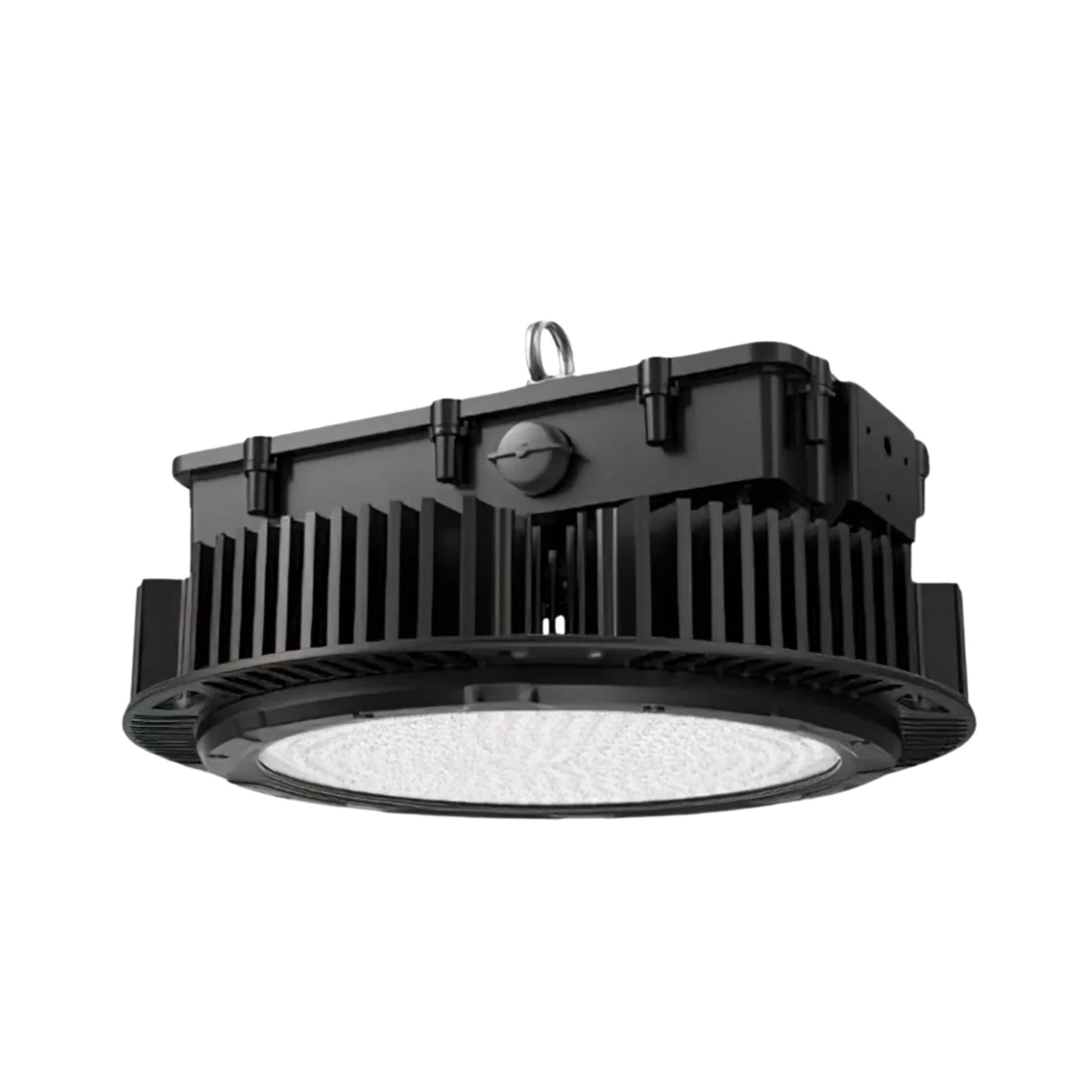

The EiKO SIGNAL is a high-output LED Flood Light and High Bay platform engineered for dual-use: interior industrial high bay and exterior flood, sports, bridge, and high mast applications. Two wattage tiers (450W / 600W), two CCT options (4000K / 5000K), and two voltage families (120–277V / 277–480V) deliver 8 order codes with outputs from 76,185 to 104,460 lumens and efficacy from 165 to 179 LPW. CRI >70. IP66. ETL Listed for wet locations. 3G rated per ANSI C136.31. Z10 Receptacle (ANSI C136.41) standard. 20kV surge protection. DLC Premium qualified. Cold forged aluminum heatsink. Projected L70: 100,000 hours. 5-year limited warranty.

Model Selection Guide

Universal Voltage — 120–277V (UD models):

• 12345 — SIG/450W/740/UD — 450W — 4000K — 76,185 lm — 169 LPW
• 12346 — SIG/450W/750/UD — 450W — 5000K — 77,130 lm — 171 LPW
• 12349 — SIG/600W/740/UD — 600W — 4000K — 98,750 lm — 165 LPW
• 12350 — SIG/600W/750/UD — 600W — 5000K — 99,960 lm — 167 LPW

High Voltage — 277–480V (VD models):

• 12347 — SIG/450W/740/VD — 450W — 4000K — 79,600 lm — 177 LPW
• 12348 — SIG/450W/750/VD — 450W — 5000K — 80,600 lm — 179 LPW (peak efficacy)
• 12353 — SIG/600W/740/VD — 600W — 4000K — 103,200 lm — 172 LPW
• 12358 — SIG/600W/750/VD — 600W — 5000K — 104,460 lm (peak output) — 174 LPW

Key Features — All Models

• Wattage: 450W or 600W (fixed per order code)
• CCT: 4000K or 5000K (fixed per order code)
• CRI: >70
• Dimming: 0–10V continuous
• Voltage: 120–277V (UD) or 277–480V (VD)
• IP Rating: IP66
• Location Rating: ETL Listed for wet locations
• Vibration Rating: 3G rated per ANSI C136.31
• Surge Protection: 20kV supplemental (10kV driver standard)
• Power Factor: >0.9 | THD: <20%
• Z10 Receptacle: ANSI C136.41 standard
• Ambient: -40°F to 122°F (-40°C to 50°C)
• Heatsink: Cold forged aluminum
• Driver Housing: Die-cast aluminum | Stainless steel hardware
• Finish: Epoxy e-coat primer + polyester powder coat, Black
• Weight: 28.2 lbs / 12.8 kg (450W) | 29.8 lbs / 13.5 kg (600W)
• Dimensions: 17.9" (454mm) dia. × 10.4" (236mm) H | driver housing: 3.4" (87mm)
• EPA: 2.09 ft² (without visor) | 2.236 ft² (with SIG-VISOR-BK)
• Cable: 3-ft power and dimming cables included
• Projected L70: 100,000 hours | Reported L70: >84,000 hours | Reported L90: >36,000 hours
• Warranty: 5-year limited (additional options available — contact EiKO)
• DLC Premium: All 8 models qualified
• Green Technology: RoHS compliant

Performance & Light Output

High-voltage (VD) models deliver more lumens and higher LPW than their UD equivalents at identical wattage due to improved driver efficiency at higher input voltage. The 5000K CCT also yields slightly more lumens than 4000K at same wattage. Peak efficacy: 179 LPW (SIG/450W/750/VD, order code 12348). Peak output: 104,460 lm / 174 LPW (SIG/600W/750/VD, order code 12358). Optional distribution accessories affect output: PC30D lens (0.97), PC60D lens (0.98), AL90D reflector (0.95).

Smart & Control Features

Z10 Receptacle (ANSI C136.41) standard on all models — simplifies integration with photocells, occupancy sensors, and smart lighting networks without field wiring into the fixture housing. 0–10V continuous dimming standard.

Electrical

UD models: 120–277V AC, 60 Hz. VD models: 277–480V AC, 60 Hz. Both: 0–10V dimming | PF: >0.9 | THD: <20% | 10kV driver + 20kV supplemental surge protection to ANSI standards. VD models eliminate step-down transformers in three-phase 480V systems. RoHS compliant.

Construction

Cold forged aluminum heatsink for optimal thermal performance. Die-cast aluminum driver housing with multiple wiring entry points. Stainless steel hardware. Epoxy e-coat primer and durable polyester powder coat, Black. IP66. 3G rated per ANSI C136.31. Diameter: 17.9" (454mm). Height: 10.4" (236mm). Driver housing depth: 3.4" (87mm).

Installation & Mounting

3-ft power and dimming cables included on all models. Optional mounting and distribution accessories (sold separately):

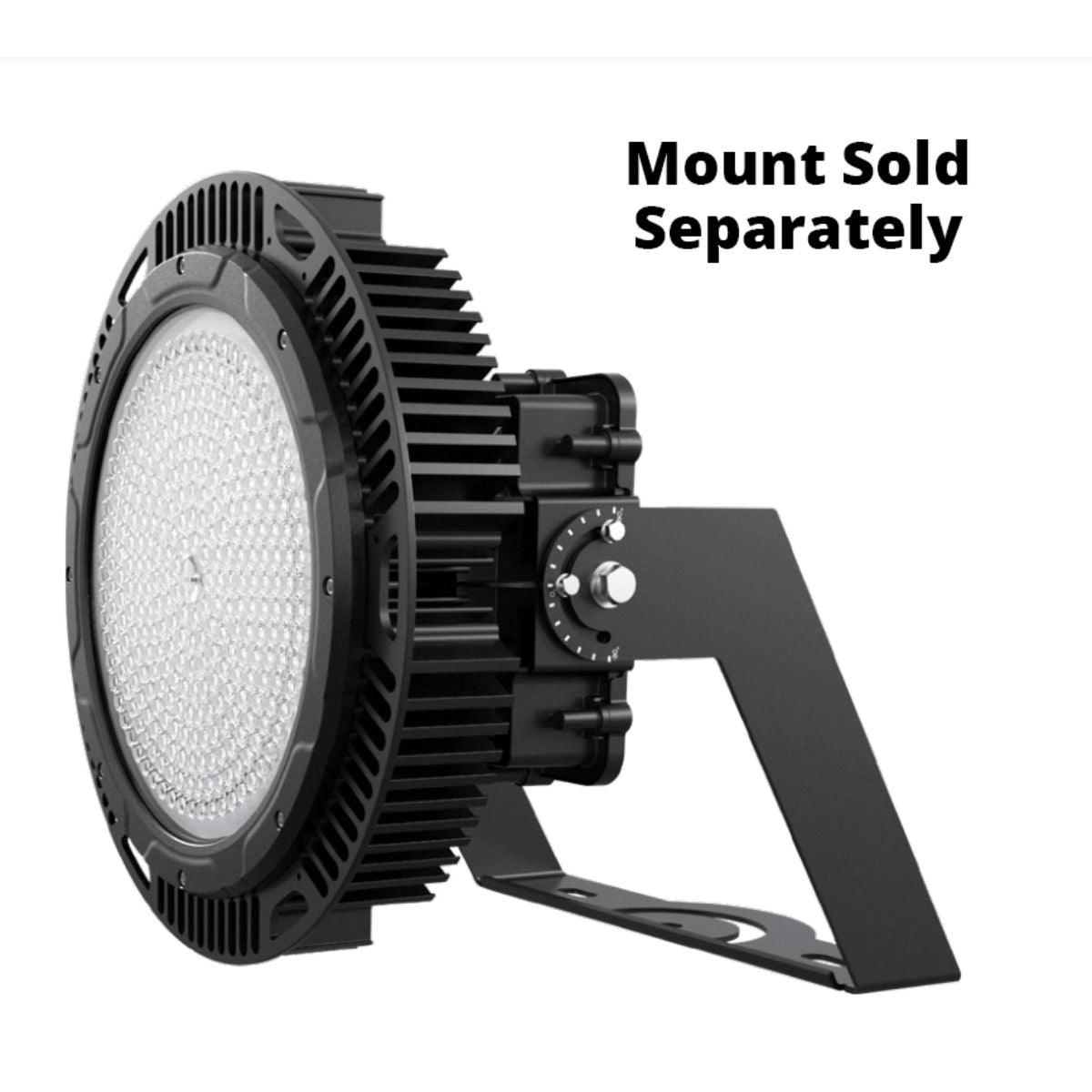

• SIG/Y (12360): Signal Yoke Mounting Bracket | 6.5 lbs
• SIG/SF (12361): Signal Slipfitter for up to 2 3/8" pipe | 8.93 lbs
• SIG/SM (12362): Signal Surface Mount | 7.28 lbs
• SIG/AL100D (12359): Signal Reflector 100° | 2.20 lbs
• SIG-LENS-PC30D (10188): Signal Lens 30° (scaling factor 0.97)
• SIG-LENS-PC60D (10189): Signal Lens 60° (scaling factor 0.98)
• SIG-VISOR-BK (10185): Signal Visor, Black | 2.76 lbs | EPA 2.236 ft² with fixture
• SIG-REFLECTOR-AL90D (10190): Signal Reflector, Aluminum, 90° (scaling factor 0.95) | 2.87 lbs

Certifications & Rebates

ETL Listed for wet locations. IP66. 3G rated per ANSI C136.31. Z10 Receptacle (ANSI C136.41). FCC. RoHS. DLC Premium qualified on all 8 order codes — verify at designlights.org by model number.

Typical Applications

• Warehouses & Distribution Centers: 450W for mid-height, 600W for tallest interior high bay; Z10 for controls-ready deployment
• Outdoor Sports Fields & Stadiums: 3G ANSI C136.31 + 20kV + IP66 for pole-mounted sports lighting at 450W or 600W
• Manufacturing Plants & Industrial Facilities: IP66 + 20kV surge + dual voltage family for demanding interior and exterior industrial environments
• Bridges, Monuments & Facades: ETL wet + IP66 + 3G structural rating for infrastructure and architectural flood applications
• Hangars, High Mast & Construction Sites: Up to 104,460 lm with 3G vibration rating for high mast, aviation, and construction site applications
• Rail, Shipping & Work Yards: High output, 20kV surge, and dual voltage for demanding outdoor industrial work environments

What's Included

• EiKO SIGNAL LED Flood Light & High Bay (model per order code)
• 3-ft Power and Dimming Cables
