EiKO SIGNAL LED Flood Light & High Bay — 600W — 4000K — 103,200 lm — 277–480V
Available in stock (55)
About this item
About this item
- 103,200 lm at 600W — 172 LPW — 4000K — Exceeds 100,000 lm Threshold: Highest 4000K output in the SIGNAL family. Outperforms the 120–277V equivalent by 4,450 lm at identical wattage. Targets the tallest industrial high bay, high mast, and arena-scale applications.
- 277–480V — No Step-Down Transformer Required: Direct connection to three-phase 480V distribution. For 120–277V, specify SIG/600W/740/UD (order code 12349, 98,750 lm).
- 20kV Surge — 3G Rated (ANSI C136.31) — IP66: Engineered for high mast, bridge, outdoor sports, and demanding industrial environments on high-voltage distribution.
- Z10 Receptacle (ANSI C136.41) Standard: Photocontrol receptacle for photocell, occupancy, and smart network integration without fixture rewiring.
- Projected L70: 100,000 Hours — DLC Premium: Reported L70 >84,000 hr | Reported L90 >36,000 hr. DLC Premium for utility rebates.
We process payments securely and do not store credit card information.
Description
Description

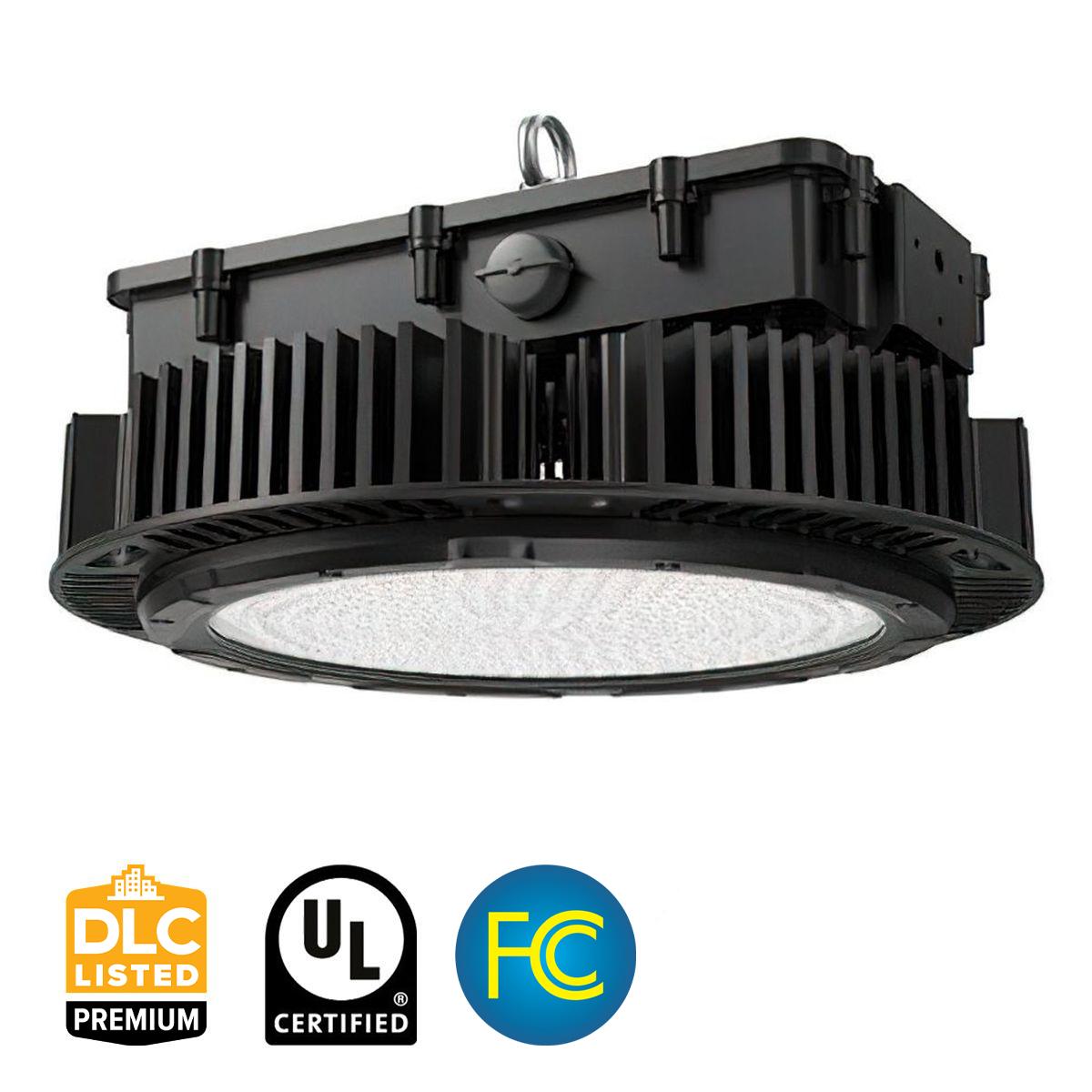

The EiKO SIGNAL SIG/600W/740/VD (order code 12353) is the 600W, 4000K, 277–480V high-voltage model in EiKO’s SIGNAL LED Flood Light and High Bay family. Delivers 103,200 lumens at 172 LPW — the highest 4000K output in the SIGNAL family, surpassing 100,000 lm. Outperforms the 120–277V equivalent (SIG/600W/740/UD: 98,750 lm / 165 LPW) by 4,450 lm and 7 LPW. CRI >70. IP66. ETL Listed for wet locations. 3G rated per ANSI C136.31. Z10 Receptacle (ANSI C136.41). 20kV surge protection. DLC Premium qualified. Projected L70: 100,000 hours. 5-year limited warranty.
Key Features
- Wattage: 600W fixed
- Lumen Output: 103,200 lm
- Efficacy: 172 LPW
- CCT: 4000K fixed
- CRI: >70
- Dimming: 0–10V continuous
- Voltage: 277–480V AC, 60 Hz
- IP Rating: IP66
- Location Rating: ETL Listed for wet locations
- Vibration Rating: 3G rated per ANSI C136.31
- Surge Protection: 20kV supplemental (10kV driver standard)
- Power Factor: >0.9
- THD: <20%
- Z10 Receptacle: ANSI C136.41
- Ambient Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Heatsink: Cold forged aluminum
- Driver Housing: Die-cast aluminum
- Hardware: Stainless steel
- Finish: Epoxy e-coat primer + durable polyester powder coat, Black
- Weight: 29.8 lbs (13.5 kg)

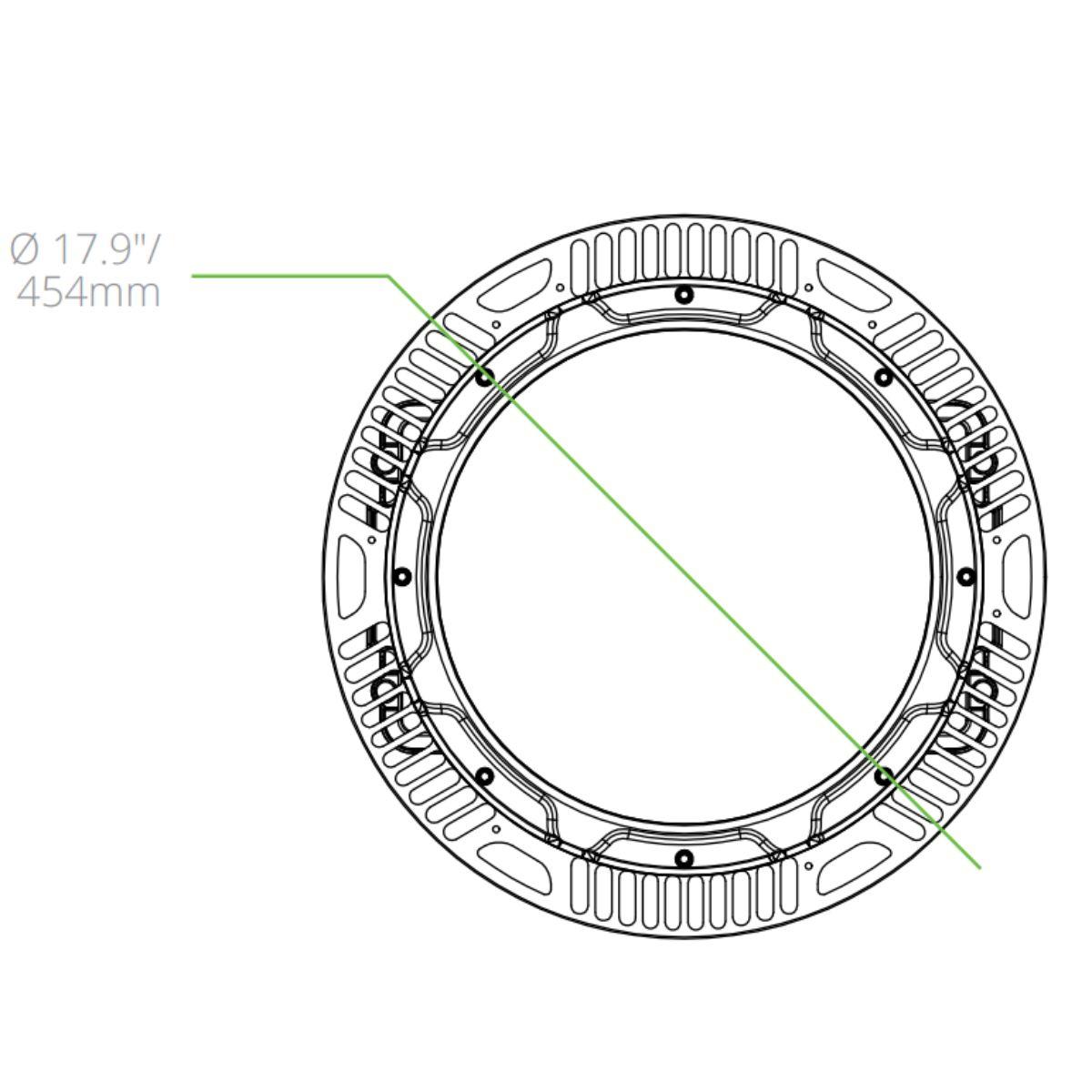

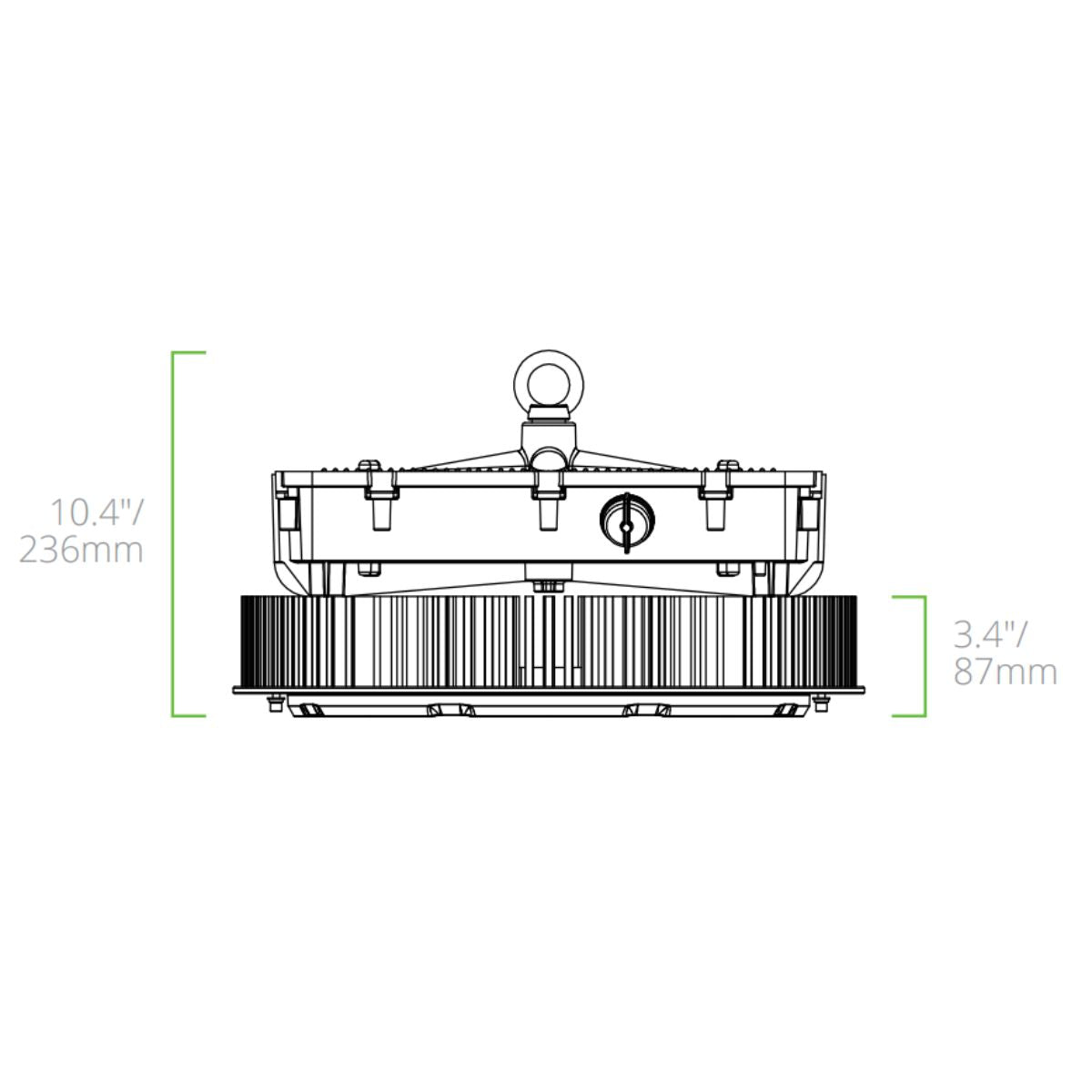

- Dimensions: 17.9" (454mm) dia. × 10.4" (236mm) H | driver housing: 3.4" (87mm)
- EPA: 2.09 ft² (without visor) | 2.236 ft² (with SIG-VISOR-BK)
- Cable: 3-ft power and dimming cables included
- Projected L70: 100,000 hours | Reported L70: >84,000 hours | Reported L90: >36,000 hours
- Warranty: 5-year limited (additional options available)
- DLC Premium: Qualified
- Green Technology: RoHS compliant
Performance & Light Output
At 600W: 103,200 lm / 172 LPW at 4000K, CRI >70. Exceeds 100,000 lm threshold. Outperforms the 120–277V equivalent by 4,450 lm at identical wattage. For the highest output in the entire SIGNAL family, see SIG/600W/750/VD (order code 12358, 104,460 lm / 174 LPW, 5000K). Optional distribution accessories: PC30D (0.97), PC60D (0.98), AL90D (0.95). Projected L70: 100,000 hr | Reported L70 >84,000 hr | Reported L90 >36,000 hr.
Smart & Control Features
Z10 Receptacle (ANSI C136.41) standard. 0–10V dimming.
Electrical
277–480V AC, 60 Hz. 0–10V dimming. PF: >0.9. THD: <20%. 10kV driver + 20kV supplemental surge. No step-down transformer required for 480V systems. For 120–277V, specify SIG/600W/740/UD (order code 12349). RoHS compliant.
Construction
Cold forged aluminum heatsink. Die-cast aluminum driver housing. Stainless steel hardware. Epoxy e-coat + polyester powder coat, Black. IP66. 3G per ANSI C136.31. Diameter: 17.9". Height: 10.4". Weight: 29.8 lbs.
Installation & Mounting
3-ft cables included. Optional accessories (sold separately):

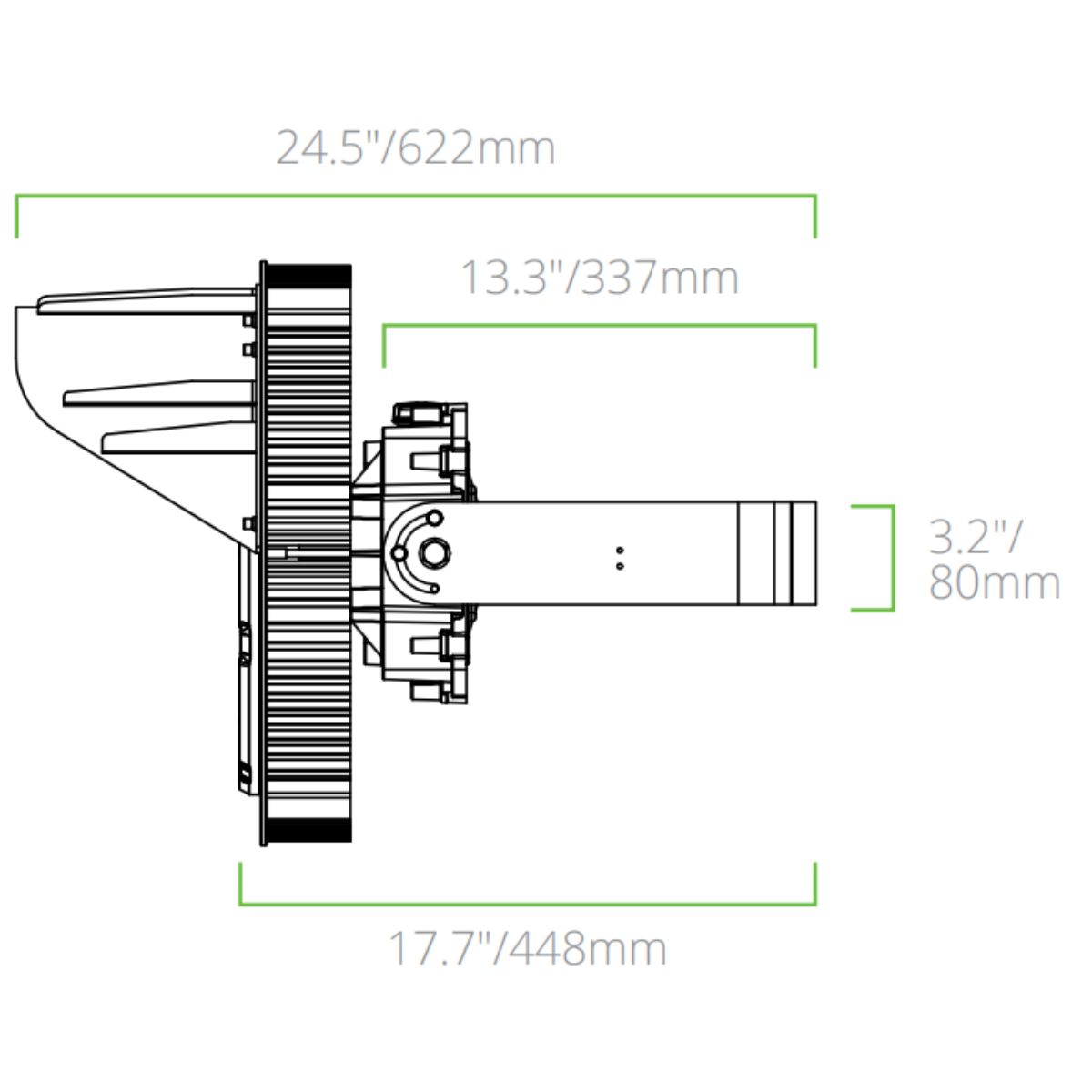

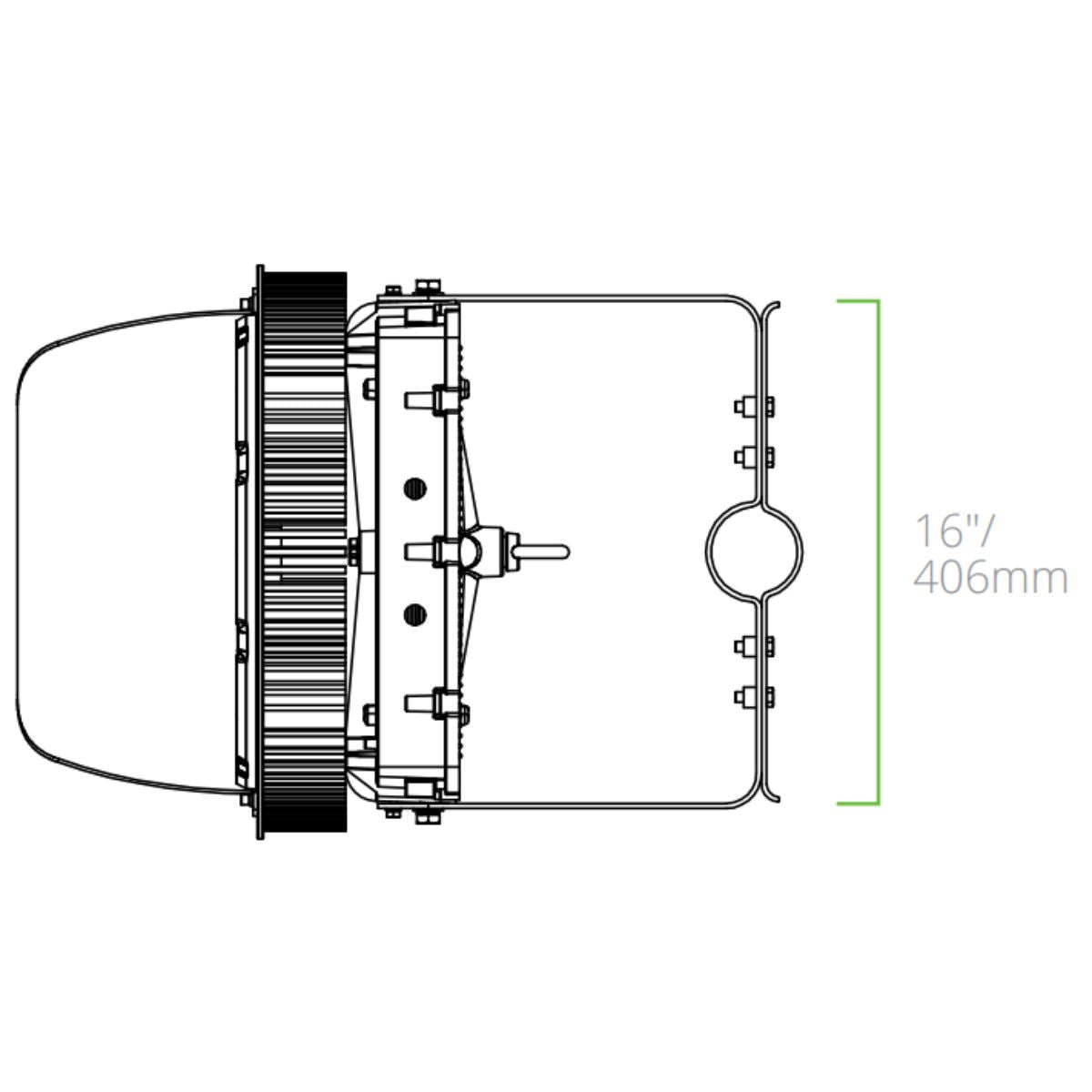

- SIG/Y (12360): Yoke Mounting Bracket
- SIG/SF (12361): Slipfitter for up to 2 3/8" pipe
- SIG/SM (12362): Surface Mount
- SIG/AL100D (12359): Reflector 100°
- SIG-LENS-PC30D (10188): Lens 30°
- SIG-LENS-PC60D (10189): Lens 60°
- SIG-VISOR-BK (10185): Visor, Black
- SIG-REFLECTOR-AL90D (10190): Reflector, Aluminum, 90°
Certifications & Rebates
ETL Listed for wet locations. IP66. 3G per ANSI C136.31. Z10 (ANSI C136.41). FCC. RoHS. DLC Premium — verify at designlights.org by model SIG/600W/740/VD.
Typical Applications
- Industrial Facilities — Three-Phase 480V — High Ceiling: Over 100,000 lm at 4000K on 480V for the tallest industrial high bay and high mast applications
- Stadiums & Arenas — 4000K: 103,200 lm for arena-scale sports and event lighting where 4000K is specified
- Outdoor Sports Fields — 480V: 3G + 20kV + IP66 for pole-mounted sports lighting on three-phase 480V distribution
- Bridges, Monuments & Infrastructure: ETL wet + IP66 + 3G for infrastructure flood and architectural applications at 480V
- High Mast & Hangars: Over 100,000 lm with 3G vibration and IP66 for high mast and aviation applications
- Rail, Shipping & Work Yards: High output and 20kV surge on 480V for industrial outdoor environments
What's Included
- EiKO SIGNAL LED Flood Light & High Bay — SIG/600W/740/VD — Black
- 3-ft Power and Dimming Cables
