EiKO SIGNAL LED Flood Light & High Bay — 600W — 4000K — 98,750 lm — 120–277V
Available in stock (71)
About this item
About this item
- High Bay Output: Fixed 600W model delivers 98,750 lm at 165 lm/W.
- Distribution Options: Separately available 30° and 60° lenses and 90° and 100° reflectors give installers documented distribution choices.
- Fixed Color Temperature: This model provides fixed 4000K light with CRI >70.
- Controls Ready: The Z10 receptacle simplifies adding controls, and the fixture supports 0–10V dimming on 120–277V input.
- Wet Location Rating: DLC Premium qualified, ETL Listed for wet locations, and IP66 rated; rebate availability varies by utility and location.
We process payments securely and do not store credit card information.
Description
Description

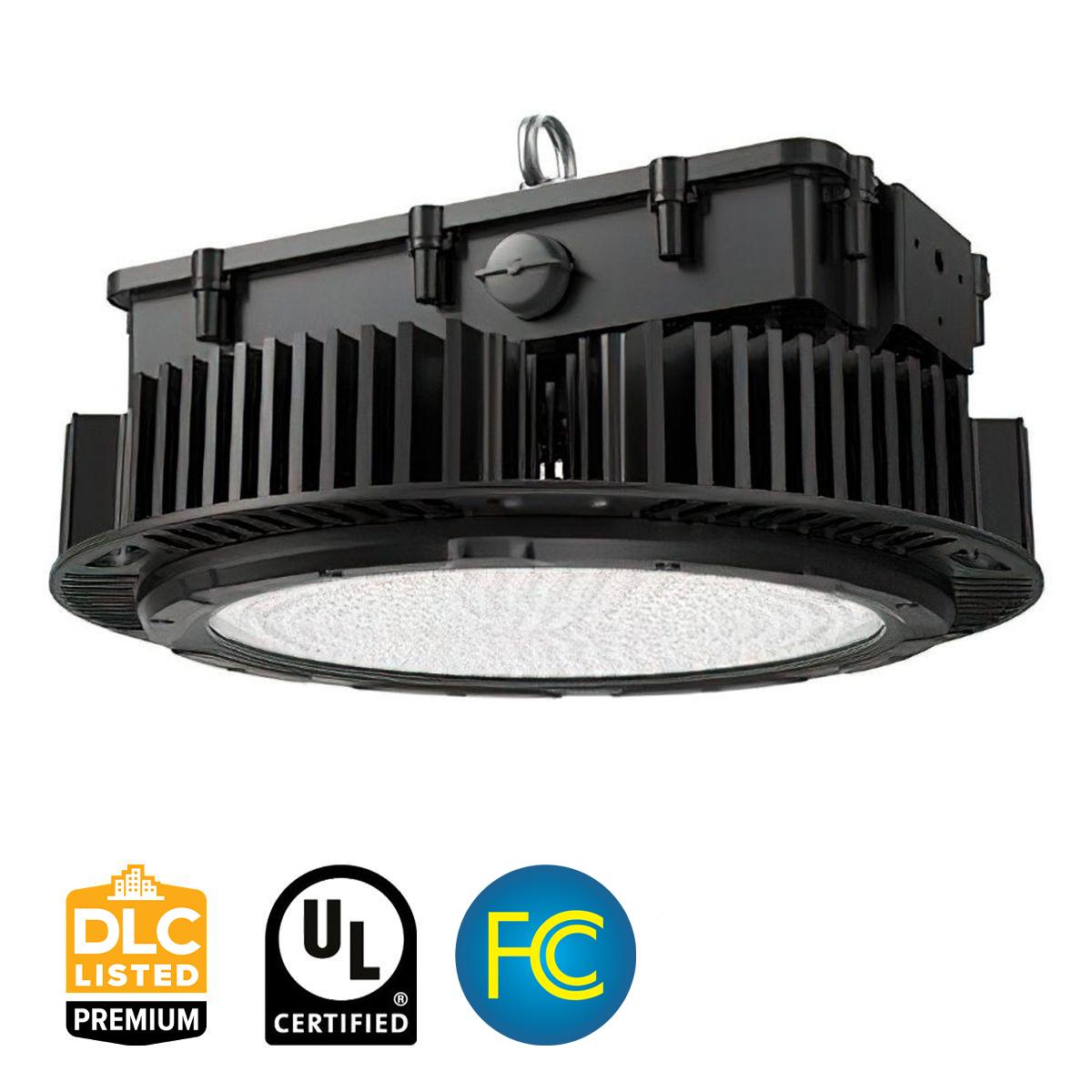

EiKO SIG/600W/740/UD SIGNAL Flood Light and High Bay — 600W — 4000K
The EiKO SIG/600W/740/UD (order code 12349) is a SIGNAL flood light and high bay delivering 98,750 lm at 600W and 4000K. It operates on 120–277V with 0–10V dimming, is IP66 rated and ETL Listed for wet locations, and is DLC Premium qualified. Its Z10 receptacle simplifies adding controls.
Key Features
- Fixed Wattage: 600W for this ordering model.
- Lumen Output: 98,750 lm at 4000K.
- Efficacy: 165 lm/W in the performance summary.
- CRI: >70 for this ordering model.
- Fixed CCT: 4000K.
- Distribution Options: Separately listed SIGNAL lenses and reflectors offer 30°, 60°, 90°, and 100° options.
- Dimming: 0–10V.
- Input Voltage: 120–277V.
- Location and Ingress: ETL Listed for wet locations; IP66 rated.
- Operating Temperature: −40°F (−40°C) to 122°F (50°C).
- 3G Rating: Rated per ANSI C136.31.
- Rated Lifetime: Projected L70 100,000 hours; reported L70 >84,000 hours and reported L90 >36,000 hours.
- Warranty: 5-year limited warranty.
- Control Interface: Z10 receptacle simplifies adding controls.
Performance & Light Output
| Wattage | Total Lumens | Efficacy |
|---|---|---|
| 600W | 98,750 lm | 165 lm/W |
The performance summary lists CRI >70 at 4000K. Rated lifetime is projected L70 100,000 hours, reported L70 >84,000 hours, and reported L90 >36,000 hours.
Smart & Control Features
The SIGNAL fixture features a Z10 receptacle that EiKO says simplifies adding controls.
- Fixture Control: The cut sheet also documents 0–10V dimming.
Electrical
Input voltage is 120–277V, with power factor >0.9 and THD <20%. The cut sheet specifies a 10kV driver plus 20kV supplemental surge protection and 0–10V dimming. The fixture ships with 3-ft power and dimming cables.
Construction
Housing & Thermal: Cold-forged aluminum heatsink, die-cast aluminum driver housing with multiple points of entry for wiring, and stainless steel hardware.
Finish: Epoxy e-coat primer and polyester powder coat.
Environmental Sealing: IP66 rated and ETL Listed for wet locations. Operating temperature: −40°F (−40°C) to 122°F (50°C).

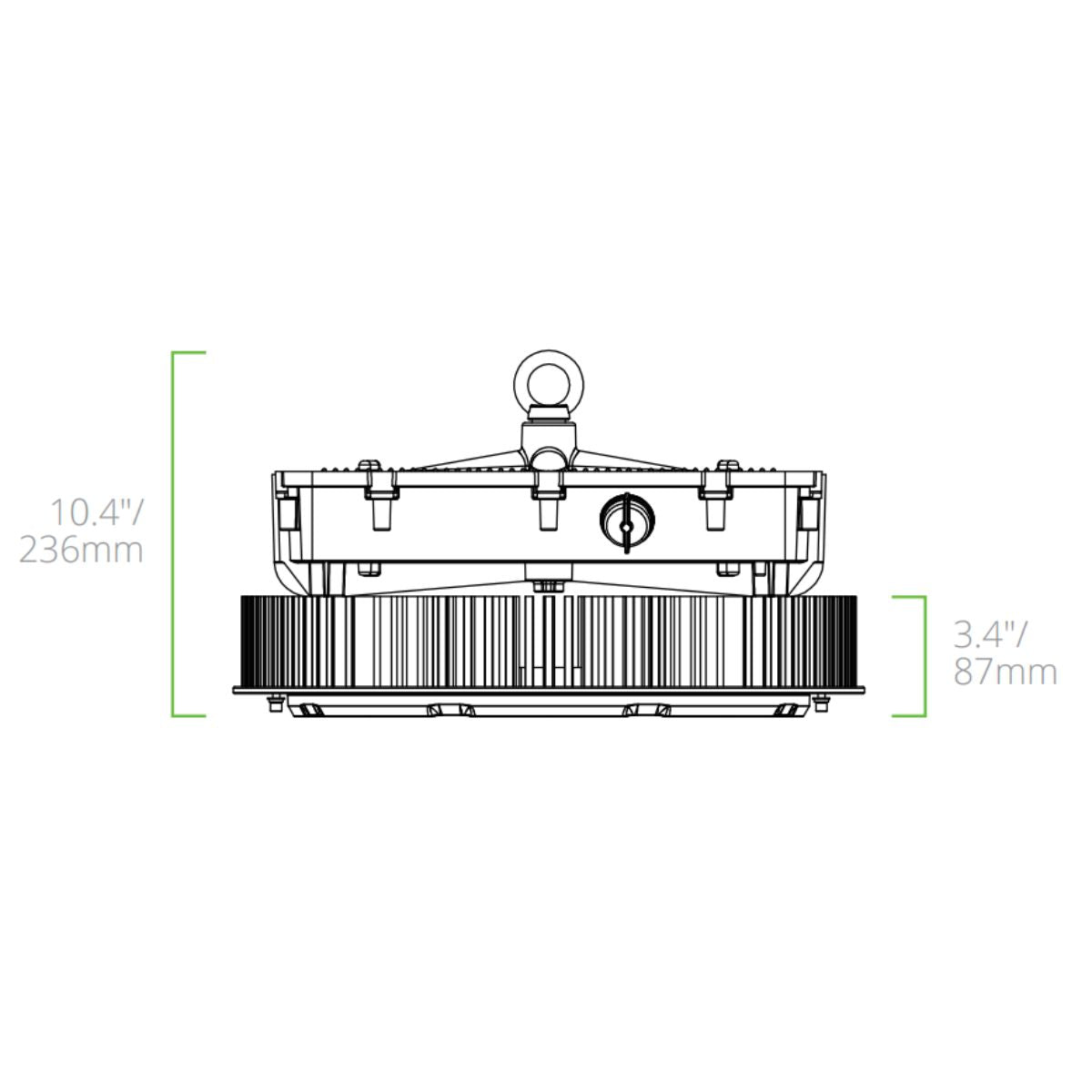

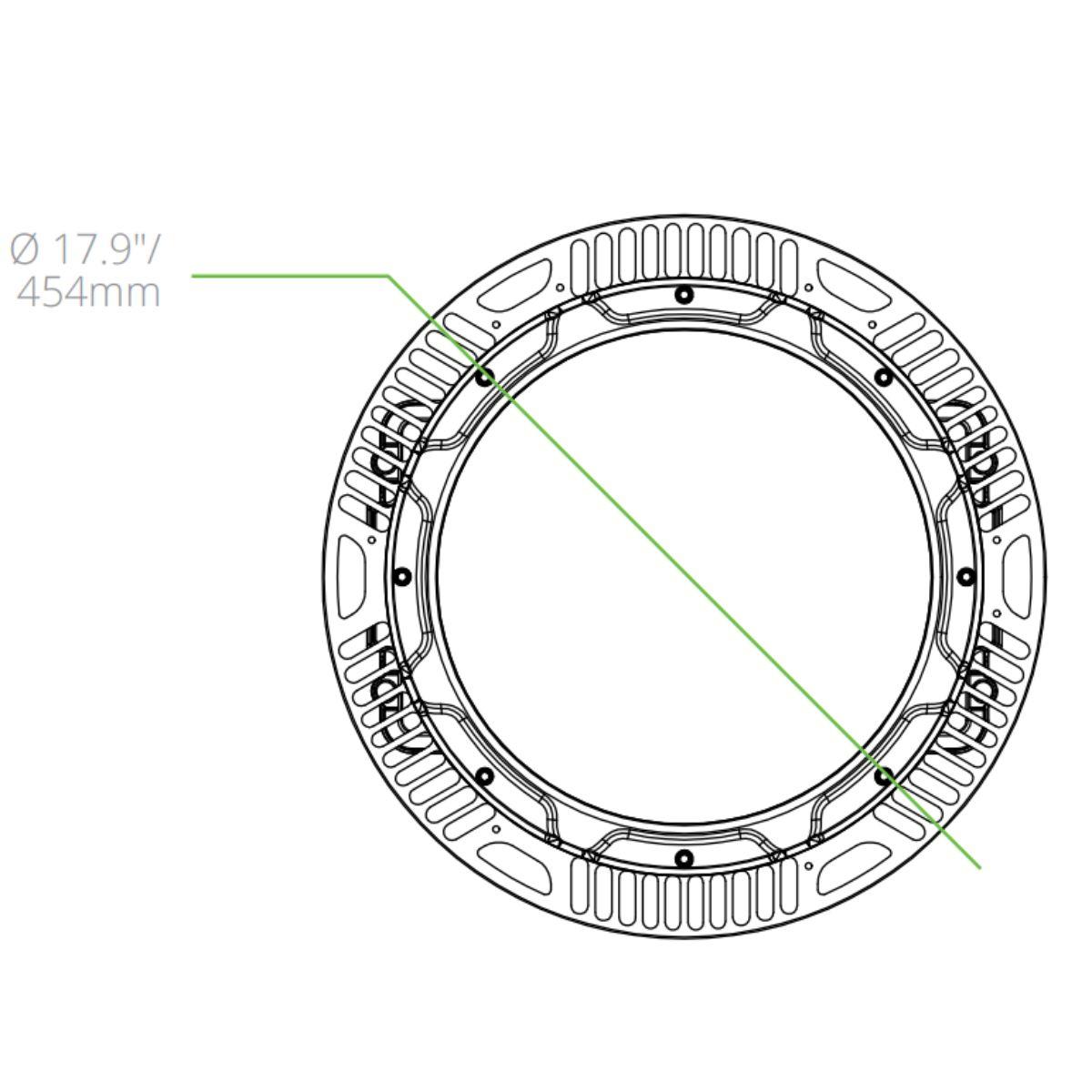

Dimensions & Weight: Base fixture 17.9 in. diameter × 10.4 in. height; 29.8 lb (13.5 kg).
Installation & Mounting
Wiring: Ships with 3-ft power and dimming cables. The driver housing has multiple wiring entry points.
Accessories Sold Separately:

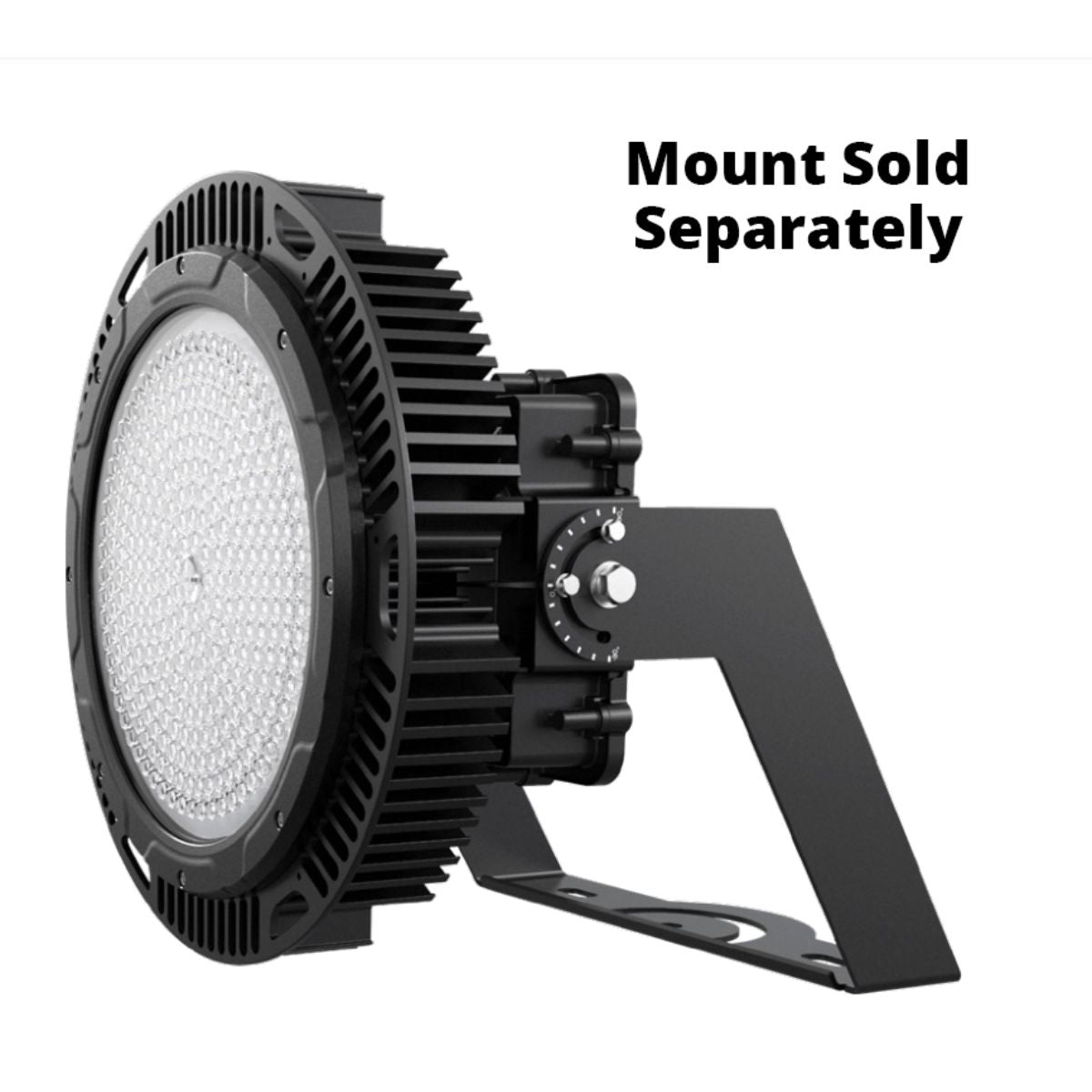

- Yoke mounting bracket: SIG/Y (12360), SIGNAL yoke mounting bracket, sold separately.
- Slipfitter: SIG/SF (12361), SIGNAL slipfitter for up to 2 3/8 in. pipe, sold separately.
- Surface mount: SIG/SM (12362), SIGNAL surface mount, sold separately.
- 100° reflector: SIG/AL100D (12359), SIGNAL reflector, sold separately.
- 30° lens: SIG-LENS-PC30D (10188), SIGNAL lens, sold separately.
- 60° lens: SIG-LENS-PC60D (10189), SIGNAL lens, sold separately.
- Black visor: SIG-VISOR-BK (10185), SIGNAL visor, sold separately.
- 90° aluminum reflector: SIG-REFLECTOR-AL90D (10190), SIGNAL reflector, sold separately.
Certifications & Rebates
- ETL: Listed for wet locations.
- IP66: Ingress protection rating.
- 3G: Rated per ANSI C136.31.
- DLC Premium: This exact ordering model is marked qualified in the manufacturer performance summary; rebate availability varies by utility and location.
Typical Applications
- Warehouses: The documented 98,750 lm output supports high-bay lighting across open floors.
- Distribution Centers: The separately sold 100° reflector offers a documented broad distribution option.
- Manufacturing Plants: Documented 0–10V dimming supports lighting control in manufacturing spaces.
- Outdoor Sports Fields: Wet-location listing and IP66 rating support suitable outdoor flood-light installations.
- High Mast: The 3G rating per ANSI C136.31 supports this manufacturer-listed application.
What's Included
- EiKO SIG/600W/740/UD SIGNAL flood light and high bay.
- 3-ft power cable.
- 3-ft dimming cable.
