EiKO SIGNAL LED Flood Light & High Bay — 450W — 5000K — 80,600 lm — 277–480V
Available in stock (210)
About this item
About this item
- 80,600 lm at 450W — 179 LPW — Highest Efficacy in the Entire SIGNAL Family: 277–480V + 5000K combination yields the peak LPW of all 8 SIGNAL order codes. Outperforms the 120–277V 5000K equivalent by 3,470 lm and 8 LPW at identical wattage.
- 277–480V — No Step-Down Transformer Required: Direct connection to three-phase 480V distribution. For 120–277V, specify SIG/450W/750/UD (order code 12346).
- 20kV Surge — 3G Rated (ANSI C136.31) — IP66: Engineered for sports fields, high mast, bridges, and harsh outdoor industrial environments on high-voltage distribution.
- Z10 Receptacle (ANSI C136.41) Standard: Photocontrol receptacle for photocell, occupancy, and smart network integration without fixture rewiring.
- Projected L70: 100,000 Hours — DLC Premium: Reported L70 >84,000 hr | Reported L90 >36,000 hr. DLC Premium for utility rebates.
We process payments securely and do not store credit card information.
Description
Description

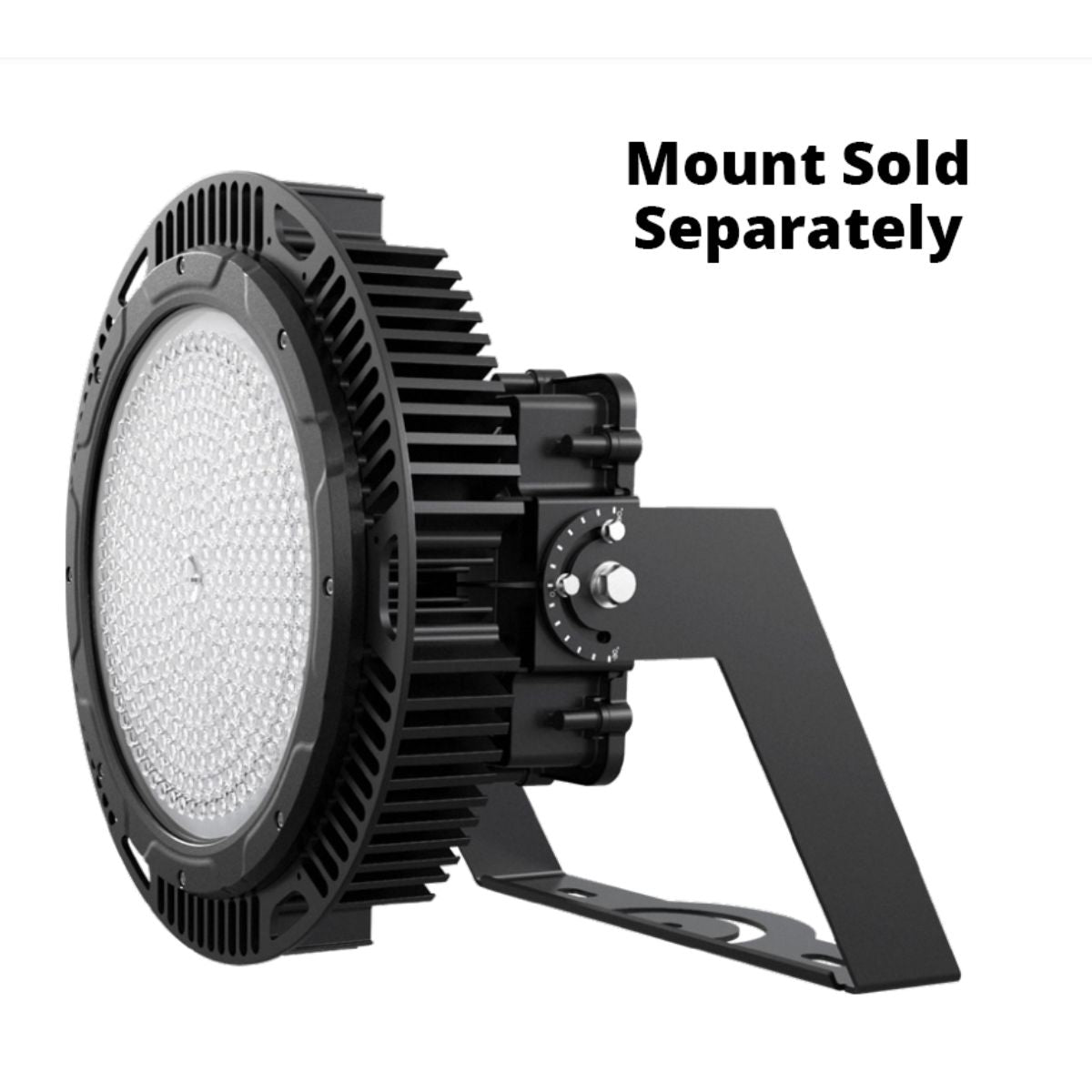

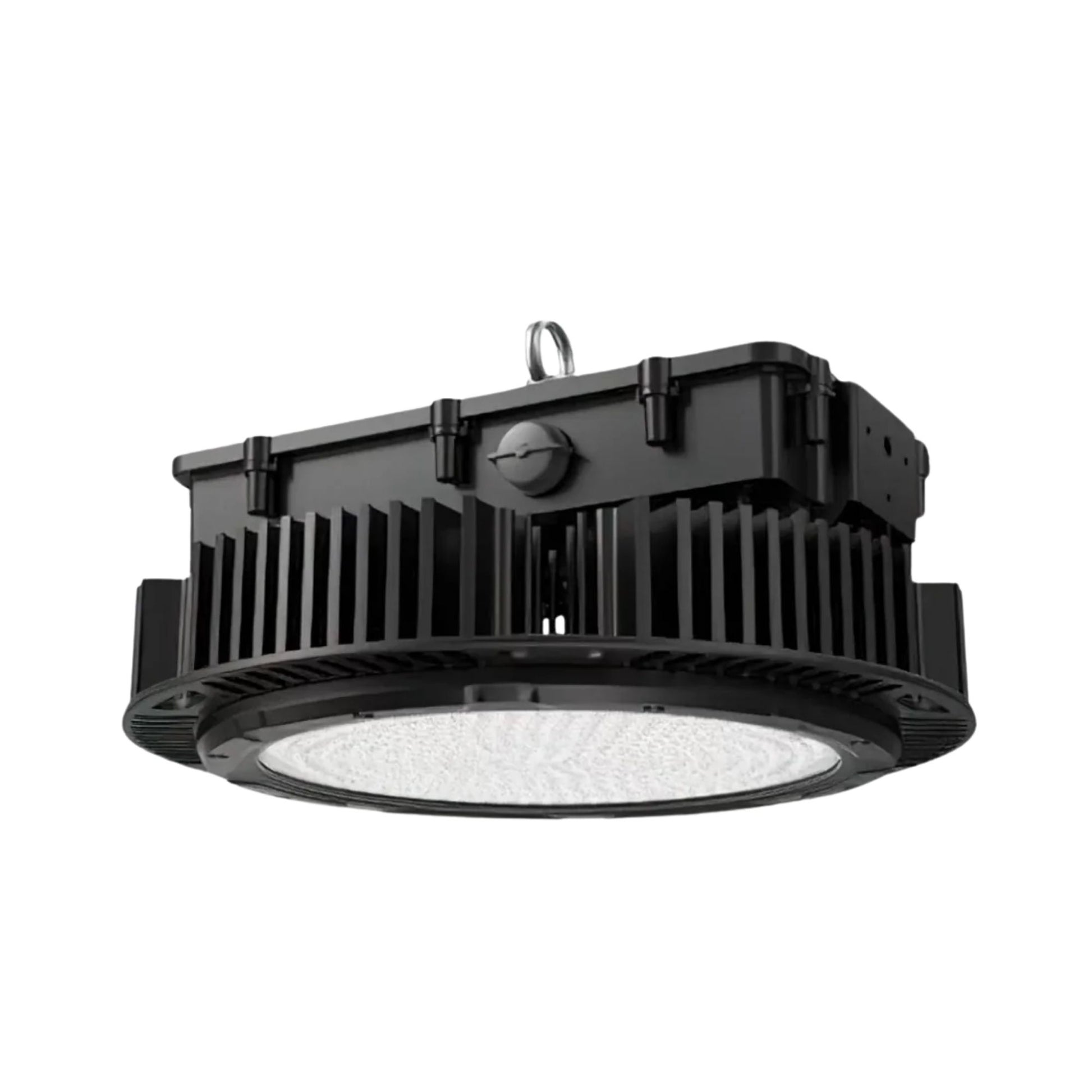

The EiKO SIGNAL SIG/450W/750/VD (order code 12348) is the 450W, 5000K, 277–480V high-voltage model in EiKO’s SIGNAL LED Flood Light and High Bay family. Delivers 80,600 lumens at 179 LPW efficiency — the highest LPW in the entire SIGNAL family. CRI >70. IP66. ETL Listed for wet locations. 3G rated per ANSI C136.31. Z10 Receptacle (ANSI C136.41). 20kV surge protection. DLC Premium qualified. Projected L70: 100,000 hours. 5-year limited warranty.
Key Features
- Wattage: 450W fixed
- Lumen Output: 80,600 lm
- Efficacy: 179 LPW — highest efficacy in the entire SIGNAL family
- CCT: 5000K fixed
- CRI: >70
- Dimming: 0–10V continuous
- Voltage: 277–480V AC, 60 Hz
- IP Rating: IP66
- Location Rating: ETL Listed for wet locations
- Vibration Rating: 3G rated per ANSI C136.31
- Surge Protection: 20kV supplemental (10kV driver standard)
- Power Factor: >0.9
- THD: <20%
- Z10 Receptacle: ANSI C136.41
- Ambient Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Heatsink: Cold forged aluminum
- Driver Housing: Die-cast aluminum
- Hardware: Stainless steel
- Finish: Epoxy e-coat primer + durable polyester powder coat, Black
- Weight: 28.2 lbs (12.8 kg)

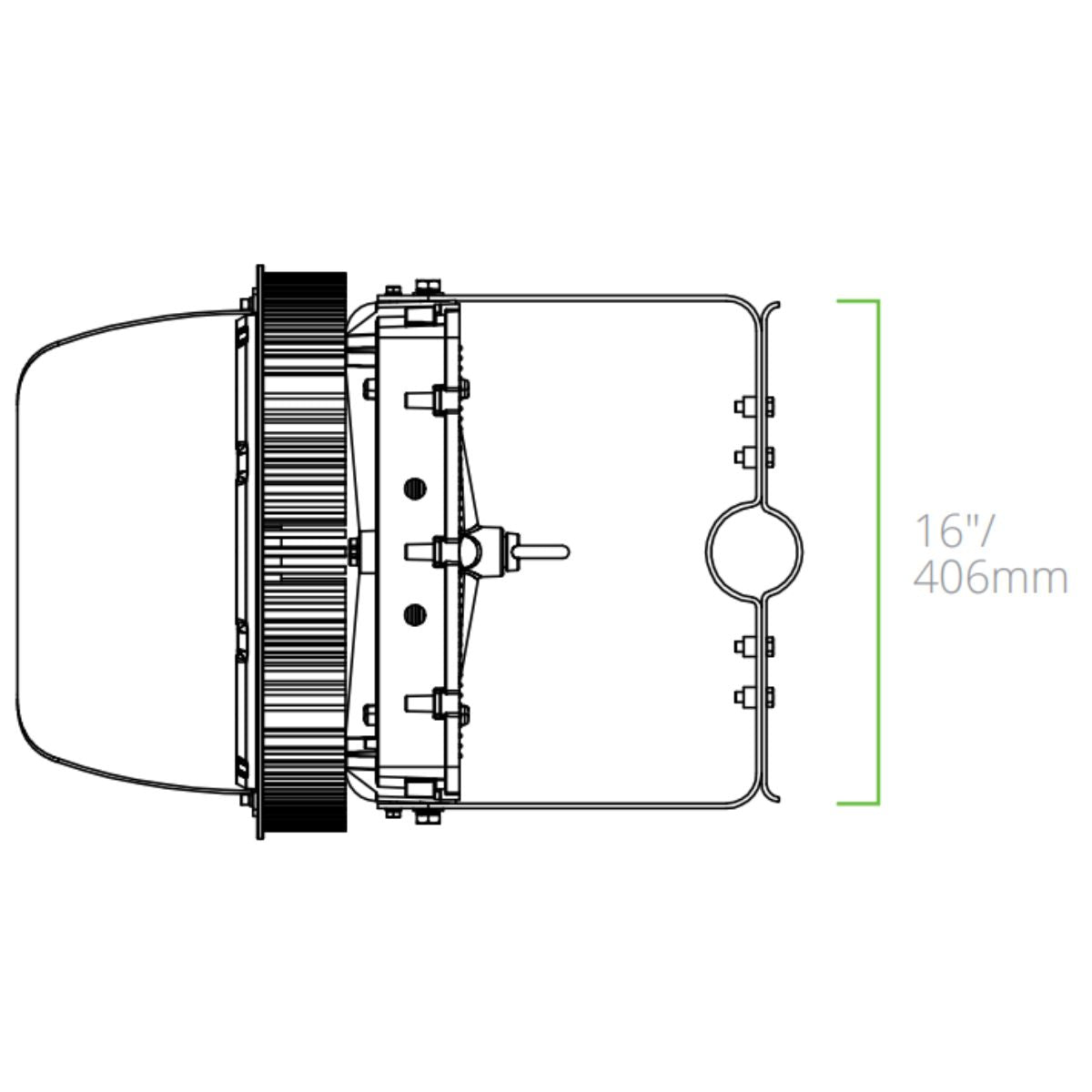

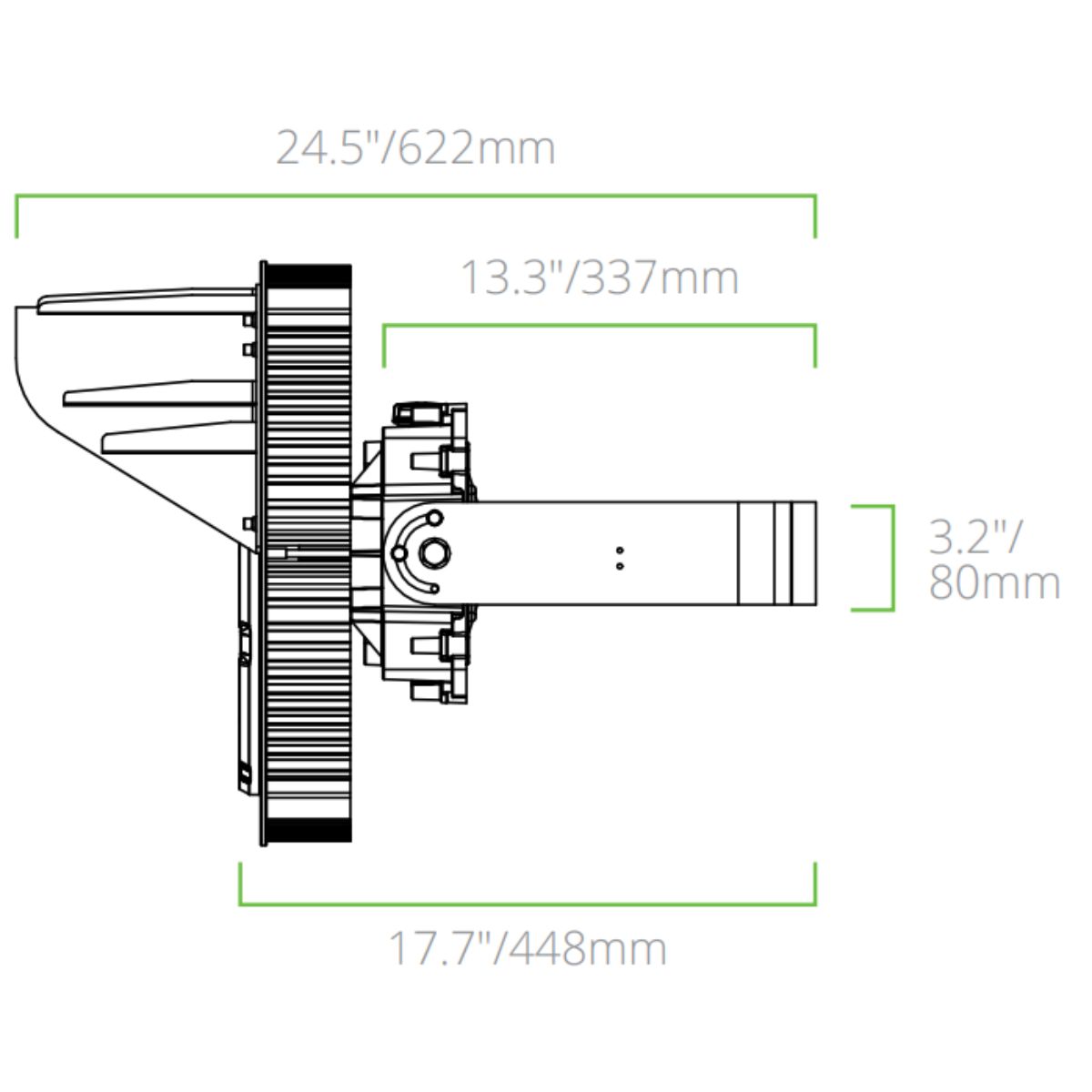

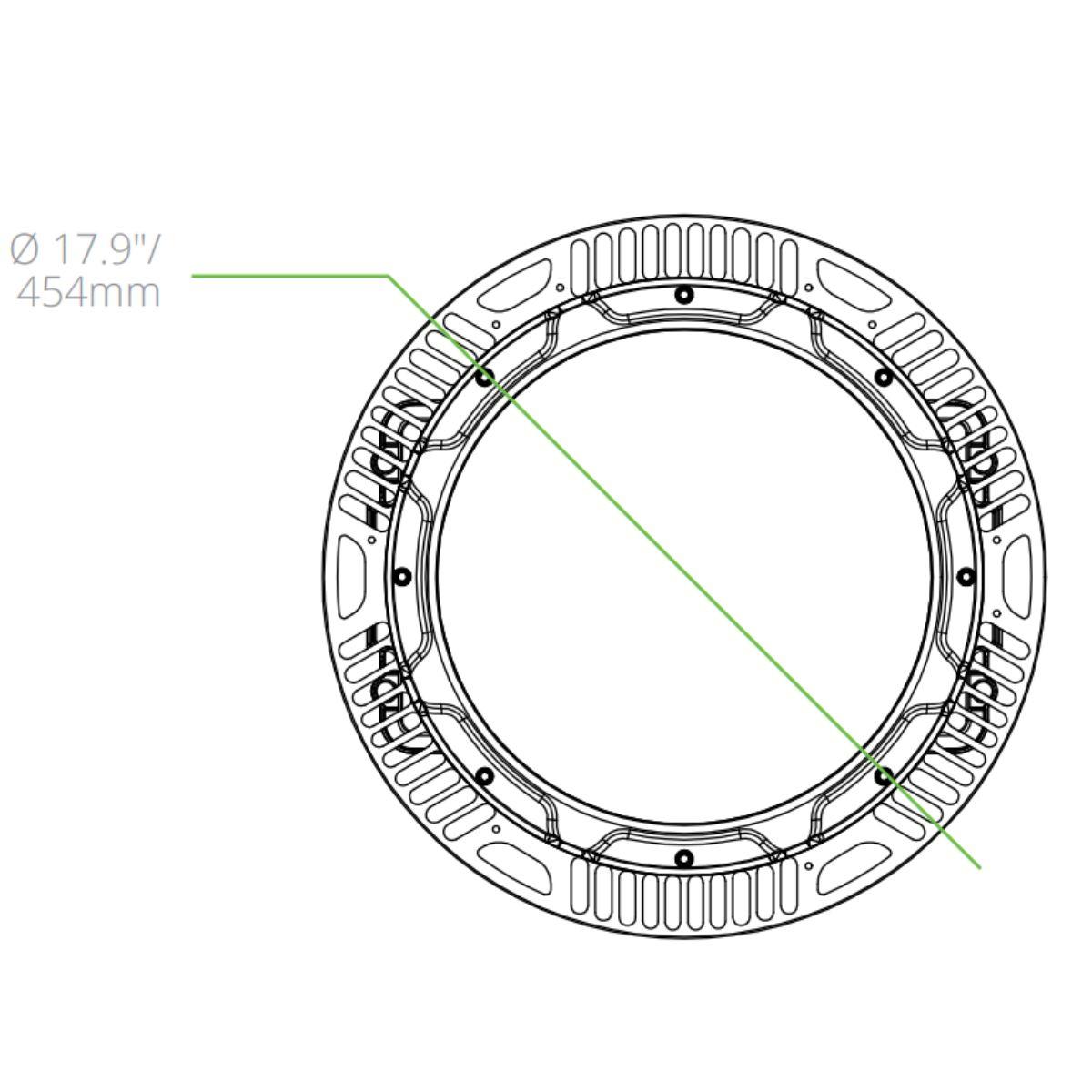

- Dimensions: 17.9" (454mm) dia. × 10.4" (236mm) H | driver housing: 3.4" (87mm)
- EPA: 2.09 ft² (without visor) | 2.236 ft² (with SIG-VISOR-BK)
- Cable: 3-ft power and dimming cables included
- Projected L70: 100,000 hours | Reported L70: >84,000 hours | Reported L90: >36,000 hours
- Warranty: 5-year limited (additional options available)
- DLC Premium: Qualified
- Green Technology: RoHS compliant
Performance & Light Output
At 450W: 80,600 lm / 179 LPW at 5000K, CRI >70 — the highest efficacy of any SIGNAL model. Outperforms the 120–277V 5000K equivalent (SIG/450W/750/UD: 77,130 lm / 171 LPW) by 3,470 lm and 8 LPW. Optional distribution accessories: PC30D (0.97), PC60D (0.98), AL90D (0.95). Projected L70: 100,000 hr | Reported L70 >84,000 hr | Reported L90 >36,000 hr.
Smart & Control Features
Z10 Receptacle (ANSI C136.41) standard. 0–10V dimming.
Electrical
277–480V AC, 60 Hz. 0–10V dimming. PF: >0.9. THD: <20%. 10kV driver + 20kV supplemental surge. No step-down transformer required for 480V systems. For 120–277V, specify SIG/450W/750/UD (order code 12346). RoHS compliant.
Construction
Cold forged aluminum heatsink. Die-cast aluminum driver housing. Stainless steel hardware. Epoxy e-coat + polyester powder coat, Black. IP66. 3G per ANSI C136.31. Diameter: 17.9". Height: 10.4". Weight: 28.2 lbs.
Installation & Mounting
3-ft cables included. Optional accessories (sold separately):
- SIG/Y (12360): Yoke Mounting Bracket
- SIG/SF (12361): Slipfitter for up to 2 3/8" pipe
- SIG/SM (12362): Surface Mount
- SIG/AL100D (12359): Reflector 100°
- SIG-LENS-PC30D (10188): Lens 30°
- SIG-LENS-PC60D (10189): Lens 60°
- SIG-VISOR-BK (10185): Visor, Black
- SIG-REFLECTOR-AL90D (10190): Reflector, Aluminum, 90°
Certifications & Rebates

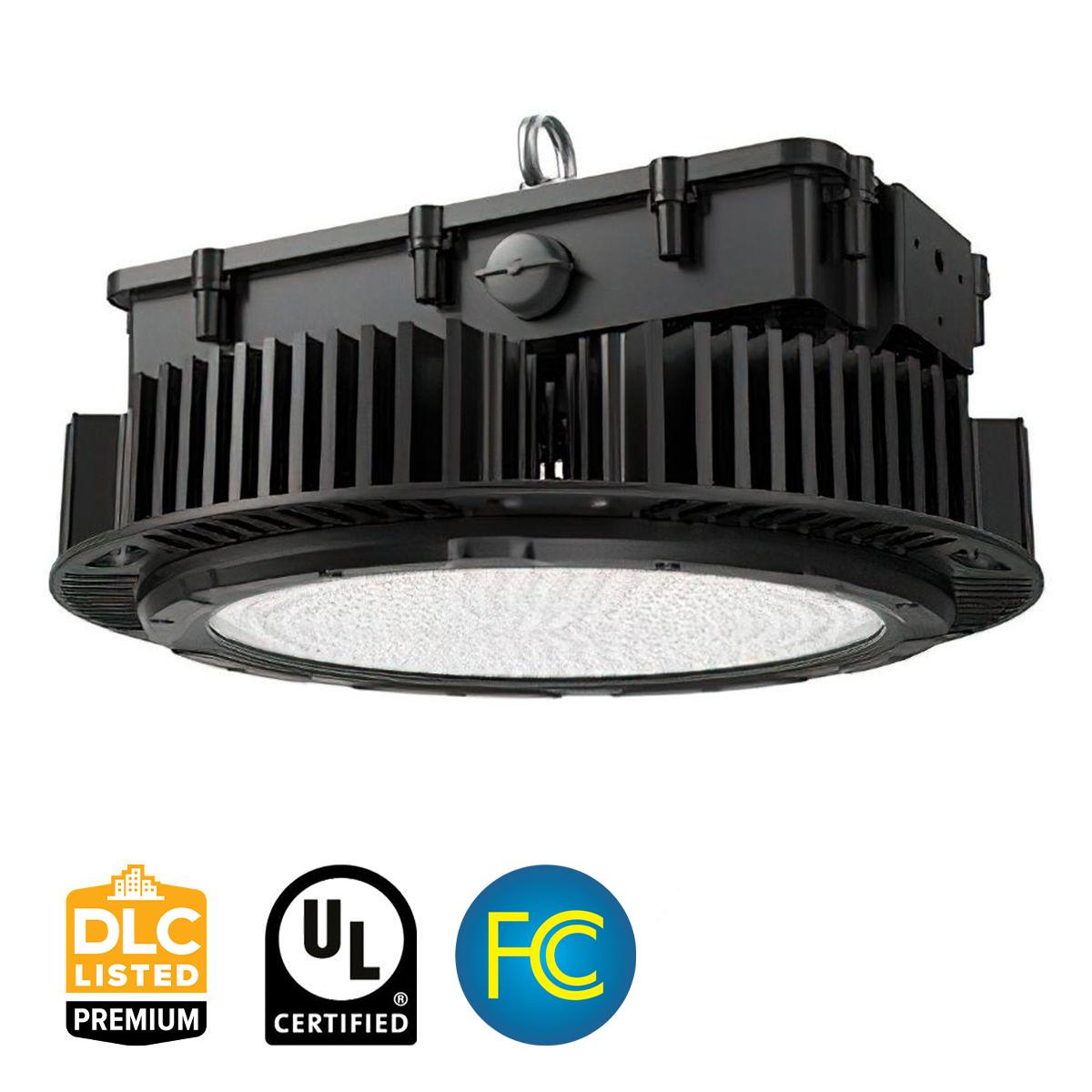

ETL Listed for wet locations. IP66. 3G per ANSI C136.31. Z10 (ANSI C136.41). FCC. RoHS. DLC Premium — verify at designlights.org by model SIG/450W/750/VD.
Typical Applications
- Industrial Facilities — Three-Phase 480V: Highest efficacy model (179 LPW) for energy-critical large-footprint industrial deployments on 480V distribution
- Outdoor Sports Fields & Stadiums — 480V: 5000K + 3G + 20kV + IP66 for pole-mounted sports lighting on three-phase distribution
- Warehouses & Distribution Centers — 480V: Maximum efficiency with Z10 controls on 480V industrial distribution
- Bridges, Monuments & Infrastructure: ETL wet + IP66 + 3G for exposed outdoor infrastructure applications
- High Mast & Hangars: 80,600 lm with 3G rating for high mast and aviation applications
- Rail, Shipping & Work Yards: Peak LPW efficiency and 20kV surge for demanding outdoor industrial environments
What's Included
- EiKO SIGNAL LED Flood Light & High Bay — SIG/450W/750/VD — Black
- 3-ft Power and Dimming Cables
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the IP rating and location certification?
What is the IP rating and location certification?
Why does this model have the highest LPW in the SIGNAL family?
Why does this model have the highest LPW in the SIGNAL family?
What voltage range does this model support?
What voltage range does this model support?
How does this compare to the 600W models?
How does this compare to the 600W models?
Is this DLC Premium qualified, and what are the three rated life figures?
Is this DLC Premium qualified, and what are the three rated life figures?
