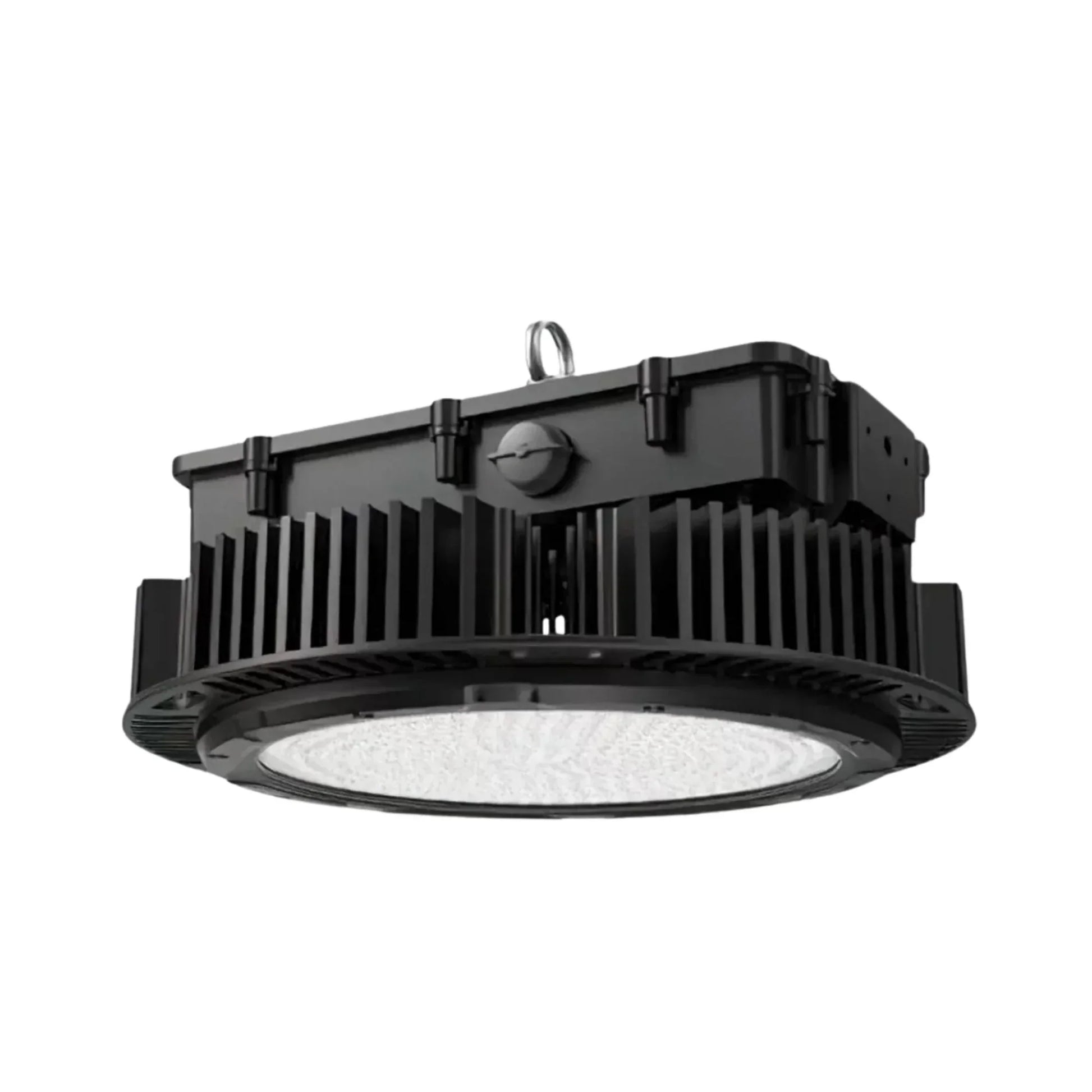

EiKO SIGNAL LED Flood Light & High Bay — 450W — 5000K — 77,130 lm — 120–277V
Available in stock (300)
About this item
About this item
- 77,130 lm at 450W — 171 LPW — 5000K — Flood & High Bay Dual-Use: Highest LPW in the 450W/120–277V tier. 5000K delivers crisp white light preferred for sports fields, work yards, and task-intensive industrial environments.
- 20kV Surge — 3G Rated (ANSI C136.31) — IP66: 20kV supplemental surge, 3G structural vibration rating, IP66 — engineered for high mast, bridge, sports, and harsh outdoor environments.
- Z10 Receptacle (ANSI C136.41) Standard: Integrated photocontrol receptacle for photocell, occupancy sensor, and smart network integration without rewiring the fixture.
- Projected L70: 100,000 Hours — DLC Premium: Reported L70 >84,000 hr | Reported L90 >36,000 hr. DLC Premium qualified for utility rebate programs.
- 120–277V — Cold Forged Aluminum Heatsink: Standard U.S. commercial voltage. For 277–480V with 80,600 lm / 179 LPW, specify SIG/450W/750/VD (order code 12348).
We process payments securely and do not store credit card information.
Description
Description
The EiKO SIGNAL SIG/450W/750/UD (order code 12346) is the 450W, 5000K, 120–277V model in EiKO’s SIGNAL LED Flood Light and High Bay family. Delivers 77,130 lumens at 171 LPW efficiency — higher efficacy than the 4000K equivalent at this wattage. CRI >70. IP66. ETL Listed for wet locations. 3G rated per ANSI C136.31. Z10 Receptacle (ANSI C136.41). 20kV surge protection. DLC Premium qualified. Projected L70: 100,000 hours. 5-year limited warranty. Ships with 3-ft power and dimming cables. Cold forged aluminum heatsink.
Key Features
- Wattage: 450W fixed
- Lumen Output: 77,130 lm
- Efficacy: 171 LPW
- CCT: 5000K fixed
- CRI: >70
- Dimming: 0–10V continuous
- Voltage: 120–277V AC, 60 Hz
- IP Rating: IP66
- Location Rating: ETL Listed for wet locations
- Vibration Rating: 3G rated per ANSI C136.31
- Surge Protection: 20kV supplemental (10kV driver standard)
- Power Factor: >0.9
- THD: <20%
- Z10 Receptacle: ANSI C136.41
- Ambient Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Heatsink: Cold forged aluminum
- Driver Housing: Die-cast aluminum
- Hardware: Stainless steel
- Finish: Epoxy e-coat primer + durable polyester powder coat, Black
- Weight: 28.2 lbs (12.8 kg)

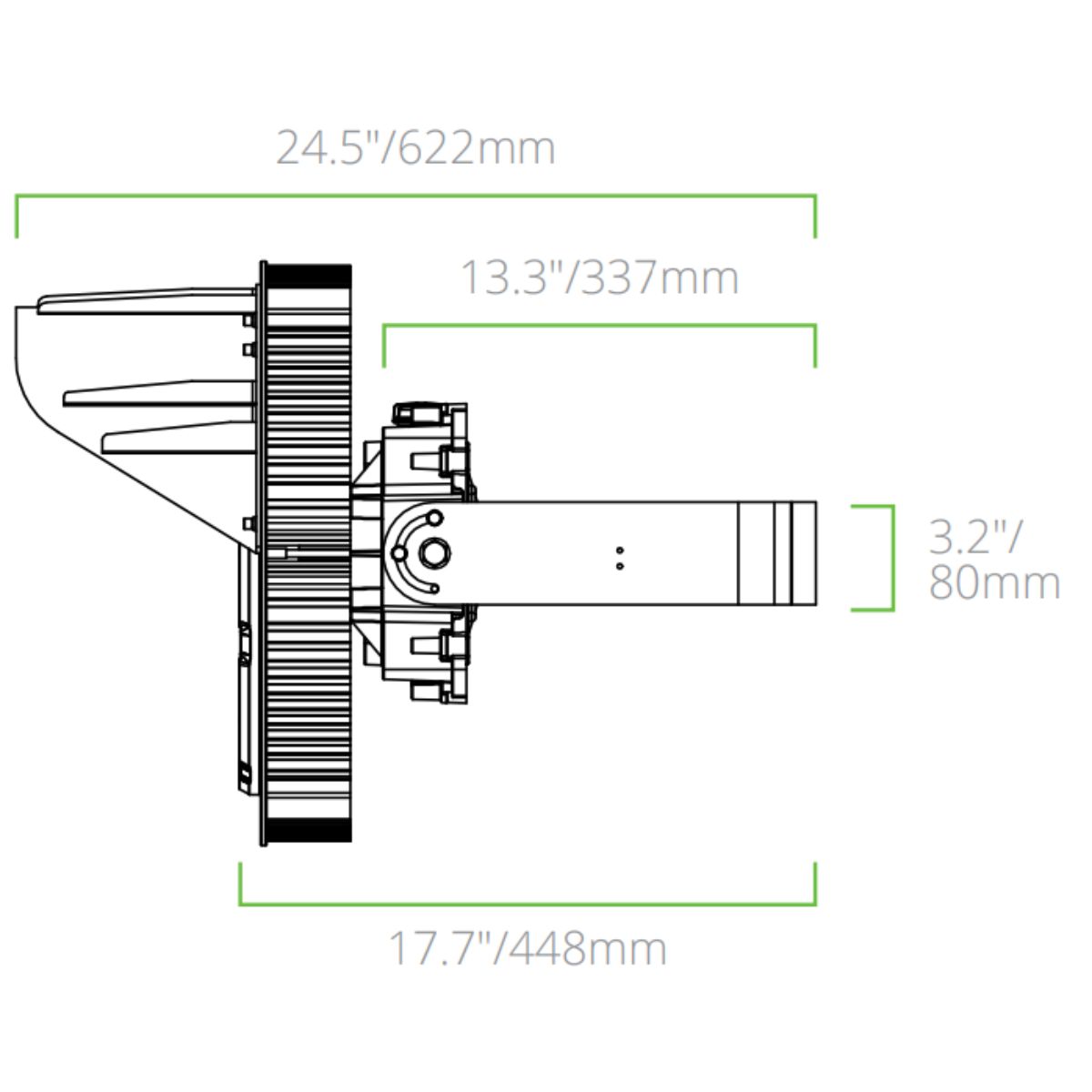

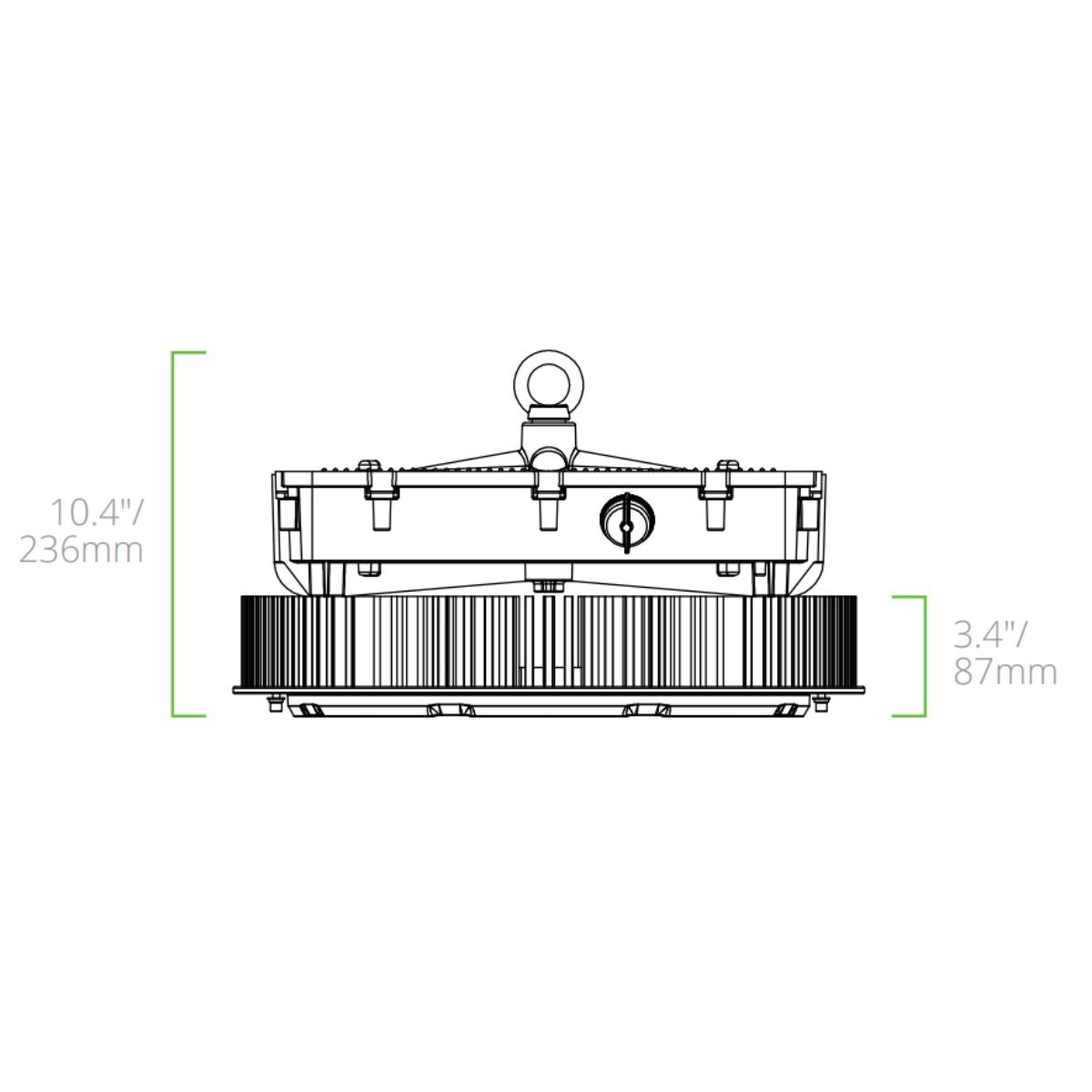

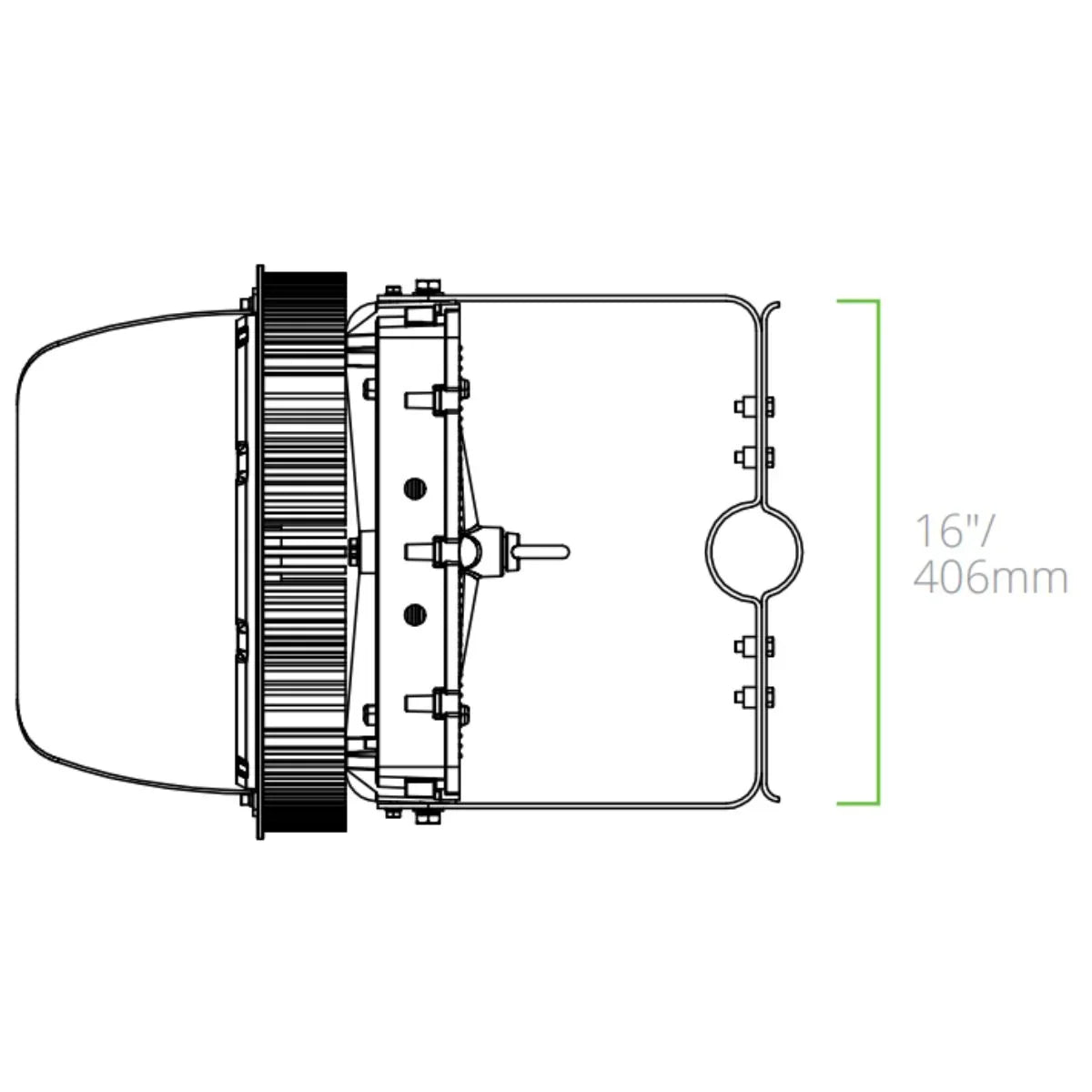

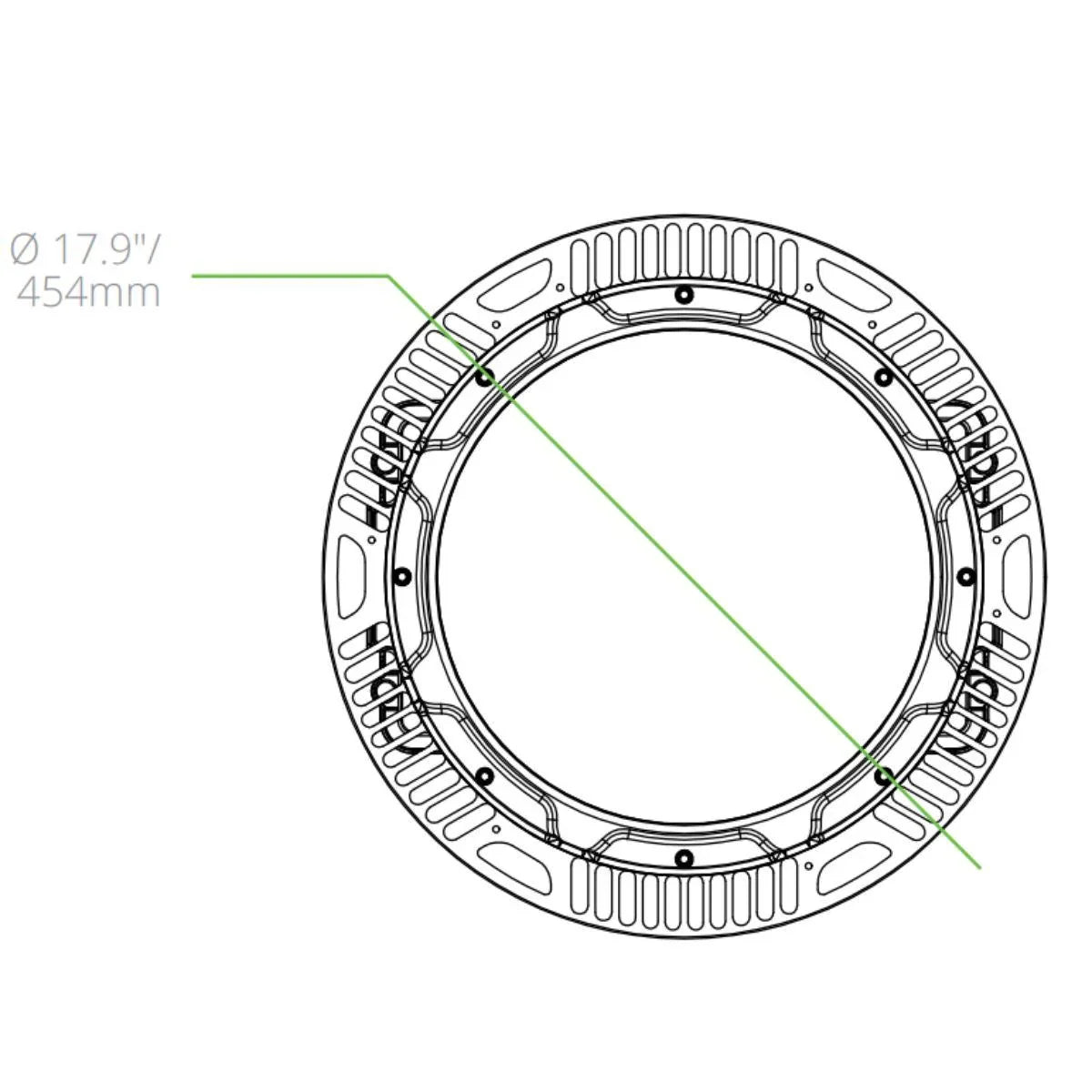

- Dimensions: 17.9" (454mm) dia. × 10.4" (236mm) H | driver housing: 3.4" (87mm)
- EPA: 2.09 ft² (without visor) | 2.236 ft² (with SIG-VISOR-BK)
- Cable: Ships with 3-ft power and dimming cables
- Projected L70: 100,000 hours | Reported L70: >84,000 hours | Reported L90: >36,000 hours
- Warranty: 5-year limited (additional options available)
- DLC Premium: Qualified
- Green Technology: RoHS compliant
Performance & Light Output
At 450W: 77,130 lm / 171 LPW at 5000K, CRI >70. The 5000K model delivers slightly higher lumens and efficacy than the 4000K equivalent (SIG/450W/740/UD, 76,185 lm / 169 LPW). Optional distribution accessories: PC30D lens (0.97), PC60D lens (0.98), AL90D reflector (0.95). For 277–480V at higher output, specify SIG/450W/750/VD (order code 12348, 80,600 lm / 179 LPW). Projected L70: 100,000 hr | Reported L70 >84,000 hr | Reported L90 >36,000 hr.
Smart & Control Features
Z10 Receptacle (ANSI C136.41) standard. 0–10V continuous dimming.
Electrical
120–277V AC, 60 Hz. 0–10V dimming. PF: >0.9. THD: <20%. 10kV driver + 20kV supplemental surge to ANSI standards. For 277–480V, specify SIG/450W/750/VD (order code 12348). RoHS compliant.
Construction
Cold forged aluminum heatsink. Die-cast aluminum driver housing. Stainless steel hardware. Epoxy e-coat primer + polyester powder coat, Black. IP66. 3G rated per ANSI C136.31. Diameter: 17.9" (454mm). Height: 10.4" (236mm). Weight: 28.2 lbs.
Installation & Mounting
3-ft power and dimming cables included. Optional accessories (sold separately):

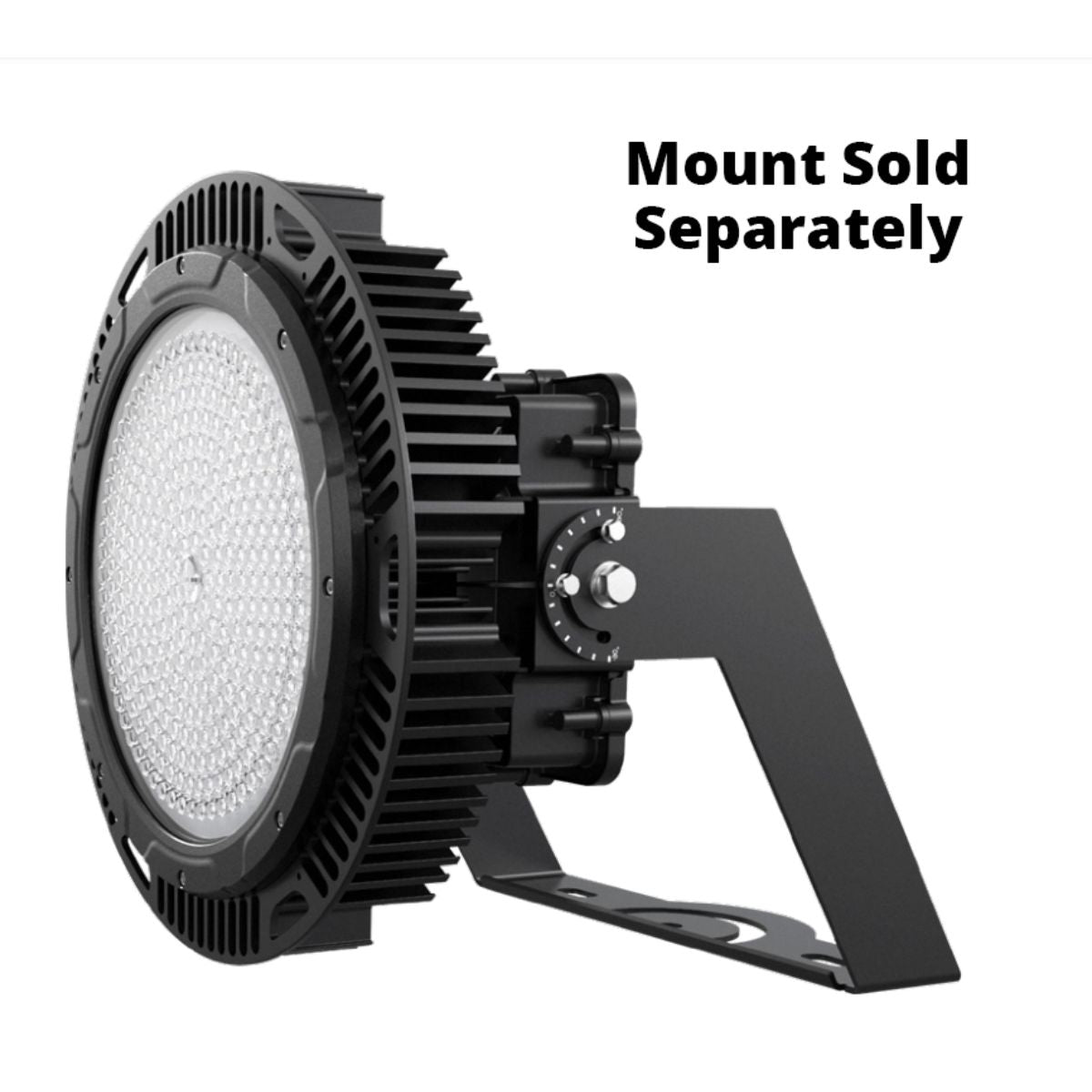

- SIG/Y (12360): Yoke Mounting Bracket
- SIG/SF (12361): Slipfitter for up to 2 3/8" pipe
- SIG/SM (12362): Surface Mount
- SIG/AL100D (12359): Reflector 100°
- SIG-LENS-PC30D (10188): Lens 30°
- SIG-LENS-PC60D (10189): Lens 60°
- SIG-VISOR-BK (10185): Visor, Black
- SIG-REFLECTOR-AL90D (10190): Reflector, Aluminum, 90°
Certifications & Rebates

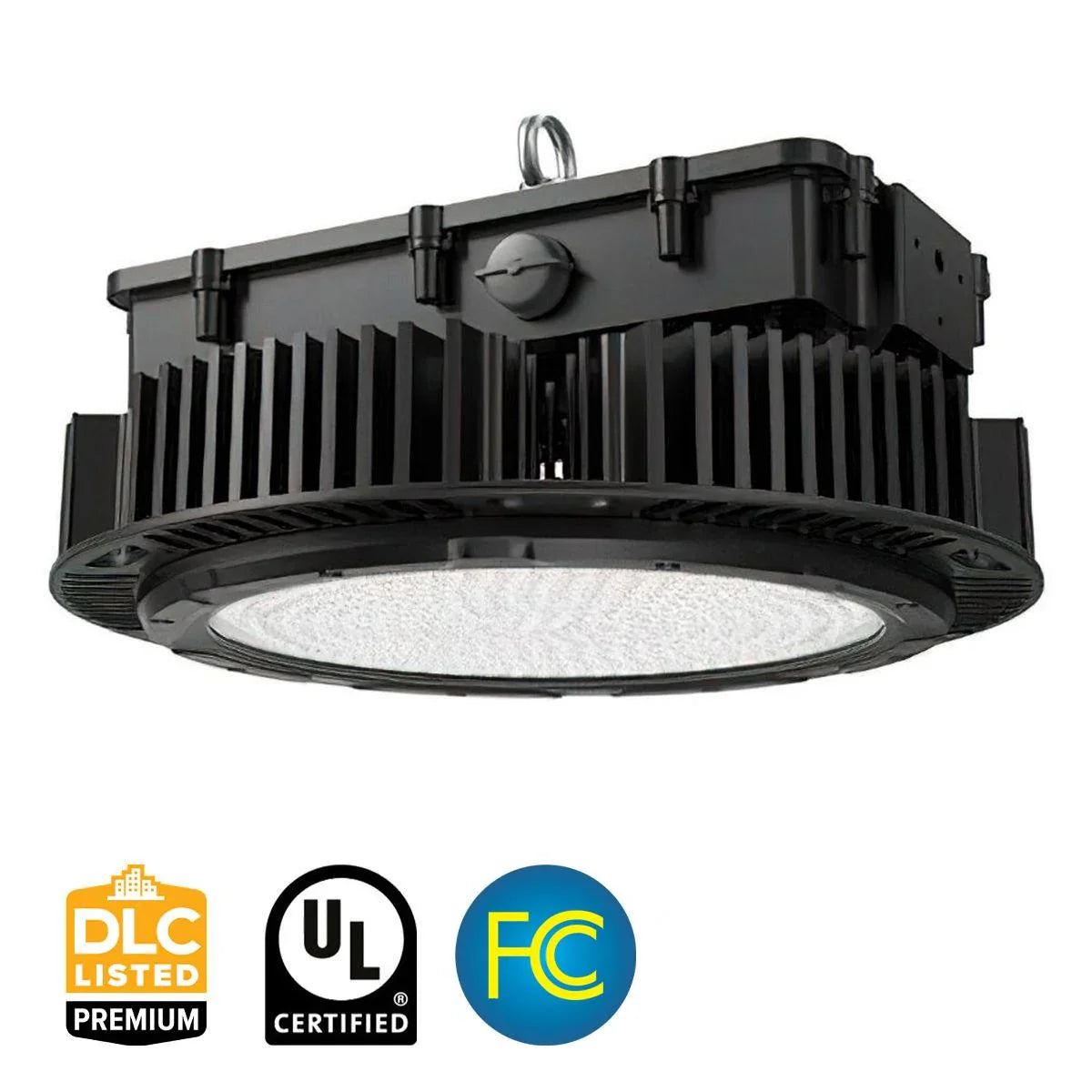

ETL Listed for wet locations. IP66. 3G rated per ANSI C136.31. Z10 (ANSI C136.41). FCC. RoHS. DLC Premium — verify at designlights.org by model SIG/450W/750/UD.
Typical Applications
- Warehouses & Distribution Centers: 77,130 lm at 450W with Z10 for controls-ready high bay deployment
- Manufacturing Plants: IP66 and 3G for demanding industrial environments
- Outdoor Sports Fields & Stadiums: 5000K crisp white light for sports field color rendering; 3G and 20kV for pole-mounted outdoor use
- Bridges, Monuments & Facades: ETL wet location + IP66 + 3G structural rating for exposed architectural applications
- Rail, Shipping & Work Yards: High output and 20kV surge for outdoor industrial work environments
- Construction Sites & High Mast: 3G vibration and IP66 for high mast and temporary construction lighting
What's Included
- EiKO SIGNAL LED Flood Light & High Bay — SIG/450W/750/UD — Black
- 3-ft Power and Dimming Cables
